TOYOTA 4RUNNER 2012 N280 / 5.G Owners Manual

421
3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
4RUNNER_U

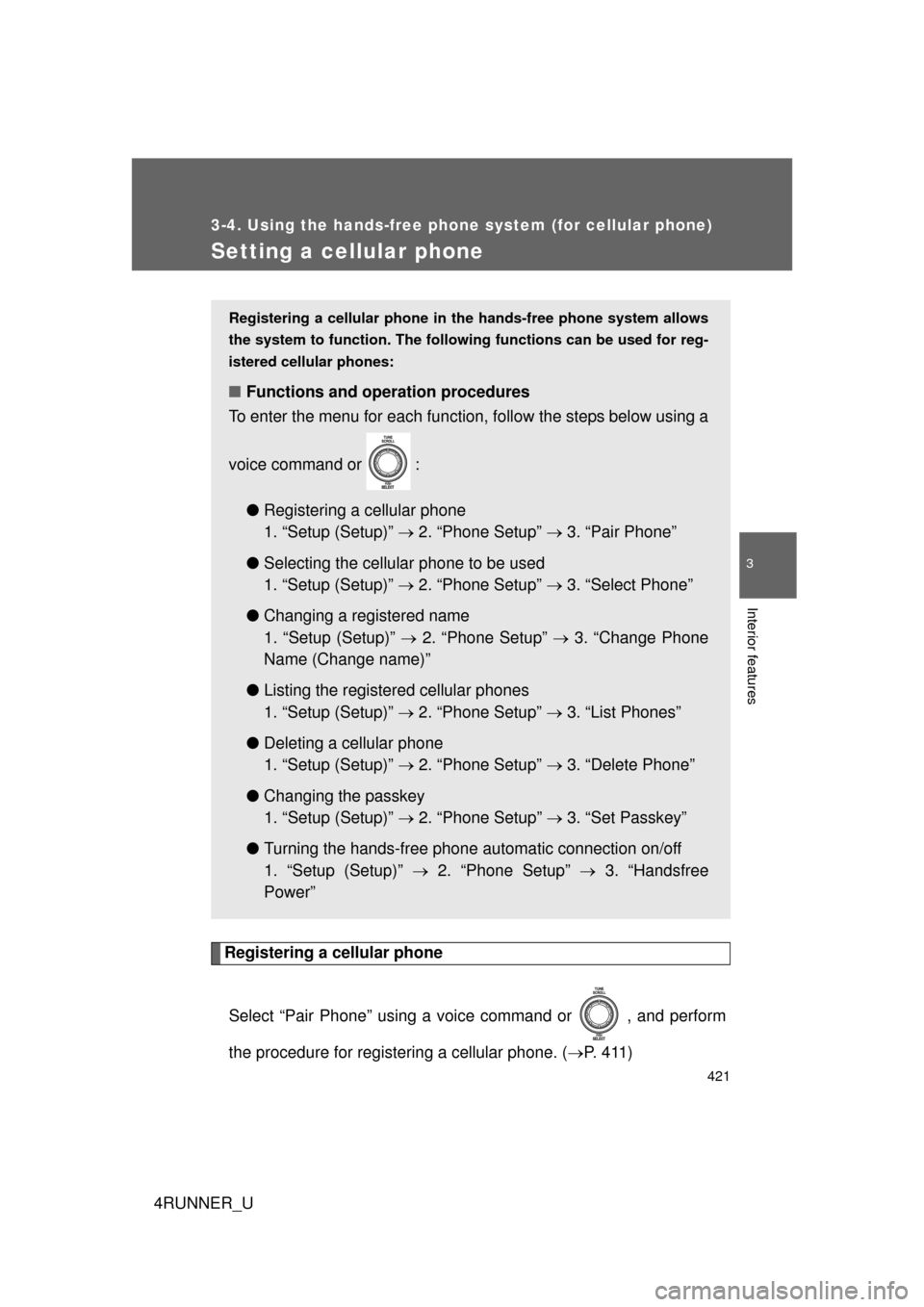

Setting a cellular phone
Registering a cellular phoneSelect “Pair Phone” using a voice command or , and perform
the procedure for registering a cellular phone. ( P. 4 1 1 )
Registering a cellular phone in the hands-free phone system allows
the system to function. The followin g functions can be used for reg-
istered cellular phones:
■ Functions and operation procedures
To enter the menu for each function, follow the steps below using a
voice command or :
●Registering a cellular phone
1. “Setup (Setup)”  2. “Phone Setup”  3. “Pair Phone”
● Selecting the cellular phone to be used
1. “Setup (Setup)”  2. “Phone Setup”  3. “Select Phone”
● Changing a registered name
1. “Setup (Setup)”  2. “Phone Setup”  3. “Change Phone
Name (Change name)”
● Listing the registered cellular phones
1. “Setup (Setup)”  2. “Phone Setup”  3. “List Phones”
● Deleting a cellular phone
1. “Setup (Setup)”  2. “Phone Setup”  3. “Delete Phone”
● Changing the passkey
1. “Setup (Setup)”  2. “Phone Setup”  3. “Set Passkey”
● Turning the hands-free phone automatic connection on/off
1. “Setup (Setup)”  2. “Phone Setup”  3. “Handsfree
Power”

422 3-4. Using the hands-free phone system (for cellular phone)
4RUNNER_U
Selecting the cellular phone to be used
Select “Select Phone” using a voice command or .
Pattern A Select the cellular phone to be used by either of the following
methods, and select “Confirm” using a voice command or
:
a. Press the talk switch and say the desired phone name.
b. Press the talk switch and say “List phones”. While the name of the desired cellular phone is being read aloud, press the
talk switch.
Pattern B
Select the cellular phone to be used using .
Changing a registered name
Select “Change Phone Name (Change name)” using a voice
command or .
STEP 1
STEP 2
STEP 2
STEP 1

423
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
4RUNNER_USelect the name of the cellular phone to be changed by either
of the following methods:
a. Press the talk switch and
say the desired phone name, and
select “Confirm” using a voice command or .
b. Press the talk switch and say “List phones”. While the desired phone name is being read aloud, press the talk
switch.
c. Select the desired phone name using .
Press the talk switch or select “Record Name” using ,
and say a new name.
Select “Confirm” using a voice command or .
Listing the registered cellular phones
Selecting “List Phones” using a voice command or causes the
list of registered cellular phones to be read aloud.
When listing is complete, the system returns to “Phone Setup”.
Pressing the talk switch while the name of a cellular phone is being
read selects the cellular phone, and the following functions will be
available:
• Selecting a cellular phone: “Select Phone”
• Changing a registered name: “Change Name”
• Deleting a cellular phone: “Delete Phone”
STEP 2
STEP 3
STEP 4

424 3-4. Using the hands-free phone system (for cellular phone)
4RUNNER_U
Deleting a cellular phone
Select “Delete Phone” using a voice command or .
Select the cellular phone to be deleted by either of the follow-
ing methods and select “Confirm” using a voice command or :
a. Press the talk switch and sa y the name of the desired cellu-
lar phone.
b. Press the talk switch and say “List phones”. While the name of the desired cellular phone is being read aloud, press the
talk switch.
Changing the passkey
Select “Set Passkey” using a voice command or .
Press the talk switch, say a 4 to 8-digit number, and select
“Confirm” using a voice command or .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
STEP 1
STEP 2
STEP 1
STEP 2
STEP 3

425
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
4RUNNER_U
Turning the hands-free phone automatic connection on/off
■ Turning off the automatic connection
Select “Handsfree Power” using a voice command or .
Select “Turn off” using a voice command or .
■ Turning on the automatic connection
Select “Handsfree Power” using a voice command or .
Select “Turn on” using a voice command or .
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
STEP 1
STEP 2
STEP 1
STEP 2

426
3-4. Using the hands-free phone system (for cellular phone)
4RUNNER_U

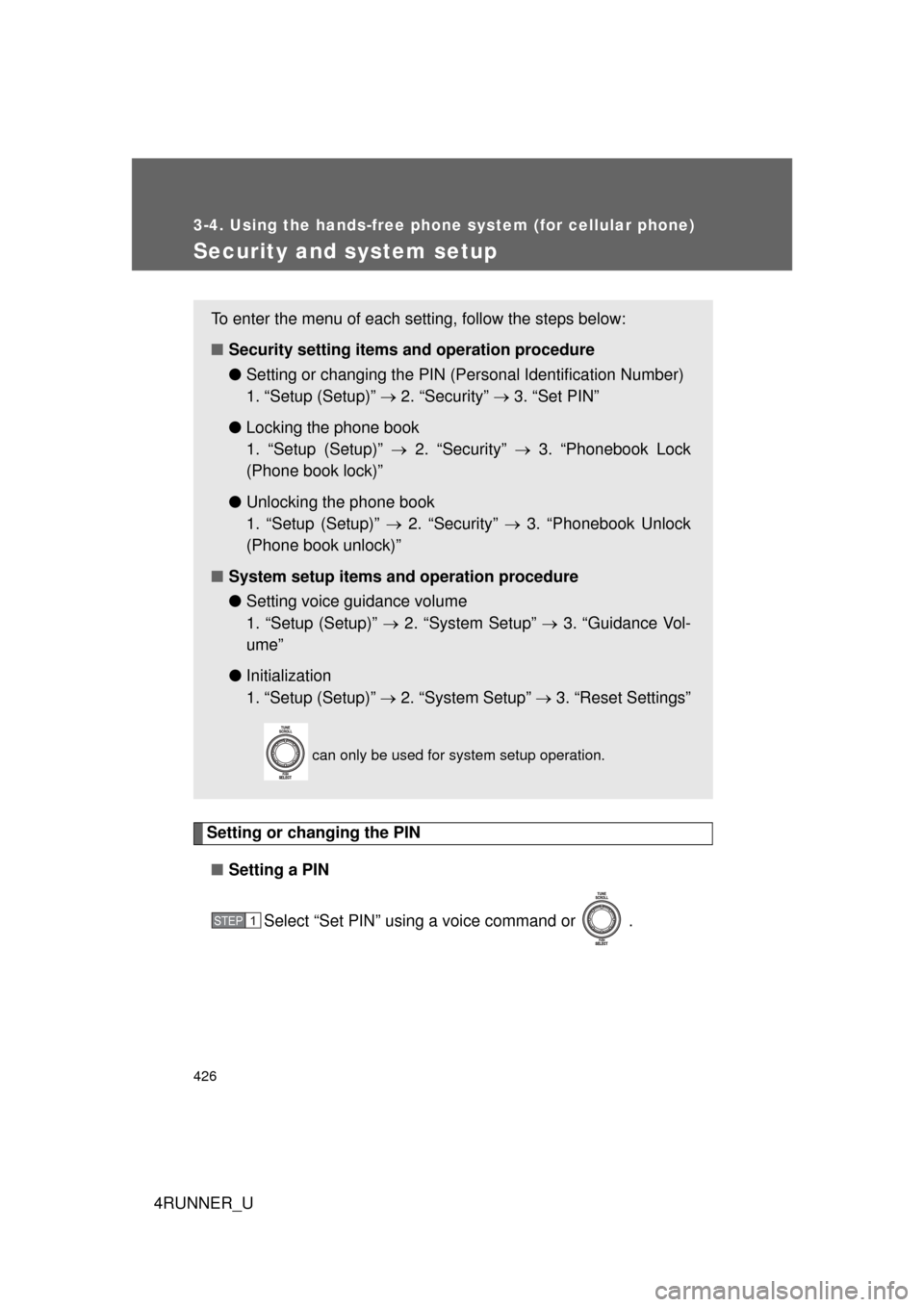

Security and system setup
Setting or changing the PIN■ Setting a PIN
Select “Set PIN” using a voice command or .
To enter the menu of each setting, follow the steps below:
■Security setting items and operation procedure
● Setting or changing t he PIN (Personal Identification Number)
1. “Setup (Setup)”  2. “Security”  3. “Set PIN”
● Locking the phone book
1. “Setup (Setup)”  2. “Security”  3. “Phonebook Lock
(Phone book lock)”
● Unlocking the phone book
1. “Setup (Setup)”  2. “Security”  3. “Phonebook Unlock
(Phone book unlock)”
■ System setup items and operation procedure
●Setting voice guidance volume
1. “Setup (Setup)”  2. “System Setup”  3. “Guidance Vol-
ume”
● Initialization
1. “Setup (Setup)”  2. “System Setup”  3. “Reset Settings”
can only be used for system setup operation.
STEP 1

427
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
4RUNNER_UEnter a PIN using a voice command or .
When using , input the code 1 digit at a time.
■ Changing the PIN
Select “Set PIN” using a voice command or .
Enter the registered PIN using a voice command or .
Enter a new PIN using a voice command or .
When using , input the code 1 digit at a time.
Locking or unlocking the phone book Select “Phonebook Lock (Phone book lock)” or “Phonebook
Unlock (Phone book unlock)” using a voice command or
.
Input the PIN by either of the following methods and select
“Confirm” using a voice command or :
a. Press the talk switch and say the registered PIN.
b. Input a new PIN using .
STEP 2
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2

428 3-4. Using the hands-free phone system (for cellular phone)
4RUNNER_U
Setting voice guidance volume
Select “Guidance Volume” using .
Change the voice guidance volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
InitializationSelect “Reset Settings” and then “Confirm” using .
Select “Confirm” using .
STEP 1
STEP 2
STEP 1
STEP 2

429
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
4RUNNER_U
■Initialization
● The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
● Once the initialization has been completed, the data cannot be restored
to its original state.
■ When the phone book is locked
The following functions cannot be used:
● Dialing by inputting a name
● Speed dialing
● Dialing a number stored in the call history memory
● Using the phone book

430
3-4. Using the hands-free phone system (for cellular phone)
4RUNNER_U

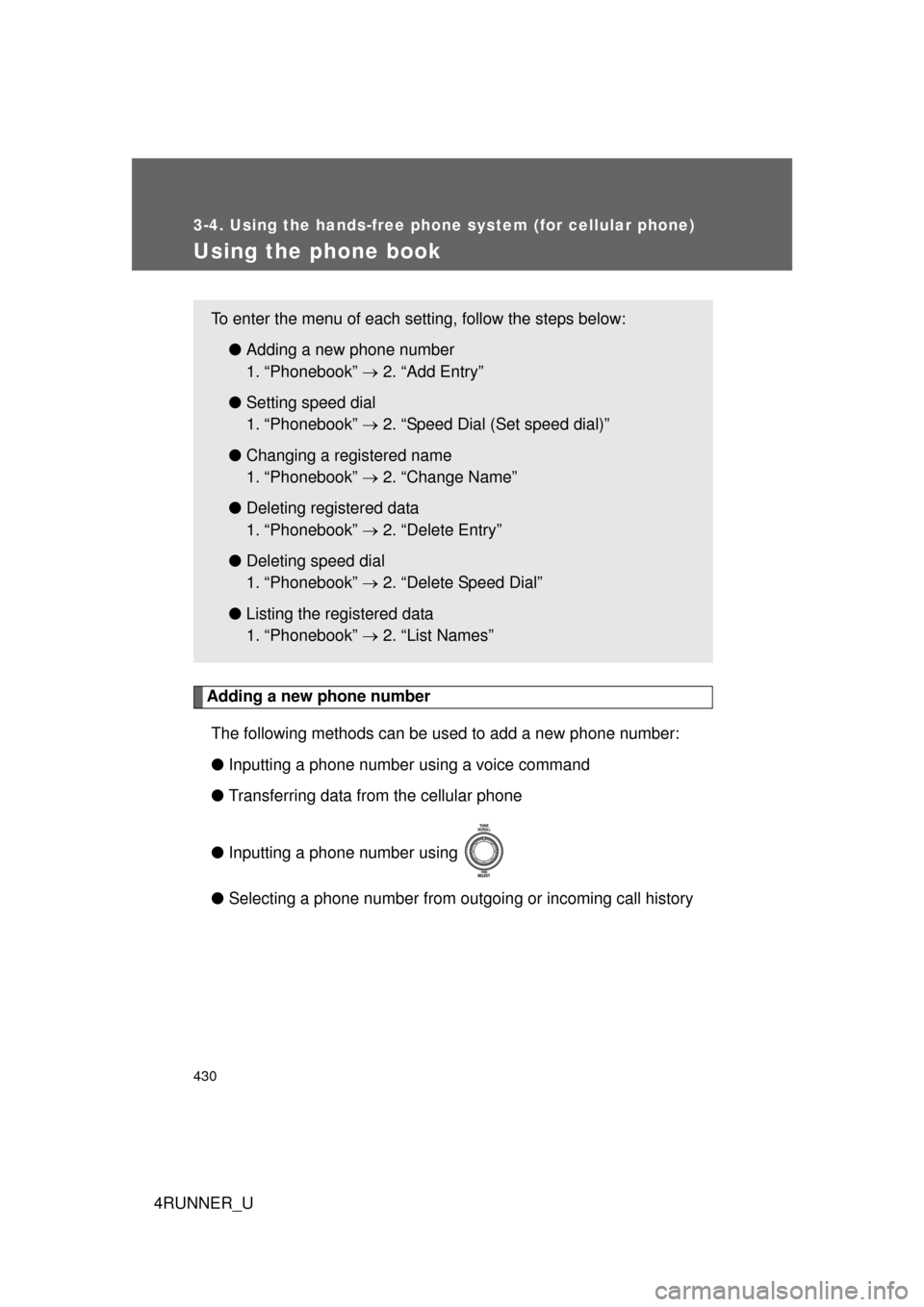

Using the phone book
Adding a new phone numberThe following methods can be used to add a new phone number:
● Inputting a phone number using a voice command
● Transferring data from the cellular phone
● Inputting a phone number using
● Selecting a phone number from outgoing or incoming call history
To enter the menu of each setting, follow the steps below:
●Adding a new phone number
1. “Phonebook”  2. “Add Entry”
● Setting speed dial
1. “Phonebook”  2. “Speed Dial (Set speed dial)”
● Changing a registered name
1. “Phonebook”  2. “Change Name”
● Deleting registered data
1. “Phonebook”  2. “Delete Entry”
● Deleting speed dial
1. “Phonebook”  2. “Delete Speed Dial”
● Listing the registered data
1. “Phonebook”  2. “List Names”
