Page 51 of 700
51
1-2. Opening, closing and locking the doors
1
Before driving
4RUNNER_U
■
Conditions aff ecting operation
Vehicles without a smart key system
The wireless remote control function may not operate normally in the follow-
ing situations:
● Near a TV tower, radio station, electr ic power plant, airport or other facil-
ity that generates strong radio waves
● When carrying a portable radio, cell ular phone or other wireless commu-
nication devices
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by, a metallic
object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as
a personal computer
Vehicles with a smart key system
P. 4 3
■ If the wireless remote control does not operate properly (vehicles with
a smart key system)
Locking and unlocking the doors: Use the mechanical key. ( P. 621)
■ Key battery depletion
Vehicles without a smart key system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( P. 552)
Vehicles with a smart key system
P. 4 6
■ When the electronic key battery is fully depleted
P. 552
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircra\
ft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc, ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
Page 52 of 700
52 1-2. Opening, closing and locking the doors
4RUNNER_U
■Customization that can be co nfigured at Toyota dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features P. 660)
■ Certification for wir eless remote control
For vehicles sold in the U.S.A.
FCC ID: HYQ14ACX
FCC ID: HYQ13CZD
FCC ID: HYQ14ADF
FCC ID: HYQ13CZE
FCC ID: HYQ12BBY
FCC ID: HYQ13BDC
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
Page 53 of 700
53
1
1-2. Opening, closing and locking the doors
Before driving
4RUNNER_U

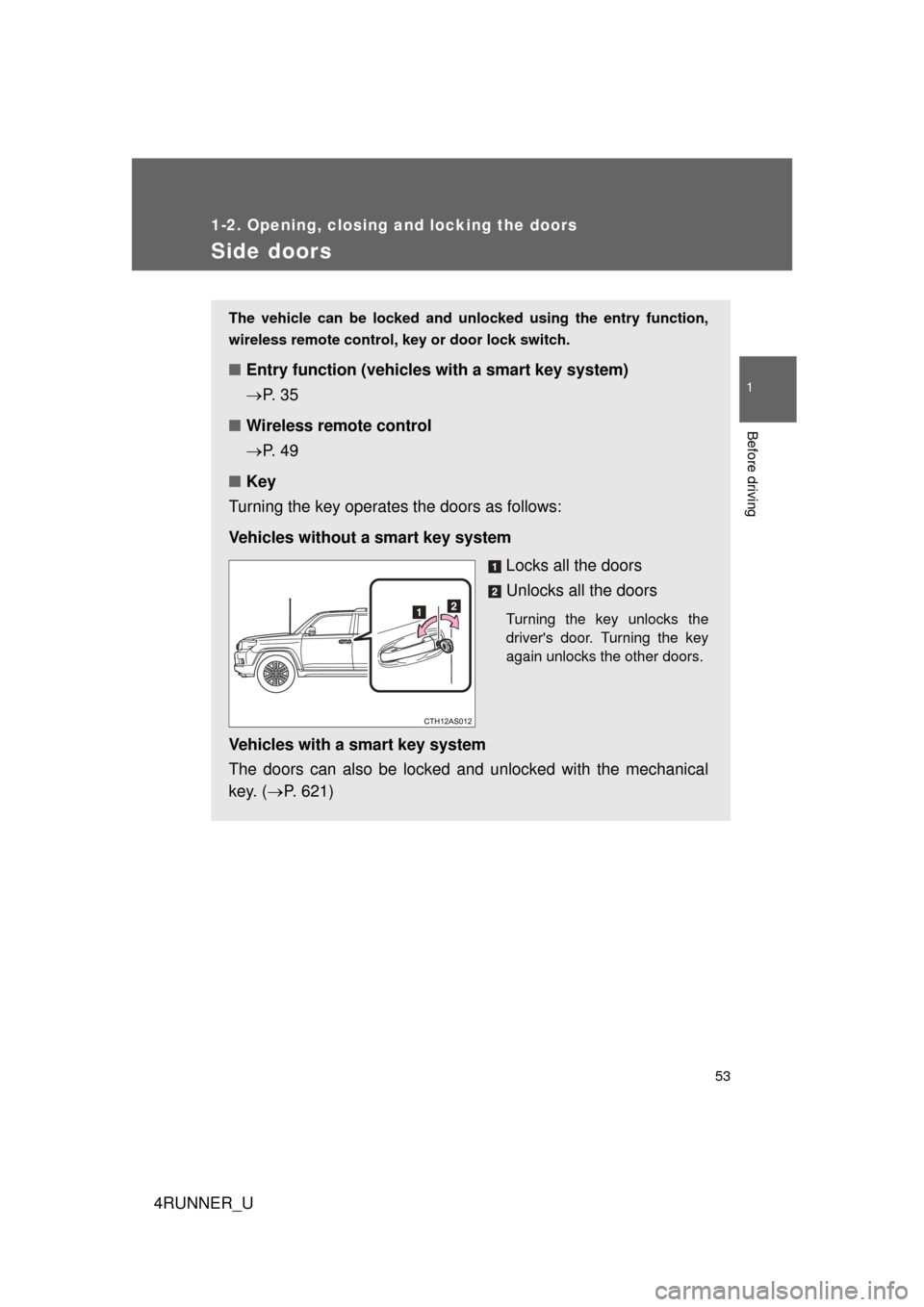

Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switch.
■Entry function (vehicles with a smart key system)
P. 3 5
■ Wireless remote control
P. 4 9
■ Key
Turning the key operates the doors as follows:
Vehicles without a smart key system
Locks all the doors
Unlocks all the doors
Turning the key unlocks the
driver's door. Turning the key
again unlocks the other doors.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical
key. (P. 621)
Page 54 of 700
54 1-2. Opening, closing and locking the doors
4RUNNER_U

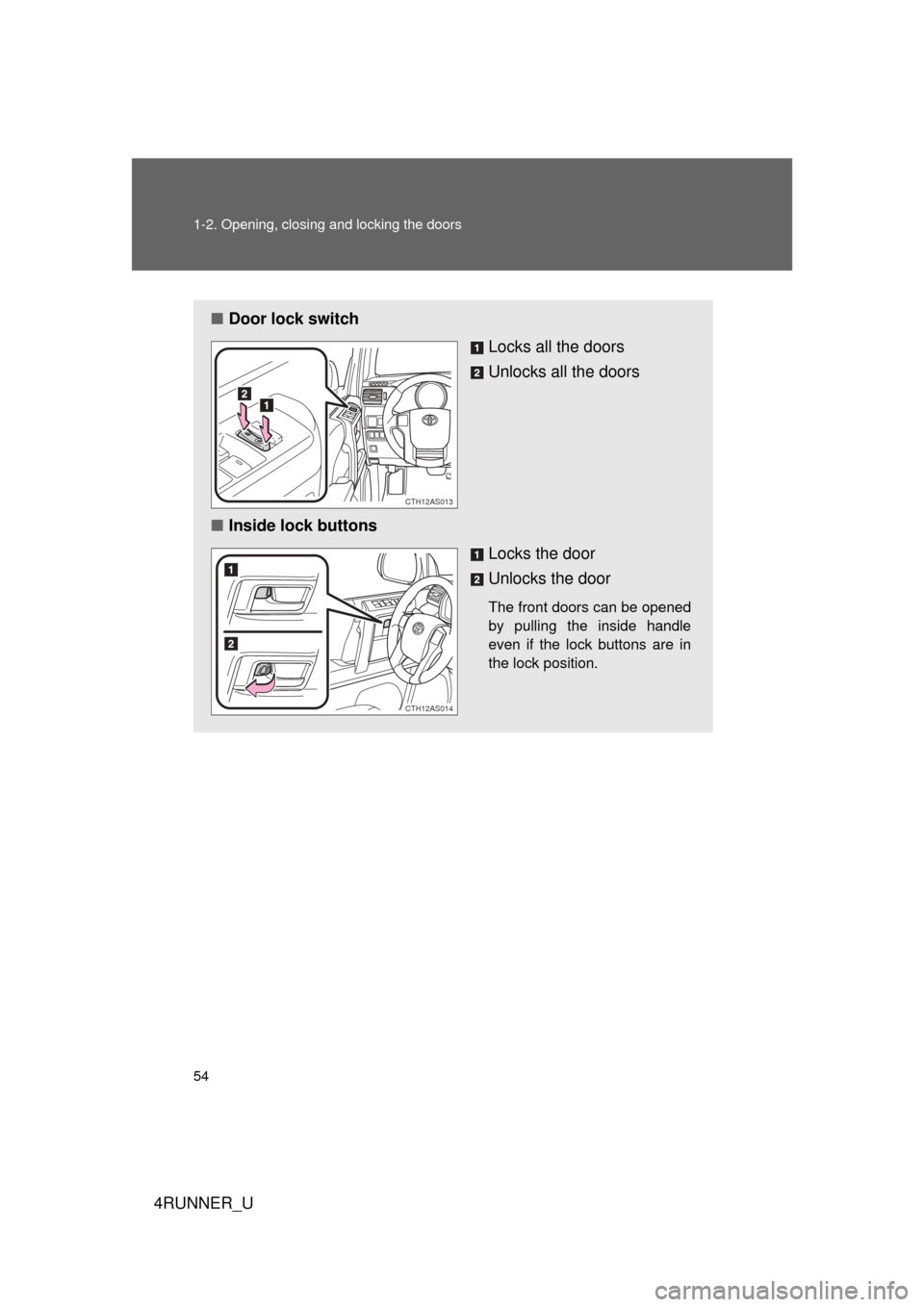

■Door lock switch
Locks all the doors
Unlocks all the doors
■ Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
CTH12AS013
CTH12AS014
Page 55 of 700
55
1-2. Opening, closing and locking the doors
1
Before driving
4RUNNER_U

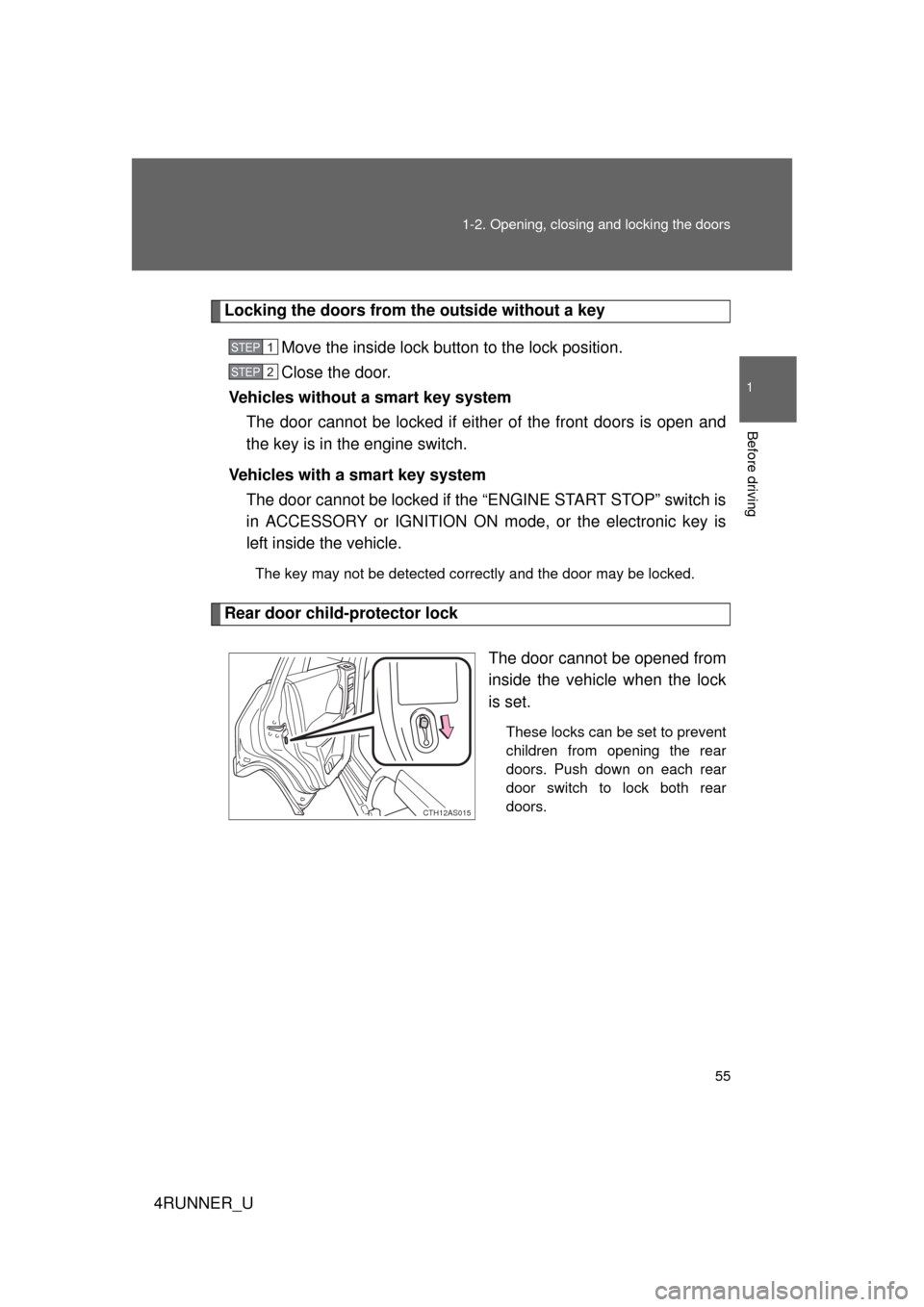

Locking the doors from the outside without a key
Move the inside lock button to the lock position.
Close the door.
Vehicles without a smart key system
The door cannot be locked if either of the front doors is open and
the key is in the engine switch.
Vehicles with a smart key system The door cannot be locked if the “ENGINE START STOP” switch is
in ACCESSORY or IGNITION ON mode, or the electronic key is
left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set.
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP 1
STEP 2
CTH12AS015
Page 56 of 700
56 1-2. Opening, closing and locking the doors
4RUNNER_U
Automatic door locking and unlocking systemsThe following functions can be set or canceled:
■ Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Vehicles without a smart key system
Close all the doors and turn the engine switch to the “ON”
position. (Perform step 2 within 20 seconds.)
Vehicles with a smart key system
Close all the doors and turn the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform step 2 within 20 sec-
onds.)
FunctionOperation
Shift position linked
door locking function Shifting the shift lever out of P locks all the
doors.
Shift position linked
door unlocking function Shifting the shift lever to P unlocks all the
doors.
Speed linked door lock-
ing function All the doors are locked when the vehicle
speed is approximately 12 mph (20 km/h) or
higher.
Driver's door linked door
unlocking function
(
vehicles without a
smart key system
) All
the doors are unlocked when the driver's
door is opened within 10 seconds after turning
the engine switch to “ACC” or “LOCK”.
Driver's door linked door
unlocking function
(
vehicles with a smart
key system
) All
the doors are unlocked when the driver's
door is opened within 10 seconds after turning
the “ENGINE START STOP” switch off.
STEP 1
Page 57 of 700
57
1-2. Opening, closing and locking the doors
1
Before driving
4RUNNER_U

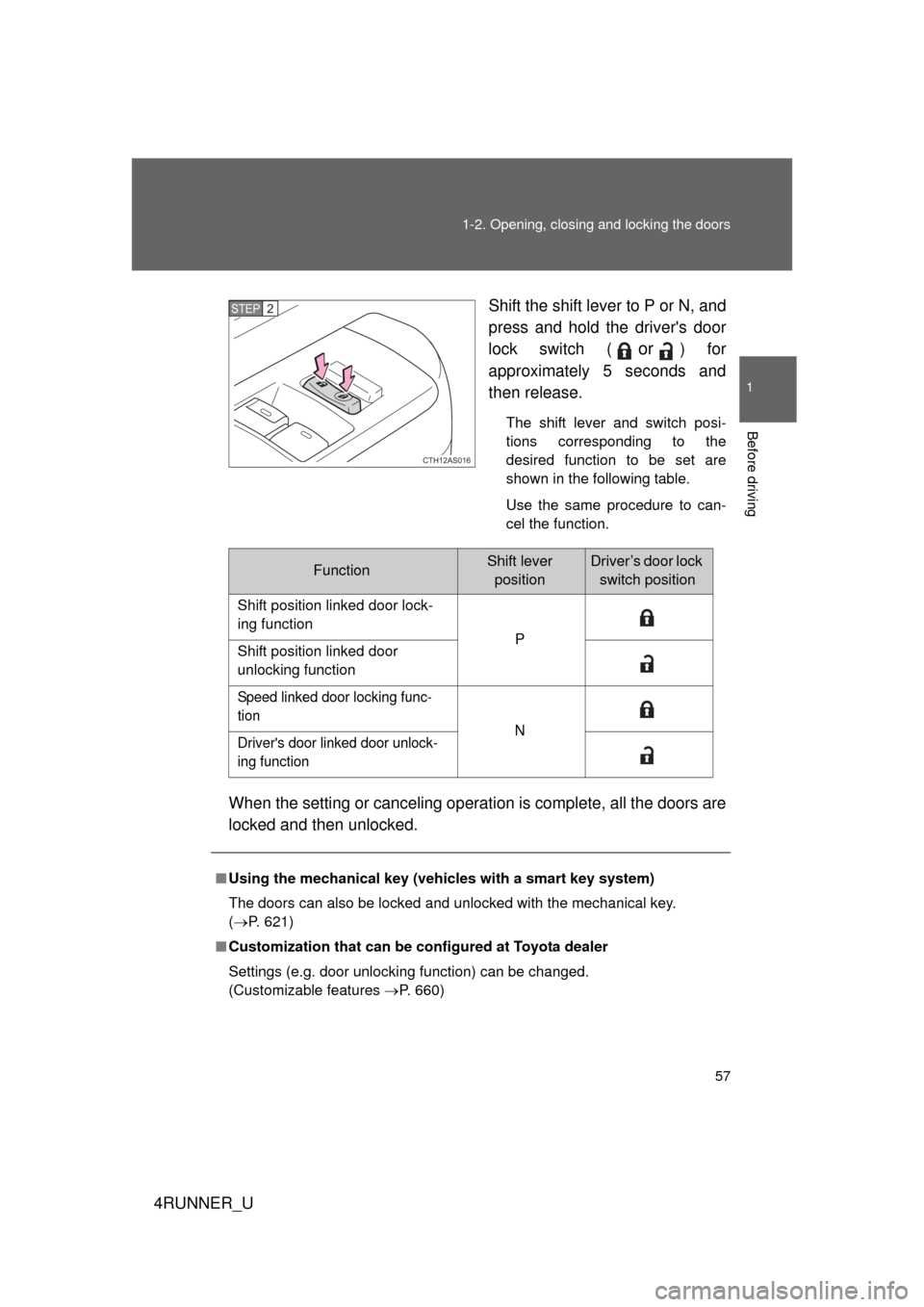

Shift the shift lever to P or N, and
press and hold the driver's door
lock switch (
or) for
approximately 5 seconds and
then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown in the following table.
Use the same procedure to can-
cel the function.
When the setting or canceling operat ion is complete, all the doors are
locked and then unlocked.
CTH12AS016
STEP 2
FunctionShift lever positionDriver’s door lock switch position
Shift position linked door lock-
ing function P
Shift position linked door
unlocking function
Speed linked door locking func-
tion
N
Driver's door linked door unlock-
ing function
■ Using the mechanical key (vehicles with a smart key system)
The doors can also be locked and unlocked with the mechanical key.
(P. 621)
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. door unlocking function) can be changed.
(Customizable features P. 660)
Page 58 of 700
58 1-2. Opening, closing and locking the doors
4RUNNER_U
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all the doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.
Page 59 of 700
59
1
1-2. Opening, closing and locking the doors
Before driving
4RUNNER_U

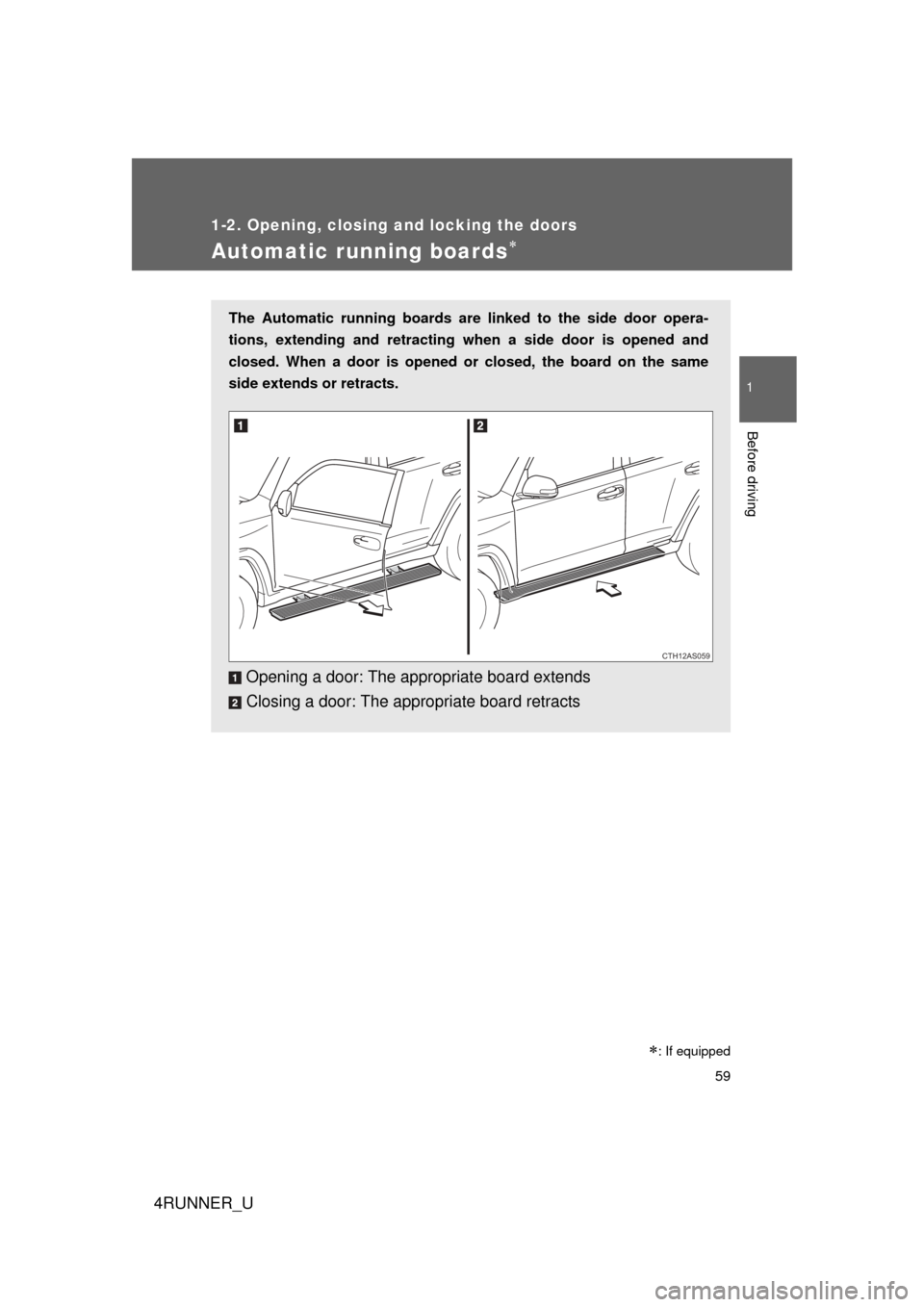

Automatic running boards
: If equipped
The Automatic running boards are linked to the side door opera-
tions, extending and retracting when a side door is opened and
closed. When a door is opened or closed, the board on the same
side extends or retracts.
Opening a door: The appropriate board extends
Closing a door: The appropriate board retracts
CTH12AS059
Page 60 of 700
60 1-2. Opening, closing and locking the doors
4RUNNER_U

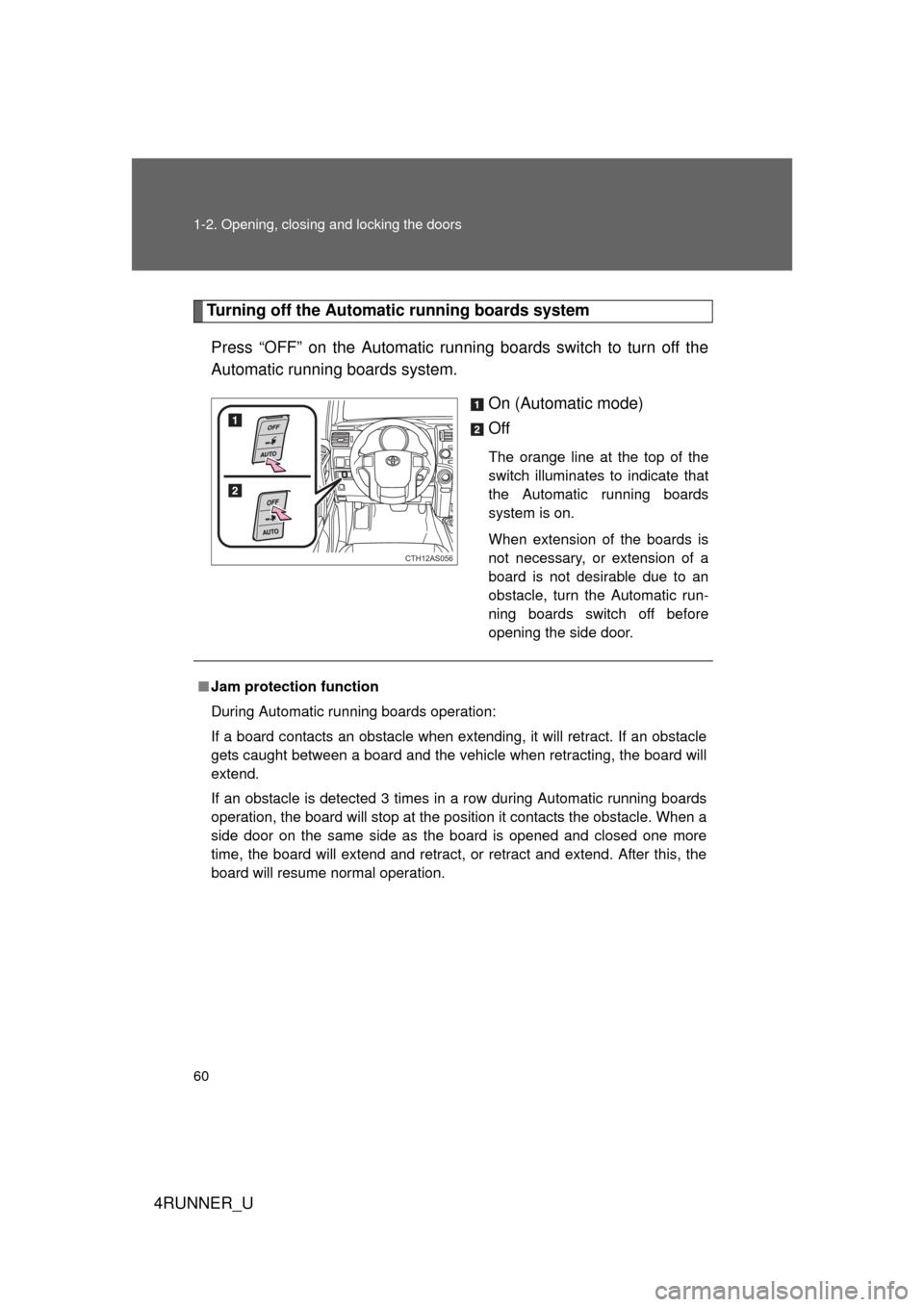

Turning off the Automatic running boards systemPress “OFF” on the Automatic running boards switch to turn off the
Automatic running boards system. On (Automatic mode)
Off
The orange line at the top of the
switch illuminates to indicate that
the Automatic running boards
system is on.
When extension of the boards is
not necessary, or extension of a
board is not desirable due to an
obstacle, turn the Automatic run-
ning boards switch off before
opening the side door.
CTH12AS056
■Jam protection function
During Automatic running boards operation:
If a board contacts an obstacle when extending, it will retract. If an obstacle
gets caught between a board and the vehi cle when retracting, the board will
extend.
If an obstacle is detected 3 times in a row during Automatic running boards
operation, the board will stop at the position it contacts the obstacle. When a
side door on the same side as the board is opened and closed one more
time, the board will extend and retract, or retract and extend. After this, the
board will resume normal operation.
