71
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U
CAUTION
■Seat adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
Page 72 of 700
72
1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U

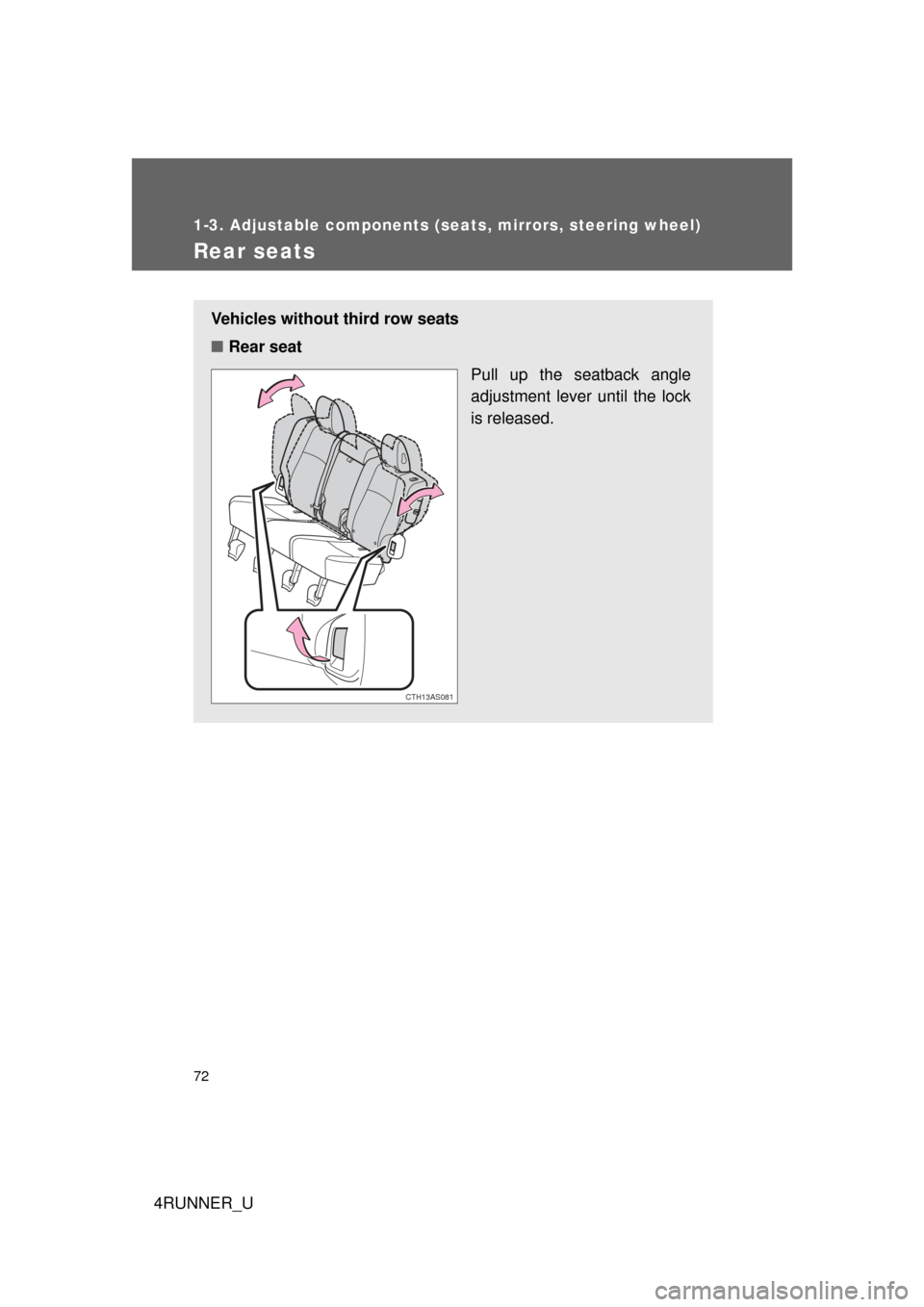

Rear seats
Vehicles without third row seats
■Rear seat
Pull up the seatback angle
adjustment lever until the lock
is released.
CTH13AS081
Page 73 of 700
73
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U

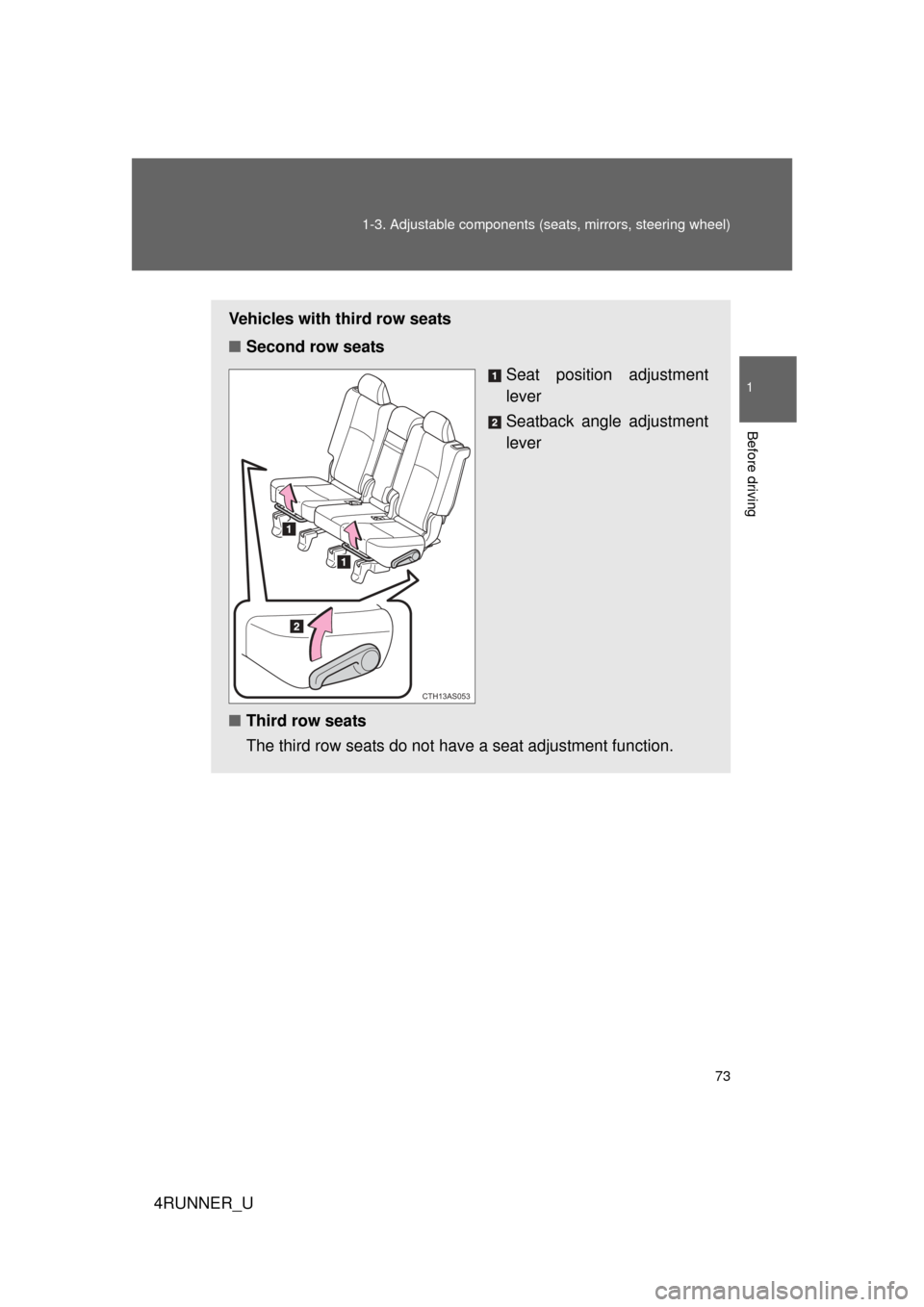

Vehicles with third row seats
■Second row seats
Seat position adjustment
lever
Seatback angle adjustment
lever
■ Third row seats
The third row seats do not have a seat adjustment function.
CTH13AS053
Page 74 of 700
74 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U

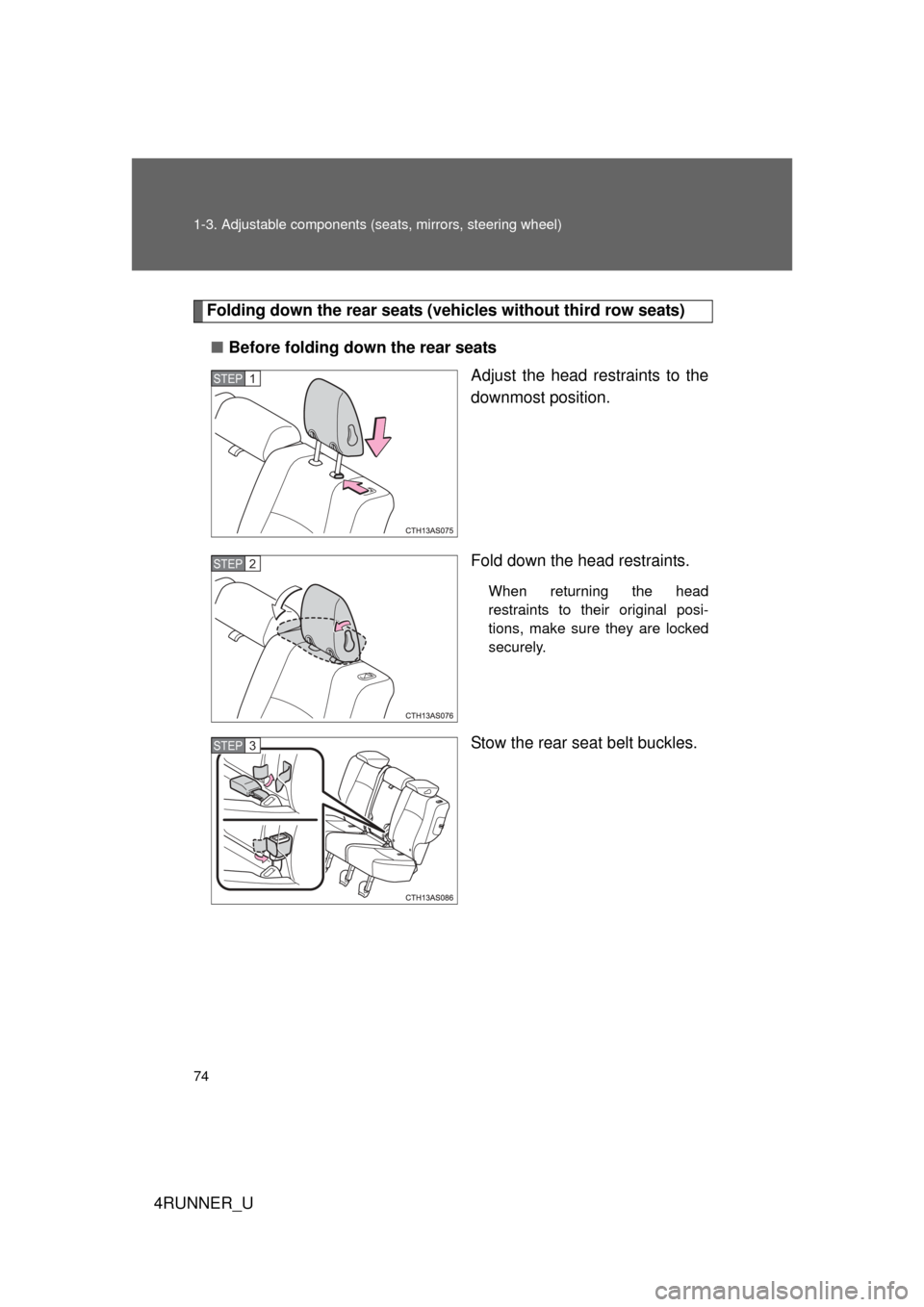

Folding down the rear seats (veh icles without third row seats)
■ Before folding down the rear seats
Adjust the head restraints to the
downmost position.
Fold down the head restraints.
When returning the head
restraints to their original posi-
tions, make sure they are locked
securely.
Stow the rear seat belt buckles.
STEP 1
STEP 2
STEP 3
Page 75 of 700
75
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U■

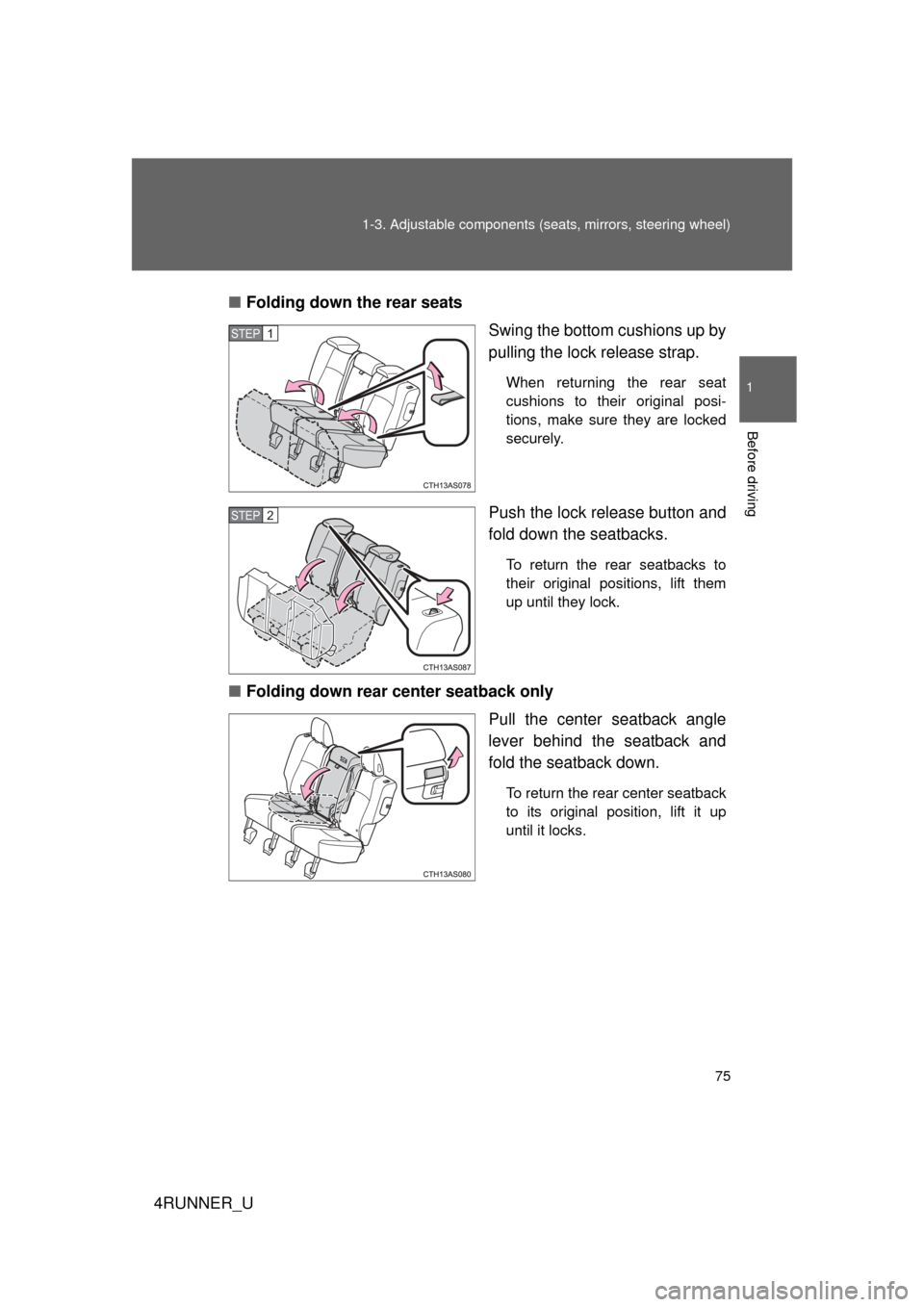

Folding down the rear seats
Swing the bottom cushions up by
pulling the lock release strap.
When returning the rear seat
cushions to their original posi-
tions, make sure they are locked
securely.
Push the lock release button and
fold down the seatbacks.
To return the rear seatbacks to
their original positions, lift them
up until they lock.
■Folding down rear center seatback only
Pull the center seatback angle
lever behind the seatback and
fold the seatback down.
To return the rear center seatback
to its original position, lift it up
until it locks.
STEP 1
STEP 2
Page 76 of 700
76 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U
Folding down the second row seats (vehicles with third row seats)

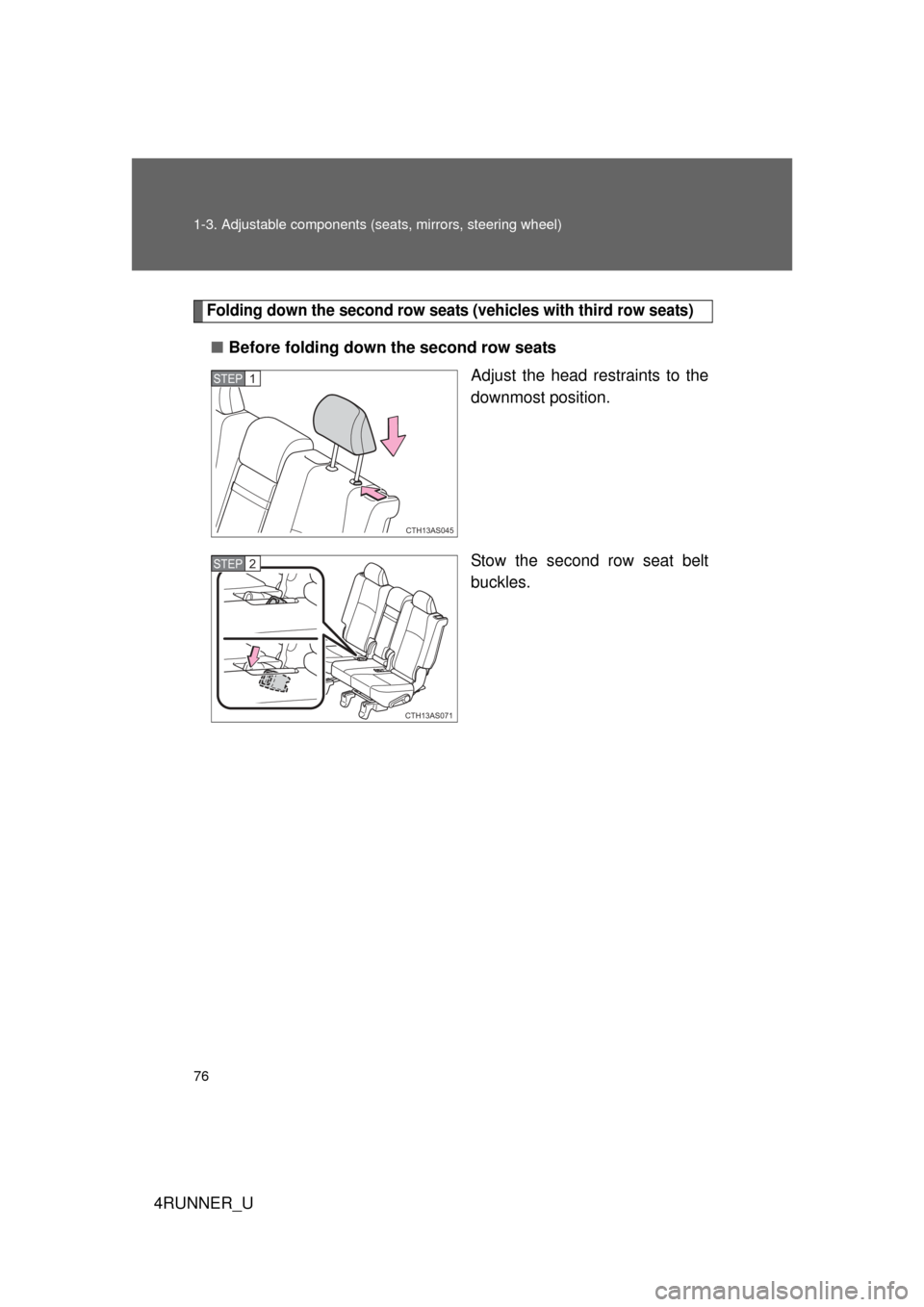

■Before folding down the second row seats
Adjust the head restraints to the
downmost position.
Stow the second row seat belt
buckles.
CTH13AS045
STEP 1
CTH13AS071
STEP 2
Page 77 of 700
77
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U■

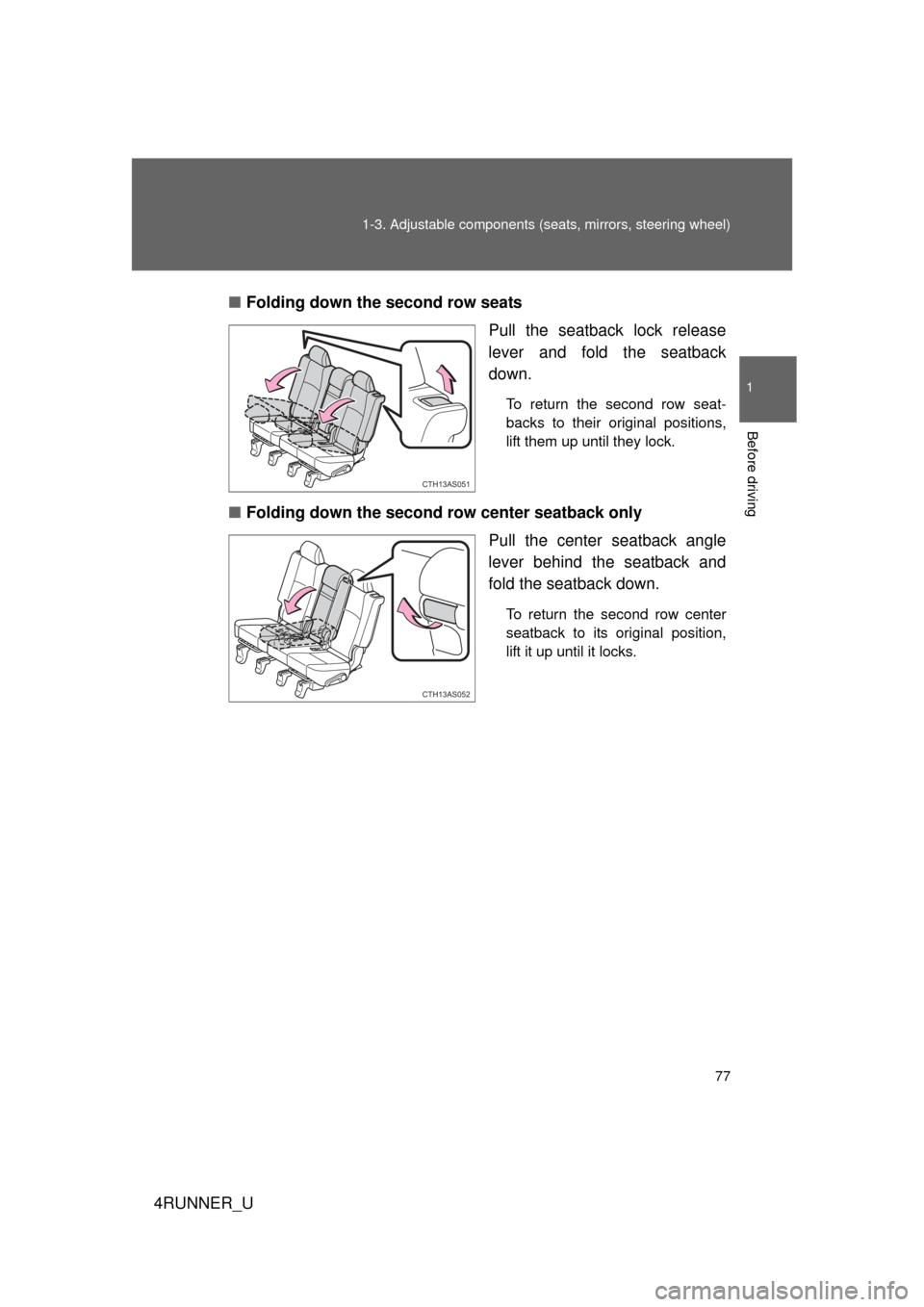

Folding down the second row seats
Pull the seatback lock release
lever and fold the seatback
down.
To return the second row seat-
backs to their original positions,
lift them up until they lock.
■Folding down the second row center seatback only
Pull the center seatback angle
lever behind the seatback and
fold the seatback down.
To return the second row center
seatback to its original position,
lift it up until it locks.
CTH13AS051
CTH13AS052
Page 78 of 700
78 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U

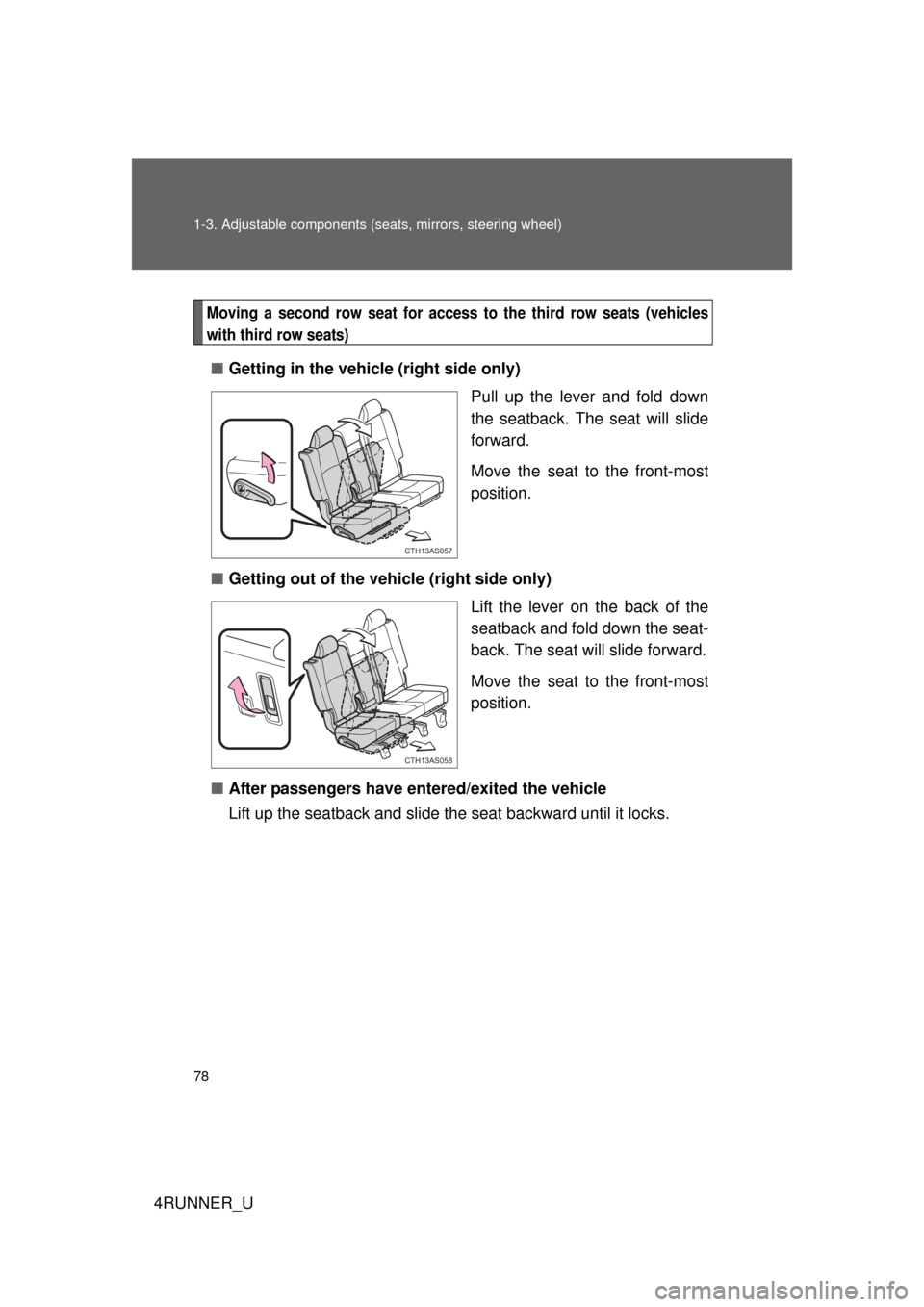

Moving a second row seat for access to the third row seats (vehicles
with third row seats)
■Getting in the vehicl e (right side only)
Pull up the lever and fold down
the seatback. The seat will slide
forward.
Move the seat to the front-most
position.
■ Getting out of the vehicle (right side only)
Lift the lever on the back of the
seatback and fold down the seat-
back. The seat will slide forward.
Move the seat to the front-most
position.
■ After passengers have entered/exited the vehicle
Lift up the seatback and slide the seat backward until it locks.
CTH13AS057
CTH13AS058
Page 79 of 700
79
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U
Folding down the third row seats (v ehicles with third row seats)
■ Before folding down the third row seats
Pass the seat belts through the
seat belt hangers and secure the
seat belt plates.
This prevents the shoulder belts
from being damaged.
Make sure that the seat belts are
removed from the hangers before
using them.

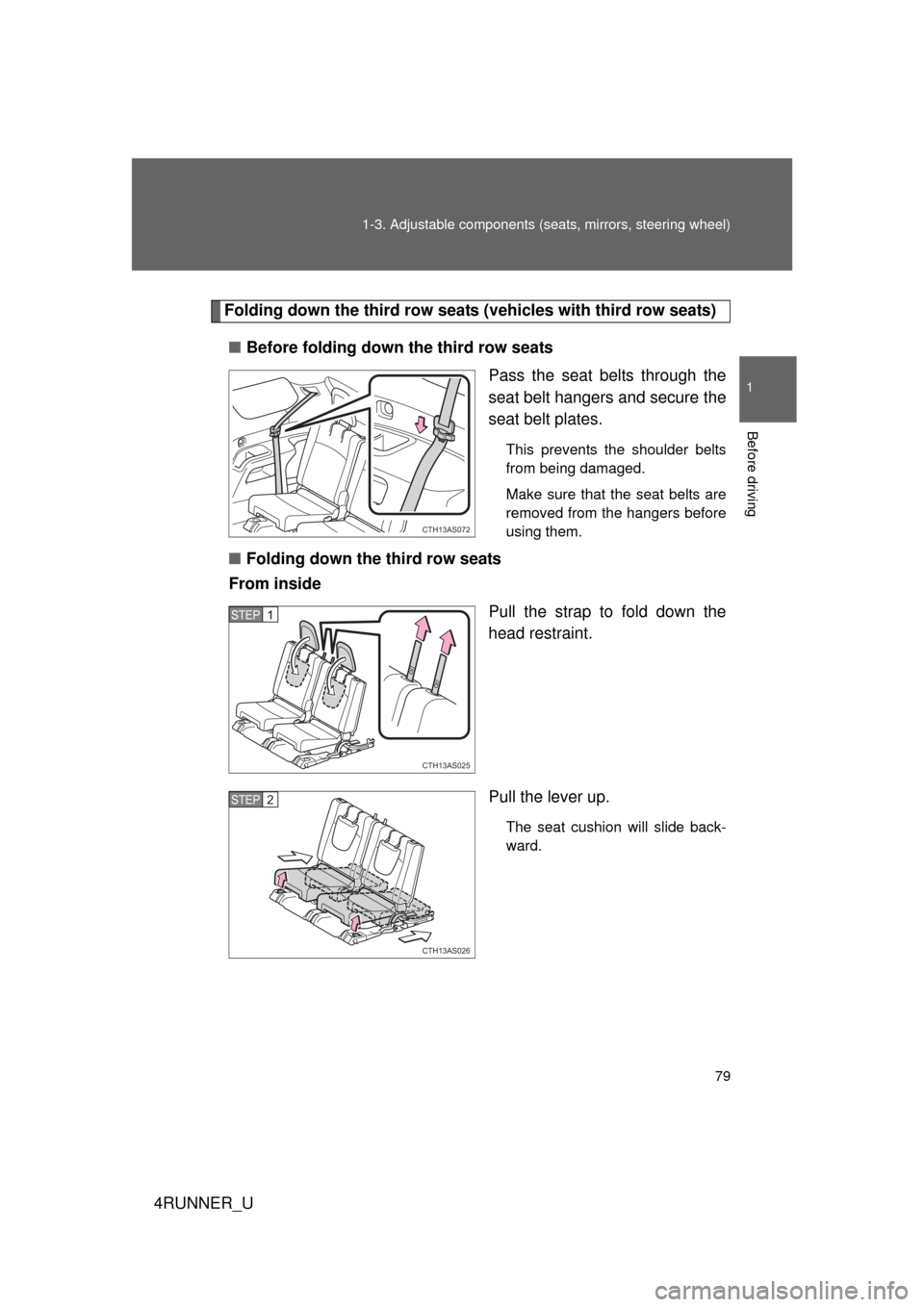

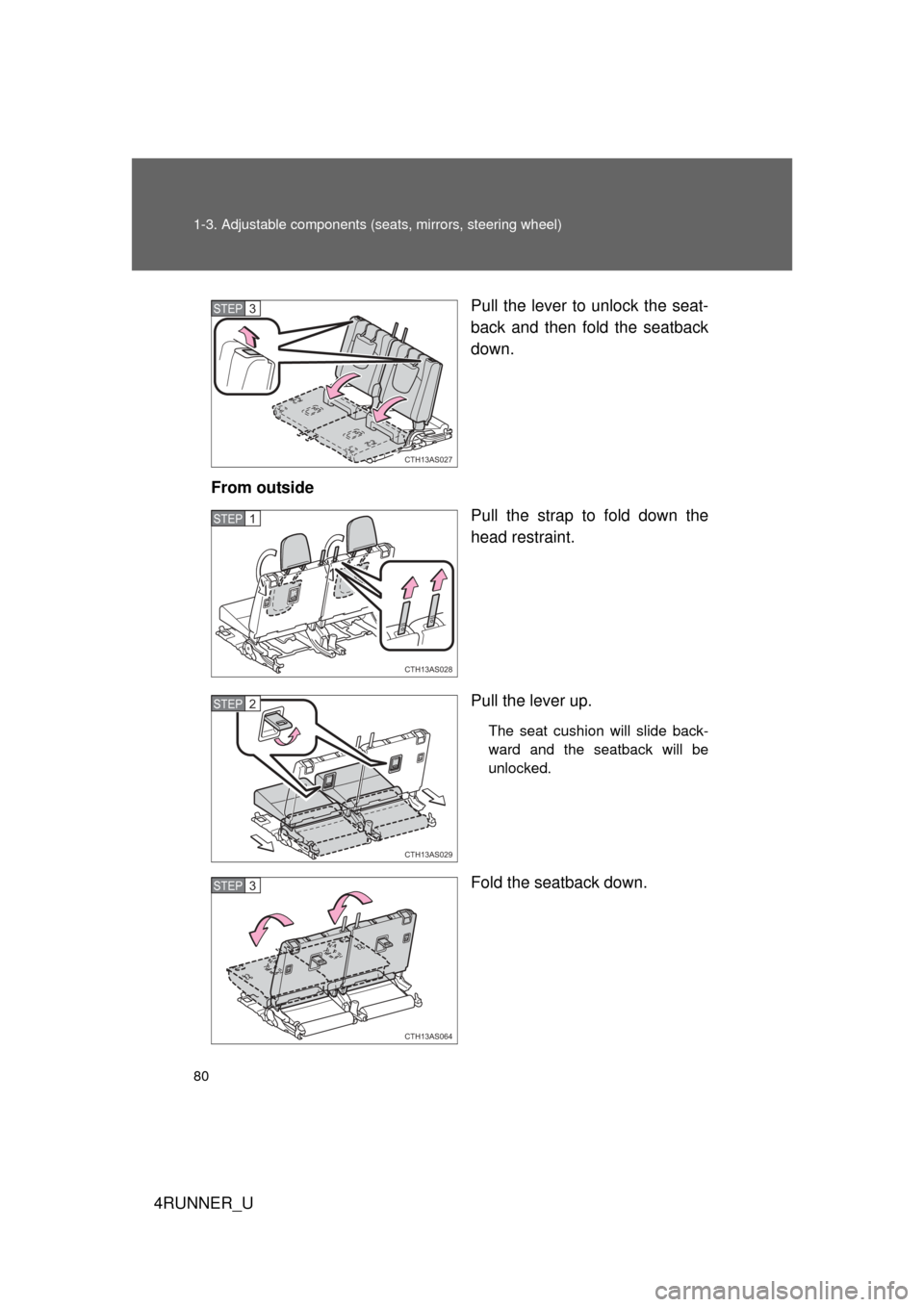

■Folding down the third row seats
From inside
Pull the strap to fold down the
head restraint.
Pull the lever up.
The seat cushion will slide back-
ward.
CTH13AS072
CTH13AS025
STEP 1
CTH13AS026
STEP 2
Page 80 of 700
80 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U Pull the lever to unlock the seat-
back and then fold the seatback
down.
From outside Pull the strap to fold down the
head restraint.
Pull the lever up.
The seat cushion will slide back-
ward and the seatback will be
unlocked.
Fold the seatback down.
CTH13AS027
STEP 3
CTH13AS028
STEP 1
CTH13AS029
STEP 2
CTH13AS064
STEP 3
