TOYOTA 4RUNNER 2012 N280 / 5.G Owners Manual

661
6-2. Customization
6
Vehicle specifications
4RUNNER_U
Door lock
(
P. 53,
621) Speed-detecting auto-
matic door lock function
Off On
Shifting the shift lever to
position other than P
locks all doors On Off
Shifting the shift lever to
P unlocks all doors On Off
Opening driver’s door
unlocks all doors Off On
Power win-
dows
( P. 98) Mechanical key linked
operation (close)
Off On
Mechanical key linked
operation (open) Off On
Wireless remote control
linked operation (open) Off On
Wireless remote control
linked operation signal
(Buzzer) On Off
Automatic
light control
system
( P. 203) Light sensor sensitivity Level 3 Levels 1 to 5
Time elapsed before
headlights automati-
cally turn off after doors
are closed
30 secondsOff
60 seconds
90 seconds
Ambient light level at
which instrument illumi-
nation begins to dim
(meter lights etc.) Standard
-2 (darker) to
2 (brighter)
Ambient light level at
which instrument illumi-
nation begins to
brighten (meter lights
etc.) Standard
-2 (darker) to
2 (brighter)
ItemFunctionDefault settingCustomized setting

662 6-2. Customization
4RUNNER_U
Illumination
(P. 438) Time period before
lights turn off
15 seconds7.5 seconds
30 seconds
Vehicles without a
smart key system:
Operation after the
engine switch is turned
to the “LOCK” position
Vehicles with a smart
key system: Operation
after the “ENGINE
START STOP” switch is
turned OFF On
Off
Operation when the
doors are unlocked On
Off
Vehicles with a smart
key system: Operation
when you approach the
vehicle with the elec-
tronic key on your per-
son (When the interior
light switch [ON/DOOR/
OFF] is DOOR) On
Off
Footwell lights OnOff
Overhead courtesy light On Off
Interior light control OnOff
Interior light dimmer
control while driving On
Off
ItemFunctionDefault settingCustomized
setting

663
6-2. Customization
6
Vehicle specifications
4RUNNER_U
Outer foot
lights
(if equipped)
(
P. 438) Vehicles with a smart
key system: Operation
when you approach the
vehicle with the elec-
tronic key on your per-
son
On Off
Operation when the
doors are unlocked
using the wireless
remote control, key or
entry function On Off
Operation when the
doors are unlocked
using the door lock
switch On Off
Time period before
lights turn off 15 seconds7.5 seconds
30 seconds
Lighting control OnOff
Moon roof
( P. 105) Mechanical key linked
operation
Off
On
Mechanical key linked
operation Open and closeOpen only
Close only
Linked operation of
components when door
key is used Slide only Tilt only
Wireless remote control
linked operation (open
only) Off
On
Linked operation of
components when wire-
less remote control is
used (open only) Slide only Tilt only
ItemFunctionDefault settingCustomized
setting

664 6-2. Customization
4RUNNER_U
Rear window
wiper and
washer
(P. 214) Wiper operates auto-
matically when washer
is operated
On Off
Drip prevention function On Off
Wiper operation interval 3 seconds 2 seconds
4 seconds
5 seconds
Time elapsed before
the rear wiper storage
function activates 3 seconds4 seconds
5 seconds
6 seconds
Power back
window
( P. 101) Vehicles without a
smart key system:
Close operation linked
to door lock operation
using a key
On
Off
Vehicles without a
smart key system:
Open operation linked
to door unlock opera-
tion using a key On
Off
Vehicles with a smart
key system: Close
operation linked to door
lock operation using the
switch On
Off
Vehicles with a smart
key system: Open oper-
ation linked to door
unlock operation using
the switch On
Off
ItemFunctionDefault settingCustomized
setting

665
6-2. Customization
6
Vehicle specifications
4RUNNER_U
Power back
window
(
P. 101) Vehicles with a smart
key system: Time
required to press and
hold the switch before
the window begins to
open/close
0.8 seconds
1 second
1.2 seconds
1.4 seconds
Intuitive
parking
assist
( P. 221) Buzzer volume
Max. Min. to Max.
Seat belt
reminder
( P. 591) Vehicle speed linked
seat belt reminder
buzzer
On
Off
ItemFunctionDefault settingCustomized
setting

666
4RUNNER_U
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Maintenance data After the maintenance is performed
P. 509
The following item must be initialized for normal system operation in
cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

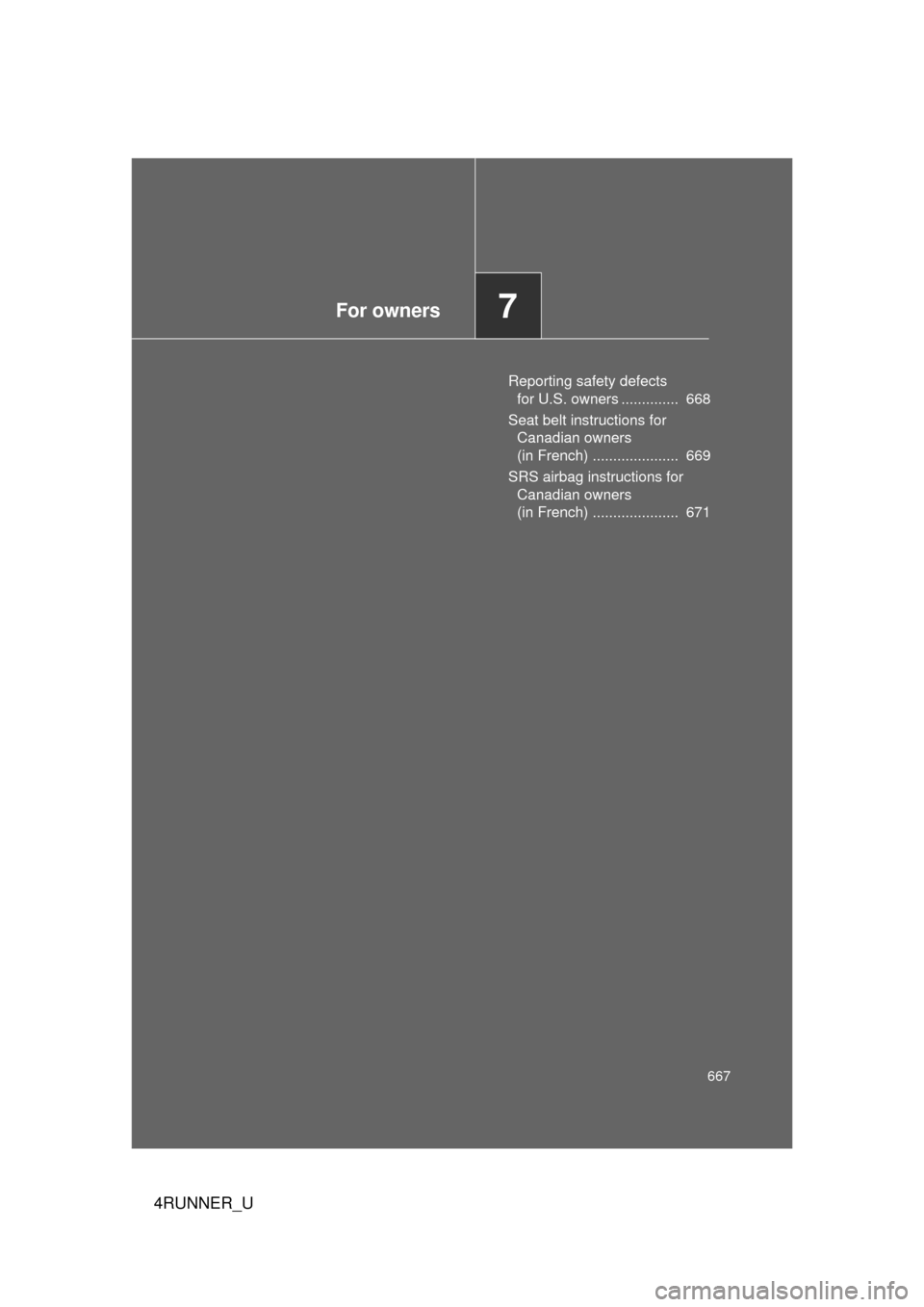

For owners7
667
4RUNNER_U
Reporting safety defects for U.S. owners .............. 668
Seat belt instructions for Canadian owners
(in French) ..................... 669
SRS airbag instructions for Canadian owners
(in French) ..................... 671

668
4RUNNER_U

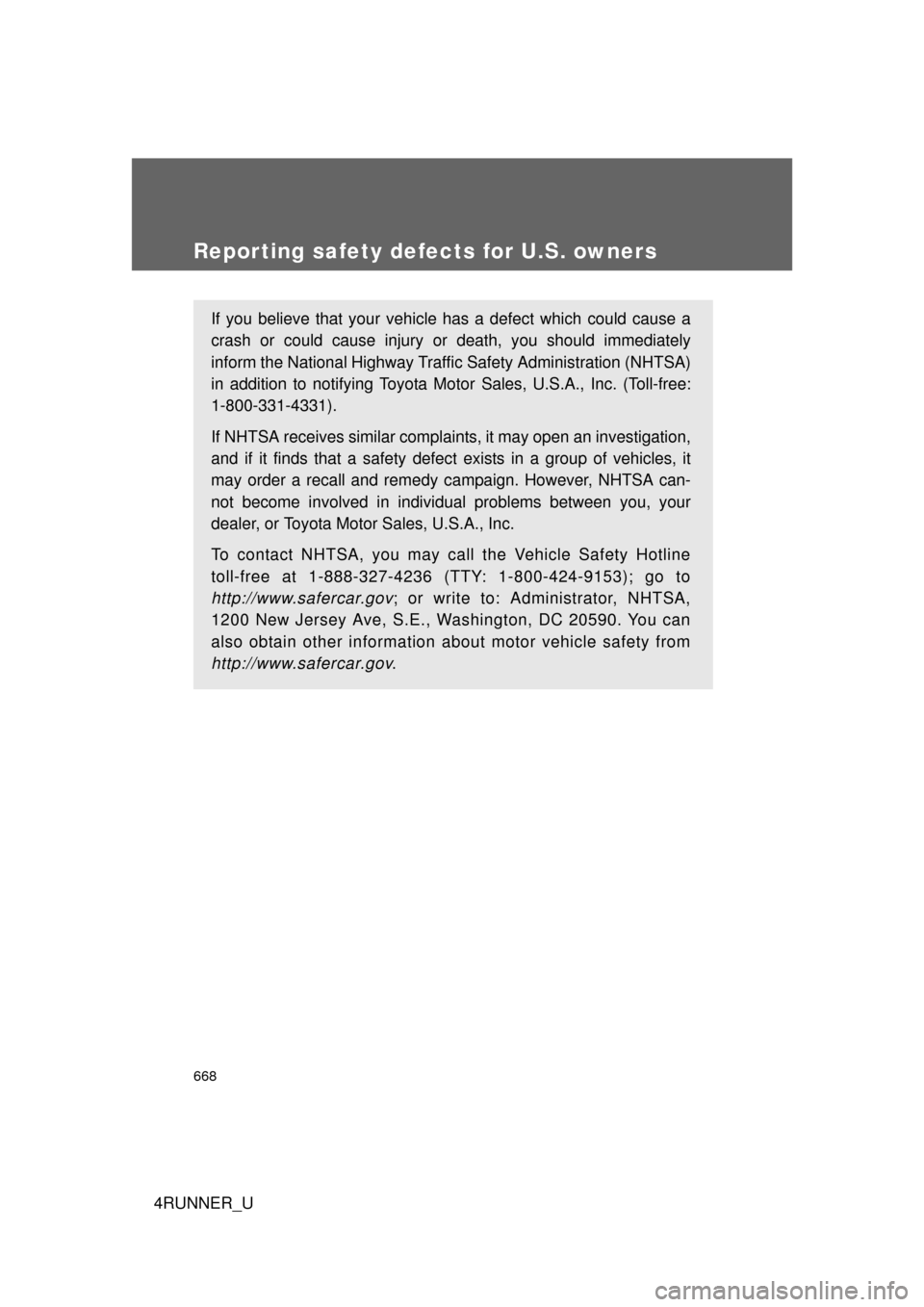

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .

669
7
4RUNNER_U
For owners

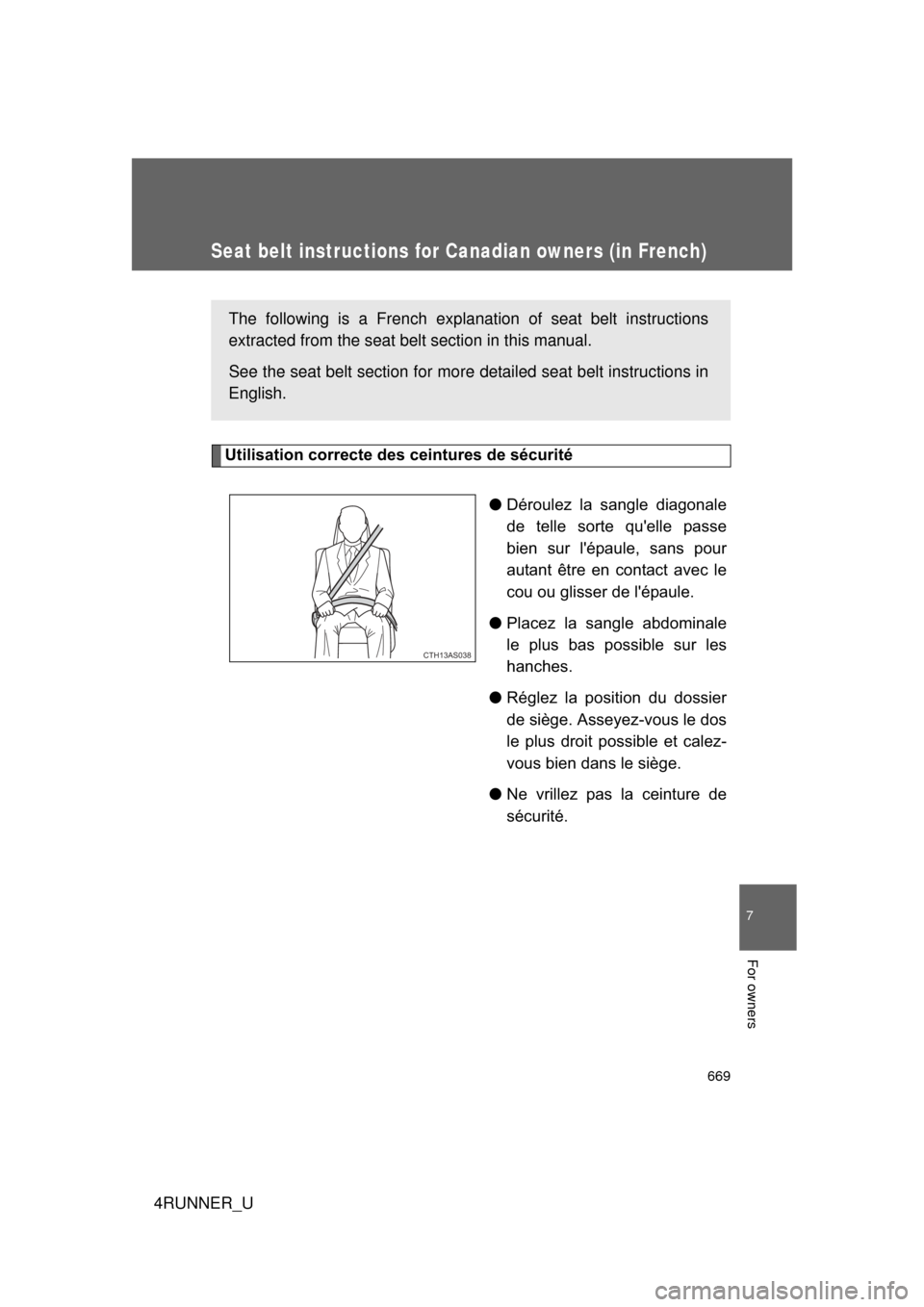

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
●Déroulez la sangle diagonale
de telle sorte qu'elle passe
bien sur l'épaule, sans pour
autant être en contact avec le
cou ou glisser de l'épaule.
● Placez la sangle abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier
de siège. Asseyez-vous le dos
le plus droit possible et calez-
vous bien dans le siège.
● Ne vrillez pas la ceinture de
sécurité.
CTH13AS038

670
4RUNNER_U

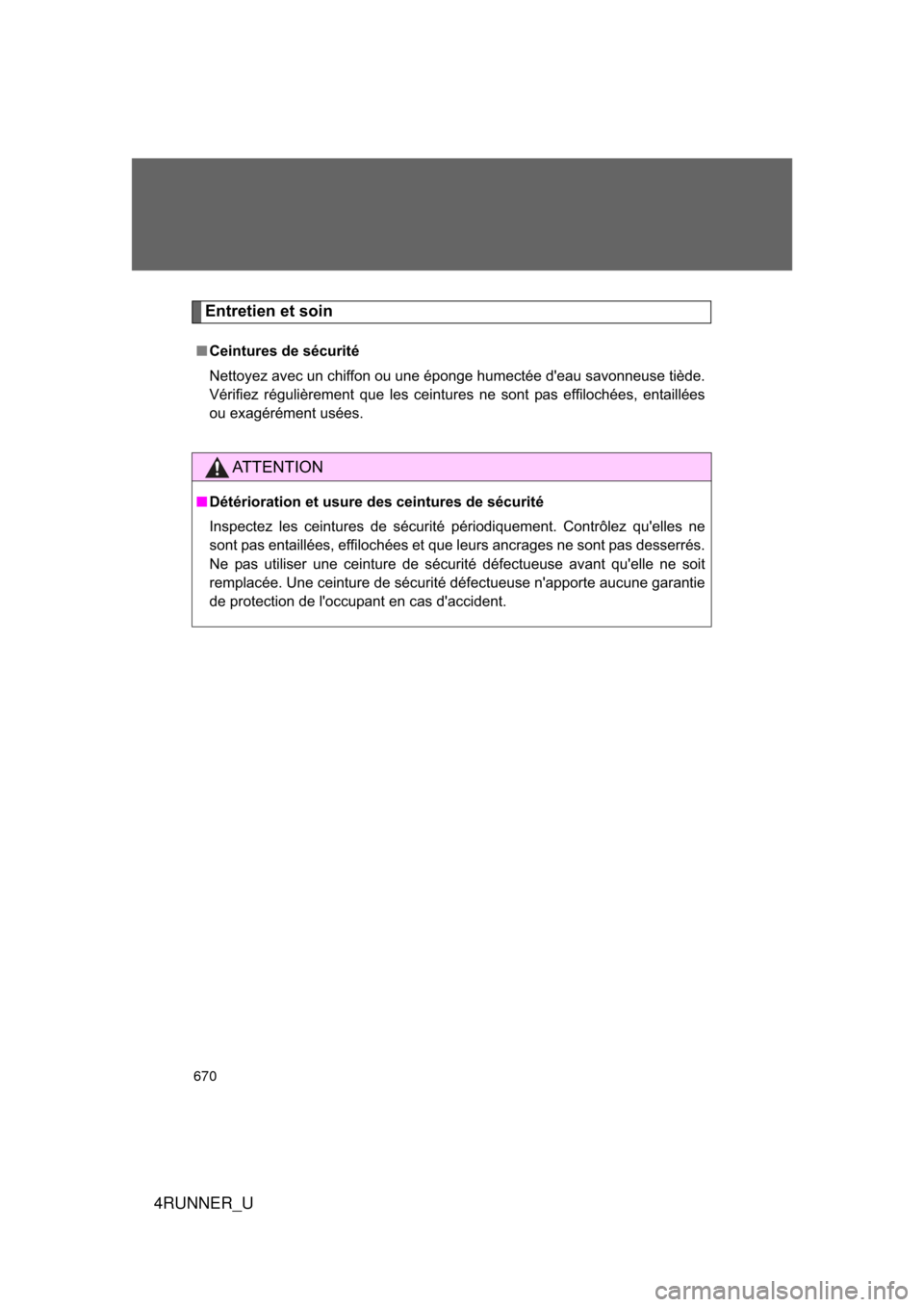

Entretien et soin
■Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humectée d'eau savonneuse tiède.
Vérifiez régulièrement que les ceintures ne sont pas effilochées, entaillées
ou exagérément usées.
AT T E N T I O N
■Détérioration et usure des ceintures de sécurité
Inspectez les ceintures de sécurité périodiquement. Contrôlez qu'elles ne
sont pas entaillées, effilochées et que leurs ancrages ne sont pas desserrés.
Ne pas utiliser une ceinture de sécurité défectueuse avant qu'elle ne soit
remplacée. Une ceinture de sécurité défectueuse n'apporte aucune garantie
de protection de l'occupant en cas d'accident.
