System malfunction
In case of a system malfunction, the following may occur:
●The downhill assist control system indicator flashes in a situation other than
those listed above.
● The downhill assist control system indicator does not come on when the
engine switch is turned to the “ON” position (vehicles without a smart key
system) or the engine switch is turned to IGNITION ON mode (vehicles with
a smart key system).
Have your vehicle inspected by your Toyota dealer.
CAUTION
■ Conditions which may affect the downhill assist control system opera-
tion
● Do not rely too heavily on the downhill assist control system. On extremely
steep inclines, icy surfaces or muddy roads, the vehicle may slip and the
system may not be able to maintain the constant low vehicle speed of
about 3 mph (5 km/h), leading to an accident causing death or serious
injury.
● Do not shift the shift lever to R while driving forward, or to D while driving
backward. Doing so may cause the wheels to lock up, leading to an acci-
dent causing death or serious injury. In addition, excessive stress will be
applied to the automatic transmission, possibly resulting in damage.

2504-5. Using the driving support systems
4RUNNER (U)_(OM35A83U)■
Crawl Control switch
Crawl Control
: If equipped
Allows travel on extremely rough o
ff-road surfaces at a fixed low
speed without pressing the acceler ator or brake pedal. Mini-
mizes loss of traction or vehicle slip when driving on slippery
road surfaces, allowing for stable driving.
“ON/OFF” switch
The Crawl Control indicator comes on and the slip indicator flashes when\
operating.
Speed selector dial
Turn the dial clockwise to increase the speed and counterclockwise to
decrease the speed.
Crawl Control indicator
Slip indicator
1
2
3
4

2514-5. Using the driving support systems
4
Driving
4RUNNER (U)_(OM35A83U)■
Speed modes
The following table shows
some typical terrains and the
recommended speed modes.
■
Crawl Control can be operated when
●The engine is running.
● The shift lever is in any position other than P or N.
● The front-wheel drive control lever or switch is in L4.
● The driver’s door is closed.
■ Crawl Control is temporarily canceled when
Vehicle speed exceeds 15 mph (25 km/h ). The Crawl Control indicator
flashes until the vehicle speed is reduced.

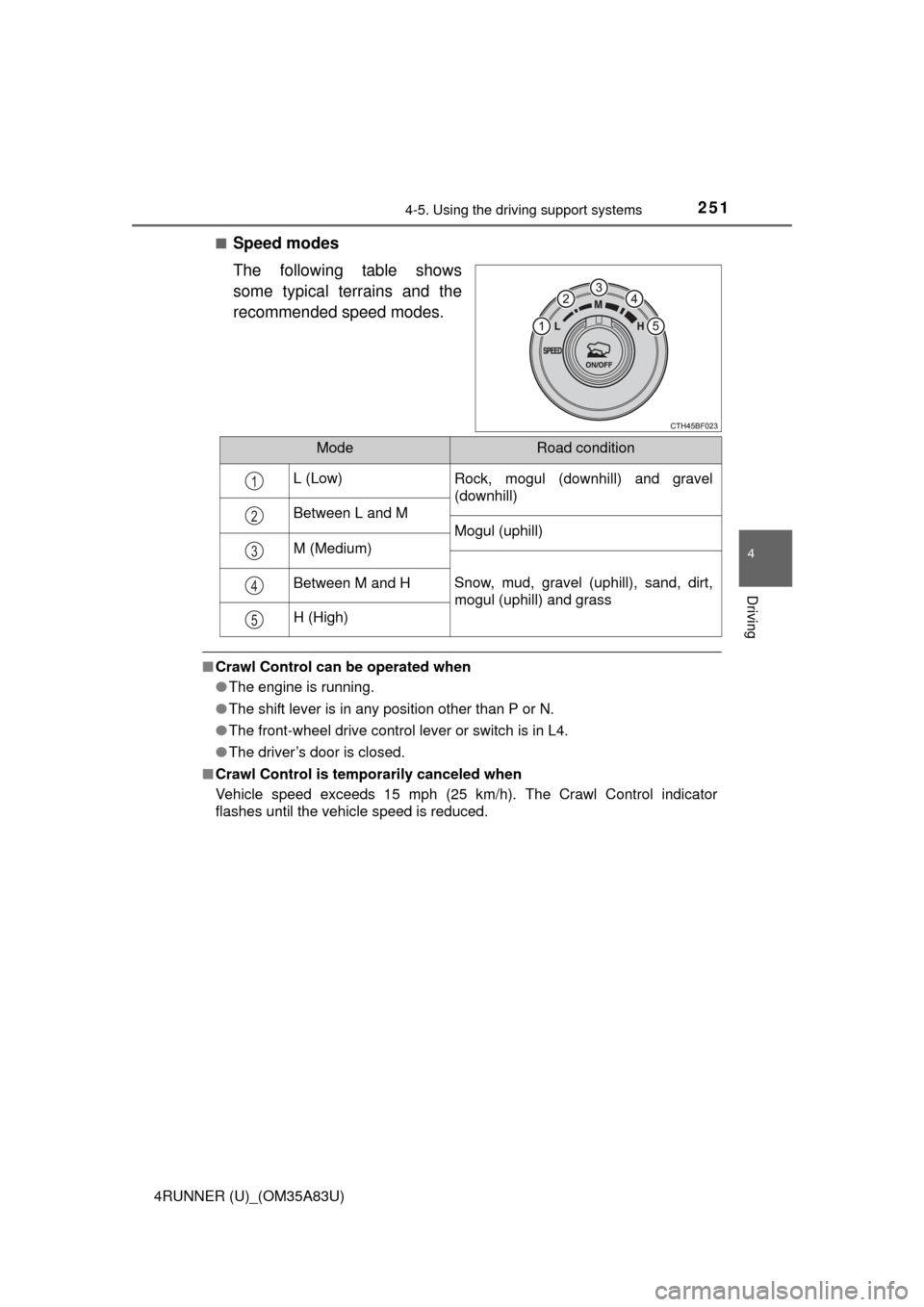

ModeRoad condition
L (Low)Rock, mogul (downhill) and gravel
(downhill)
Between L and M
Mogul (uphill)
M (Medium)
Snow, mud, gravel (uphill), sand, dirt,
mogul (uphill) and grassBetween M and H
H (High)
1
2
3
4
5

2524-5. Using the driving support systems
4RUNNER (U)_(OM35A83U)■
Automatic system cancelation
In the following situations, the system will cease operation and a buzzer will
sound to alert the driver. The Crawl Control indicator will flash until the system
is turned off completely.
●When the shift lever is shifted to P or N
● When the front-wheel drive control lever or switch is shifted to H4
● When the driver’s door is opened
● When the system is malfunctioning
● When the brake system overheats
Stop the vehicle in a safe place. (There is no problem with continuing normal
driving.)
● When the automatic transmission system overheats
Stop the vehicle in a safe place until the automatic transmission fluid tem-
perature warning light goes off.
■ Sounds and vibrations caused by the Crawl Control system
● A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate
that a malfunction has occurred in Crawl Control system.
● Either of the following conditions may occur when the Crawl Control system
is operating. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
CAUTION
■When using Crawl Control
● Do not overly rely on Crawl Control. This function does not extend the
vehicle’s performance limitations. A lways check the terrain thoroughly and
drive safely.
● The recommended speed modes for the listed terrains ( P. 251) are only
a reference. The selected mode may not be suitable to actual off-road con-
ditions due to factors such as the type or unevenness of the terrain or the
degree of incline. Check the actual terrain thoroughly and drive safely.
● After activating Crawl Control, make sure that the Crawl Control indicator
comes on. If the indicator flashes, the vehicle is not under system control.
■ Conditions under which the syst em may not operate correctly
When driving on the following surfaces, the system may not be able to
maintain a fixed low speed, which may result in an accident:
● Extremely steep inclines
● Extremely uneven surfaces
● Snow-covered roads, or other slippery surfaces

2534-5. Using the driving support systems
4
Driving
4RUNNER (U)_(OM35A83U)
Multi-terrain Select
: If equipped
The Multi-terrain Select system has 4 terrain modes. When a ter-
rain mode is selected in accordance with terrain conditions,
engine power and active traction control system is controlled to
enhance off-road drivability.
Additionally, guidance messages such as transfer mode selec-
tion advice are displayed on the accessory meter to assist the
driver in operating the vehicle.
“ON/OFF” switch
Mode selector dial
Mode indicators
Multi-terrain Select indicator
Accessory meter1
2
3
4
5

2544-5. Using the driving support systems
4RUNNER (U)_(OM35A83U)■

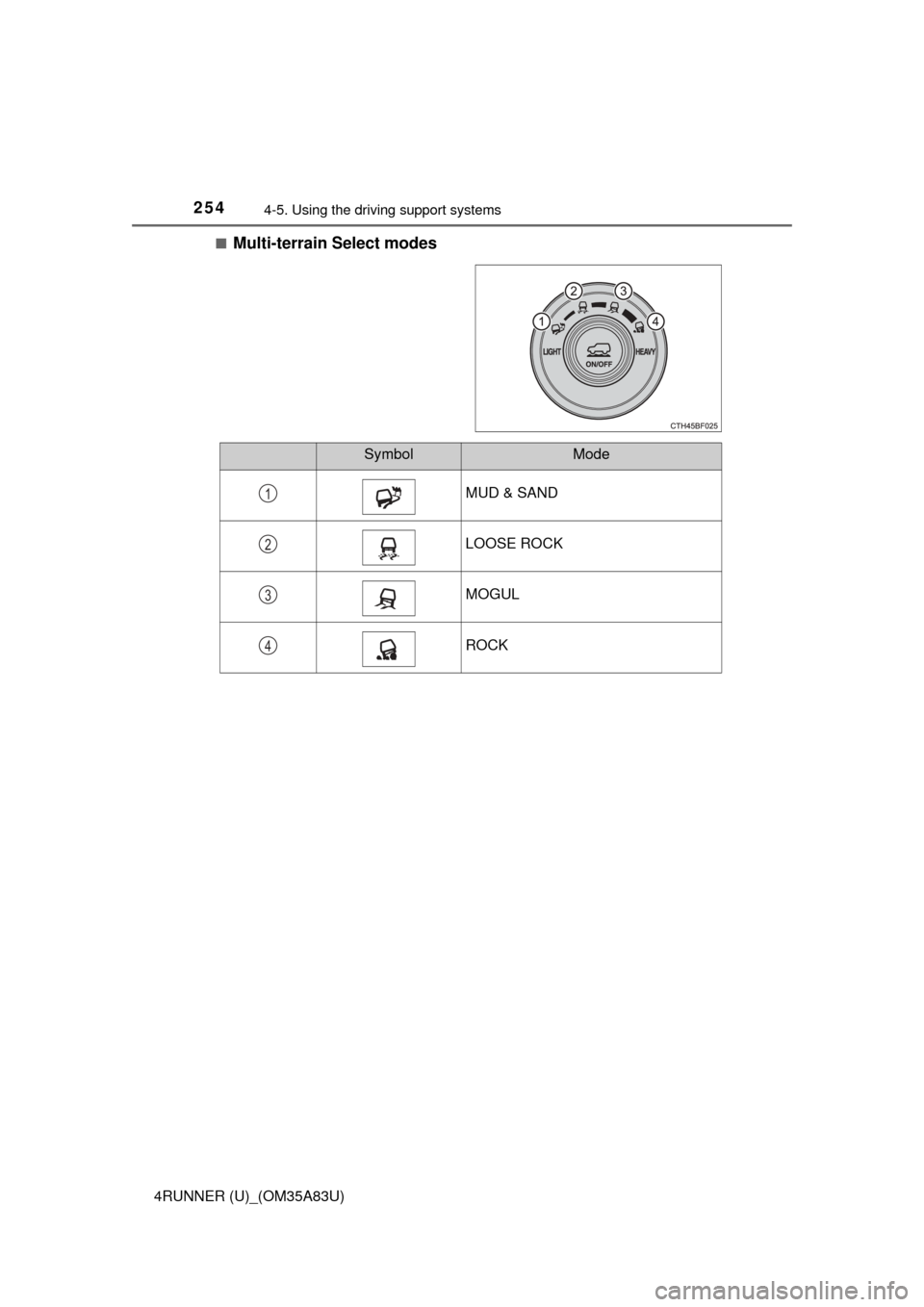

Multi-terrain Select modes
SymbolMode
MUD & SAND
LOOSE ROCK
MOGUL
ROCK
1
2
3
4

2554-5. Using the driving support systems
4
Driving
4RUNNER (U)_(OM35A83U)

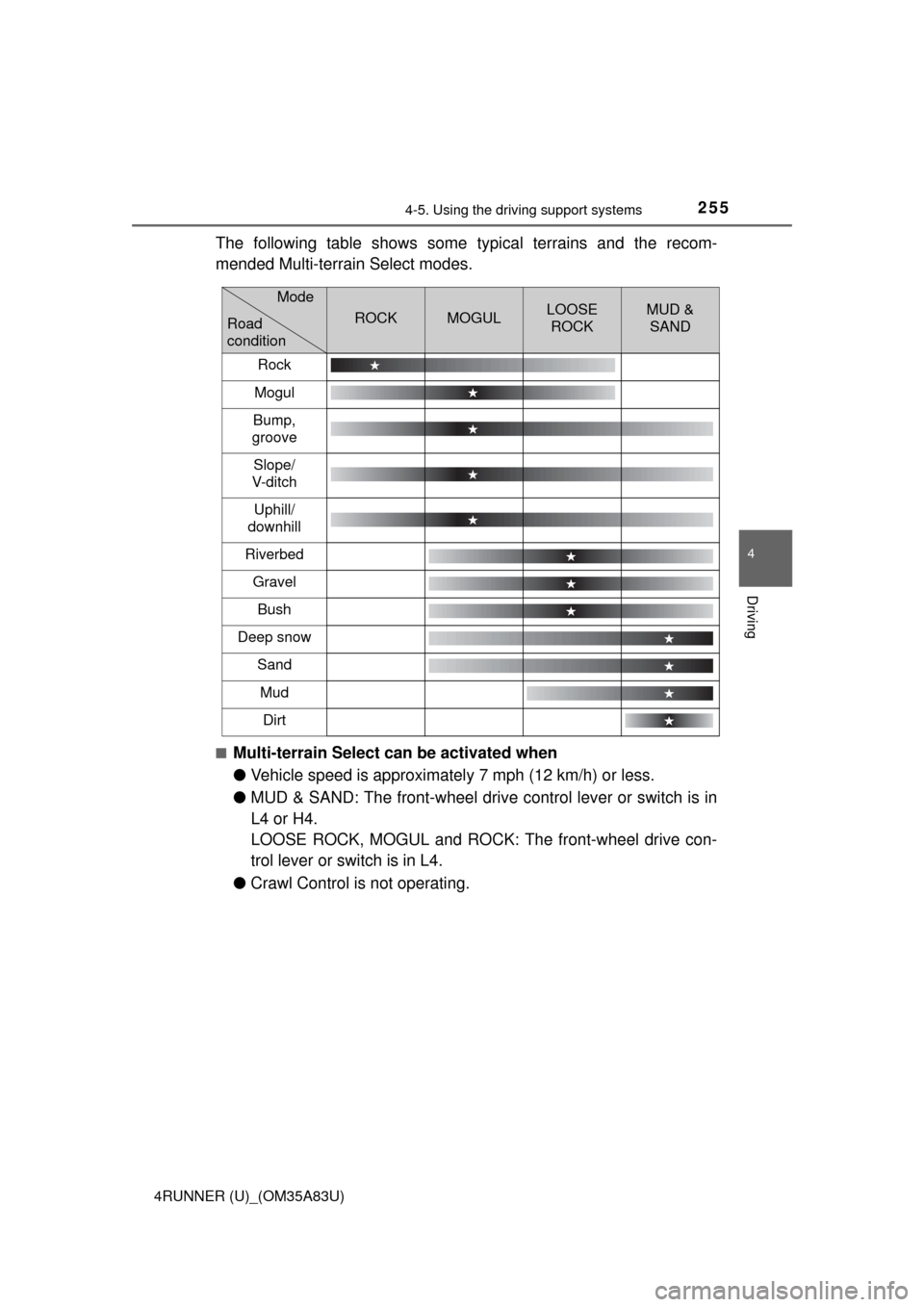

The following table shows some typical terrains and the recom-
mended Multi-terrain Select modes.
■Multi-terrain Select can be activated when
● Vehicle speed is approximatel y 7 mph (12 km/h) or less.
● MUD & SAND: The front-wheel drive control lever or switch is in
L4 or H4.
LOOSE ROCK, MOGUL and ROCK: The front-wheel drive con-
trol lever or switch is in L4.
● Crawl Control is not operating.
ROCKMOGULLOOSE
ROCKMUD & SAND
Rock
Mogul
Bump,
groove
Slope/
V- di t c h
Uphill/
downhill
Riverbed
Gravel
Bush
Deep snow
Sand
Mud
Dirt
Mode
Road
condition

2564-5. Using the driving support systems
4RUNNER (U)_(OM35A83U)
Press the “ON/OFF” switch.
All the mode indicators will come
on and then go off except the indi-
cator for the present mode. The
applicable road conditions will be
displayed on the accessory meter.
Turn the dial to select the
desired mode.
The indicator of the selected mode
will come on and the applicable
road conditions will be displayed
on the accessory meter.
If the mode indicator flashes, Multi-
terrain Select cannot be operated.
Follow the instructions displayed
on the accessory meter and check
that the mode indicator stops flash-
ing. (P. 257)
Selecting modes
1
2

2574-5. Using the driving support systems
4
Driving
4RUNNER (U)_(OM35A83U)
Depending on switch operation, one of the following messages may
appear on the accessory meter to provide guidance on transfer mode
selection etc:

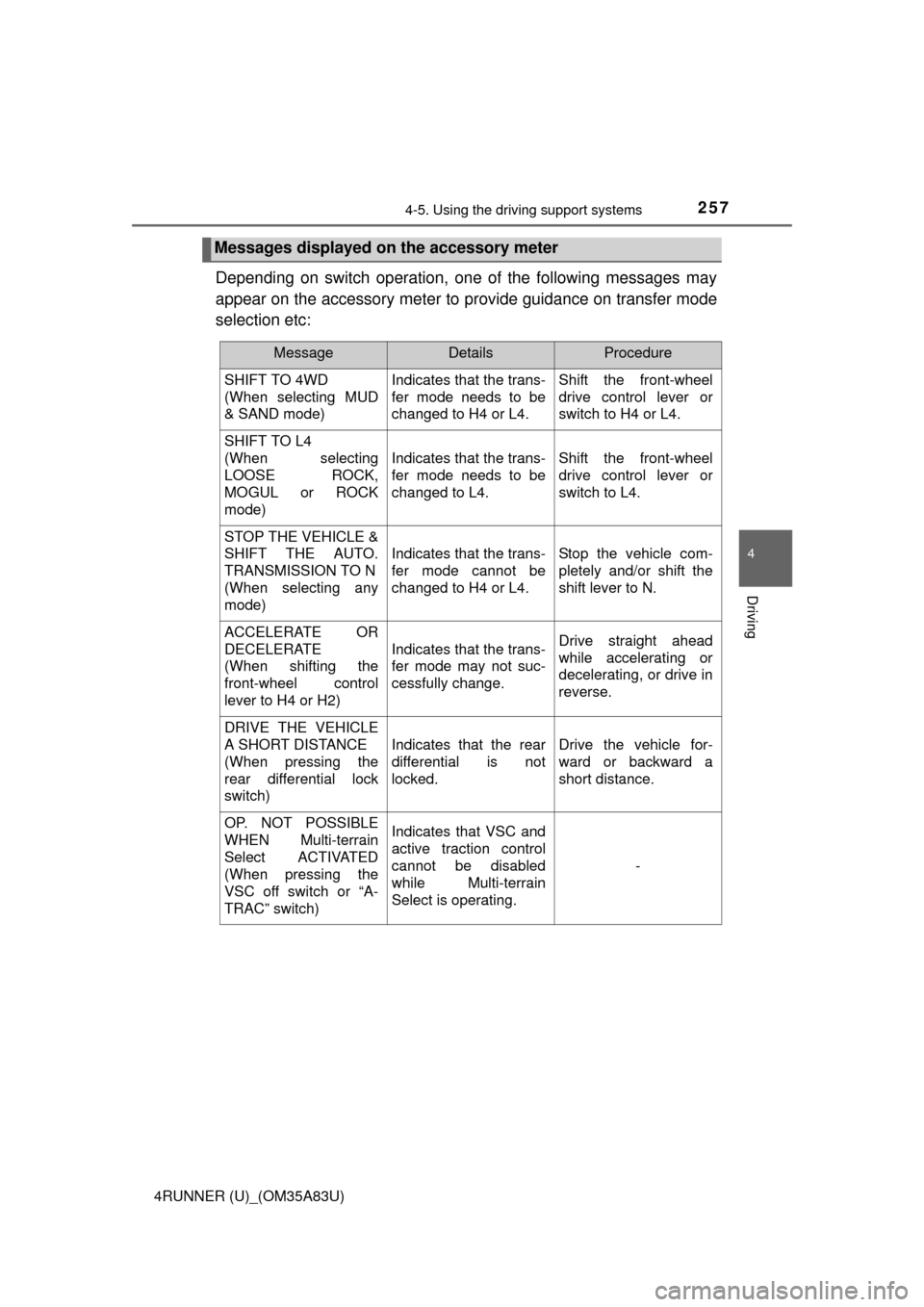

Messages displayed on the accessory meter
MessageDetailsProcedure
SHIFT TO 4WD
(When selecting MUD
& SAND mode) Indicates that the trans-
fer mode needs to be
changed to H4 or L4.Shift the front-wheel
drive control lever or
switch to H4 or L4.
SHIFT TO L4
(When selecting
LOOSE ROCK,
MOGUL or ROCK
mode)
Indicates that the trans-
fer mode needs to be
changed to L4.Shift the front-wheel
drive control lever or
switch to L4.
STOP THE VEHICLE &
SHIFT THE AUTO.
TRANSMISSION TO N
(When selecting any
mode)
Indicates that the trans-
fer mode cannot be
changed to H4 or L4.Stop the vehicle com-
pletely and/or shift the
shift lever to N.
ACCELERATE OR
DECELERATE
(When shifting the
front-wheel control
lever to H4 or H2)
Indicates that the trans-
fer mode may not suc-
cessfully change.Drive straight ahead
while accelerating or
decelerating, or drive in
reverse.
DRIVE THE VEHICLE
A SHORT DISTANCE
(When pressing the
rear differential lock
switch)
Indicates that the rear
differential is not
locked.Drive the vehicle for-
ward or backward a
short distance.
OP. NOT POSSIBLE
WHEN Multi-terrain
Select ACTIVATED
(When pressing the
VSC off switch or “A-
TRAC” switch)Indicates that VSC and
active traction control
cannot be disabled
while Multi-terrain
Select is operating.
-

2584-5. Using the driving support systems
4RUNNER (U)_(OM35A83U)
■Multi-terrain Select is temporarily canceled when
The front-wheel drive control lever or sw itch is shifted to H4 when Multi-ter-
rain Select is in ROCK, MOGUL or LOOSE ROCK mode. The mode indicator
will flash until the lever is shifted back to L4.
■ If the Multi-terrain Select indicator continues to flash
This may indicate a malfunction in the Multi-terrain Select system.
In this case, Multi-terrain Select is automatically canceled. Have your vehicle
inspected by your Toyota dealer.

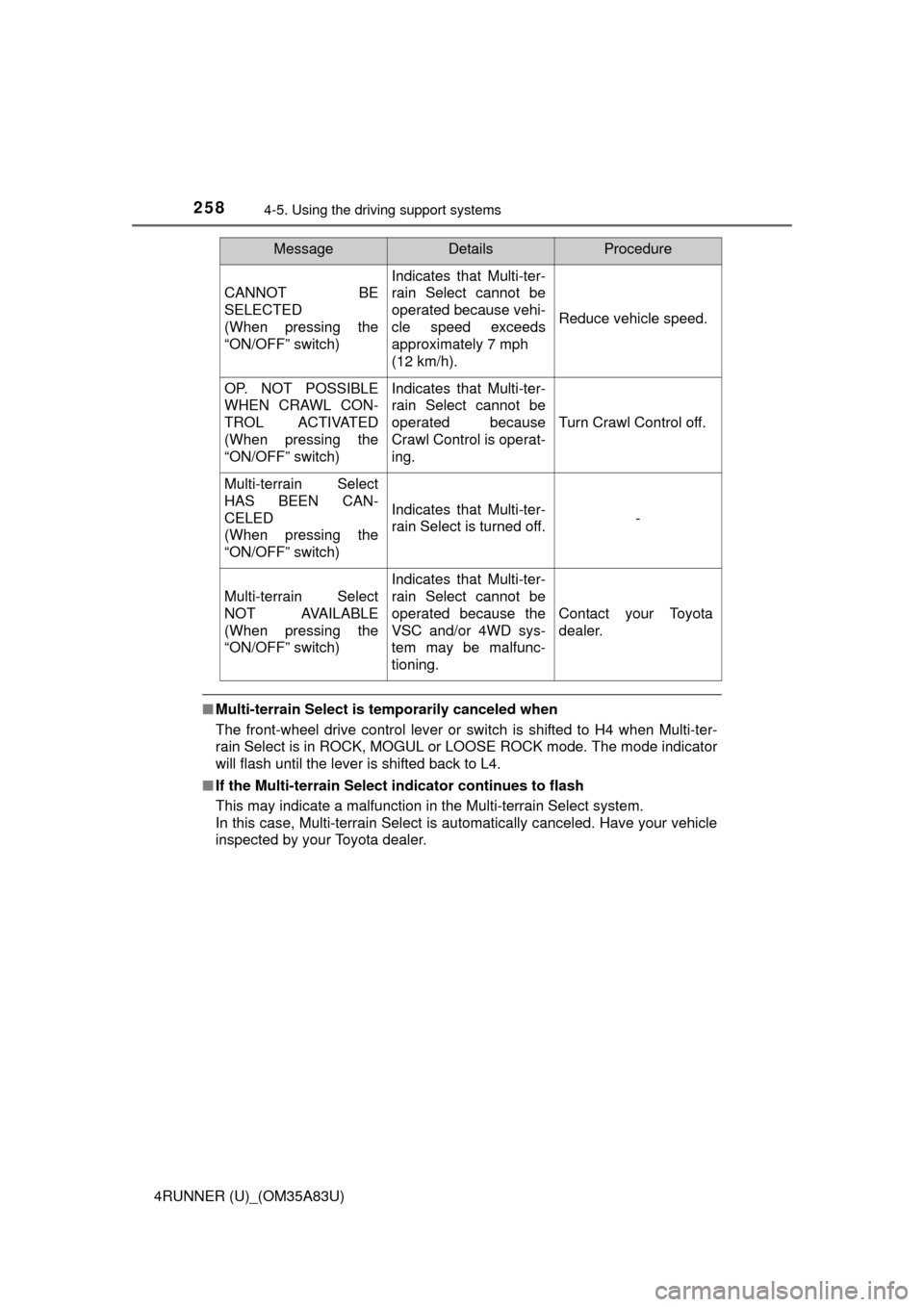

CANNOT BE
SELECTED
(When pressing the
“ON/OFF” switch)
Indicates that Multi-ter-
rain Select cannot be
operated because vehi-
cle speed exceeds
approximately 7 mph
(12 km/h).
Reduce vehicle speed.
OP. NOT POSSIBLE
WHEN CRAWL CON-
TROL ACTIVATED
(When pressing the
“ON/OFF” switch)Indicates that Multi-ter-
rain Select cannot be
operated because
Crawl Control is operat-
ing.
Turn Crawl Control off.
Multi-terrain Select
HAS BEEN CAN-
CELED
(When pressing the
“ON/OFF” switch)
Indicates that Multi-ter-
rain Select is turned off.-
Multi-terrain Select
NOT AVAILABLE
(When pressing the
“ON/OFF” switch)
Indicates that Multi-ter-
rain Select cannot be
operated because the
VSC and/or 4WD sys-
tem may be malfunc-
tioning.
Contact your Toyota
dealer.
