USB port TOYOTA 4RUNNER 2014 N280 / 5.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new 4Runner.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 4Runner
operations. Every 4Runner owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2014
4RunnerINDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
Engine maintenance 8
Fuel tank door and cap 6
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6Smart Key system1 7 Air Conditioning/Heating 18-19
Audio 20
Auto lock/unlock1,2 9Automatic running boards 19
Automatic Transmission 9
Clock 14
Cruise control 17
Entune™ Audio Plus 21
Four-wheel drive 10
Garage door opener (HomeLink
®)3 19
USB/AUX port 23
Light control-Instrument panel 15Lights1 & turn signals 16
Moonroof1 14Parking brake 9
Power outlets-12V DC 24
Power outlets-120V AC 23
Seat adjustments-Front 11
Seat adjustments-Second row seats 11
Seat ventilators/heaters 18
Seats-Folding down second row seats 12
Seats-Head restraints 13
Seats-Returning third row seats 13
Seats-Stowing third row seats 13
Tilt and telescopic steering wheel 10
Traffic 22
VSC OFF button 15
Weather 22
Windows1 14
Window-Back window1 15Windshield wipers & washers 17 Door locks 25
Doors-Child safety locks 26
Floor mat installation 29
Seat belts 25
Seat belts-Shoulder belt anchor 25
Spare tire & tools 27
Star Safety System
TM 28-29Tire Pressure Monitoring (warning) System 26
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES

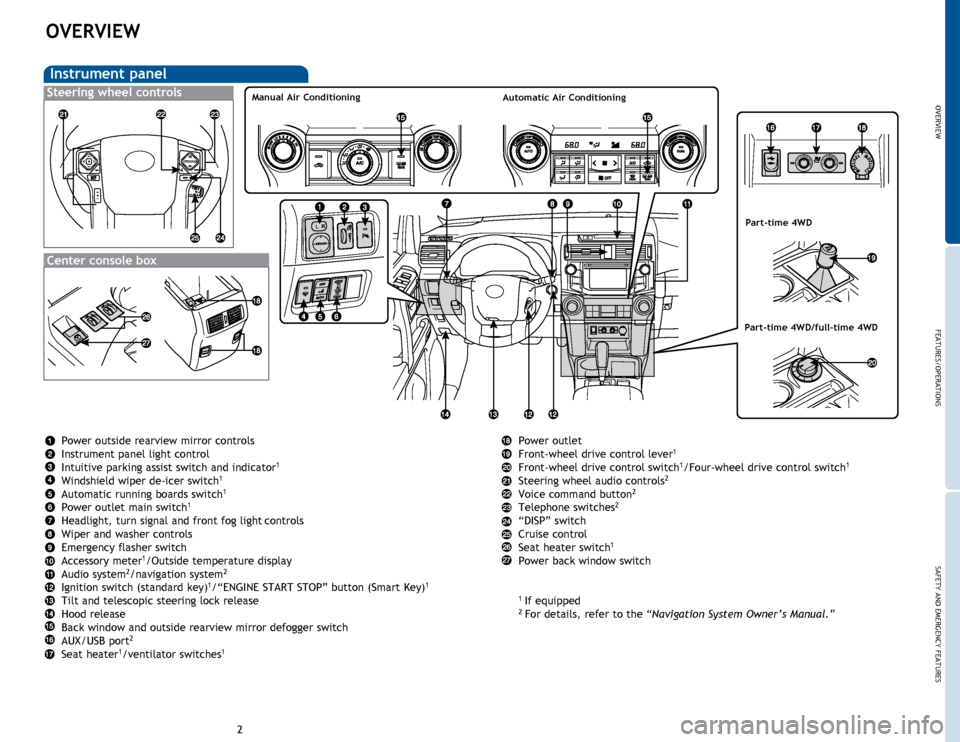

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
Power outside rearview mirror controls
Instrument panel light control
Intuitive parking assist switch and indicator
1
Windshield wiper de-icer switch1
Automatic running boards switch1
Power outlet main switch1
Headlight, turn signal and front fog light controls
Wiper and washer controls
Emergency flasher switch
Accessory meter
1/Outside temperature display
Audio system2/navigation system2
Ignition switch (standard key)1/“ENGINE START STOP” button (Smart Key)1
Tilt and telescopic steering lock release
Hood release
Back window and outside rearview mirror defogger switch
AUX/USB port
2
Seat heater1/ventilator switches1
OVERVIEW
Instrument panel
Steering wheel controls
Center console box
Power outlet
Front-wheel drive control lever1
Front-wheel drive control switch1/Four-wheel drive control switch1
Steering wheel audio controls2
Voice command button2
Telephone switches2
“DISP” switch
Cruise control
Seat heater switch
1
Power back window switch
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”
Manual Air Conditioning Automatic Air Conditioning
Part-time 4WD
Part-time 4WD/full-time 4WD

21
20
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn audio
system OFF.>>
Steering wheel controls (if equipped)
FEATURES/OPERATIONS
Volume control
MAP card slot
Type 1
Type 2 additional functions
Audio (if equipped)
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
Eject CD
Push to turn
ON/OFF
Seek station/
CD track
select
Push to
display
audio
screen
Turn to tune
radio stations
manually or
select tracks
or files
Touch screen display
Access to
navigation system
Entune™ Audio Plus
AUDIO Button
Access to audio functions.
HOME Button
Access to Home screen.
APPS Button
Access to features such as fuel
consumption, traffic, and weather.
1
2
3
Quick Tip
- The USB and AUX port location and design
are different depending on the vehicle. For details, see
page 23.
1
2
3
HOME SCREEN - the home
screen offers a two panel
and a three panel layout.
Information and layout will
vary depending on selcted
set up.
NOTE: Console configuration and position of buttons may vary in some vehicles.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

23
22
OVERVIEW FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
By inserting a mini plug into the USB/AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in USB/AUX
mode.
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
Type AType B
USB/AUX port
NOTE: The 120V AC power outlet can only be used when engine is running.
Power outlets-120V AC (if equipped)
ON/OFF
Main switch
Push
Luggage compartment
Traffic
The Weather App otions show current weather and recently checked locations
weather. You can also search for a weather forecast by national or local cities.
The Traffic App displays a scrollable map showing local traffic in 3 colors. Traffic
conditions are displayed in red, yellow and green for heavy, moderate or light
traffic conditions. Use
or arrows to scroll the map up or down.
Weather
Always drive safely, obey traffic laws & focus on the road while driving. Availability and
accuracy of the information provided by HD services is dependent upon ma\
ny factors.
Services not available in every city or roadway. Use common sense when relying on
information provided. HD Radio(tm) Technology manufactured under license from iBiquity
Digital Corporation U.S. and Foreign Patents. HD Radio(tm) and the HD, HD Radio, and “Arc”
logos are proprietary trademarks of iBiquity Digital Corp.
