4RUNNER (U)_(OM35B23U)■Automatic system cancelation
In the following situations, the system will cease operation and a buzzer will
sound to alert the driver. The Crawl Control indicator will flash until the system
is turned off completely.
●When the shift lever is shifted to P or N
●When the front-wheel drive control lever or switch is shifted to H4
●When the driver’s door is opened
●When the system is malfunctioning
●When the brake system overheats
Stop the vehicle in a safe place. (There is no problem with continuing normal
driving.)
●When the automatic transmission system overheats
Stop the vehicle in a safe place until the automatic transmission fluid tem-
perature warning light goes off.
■Sounds and vibrations caused by the Crawl Control system
●A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate
that a malfunction has occurred in Crawl Control system.
●Either of the following conditions may occur when the Crawl Control system
is operating. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
CAUTION
■When using Crawl Control
●Do not overly rely on Crawl Control. This function does not extend the
vehicle’s performance limitations. Always check the terrain thoroughly and
drive safely.
●The recommended speed modes for the listed terrains (P. 250) are only
a reference. The selected mode may not be suitable to actual off-road con-
ditions due to factors such as the type or unevenness of the terrain or the
degree of incline. Check the actual terrain thoroughly and drive safely.
●After activating Crawl Control, make sure that the Crawl Control indicator
comes on. If the indicator flashes, the vehicle is not under system control.
■Conditions under which the system may not operate correctly
When driving on the following surfaces, the system may not be able to
maintain a fixed low speed, which may result in an accident:
●Extremely steep inclines
●Extremely uneven surfaces
●Snow-covered roads, or other slippery surfaces

2524-5. Using the driving support systems
4RUNNER (U)_(OM35B23U)

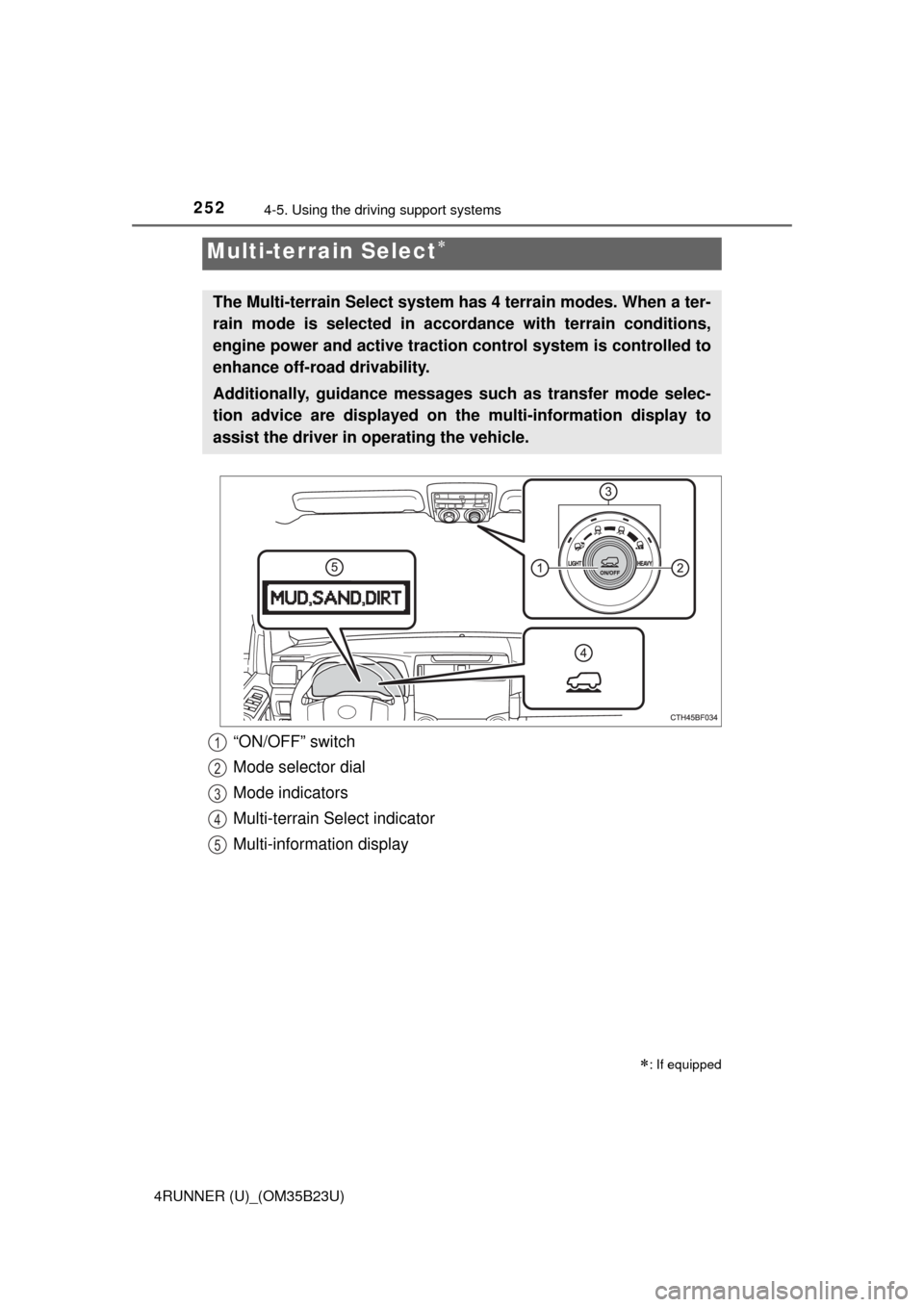

Multi-terrain Select
: If equipped
The Multi-terrain Select system has 4 terrain modes. When a ter-
rain mode is selected in accordance with terrain conditions,
engine power and active traction control system is controlled to
enhance off-road drivability.
Additionally, guidance messages such as transfer mode selec-
tion advice are displayed on the multi-information display to
assist the driver in operating the vehicle.
“ON/OFF” switch
Mode selector dial
Mode indicators
Multi-terrain Select indicator
Multi-information display1
2
3
4
5

2534-5. Using the driving support systems
4
Driving
4RUNNER (U)_(OM35B23U)■
Multi-terrain Select modes
SymbolMode
MUD & SAND
LOOSE ROCK
MOGUL
ROCK
1
2
3
4

2544-5. Using the driving support systems
4RUNNER (U)_(OM35B23U)
The following table shows some typical terrains and the recom-
mended Multi-terrain Select modes.
■Multi-terrain Select can be activated when
●Vehicle speed is approximately 7 mph (12 km/h) or less.
●MUD & SAND: The front-wheel drive control lever is in L4 or H4.
LOOSE ROCK, MOGUL and ROCK: The front-wheel drive con-
trol lever is in L4.
●Crawl Control is not operating.
ROCKMOGULLOOSE
ROCKMUD &
SAND
Rock
Mogul
Bump,
groove
Slope/
V- di t c h
Uphill/
downhill
Riverbed
Gravel
Bush
Deep snow
Sand
Mud
Dirt
Mode
Road
condition

2554-5. Using the driving support systems
4
Driving
4RUNNER (U)_(OM35B23U)
Press the “ON/OFF” switch.
All of the mode indicators will turn
on and then off except the indicator
for the current mode. The Multi-ter-
rain Select indicator on the instru-
ment cluster will remain illuminated
while this system is enabled. The
applicable road conditions will be
displayed on the multi-information
display for 10 seconds and then
will go off.
When the “ON/OFF” switch is
pressed to disable the system, a
beep will sound.
Turn the dial to select the
desired mode.
The indicator for the selected
mode will turn on and the applica-
ble road conditions will be dis-
played on the multi-information
display for 10 seconds and then
will go off.
If the mode indicator flashes, Multi-
terrain Select cannot be operated.
Follow the instructions displayed
on the multi-information display
and check that the mode indicator
stops flashing. (P. 256)
Selecting modes
1
2

2564-5. Using the driving support systems
4RUNNER (U)_(OM35B23U)
Depending on switch operation,
one of the following messages
may appear on the multi-informa-
tion display to provide guidance
on transfer mode selection etc:
Messages displayed on the multi-information display
MessageDetailsProcedure
SHIFT TO 4WD
(When selecting MUD
& SAND mode)Indicates that the trans-
fer mode needs to be
changed to H4 or L4.Shift the front-wheel
drive control lever to H4
or L4.
SHIFT TO L4
(When selecting
LOOSE ROCK,
MOGUL or ROCK
mode)
Indicates that the trans-
fer mode needs to be
changed to L4.Shift the front-wheel
drive control lever to
L4.
STOP THE VEHICLE
AND SHIFT THE
AUTOMATIC TRANS-
MISSION TO N
(When selecting any
mode)
Indicates that the trans-
fer mode cannot be
changed to H4 or L4.Stop the vehicle com-
pletely and/or shift the
shift lever to N.
ACCELERATE OR
DECELERATE
(When shifting the
front-wheel control
lever to H4 or H2)
Indicates that the trans-
fer mode may not suc-
cessfully change.Drive straight ahead
while accelerating or
decelerating, or drive in
reverse.
DRIVE THE VEHICLE
A SHORT DISTANCE
(When pressing the
rear differential lock
switch)
Indicates that the rear
differential is not
locked.Drive the vehicle for-
ward or backward a
short distance.

2574-5. Using the driving support systems
4
Driving
4RUNNER (U)_(OM35B23U)
OPERATION NOT
POSSIBLE WHEN
MULTI-TERRAIN
SELECT ACTIVATED
(When pressing the
VSC off switch or “A-
TRAC” switch)
Indicates that VSC and
active traction control
cannot be disabled
while Multi-terrain
Select is operating.
-
RETURN THE FOUR-
WHEEL DRIVE CON-
TROL SWITCH (When
shifting the front-wheel
control lever)
Indicates that the trans-
fer mode cannot be
changed to H4 or L4.Return the front-wheel
control lever to H4 or
L4.
CANNOT BE
SELECTED
(When pressing the
“ON/OFF” switch)
Indicates that Multi-ter-
rain Select cannot be
operated because vehi-
cle speed exceeds
approximately 7 mph
(12 km/h).
Reduce vehicle speed.
OPERATION NOT
POSSIBLE WHEN
CRAWL CONTROL
A C T I VAT E D ( W h e n
pressing the “ON/OFF”
switch)Indicates that Multi-ter-
rain Select cannot be
operated because
Crawl Control is operat-
ing.
Turn Crawl Control off.
MULTI-TERRAIN
SELECT HAS BEEN
CANCELED
(When pressing the
“ON/OFF” switch)Indicates, along with a
beep, that Multi-terrain
Select has been dis-
abled.
-
MULTI-TERRAIN
SELECT NOT AVAIL-
ABLE (When pressing
the “ON/OFF” switch)
Indicates that Multi-ter-
rain Select cannot be
operated because the
VSC and/or 4WD sys-
tem may be malfunc-
tioning.
Contact your Toyota
dealer.
MessageDetailsProcedure

2584-5. Using the driving support systems
4RUNNER (U)_(OM35B23U)
■Multi-terrain Select is temporarily canceled when
The front-wheel drive control lever is shifted to H4 when Multi-terrain Select is
in ROCK, MOGUL or LOOSE ROCK mode. The mode indicator will flash until
the lever is shifted back to L4.
■If the Multi-terrain Select indicator continues to flash
This may indicate a malfunction in the Multi-terrain Select system.
In this case, Multi-terrain Select is automatically canceled. Have your vehicle
inspected by your Toyota dealer.
■If the Multi-terrain Select indicator goes off while Multi-terrain Select is
operating
●One of the vehicle systems related to Multi-terrain Select may be malfunc-
tioning.
Have your vehicle inspected by your Toyota dealer.
●
The brake actuator may be at risk of overheating.
A buzzer will sound, the “A-TRAC” indicator will go off and the “TRAC OFF”
indicator will come on. Stop the vehicle in a safe place. Refrain from using
Multi-terrain Select until the “A-TRAC” indicator comes back on and the
“TRAC OFF” indicator goes off. (The vehicle can still be driven, even if Multi-
terrain Select is inoperative.)
In the above cases, Multi-terrain Select is automatically canceled.
CAUTION
■Before driving
To avoid an accident, observe the precautions relating to off-road driving.
(P. 272)
■When using Multi-terrain Select
●Do not use the Multi-terrain Select system for normal (on-road) driving.
The Multi-terrain Select system is designed for off-road use only.
●Do not overly rely on Multi-terrain Select. This function does not extend
the vehicle’s performance limitations. Always check the terrain thoroughly
and drive safely.
●The recommended modes for the listed terrains (P. 253) are only a refer-
ence. The selected mode may not be suitable to actual off-road conditions
due to factors such as the type or unevenness of the terrain or the degree
of incline. Check the actual terrain thoroughly and drive safely.
●After selecting a mode, make sure that the Multi-terrain Select indicator
and the selected mode indicator come on. If any related indicator flashes,
the vehicle is not under Multi-terrain Select control.

2594-5. Using the driving support systems
4
Driving
4RUNNER (U)_(OM35B23U)
◆ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly,
or if the brakes are applied while driving on a slippery road surface
◆Multi Terrain ABS (Anti-lock Brake System) (if equipped)
Helps to prevent wheel lock when the brakes are applied suddenly,
or if the brakes are applied while driving on a slippery road surface,
or in off-road conditions (such as rough roads, sand and mud)
The Multi Terrain ABS operates in synchronization with the Multi-
terrain Select.
◆Brake assist
Generates an increased level of braking force after the brake pedal
is depressed when the system detects a panic stop situation
◆VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or
turning on slippery road surfaces
◆Trailer Sway Control
Helps the driver to control trailer sway by selectively applying brake
pressure for individual wheels and reducing engine torque when
trailer sway is detected.
Trailer Sway Control is part of the VSC system and will not operate
if VSC is turned off or experiences a malfunction.
◆TRAC (Traction Control)
Helps to maintain drive power and prevent the drive wheels from
spinning when starting the vehicle or accelerating on slippery roads
Driving assist systems
To help enhance driving safety and performance, the following
systems operate automatically in response to various driving
situations. Be aware, however, that these systems are supple-
mentary and should not be relied upon too heavily when operat-
ing the vehicle.

2604-5. Using the driving support systems
4RUNNER (U)_(OM35B23U)
◆Hill-start assist control (if equipped)
Helps to prevent the vehicle from rolling backward when starting on
an incline or slippery slope
◆LSD (Limited Slip Differential) (if equipped)
Transfers drive power to the rear tires when front tires spin, and
vice versa, in order to improve traction
◆KDSS (Kinetic Dynamic Suspension System) (if equipped)
Enhances ride comfort and handling response by using a hydraulic
control system to control the suspension stabilizer bars in response
to road surface and driving conditions during cornering or off-road
driving
If the vehicle is in danger of slip-
ping or if any of the drive wheels
spins, the slip indicator flashes to
indicate that the TRAC/VSC/
Trailer Sway Control systems are
operating.
If the vehicle is in danger of slip-
ping or rolling backward when
starting on an incline, or if any of
the drive wheels spins, the slip
indicator flashes to indicate that
the TRAC/VSC/Trailer Sway Con-
trol/hill-start assist control sys-
tems are operating.
The stop lights and high mounted
stoplight turn on and a buzzer
(intermittent) sounds when the hill-
start assist control system is oper-
ating.
When the TRAC/VSC/Trailer Sway Control systems are operating
(2WD models)
When the TRAC/VSC/Trailer Sway Control/hill-start assist control
systems are operating (4WD models)
