ECU TOYOTA 4RUNNER 2016 N280 / 5.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

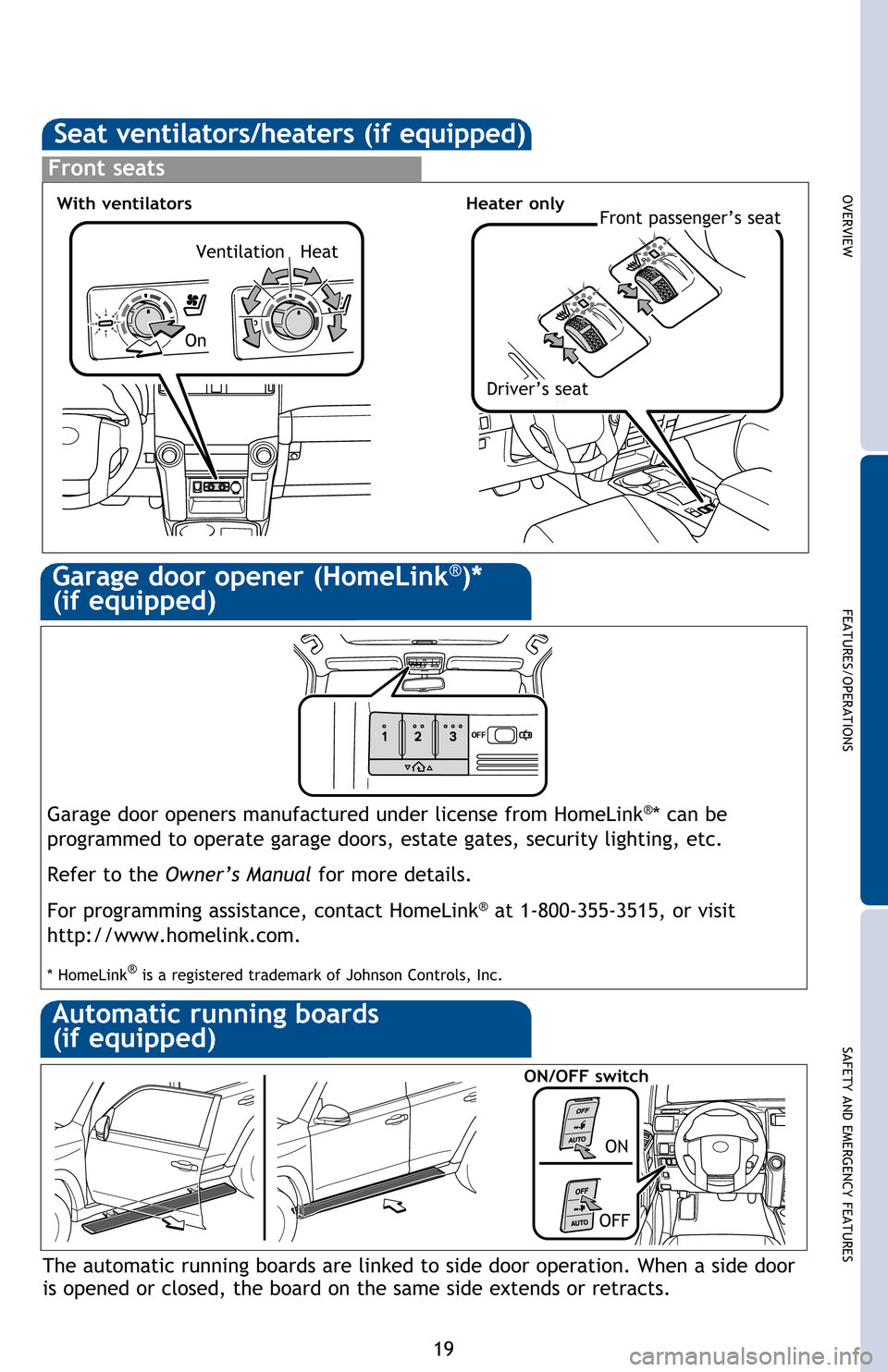

19
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Automatic running boards
(if equipped)
Garage door opener (HomeLink®)*
(if equipped)
The automatic running boards are linked to side door operation. When a side door
is opened or closed, the board on the same side extends or retracts.
ON/OFF switch
ON
OFF
Seat ventilators/heaters (if equipped)
Front seats
Front passenger’s seatHeater onlyWith ventilators
Driver’s seat Ventilation Heat
On

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

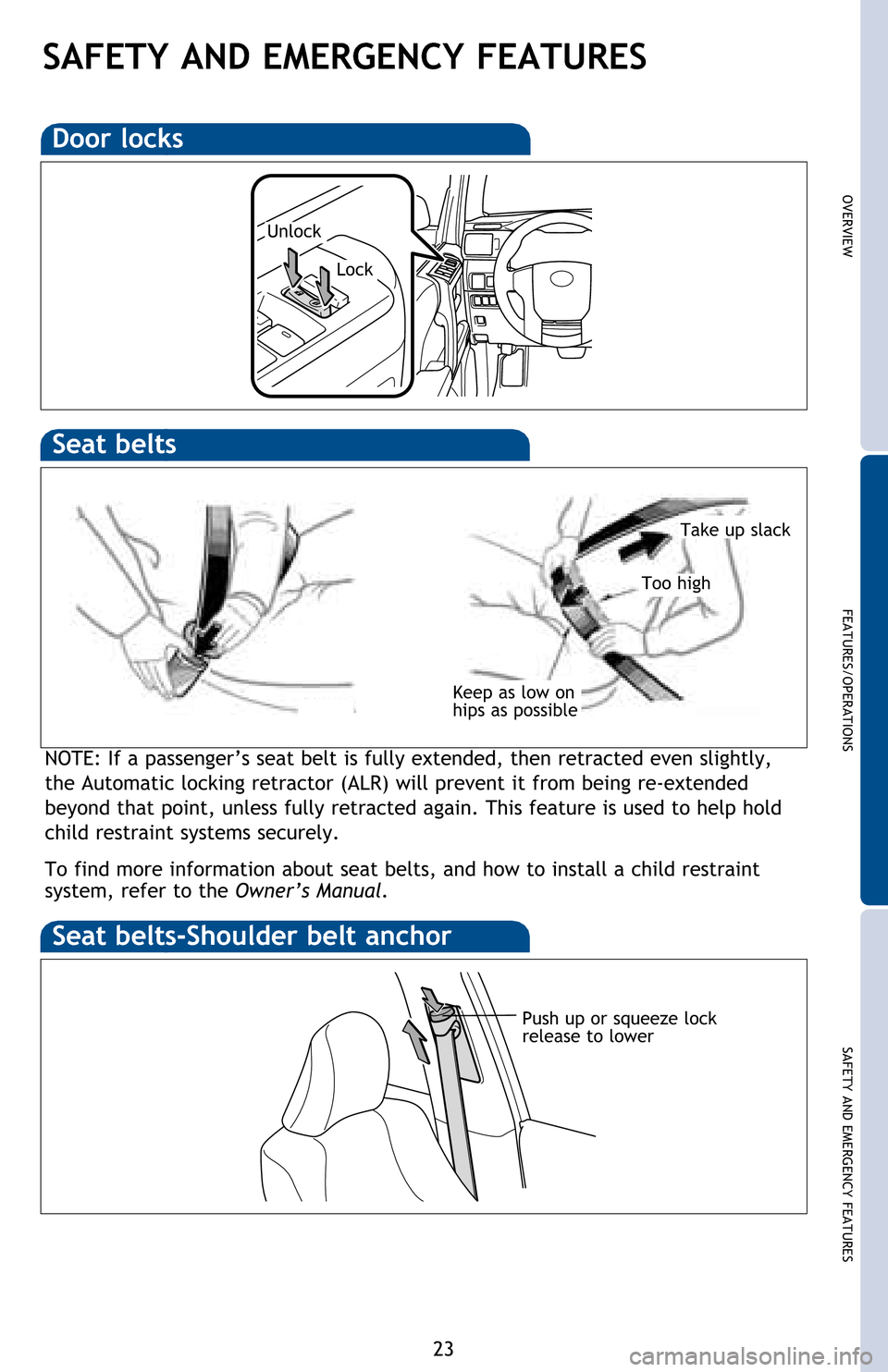

23
SAFETY AND EMERGENCY FEATURES
Seat belts-Shoulder belt anchor
Push up or squeeze lock
release to lower
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Door locks
Unlock
Lock
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
