TOYOTA 4RUNNER 2019 Accessories, Audio & Navigation (in English)

1
11
4RUNNER_Navi_U
3
4
5
6
7
8
9
1
2

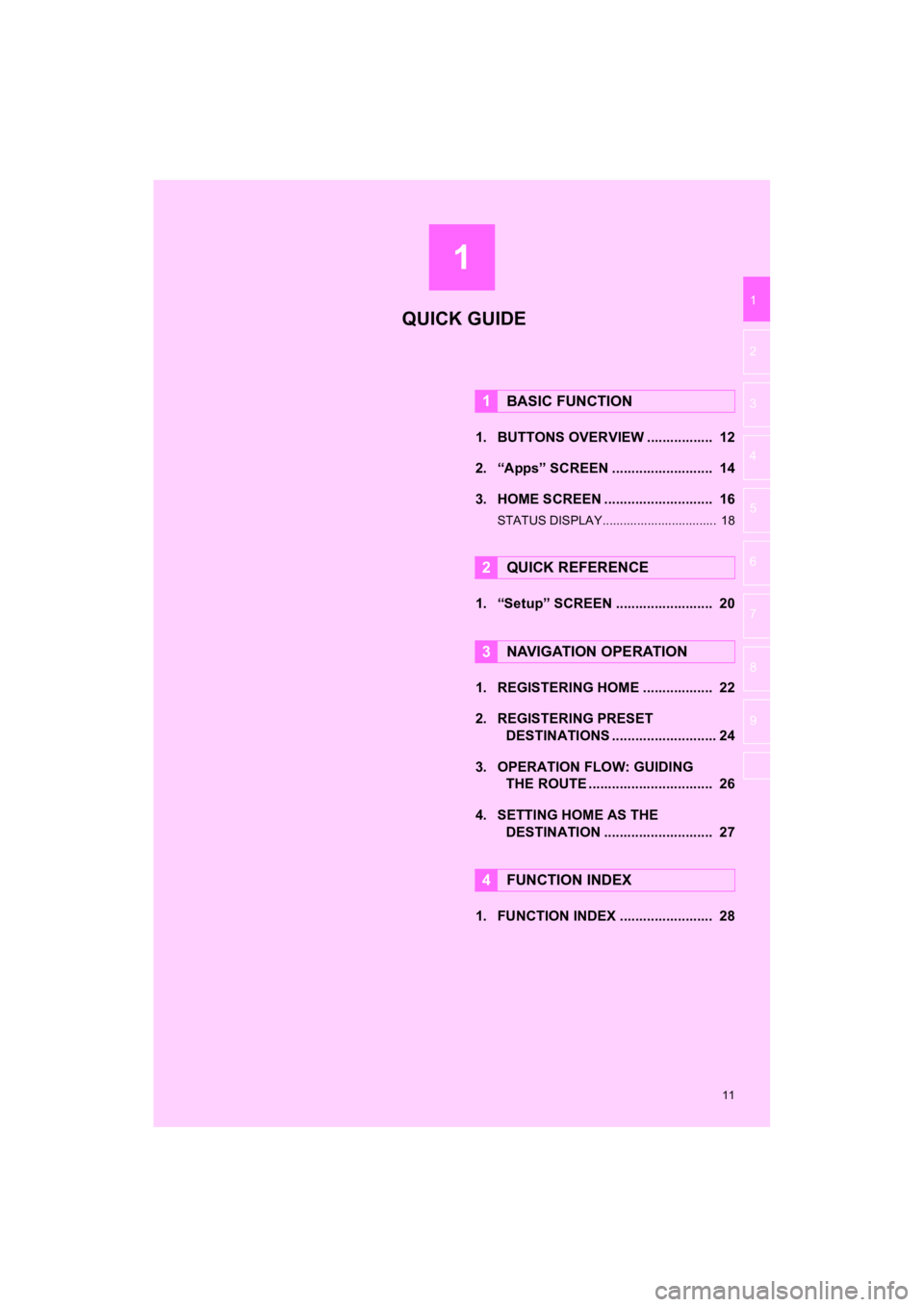

1. BUTTONS OVERVIEW ................. 12
2. “Apps” SCREEN .......................... 14
3. HOME SCREEN ............................ 16
STATUS DISPLAY................................. 18
1. “Setup” SCREEN ......................... 20
1. REGISTERING HOME .................. 22
2. REGISTERING PRESET DESTINATIONS ........................... 24
3. OPERATION FLOW: GUIDING THE ROUTE ................................ 26
4. SETTING HOME AS THE DESTINATION ............................ 27
1. FUNCTION INDEX ........................ 28
1BASIC FUNCTION
2QUICK REFERENCE
3NAVIGATION OPERATION
4FUNCTION INDEX
QUICK GUIDE

12
4RUNNER_Navi_U
1. BASIC FUNCTION
1. BUTTONS OVERVIEW
Entune Audio Plus
 Entune Premium Audio

13
1. BASIC FUNCTION
4RUNNER_Navi_U
QUICK GUIDE

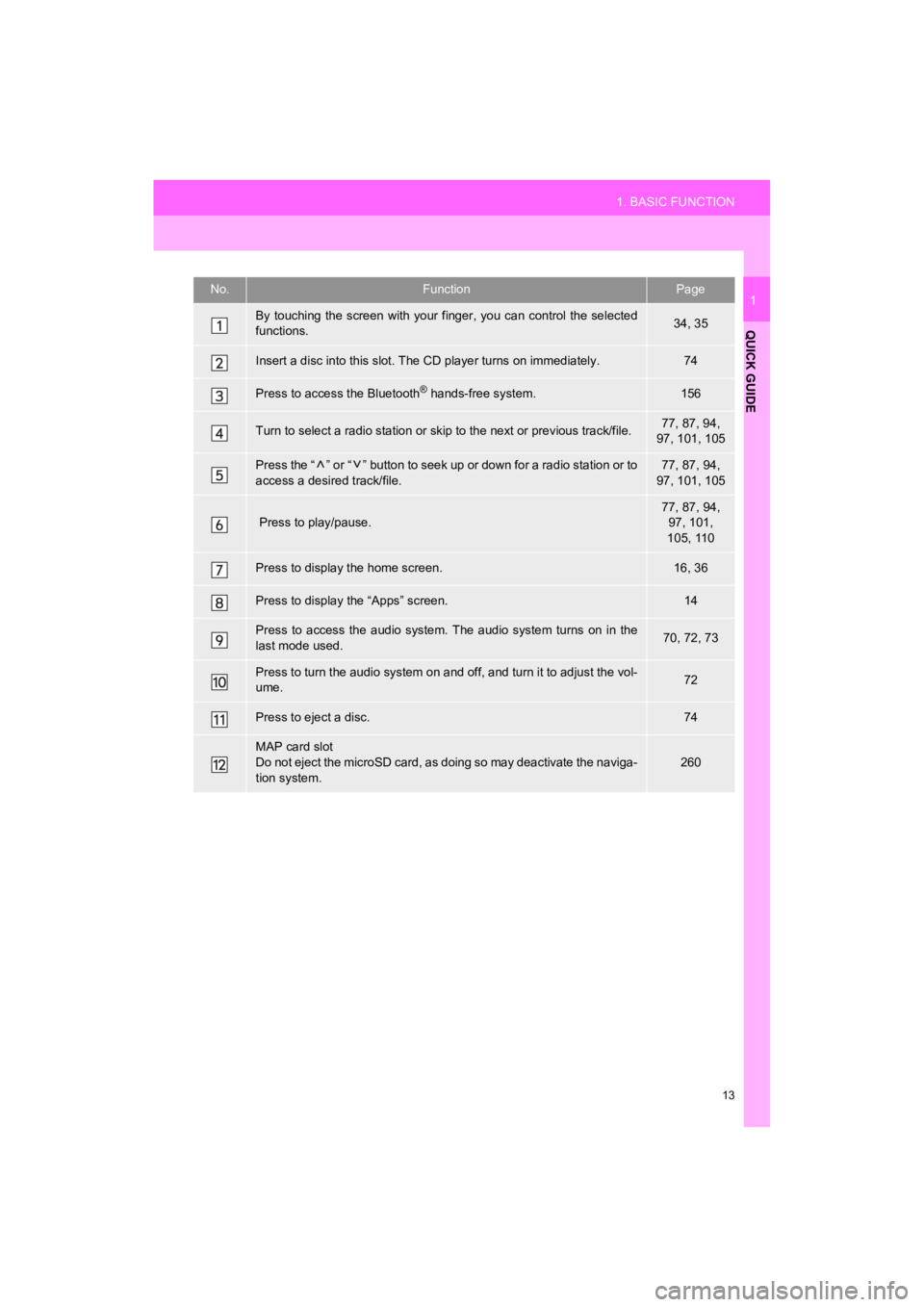

1No.FunctionPage
By touching the screen with your finger, you can control the selected
functions.34, 35
Insert a disc into this slot. The CD player turns on immediatel y.74
Press to access the Bluetooth® hands-free system.156
Turn to select a radio station or skip to the next or previous track/file.77, 87, 94,
97, 101, 105
Press the “ ” or “ ” button to seek up or down for a radio station or to
access a desired track/file.77, 87, 94,
97, 101, 105
Press to play/pause.
77, 87, 94, 97, 101,
105, 110
Press to display the home screen.16, 36
Press to display the “Apps” screen.14
Press to access the audio system. The audio system turns on in the
last mode used.70, 72, 73
Press to turn the audio system on and off, and turn it to adjus t the vol-
ume.72
Press to eject a disc.74
MAP card slot
Do not eject the microSD card, as doing so may deactivate the n aviga-
tion system.
260

14
1. BASIC FUNCTION
4RUNNER_Navi_U
2. “Apps” SCREEN
Entune Audio Plus
 Entune Premium Audio
Press the “APPS” button to display the “Apps” screen.

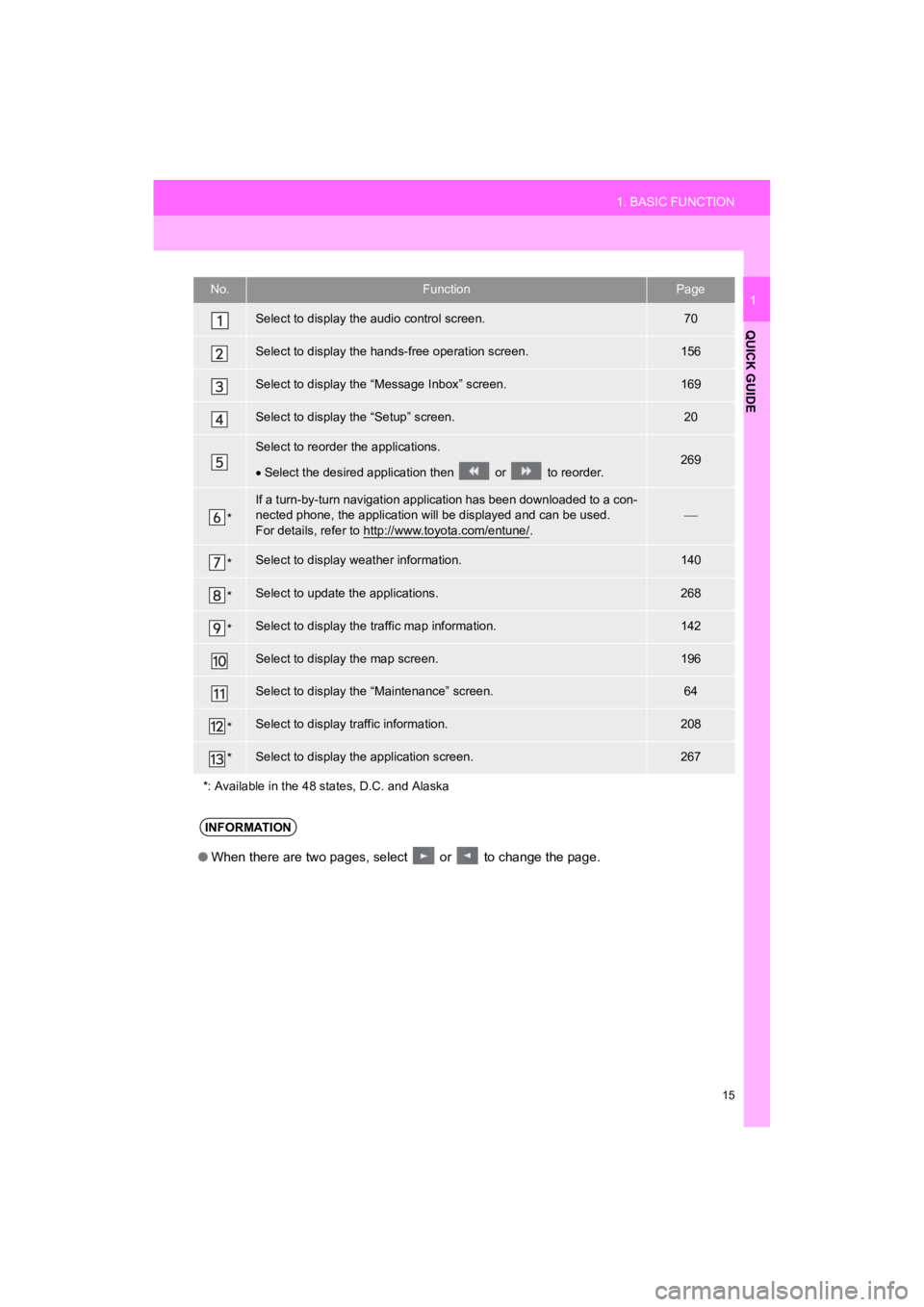

15
1. BASIC FUNCTION
4RUNNER_Navi_U
QUICK GUIDE
1No.FunctionPage
Select to display the audio control screen.70
Select to display the hands-free operation screen.156
Select to display the “Message Inbox” screen.169
Select to display the “Setup” screen.20
Select to reorder the applications.
Select the desired application then or to reorder.269
*
If a turn-by-turn navigation application has been downloaded to a con-
nected phone, the application will be displayed and can be used.
For details, refer to http://www.toyota.com/entune/
.

*Select to display weather information.140
*Select to update the applications.268
*Select to display the traffic map information.142
Select to display the map screen.196
Select to display the “Maintenance” screen.64
*Select to display traffic information.208
*Select to display the application screen.267
*: Available in the 48 st ates, D.C. and Alaska
INFORMATION
●When there are two pages, select or to change the page.

16
1. BASIC FUNCTION
4RUNNER_Navi_U
3. HOME SCREEN
Three-way split screen
Press the “HOME” button to display the home screen.
The home screen can display multiple information screens, such as the audio sys-
tem screen, hands-free screen and navigation screen, simultaneously. When
hands-free mode is selected, it is possible to make a call on the home screen if the
desired phone number is registered to one of the 4 displayed bu ttons. In order to
register the contact, select and hold the desired button and re gister the desired
contact by obey displayed messages on the screen. ( P.164)
When a screen is selected, the selected screen is switched to a full-screen display.
The home screen can be set to either a three-way split screen o r a two-way split
screen.
For details about setting the home screen: P.36

17
1. BASIC FUNCTION
4RUNNER_Navi_U
QUICK GUIDE
1
Two-way split screen
No.FunctionPage
Displays the condition of the Bluetooth® connection18
Select to display the “Setup” screen.20
INFORMATION
● Entune Audio Plus only: Turn-by-turn navigation application scr een can be displayed.

18
1. BASIC FUNCTION
4RUNNER_Navi_U

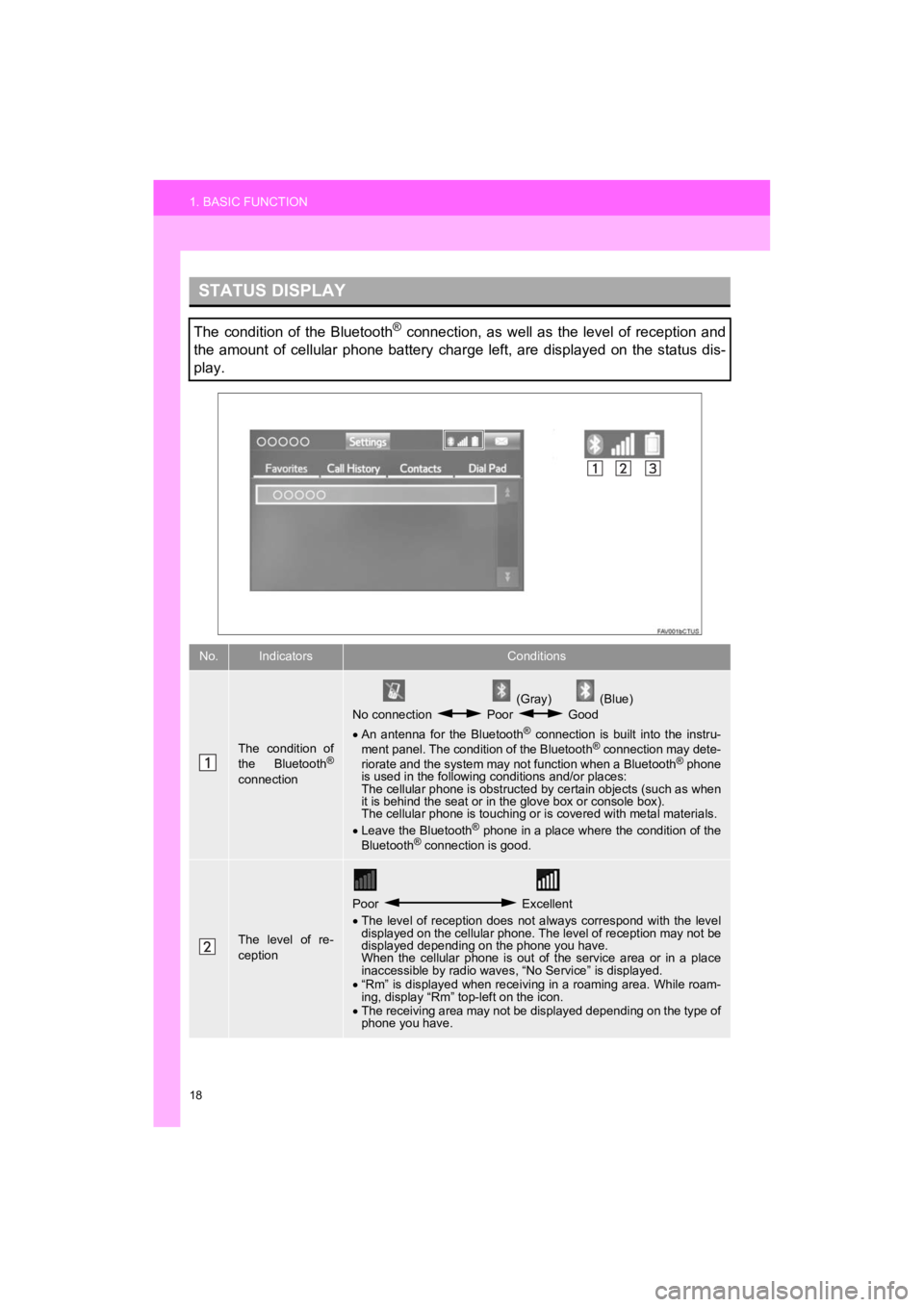

STATUS DISPLAY
The condition of the Bluetooth® connection, as well as the level of reception and
the amount of cellular phone battery charge left, are displayed on the status dis-
play.
No.IndicatorsConditions
The condition of
the Bluetooth®
connection
(Gray) (Blue)
No connection Poor Good
 An antenna for the Bluetooth
® connection is built into the instru-
ment panel. The condition of the Bluetooth® connection may dete-
riorate and the system may not function when a Bluetooth® phone
is used in the following conditions and/or places:
The cellular phone is obstructed by certain objects (such as when
it is behind the seat or in the glove box or console box).
The cellular phone is touching or is covered with metal materia ls.
 Leave the Bluetooth
® phone in a place where the condition of the
Bluetooth® connection is good.
The level of re-
ception
Poor Excellent
 The level of reception does not always correspond with the leve l
displayed on the cellular phone. The level of reception may not be
displayed depending on the phone you have.
When the cellular phone is out of the service area or in a plac e
inaccessible by radio waves , “No Service” is displayed.
 “Rm” is displayed when receiving in a roaming area. While roam-
ing, display “Rm” top-left on the icon.
 The receiving area may not be displayed depending on the type o f
phone you have.

19
1. BASIC FUNCTION
4RUNNER_Navi_U
QUICK GUIDE
1

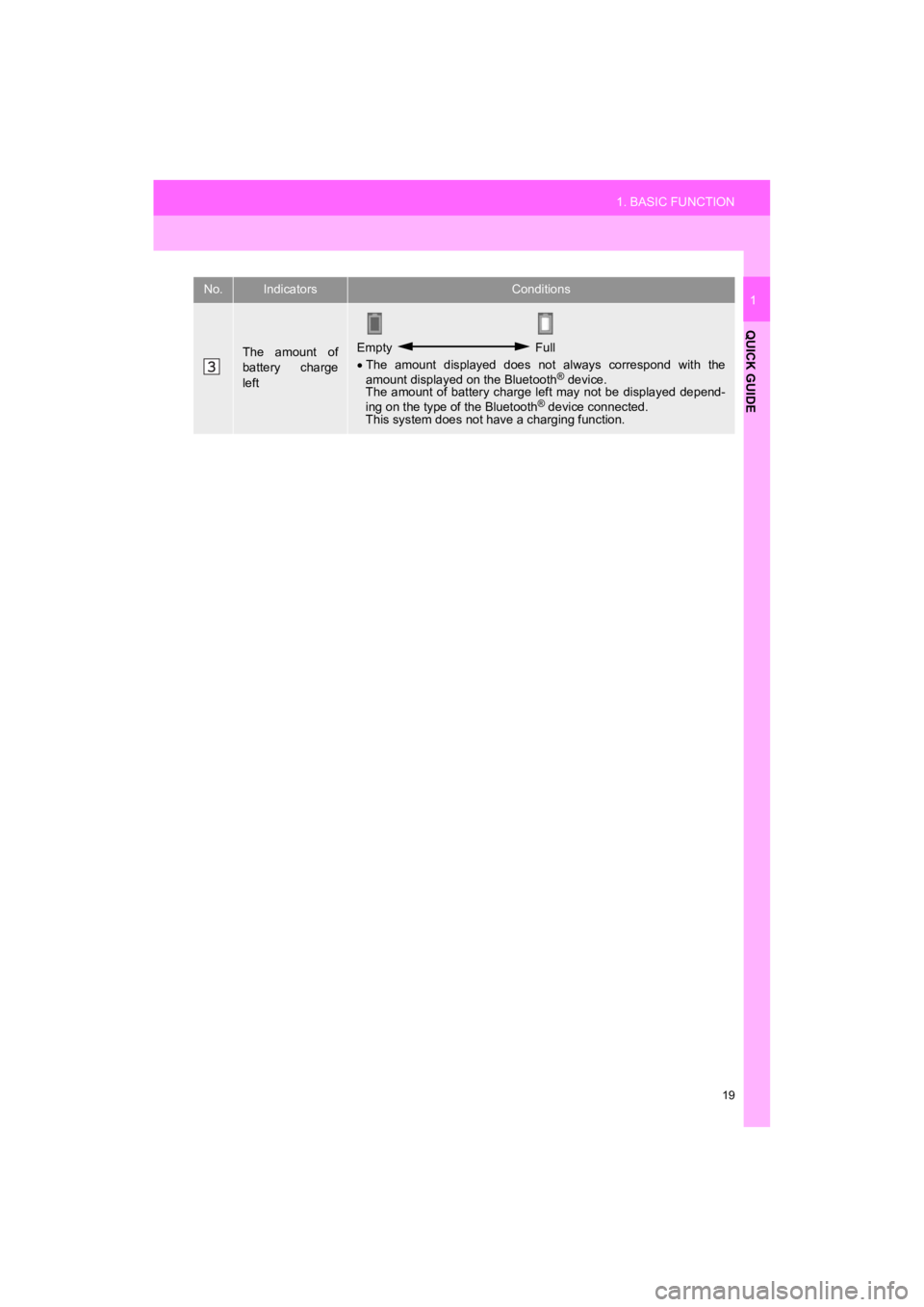

The amount of
battery charge
leftEmpty Full
 The amount displayed does not always correspond with the
amount displayed on the Bluetooth
® device.
The amount of battery charge left may not be displayed depend-
ing on the type of the Bluetooth
® device connected.
This system does not have a charging function.
No.IndicatorsConditions

20
2. QUICK REFERENCE
4RUNNER_Navi_U
1. “Setup” SCREEN
Entune Audio Plus
 Entune Premium Audio
The items shown on the “Setup” screen can be set. Press the “APPS” button, then
select “Setup” to display the “Setup” screen.
2. QUICK REFERENCE
