TOYOTA 4RUNNER 2019 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2019, Model line: 4RUNNER, Model: TOYOTA 4RUNNER 2019Pages: 52, PDF Size: 4.39 MB
Page 1 of 52
2019
QUICK REFERENCE GUIDE
4RUNNER
114558_18-MKG-12045 - MY19 Toyota 4Runner QRG_1_TG_R1.indd 27/13/18 10:17 PM
Page 2 of 52

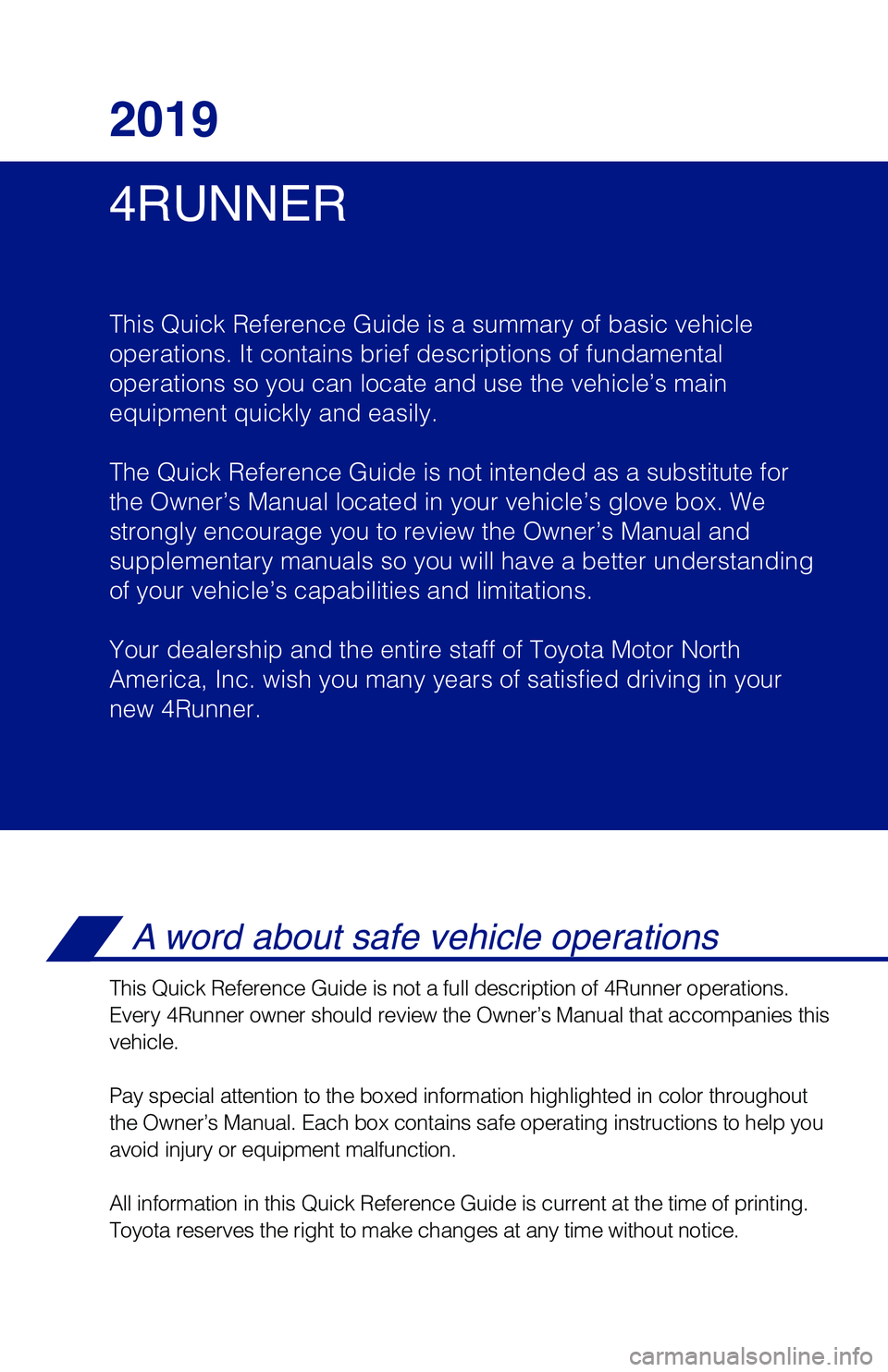

4RUNNER
2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new 4Runner.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 4Runner operations.
Every 4Runner owner should review the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 37/13/18 9:41 PM
Page 3 of 52

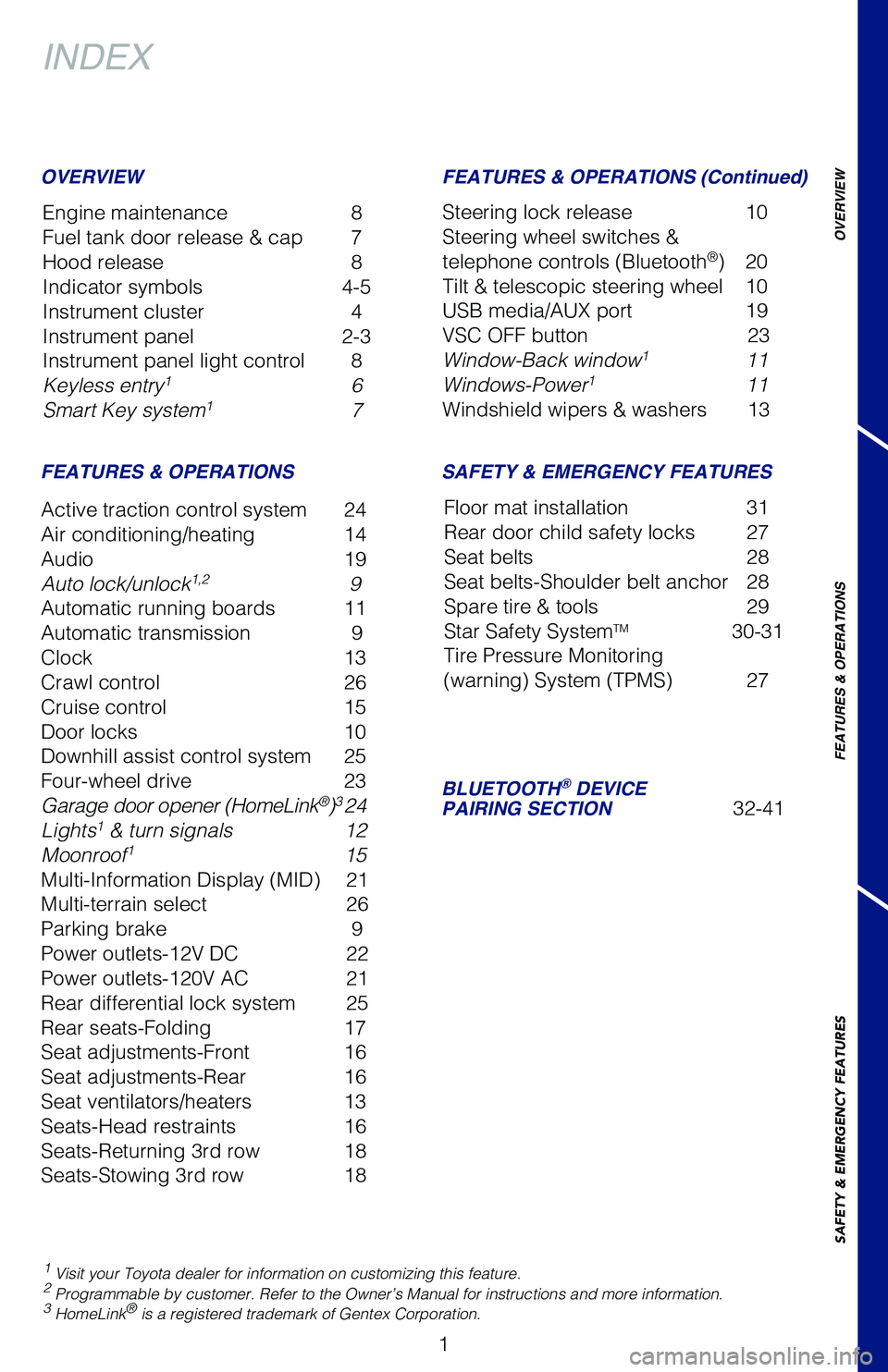

1
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry1 6
Smart Key system1 7
OVERVIEWFEATURES & OPERATIONS (Continued)
FEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
Active traction control system 24
Air conditioning/heating 14
Audio 19
Auto lock/unlock1,2 9
Automatic running boards 11
Automatic transmission 9
Clock 13
Crawl control 26
Cruise control 15
Door locks 10
Downhill assist control system 25
Four-wheel drive 23
Garage door opener (HomeLink®)3 24
Lights1 & turn signals 12
Moonroof1 15
Multi-Information Display (MID) 21
Multi-terrain select 26
Parking brake 9
Power outlets-12V DC 22
Power outlets-120V AC 21
Rear differential lock system 25
Rear seats-Folding 17
Seat adjustments-Front 16
Seat adjustments-Rear 16
Seat ventilators/heaters 13
Seats-Head restraints 16
Seats-Returning 3rd row 18
Seats-Stowing 3rd row 18
Steering lock release 10
Steering wheel switches &
telephone controls (Bluetooth®) 20
Tilt & telescopic steering wheel 10
USB media/AUX port 19
VSC OFF button 23
Window-Back window1 11
Windows-Power1 11
Windshield wipers & washers 13
BLUETOOTH® DEVICE PAIRING SECTION 32-41
Floor mat installation 31
Rear door child safety locks 27
Seat belts 28
Seat belts-Shoulder belt anchor 28
Spare tire & tools 29
Star Safety SystemTM 30-31
Tire Pressure Monitoring
(warning) System (TPMS) 27
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 17/13/18 8:21 PM
Page 4 of 52

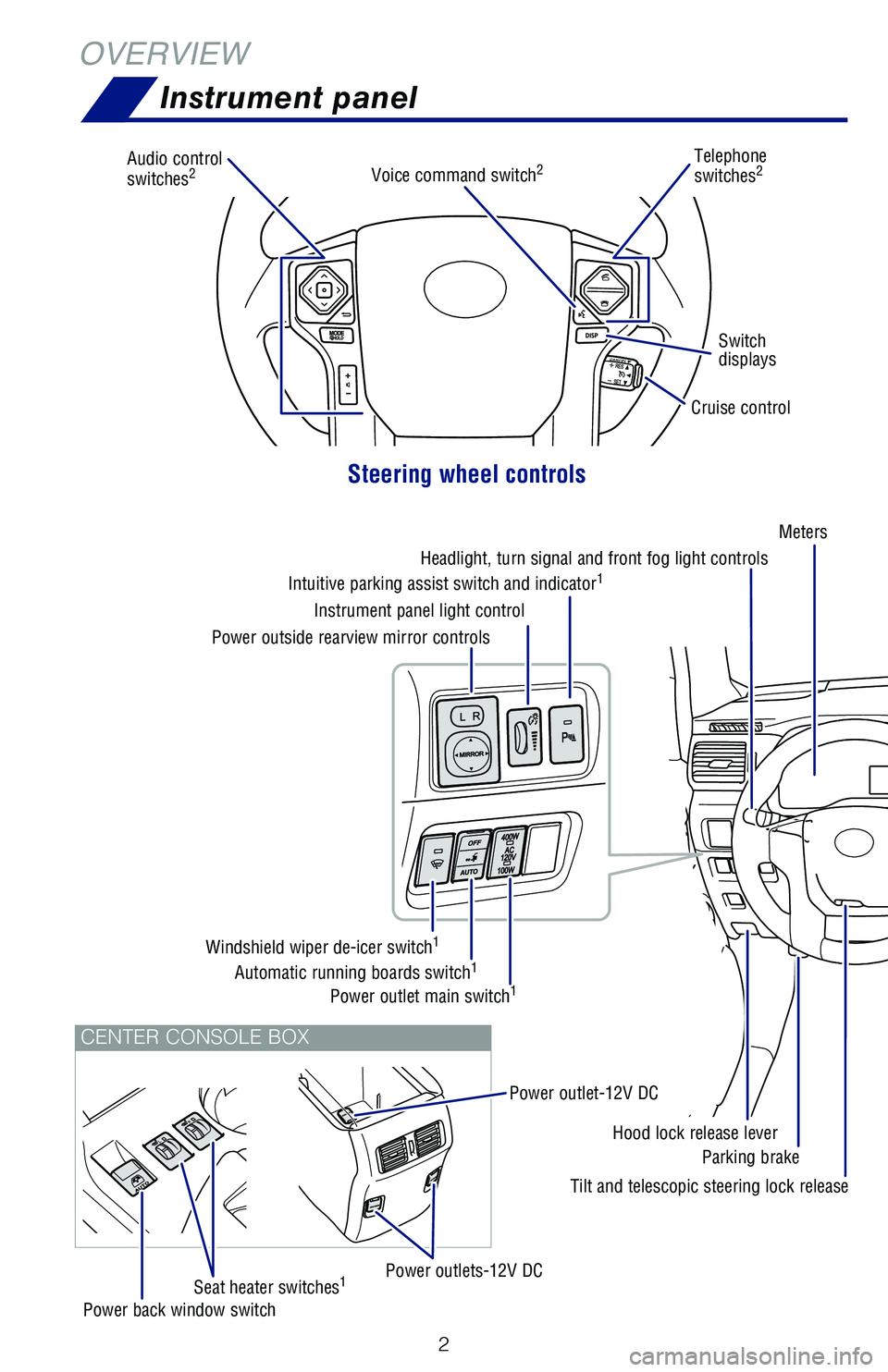

2
Steering wheel controls
CENTER CONSOLE BOX
Audio control switches2
Cruise control
Voice command switch2Telephone switches2
Switch displays
Headlight, turn signal and front fog light controls
Meters
Tilt and telescopic steering lock release
Hood lock release lever
Parking brake
Power outside rearview mirror controls
Instrument panel light control
Intuitive parking assist switch and indicator1
Power outlet main switch1
Power outlet-12V DC
Power outlets-12V DC
Automatic running boards switch1Windshield wiper de-icer switch1
Seat heater switches1
Power back window switch
OVERVIEW
Instrument panel
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 27/13/18 8:21 PM
Page 5 of 52
3
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY
FEATURES

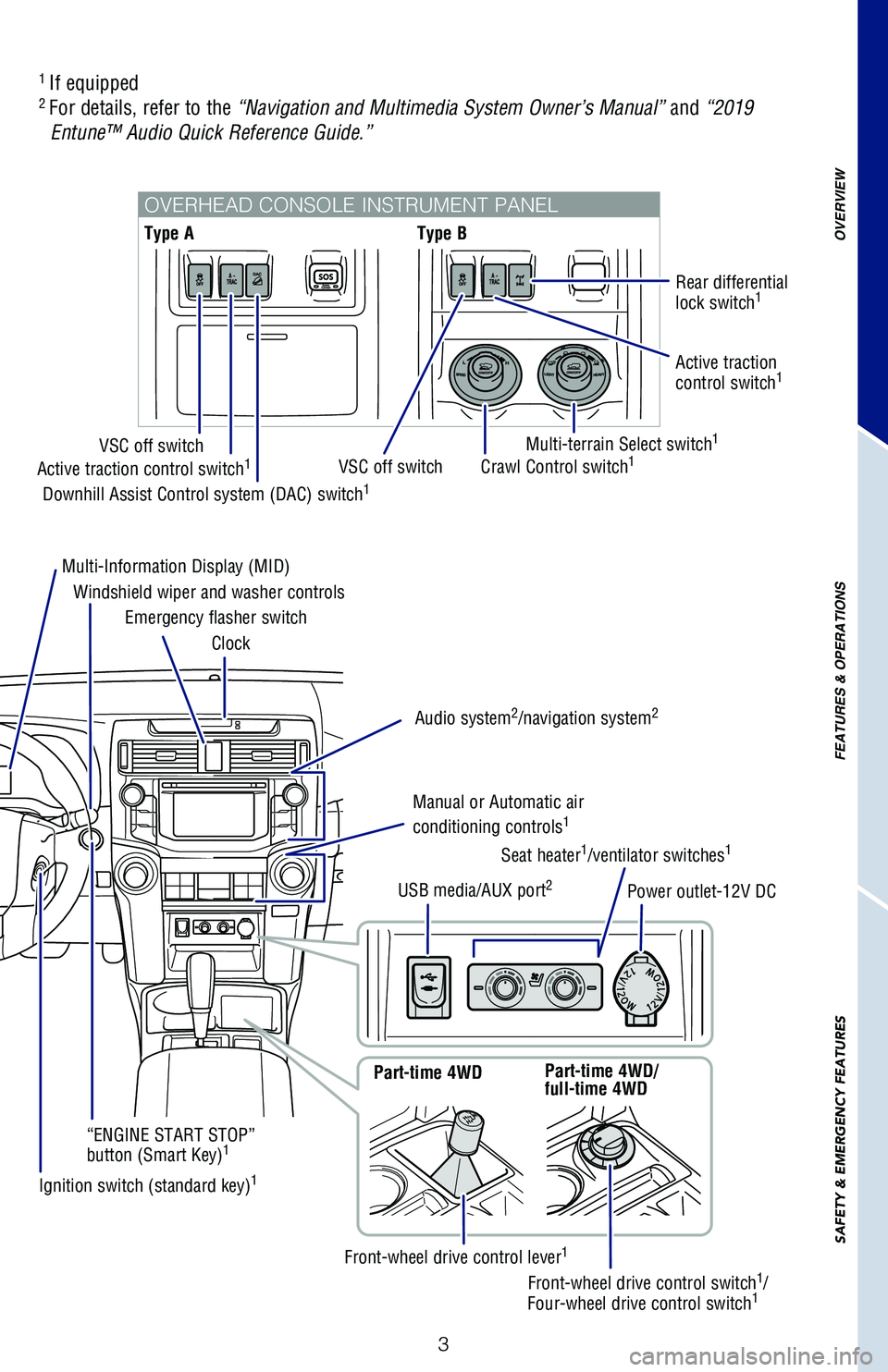

OVERHEAD CONSOLE INSTRUMENT PANEL
1 If equipped2 For details, refer to the “Navigation and Multimedia System Owner’s Manual” and “2019
Entune™ Audio Quick Reference Guide.”
VSC off switchVSC off switchActive traction control switch1
Active traction control switch1
Downhill Assist Control system (DAC) switch1
Rear differential lock switch1
Multi-terrain Select switch1
Crawl Control switch1
Windshield wiper and washer controls
Multi-Information Display (MID)
Emergency flasher switch
Clock
Audio system2/navigation system2
USB media/AUX port2
Seat heater1/ventilator switches1
Manual or Automatic air
conditioning controls1
Front-wheel drive control lever1
Front-wheel drive control switch1/Four-wheel drive control switch1
“ENGINE START STOP” button (Smart Key)1
Ignition switch (standard key)1
Power outlet-12V DC
Part-time 4WD
Type AType B
Part-time 4WD/ full-time 4WD
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 37/13/18 8:21 PM
Page 6 of 52
4

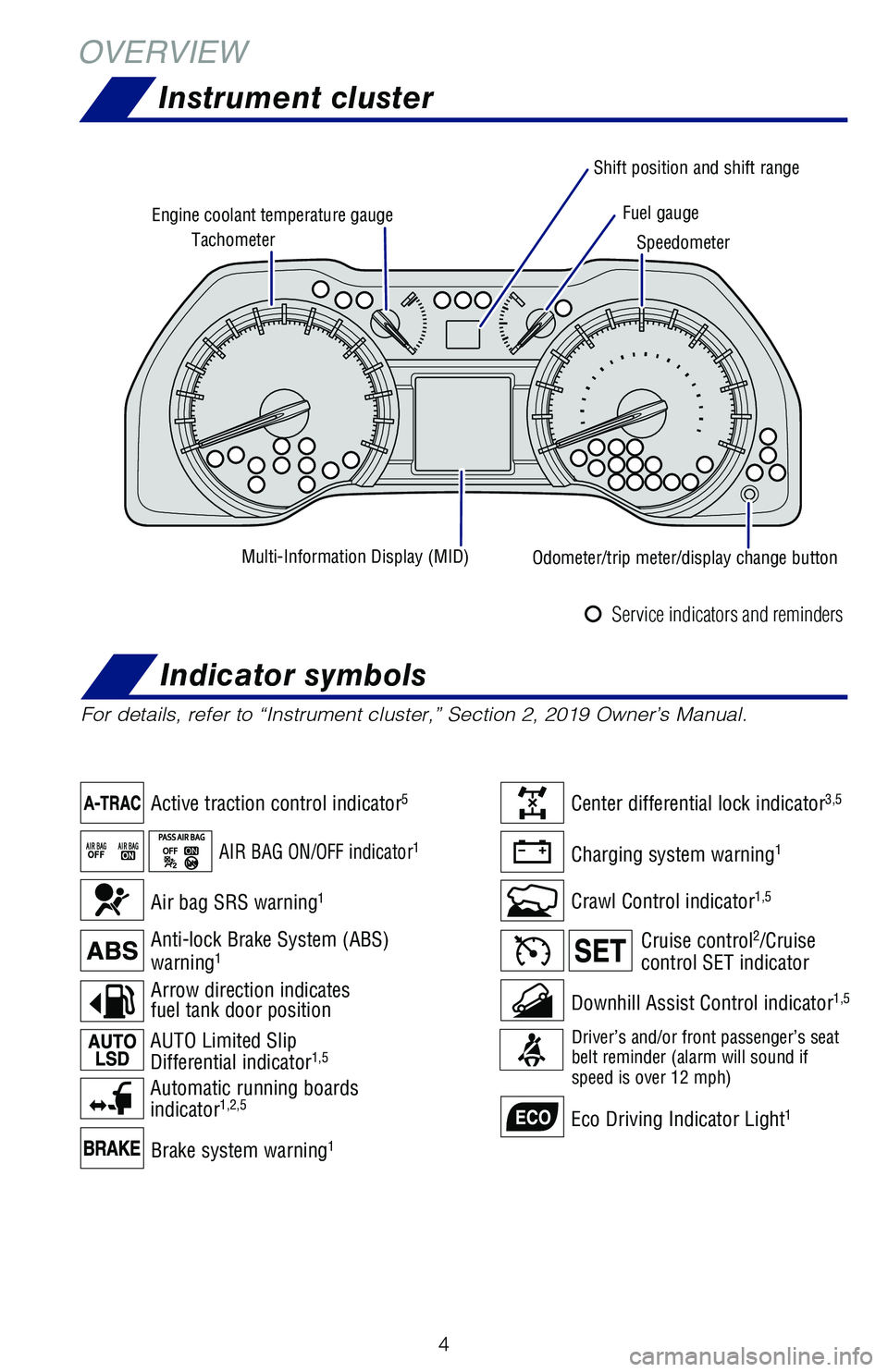

For details, refer to “Instrument cluster,” Section 2, 2019 Owner’s Manual.
Brake system warning1
Downhill Assist Control indicator1,5
Charging system warning1
Crawl Control indicator1,5
Center differential lock indicator3,5
Cruise control2/Cruise control SET indicator
Eco Driving Indicator Light1
Air bag SRS warning1
AIR BAG ON/OFF indicator1
Arrow direction indicates fuel tank door position
Anti-lock Brake System (ABS)
warning1
Active traction control indicator5
AUTO Limited Slip Differential indicator1,5
Automatic running boards indicator1,2,5
Driver’s and/or front passenger’s seat belt reminder (alarm will sound if speed is over 12 mph)
Engine coolant temperature gauge
Shift position and shift range
Tachometer
Multi-Information Display (MID)
Speedometer
Fuel gauge
Odometer/trip meter/display change button
Service indicators and reminders
OVERVIEW
Instrument cluster
Indicator symbols
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 47/13/18 8:21 PM
Page 7 of 52
5
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES

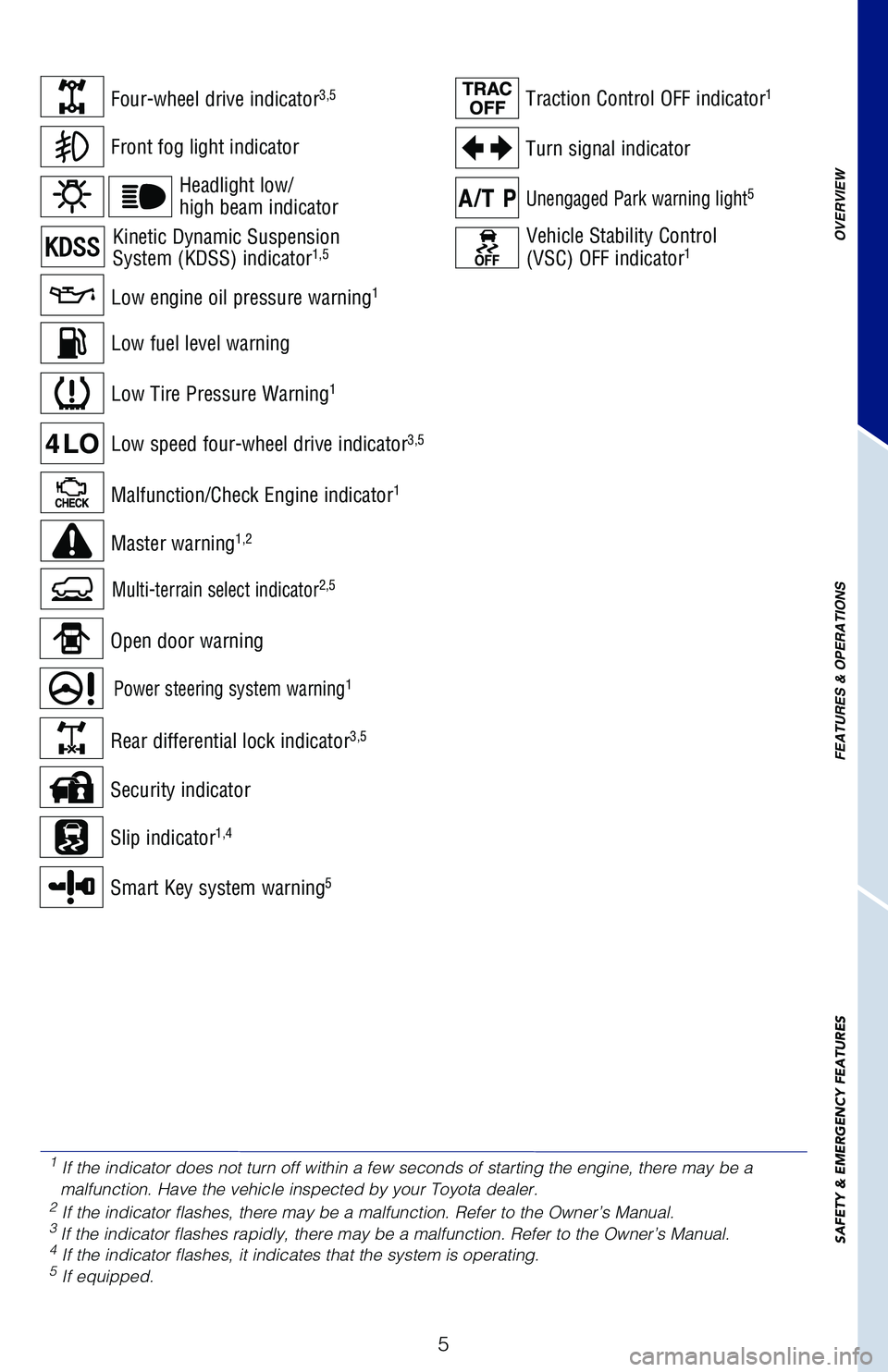

Front fog light indicator
Four-wheel drive indicator3,5
Low engine oil pressure warning1
Low fuel level warning
Low Tire Pressure Warning1
Low speed four-wheel drive indicator3,5
Malfunction/Check Engine indicator1
Master warning1,2
Multi-terrain select indicator2,5
Open door warning
Rear differential lock indicator3,5
Power steering system warning1
Unengaged Park warning light5
Slip indicator1,4
Smart Key system warning5
Turn signal indicator
Traction Control OFF indicator1
Kinetic Dynamic Suspension System (KDSS) indicator1,5
Security indicator
Headlight low/ high beam indicator
Vehicle Stability Control (VSC) OFF indicator1
1 If the indicator does not turn off within a few seconds of starting the engine, there may be a malfunction. Have the vehicle inspected by your Toyota dealer.2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes rapidly, there may be a malfunction. Refer to the Owner’s Manual.4 If the indicator flashes, it indicates that the system is operating.5 If equipped.
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 57/13/18 8:21 PM
Page 8 of 52
6

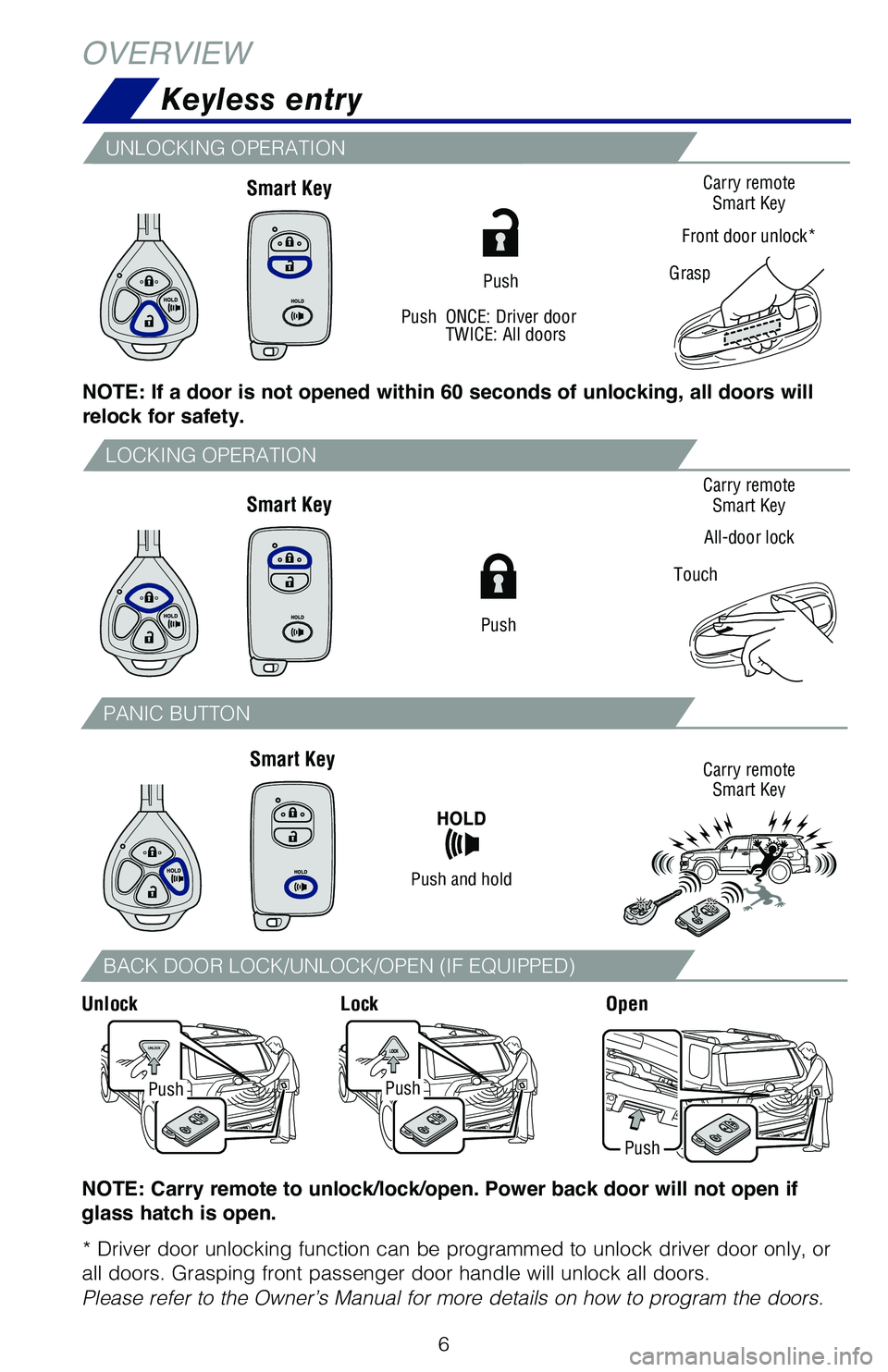

NOTE: Carry remote to unlock/lock/open. Power back door will not open if
glass hatch is open.
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
Please refer to the Owner’s Manual for more details on how to program the doors.
Grasp
Carry remoteSmart Key
Front door unlock*
Carry remoteSmart Key
Carry remoteSmart Key
All-door lock
Touch
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Smart Key
Smart Key
Smart Key
Push
Push
Push ONCE: Driver door TWICE: All doors
Push and hold
Push
Unlock
Push
LockOpen
Push
LOCKING OPERATION
UNLOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCK/UNLOCK/OPEN (IF EQUIPPED)
Keyless entry
OVERVIEW
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 67/13/18 8:21 PM
Page 9 of 52
7
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES

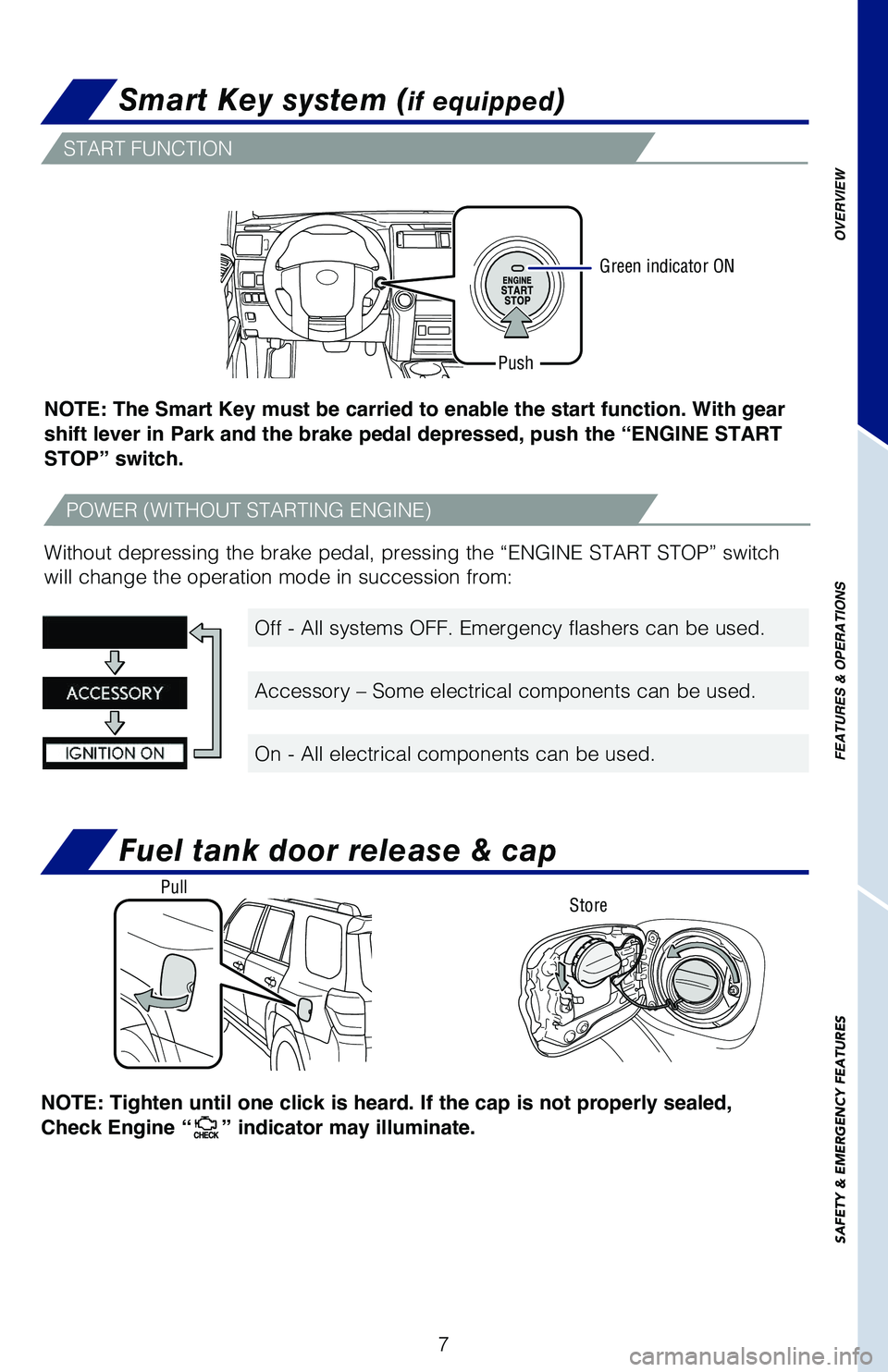

Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “ENGINE START
STOP” switch.
Push
Green indicator ON
PullStore
NOTE: Tighten until one click is heard. If the cap is not properly sealed,
Check Engine “” indicator may illuminate.
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Smart Key system (if equipped)
Fuel tank door release & cap
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 77/13/18 8:21 PM
Page 10 of 52
8

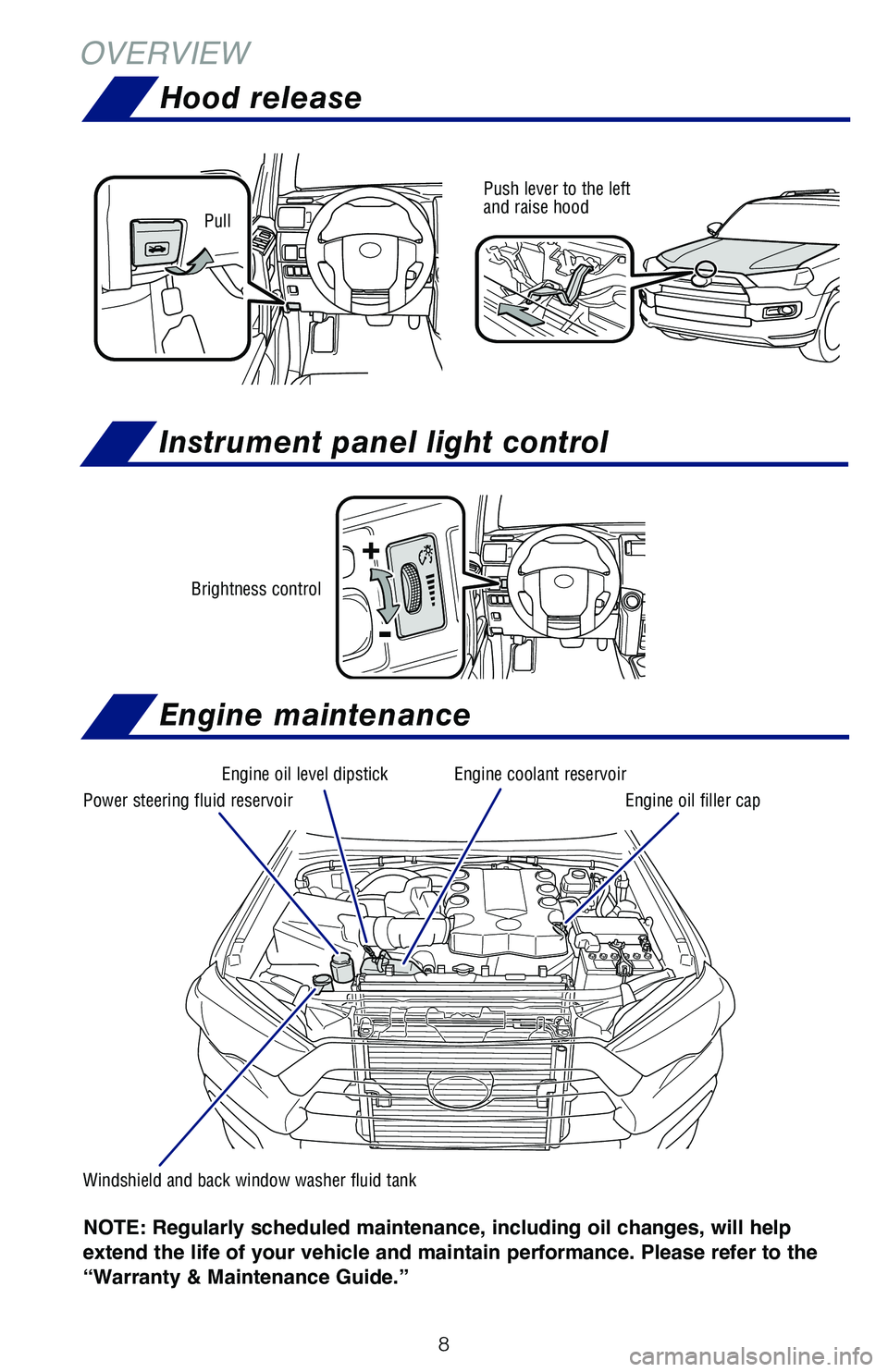

Pull
Push lever to the left and raise hood
Brightness control
+
-
Engine maintenance
Windshield and back window washer fluid tank
Engine oil level dipstickEngine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Power steering fluid reservoir
Hood release
Instrument panel light control
OVERVIEW
