TOYOTA 4RUNNER 2019 Accessories, Audio & Navigation (in English)

191
3. WHAT TO DO IF...
4RUNNER_Navi_U
PHONE
7

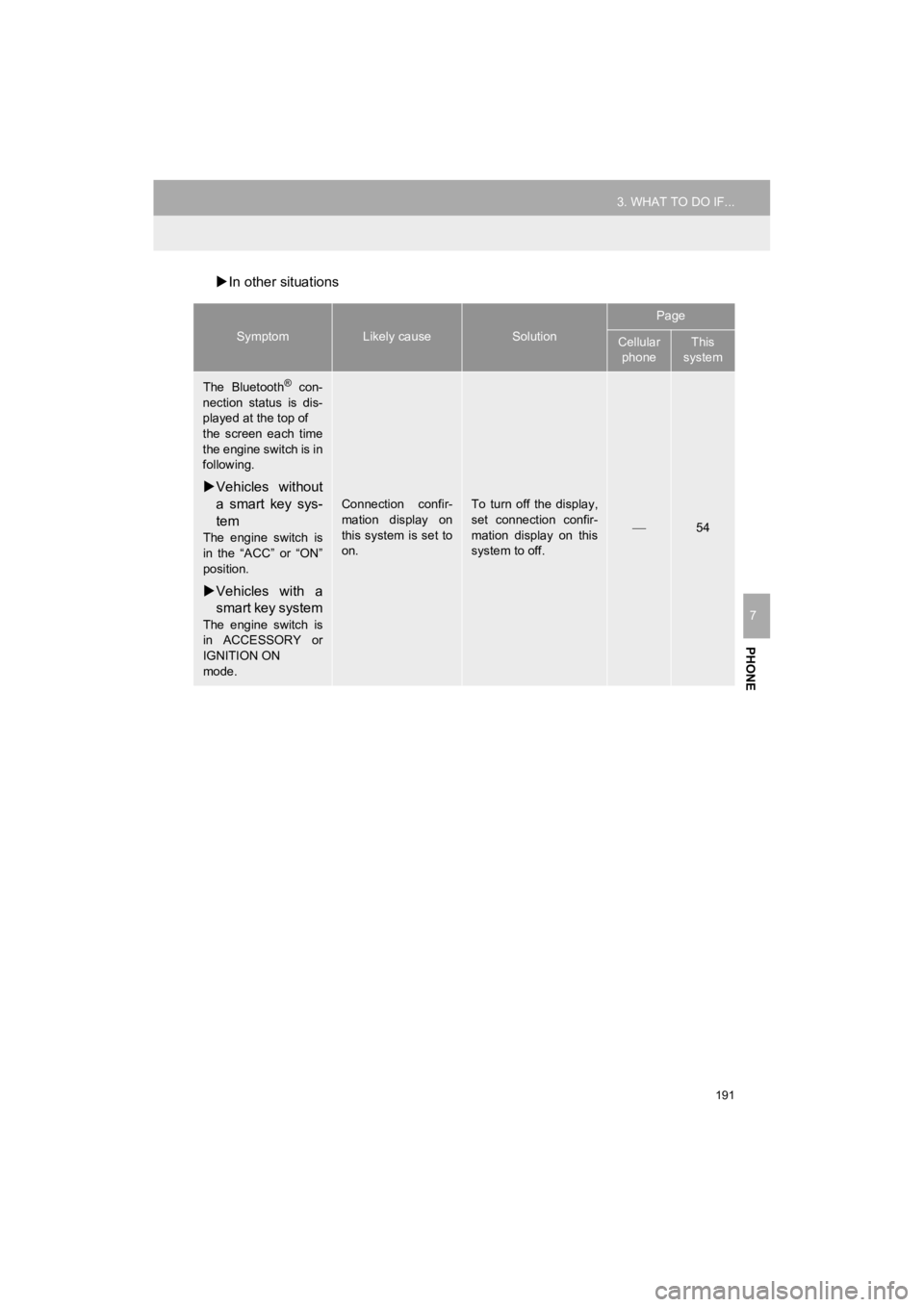

In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is in
following.
 Vehicles without
a smart key sys-
tem
The engine switch is
in the “ACC” or “ON”
position.
Vehicles with a
smart key system
The engine switch is
in ACCESSORY or
IGNITION ON
mode.
Connection confir-
mation display on
this system is set to
on.To turn off the display,
set connection confir-
mation display on this
system to off.
54

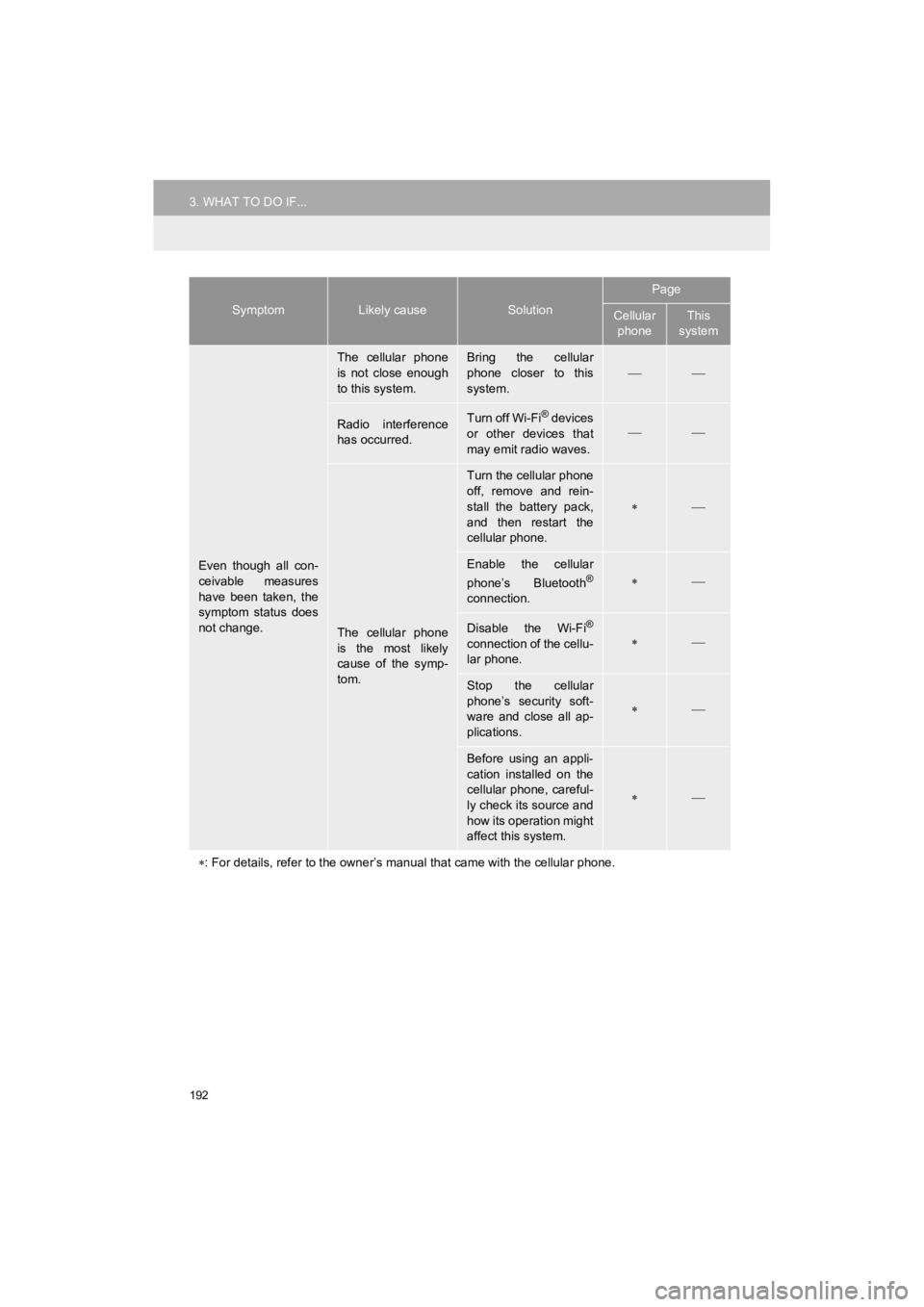

192
3. WHAT TO DO IF...
4RUNNER_Navi_U
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone
is not close enough
to this system.Bring the cellular
phone closer to this
system.
Radio interference
has occurred.Turn off Wi-Fi® devices
or other devices that
may emit radio waves.
The cellular phone
is the most likely
cause of the symp-
tom.
Turn the cellular phone
off, remove and rein-
stall the battery pack,
and then restart the
cellular phone.

Enable the cellular
phone’s Bluetooth®
connection.

Disable the Wi-Fi®
connection of the cellu-
lar phone.
Stop the cellular
phone’s security soft-
ware and close all ap-
plications.

Before using an appli-
cation installed on the
cellular phone, careful-
ly check its source and
how its operation might
affect this system.

 : For details, refer to the owner’ s manual that came with the cellular phone.
SymptomLikely causeSolution
Page
Cellular
phoneThis
system

193
3. WHAT TO DO IF...
4RUNNER_Navi_U
PHONE
7

194
4RUNNER_Navi_U

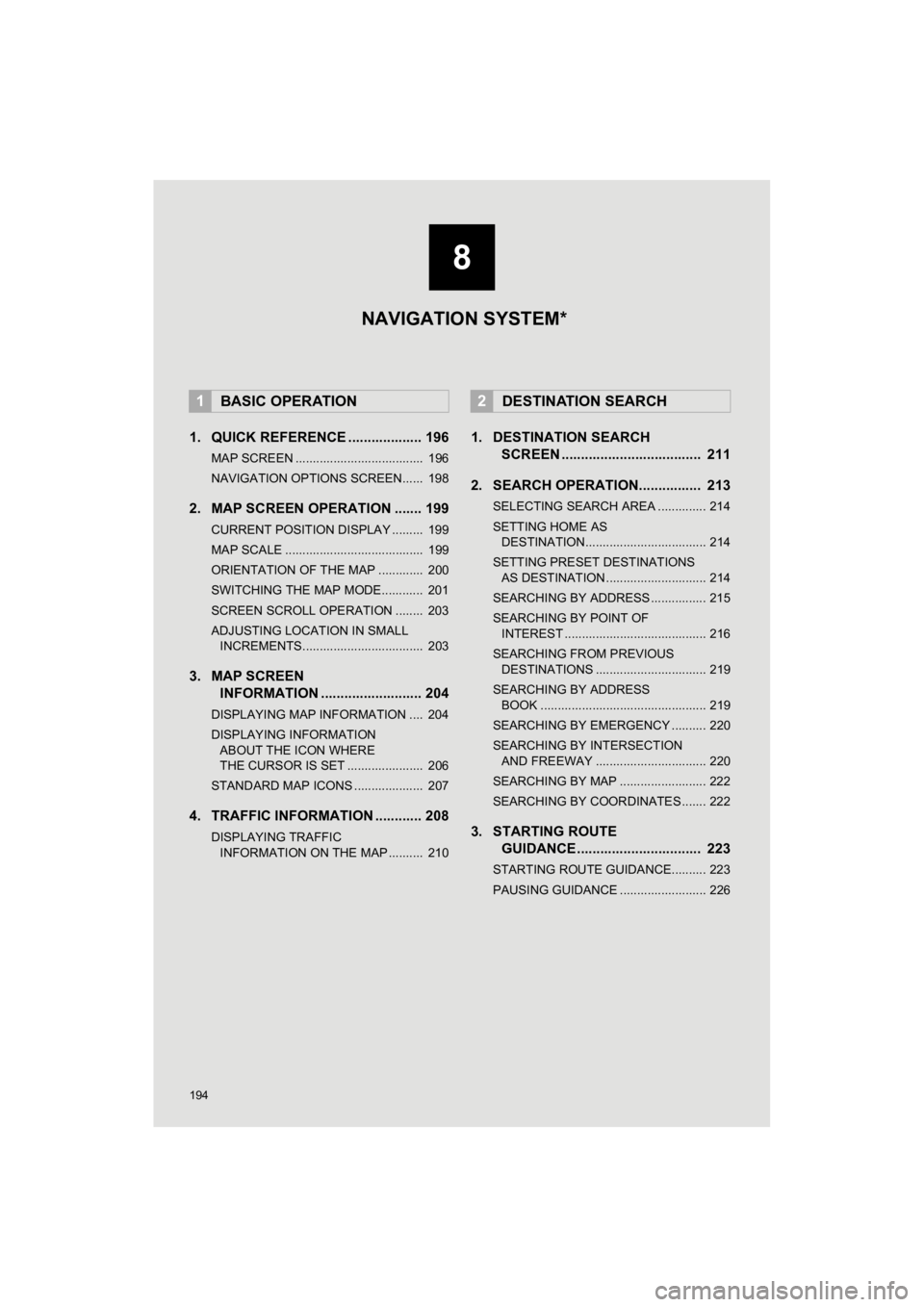

1. QUICK REFERENCE ................... 196
MAP SCREEN ..................................... 196
NAVIGATION OPTIONS SCREEN...... 198
2. MAP SCREEN OPERATION ....... 199
CURRENT POSITION DISPLAY ......... 199
MAP SCALE ........................................ 199
ORIENTATION OF THE MAP ............. 200
SWITCHING THE MAP MODE............ 201
SCREEN SCROLL OPERATION ........ 203
ADJUSTING LOCATION IN SMALL INCREMENTS................................... 203
3. MAP SCREEN INFORMATION .......................... 204
DISPLAYING MAP INFORMATION .... 204
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 206
STANDARD MAP ICONS .................... 207
4. TRAFFIC INFORMATION ............ 208
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 210
1. DESTINATION SEARCH SCREEN .................................... 211
2. SEARCH OPERATION. ............... 213
SELECTING SEARCH AREA .............. 214
SETTING HOME AS
DESTINATION................................... 214
SETTING PRESET DESTINATIONS AS DESTINATION ............................. 214
SEARCHING BY ADDRESS ................ 215
SEARCHING BY POINT OF INTEREST ......................................... 216
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 219
SEARCHING BY ADDRESS BOOK ................................................ 219
SEARCHING BY EMERGENCY .......... 220
SEARCHING BY INTERSECTION AND FREEWAY ................................ 220
SEARCHING BY MAP ......................... 222
SEARCHING BY COORDINATES ....... 222
3. STARTING ROUTE GUIDANCE ....... ....................... .. 223
STARTING ROUTE GUIDANCE.......... 223
PAUSING GUIDANCE ......................... 226
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM*

8
195
4RUNNER_Navi_U
4
5
6
7
9
1
2
3
8

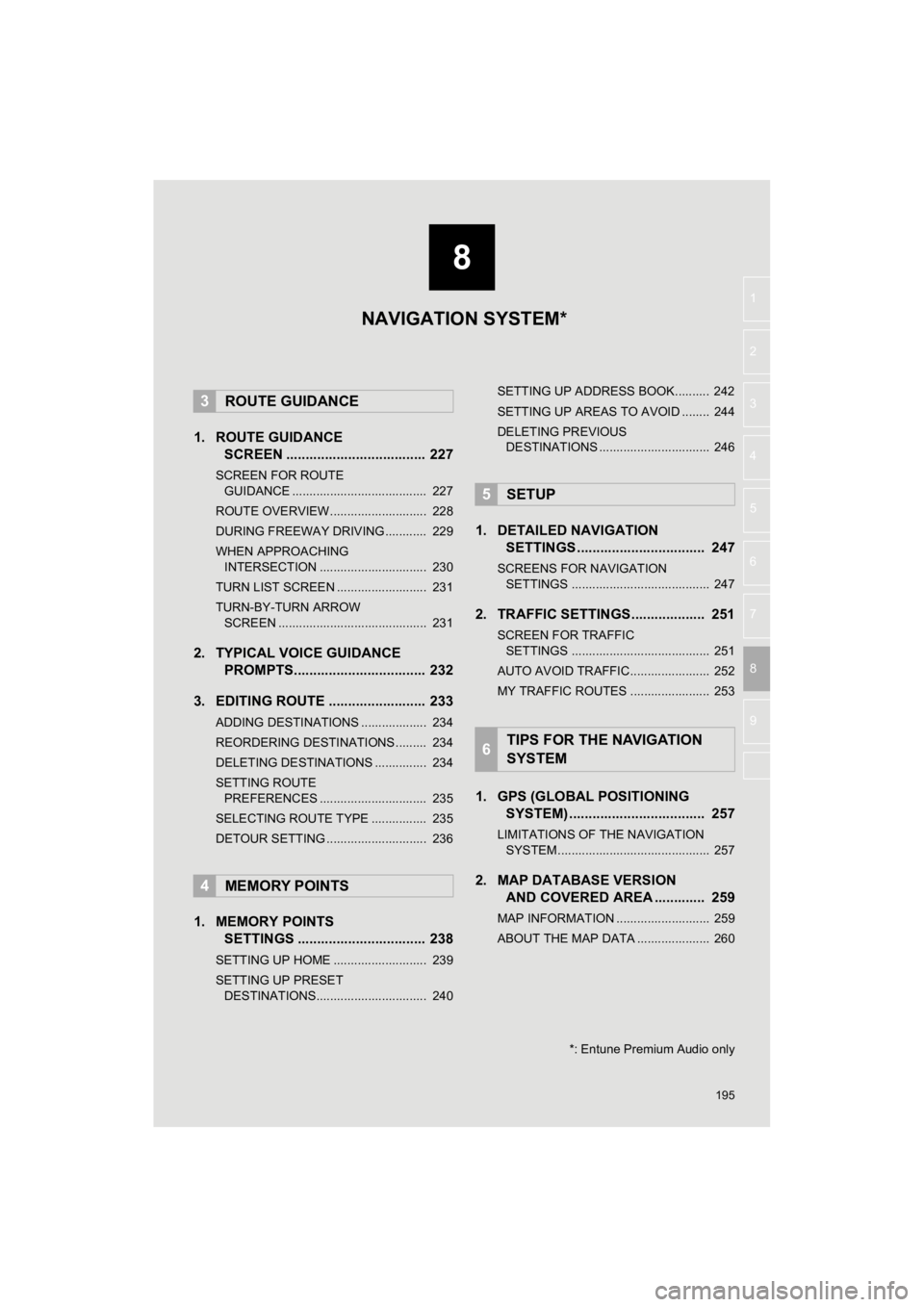

1. ROUTE GUIDANCESCREEN .................................... 227
SCREEN FOR ROUTE
GUIDANCE ....................................... 227
ROUTE OVERVIEW............................ 228
DURING FREEWAY DRIVING............ 229
WHEN APPROACHING INTERSECTION ............................... 230
TURN LIST SCREEN .......................... 231
TURN-BY-TURN ARROW SCREEN ........................................... 231
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 232
3. EDITING ROUTE ......................... 233
ADDING DESTINATIONS ................... 234
REORDERING DESTINATIONS ......... 234
DELETING DESTINATIONS ............... 234
SETTING ROUTE PREFERENCES ............................... 235
SELECTING ROUTE TYPE ................ 235
DETOUR SETTING ............................. 236
1. MEMORY POINTS SETTINGS ................................. 238
SETTING UP HOME ........................... 239
SETTING UP PRESET
DESTINATIONS................................ 240 SETTING UP ADDRESS BOOK.......... 242
SETTING UP AREAS TO AVOID ........ 244
DELETING PREVIOUS
DESTINATIONS ................................ 246
1. DETAILED NAVIGATION SETTINGS ................................. 247
SCREENS FOR NAVIGATION
SETTINGS ........................................ 247
2. TRAFFIC SETTINGS................... 251
SCREEN FOR TRAFFIC SETTINGS ........................................ 251
AUTO AVOID TRAFFIC....................... 252
MY TRAFFIC ROUTES ....................... 253
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 257
LIMITATIONS OF THE NAVIGATION
SYSTEM ............................................ 257
2. MAP DATABASE VERSION AND COVERED AREA ............. 259
MAP INFORMATION ........................... 259
ABOUT THE MAP DATA ..................... 260
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM*
*: Entune Premium Audio only

196
4RUNNER_Navi_U
1. BASIC OPERATION
1. QUICK REFERENCE

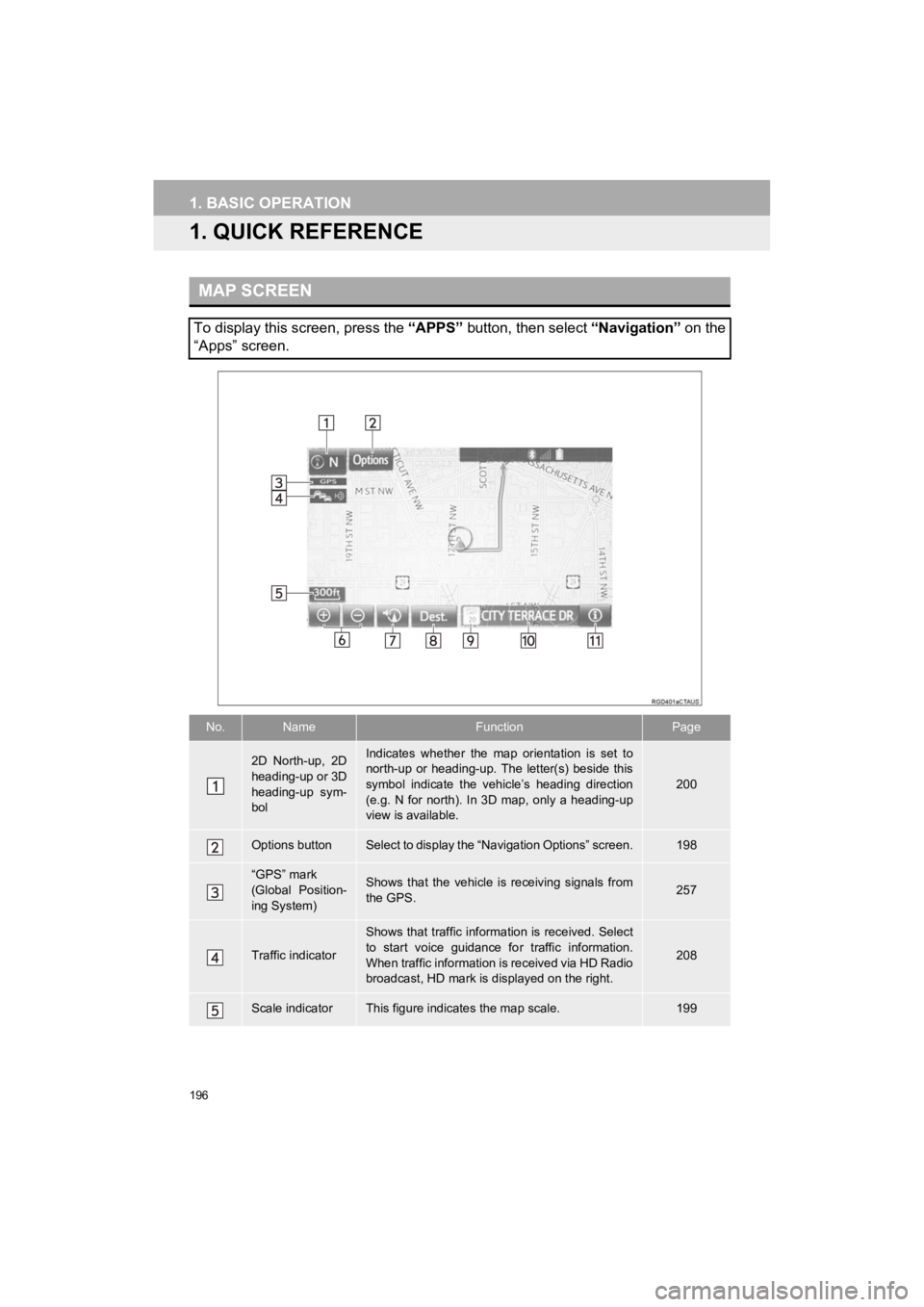

MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
200
Options buttonSelect to display the “Navigation Options” screen.198
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.257
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance fo r traffic information.
When traffic information is received via HD Radio
broadcast, HD mark is displayed on the right.
208
Scale indicatorThis figure indicate s the map scale.199

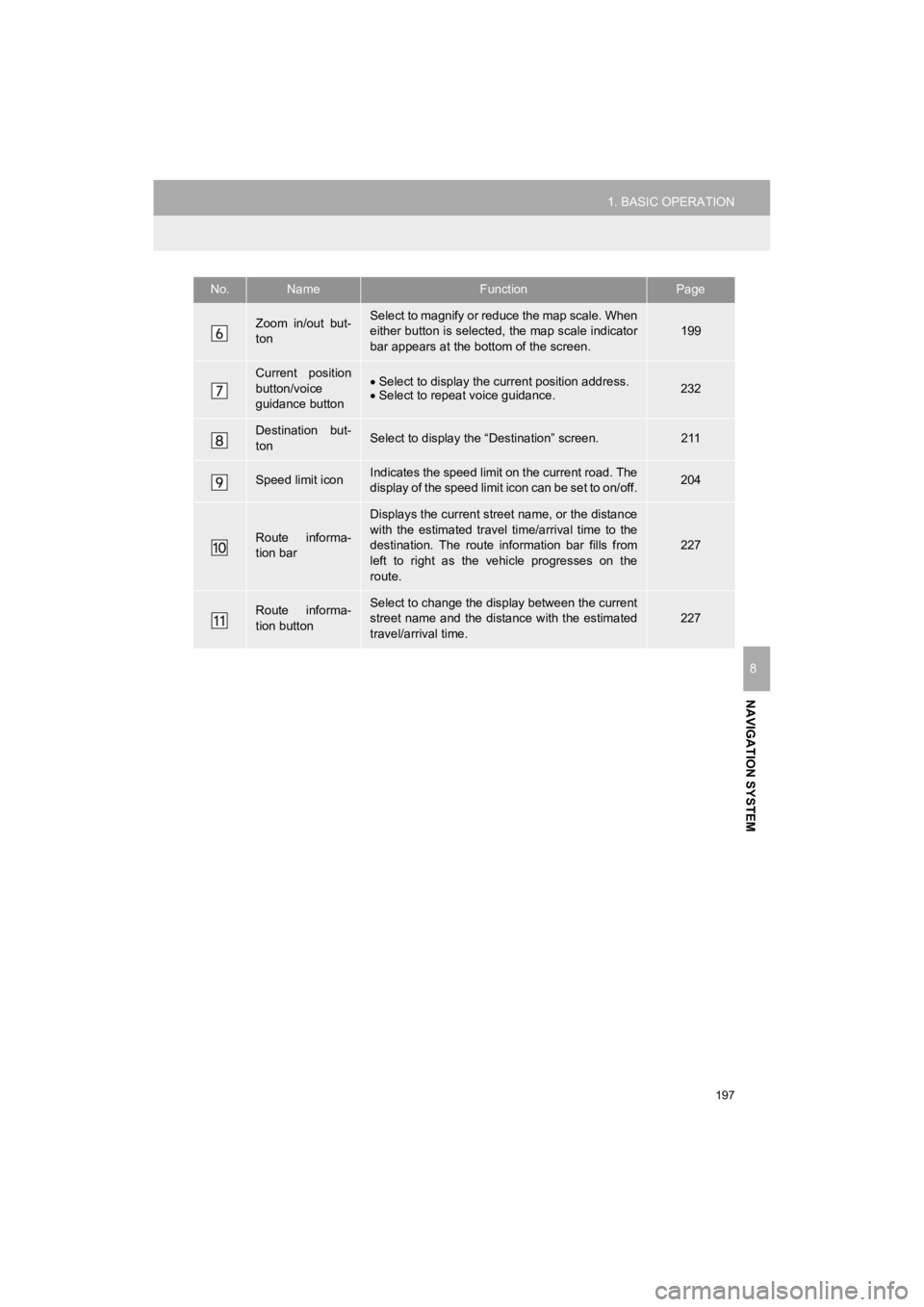

197
1. BASIC OPERATION
NAVIGATION SYSTEM
4RUNNER_Navi_U
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.199
Current position
button/voice
guidance button Select to display the current position address.
 Select to repeat voice guidance.232
Destination but-
tonSelect to display the “Destination” screen.211
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.204
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
227
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
227
No.NameFunctionPage

198
1. BASIC OPERATION
4RUNNER_Navi_U

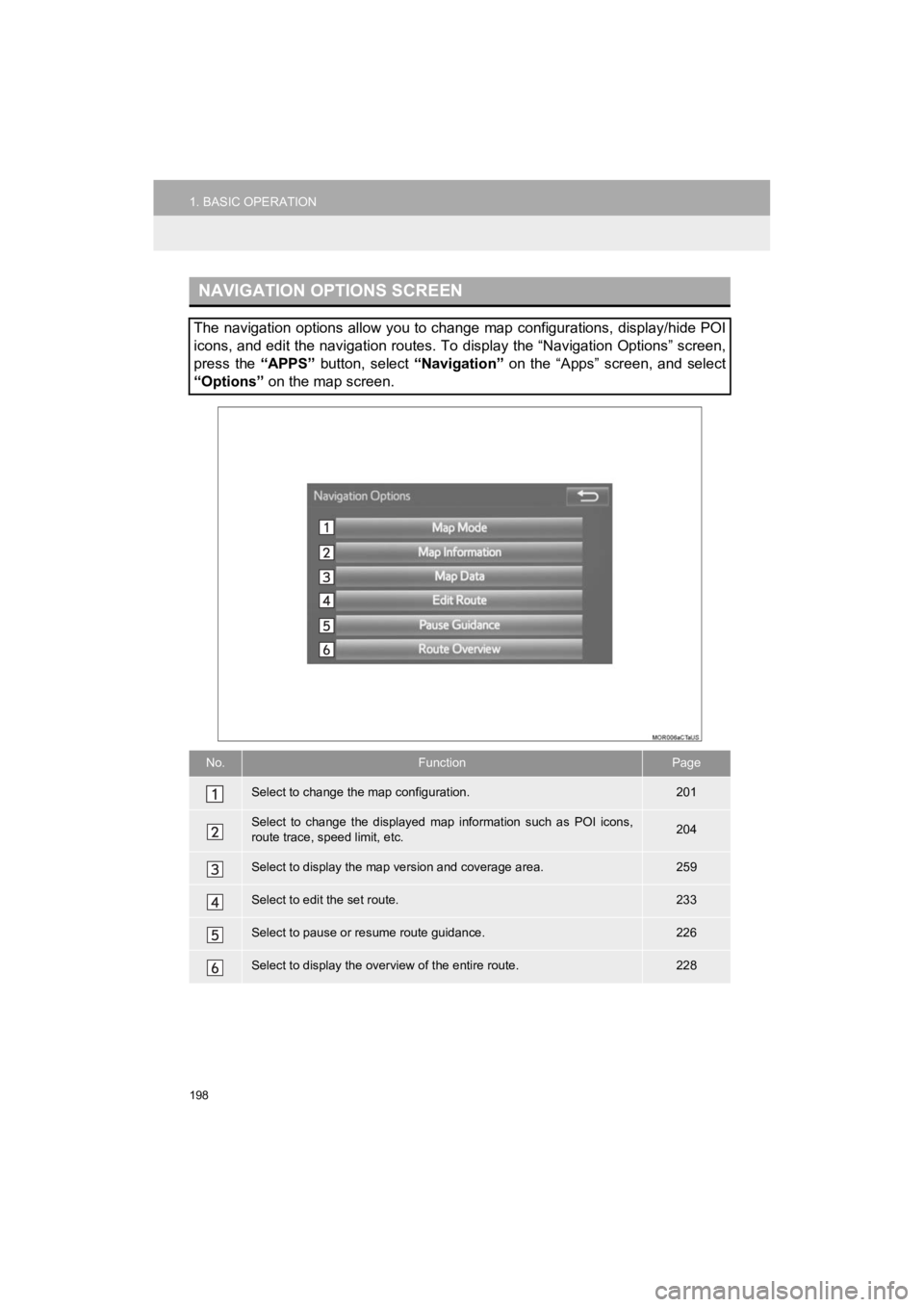

NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigati on Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to change the map configuration.201
Select to change the displayed map information such as POI icon s,
route trace, speed limit, etc.204
Select to display the map version and coverage area.259
Select to edit the set route.233
Select to pause or resume route guidance.226
Select to display the over view of the entire route.228

199
1. BASIC OPERATION
4RUNNER_Navi_U
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 2 4 9
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.

200
1. BASIC OPERATION
4RUNNER_Navi_U
1Select , or .
 North-up screen
 Heading-up screen
 3D screen : North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up. The letter(s) beside this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.
