TOYOTA 4RUNNER 2019 (in English) Owner's Manual

19
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY
FEATURES
MAP card slot
Refer to the “Navigation and Multimedia System Owner’s Manual” and “2019
Entune™ Audio Quick Reference Guide” for instructions and more information.
Eject CD
Push to turn ON/OFF
Seek station/CD track select
Push to display AUDIO screen
Turn to tune radio stations manually or select tracks or files
Push to access Bluetoothhands-free systemTouch screen display
Push to display APPS screen
USB media port
By connecting a USB-compatible portable audio device or USB memory stick into
the USB media port, you can listen to music through the vehicle’s speaker system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
USB media/AUX port
Audio
ENTUNE™ AUDIO PLUS
ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 197/13/18 8:21 PM

20

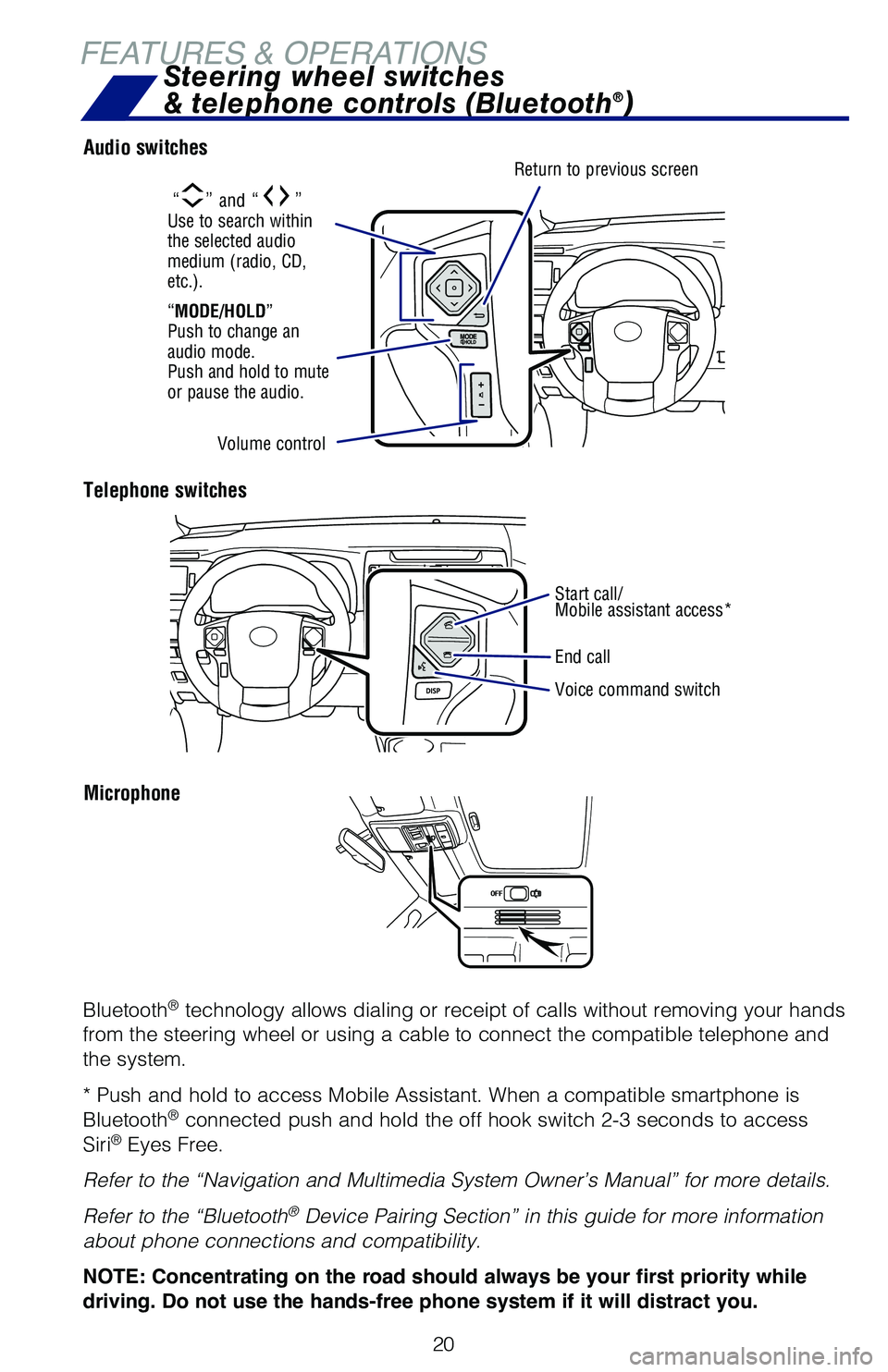

Steering wheel switches
& telephone controls (Bluetooth®)
FEATURES & OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel or using a cable to connect the compatible telephone and
the system.
* Push and hold to access Mobile Assistant. When a compatible smartphone is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.
Refer to the “Navigation and Multimedia System Owner’s Manual” for more details.
Refer to the “Bluetooth® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the hands-free phone system if it will distract you.
Audio switches
Telephone switches
Microphone
Volume control
Return to previous screen
Voice command switch
End call
Start call/ Mobile assistant access*
“MODE/HOLD” Push to change an audio mode. Push and hold to mute or pause the audio.
“” and “” Use to search within the selected audio medium (radio, CD, etc.).
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 207/13/18 8:21 PM

21

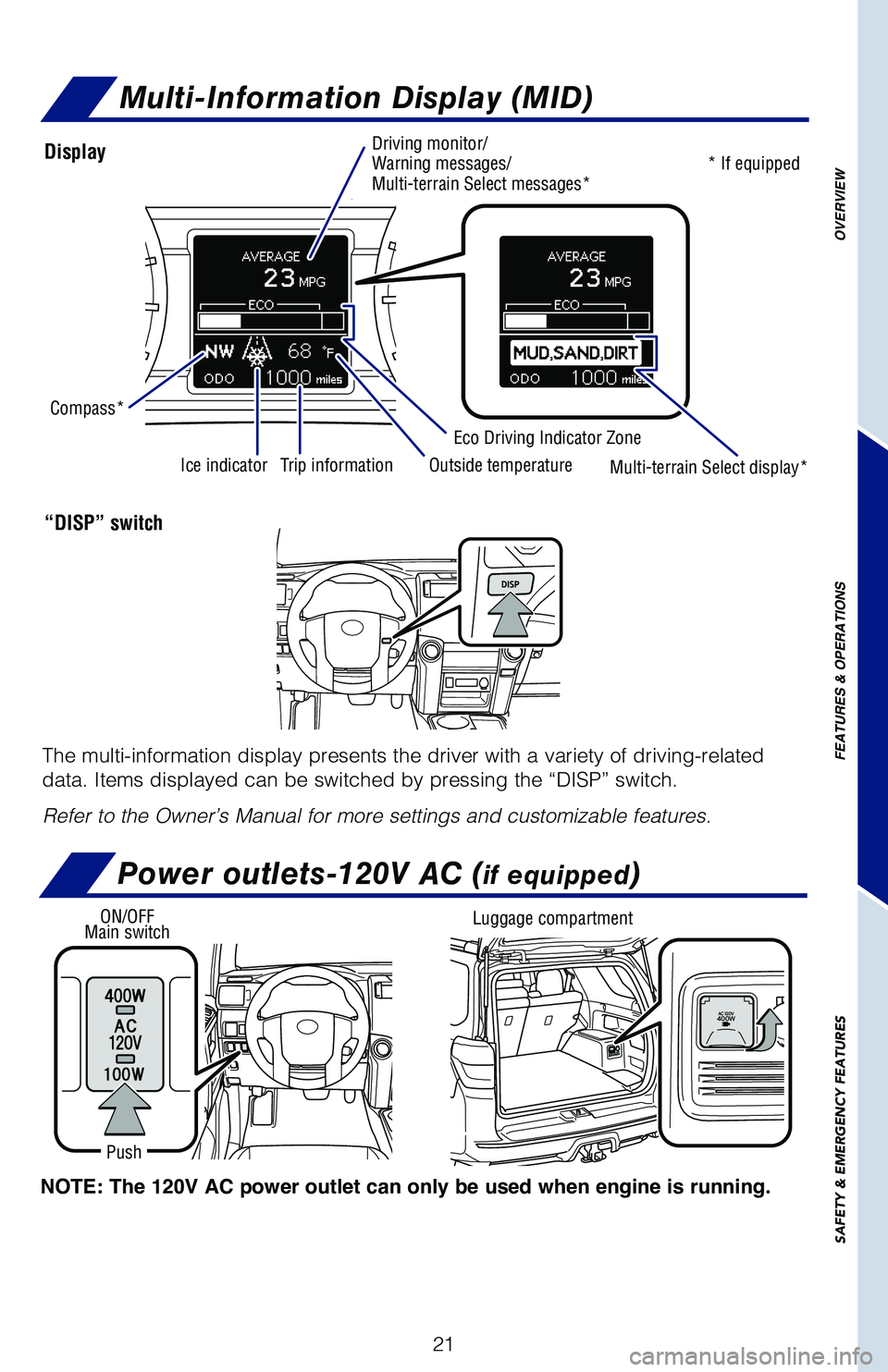

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
NOTE: The 120V AC power outlet can only be used when engine is running.
ON/OFF Main switch
Push
Luggage compartment
Multi-Information Display (MID)
Refer to the Owner’s Manual for more settings and customizable features.
Eco Driving Indicator Zone
Outside temperatureMulti-terrain Select display*Ice indicatorTrip information
Driving monitor/ Warning messages/ Multi-terrain Select messages*
Compass*
The multi-information display presents the driver with a variety of driving-related
data. Items displayed can be switched by pressing the “DISP” switch.
* If equippedDisplay
“DISP” switch
Power outlets-120V AC (if equipped)
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 217/13/18 8:21 PM

22

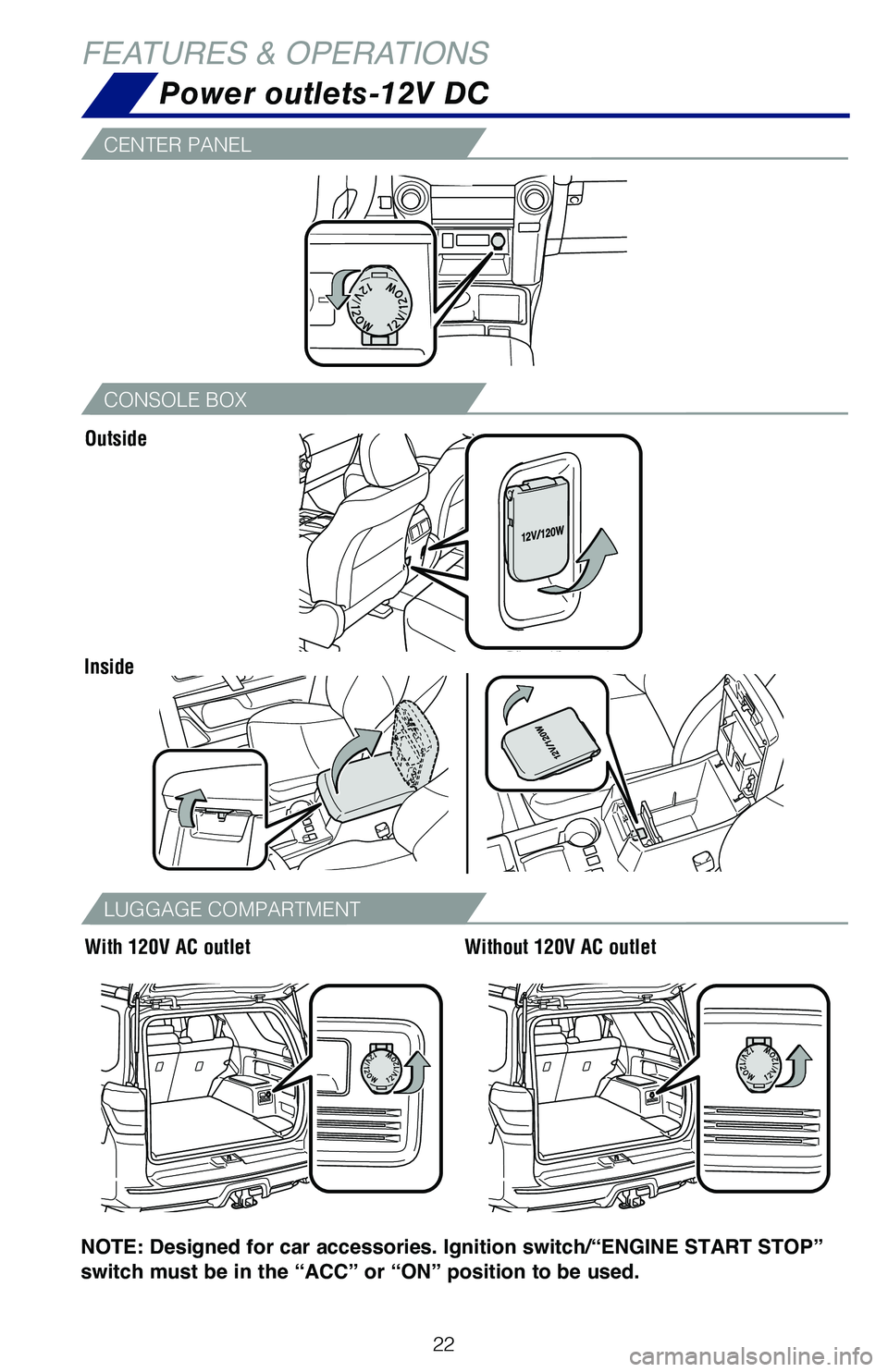

NOTE: Designed for car accessories. Ignition switch/“ENGINE START STOP”
switch must be in the “ACC” or “ON” position to be used.
Outside
With 120V AC outletWithout 120V AC outlet
Inside
FEATURES & OPERATIONS
Power outlets-12V DC
CENTER PANEL
CONSOLE BOX
LUGGAGE COMPARTMENT
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 227/13/18 8:21 PM

23

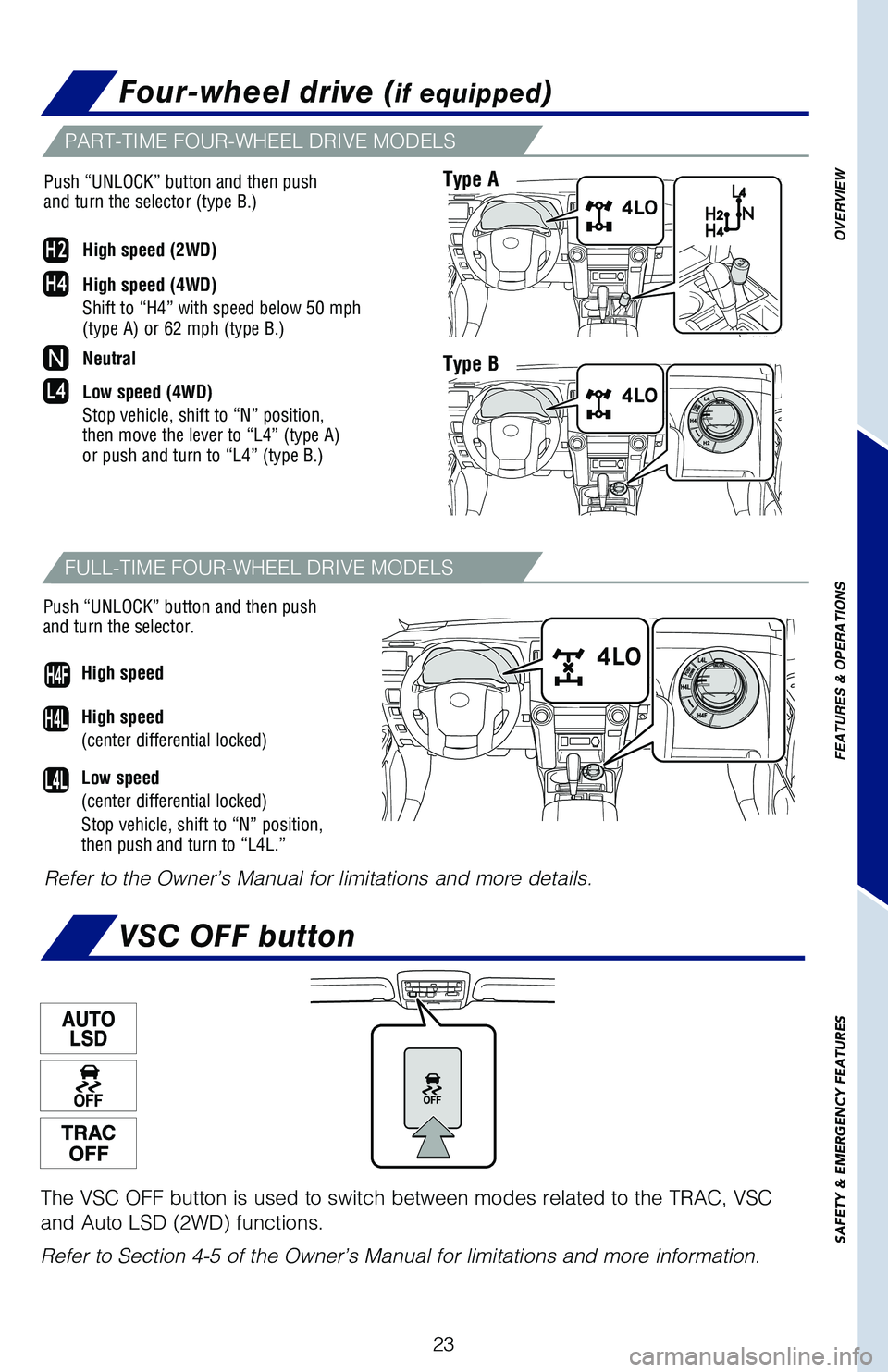

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
High speed
(center differential locked)
Low speed
(center differential locked)
Stop vehicle, shift to “N” position, then push and turn to “L4L.”
Push “UNLOCK” button and then push and turn the selector.
Push “UNLOCK” button and then push and turn the selector (type B.)
H4L
L4L
H2High speed (2WD)
High speed (4WD)
Shift to “H4” with speed below 50 mph (type A) or 62 mph (type B.)
Low speed (4WD)
Stop vehicle, shift to “N” position, then move the lever to “L4” (type A) or push and turn to “L4” (type B.)
Neutral
High speedH4F
The VSC OFF button is used to switch between modes related to the TRAC, VSC
and Auto LSD (2WD) functions.
Refer to Section 4-5 of the Owner’s Manual for limitations and more information.
Refer to the Owner’s Manual for limitations and more details.
Type B
Type A
Four-wheel drive (if equipped)
PART-TIME FOUR-WHEEL DRIVE MODELS
FULL-TIME FOUR-WHEEL DRIVE MODELS
VSC OFF button
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 237/13/18 8:21 PM

24

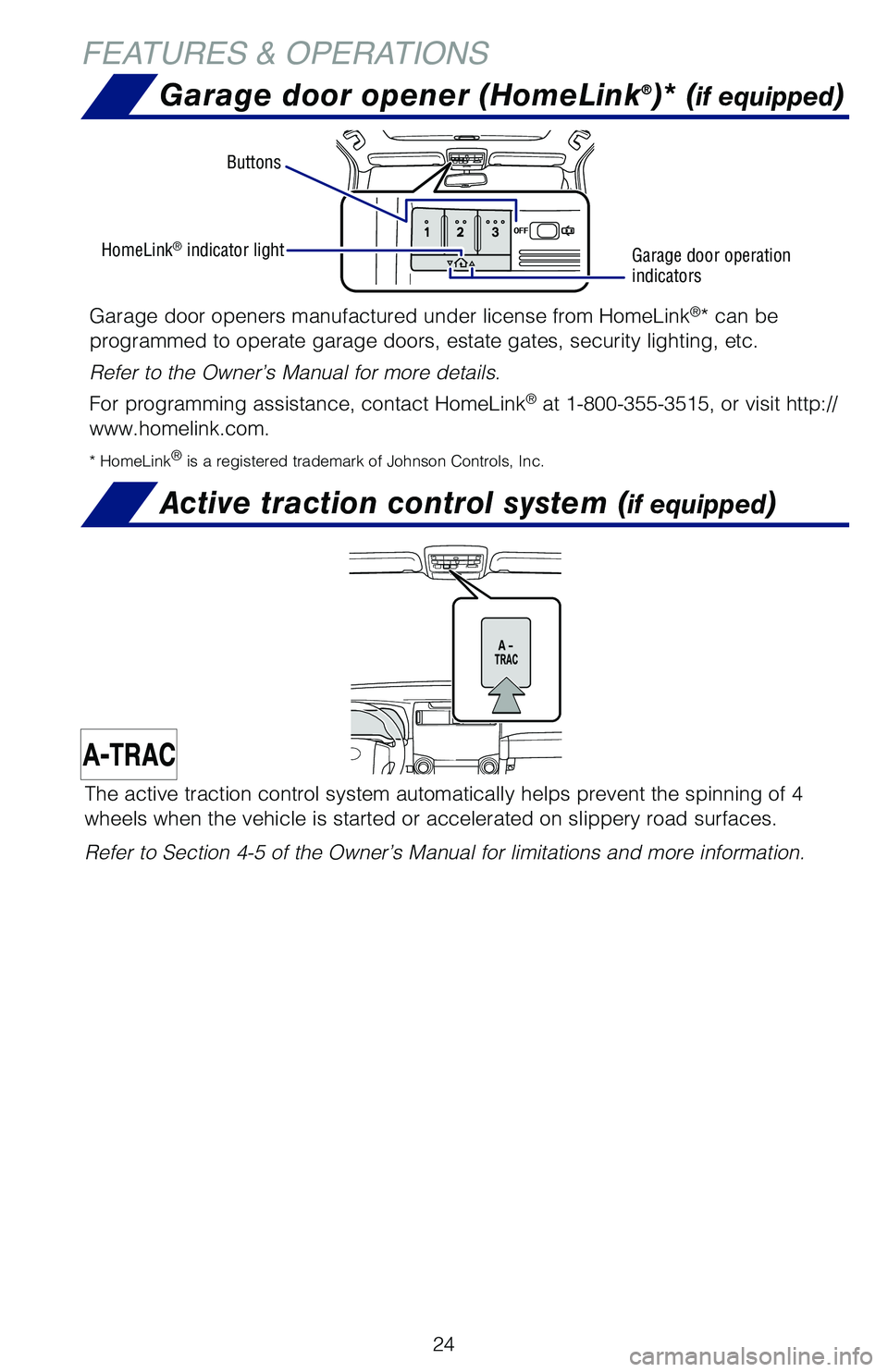

Garage door opener (HomeLink®)* (if equipped)
Active traction control system (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink® at 1-800-355-3515, or visit http://
www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
The active traction control system automatically helps prevent the spinning of 4
wheels when the vehicle is started or accelerated on slippery road surfaces.
Refer to Section 4-5 of the Owner’s Manual for limitations and more information.
HomeLink® indicator light
Buttons
Garage door operation indicators
FEATURES & OPERATIONS
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 247/13/18 8:22 PM

25

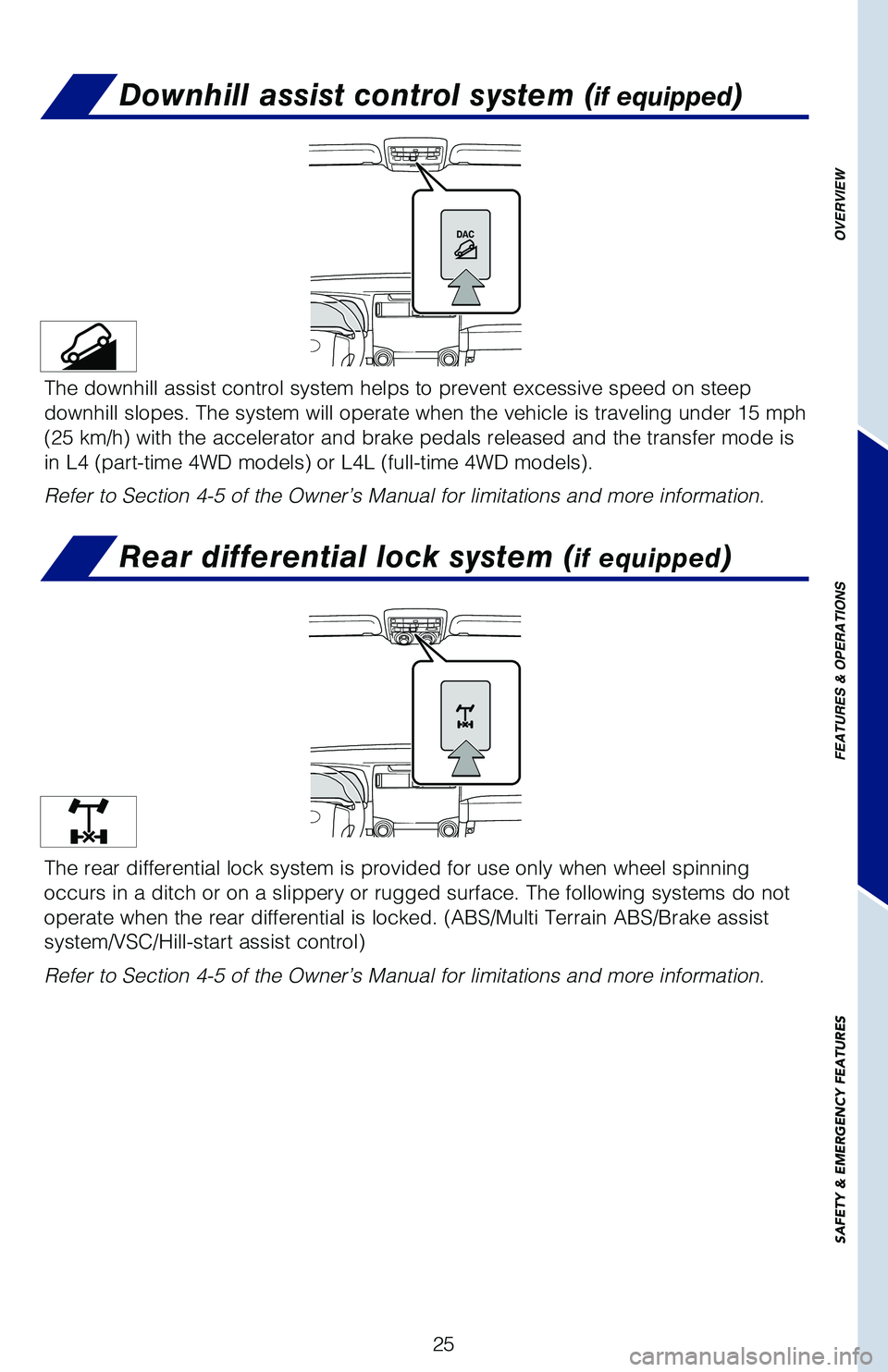

Downhill assist control system (if equipped)
The downhill assist control system helps to prevent excessive speed on steep
downhill slopes. The system will operate when the vehicle is traveling under 15 mph
(25 km/h) with the accelerator and brake pedals released and the transfer mode is
in L4 (part-time 4WD models) or L4L (full-time 4WD models).
Refer to Section 4-5 of the Owner’s Manual for limitations and more information.
Rear differential lock system (if equipped)
The rear differential lock system is provided for use only when wheel spinning
occurs in a ditch or on a slippery or rugged surface. The following systems do not
operate when the rear differential is locked. (ABS/Multi Terrain ABS/Brake assist
system/VSC/Hill-start assist control)
Refer to Section 4-5 of the Owner’s Manual for limitations and more information.
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 257/13/18 8:22 PM

26

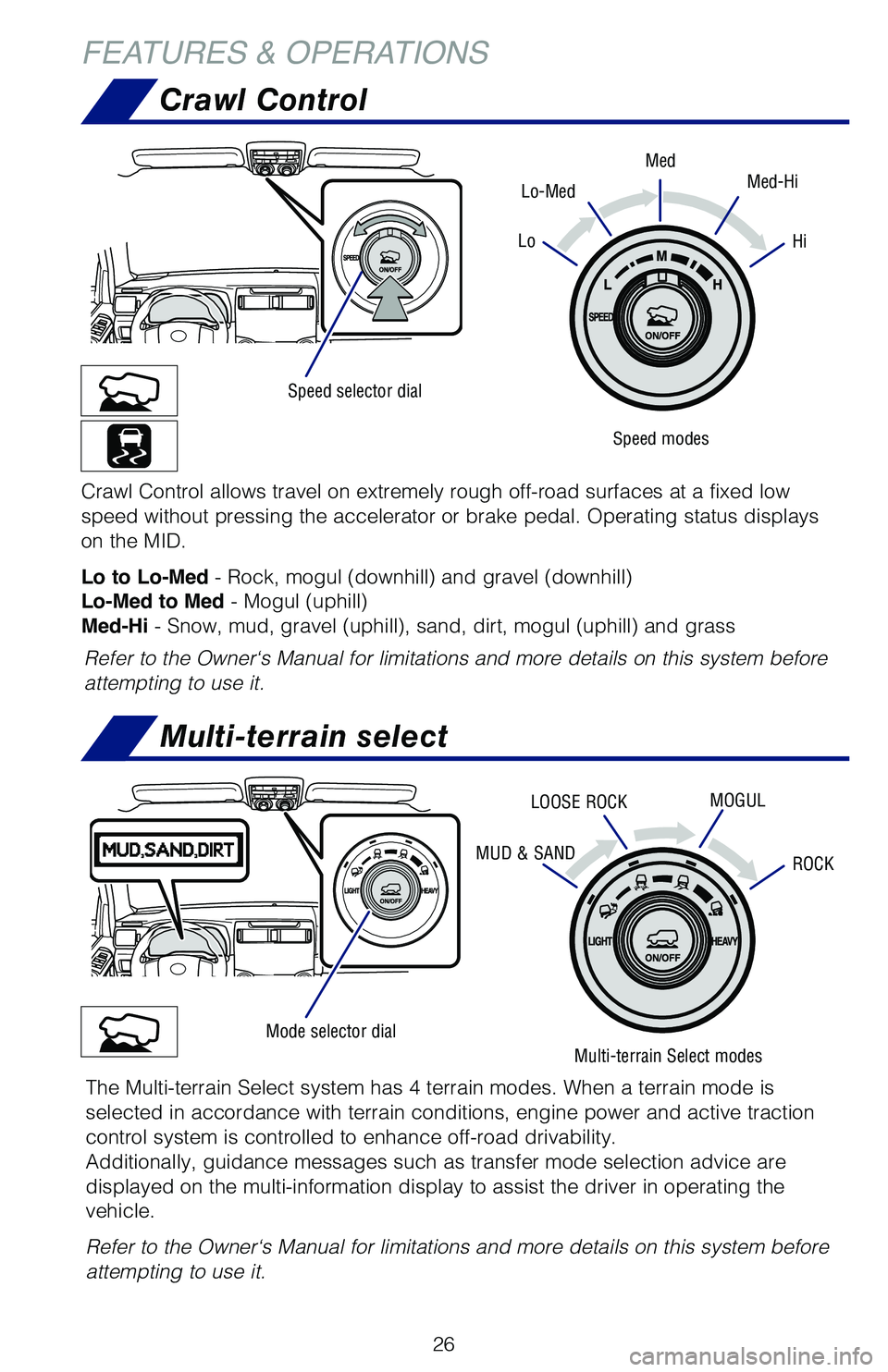

FEATURES & OPERATIONS
Multi-terrain select
Mode selector dial
Multi-terrain Select modes
The Multi-terrain Select system has 4 terrain modes. When a terrain mode is
selected in accordance with terrain conditions, engine power and active traction
control system is controlled to enhance off-road drivability.
Additionally, guidance messages such as transfer mode selection advice are
displayed on the multi-information display to assist the driver in operating the
vehicle.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Crawl Control
Speed selector dial
LoHi
ROCK
Med
Lo-Med
MUD & SAND
LOOSE ROCK
Med-Hi
MOGUL
Speed modes
Crawl Control allows travel on extremely rough off-road surfaces at a fixed low
speed without pressing the accelerator or brake pedal. Operating status displays
on the MID.
Lo to Lo-Med - Rock, mogul (downhill) and gravel (downhill)
Lo-Med to Med - Mogul (uphill)
Med-Hi - Snow, mud, gravel (uphill), sand, dirt, mogul (uphill) and grass
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 267/13/18 8:22 PM

27
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES

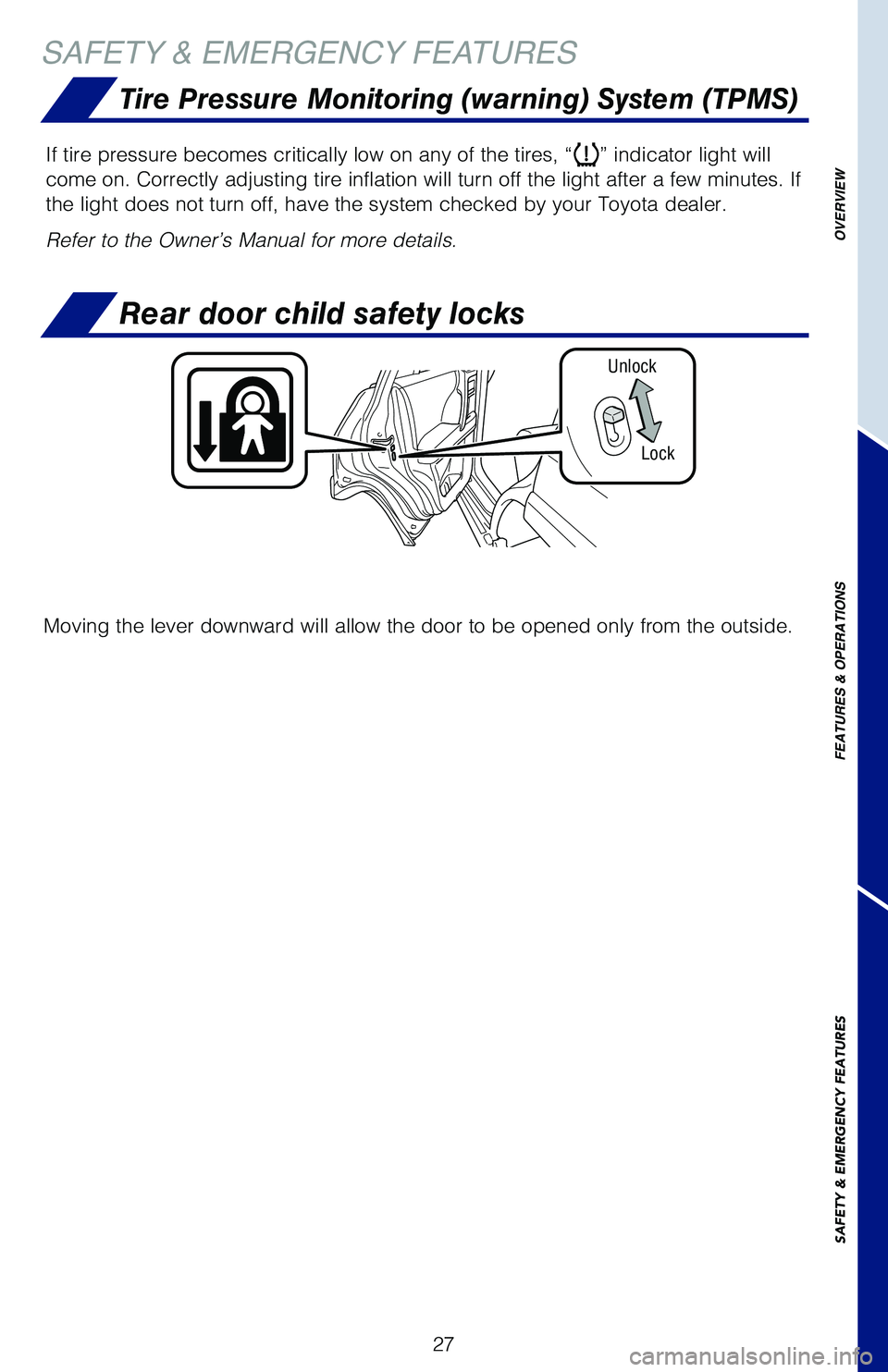

SAFETY & EMERGENCY FEATURES
Tire Pressure Monitoring (warning) System (TPMS)
If tire pressure becomes critically low on any of the tires, “” indicator light will
come on. Correctly adjusting tire inflation will turn off the light after a few minutes. If
the light does not turn off, have the system checked by your Toyota dealer.
Refer to the Owner’s Manual for more details.
Rear door child safety locks
Moving the lever downward will allow the door to be opened only from the outside.
Unlock
Lock
114558_MY19_4Runner_QRG_V3_ML_0712_R1.indd 277/13/18 8:22 PM

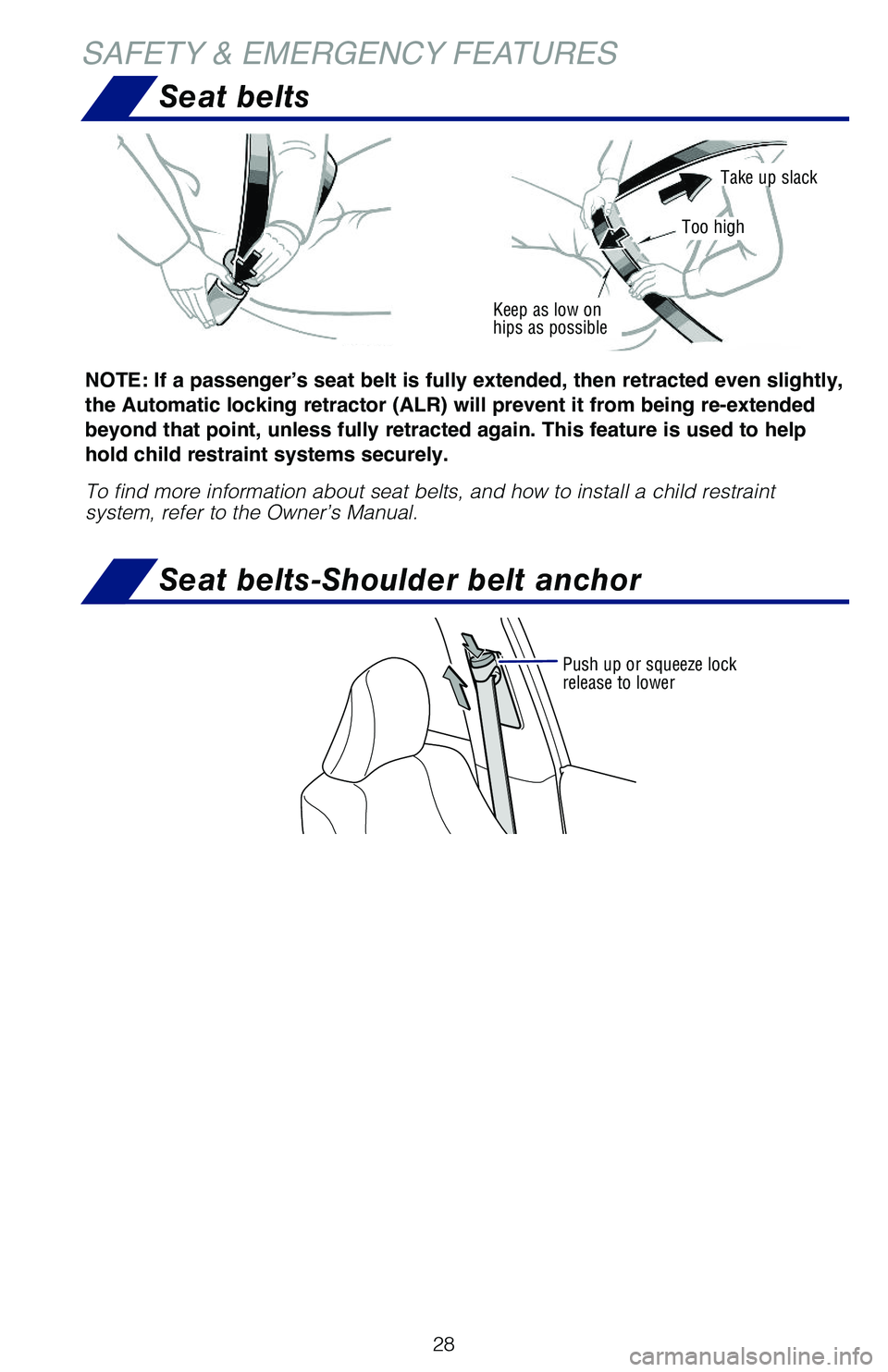

28
SAFETY & EMERGENCY FEATURES
Push up or squeeze lock release to lower
Seat belts
Seat belts-Shoulder belt anchor
Keep as low on hips as possible
Take up slack
Too high
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.
