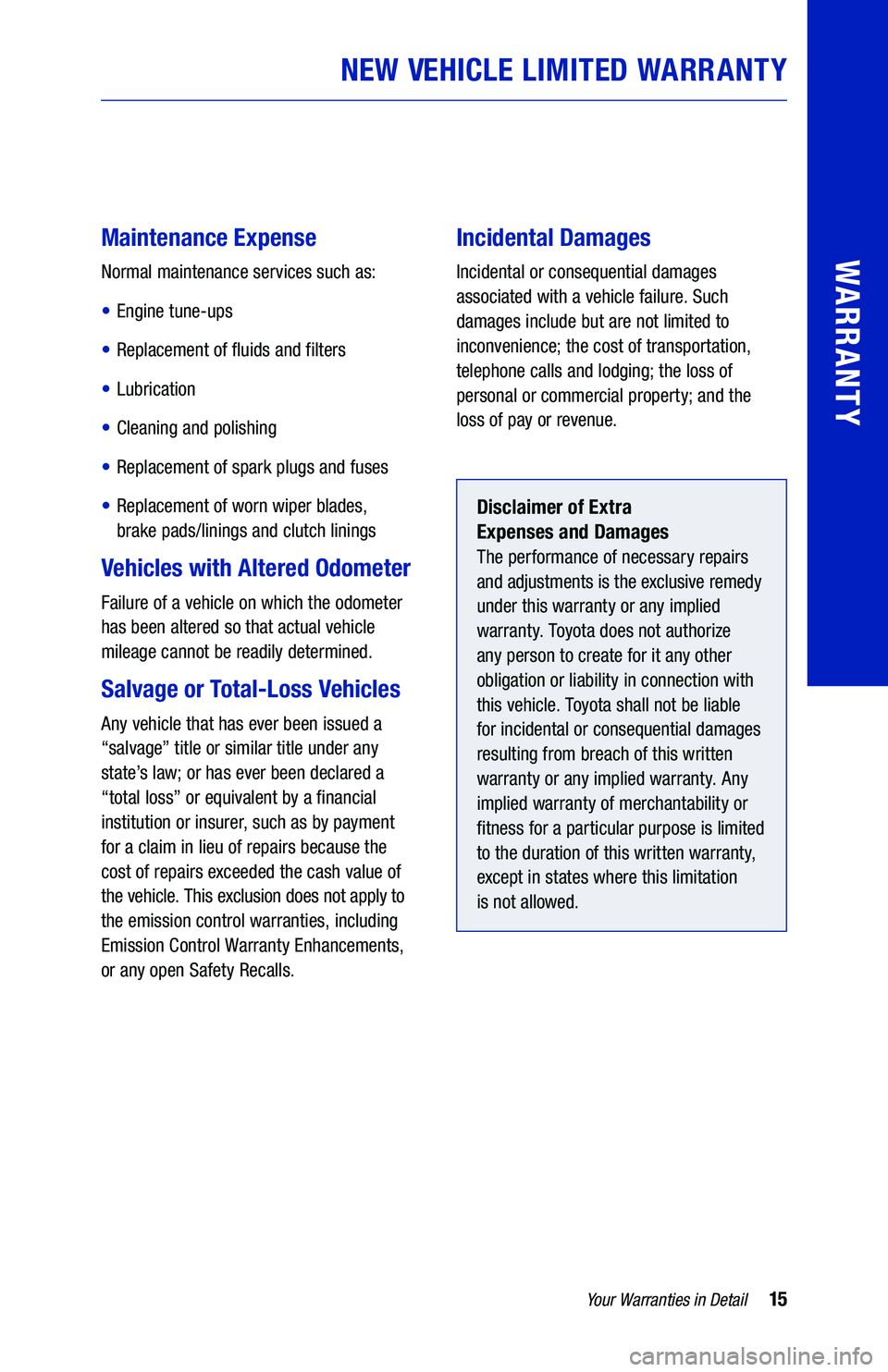

15Your Warranties in Detail
WARRANTY
NEW VEHICLE LIMITED WARRANTY


Maintenance Expense
Normal maintenance services such as:
• Engine tune-ups
• Replacement of fluids and filters
• Lubrication
• Cleaning and polishing
• Replacement of spark plugs and fuses
• Replacement of worn wiper blades,
brake pads/linings and clutch linings
Vehicles with Altered Odometer
Failure of a vehicle on which the odometer
has been altered so that actual vehicle
mileage cannot be readily determined.
Salvage or Total-Loss Vehicles
Any vehicle that has ever been issued a
“salvage” title or similar title under any
state’s law; or has ever been declared a
“total loss” or equivalent by a financial
institution or insurer, such as by payment
for a claim in lieu of repairs because the
cost of repairs exceeded the cash value of
the vehicle. This exclusion does not apply to
the emission control warranties, including
Emission Control Warranty Enhancements,
or any open Safety Recalls.


Incidental Damages
Incidental or consequential damages
associated with a vehicle failure. Such
damages include but are not limited to
inconvenience; the cost of transportation,
telephone calls and lodging; the loss of
personal or commercial property; and the
loss of pay or revenue.
Disclaimer of Extra
Expenses and Damages
The performance of necessary repairs
and adjustments is the exclusive remedy
under this warranty or any implied
warranty. Toyota does not authorize
any person to create for it any other
obligation or liability in connection with
this vehicle. Toyota shall not be liable
for incidental or consequential damages
resulting from breach of this written
warranty or any implied warranty. Any
implied warranty of merchantability or
fitness for a particular purpose is limited
to the duration of this written warranty,
except in states where this limitation
is not allowed.
114136_18-TCS-11409_WMG_MY19_4Runner_GUTS_F_4_tg_R1.indd 157/3/18 10:40 AM

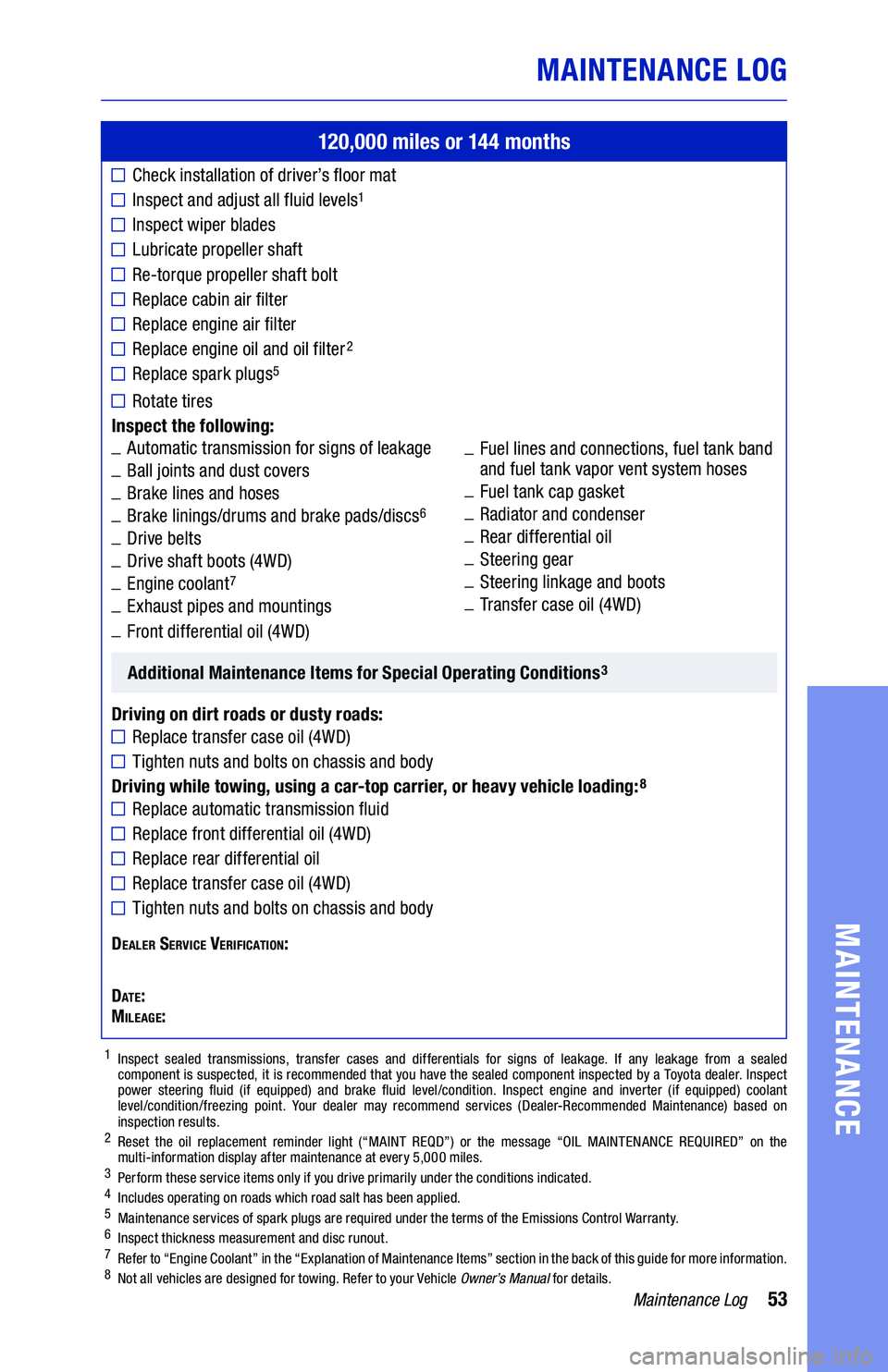

53Maintenance Log
MAINTENANCE LOG
MAINTENANCE
120,000 miles or 144 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Lubricate propeller shaft
Re-torque propeller shaft bolt
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace spark plugs5
Rotate tires
Inspect the following: _ Automatic transmission for signs of leakage _Ball joints and dust covers _Brake lines and hoses _ Brake linings/drums and brake pads/discs6
_Drive belts _Drive shaft boots (4WD) _Engine coolant7
_Exhaust pipes and mountings
_Front differential oil (4WD)
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:8
Replace automatic transmission fluid
Replace front differential oil (4WD)
Replace rear differential oil
Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (“Maint reQD”) or the message “oil Maintenance reQUireD” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated. 4 includes operating on roads which road salt has been applied.5 Maintenance services of spark plugs are required under the terms of the emissions control Warranty.6 inspect thickness measurement and disc runout.7 refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.8 not all vehicles are designed for towing. refer to your vehicle Owner’s Manual for details.
_ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses _Fuel tank cap gasket _Radiator and condenser _Rear differential oil _Steering gear _Steering linkage and boots _Transfer case oil (4WD)
114136_18-TCS-11409_WMG_MY19_4Runner_GUTS_F_4_tg_R1.indd 537/3/18 10:40 AM

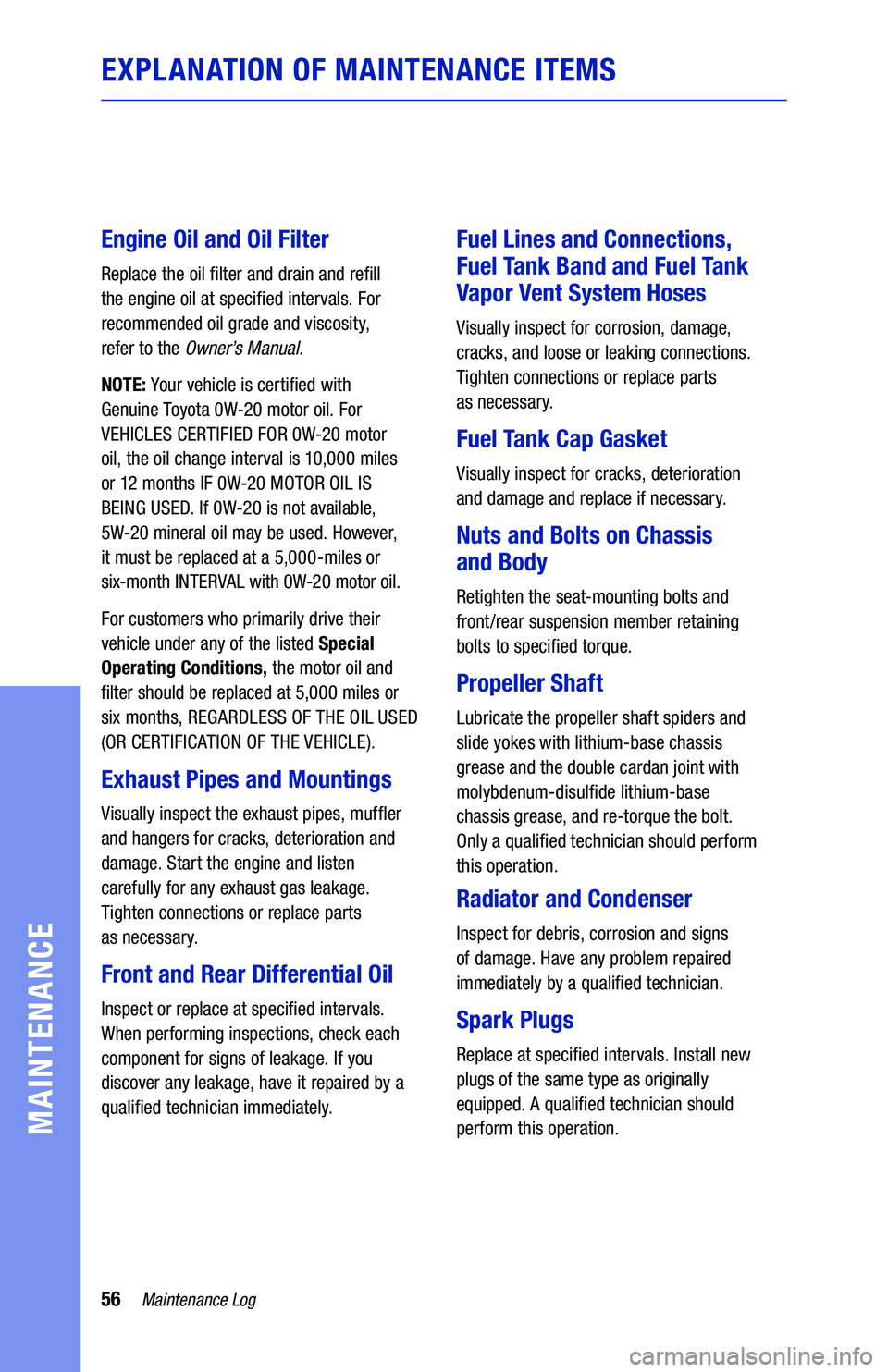

56Maintenance Log
MAINTENANCE
EXPLANATION OF MAINTENANCE ITEMS
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the Owner’s Manual.
NOTE: Your vehicle is certified with
Genuine Toyota 0W-20 motor oil. For
VEHICLES CERTIFIED FOR 0W-20 motor
oil, the oil change interval is 10,000 miles
or 12 months IF 0W-20 MOTOR OIL IS
BEING USED. If 0W-20 is not available,
5W-20 mineral oil may be used. However,
it must be replaced at a 5,000-miles or
six-month INTERVAL with 0W-20 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
six months, REGARDLESS OF THE OIL USED
(OR CERTIFICATION OF THE VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts
as necessary.
Front and Rear Differential Oil
Inspect or replace at specified intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts
as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis
and Body
Retighten the seat-mounting bolts and
front /rear suspension member retaining
bolts to specified torque.
Propeller Shaft
Lubricate the propeller shaft spiders and
slide yokes with lithium-base chassis
grease and the double cardan joint with
molybdenum-disulfide lithium-base
chassis grease, and re-torque the bolt.
Only a qualified technician should perform
this operation.
Radiator and Condenser
Inspect for debris, corrosion and signs
of damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
