android auto TOYOTA 4RUNNER 2020 Accessories, Audio & Navigation (in English)

1374-3. Media operation
4RUNNER_Navi_(U)
4
Audio/visual system
*: This function is not made avail- able in some countries or areas.
The Android Auto operation
screen can be reached by the
following methods: P. 1 1 7
 Connecting an Android Auto
( P. 1 1 8 )
 When an Apple CarPlay con-
nection s established, this
function will be unavailable.
Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display the sound
setting screen. ( P. 1 1 8 )
Select to display the audio
control screen of Android
Auto.
Select to change the track.
Select to play/pause.
Select to change the track. Displays cover art
Press to change the track.
Turn to change the track.
Android Auto*
Overview
Control screen
A
B
C
D
E
F
G
&RQWUROSDQHO
:$ 5 1 , 1 *
●Do not connect smartphone or
operate the cont
rols while driv-
ing.
NOTICE
●Do not leave your smartphone
in the vehicle. In particular, high
temperatures inside the vehicle
may damage the smartphone.
●Do not push down on or apply
unnecessary pressure to the
smartphone while it is con-
nected as this may damage the
smartphone or its terminal.
●Do not insert foreign objects into
the port as this may damage the
smartphone or its terminal.
H
A
B

1384-3. Media operation
4RUNNER_Navi_(U)
The Bluetooth® audio operation
screen can be reached by the
following methods: P. 1 1 7
 Connecting a Bluetooth
®
audio device ( P.140)
 Depending on the type of por-
table player connected, some
functions may not be avail-
able and/or the screen may
look differently than shown in
this manual.
 When an Apple CarPlay/
Android Auto connection is
established, Bluetooth
® audio
will be suspended and
become unavailable.
*
*: This function is not made avail- able in some countries or areas.
Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display a song list
screen.
Select to display the play
mode selection screen.
Select to display the portable
device connection screen.
( P.140)
Select to display the sound
setting screen. ( P.118)
Select to set repeat playback.
( P.139)
Select to change the track.
Select and hold to fast
rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast for-
ward.
Select to set random play-
back. ( P.139)
Bluetooth® audio
The Bluetooth® audio sys-
tem enables users to enjoy
listening to music that is
played on a portable player
on the vehicle speakers via
wireless communication.
This audio/visual system
supports Bluetooth
®, a wire-
less data system capable of
playing portable audio
music without cables. If
your device does not sup-
port Bluetooth
®, the Blue-
tooth
® audio system will not
function.
Overview
Control screen
A
B
C
D
E
F
G
H
I
J
K

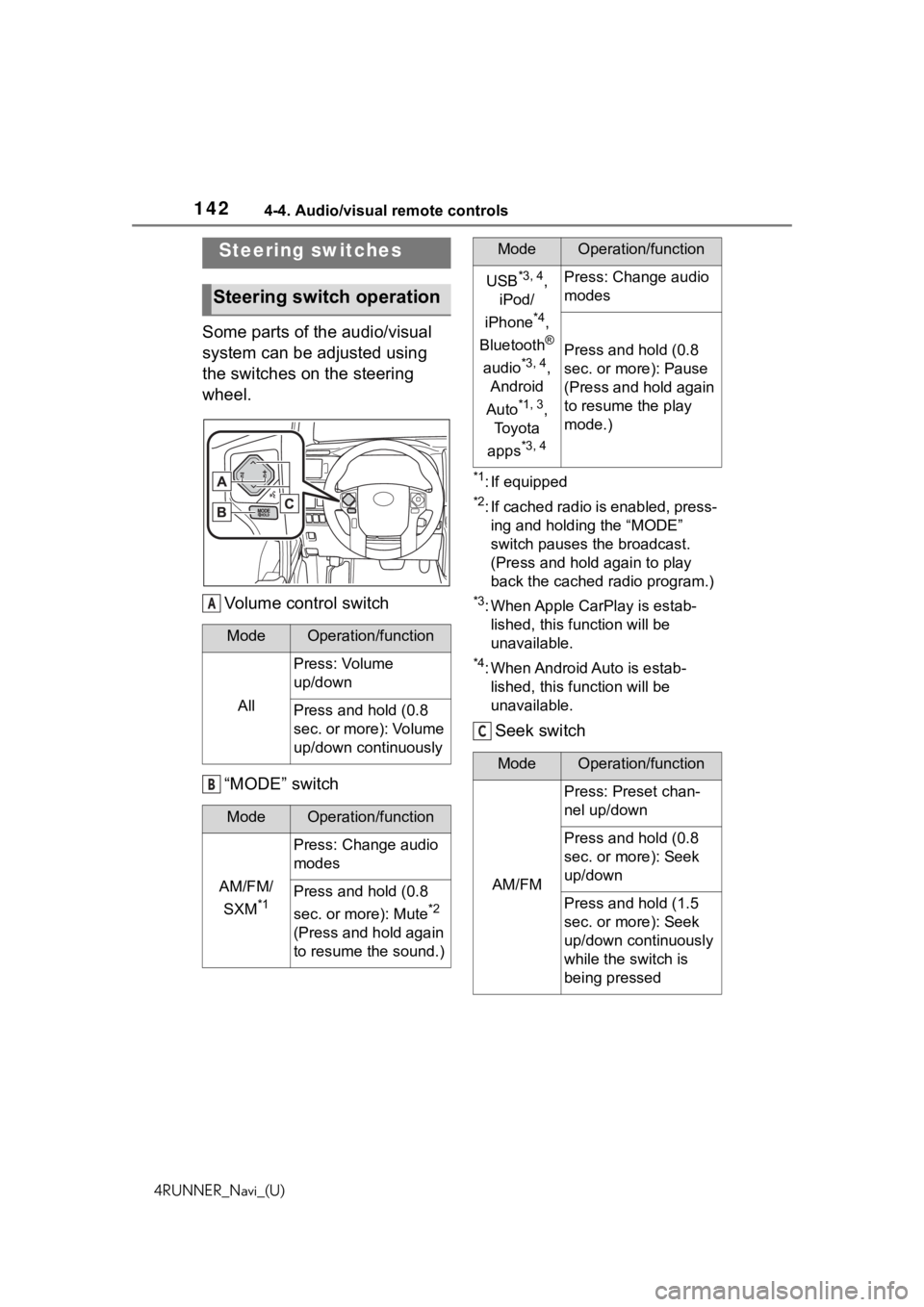

1424-4. Audio/visual remote controls
4RUNNER_Navi_(U)
4-4.Audio/visual remote controls
Some parts of the audio/visual
system can be adjusted using
the switches on the steering
wheel.Volume control switch
“MODE” switch
*1: If equipped
*2: If cached radio is enabled, press-ing and holding the “MODE”
switch pauses the broadcast.
(Press and hold again to play
back the cached radio program.)
*3: When Apple CarPlay is estab-lished, this function will be
unavailable.
*4: When Android Auto is estab-lished, this function will be
unavailable.
Seek switch
Steering switches
Steering switch operation
ModeOperation/function
All
Press: Volume
up/down
Press and hold (0.8
sec. or more): Volume
up/down continuously
ModeOperation/function
AM/FM/
SXM
*1
Press: Change audio
modes
Press and hold (0.8
sec. or more): Mute
*2
(Press and hold again
to resume the sound.)
A
B
86%

L3RG
L3KRQH


%OXHWRRWK
Š
DXGLR


$QGURLG
$XWR


7R\RWD
DSSV


3UHVV&KDQJHDXGLR
PRGHV
3UHVVDQGKROG
VHFRUPRUH\f3DXVH
3UHVVDQGKROGDJDLQ
WRUHVXPHWKHSOD\
PRGH\f
0RGH2SHUDWLRQIXQFWLRQ
$0)0
3UHVV3UHVHWFKDQ
QHOXSGRZQ
3UHVVDQGKROG
VHFRUPRUH\f6HHN
XSGRZQ
3UHVVDQGKROG
VHFRUPRUH\f6HHN
XSGRZQFRQWLQXRXVO\
ZKLOHWKHVZLWFKLV
EHLQJSUHVVHG
0RGH2SHUDWLRQIXQFWLRQ
C

1434-4. Audio/visual remote controls
4RUNNER_Navi_(U)
4
Audio/visual system
*1: If equipped
*2: When Apple CarPlay is estab- lished, this function will be
unavailable.
*3: When Android Auto is estab-lished, this function will be
unavailable.
SXM*1
Press: Preset chan-
nel up/down
Press and hold (0.8
sec. or more): Seek
for stations in the rele-
vant program
type/channel category
Press and hold (1.5
sec. or more): Fast
channel up/down
USB*2, 3,
iPod/
iPhone
*3,
Bluetooth
®
audio
*2, 3
Press: Track/file
up/down
Press and hold (0.8
sec. or more): Fast
forward/rewind
ModeOperation/function

1585-1. Voice command system operation
4RUNNER_Navi_(U)
5-1.Voice command system operation
■Steering switchTa l k s w i t c h
Voice command system:
• Press the talk switch to start the voice command system. To can-
cel voice command, press and
hold the talk switch.
When an Apple CarPlay/Android
Auto connection is established:
• Press and hold the talk switch to start Siri/Google Assistant. To
cancel Siri/Google Assistant,
press the talk switch.
• Press the talk switch to start the voice command system.
■Microphone
 It is unnecessary to speak
directly into the microphone
when giving a command.
●Voice commands may not be rec-
ognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The windows are open.
• Passengers are talking while
voice commands are spoken.
• The fan speed of the air condition- ing system is set at high.
• The air conditioning vents are turned towards the microphone.
●In the following c onditions, the
system may not recognize the
command properly and using
voice commands may not be pos-
sible:
• The command is incorrect or
unclear. Note that certain words,
accents or speech patterns may
be difficult for the system to recog-
nize.
• There is excessive background noise, such as wind noise.
●Normally, it is necessary to wait
for a beep before saying a com-
mand. To enable th e ability to talk
over prompts and say commands
before the beep, enable the voice
prompt interrupt function. ( P. 6 3 )
●This system may not operate
immediately after the engine
switch is in ACC or ON.
Voice command sys-
tem
The voice command sys-
tem enables the radio,
phone dialing, etc. to be
operated using voice com-
mands. Refer to the com-
mand list for samples of
voice commands. ( P.162)
Using the voice command
system
A

1625-1. Voice command system operation
4RUNNER_Navi_(U)
Recognizable voice commands
and their actions are shown
below.
Frequently used commands
are listed in the following
tables.
 For devices that are not
installed to the vehicle, com-
mands relating to that device
may not be displayed on the
screen. Also, depending on
other conditions, such as
compatibility, some com-
mands may not be displayed
on the screen.
 The functions available may
vary according to the system
installed.
 Voice recognition language
can be changed. ( P.59)
 When an Apple CarPlay/
Android Auto connection is
established, some com-
mands will become unavail-
able.
■Common
■Top menu
*: Vehicle must be parked
Command list
Command list overview
Command list
CommandAction
“Help”
Displays exam-
ples of some of
the available
commands
“Go back”Returns to the
previous screen
“Cancel”
Cancels the
voice command
system
“Start over”Returns to top
menu screen
“Pause”
Temporarily
pauses a voice
session until it is
resumed by
pressing the talk
switch again.
CommandAction
“Show com-
mand examples
for

1675-2. Mobile Assistant operation
4RUNNER_Navi_(U)
5
Voice command system
5-2.Mobile Assistant operation
*: For countries or areas where Apple CarPlay/Android Auto is
not available
Mobile Assist supports the Siri
Eyes Free Mode and Google
App. The available features and
functions may vary based on the
iOS/Android version installed on
the connected device. 1
Press and hold the switch
on the steering wheel until
Mobile Assistant screen is
displayed.
2 The Mobile Assistant can be
used only when the following
screen is displayed.
 To cancel the Mobile Assis-
tant, select “Cancel” or press
and hold the switch on the
steering wheel.
 To restart the Mobile Assistant
for additional commands,
press the switch on the
steering wheel.
• Mobile Assistant can only be
restarted after the system
responds to a voice command.
• After some phone and music
Mobile Assistant*
The Mobile Assistant func-
tion is a voice input assist
function. Mobile Assist sup-
ports the Siri Eyes Free
Mode and Google App.
(Google App can be used
only the corresponding
device.) Instructions can be
spoken into the vehicle
microphone as if speaking a
command to the phone. The
content of the request is
then interpreted by the
phone and the result is out-
put from the vehicle speak-
ers. To operate the Mobile
Assistant, a compatible
device must be registered
and connected to this sys-
tem via Bluetooth
®. (  P.36)
Connectable devices and
available functions
Mobile Assistant opera-
tion

1878-1. Phone operation (Hands-free system for cellular phones)
4RUNNER_Navi_(U)
8
Phone
on the screen to try again.
■Bluetooth® phone condition
display
The condition of the Bluetooth
®
phone appears on the upper
right side of the screen. ( P. 1 6 )
■Steering switch
By pressing the phone switch, a
call can be received or ended
without taking your hands off the
steering wheel.
Volume control switch
• Press the “+” side to increase the volume.
• Press the “-” side to decrease the volume.
Off hook switch
• Press to start talking.
• Press to put a call on hold.
• Depending on the system, if the switch is pressed when an Apple
CarPlay/Android Auto connec-
tion is established, the Apple
CarPlay/Android Auto phone
application will be displayed on
the system screen.
On hook switch
• Press to end t alking/dialing.
• Press to refuse to receive the call.
■Microphone
The microphone is used when
talking on the phone.
●The other party’s voice will be
heard from the front speakers.
The audio/vis ual system will be
muted during phone calls or when
hands-free voice commands are
used.
●Talk alternately with the other
party on the phone. If both parties
speak at the same time, the other
party may not hear what has been
said. (This is not a malfunction.)
●Keep call volume down. Other-
wise, the other party’s voice may
be audible outside the vehicle and
voice echo may increase. When
talking on the phone, speak
clearly towards the microphone.
●The other party may not hear you
clearly when:
• Driving on an unpaved road.
(Making excessive traffic noise.)
• Driving at high speeds.
• The windows are open.
• The air conditioning vents are pointed towards the microphone.
• The sound of the air conditioning fan is loud.
• There is a negative effect on sound quality due to the phone
and/or network being used.
Using the phone
switch/microphone
A
B
C

2048-2. Setup
4RUNNER_Navi_(U)
the phone.
■Updating the contacts in a
different way (from the call
history screen)
*
1Display the phone top
screen. ( P.184)
2 Select “History” and select a
contact not yet registered in
the contact list.
3 Select “Update Contact”.
4 Select the desired contact.
5 Select a phone type for the
phone number.
*: For PBAP compatible Bluetooth®
phones, this function is available
when “Automatic Transfer” is set
to off. ( P.202)
When an Android Auto connec-
tion is established, this function
will be unavailable.
*
*: This function is not made avail-
able in some countries or areas.
When the contact is not regis-
tered
1 Select “Transfer Contacts
from Device”.
2 Select “From Phone (Blue-
tooth)”. 3
Transfer the contact data to
the system using a Blue-
tooth
® phone.
 This operation may be unnec-
essary depending on the type
of Bluetooth
® phone.
 To cancel this function, select
“Cancel”.
4 Check that a confirmation
screen is displayed when the
operation is complete.
When the contact is regis-
tered
1 Select “Transfer Contacts
from Device”.
2 Select “From Phone (Blue-
tooth)”.
3 Select “Replace Contacts” or
“Add Contact”.
“Replace Contacts”: Select to trans-
fer the contact fr om the connected
cellular phone and replace the cur-
rent one.
“Add Contact”: Select to transfer
the desired contact data from the
connected cellular phone to add to
the current one.
4 Transfer the contact data to
the system using a Blue-
tooth
® phone.
 This operation may be unnec-
essary depending on the type
of Bluetooth
® phone.
 To cancel this function, select
“Cancel”.
5 Check that a confirmation
screen is displayed when the
operation is complete.
Transfer contacts from
device
From phone (OPP compati-
ble Bluetooth
® phones only)

234Alphabetical Index
4RUNNER_Navi_(U)
Alphabetical Index
A
AM ............................................ 122
Android Auto .............. 52, 55, 137
Apple CarPlay ..................... 52, 55
APPS button ........... .................. 12
Apps button (Menu screen) ..... 14
Audio ....................................... 116 Audio source ........................ 117
Operating information........... 146
Reordering the audio source 118
Screen adjustment ............... 120
Some basics......................... 117
Sound settings ..................... 118
Turning the system on and off........................................... 117
USB port............................... 118
Voice command system ....... 121
AUDIO button............................ 12
Audio button (Menu screen).... 14
Audio button (Setup screen) ... 18
Audio settings ........................ 144 Common settings ................. 144
Radio settings ...................... 144
Audio source .......................... 117
B
Basic operation ........................ 70
Bluetooth® audio .................... 138
Registering/Conn ecting a Blue-
tooth
® device...................... 140
Bluetooth® button (Setup
screen) .................................... 18
Bluetooth
® details settings ..... 40
Bluetooth® setup screen ........ 40
Connecting a Bluetooth® device
............................................. 41
Deleting a Bluetooth
® device . 43
Detailed settings screen ......... 45
Displaying the Bluetooth
® setup
screen .................................. 40 Editing the Bluetooth
® device
information............................43
Registering a Bluetooth
® device
.............................................43
Bluetooth
® hands-free system
...............................................184
Bluetooth
® phone message func-
tion .........................................195 Calling the message sender .198
Checking received messages ...........................................196
Displaying the message screen ...........................................195
Receiving a mess age ...........196
Replying to a message (dicta- tion reply)............................197
Replying to a message (quick reply) ..................................198
Buttons overview......................12
C
Clock settings ...........................60
Cloud .........................................91
Command list ..........................162
Connected service s................216
D
Data service button (Setup
screen) .....................................18
Data services settings............172
DCM .........................220, 222, 224
Destination Assist ..................230
Destination button (Menu screen) .....................................14
Destination search ...................81
Destination search operation Address ..................................84
Contact ...................................84
Destination Assist ...................83
Emergency .............................83
Favorite list .............................82
