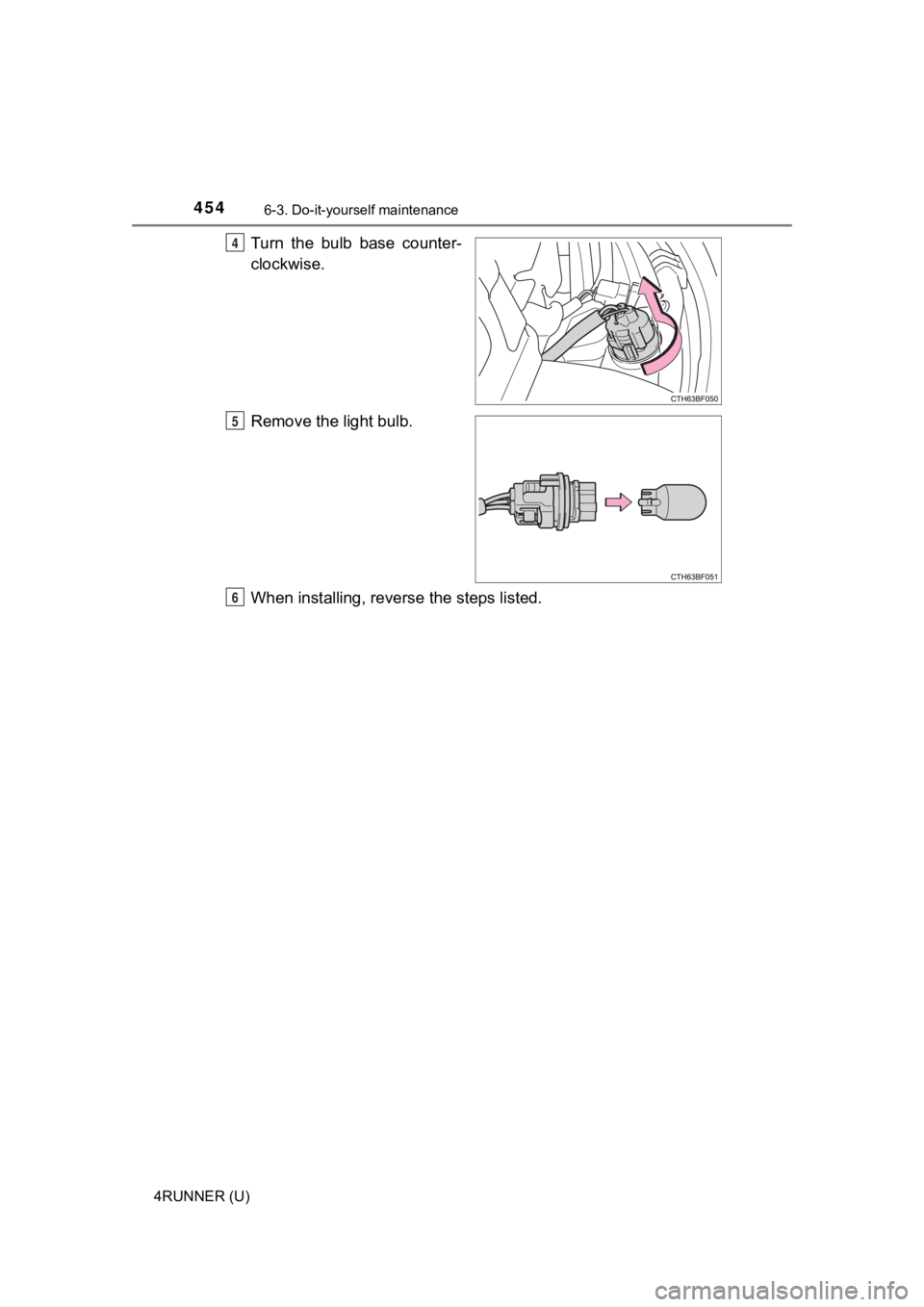

Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Install the cover.
4
5
6

4526-3. Do-it-yourself maintenance
4RUNNER (U)■
Headlight high beam/daytime running lights

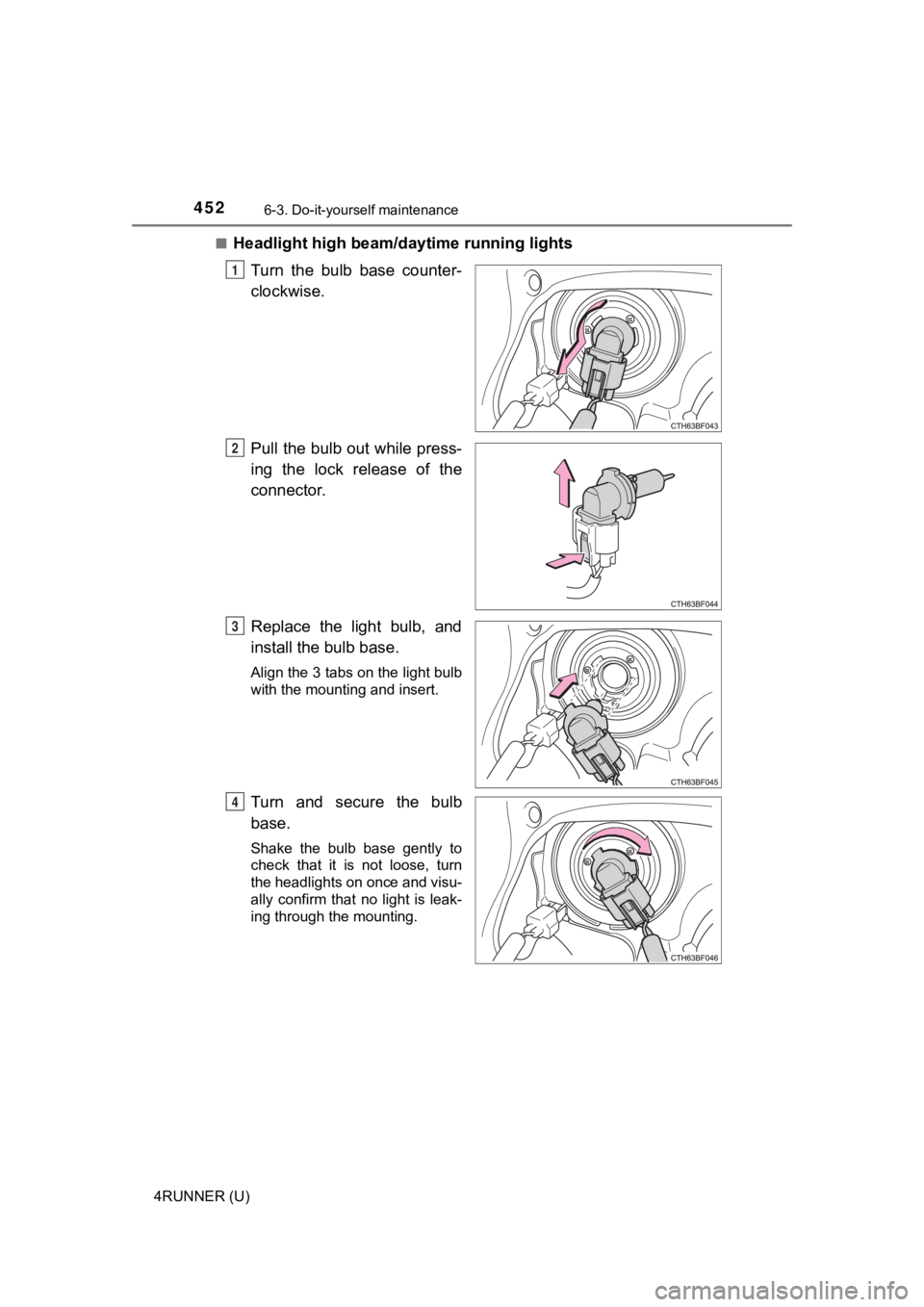

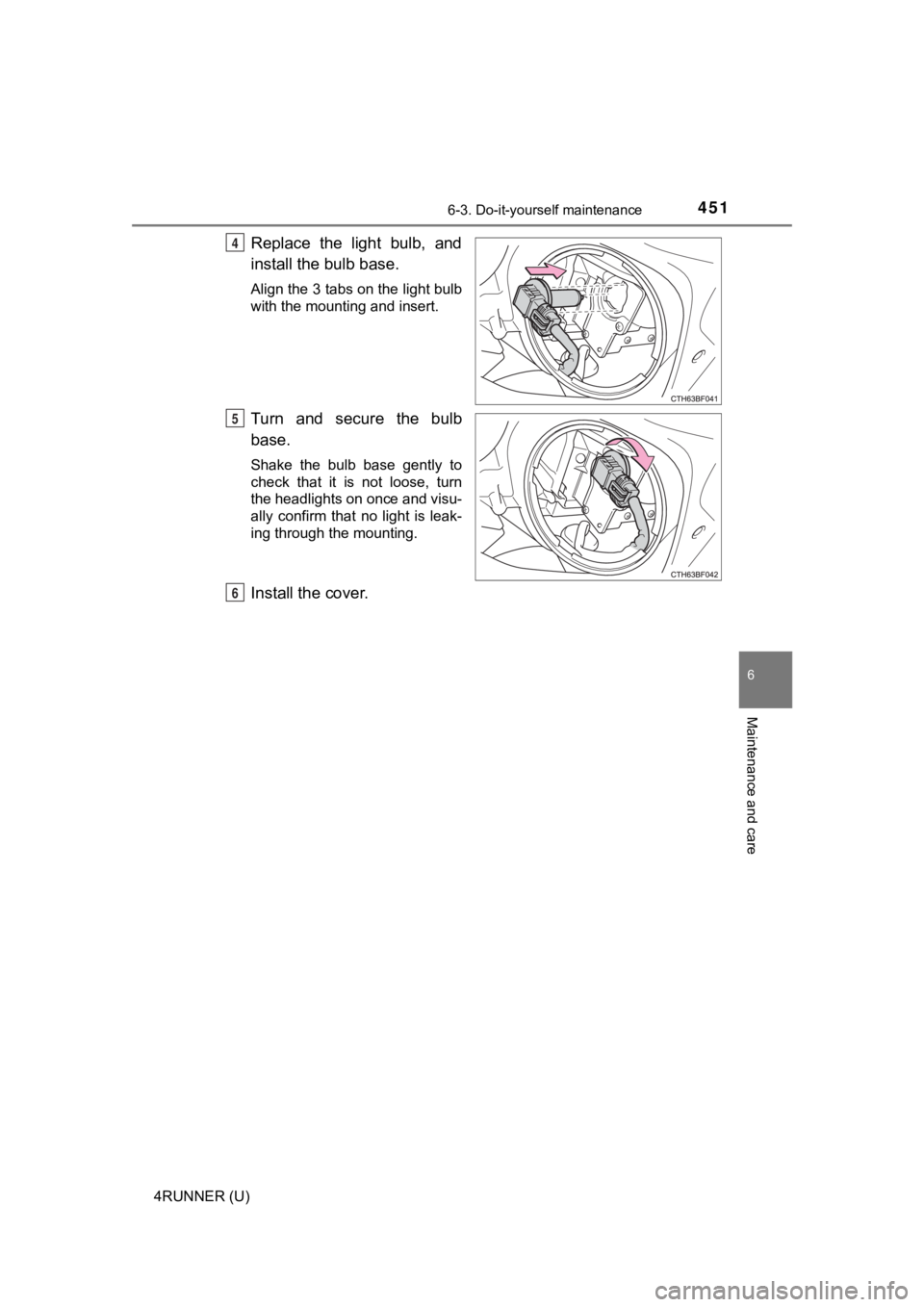

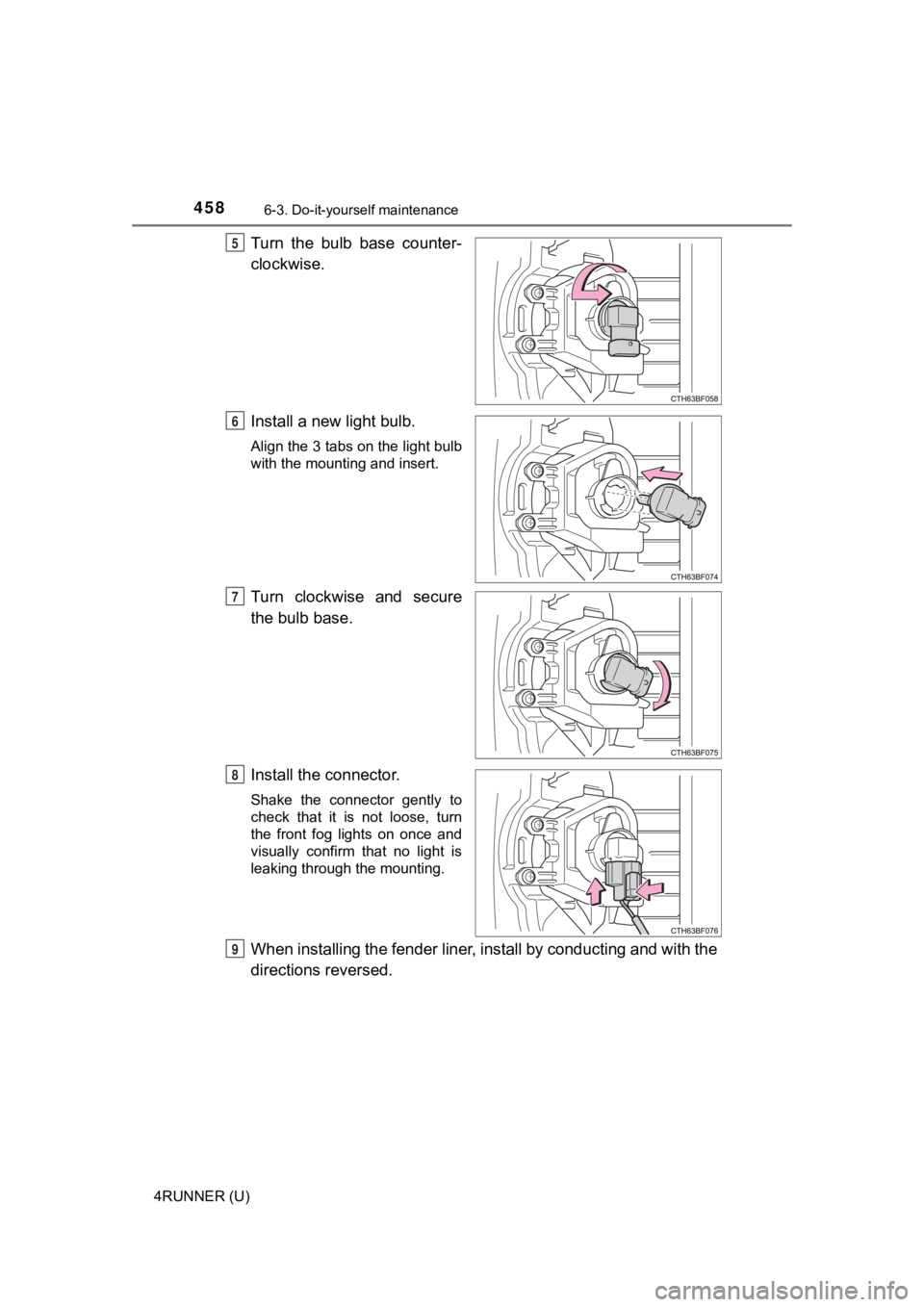

Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
1
2
3
4

4536-3. Do-it-yourself maintenance
6
Maintenance and care
4RUNNER (U)■
Front turn signal/parking light

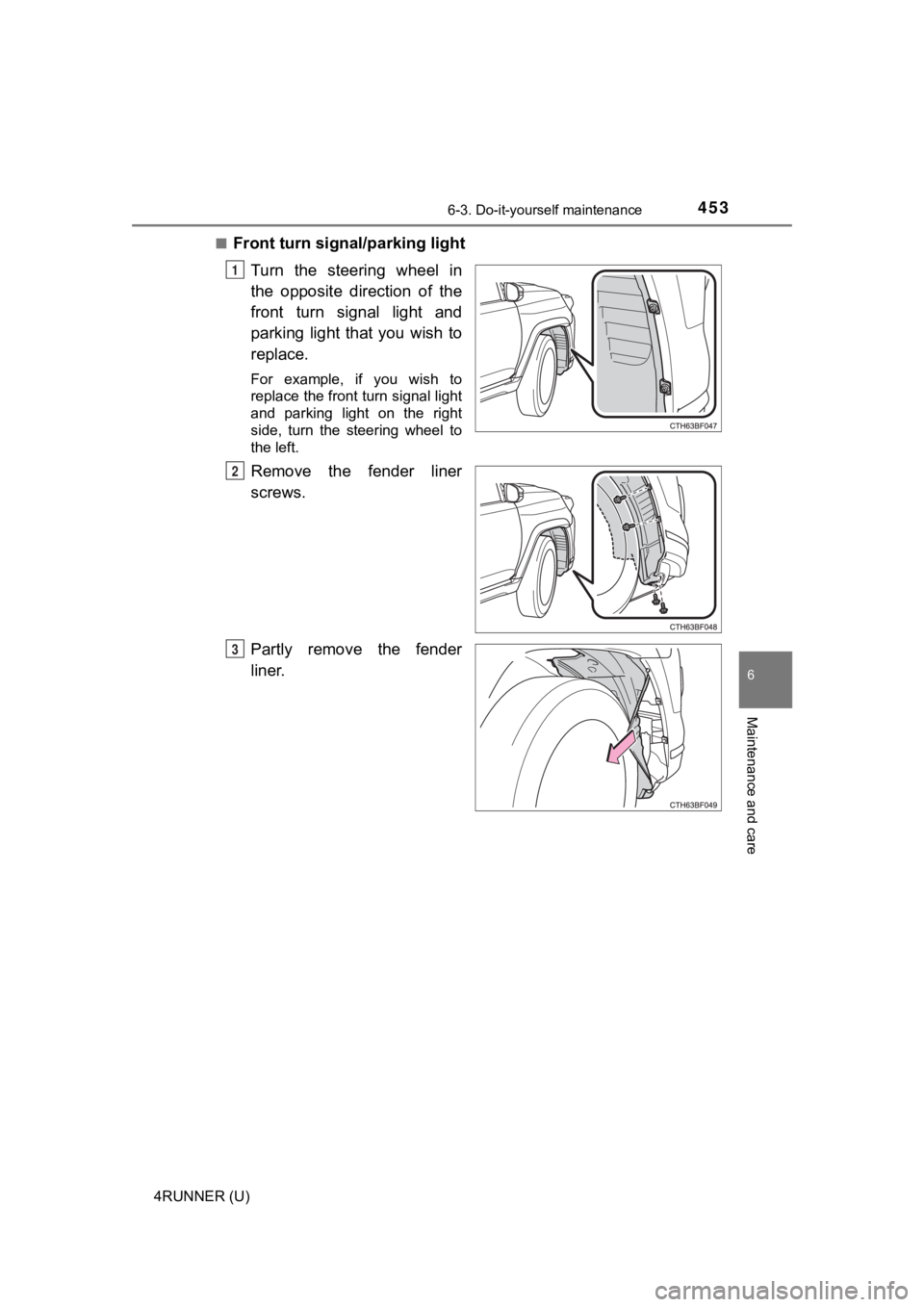

Turn the steering wheel in
the opposite direction of the
front turn signal light and
parking light that you wish to
replace.
For example, if you wish to
replace the front turn signal light
and parking light on the right
side, turn the steering wheel to
the left.
Remove the fender liner
screws.
Partly remove the fender
liner.
1
2
3

4546-3. Do-it-yourself maintenance
4RUNNER (U)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.4
5
6

4556-3. Do-it-yourself maintenance
6
Maintenance and care
4RUNNER (U)■
Front side marker lights
Turn the steering wheel in
the opposite direction of the
front side marker light that
you wish to replace.
For example, if you wish to
replace the front side marker
light on the right side, turn the
steering wheel to the left.
Remove the fender liner
screws.
Partly remove the fender
liner.
1
2
3

4566-3. Do-it-yourself maintenance
4RUNNER (U)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.4
5
6

4576-3. Do-it-yourself maintenance
6
Maintenance and care
4RUNNER (U)■
Fog light (left side)
Turn the steering wheel in
the opposite direction of the
fog light that you wish to
replace.
For example, if you wish to
replace the fog light on the left
side, turn the steering wheel to
the right.
Remove the fender liner
screws.
Partly remove the fender
liner.
Unplug the connector while
depressing the lock release.
1
2
3
4

4586-3. Do-it-yourself maintenance
4RUNNER (U)
Turn the bulb base counter-
clockwise.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure
the bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting and with the
directions reversed.
5
6
7
8
9

4596-3. Do-it-yourself maintenance
6
Maintenance and care
4RUNNER (U)■
Rear turn signal lights

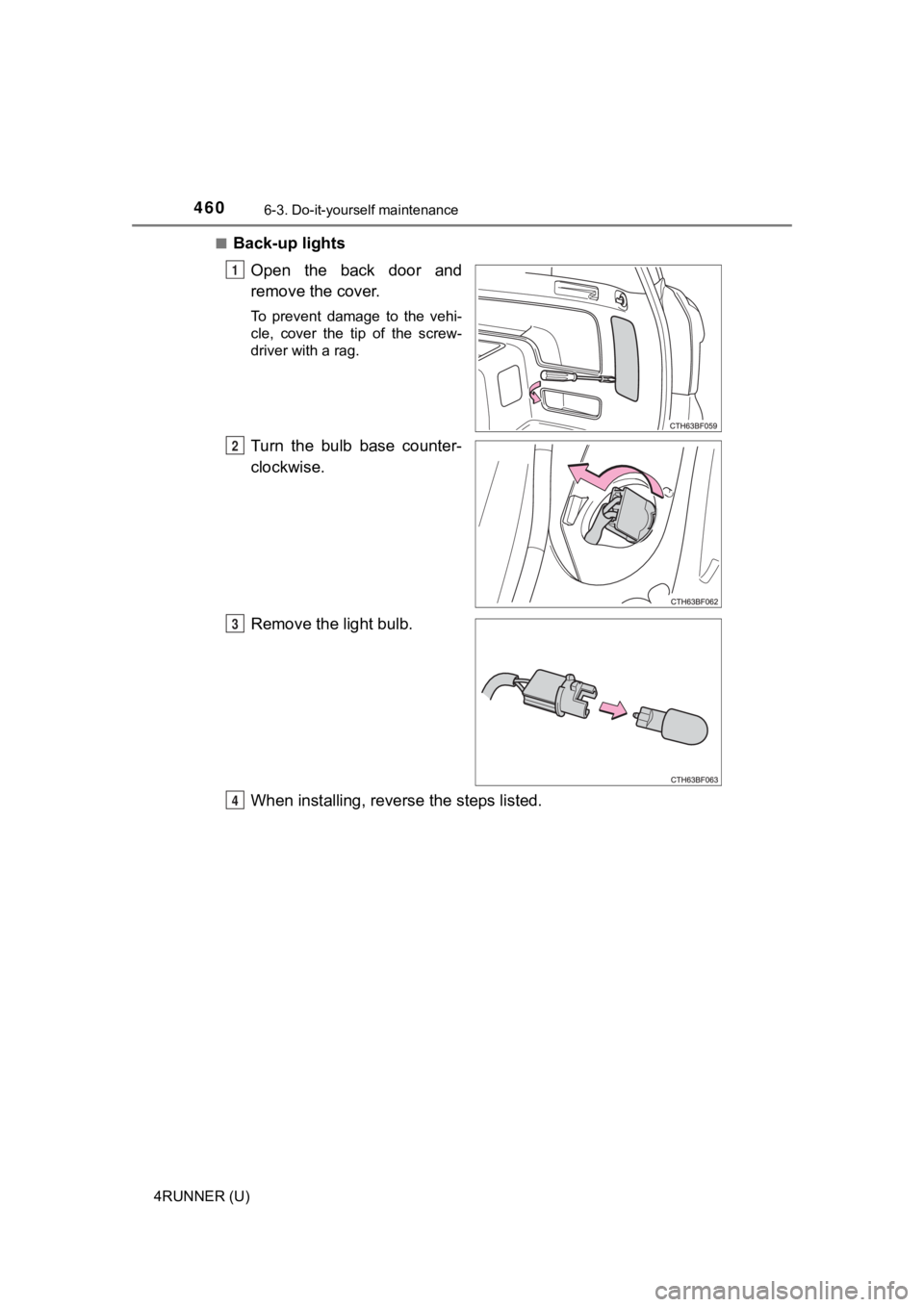

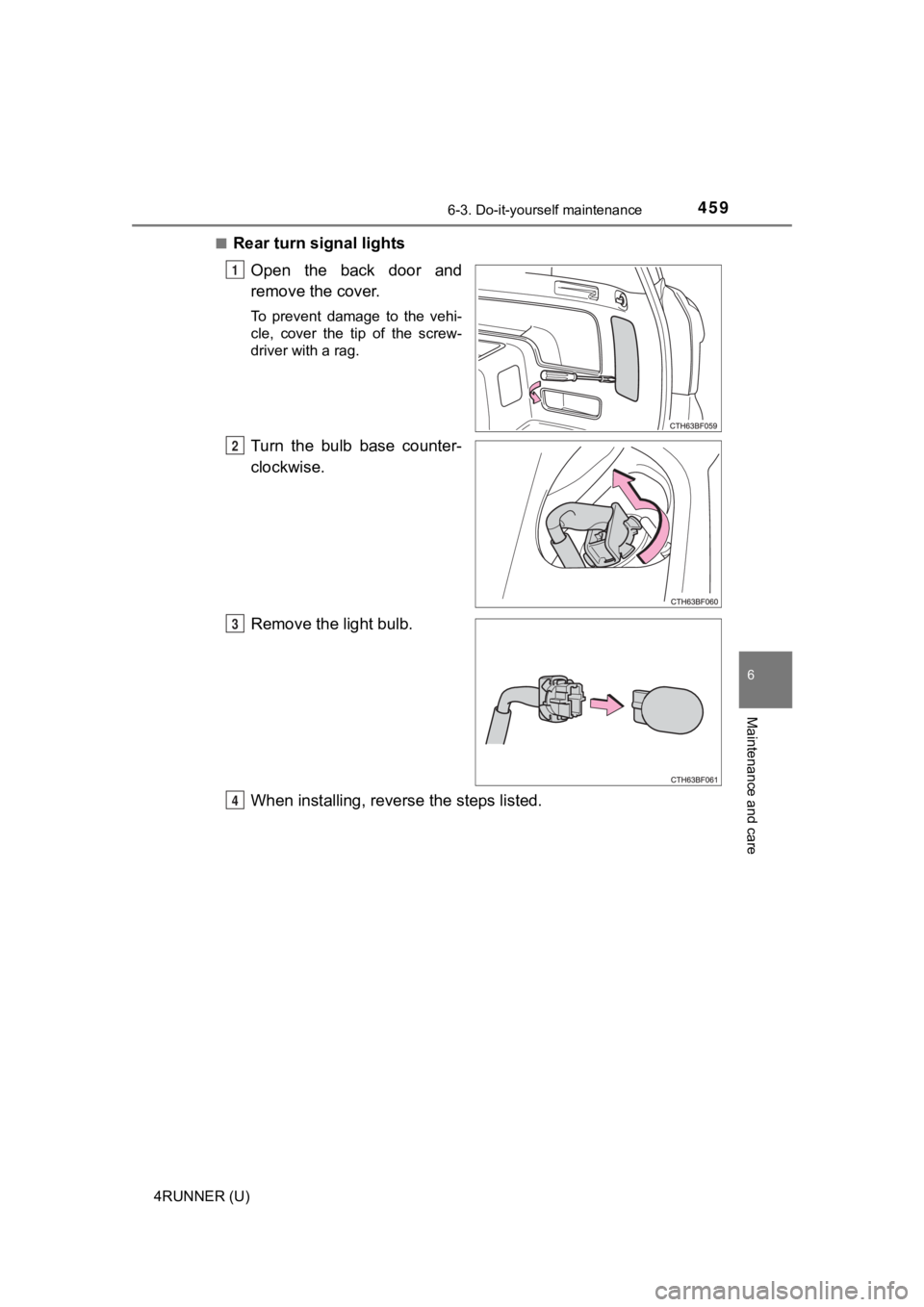

Open the back door and
remove the cover.
To prevent damage to the vehi-
cle, cover the tip of the screw-
driver with a rag.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

4606-3. Do-it-yourself maintenance
4RUNNER (U)■
Back-up lights
Open the back door and
remove the cover.
To prevent damage to the vehi-
cle, cover the tip of the screw-
driver with a rag.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
