TOYOTA AURIS 2011 Owners Manual (in English)

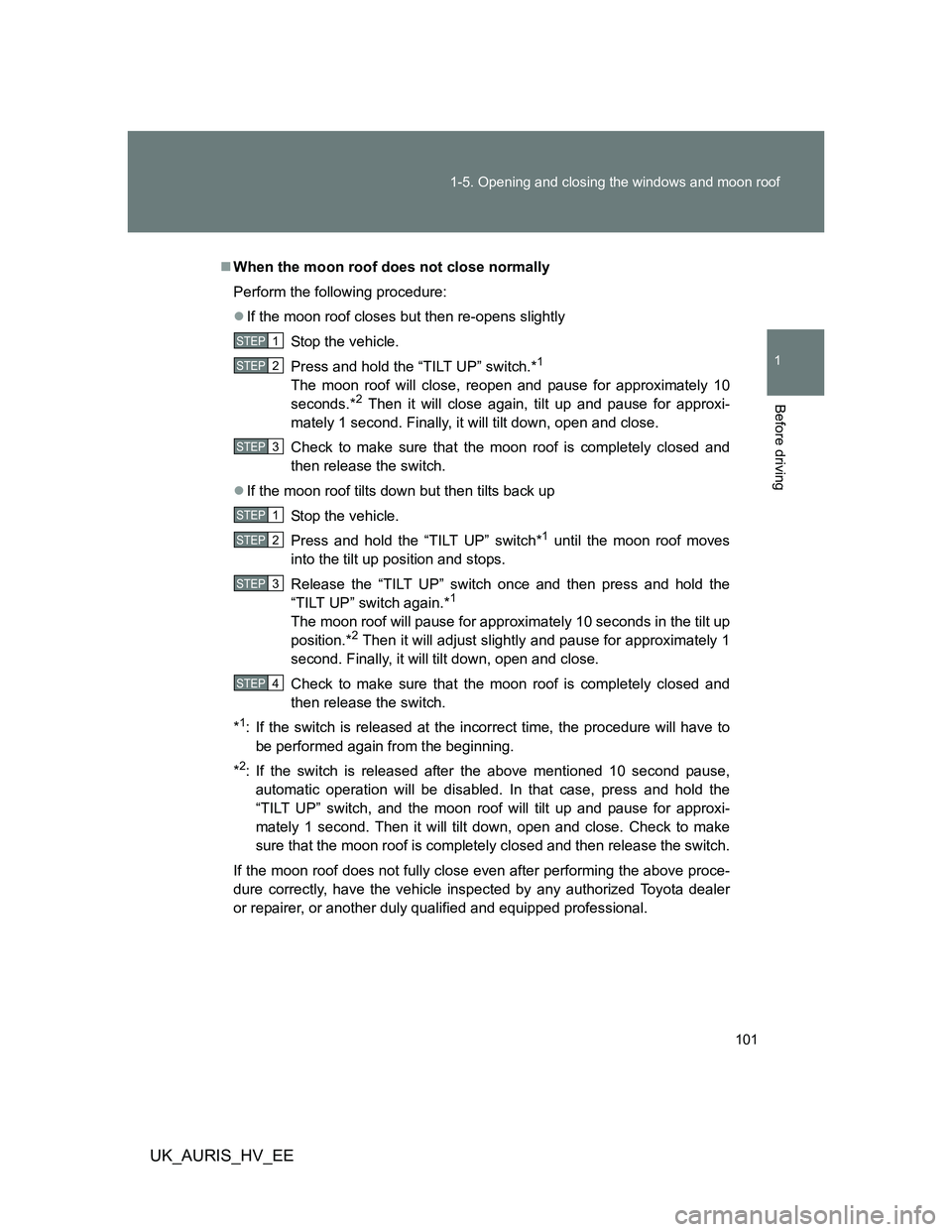

101 1-5. Opening and closing the windows and moon roof
1
Before driving
UK_AURIS_HV_EE
When the moon roof does not close normally
Perform the following procedure:
If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “TILT UP” switch.*
1
The moon roof will close, reopen and pause for approximately 10
seconds.*2 Then it will close again, tilt up and pause for approxi-
mately 1 second. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and
then release the switch.
If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “TILT UP” switch*
1 until the moon roof moves
into the tilt up position and stops.
Release the “TILT UP” switch once and then press and hold the
“TILT UP” switch again.*
1
The moon roof will pause for approximately 10 seconds in the tilt up
position.*2 Then it will adjust slightly and pause for approximately 1
second. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and
then release the switch.
*
1: If the switch is released at the incorrect time, the procedure will have to
be performed again from the beginning.
*
2: If the switch is released after the above mentioned 10 second pause,
automatic operation will be disabled. In that case, press and hold the
“TILT UP” switch, and the moon roof will tilt up and pause for approxi-
mately 1 second. Then it will tilt down, open and close. Check to make
sure that the moon roof is completely closed and then release the switch.
If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
STEP4

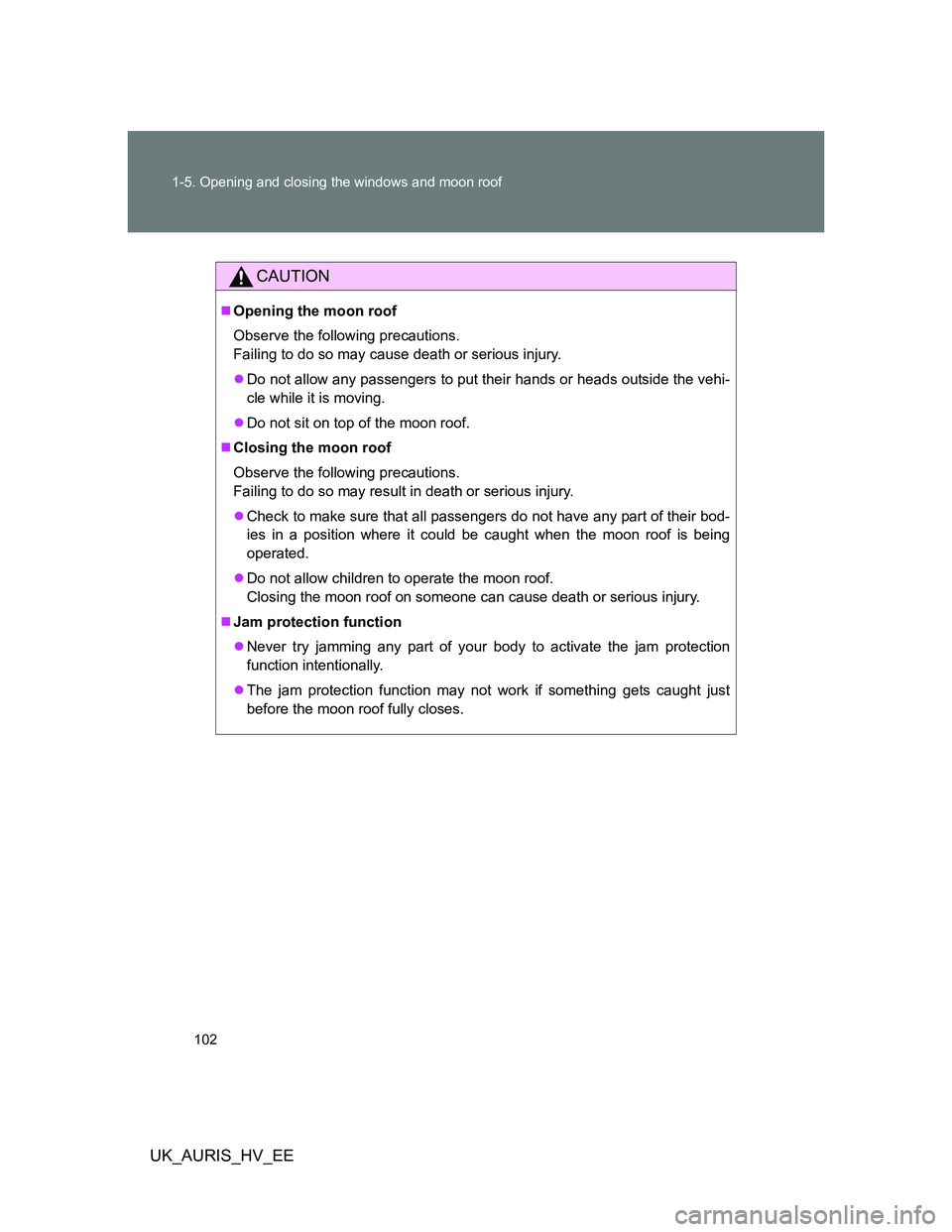

102 1-5. Opening and closing the windows and moon roof
UK_AURIS_HV_EE
CAUTION
Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
Do not sit on top of the moon roof.
Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their bod-
ies in a position where it could be caught when the moon roof is being
operated.
Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the moon roof fully closes.

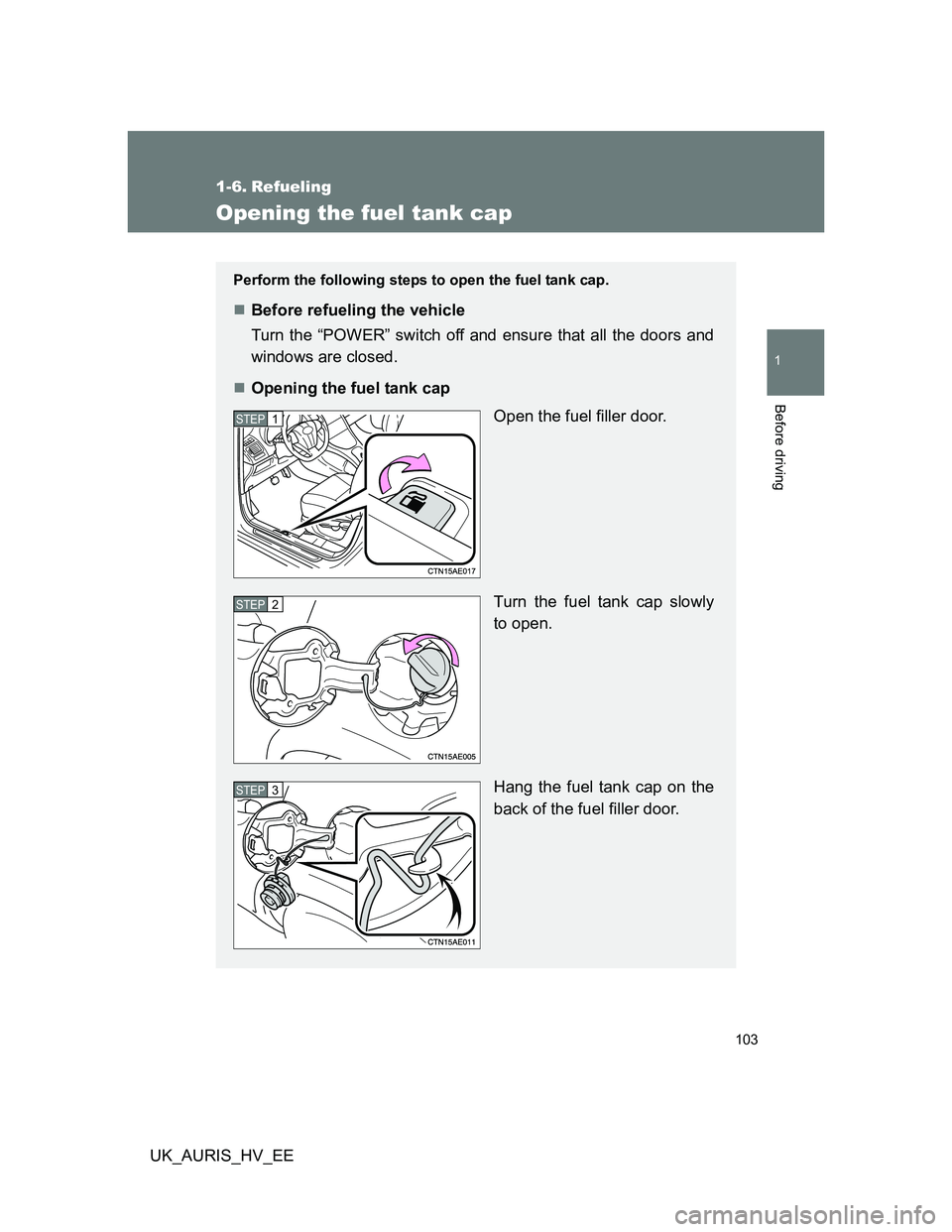

103
1
Before driving
UK_AURIS_HV_EE
1-6. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
Before refueling the vehicle
Turn the “POWER” switch off and ensure that all the doors and
windows are closed.
Opening the fuel tank cap
Open the fuel filler door.
Turn the fuel tank cap slowly
to open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3

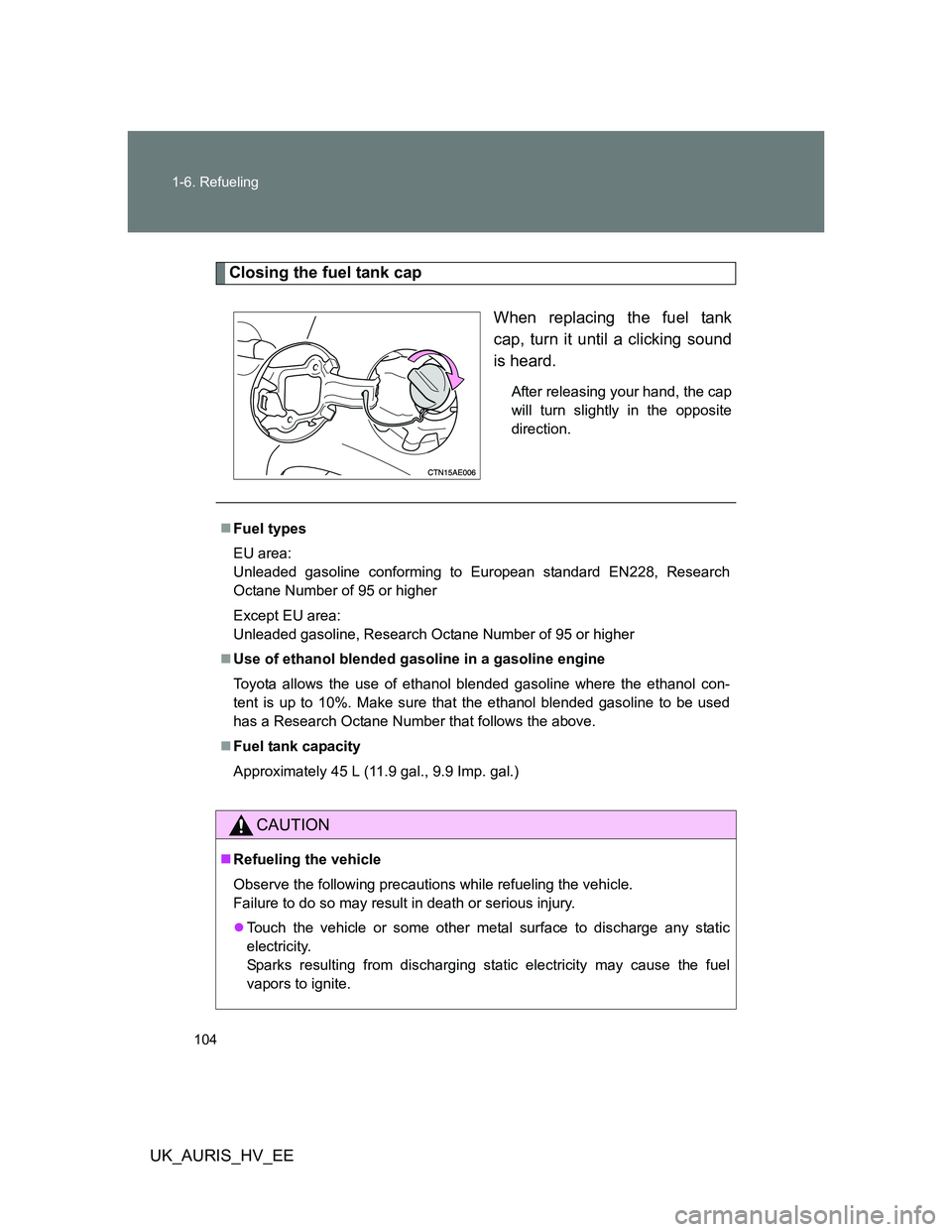

104 1-6. Refueling
UK_AURIS_HV_EE
Closing the fuel tank cap
When replacing the fuel tank
cap, turn it until a clicking sound
is heard.
After releasing your hand, the cap
will turn slightly in the opposite
direction.
Fuel types
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol con-
tent is up to 10%. Make sure that the ethanol blended gasoline to be used
has a Research Octane Number that follows the above.
Fuel tank capacity
Approximately 45 L (11.9 gal., 9.9 Imp. gal.)
CAUTION
Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
Touch the vehicle or some other metal surface to discharge any static
electricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.

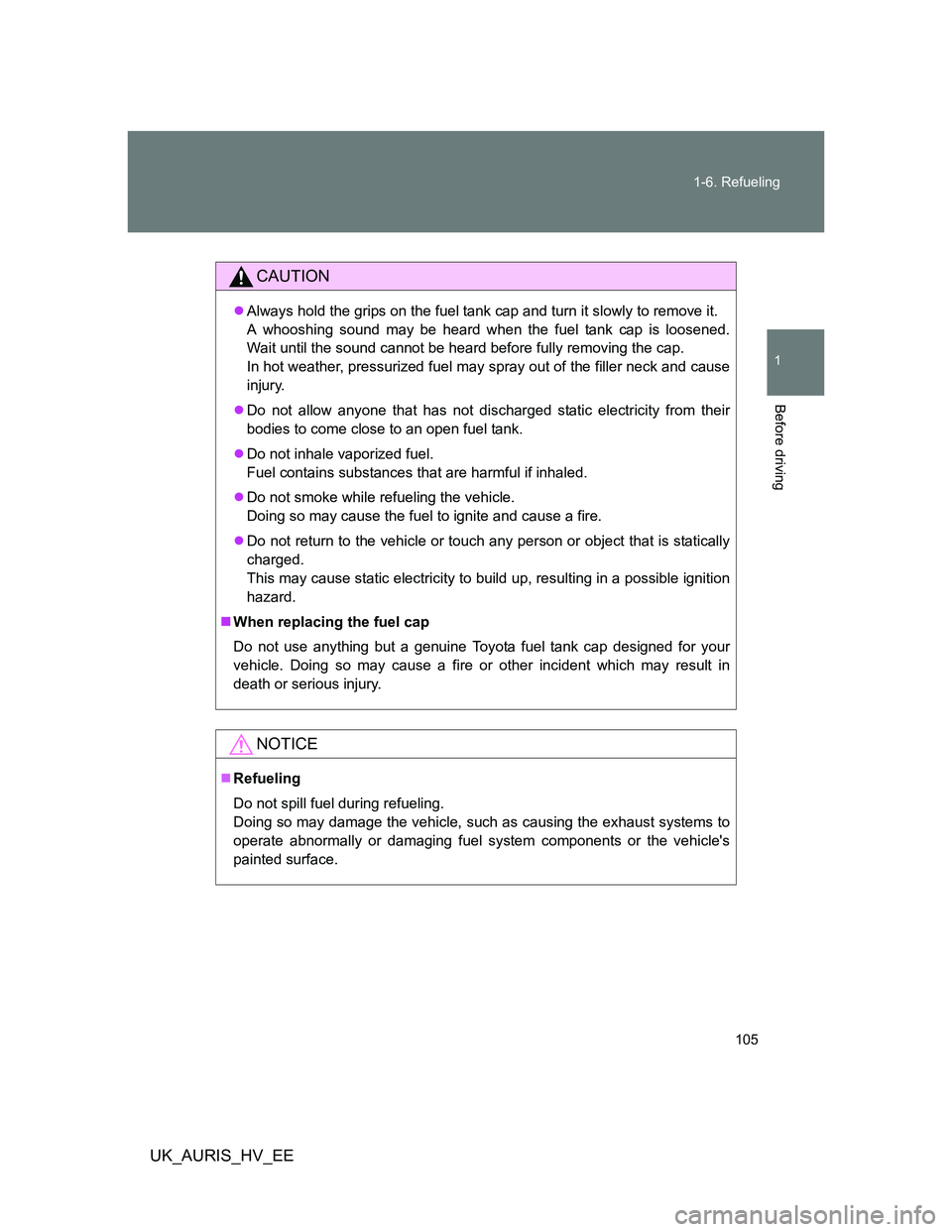

105 1-6. Refueling
1
Before driving
UK_AURIS_HV_EE
CAUTION
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
When replacing the fuel cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
NOTICE
Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle's
painted surface.

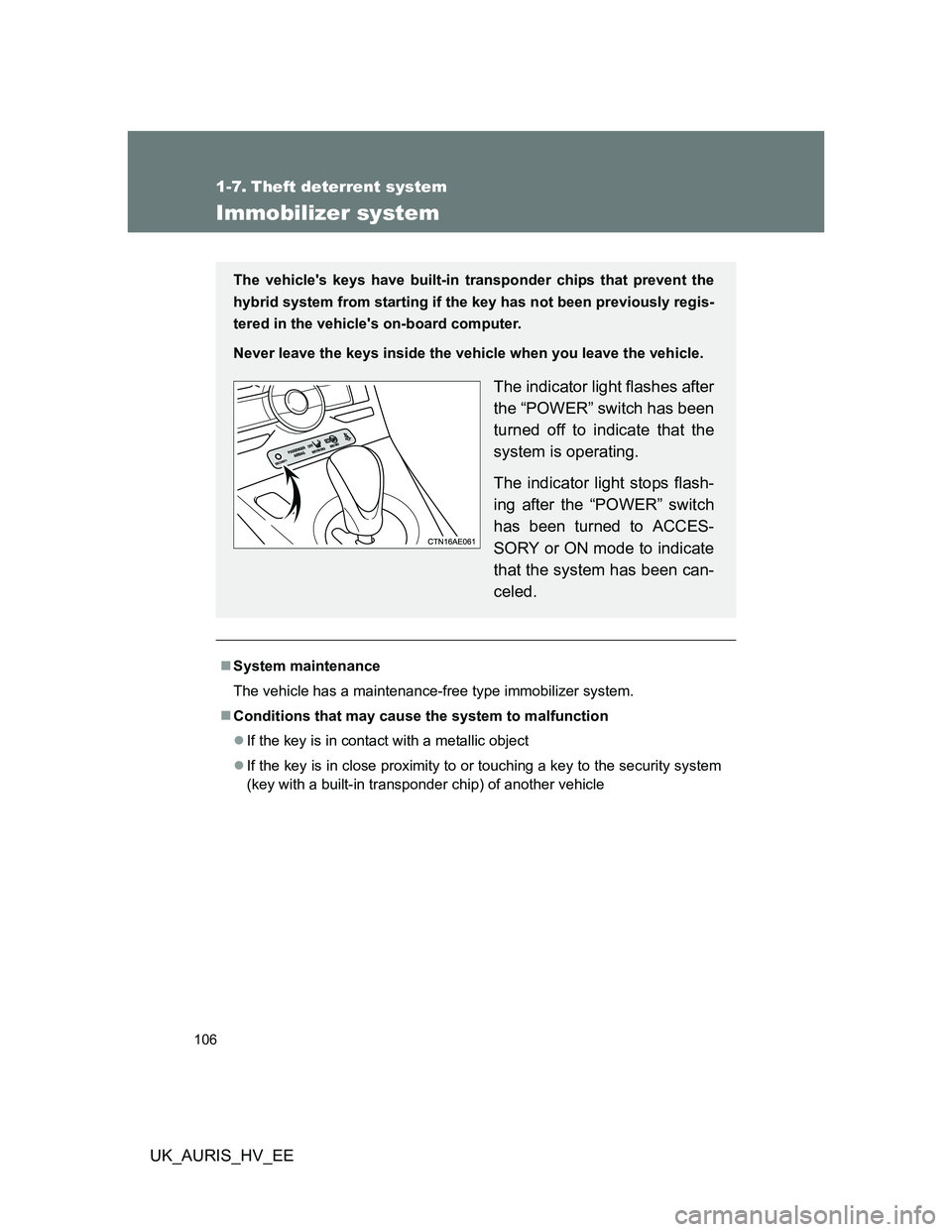

106
UK_AURIS_HV_EE
1-7. Theft deterrent system
Immobilizer system
System maintenance
The vehicle has a maintenance-free type immobilizer system.
Conditions that may cause the system to malfunction
If the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle's keys have built-in transponder chips that prevent the
hybrid system from starting if the key has not been previously regis-
tered in the vehicle's on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “POWER” switch has been
turned off to indicate that the
system is operating.
The indicator light stops flash-
ing after the “POWER” switch
has been turned to ACCES-
SORY or ON mode to indicate
that the system has been can-
celed.

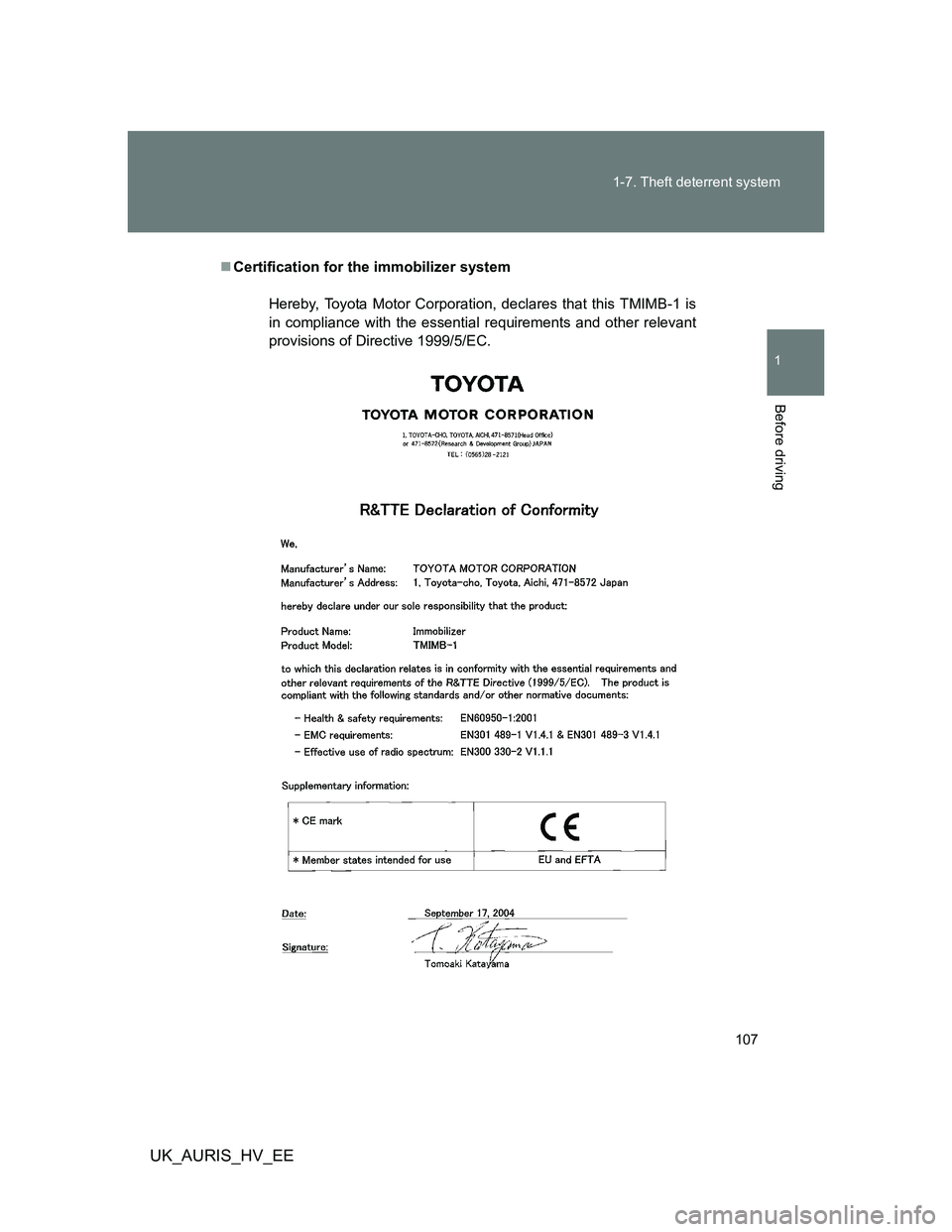

107 1-7. Theft deterrent system
1
Before driving
UK_AURIS_HV_EE
Certification for the immobilizer system
Hereby, Toyota Motor Corporation, declares that this TMIMB-1 is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.

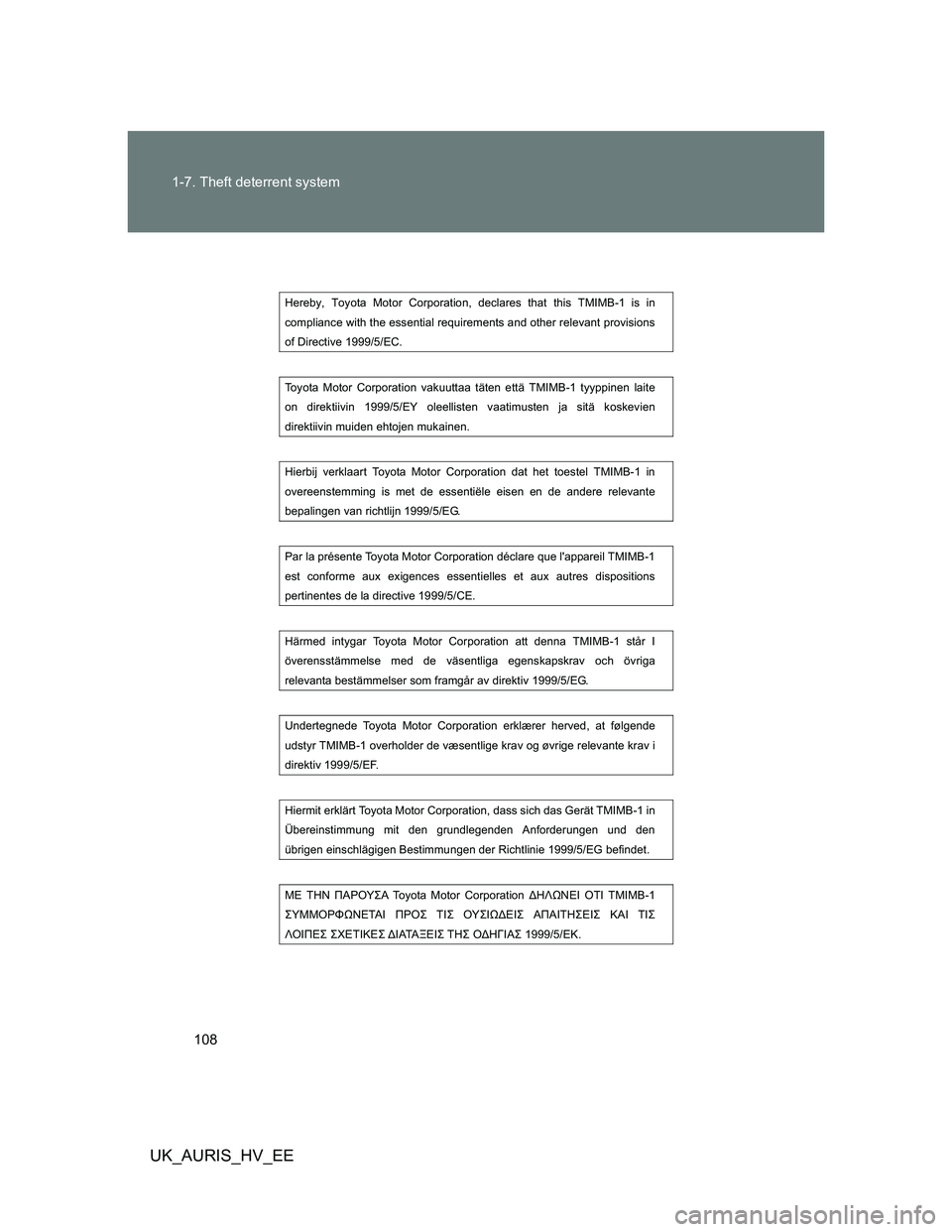

108 1-7. Theft deterrent system
UK_AURIS_HV_EE

Hereby, Toyota Motor Corporation, declares that this TMIMB-1 is in
compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.>Ì

Toyota Motor Corporation vakuuttaa täten että TMIMB-1 tyyppinen laite
on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.>Ì
Hierbij verklaart Toyota Motor Corporation dat het toestel TMIMB-1 in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.>Ì

Par la présente Toyota Motor Corporation déclare que l'appareil TMIMB-1
est conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.>Ì

Härmed intygar Toyota Motor Corporation att denna TMIMB-1 står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Undertegnede Toyota Motor Corporation erklærer herved, at følgende
udstyr TMIMB-1 overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.

Hiermit erklärt Toyota Motor Corporation, dass sich das Gerät TMIMB-1 in
Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.>Ì


ü
þ
ù

ù Toyota Motor Corporation
û
þ


ü
ÿ
ÿ TMIMB-1


-

ü
ù
ÿ
ÿ

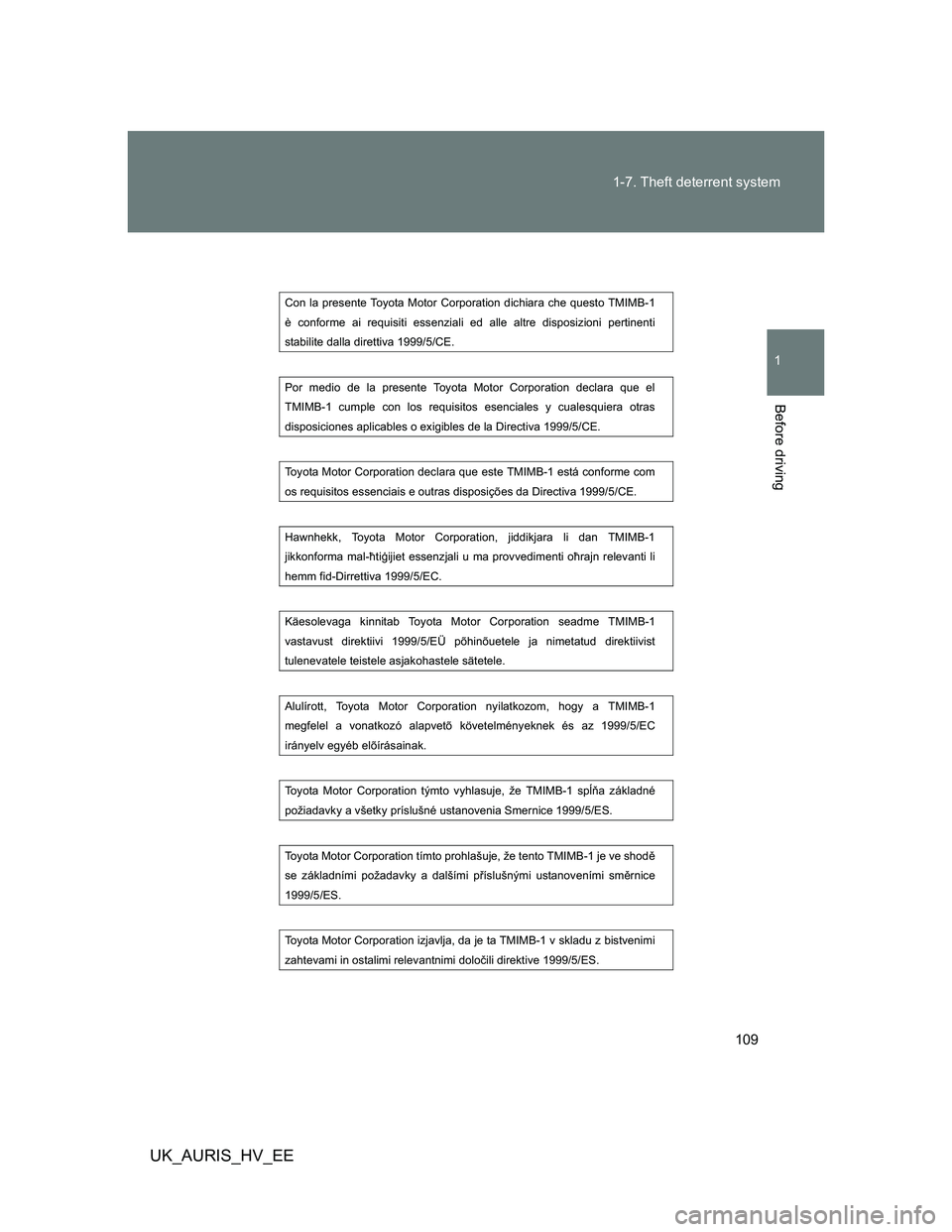

109 1-7. Theft deterrent system
1
Before driving
UK_AURIS_HV_EE

Con la presente Toyota Motor Corporation dichiara che questo TMIMB-1
è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.

Por medio de la presente Toyota Motor Corporation declara que el
TMIMB-1 cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Toyota Motor Corporation declara que este TMIMB-1 está conforme com
os requisitos essenciais e outras disposições da Directiva 1999/5/CE.>Ì

Hawnhekk, Toyota Motor Corporation, jiddikjara li dan TMIMB-1
jikkonforma mal-
«ti
¥ijiet essenzjali u ma provvedimenti o
«rajn relevanti li
hemm fid-Dirrettiva 1999/5/EC.

Käesolevaga kinnitab Toyota Motor Corporation seadme TMIMB-1
vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.

Alulírott, Toyota Motor Corporation nyilatkozom, hogy a TMIMB-1
megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.

Toyota Motor Corporation týmto vyhlasuje, že TMIMB-1 sp

a základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.

Toyota Motor Corporation tímto prohlašuje, že tento TMIMB-1 je ve shod

se základními požadavky a dalšími p
íslušnými ustanoveními sm
rnice
1999/5/ES.

Toyota Motor Corporation izjavlja, da je ta TMIMB-1 v skladu z bistvenimi
zahtevami in ostalimi relevantnimi doloþili direktive 1999/5/ES.

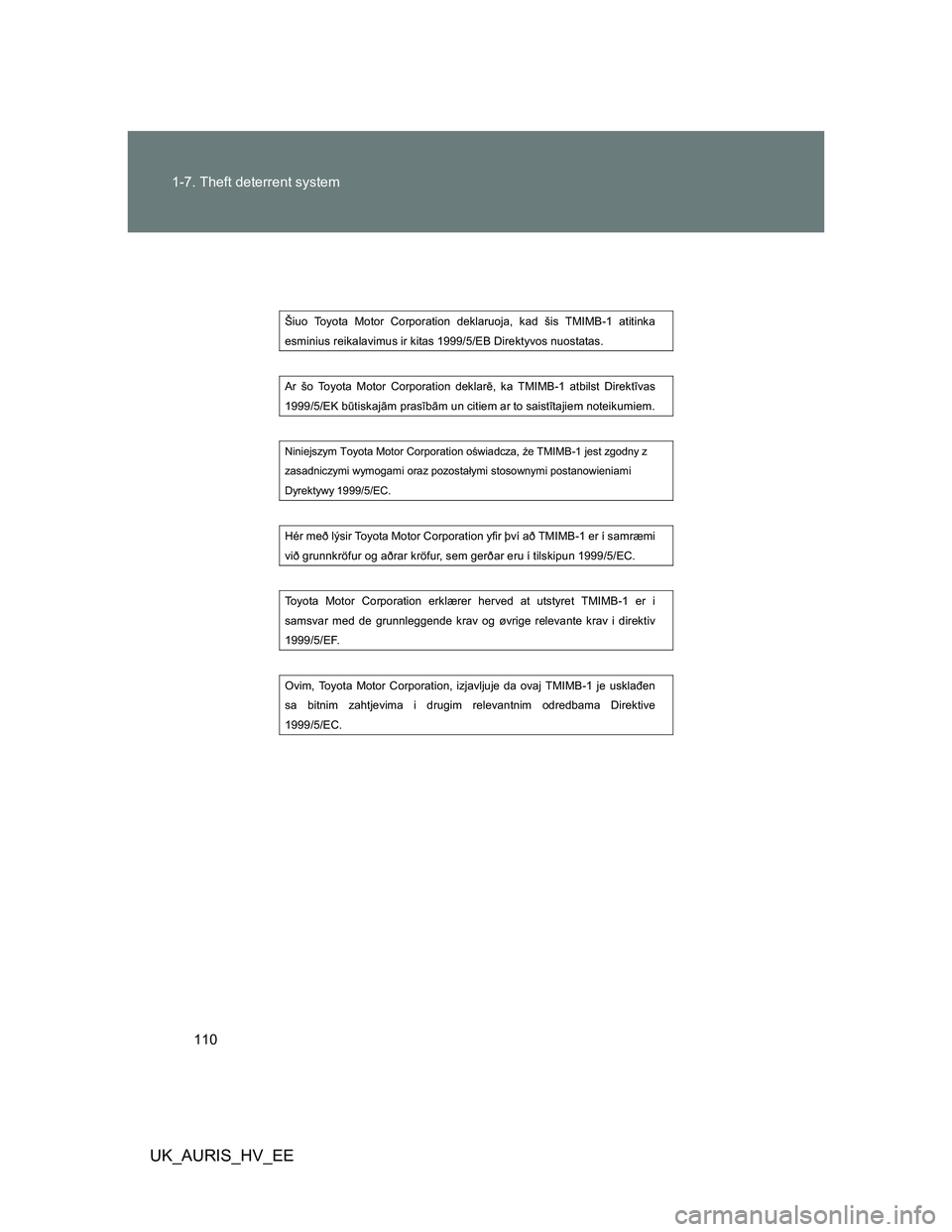

110 1-7. Theft deterrent system
UK_AURIS_HV_EE

Šiuo Toyota Motor Corporation deklaruoja, kad šis TMIMB-1 atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Ar šo Toyota Motor Corporation deklar, ka TMIMB-1 atbilst Direkt
¯vas
1999/5/EK b
Ìtiskaj
—m pras
¯b
—m un citiem ar to saist
¯tajiem noteikumiem.

Niniejszym Toyota Motor Corporation o
wiadcza,
*e TMIMB-1 jest zgodny z
zasadniczymi wymogami oraz pozostaáymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.


Hér með lýsir Toyota Motor Corporation yfir því að TMIMB-1 er í samræmi
við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.

Toyota Motor Corporation erklærer herved at utstyret TMIMB-1 er i
samsvar med de grunnleggende krav og øvrige relevante krav i direktiv
1999/5/EF.

Ovim, Toyota Motor Corporation, izjavljuje da ovaj TMIMB-1 je usklaÿen
sa bitnim zahtjevima i drugim relevantnim odredbama Direktive
1999/5/EC.
