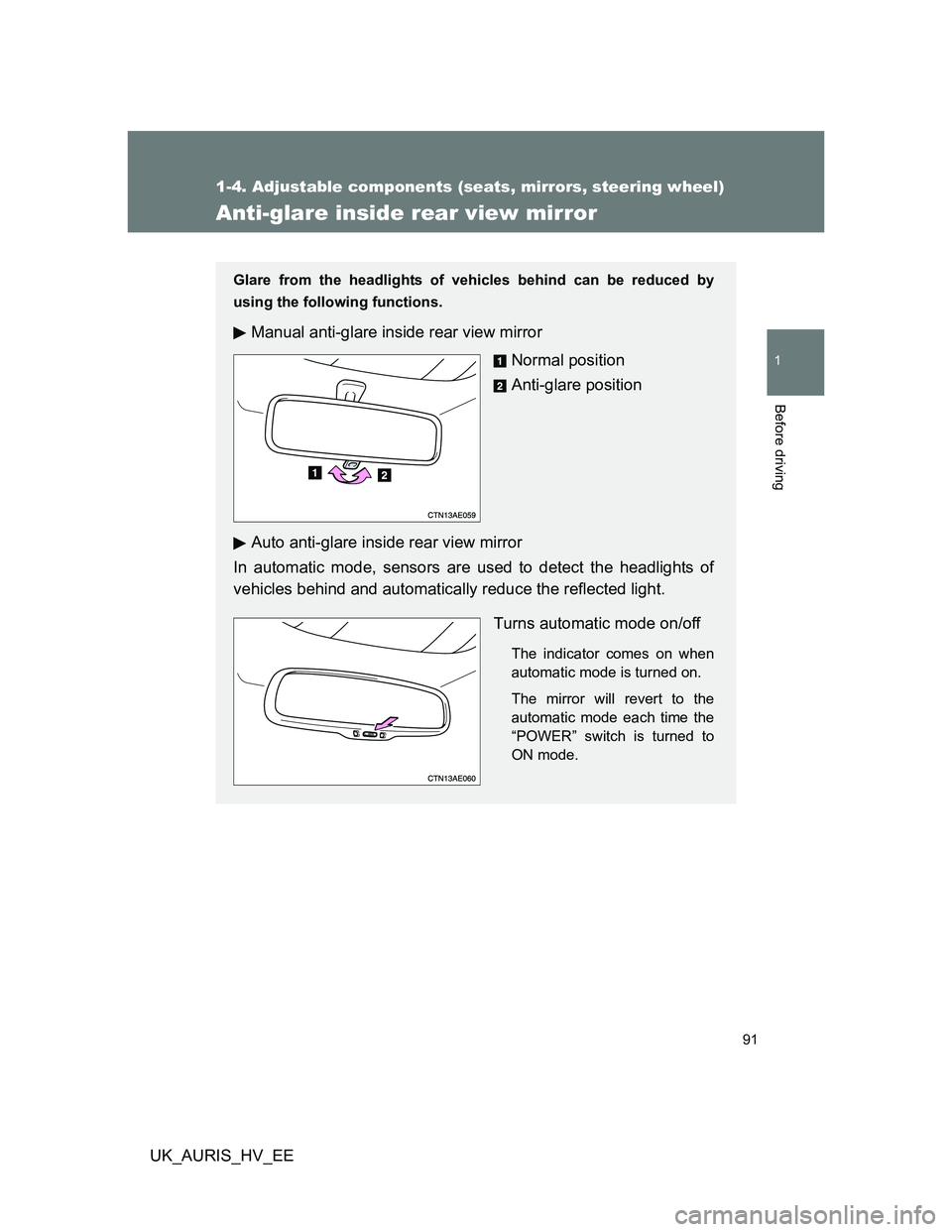

91
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
UK_AURIS_HV_EE
Anti-glare inside rear view mirror
Glare from the headlights of vehicles behind can be reduced by
using the following functions.
Manual anti-glare inside rear view mirror
Normal position
Anti-glare position
Auto anti-glare inside rear view mirror
In automatic mode, sensors are used to detect the headlights of
vehicles behind and automatically reduce the reflected light.
Turns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The mirror will revert to the
automatic mode each time the
“POWER” switch is turned to
ON mode.

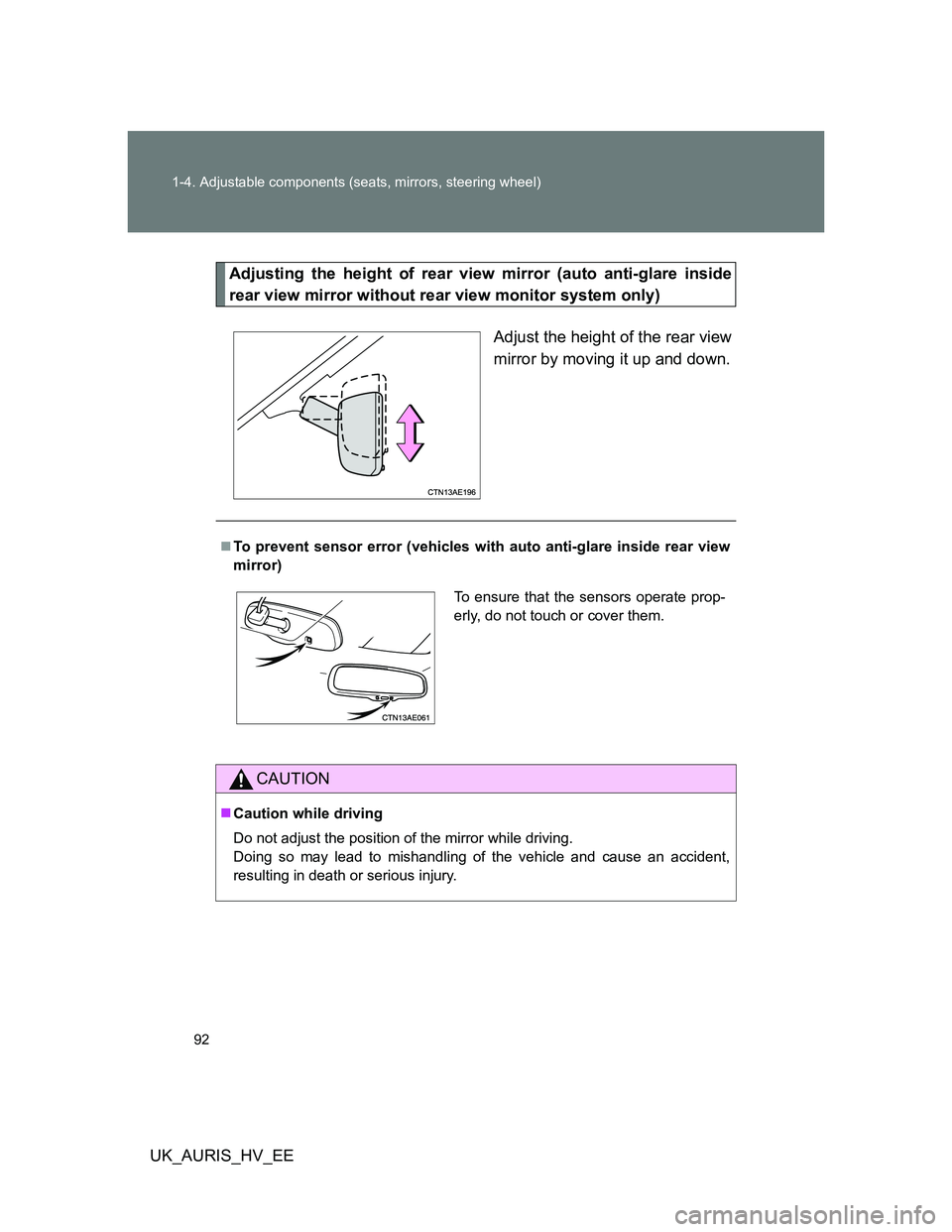

92 1-4. Adjustable components (seats, mirrors, steering wheel)
UK_AURIS_HV_EE
Adjusting the height of rear view mirror (auto anti-glare inside
rear view mirror without rear view monitor system only)
Adjust the height of the rear view
mirror by moving it up and down.
To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
CAUTION
Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
To ensure that the sensors operate prop-
erly, do not touch or cover them.

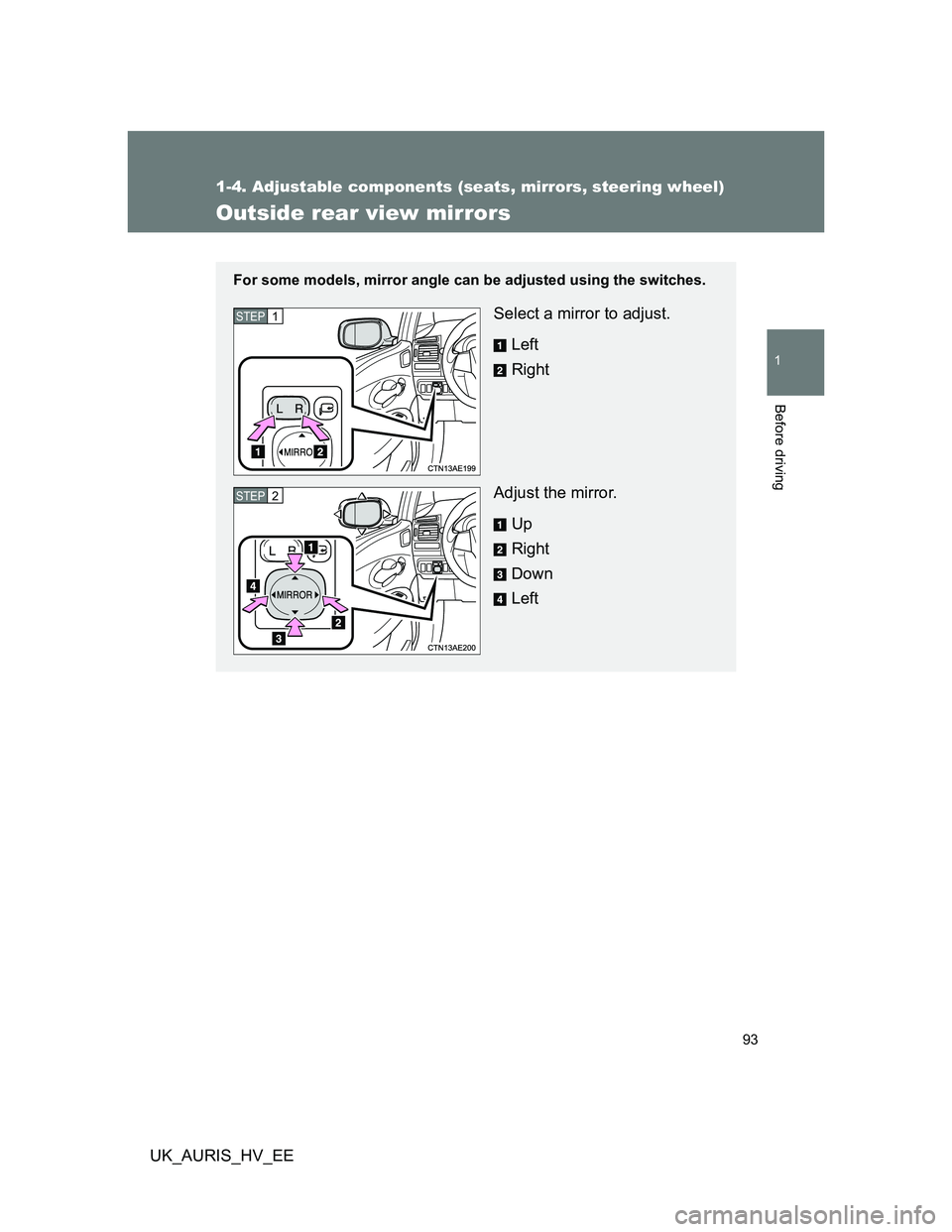

93
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
UK_AURIS_HV_EE
Outside rear view mirrors
For some models, mirror angle can be adjusted using the switches.
Select a mirror to adjust.
Left
Right
Adjust the mirror.
Up
Right
Down
LeftSTEP1
STEP2

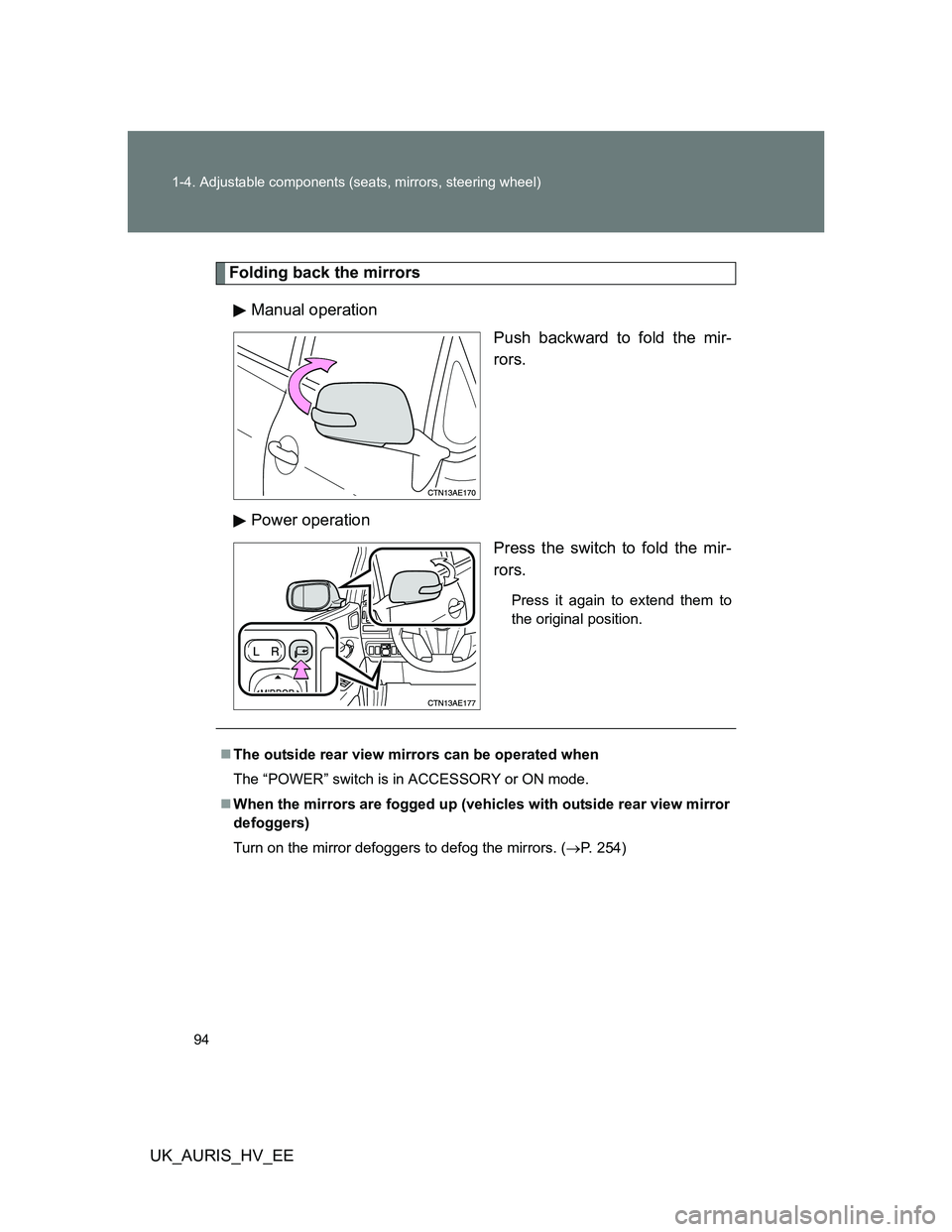

94 1-4. Adjustable components (seats, mirrors, steering wheel)
UK_AURIS_HV_EE
Folding back the mirrors
Manual operation
Push backward to fold the mir-
rors.
Power operation
Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
The outside rear view mirrors can be operated when
The “POWER” switch is in ACCESSORY or ON mode.
When the mirrors are fogged up (vehicles with outside rear view mirror
defoggers)
Turn on the mirror defoggers to defog the mirrors. (P. 254)

95 1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
UK_AURIS_HV_EE
CAUTION
When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded back.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
When the outside rear view mirror defoggers are operating (vehicles
with outside rear view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

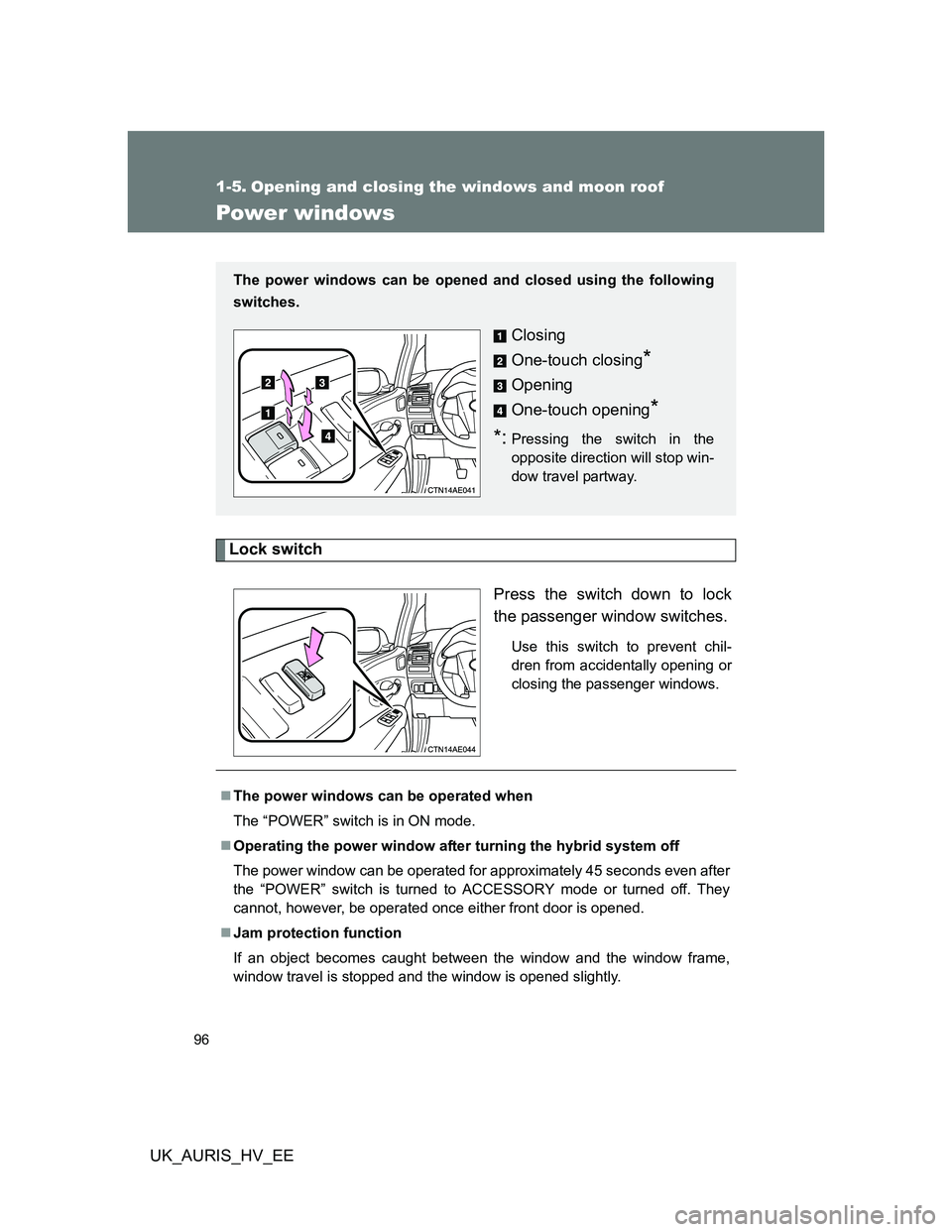

96
UK_AURIS_HV_EE
1-5. Opening and closing the windows and moon roof
Power windows
Lock switch
Press the switch down to lock
the passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing the passenger windows.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*:Pressing the switch in the
opposite direction will stop win-
dow travel partway.
The power windows can be operated when
The “POWER” switch is in ON mode.
Operating the power window after turning the hybrid system off
The power window can be operated for approximately 45 seconds even after
the “POWER” switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.

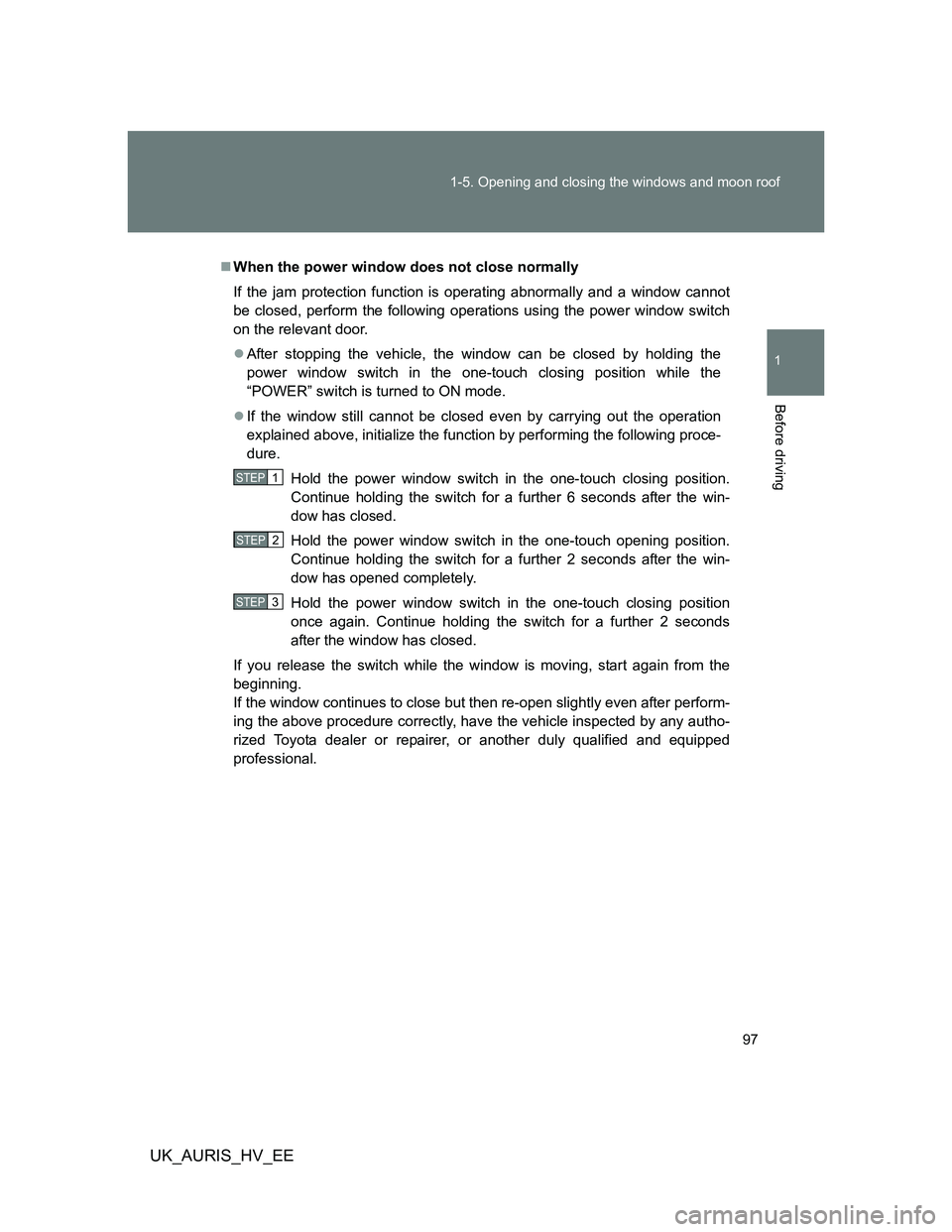

97 1-5. Opening and closing the windows and moon roof
1
Before driving
UK_AURIS_HV_EE
When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the
“POWER” switch is turned to ON mode.
If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
STEP1
STEP1STEP2
STEP3

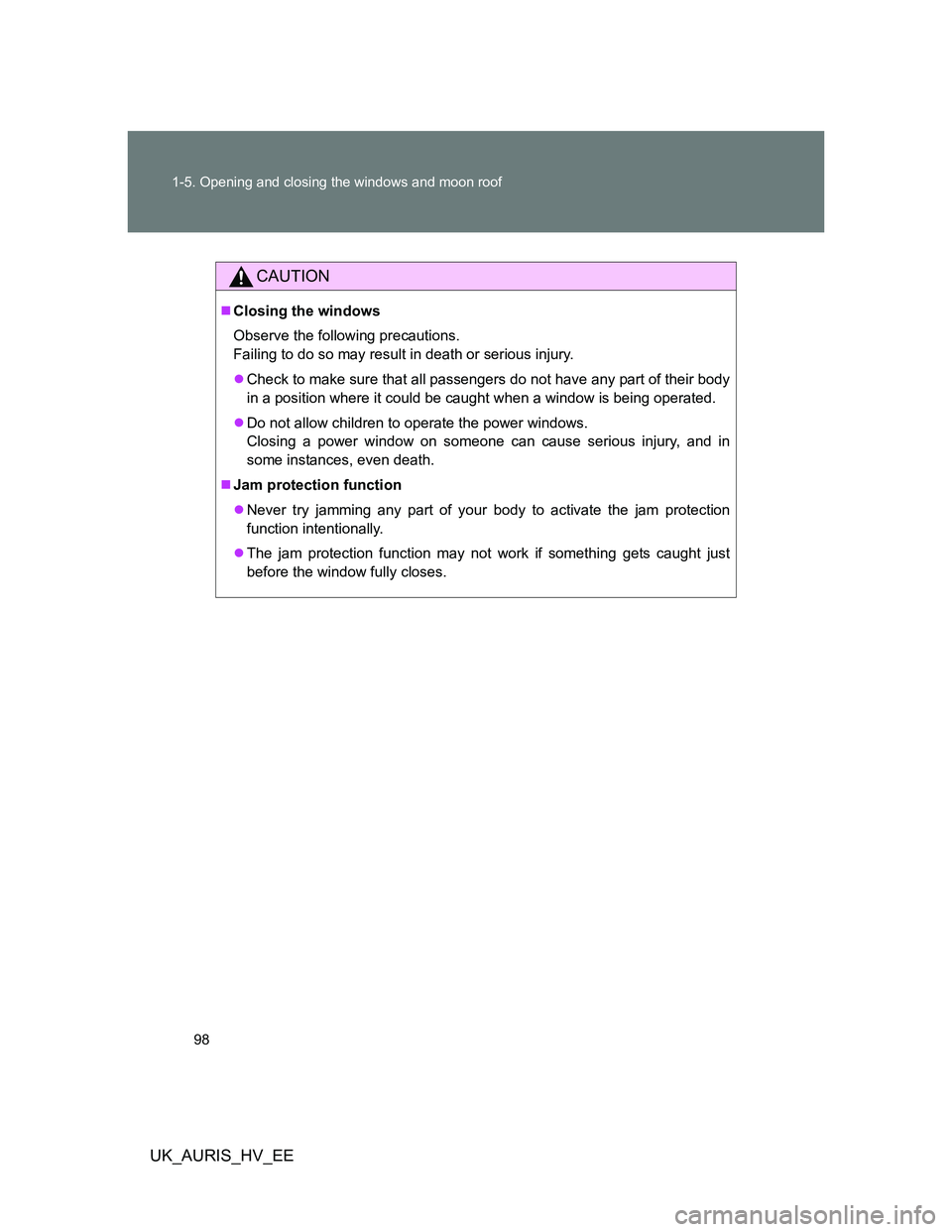

98 1-5. Opening and closing the windows and moon roof
UK_AURIS_HV_EE
CAUTION
Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the window fully closes.

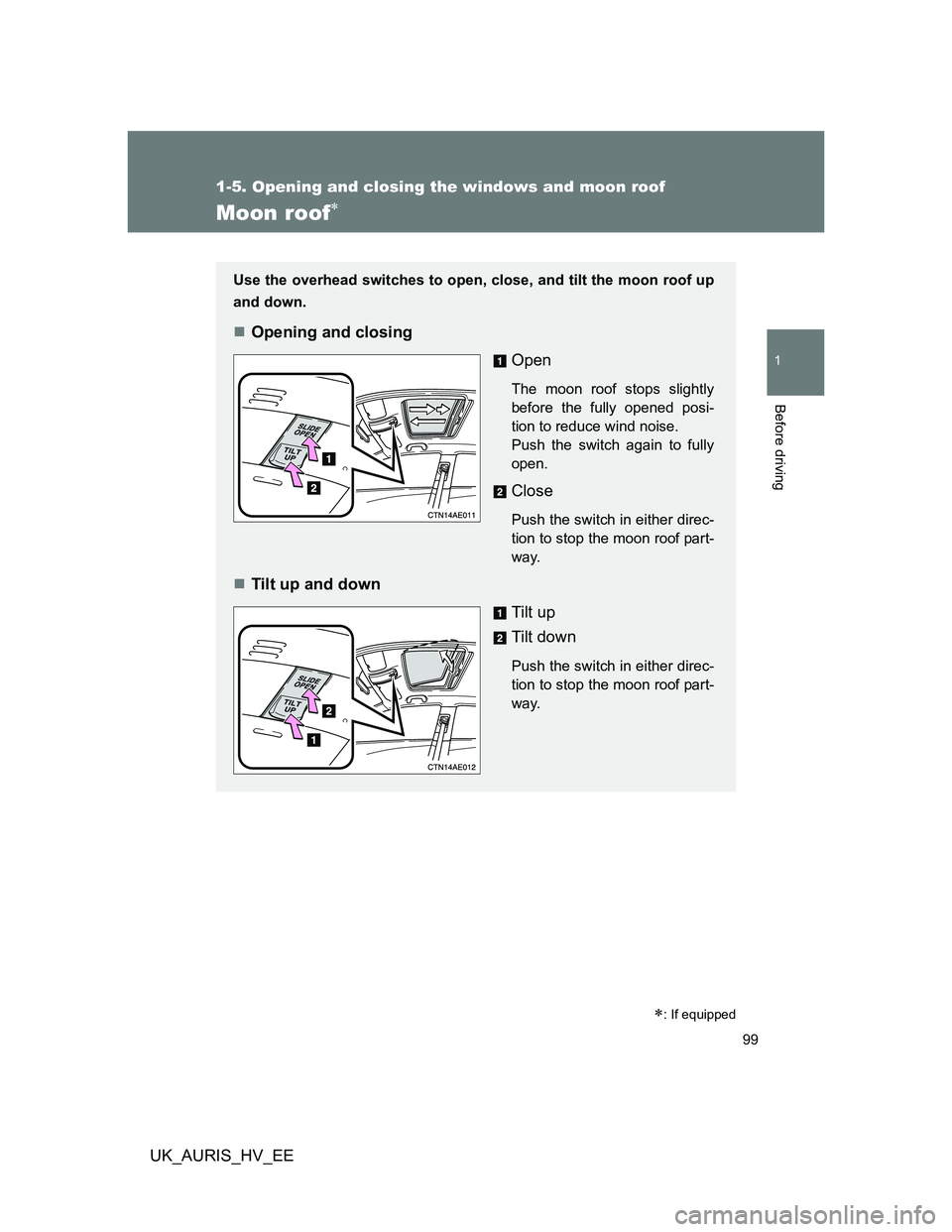

99
1
1-5. Opening and closing the windows and moon roof
Before driving
UK_AURIS_HV_EE
Moon roof
: If equipped
Use the overhead switches to open, close, and tilt the moon roof up
and down.
Opening and closing
Open
The moon roof stops slightly
before the fully opened posi-
tion to reduce wind noise.
Push the switch again to fully
open.
Close
Push the switch in either direc-
tion to stop the moon roof part-
way.
Tilt up and down
Tilt up
Tilt down
Push the switch in either direc-
tion to stop the moon roof part-
way.

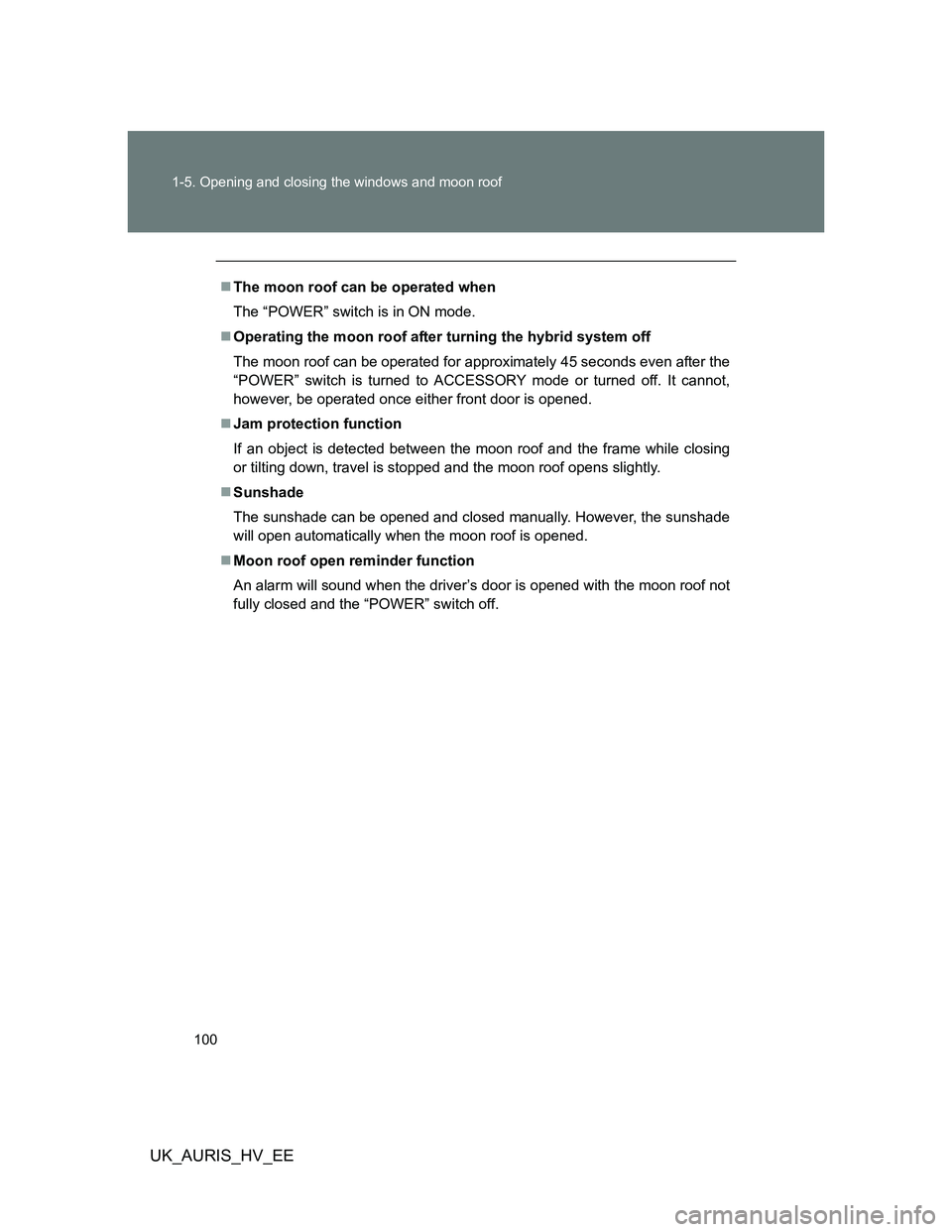

100 1-5. Opening and closing the windows and moon roof
UK_AURIS_HV_EE
The moon roof can be operated when
The “POWER” switch is in ON mode.
Operating the moon roof after turning the hybrid system off
The moon roof can be operated for approximately 45 seconds even after the
“POWER” switch is turned to ACCESSORY mode or turned off. It cannot,
however, be operated once either front door is opened.
Jam protection function
If an object is detected between the moon roof and the frame while closing
or tilting down, travel is stopped and the moon roof opens slightly.
Sunshade
The sunshade can be opened and closed manually. However, the sunshade
will open automatically when the moon roof is opened.
Moon roof open reminder function
An alarm will sound when the driver’s door is opened with the moon roof not
fully closed and the “POWER” switch off.
