TOYOTA AURIS 2012 Owners Manual (in English)

4495-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features

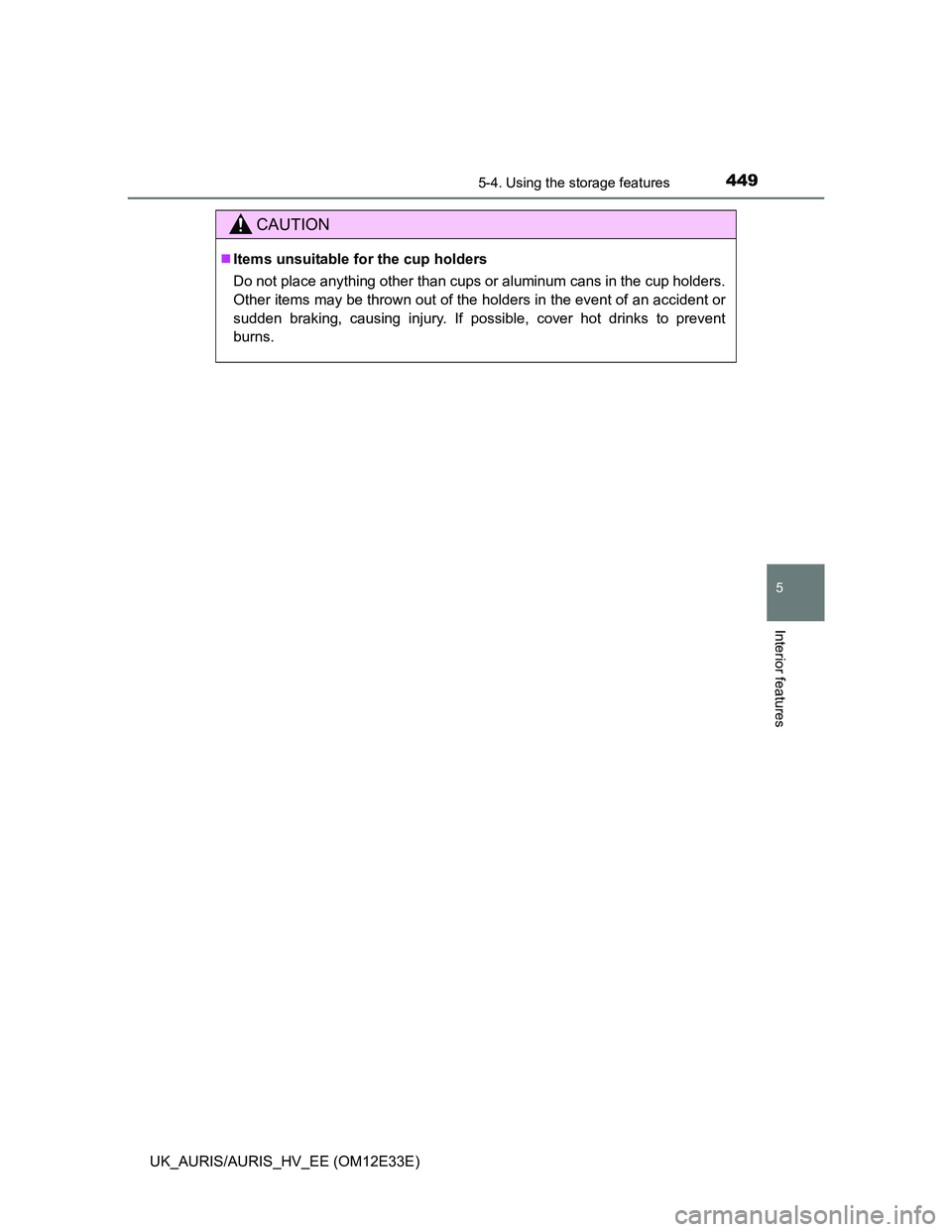

CAUTION
Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.

4505-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
Auxiliary boxes
: If equipped
Ty p e AType B
Push the lid. Pull the tab to open.
CAUTION
Caution while driving
Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box or
the items stored inside.
Items unsuitable for storing (Type A)
Do not store items heavier than 0.2 kg (0.4 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

4515-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features

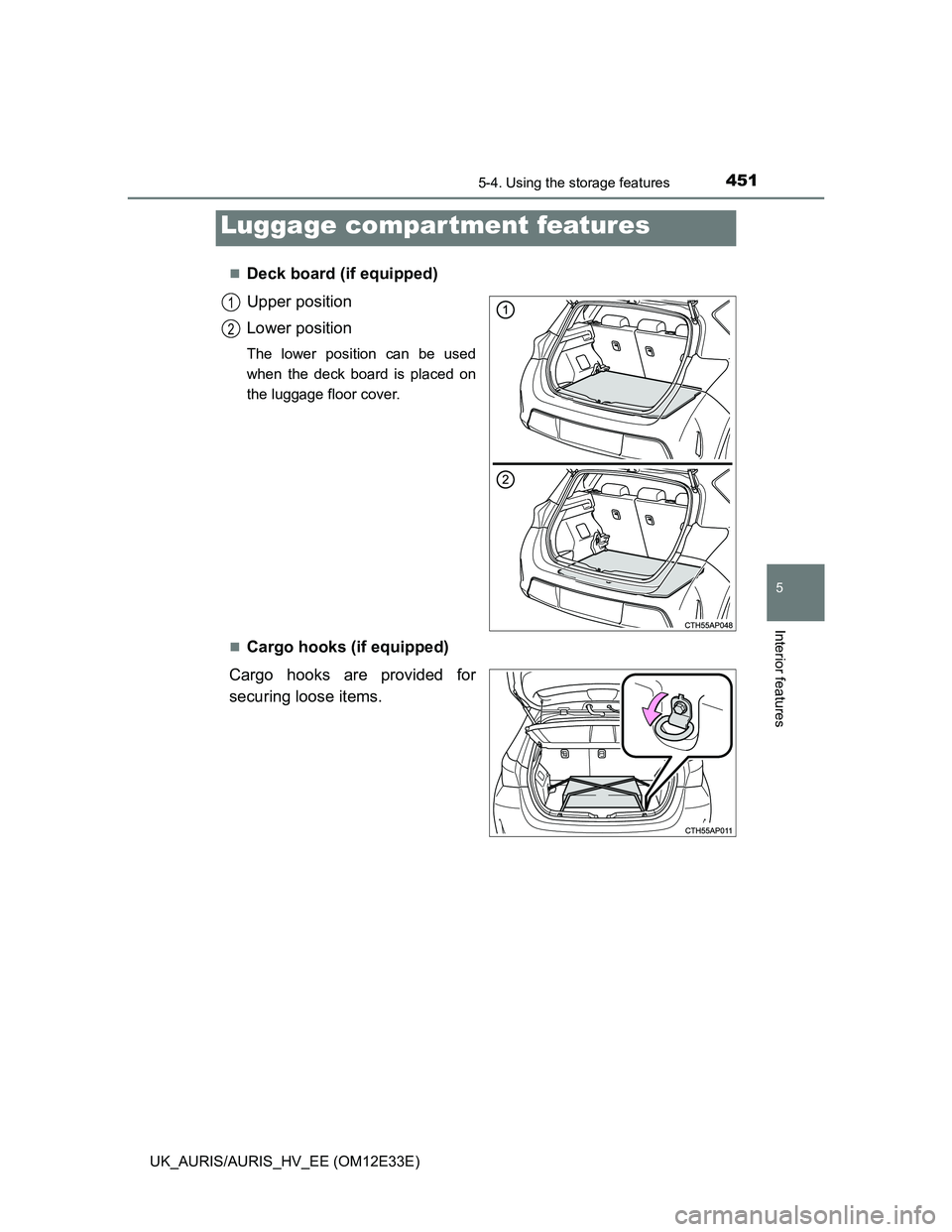

Deck board (if equipped)
Upper position
Lower position
The lower position can be used
when the deck board is placed on
the luggage floor cover.

Cargo hooks (if equipped)
Cargo hooks are provided for
securing loose items.
Luggage compar tment features
1
2

4525-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)

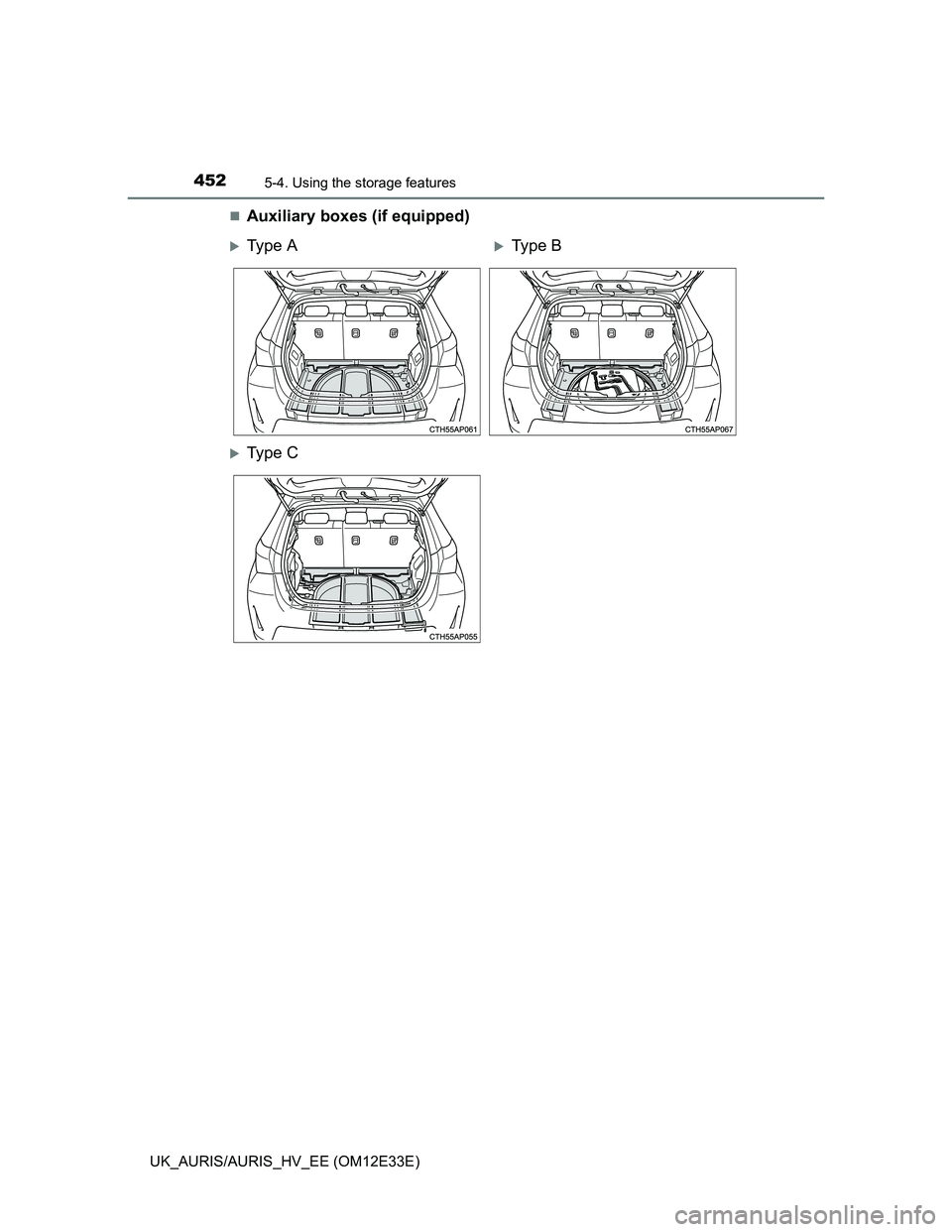

Auxiliary boxes (if equipped)
Ty p e AType B
Ty p e C

4535-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features

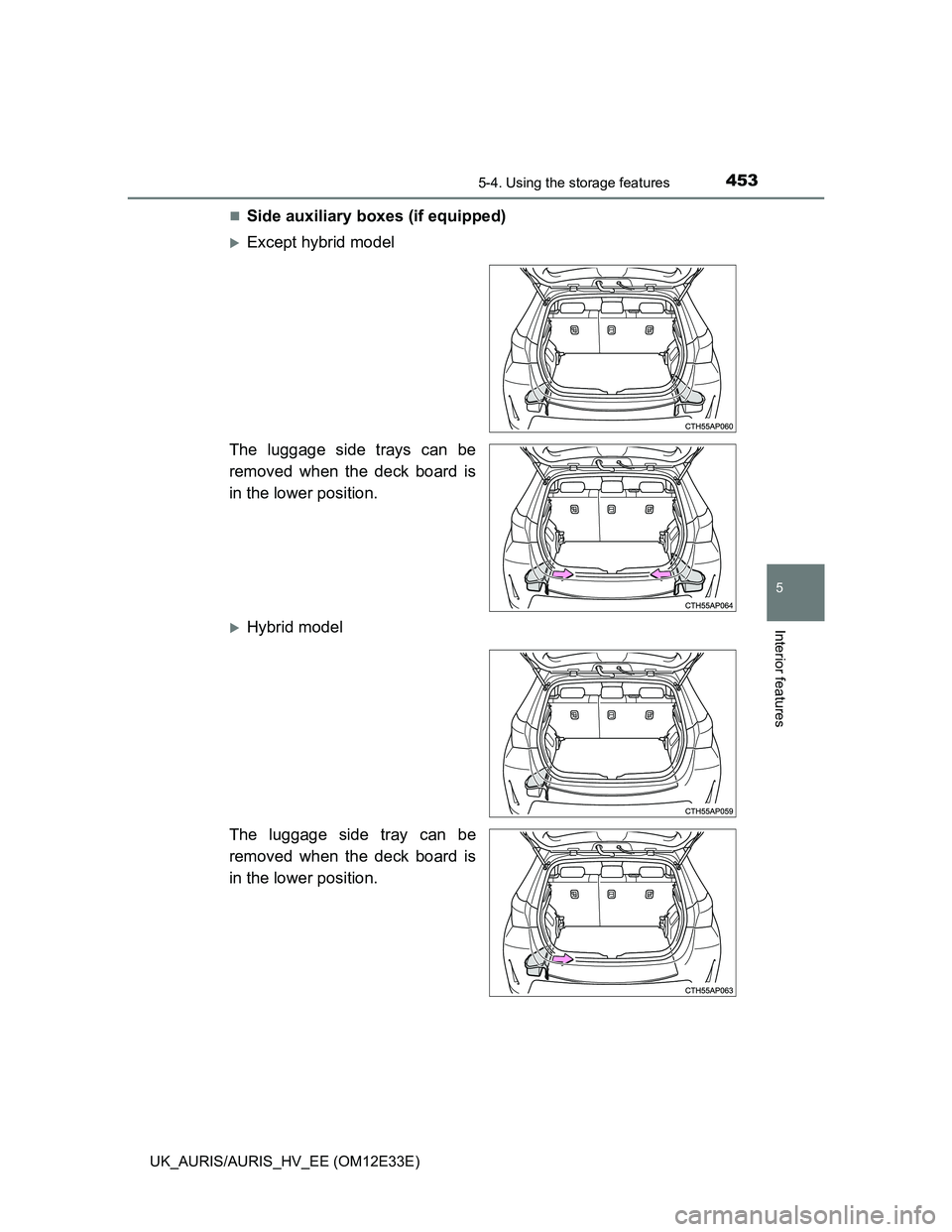

Side auxiliary boxes (if equipped)
Except hybrid model
The luggage side trays can be
removed when the deck board is
in the lower position.
Hybrid model
The luggage side tray can be
removed when the deck board is
in the lower position.

4545-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)

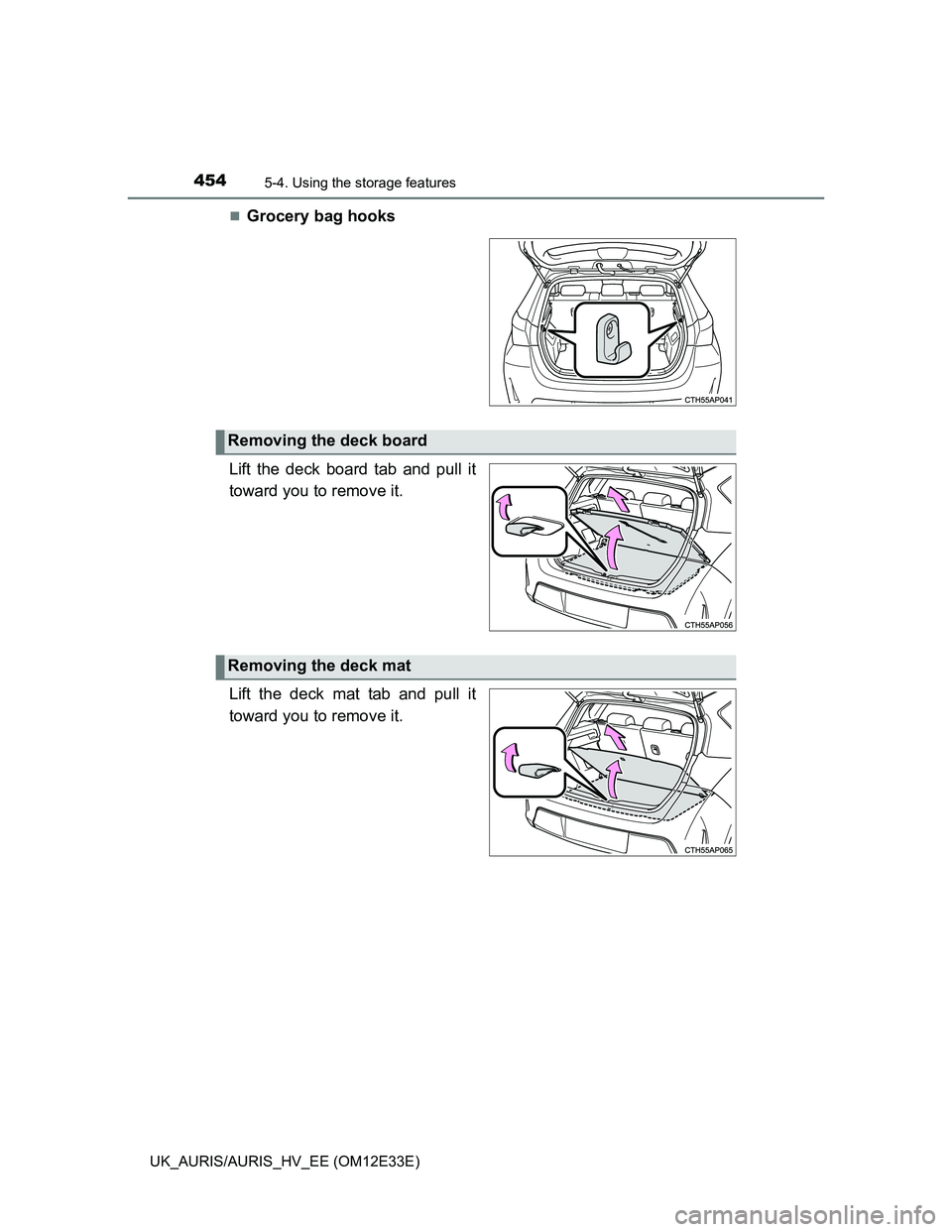

Grocery bag hooks
Lift the deck board tab and pull it
toward you to remove it.
Lift the deck mat tab and pull it
toward you to remove it.
Removing the deck board
Removing the deck mat

4555-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features

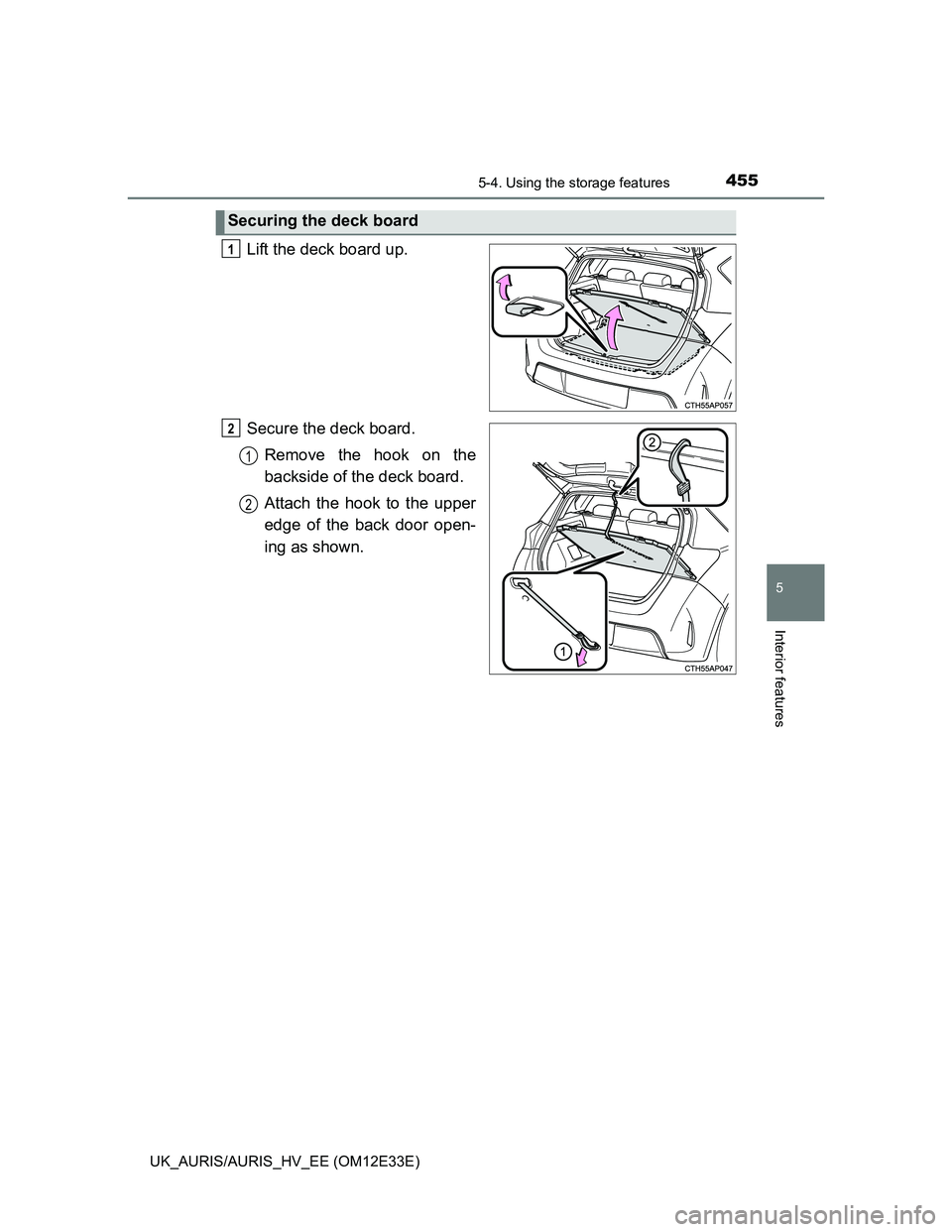

Lift the deck board up.
Secure the deck board.
Remove the hook on the
backside of the deck board.
Attach the hook to the upper
edge of the back door open-
ing as shown.
Securing the deck board
1
2
1
2

4565-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)

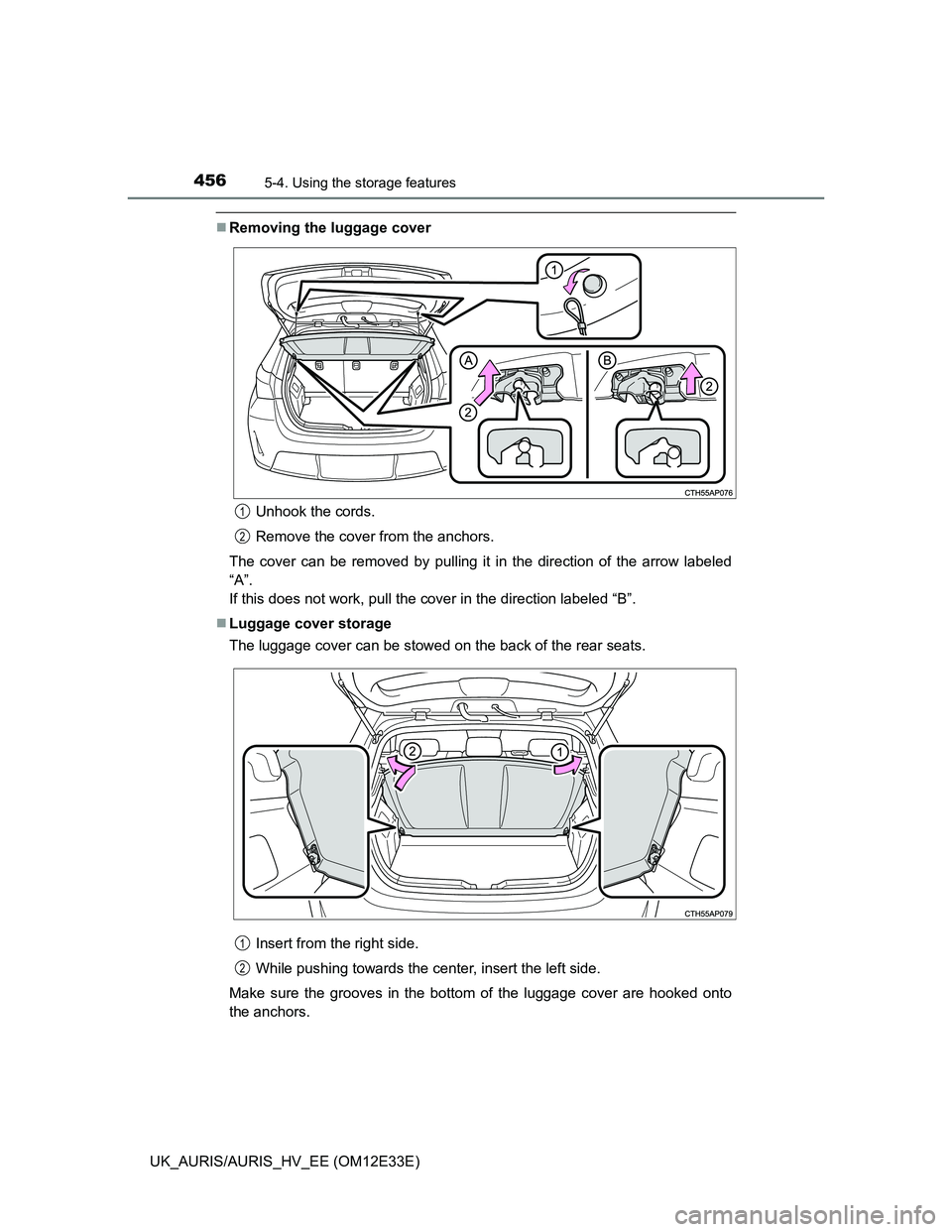

Removing the luggage cover
Unhook the cords.
Remove the cover from the anchors.
The cover can be removed by pulling it in the direction of the arrow labeled
“A”.
If this does not work, pull the cover in the direction labeled “B”.
Luggage cover storage
The luggage cover can be stowed on the back of the rear seats.
Insert from the right side.
While pushing towards the center, insert the left side.
Make sure the grooves in the bottom of the luggage cover are hooked onto
the anchors.
1
2
1
2

4575-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features

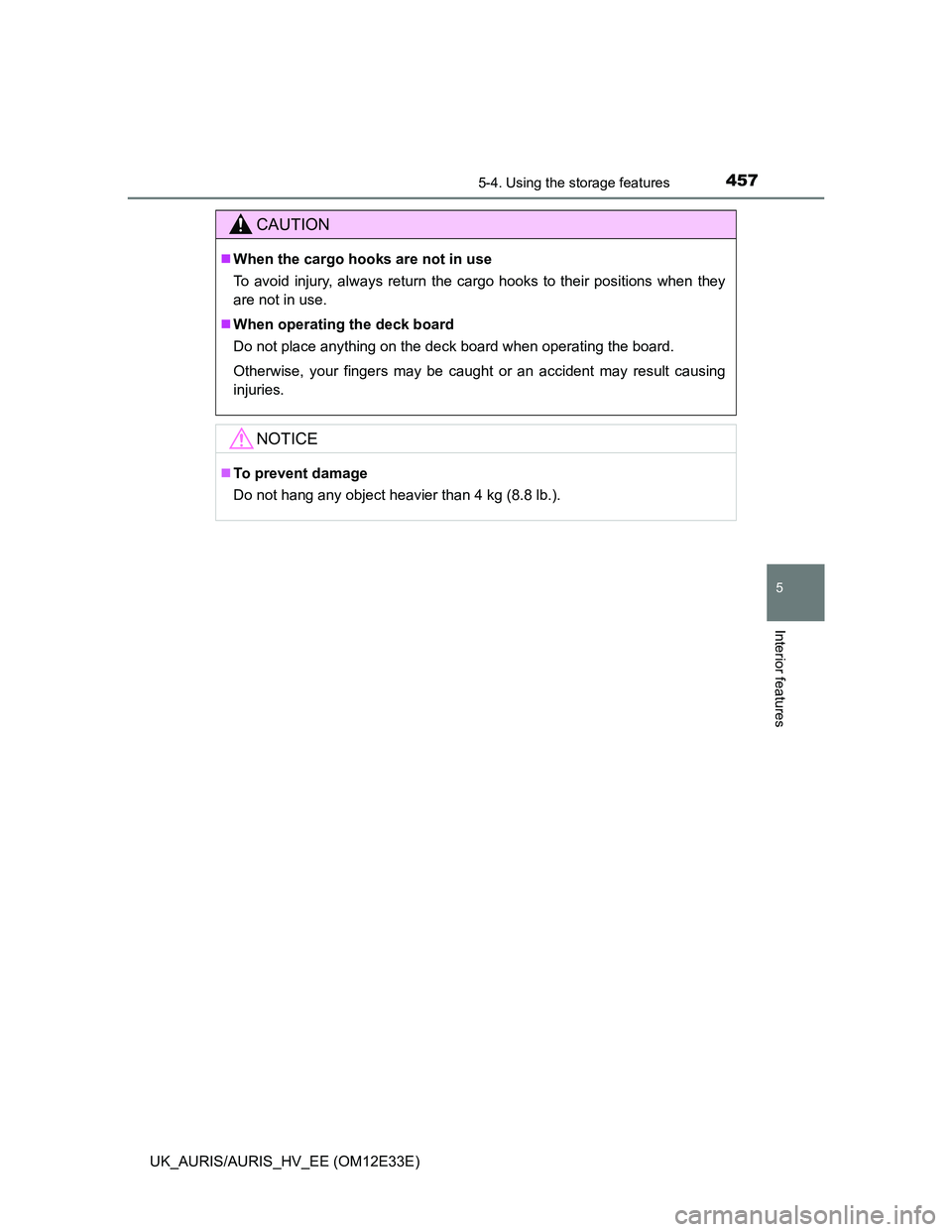

CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
When operating the deck board
Do not place anything on the deck board when operating the board.
Otherwise, your fingers may be caught or an accident may result causing
injuries.
NOTICE
To prevent damage
Do not hang any object heavier than 4 kg (8.8 lb.).

458
UK_AURIS/AURIS_HV_EE (OM12E33E)

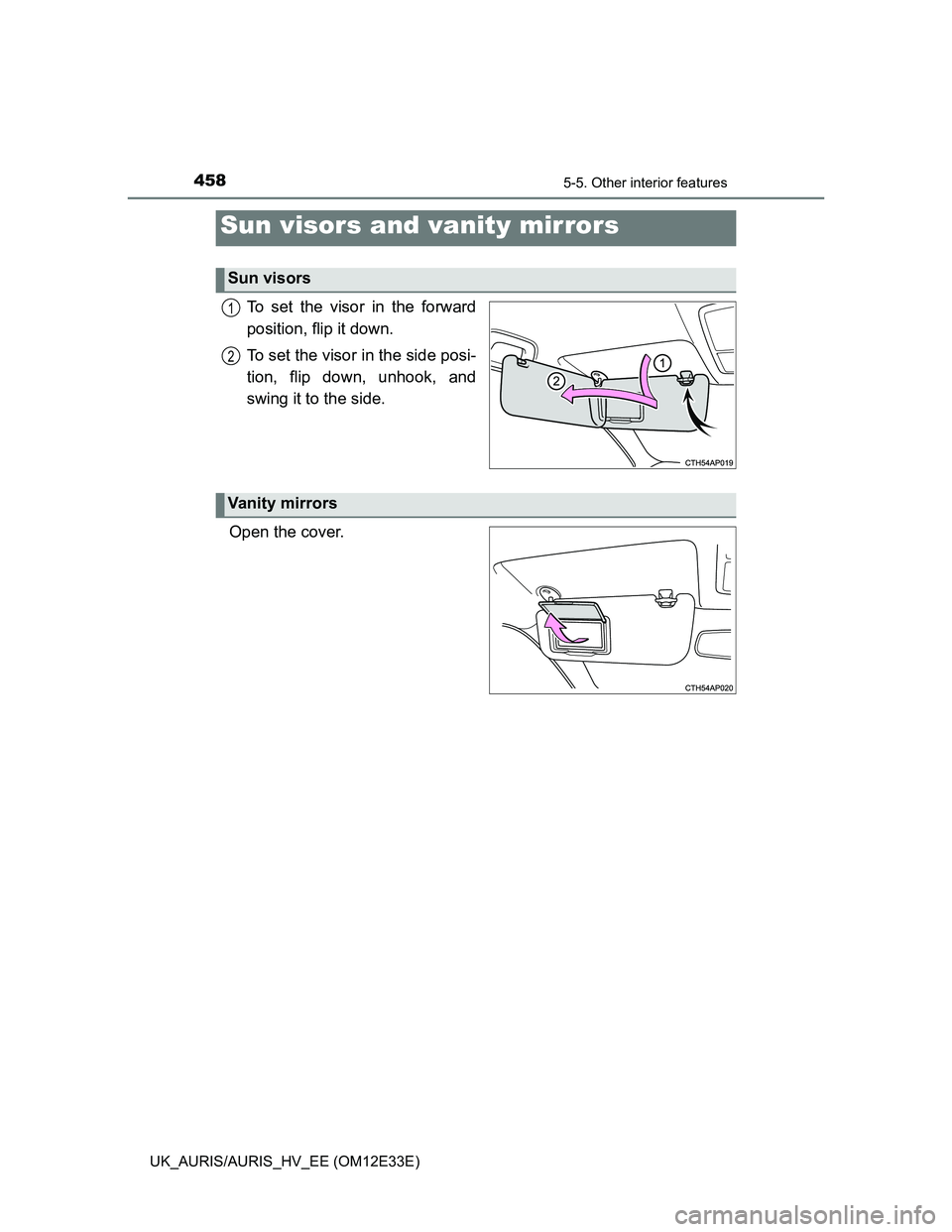

5-5. Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover.
Sun visors and vanity mirrors
Sun visors
1
2
Vanity mirrors
