TOYOTA AURIS 2012 Owners Manual (in English)

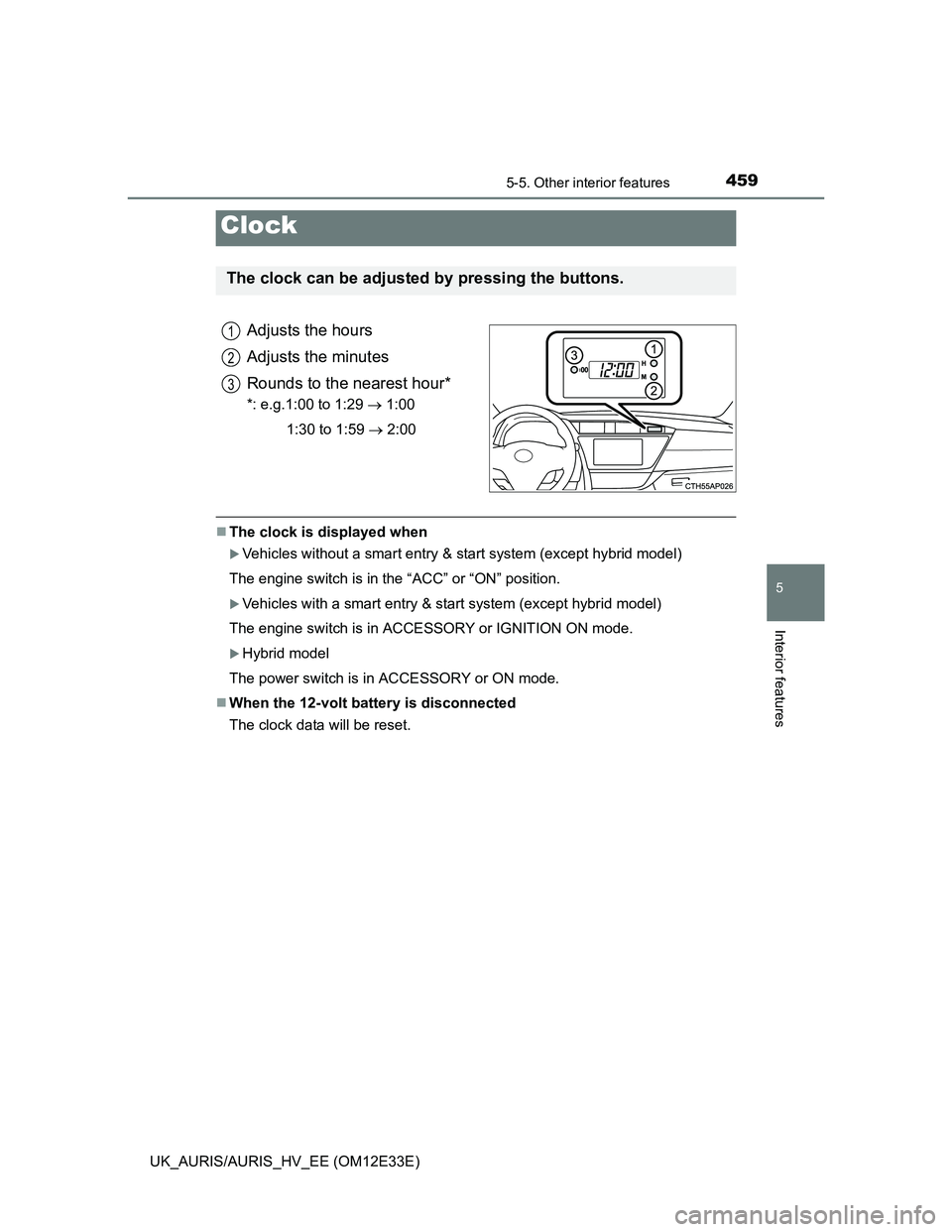

4595-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour*
*: e.g.1:00 to 1:29  1:00
1:30 to 1:59  2:00
The clock is displayed when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in ACCESSORY or IGNITION ON mode.
Hybrid model
The power switch is in ACCESSORY or ON mode.
When the 12-volt battery is disconnected
The clock data will be reset.
Clock
The clock can be adjusted by pressing the buttons.
1
2
3

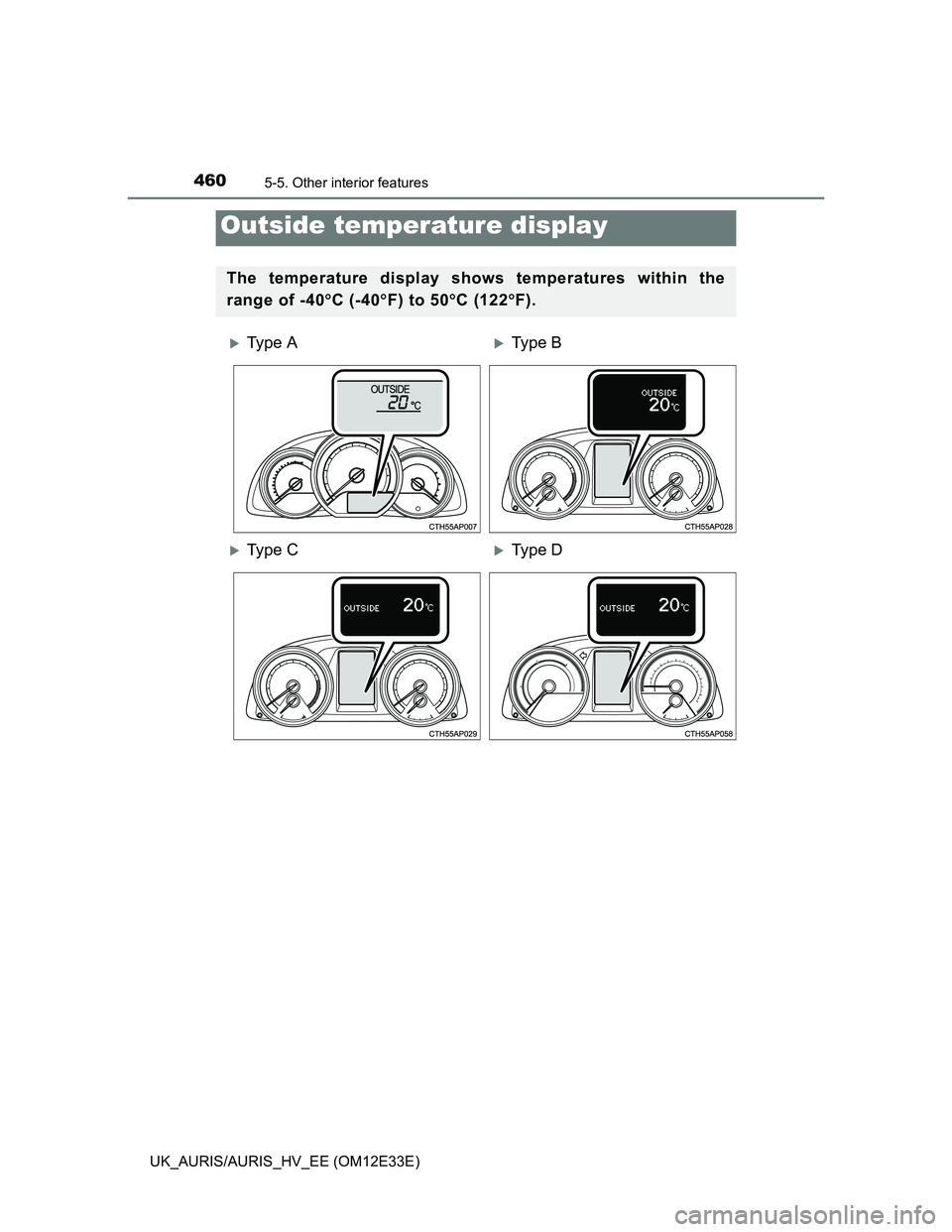

4605-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
Outside temperature display
The temperature display shows temperatures within the
range of -40C (-40F) to 50C (122F).
Ty p e AType B
Ty p e CType D

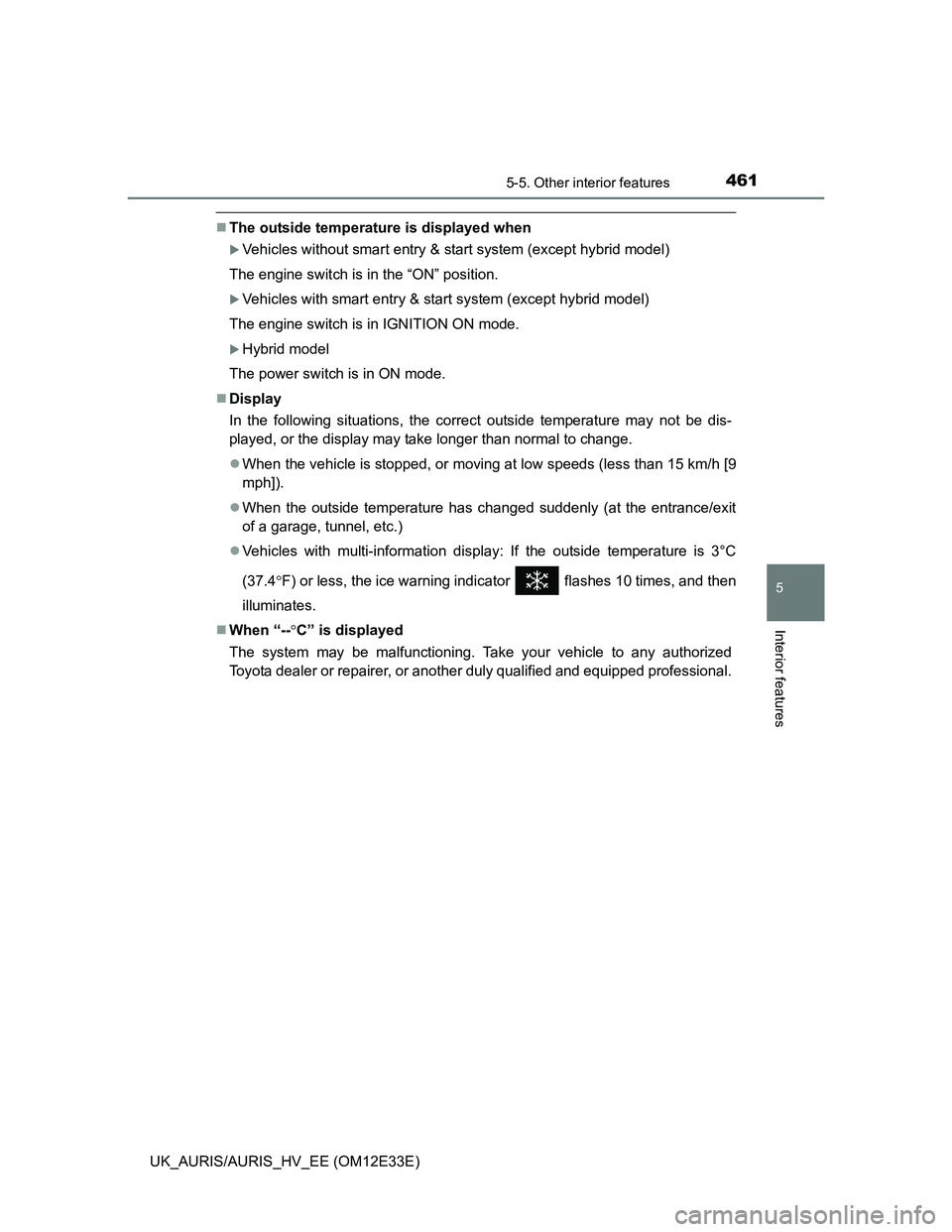

4615-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
The outside temperature is displayed when
Vehicles without smart entry & start system (except hybrid model)
The engine switch is in the “ON” position.
Vehicles with smart entry & start system (except hybrid model)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode.
Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
When the vehicle is stopped, or moving at low speeds (less than 15 km/h [9
mph]).
When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
Vehicles with multi-information display: If the outside temperature is 3°C
(37.4F) or less, the ice warning indicator flashes 10 times, and then
illuminates.
When “--C” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.

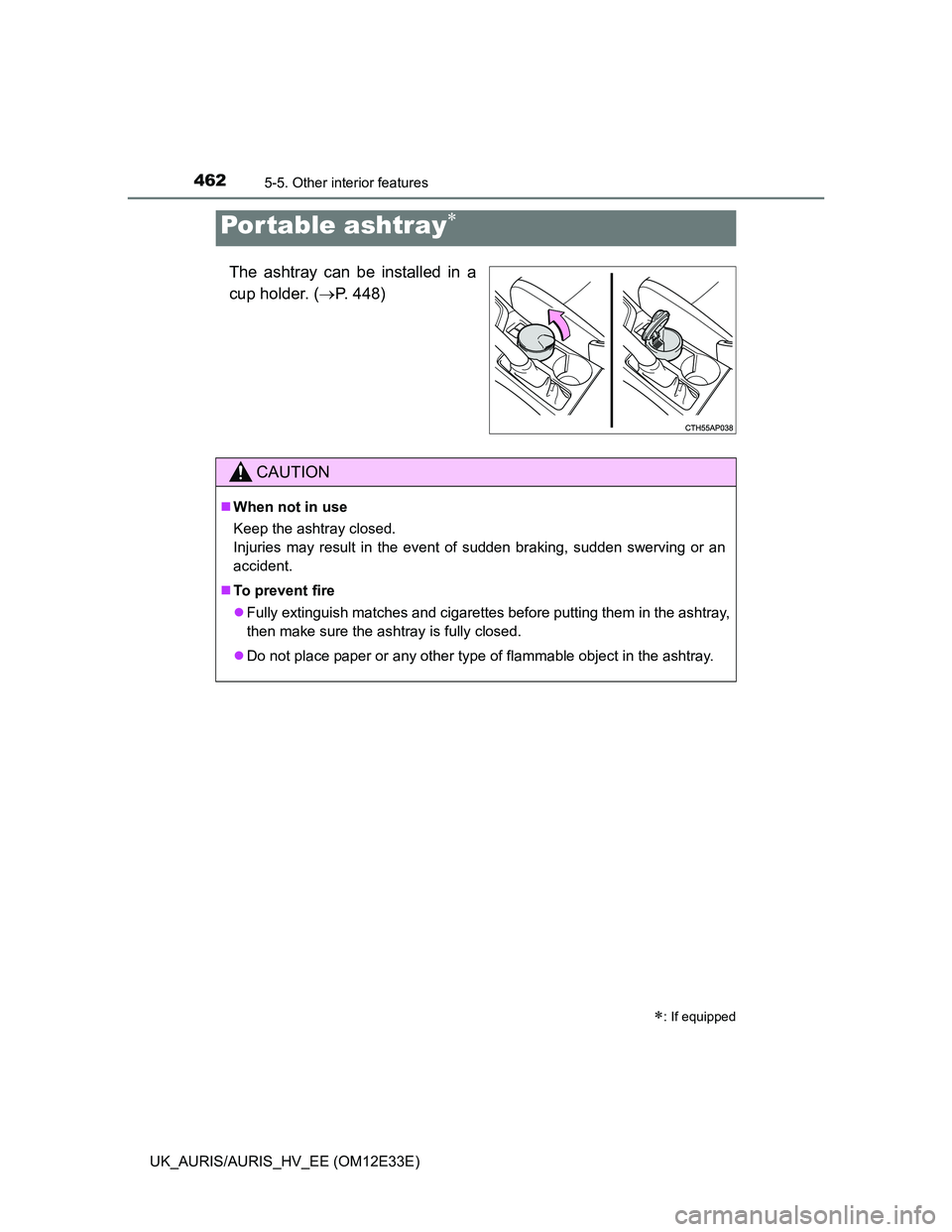

4625-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
The ashtray can be installed in a
cup holder. (P. 448)
Por table ashtray
: If equipped
CAUTION
When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
To prevent fire
Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
Do not place paper or any other type of flammable object in the ashtray.

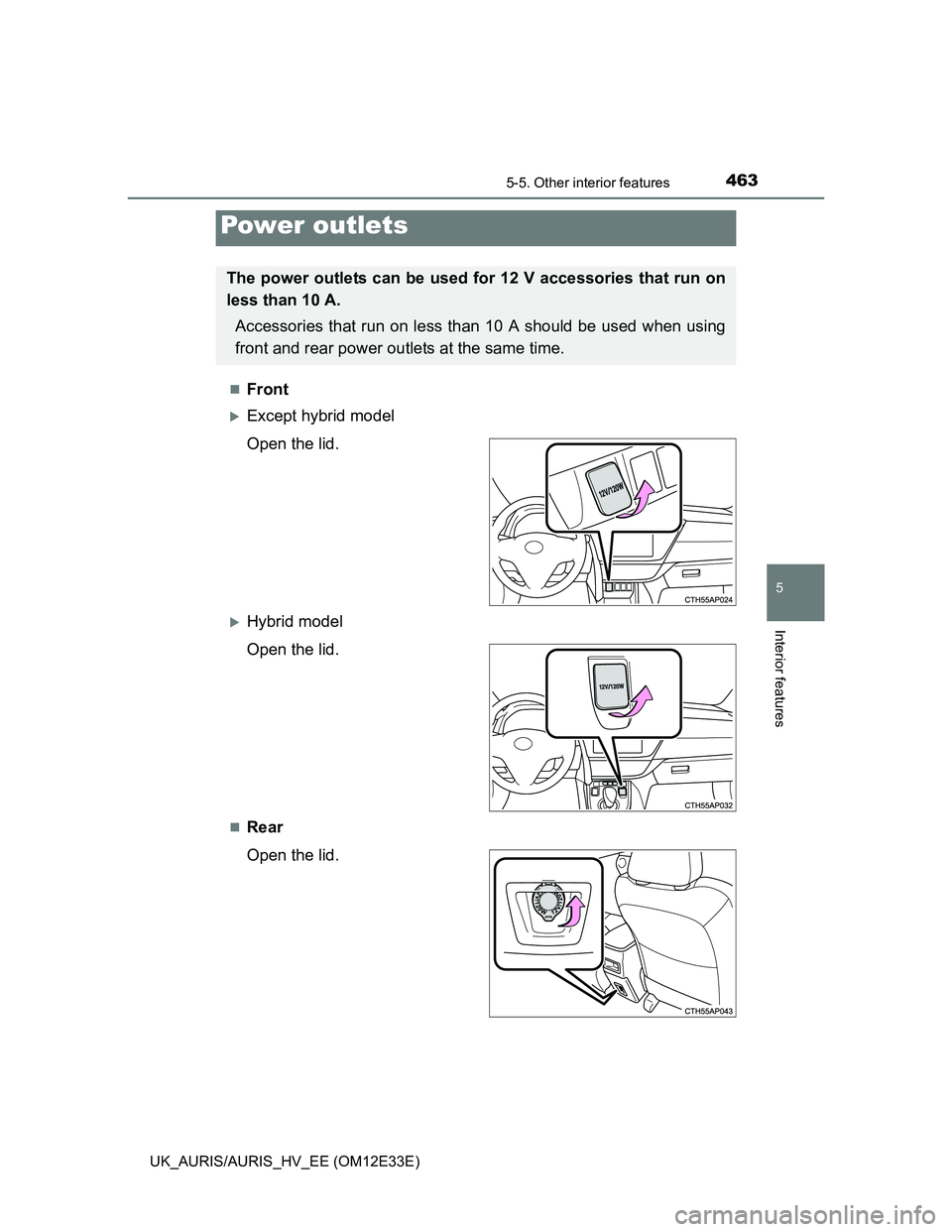

4635-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
Front
Except hybrid model
Open the lid.
Hybrid model
Open the lid.
Rear
Open the lid.
Power outlets
The power outlets can be used for 12 V accessories that run on
less than 10 A.
Accessories that run on less than 10 A should be used when using
front and rear power outlets at the same time.

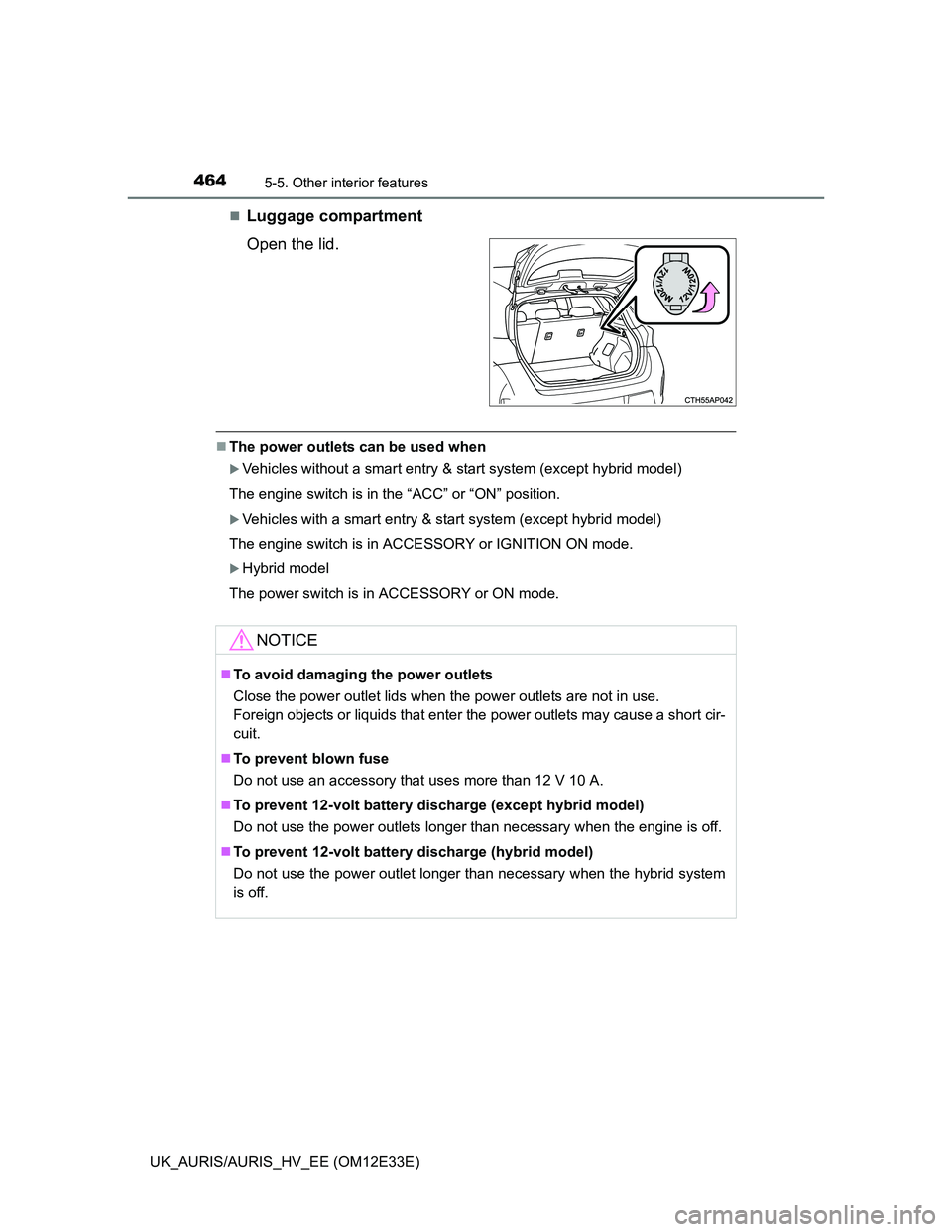

4645-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
Luggage compartment
Open the lid.
The power outlets can be used when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in ACCESSORY or IGNITION ON mode.
Hybrid model
The power switch is in ACCESSORY or ON mode.
NOTICE
To avoid damaging the power outlets
Close the power outlet lids when the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short cir-
cuit.
To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
To prevent 12-volt battery discharge (except hybrid model)
Do not use the power outlets longer than necessary when the engine is off.
To prevent 12-volt battery discharge (hybrid model)
Do not use the power outlet longer than necessary when the hybrid system
is off.

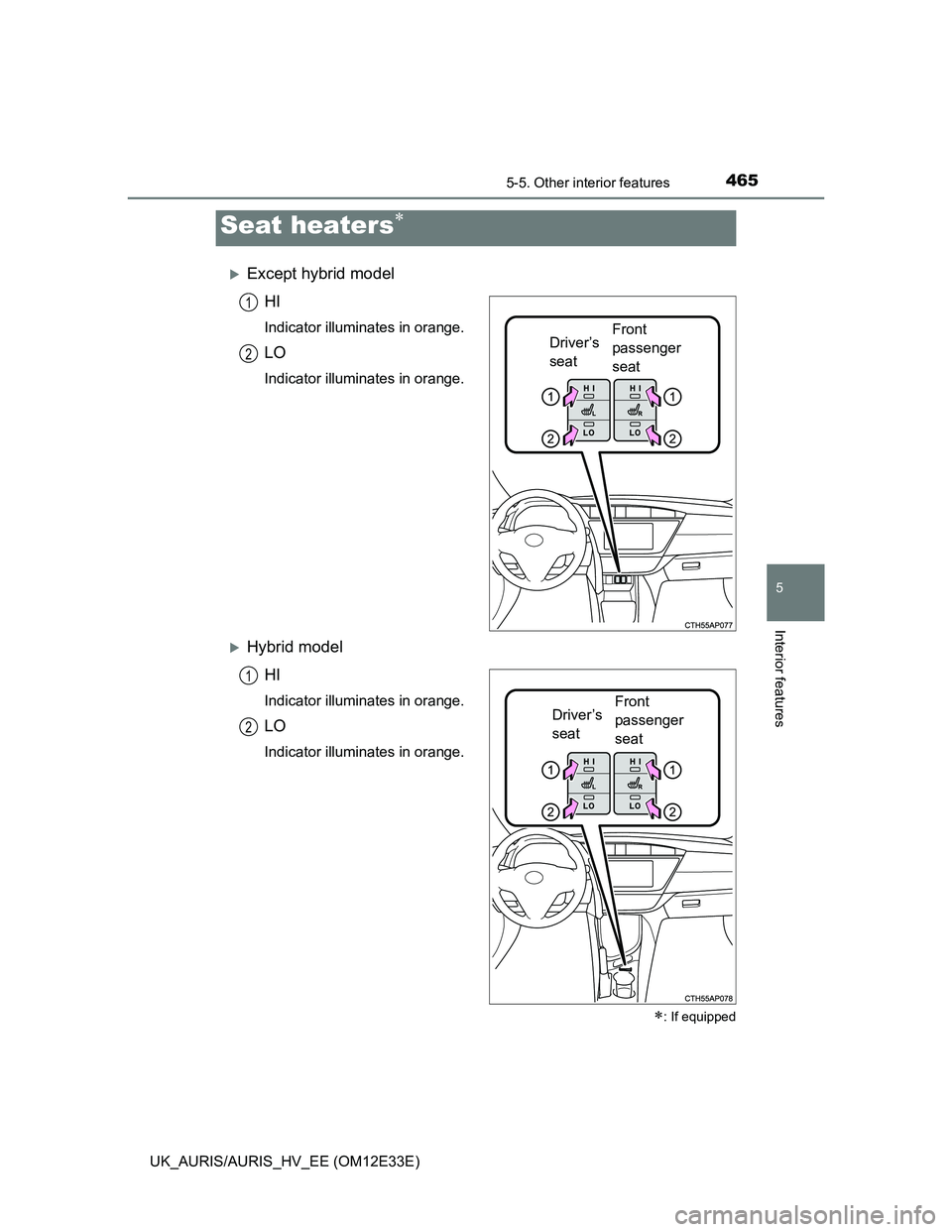

4655-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
Except hybrid model
HI
Indicator illuminates in orange.
LO
Indicator illuminates in orange.
Hybrid model
HI
Indicator illuminates in orange.
LO
Indicator illuminates in orange.
Seat heaters
: If equipped
Driver’s
seatFront
passenger
seat
1
2
Driver’s
seatFront
passenger
seat
1
2

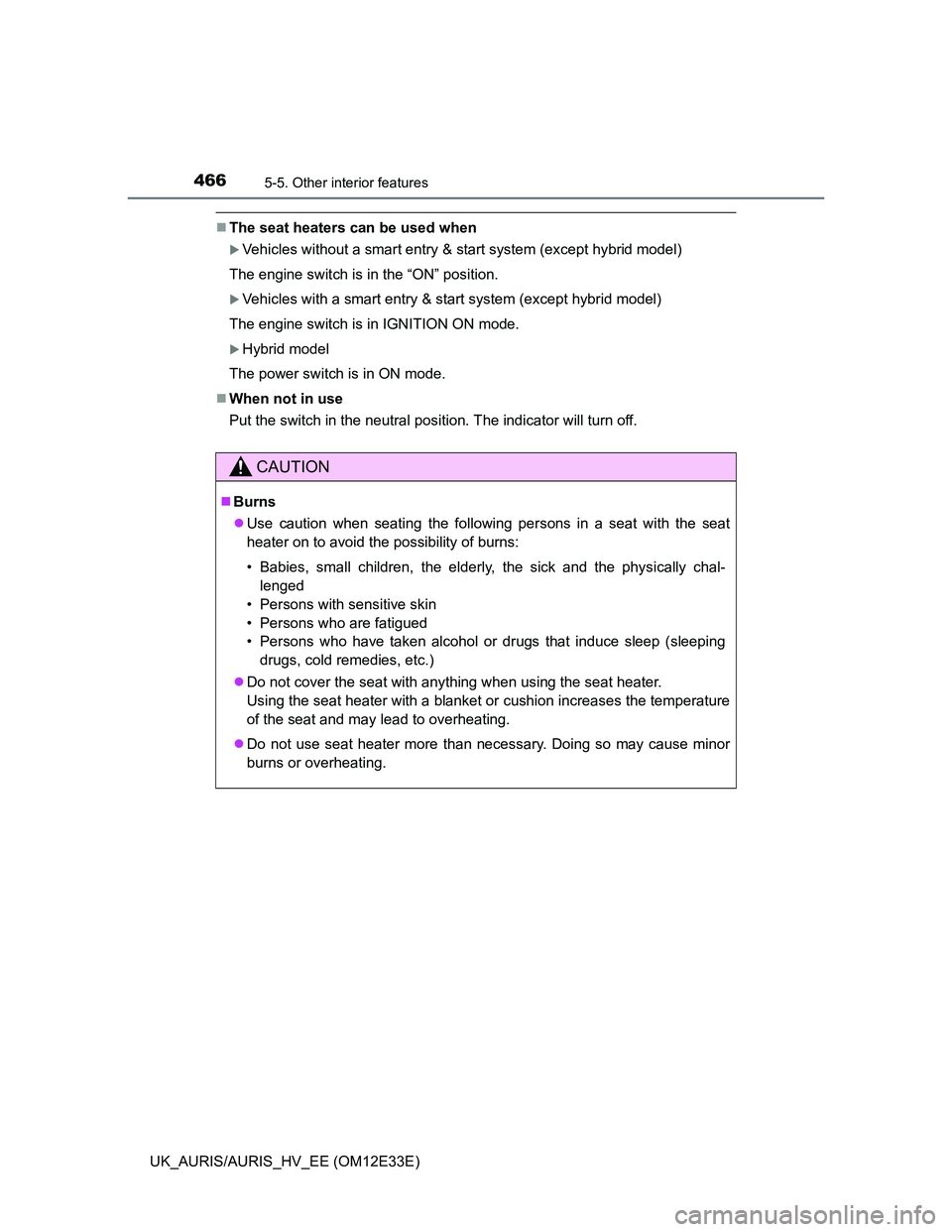

4665-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
The seat heaters can be used when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode.
When not in use
Put the switch in the neutral position. The indicator will turn off.
CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use seat heater more than necessary. Doing so may cause minor
burns or overheating.

4675-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent 12-volt battery discharge (except hybrid model)
Turn the seat heaters off when the engine is off.
To prevent 12-volt battery discharge (hybrid model)
Turn the switches off when the hybrid system is not operating.

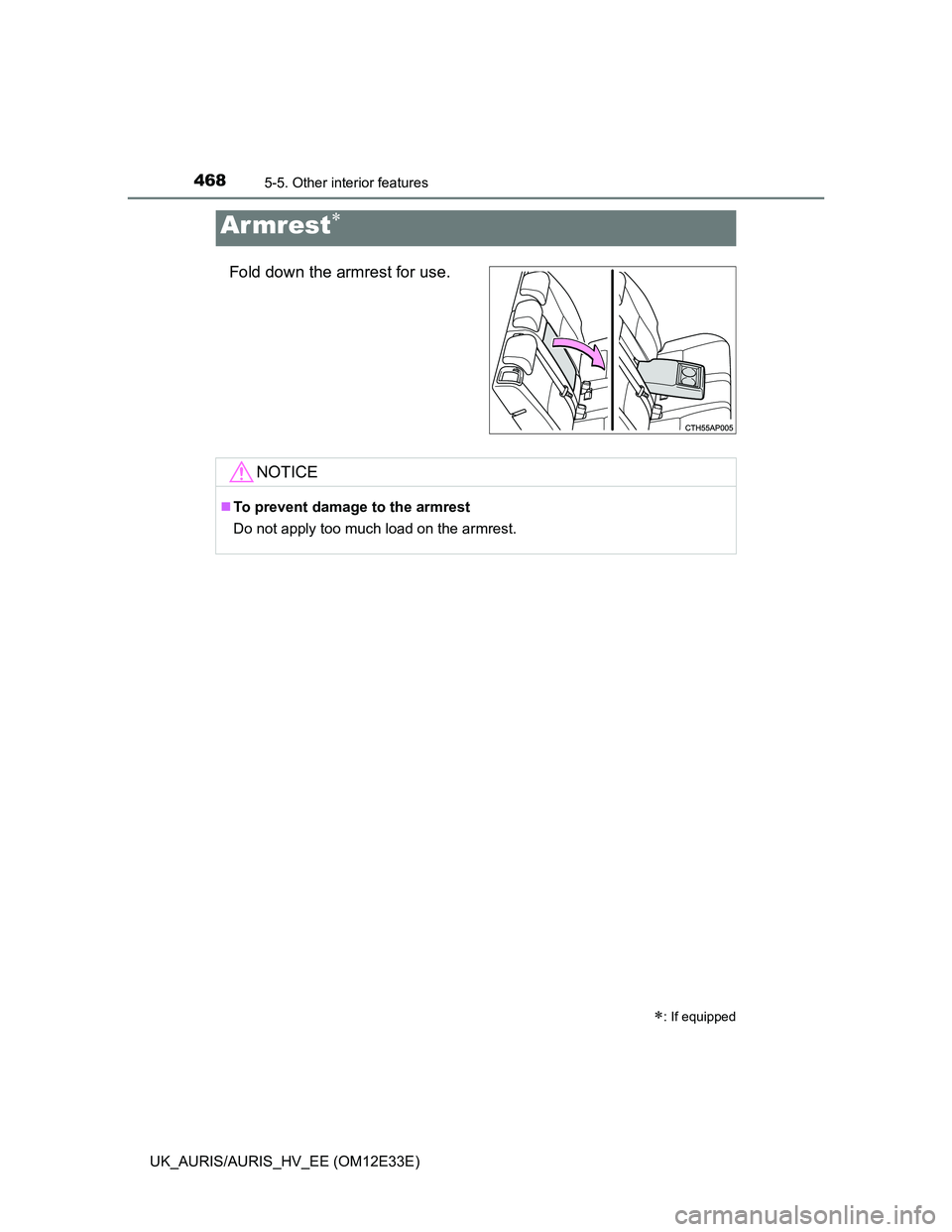

4685-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
Fold down the armrest for use.
Ar mrest
: If equipped
NOTICE
To prevent damage to the armrest
Do not apply too much load on the armrest.
