Page 541 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5396-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Under the instrument panel (vehicles with a gasoline engine)
Ty p e  A
FuseAmpereCircuit
1P/OUTLET15 APo

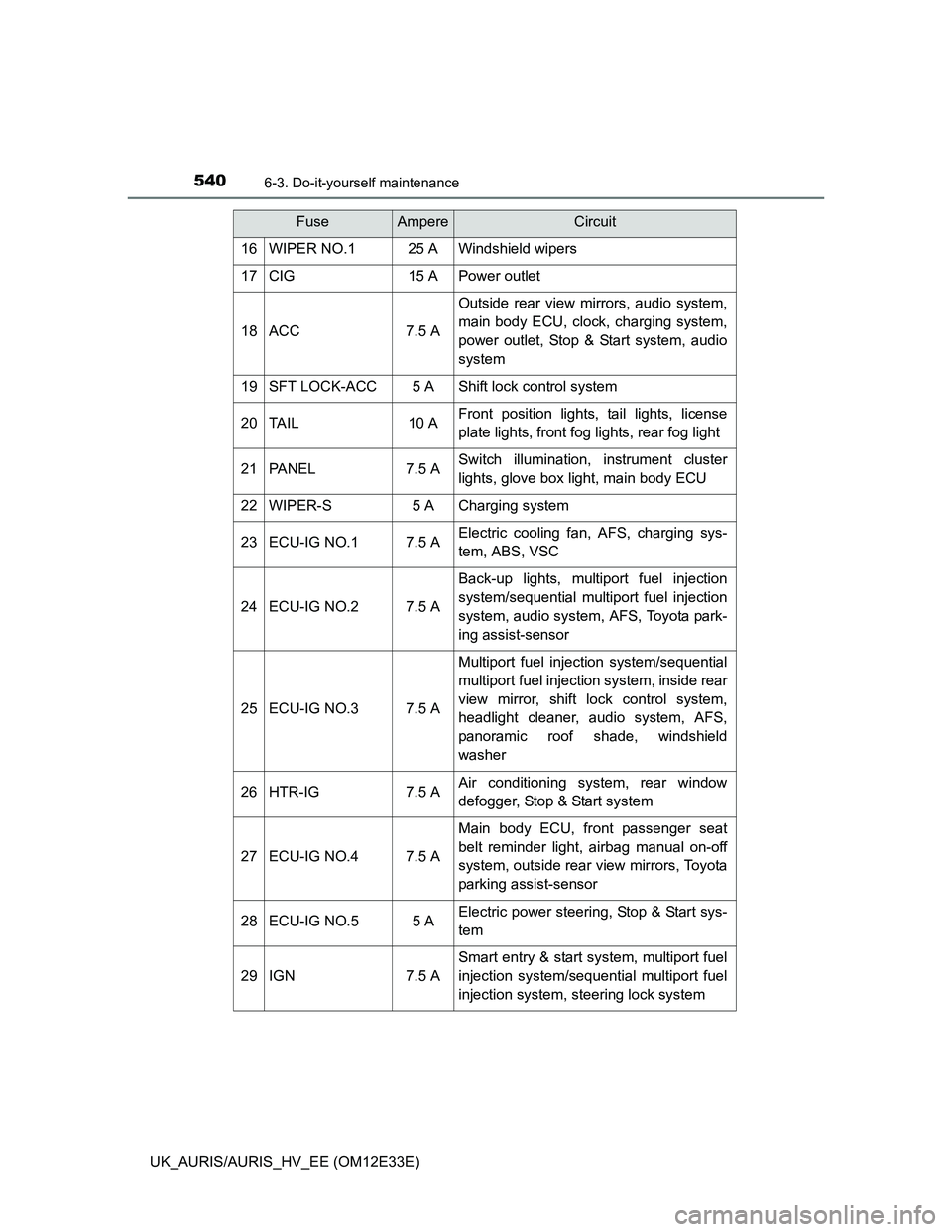

Page 542 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5406-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, cha

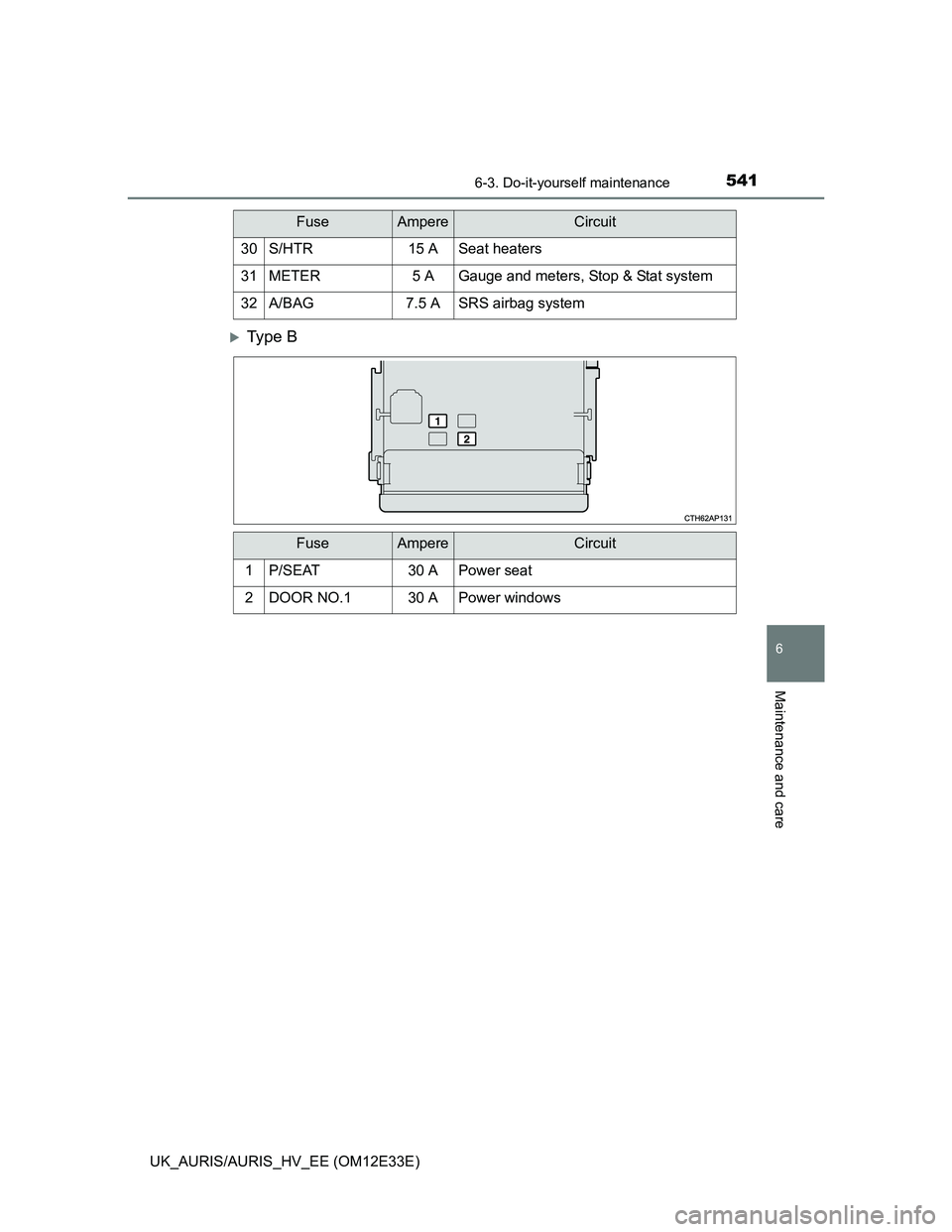

Page 543 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5416-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Ty p e  B
30S/HTR15 ASeat heaters
31METER5 AGauge and meters, Stop & Stat system
32A/BAG7.5 ASRS airbag sys

Page 544 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5426-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Engine compartment (vehicles with a diesel engine)
FuseAmpereCircuit
1ALT140 ACharging system
2EPS80 AElectric power steering
3H-L

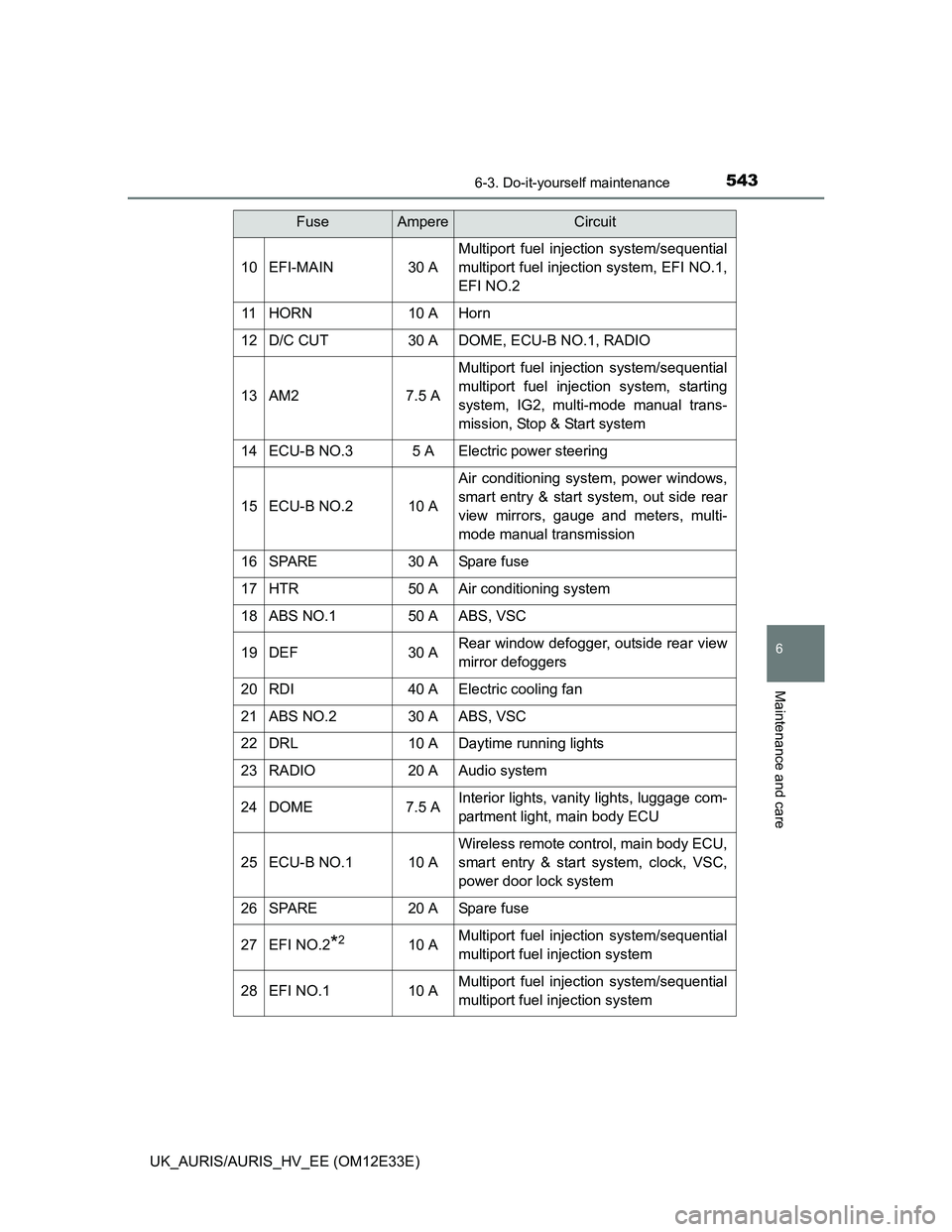

Page 545 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5436-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
10EFI-MAIN30 A
Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2

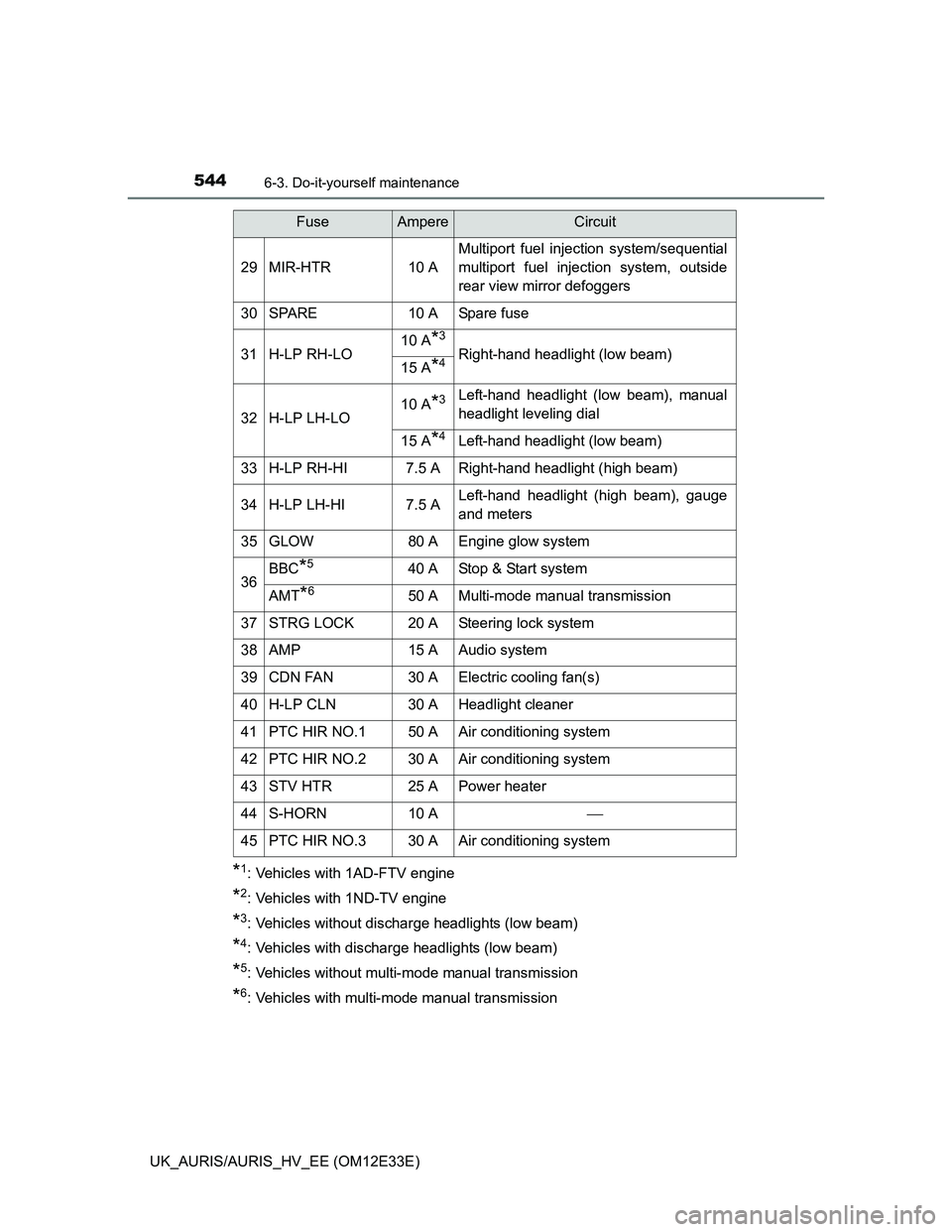

Page 546 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5446-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
*1: Vehicles with 1AD-FTV engine
*2: Vehicles with 1ND-TV engine
*3: Vehicles without discharge headlights (low beam)
*4: Vehicles wi

Page 547 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5456-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Under the instrument panel (vehicles with a diesel engine)
Ty p e  A
FuseAmpereCircuit
1P/OUTLET15 APowe

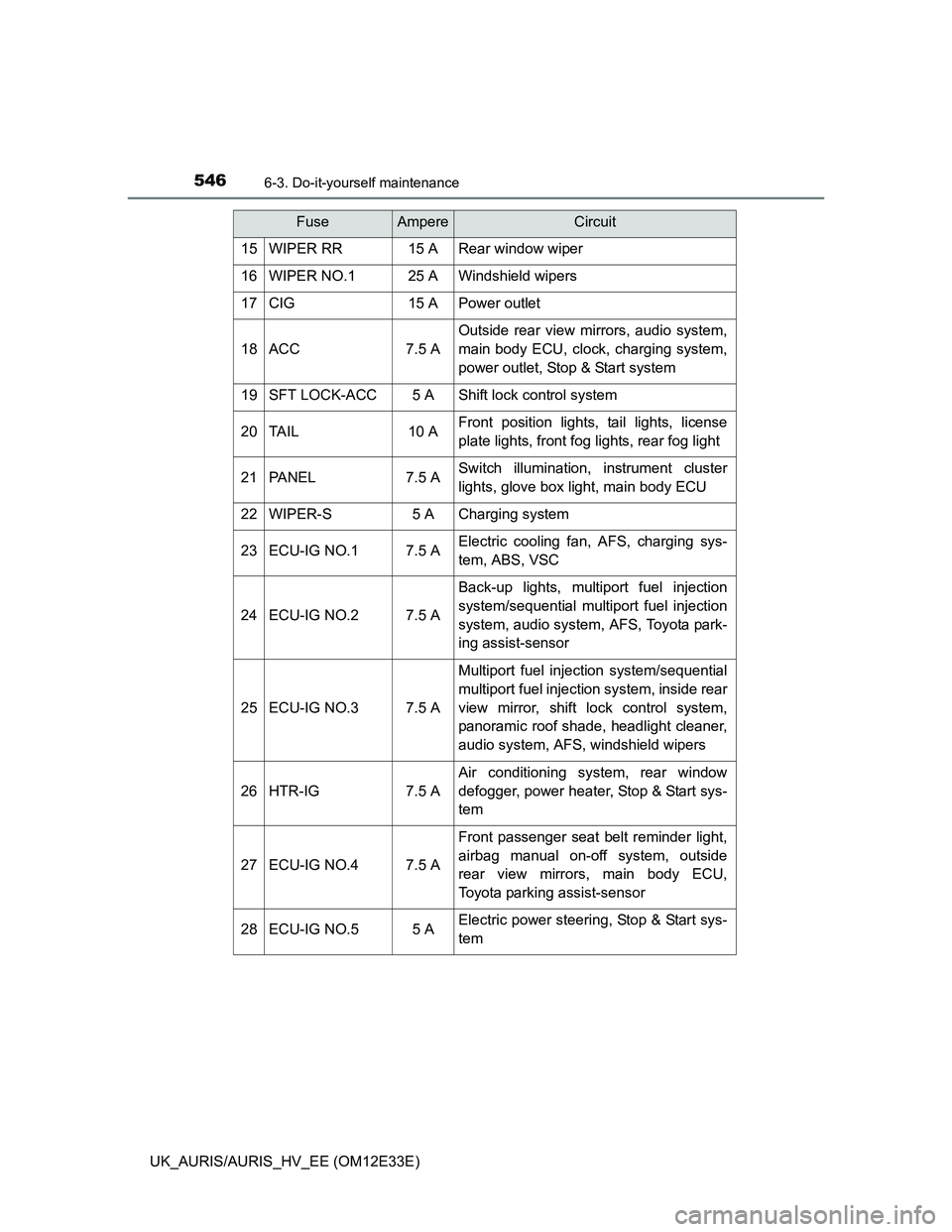

Page 548 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5466-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
15WIPER RR15 ARear window wiper
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio s

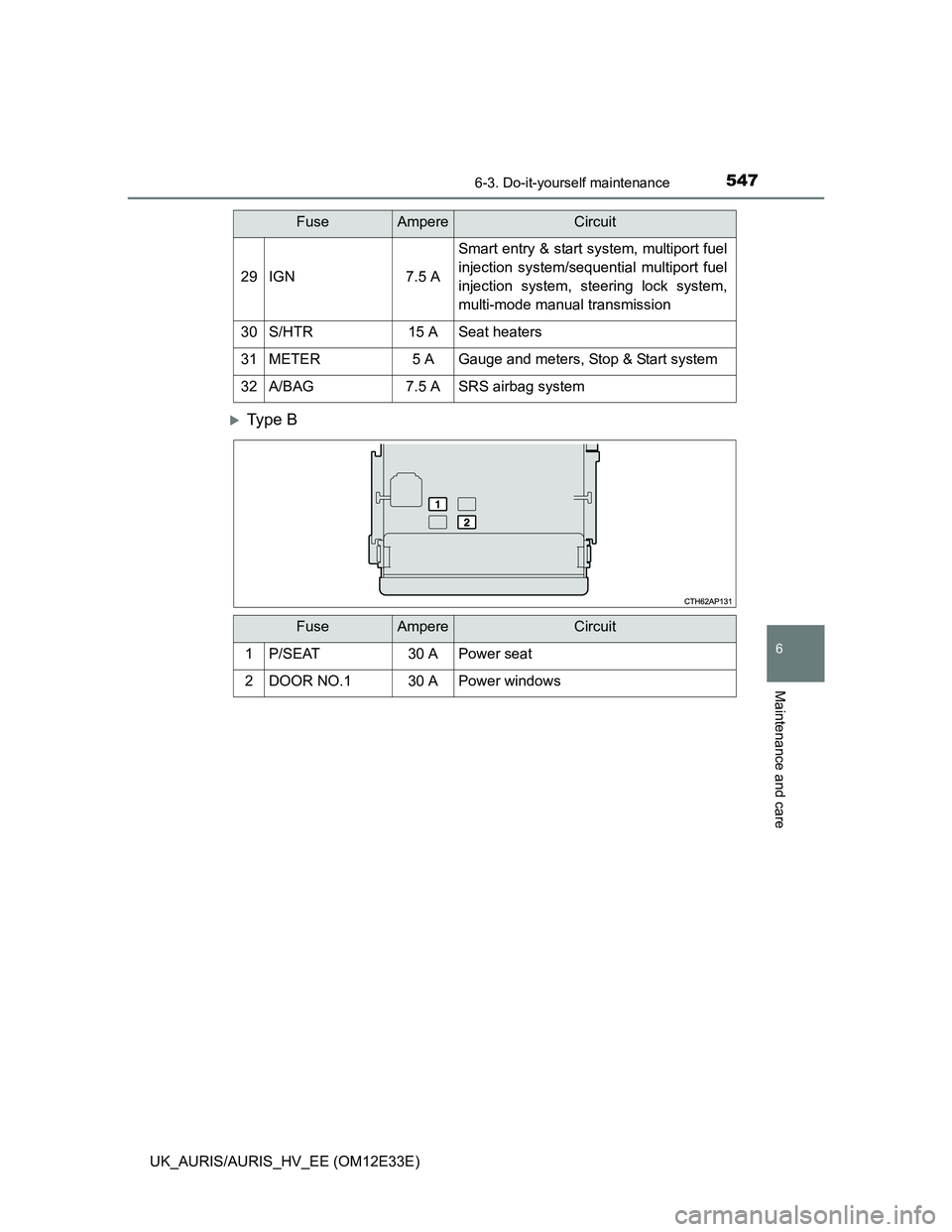

Page 549 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5476-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Ty p e  B
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel

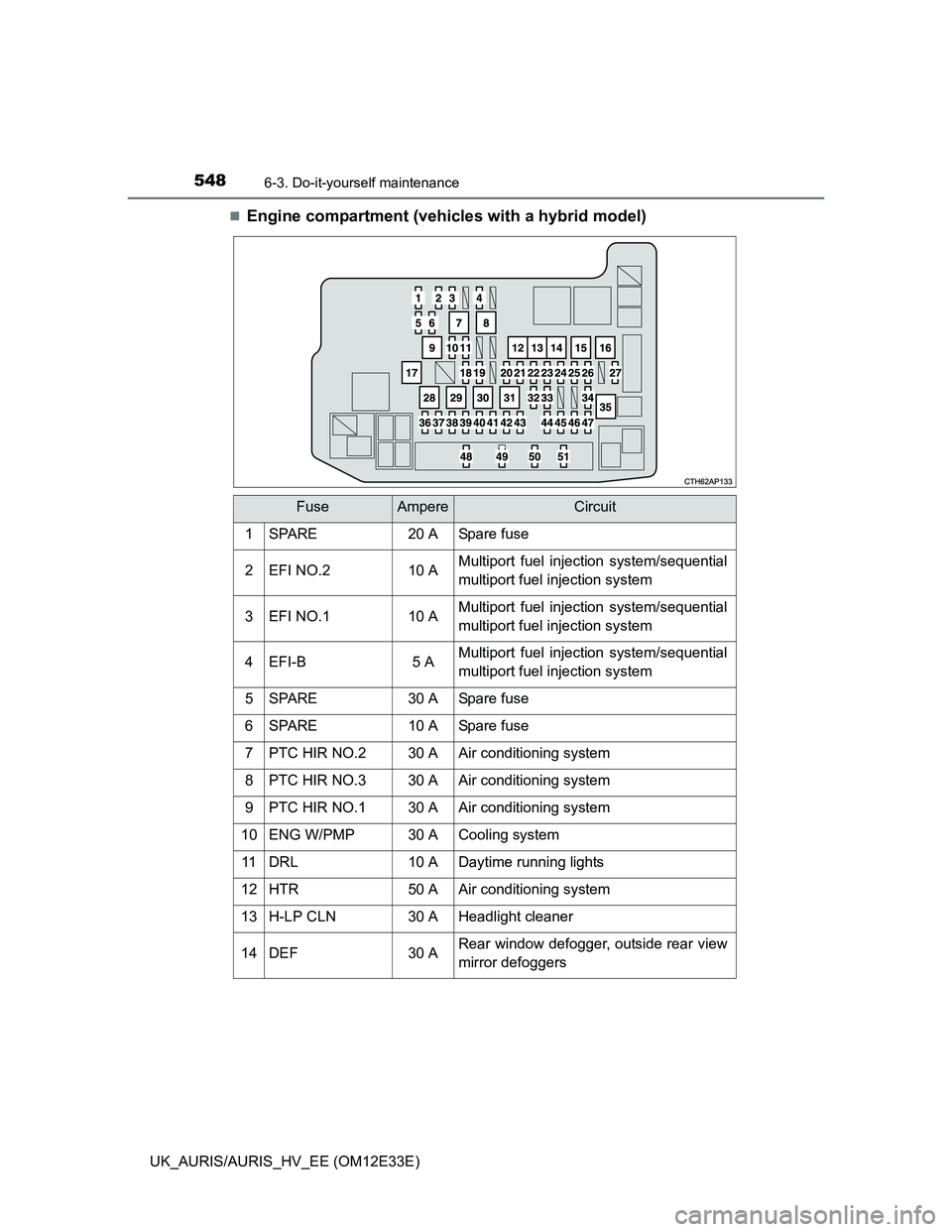

Page 550 of 750

TOYOTA AURIS 2012  Owners Manual (in English) 5486-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Engine compartment (vehicles with a hybrid model)
FuseAmpereCircuit
1SPARE20 ASpare fuse
2EFI NO.210 AMultiport fuel injection sys
