4115-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features

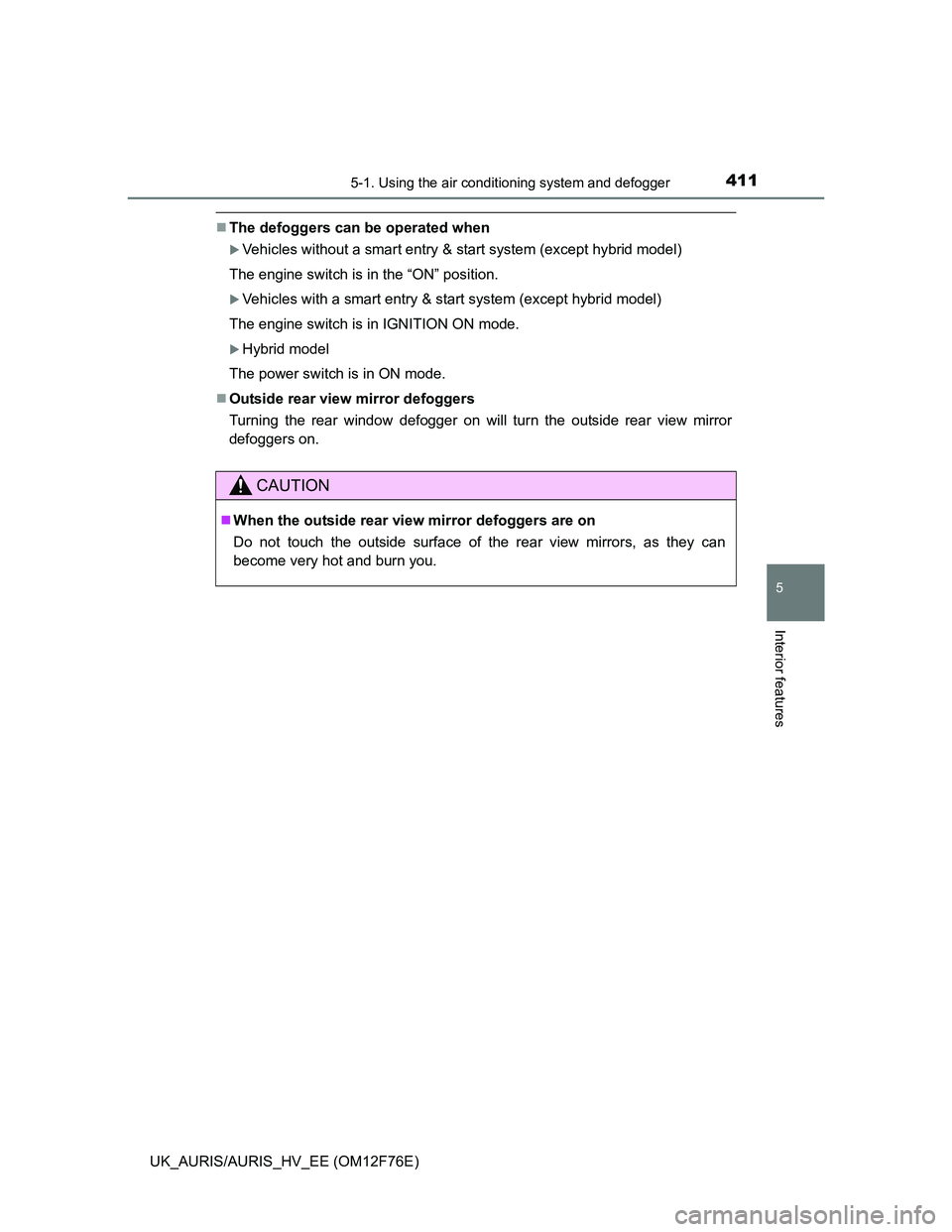

The defoggers can be operated when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode.
Outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.

412
UK_AURIS/AURIS_HV_EE (OM12F76E)

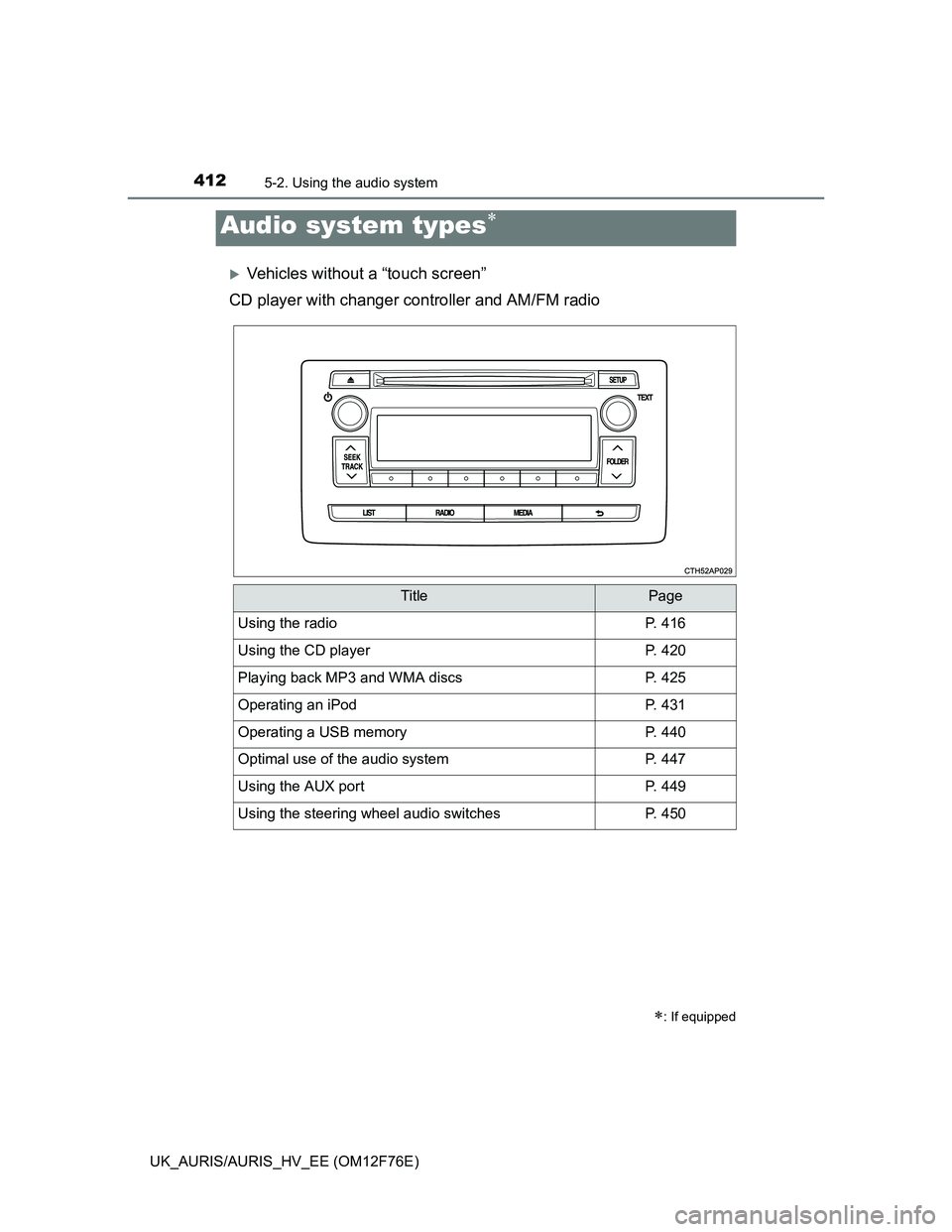

5-2. Using the audio system
Vehicles without a “touch screen”
CD player with changer controller and AM/FM radio
Audio system types
: If equipped
TitlePage
Using the radioP. 416
Using the CD playerP. 420
Playing back MP3 and WMA discsP. 425
Operating an iPodP. 431
Operating a USB memoryP. 440
Optimal use of the audio systemP. 447
Using the AUX portP. 449
Using the steering wheel audio switchesP. 450

4135-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features

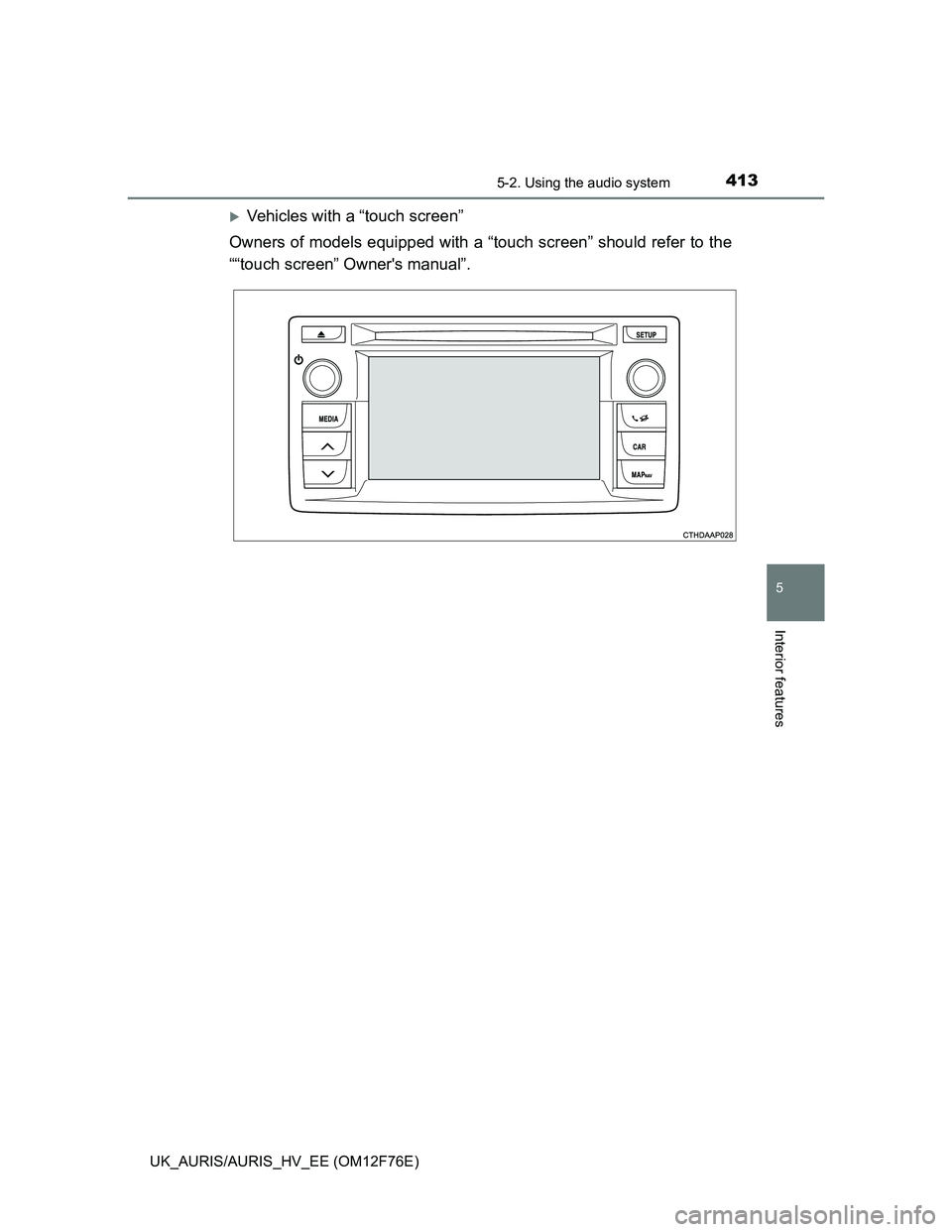

Vehicles with a “touch screen”
Owners of models equipped with a “touch screen” should refer to the
““touch screen” Owner's manual”.

4145-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)

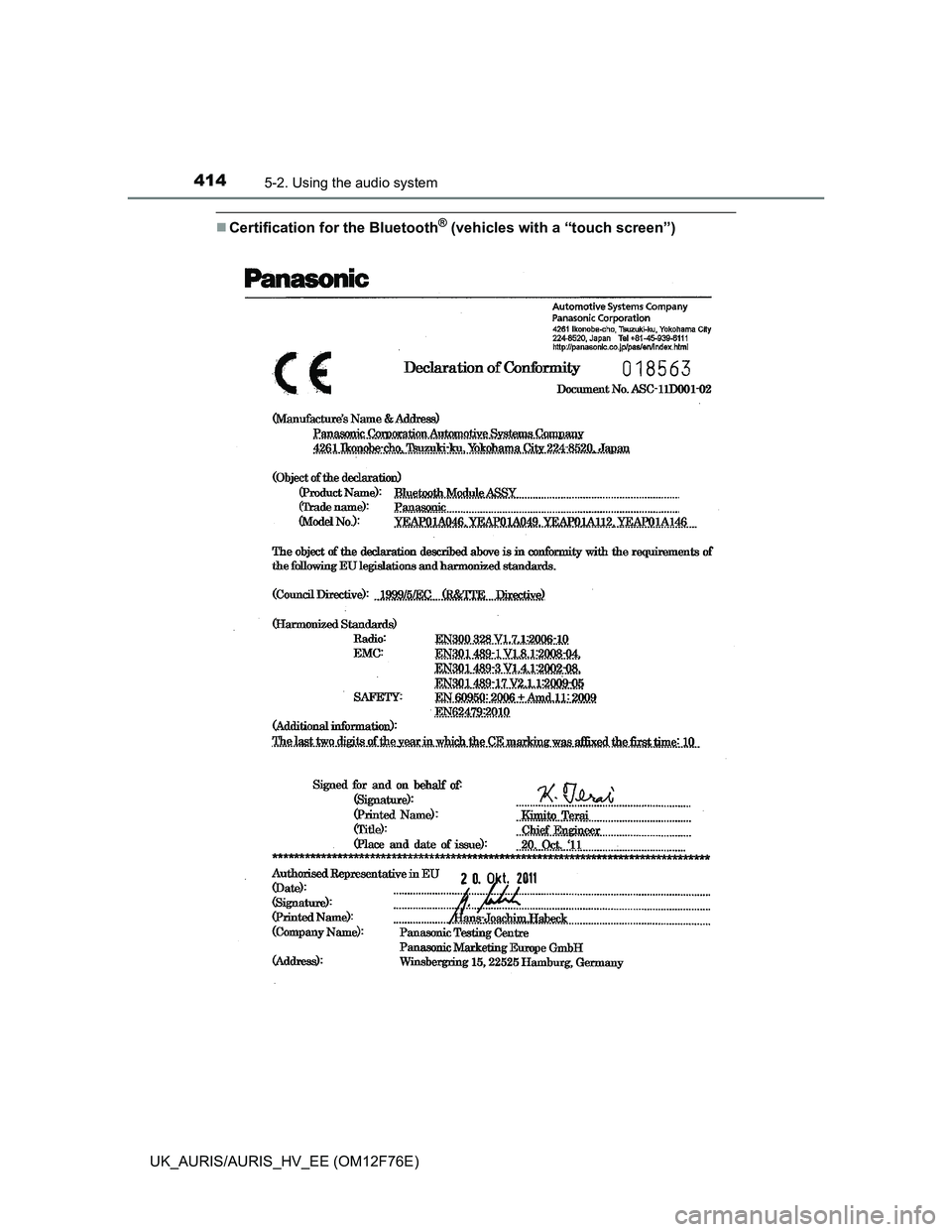

Certification for the Bluetooth® (vehicles with a “touch screen”)

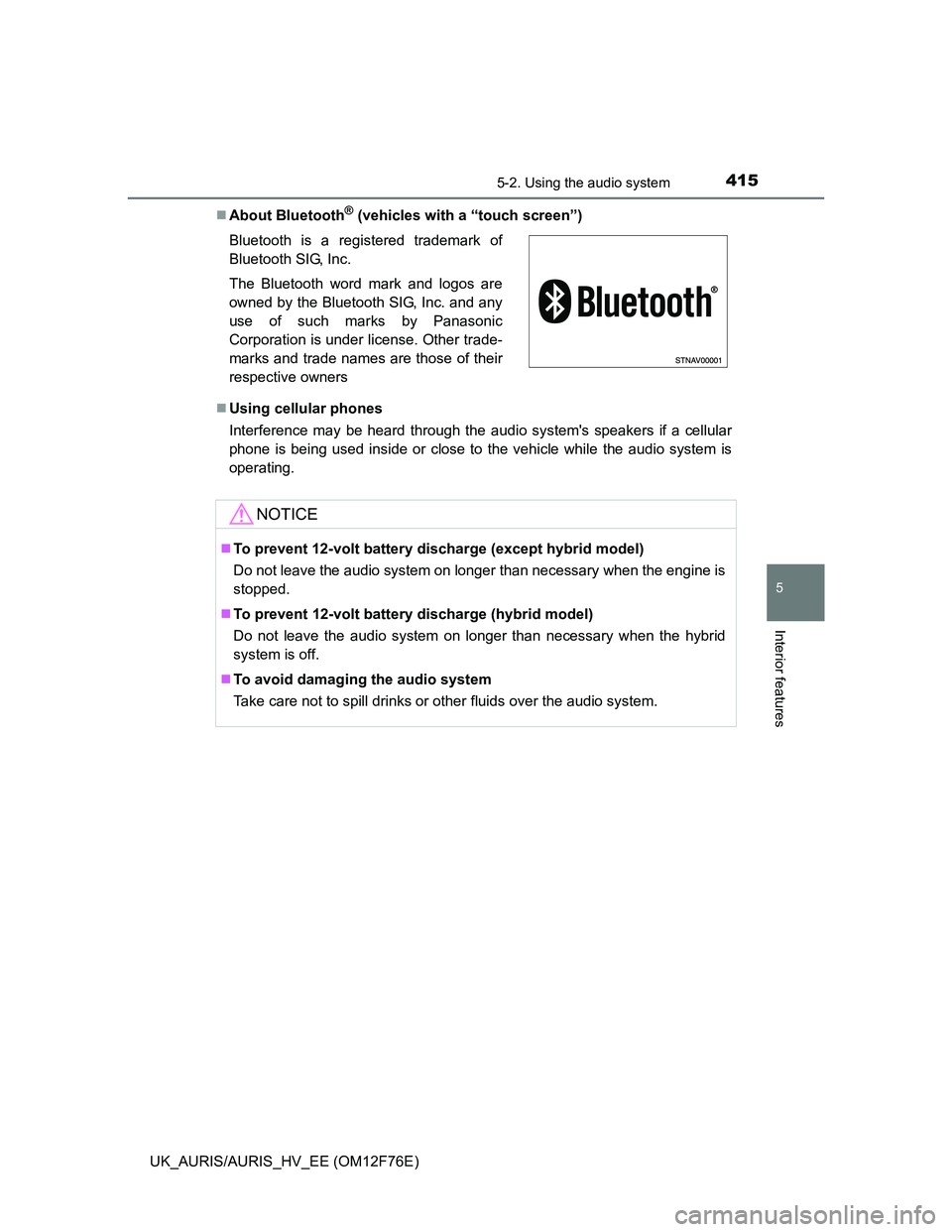

4155-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features
About Bluetooth® (vehicles with a “touch screen”)
Using cellular phones
Interference may be heard through the audio system's speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating. Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Panasonic
Corporation is under license. Other trade-
marks and trade names are those of their
respective owners
NOTICE
To prevent 12-volt battery discharge (except hybrid model)
Do not leave the audio system on longer than necessary when the engine is
stopped.
To prevent 12-volt battery discharge (hybrid model)
Do not leave the audio system on longer than necessary when the hybrid
system is off.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

4165-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Search for a desired station by turning or pressing “”or “”
on .
Press and hold the button (from to ) the station is to
be set to until you hear a beep.

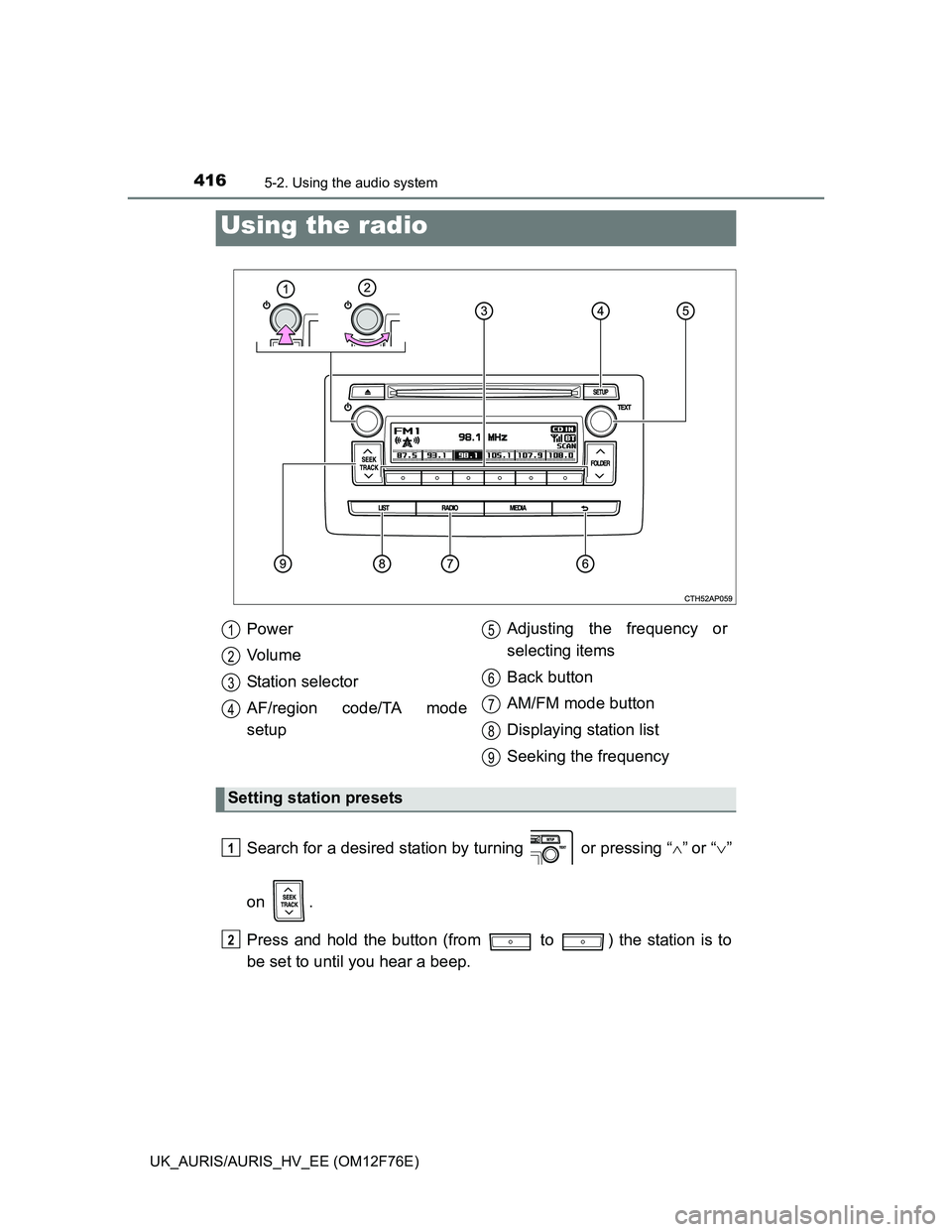

Using the radio
Power
Vo l u m e
Station selector
AF/region code/TA mode
setupAdjusting the frequency or
selecting items
Back button
AM/FM mode button
Displaying station list
Seeking the frequency
Setting station presets
1
2
3
4
5
6
7
8
9
1
2

4175-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features

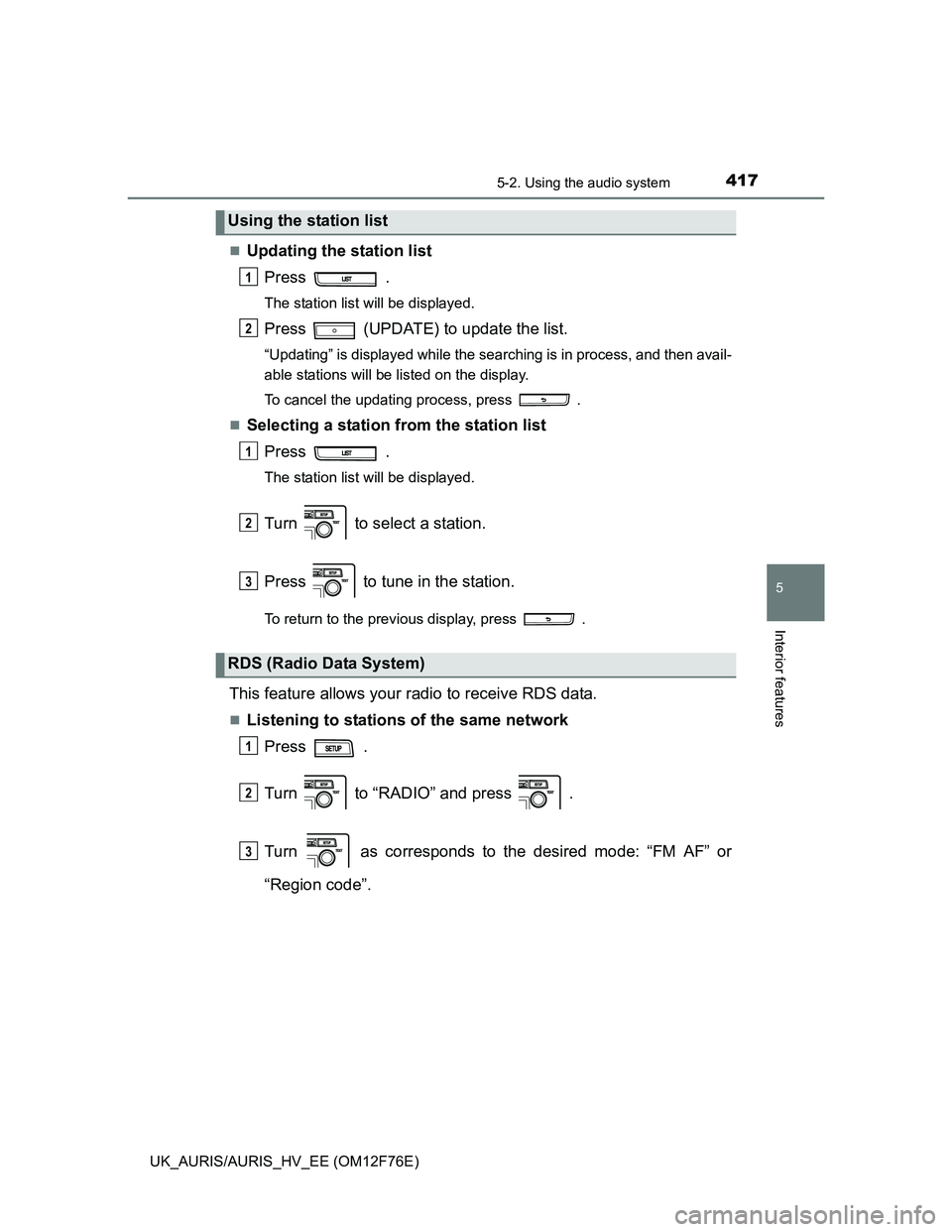

Updating the station list
Press .
The station list will be displayed.
Press (UPDATE) to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press .

Selecting a station from the station list
Press .
The station list will be displayed.
Turn to select a station.
Press to tune in the station.
To return to the previous display, press .
This feature allows your radio to receive RDS data.
Listening to stations of the same network
Press .
Turn to “RADIO” and press .
Turn as corresponds to the desired mode: “FM AF” or
“Region code”.
Using the station list
RDS (Radio Data System)
1
2
1
2
3
1
2
3

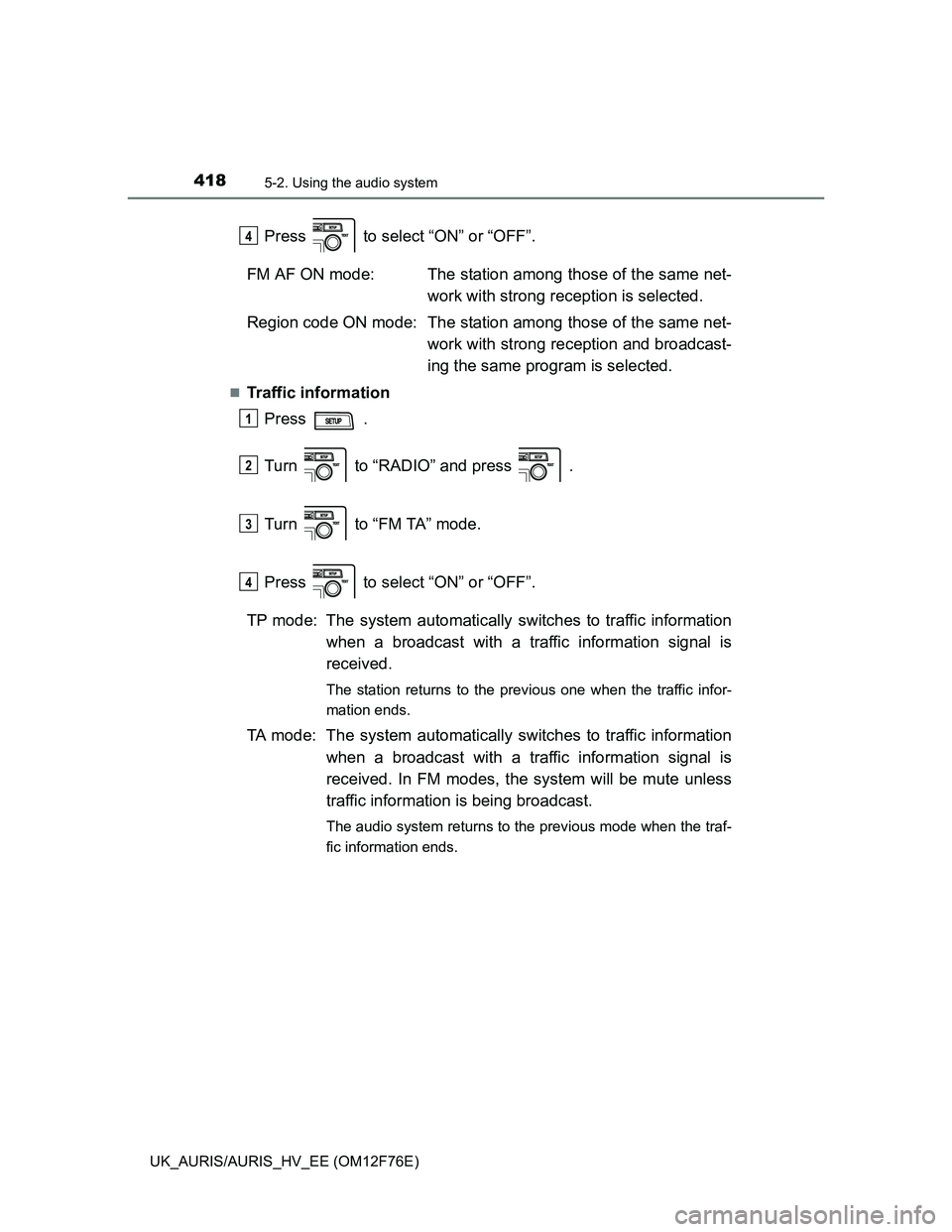

4185-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Press to select “ON” or “OFF”.
FM AF ON mode: The station among those of the same net-
work with strong reception is selected.
Region code ON mode: The station among those of the same net-
work with strong reception and broadcast-
ing the same program is selected.
Traffic information
Press .
Turn to “RADIO” and press .
Turn to “FM TA” mode.
Press to select “ON” or “OFF”.
TP mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic infor-
mation ends.
TA mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received. In FM modes, the system will be mute unless
traffic information is being broadcast.
The audio system returns to the previous mode when the traf-
fic information ends.
4
1
2
3
4

4195-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features

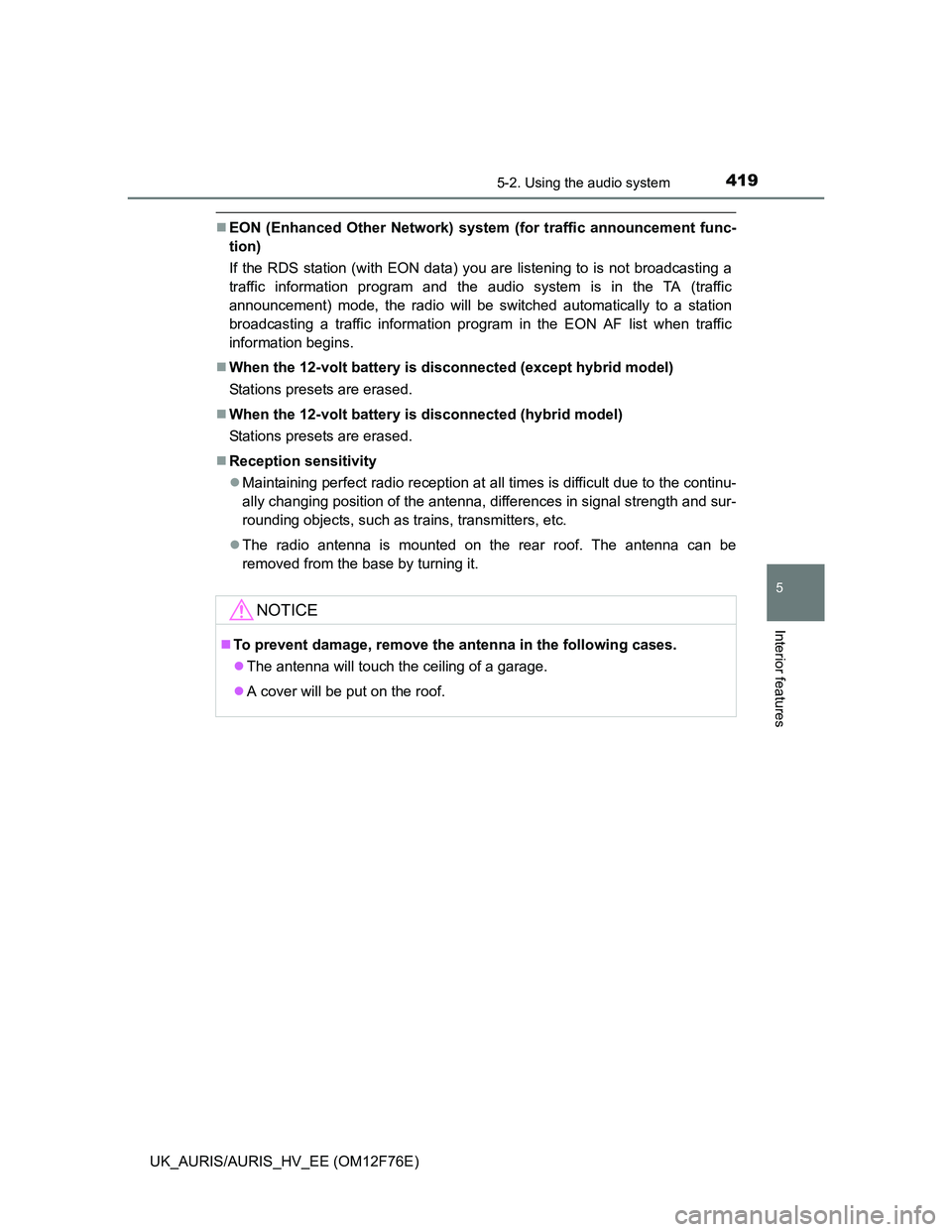

EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When the 12-volt battery is disconnected (except hybrid model)
Stations presets are erased.
When the 12-volt battery is disconnected (hybrid model)
Stations presets are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
The radio antenna is mounted on the rear roof. The antenna can be
removed from the base by turning it.
NOTICE
To prevent damage, remove the antenna in the following cases.
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.

4205-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Insert a CD.
Press and remove the CD.

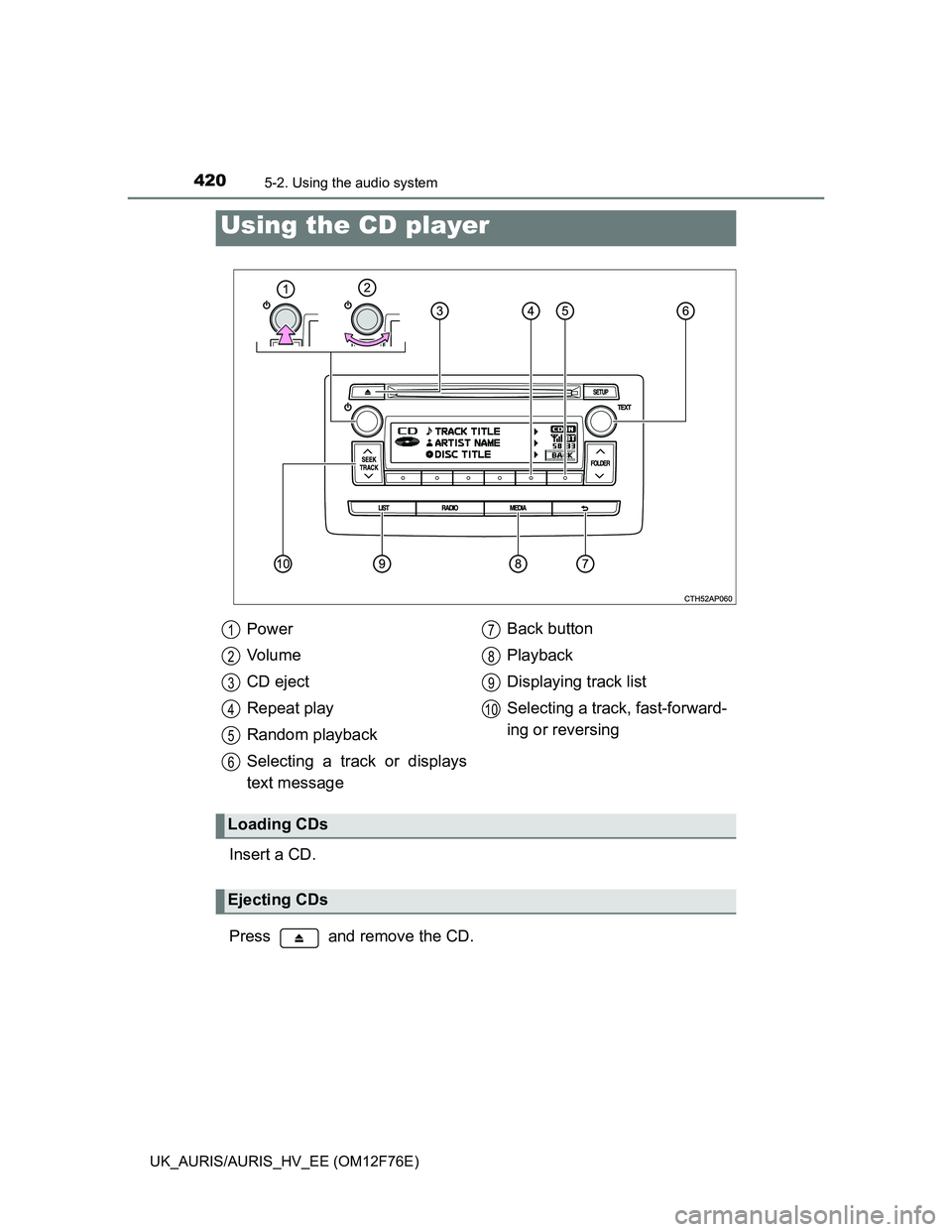

Using the CD player
Power
Vo l u m e
CD eject
Repeat play
Random playback
Selecting a track or displays
text messageBack button
Playback
Displaying track list
Selecting a track, fast-forward-
ing or reversing
Loading CDs
Ejecting CDs
1
2
3
4
5
6
7
8
9
10
