TOYOTA AURIS 2015 Owners Manual (in English)

1313-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)
3
Operation of each component

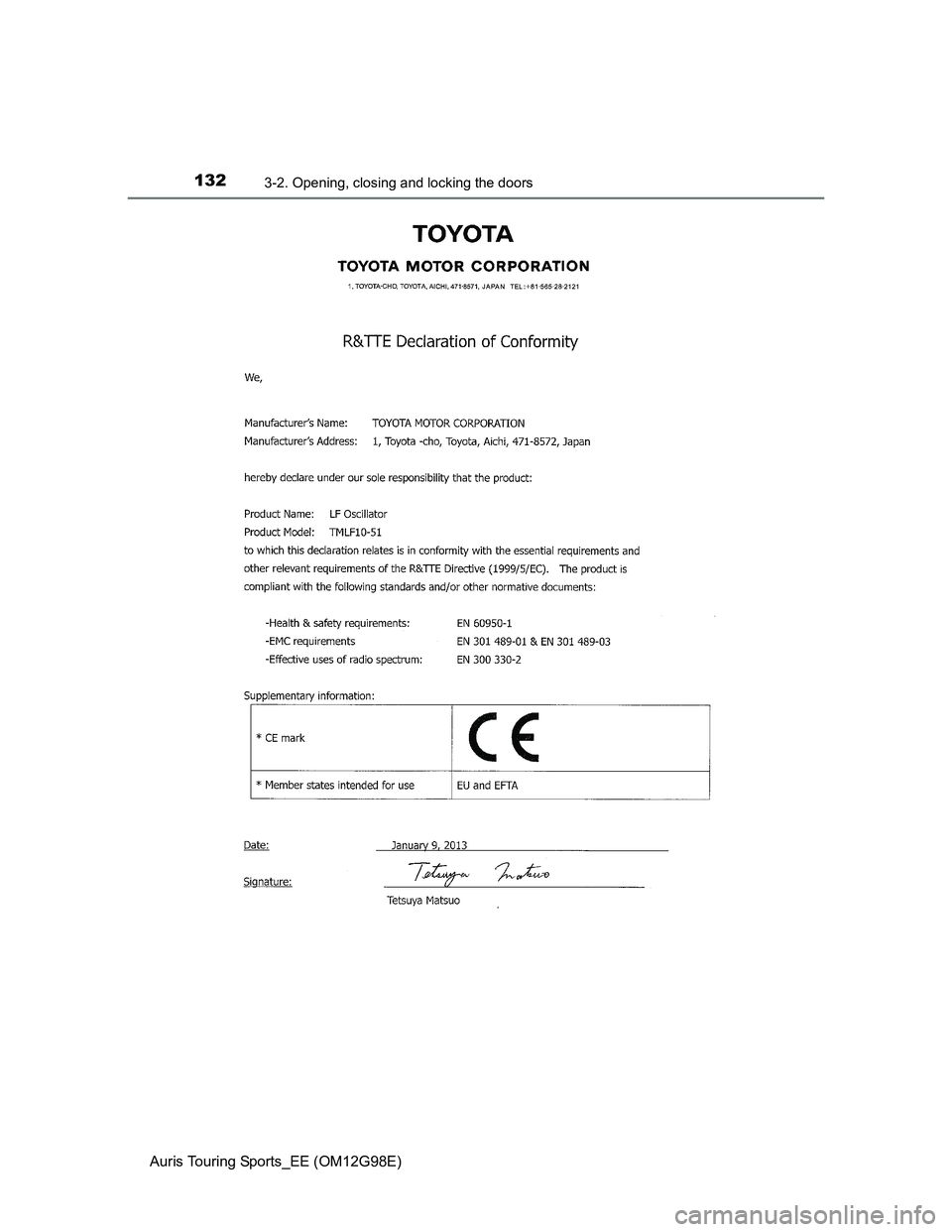

1323-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)

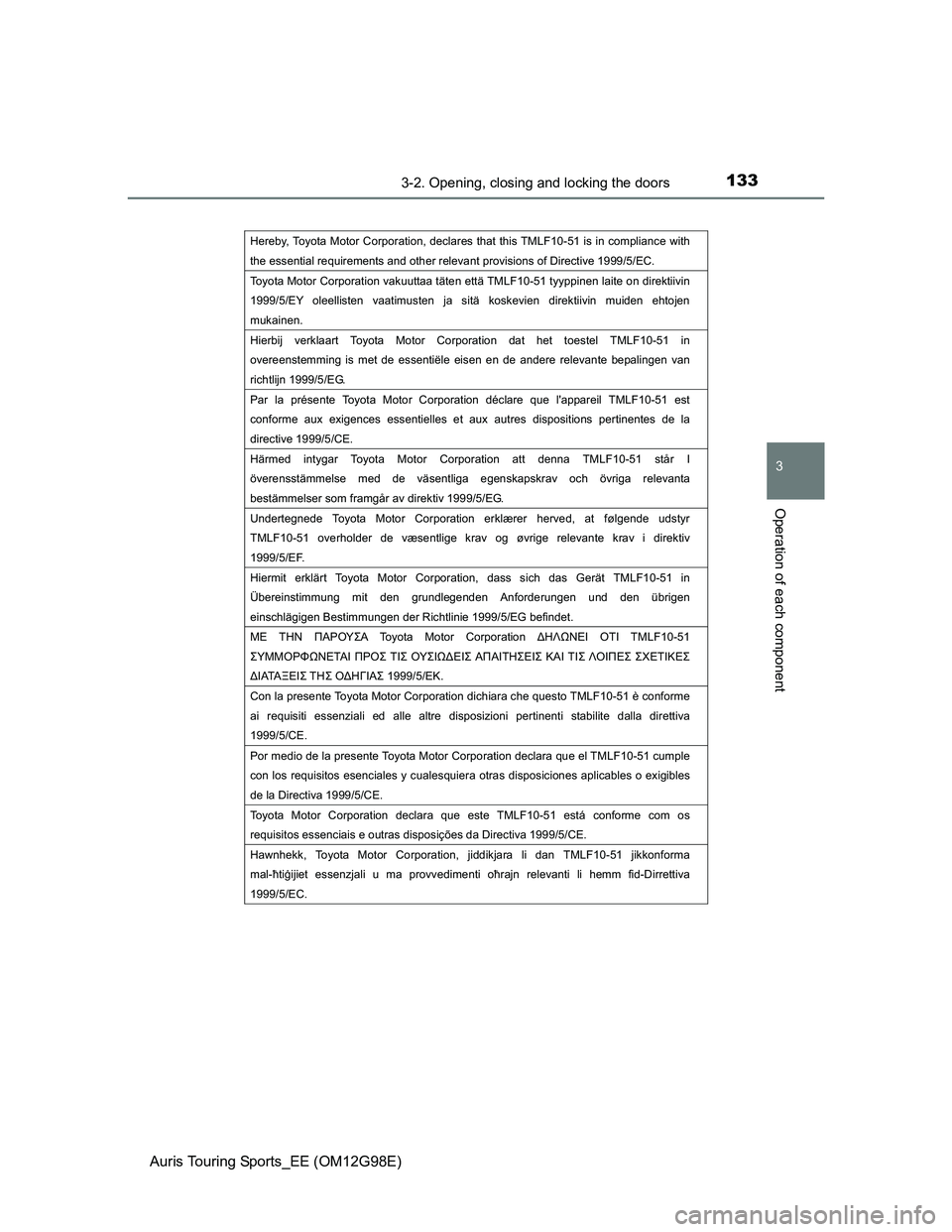

1333-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)
3
Operation of each component
Hereby, Toyota Motor Corporation, declares that this TMLF10-51 is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.:w
Toyota Motor Corporation vakuuttaa täten että TMLF10-51 tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.:w
Hierbij verklaart Toyota Motor Corporation dat het toestel TMLF10-51 in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG.:w
Par la présente Toyota Motor Corporation déclare que l'appareil TMLF10-51 est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.:w
Härmed intygar Toyota Motor Corporation att denna TMLF10-51 står I
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/EG.
Undertegnede Toyota Motor Corporation erklærer herved, at følgende udstyr
TMLF10-51 overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Hiermit erklärt Toyota Motor Corporation, dass sich das Gerät TMLF10-51 in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.:w

ü

1343-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)
Käesolevaga kinnitab Toyota Motor Corporation seadme TMLF10-51 vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
Alulírott, Toyota Motor Corporation nyilatkozom, hogy a TMLF10-51 megfelel a
vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Toyota Motor Corporation týmto vyhlasuje, že TMLF10-51 sp

a základné požiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Toyota Motor Corporation tímto prohlašuje, že tento TMLF10-51 je ve shod
 se
základními požadavky a dalšími p
íslušnými ustanoveními sm
rnice 1999/5/ES.
Toyota Motor Corporation izjavlja, da je ta TMLF10-51 v skladu z bistvenimi zahtevami
in ostalimi relevantnimi doloþili direktive 1999/5/ES.
Šiuo Toyota Motor Corporation deklaruoja, kad šis TMLF10-51 atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Ar šo Toyota Motor Corporation deklar, ka TMLF10-51 atbilst Direkt
¯vas 1999/5/EK
b
Ìtiskaj
—m pras
¯b
—m un citiem ar to saist
¯tajiem noteikumiem.
Niniejszym Toyota Motor Corporation o
wiadcza,
*e TMLF10-51 jest zgodny z
zasadniczymi wymogami oraz pozostaáymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Hér með lýsir Toyota Motor Corporation yfir því að TMLF10-51 er í samræmi við
grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Toyota Motor Corporation erklærer herved at utstyret TMLF10-51 er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
C gZklhys_lh, Toyota Motor Corporation, ^_deZjbjZ, q_ TMLF10-51 _ \
kthl\_lkl\b_ ktk kts_kl\_gbl_ babkd\Zgby b ^jm]bl_ ijbeh`bfb jZaihj_^[b gZ
>bj_dlb\Z 1999/5/?K.
Prin prezenta, Toyota Motor Corporation, declar
 c
 aparatul TMLF10-51 este in
conformitate cu cerin
ele esen
iale úi cu alte prevederi pertinente ale Directivei
1999/5/CE.
Ovim, Toyota Motor Corporation, izjavljuje da ovaj TMLF10-51 je usklaÿen sa bitnim
zahtjevima i drugim relevantnim odredbama Direktive 1999/5/EC.
Nepermjet kesaj, Toyota Motor Corporation, deklaroj qe ky TMLF10-51 eshte ne pajtim
me kerkesat thelbesore dhe dispozitat e tjera perkatese te Direktives 1999/5/EC.

1353-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)
3
Operation of each component

Ovim Toyota Motor Corporation, izjavljuje da je TMLF10-51 u sklau s bitnim zahtjevima
i drugim relevantnim odredbama Direktive 1999/5/EC i Pravilnika o RiTT opremi (NN
25/2012).
Ovim, Toyota Motor Corporation, deklariše da je TMLF10-51 u skladu sa osnovnim
zahtevima i ostalim relevantnim odredbama Direktive 1999/5/EC.

1363-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)
CAUTION
Caution regarding interference with electronic devices
People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. (P. 119)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details on disabling the entry function.

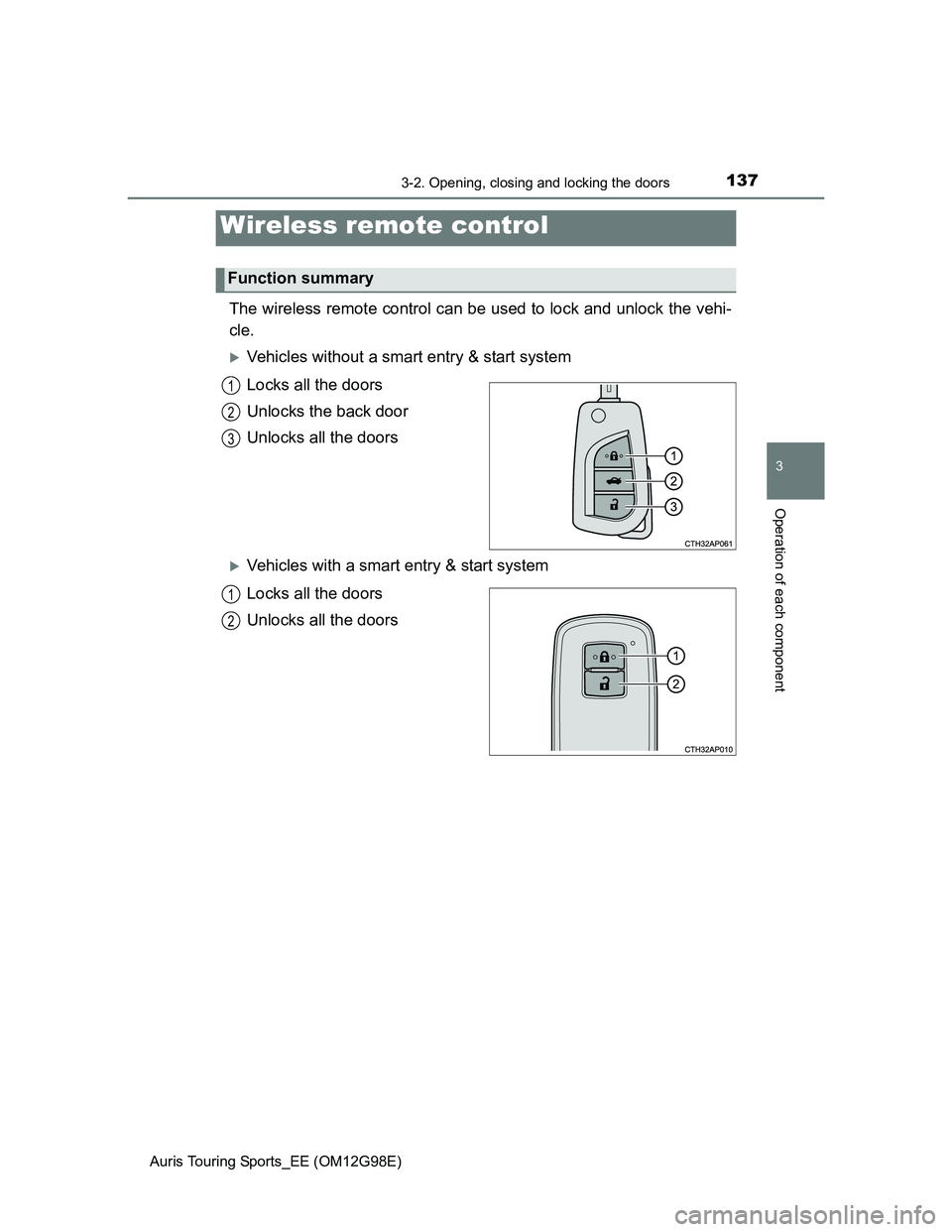

1373-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)
3
Operation of each component
The wireless remote control can be used to lock and unlock the vehi-
cle.
Vehicles without a smart entry & start system
Locks all the doors
Unlocks the back door
Unlocks all the doors
Vehicles with a smart entry & start system
Locks all the doors
Unlocks all the doors
Wireless remote control
Function summary
1
2
3
1
2

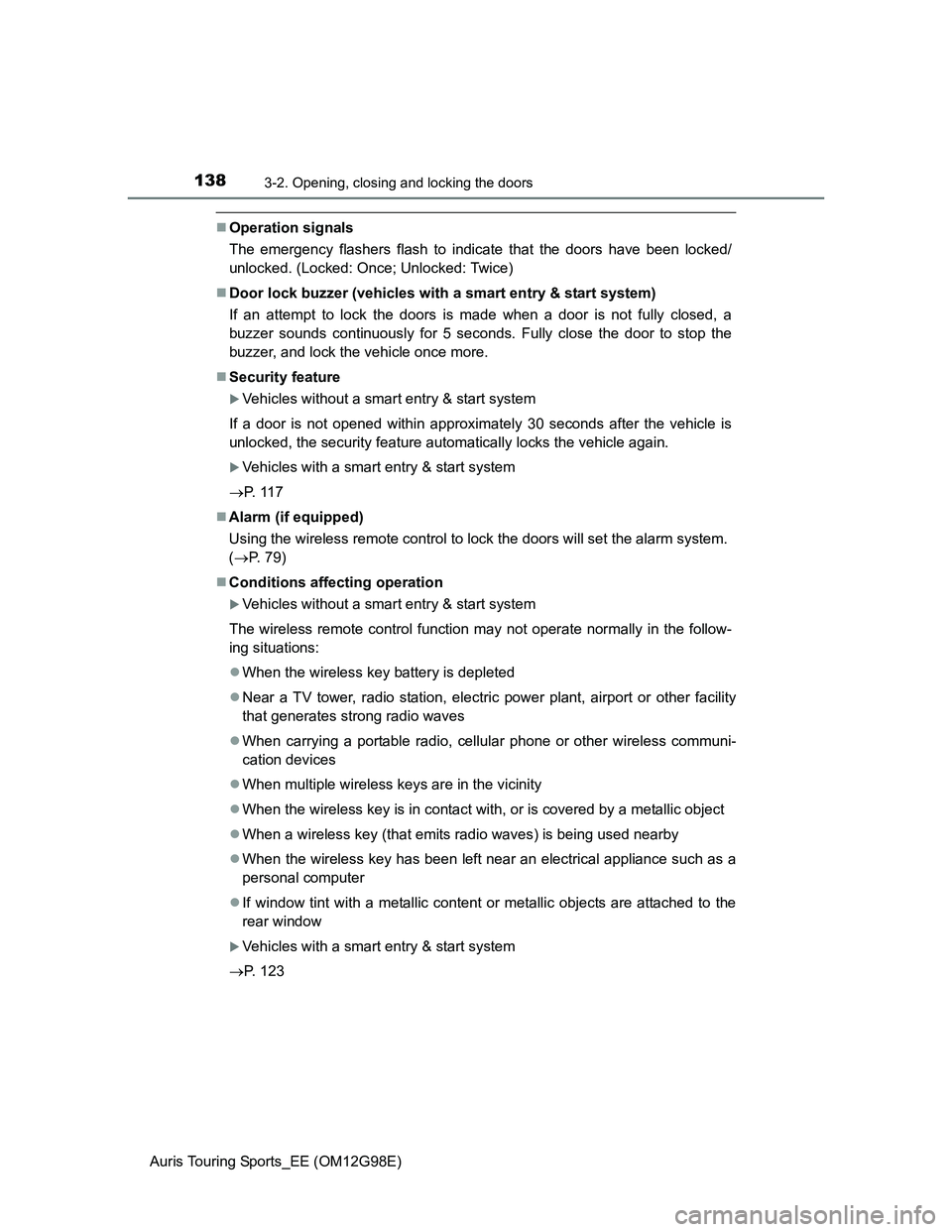

1383-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
Security feature
Vehicles without a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Vehicles with a smart entry & start system
P. 1 1 7
Alarm (if equipped)
Using the wireless remote control to lock the doors will set the alarm system.
(P. 79)
Conditions affecting operation
Vehicles without a smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
When the wireless key battery is depleted
Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
When carrying a portable radio, cellular phone or other wireless communi-
cation devices
When multiple wireless keys are in the vicinity
When the wireless key is in contact with, or is covered by a metallic object
When a wireless key (that emits radio waves) is being used nearby
When the wireless key has been left near an electrical appliance such as a
personal computer
If window tint with a metallic content or metallic objects are attached to the
rear window
Vehicles with a smart entry & start system
P. 123

1393-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)
3
Operation of each component
If the wireless remote control does not operate properly (vehicles with a
smart entry & start system)
Locking and unlocking the doors: Use the mechanical key. (P. 567)
Key battery depletion
Vehicles without a smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 443)
Vehicles with a smart entry & start system
P. 127
When the key battery is fully depleted
P. 443
Confirmation of the registered key number (vehicles with a smart entry &
start system)
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 604)

1403-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G98E)Certification for the wireless remote control
Vehicles with a smart entry & start system
P. 128
Vehicles without a smart entry & start system
