TOYOTA AURIS 2015 Owners Manual (in English)

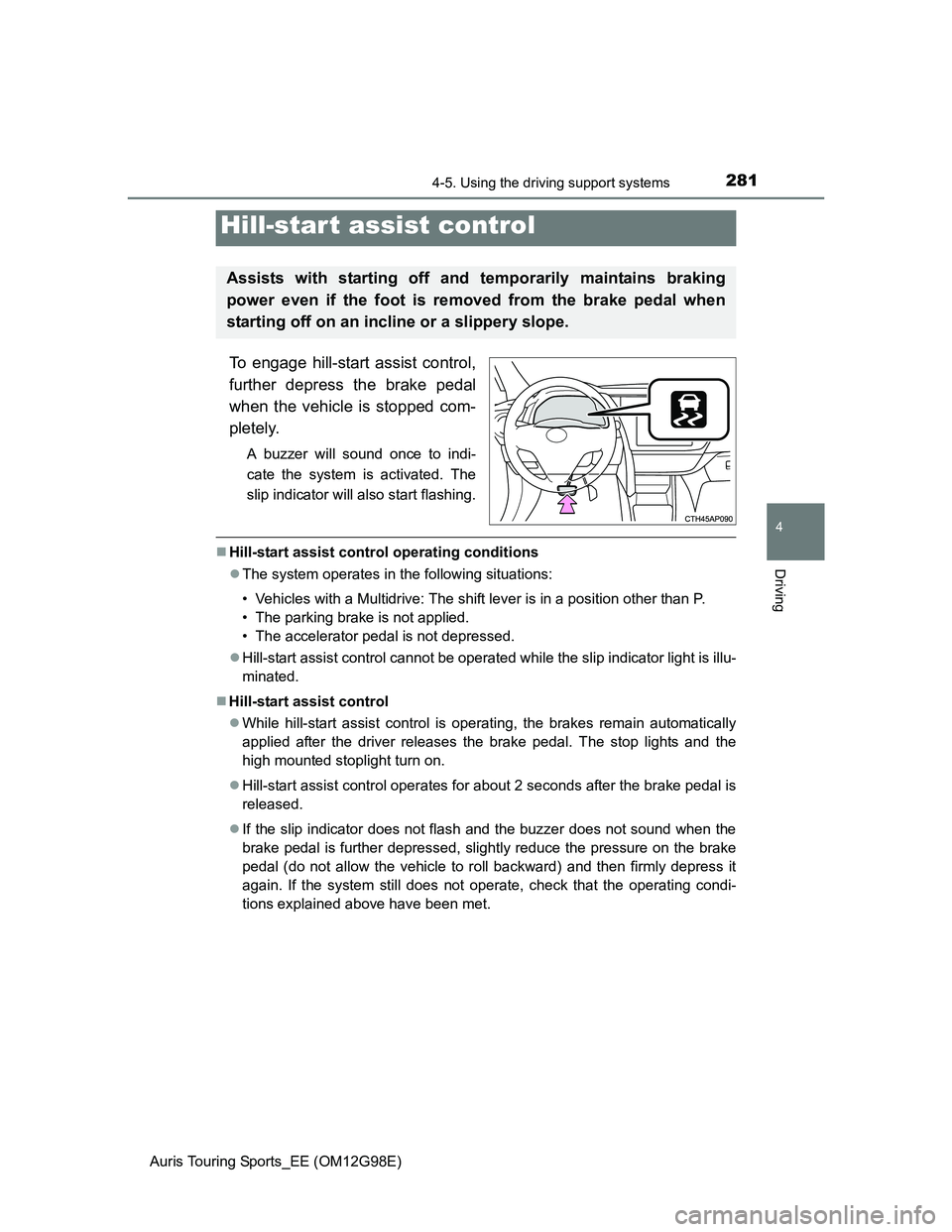

2814-5. Using the driving support systems
Auris Touring Sports_EE (OM12G98E)
4
Driving
To engage hill-start assist control,
further depress the brake pedal
when the vehicle is stopped com-
pletely.
A buzzer will sound once to indi-
cate the system is activated. The
slip indicator will also start flashing.
Hill-start assist control operating conditions
The system operates in the following situations:
• Vehicles with a Multidrive: The shift lever is in a position other than P.
• The parking brake is not applied.
• The accelerator pedal is not depressed.
Hill-start assist control cannot be operated while the slip indicator light is illu-
minated.
Hill-start assist control
While hill-start assist control is operating, the brakes remain automatically
applied after the driver releases the brake pedal. The stop lights and the
high mounted stoplight turn on.
Hill-start assist control operates for about 2 seconds after the brake pedal is
released.
If the slip indicator does not flash and the buzzer does not sound when the
brake pedal is further depressed, slightly reduce the pressure on the brake
pedal (do not allow the vehicle to roll backward) and then firmly depress it
again. If the system still does not operate, check that the operating condi-
tions explained above have been met.
Hill-start assist control
Assists with starting off and temporarily maintains braking
power even if the foot is removed from the brake pedal when
starting off on an incline or a slippery slope.

2824-5. Using the driving support systems

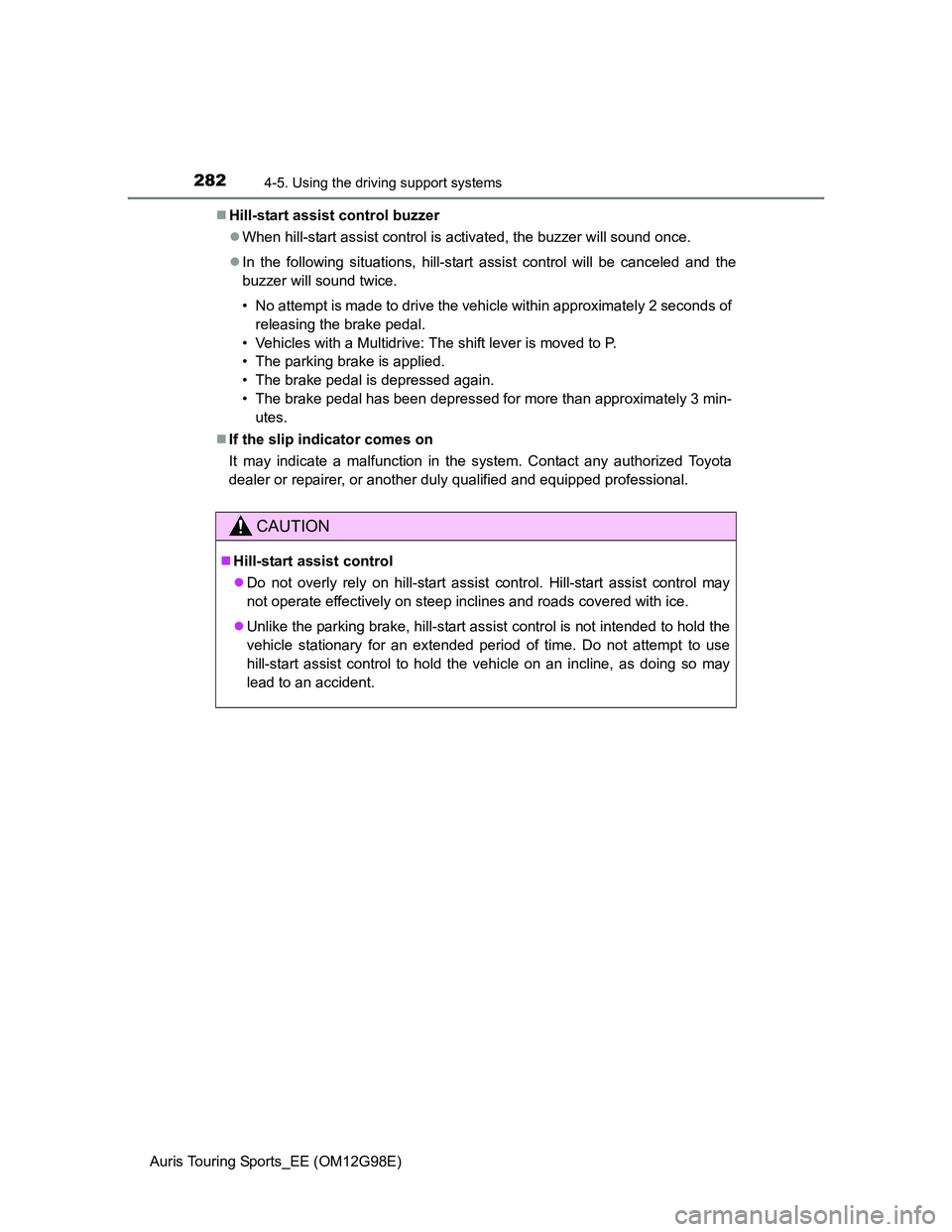

Auris Touring Sports_EE (OM12G98E)Hill-start assist control buzzer
When hill-start assist control is activated, the buzzer will sound once.
In the following situations, hill-start assist control will be canceled and the
buzzer will sound twice.
• No attempt is made to drive the vehicle within approximately 2 seconds of
releasing the brake pedal.
• Vehicles with a Multidrive: The shift lever is moved to P.
• The parking brake is applied.
• The brake pedal is depressed again.
• The brake pedal has been depressed for more than approximately 3 min-
utes.
If the slip indicator comes on
It may indicate a malfunction in the system. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
CAUTION
Hill-start assist control
Do not overly rely on hill-start assist control. Hill-start assist control may
not operate effectively on steep inclines and roads covered with ice.
Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.

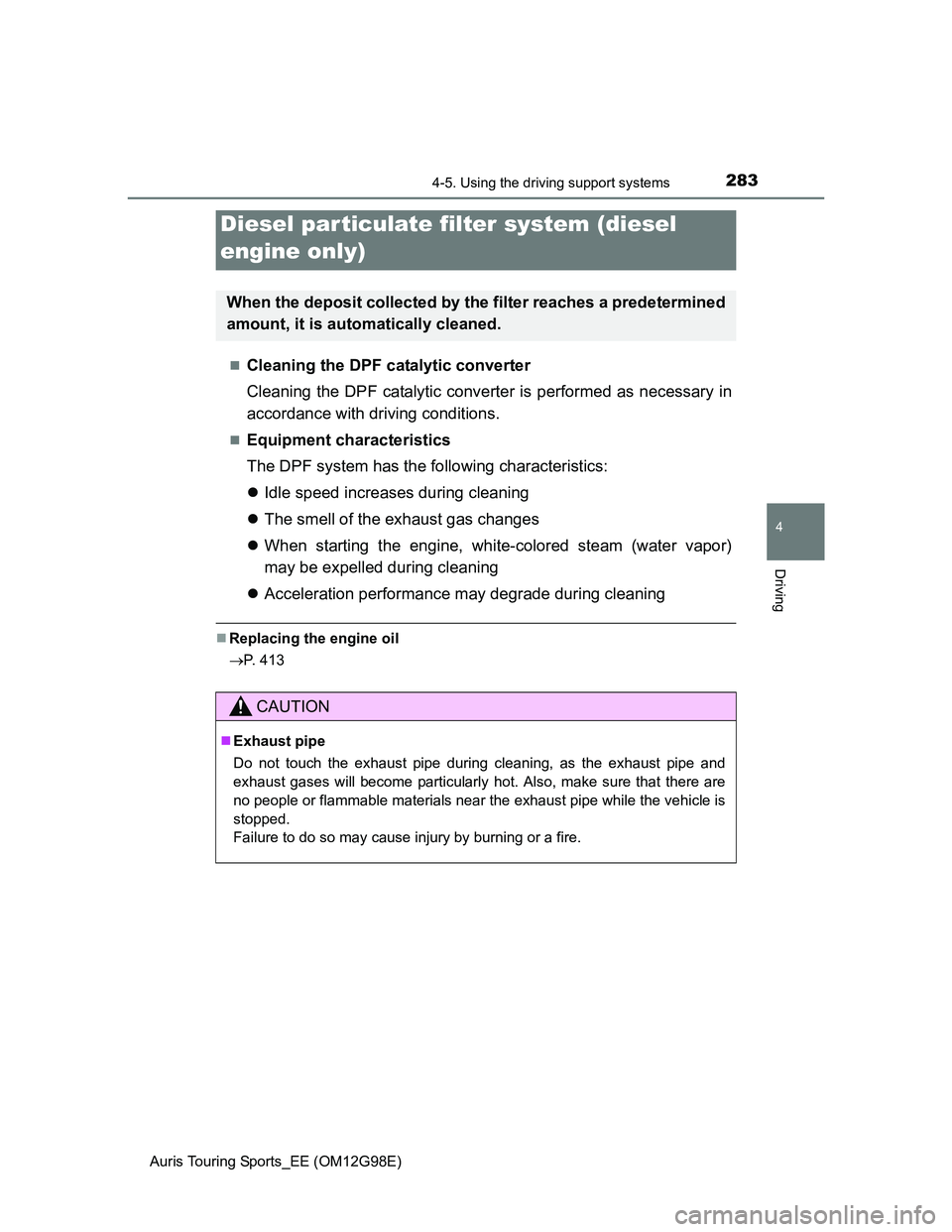

2834-5. Using the driving support systems
Auris Touring Sports_EE (OM12G98E)
4
Driving
Cleaning the DPF catalytic converter
Cleaning the DPF catalytic converter is performed as necessary in
accordance with driving conditions.
Equipment characteristics
The DPF system has the following characteristics:
Idle speed increases during cleaning
The smell of the exhaust gas changes
When starting the engine, white-colored steam (water vapor)
may be expelled during cleaning
Acceleration performance may degrade during cleaning
Replacing the engine oil
P. 413
Diesel particulate filter system (diesel
engine only)
When the deposit collected by the filter reaches a predetermined
amount, it is automatically cleaned.
CAUTION
Exhaust pipe
Do not touch the exhaust pipe during cleaning, as the exhaust pipe and
exhaust gases will become particularly hot. Also, make sure that there are
no people or flammable materials near the exhaust pipe while the vehicle is
stopped.
Failure to do so may cause injury by burning or a fire.

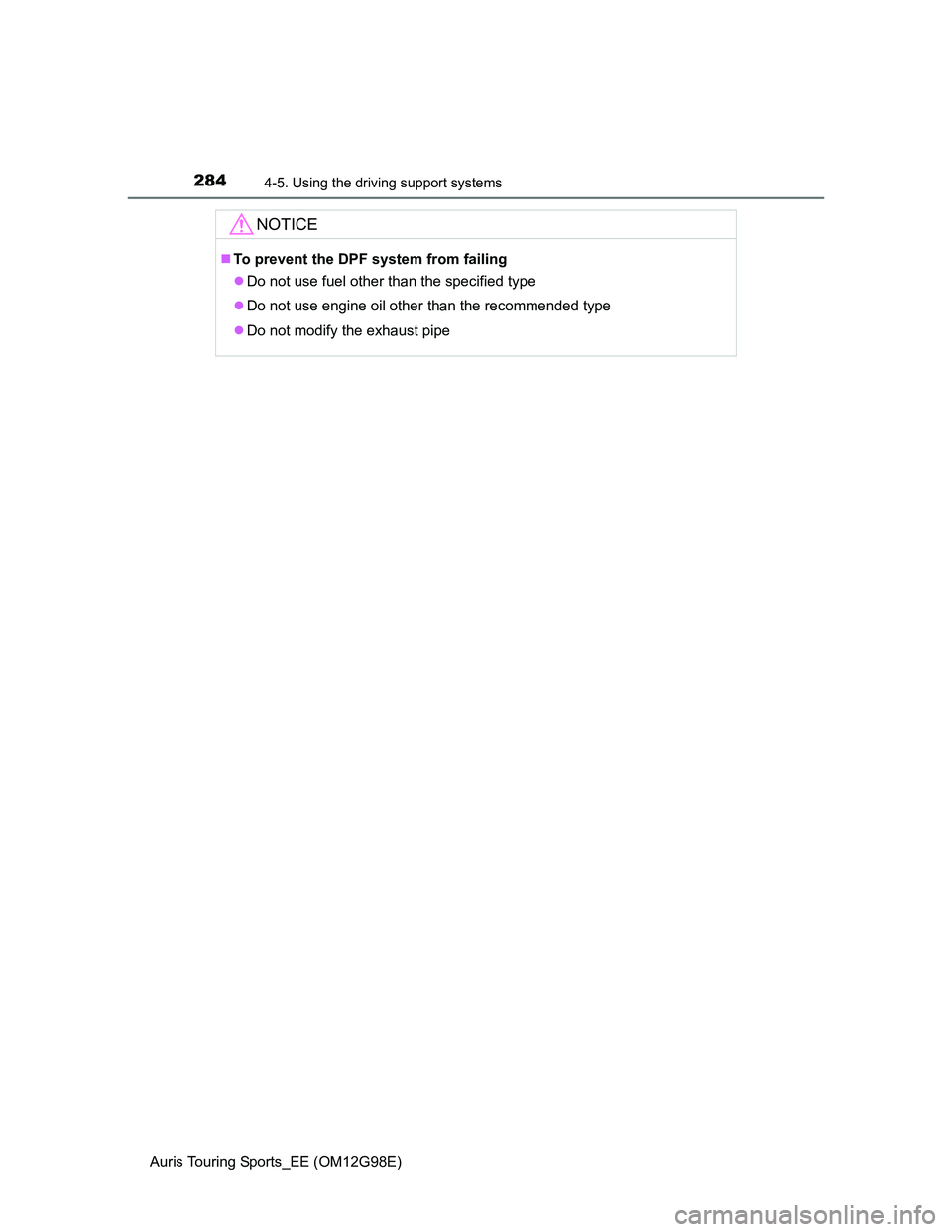

2844-5. Using the driving support systems
Auris Touring Sports_EE (OM12G98E)
NOTICE
To prevent the DPF system from failing
Do not use fuel other than the specified type
Do not use engine oil other than the recommended type
Do not modify the exhaust pipe

285
Auris Touring Sports_EE (OM12G98E)
4
Driving
4-6. Driving tips
Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
Have a service technician inspect the condition of the battery.
Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Winter driving tips
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter

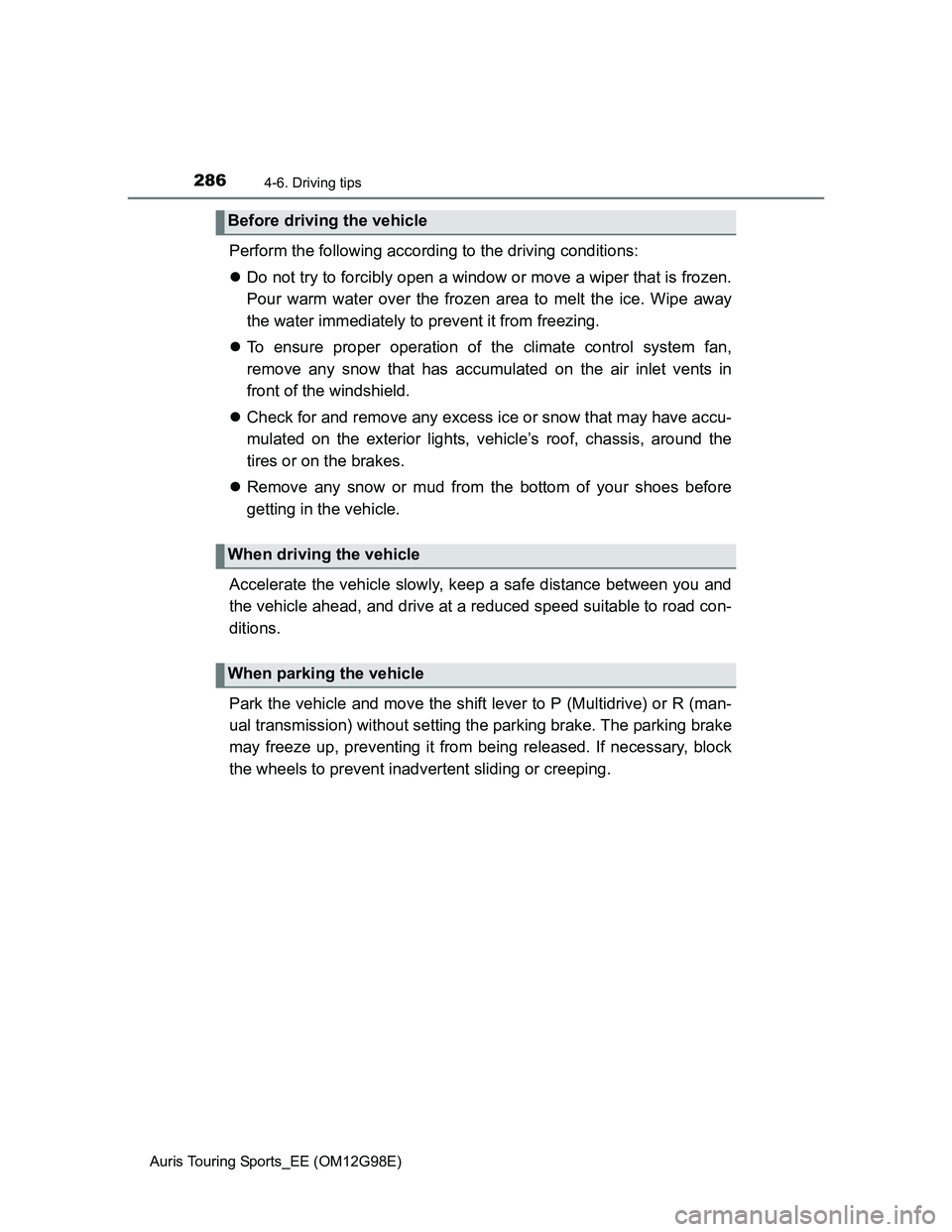

2864-6. Driving tips
Auris Touring Sports_EE (OM12G98E)
Perform the following according to the driving conditions:
Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
Park the vehicle and move the shift lever to P (Multidrive) or R (man-
ual transmission) without setting the parking brake. The parking brake
may freeze up, preventing it from being released. If necessary, block
the wheels to prevent inadvertent sliding or creeping.
Before driving the vehicle
When driving the vehicle
When parking the vehicle

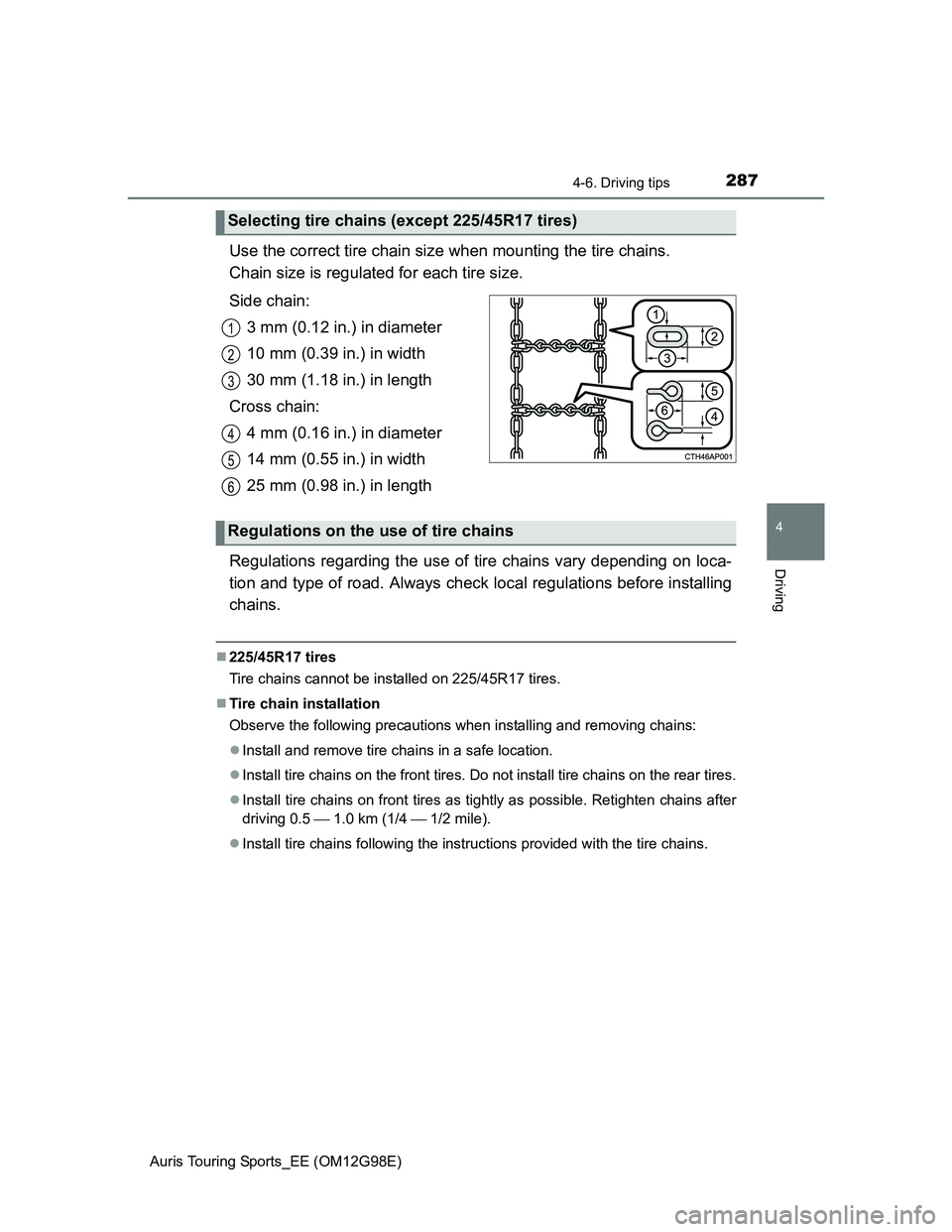

2874-6. Driving tips
Auris Touring Sports_EE (OM12G98E)
4
Driving
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain:
3 mm (0.12 in.) in diameter
10 mm (0.39 in.) in width
30 mm (1.18 in.) in length
Cross chain:
4 mm (0.16 in.) in diameter
14 mm (0.55 in.) in width
25 mm (0.98 in.) in length
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
225/45R17 tires
Tire chains cannot be installed on 225/45R17 tires.
Tire chain installation
Observe the following precautions when installing and removing chains:
Install and remove tire chains in a safe location.
Install tire chains on the front tires. Do not install tire chains on the rear tires.
Install tire chains on front tires as tightly as possible. Retighten chains after
driving 0.5  1.0 km (1/4  1/2 mile).
Install tire chains following the instructions provided with the tire chains.
Selecting tire chains (except 225/45R17 tires)
1
2
3
4
5
6
Regulations on the use of tire chains

2884-6. Driving tips
Auris Touring Sports_EE (OM12G98E)
CAUTION
Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
Use tires of the specified size.
Maintain the recommended level of air pressure.
Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
Use snow tires on all, not just some wheels.
Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
Avoid driving on bumpy road surfaces or over potholes.
Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
NOTICE
Repairing or replacing snow tires (vehicles with a tire pressure warn-
ing system)
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
Fitting tire chains (vehicles with a tire pressure warning system)
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

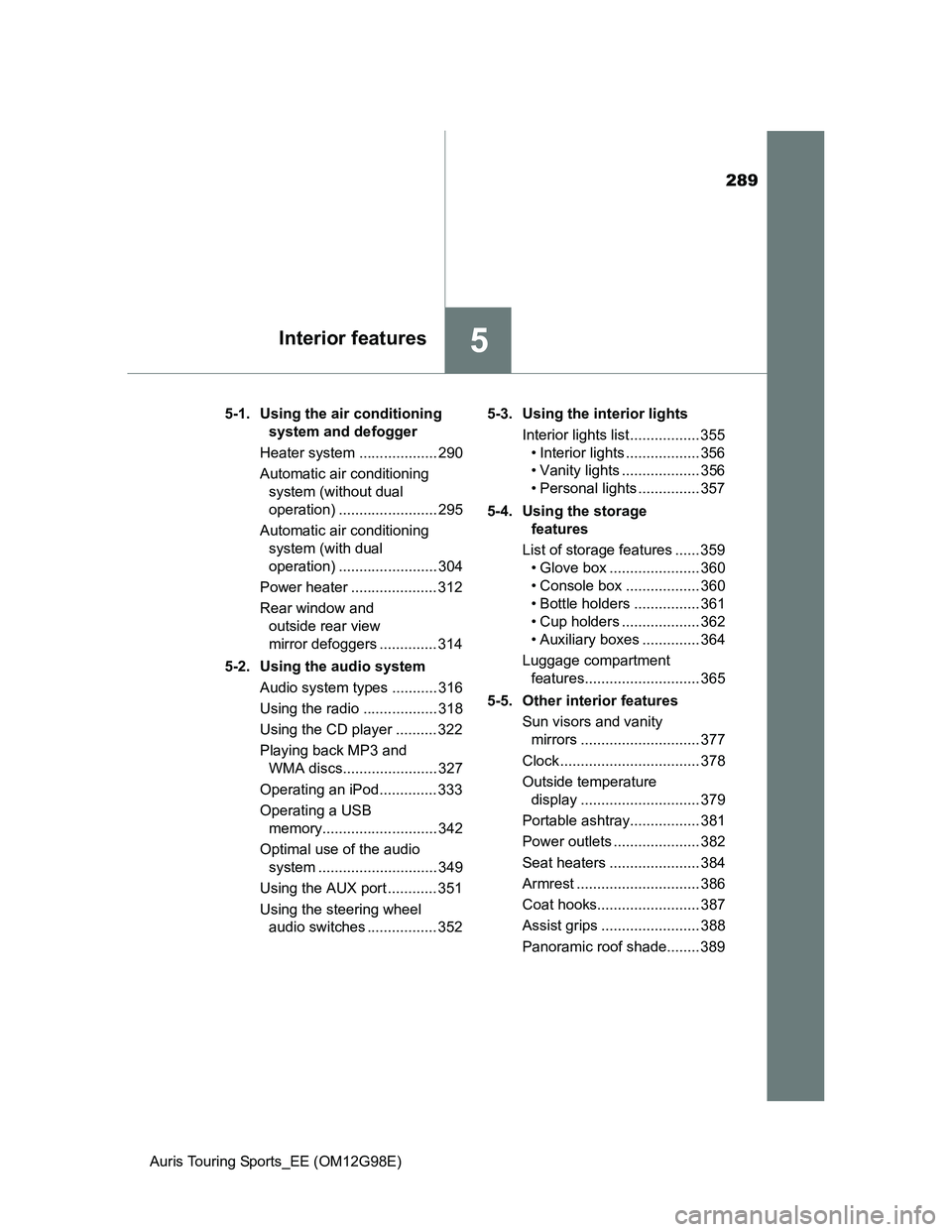

289
5Interior features
Auris Touring Sports_EE (OM12G98E)5-1. Using the air conditioning
system and defogger
Heater system ................... 290
Automatic air conditioning
system (without dual
operation) ........................ 295
Automatic air conditioning
system (with dual
operation) ........................ 304
Power heater ..................... 312
Rear window and
outside rear view
mirror defoggers .............. 314
5-2. Using the audio system
Audio system types ........... 316
Using the radio .................. 318
Using the CD player .......... 322
Playing back MP3 and
WMA discs....................... 327
Operating an iPod.............. 333
Operating a USB
memory............................ 342
Optimal use of the audio
system ............................. 349
Using the AUX port ............ 351
Using the steering wheel
audio switches ................. 3525-3. Using the interior lights
Interior lights list ................. 355
• Interior lights .................. 356
• Vanity lights ................... 356
• Personal lights ............... 357
5-4. Using the storage
features
List of storage features ...... 359
• Glove box ...................... 360
• Console box .................. 360
• Bottle holders ................ 361
• Cup holders ................... 362
• Auxiliary boxes .............. 364
Luggage compartment
features............................ 365
5-5. Other interior features
Sun visors and vanity
mirrors ............................. 377
Clock .................................. 378
Outside temperature
display ............................. 379
Portable ashtray................. 381
Power outlets ..................... 382
Seat heaters ...................... 384
Armrest .............................. 386
Coat hooks......................... 387
Assist grips ........................ 388
Panoramic roof shade........ 389

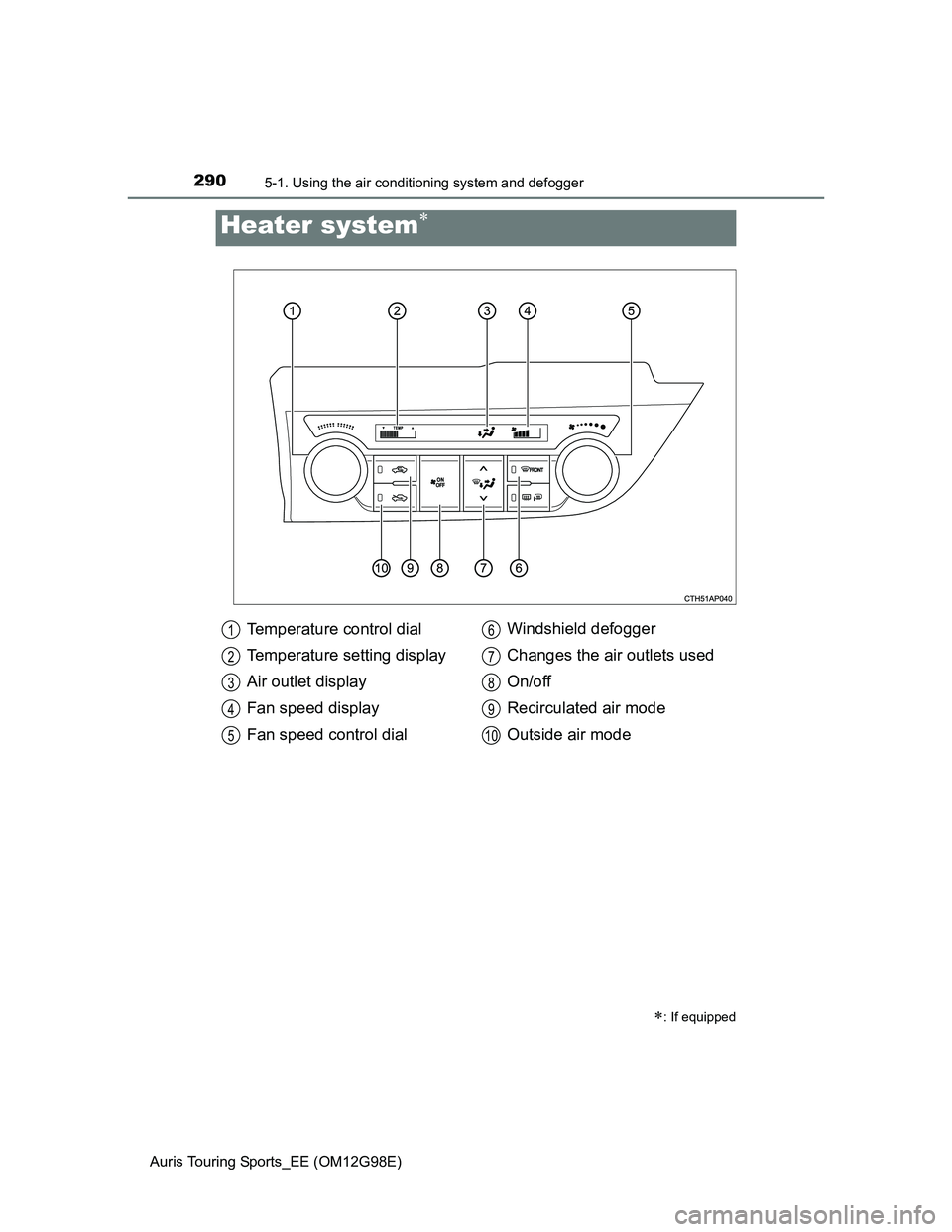

290
Auris Touring Sports_EE (OM12G98E)
5-1. Using the air conditioning system and defogger
Heater system
: If equipped
Temperature control dial
Temperature setting display
Air outlet display
Fan speed display
Fan speed control dialWindshield defogger
Changes the air outlets used
On/off
Recirculated air mode
Outside air mode1
2
3
4
5
6
7
8
9
10
