TOYOTA AURIS 2015 Owners Manual (in English)

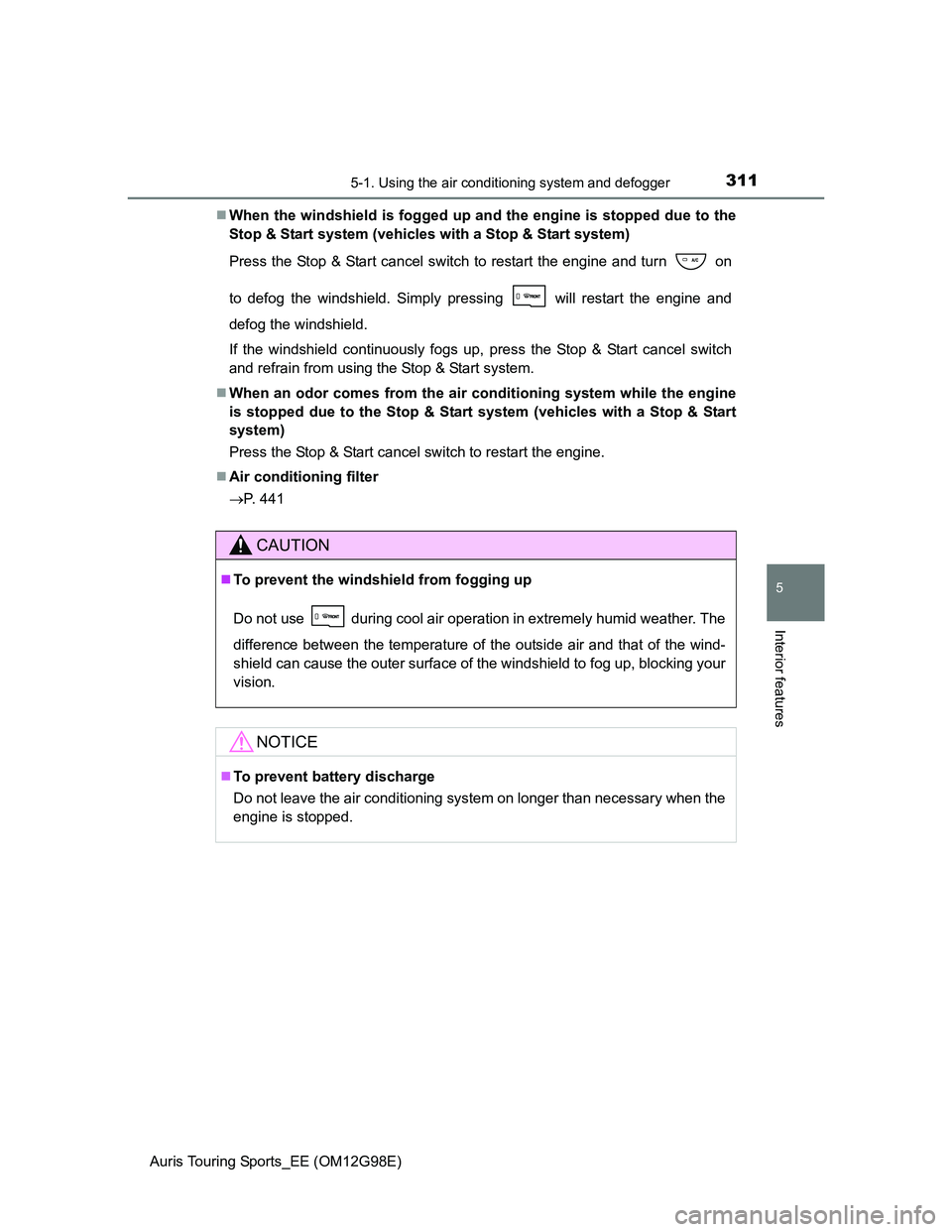

3115-1. Using the air conditioning system and defogger
Auris Touring Sports_EE (OM12G98E)
5
Interior features
When the windshield is fogged up and the engine is stopped due to the
Stop & Start system (vehicles with a Stop & Start system)
Press the Stop & Start cancel switch to restart the engine and turn on
to defog the windshield. Simply pressing will restart the engine and
defog the windshield.
If the windshield continuously fogs up, press the Stop & Start cancel switch
and refrain from using the Stop & Start system.
When an odor comes from the air conditioning system while the engine
is stopped due to the Stop & Start system (vehicles with a Stop & Start
system)
Press the Stop & Start cancel switch to restart the engine.
Air conditioning filter
P. 441
CAUTION
To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

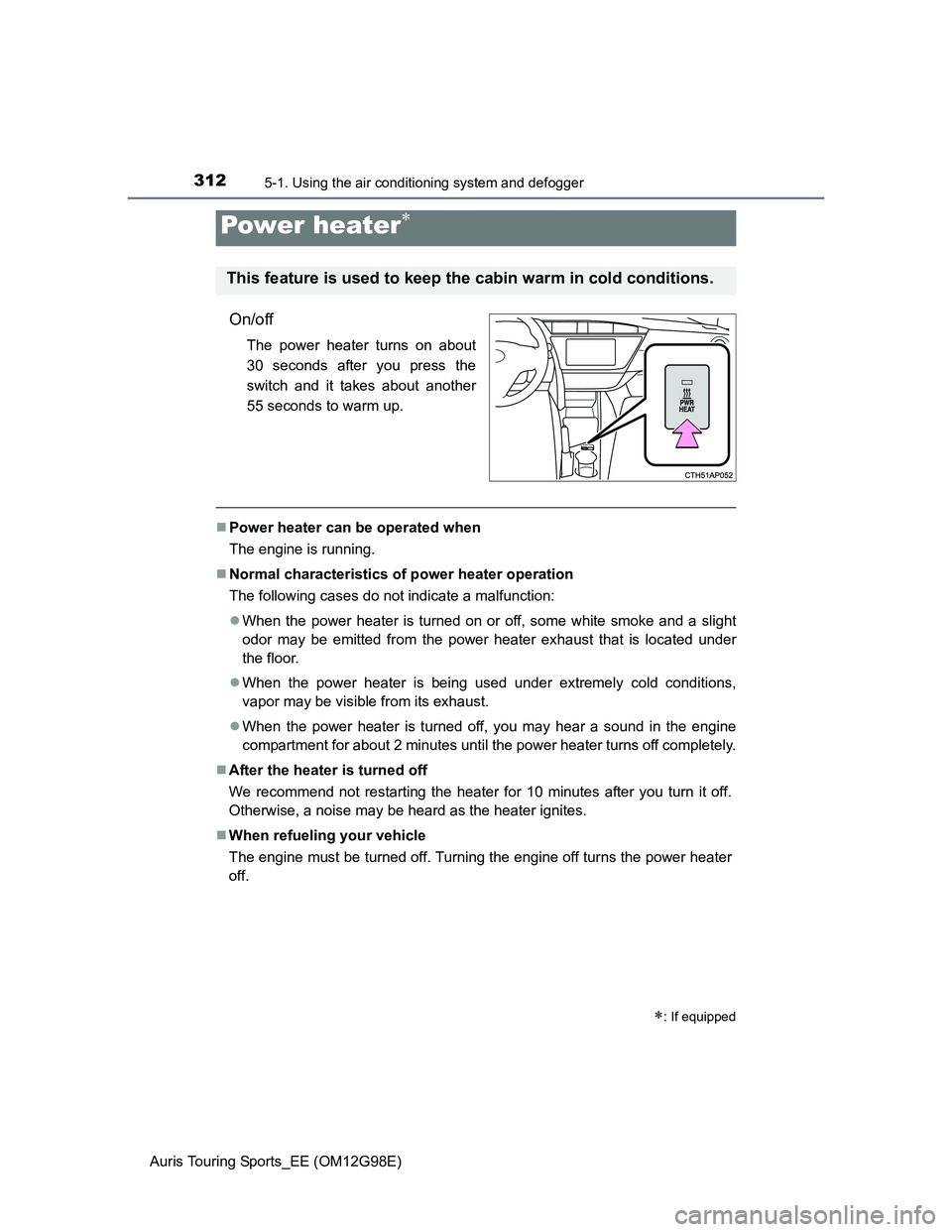

3125-1. Using the air conditioning system and defogger
Auris Touring Sports_EE (OM12G98E)
On/off
The power heater turns on about
30 seconds after you press the
switch and it takes about another
55 seconds to warm up.
Power heater can be operated when
The engine is running.
Normal characteristics of power heater operation
The following cases do not indicate a malfunction:
When the power heater is turned on or off, some white smoke and a slight
odor may be emitted from the power heater exhaust that is located under
the floor.
When the power heater is being used under extremely cold conditions,
vapor may be visible from its exhaust.
When the power heater is turned off, you may hear a sound in the engine
compartment for about 2 minutes until the power heater turns off completely.
After the heater is turned off
We recommend not restarting the heater for 10 minutes after you turn it off.
Otherwise, a noise may be heard as the heater ignites.
When refueling your vehicle
The engine must be turned off. Turning the engine off turns the power heater
off.
Power heater
: If equipped
This feature is used to keep the cabin warm in cold conditions.

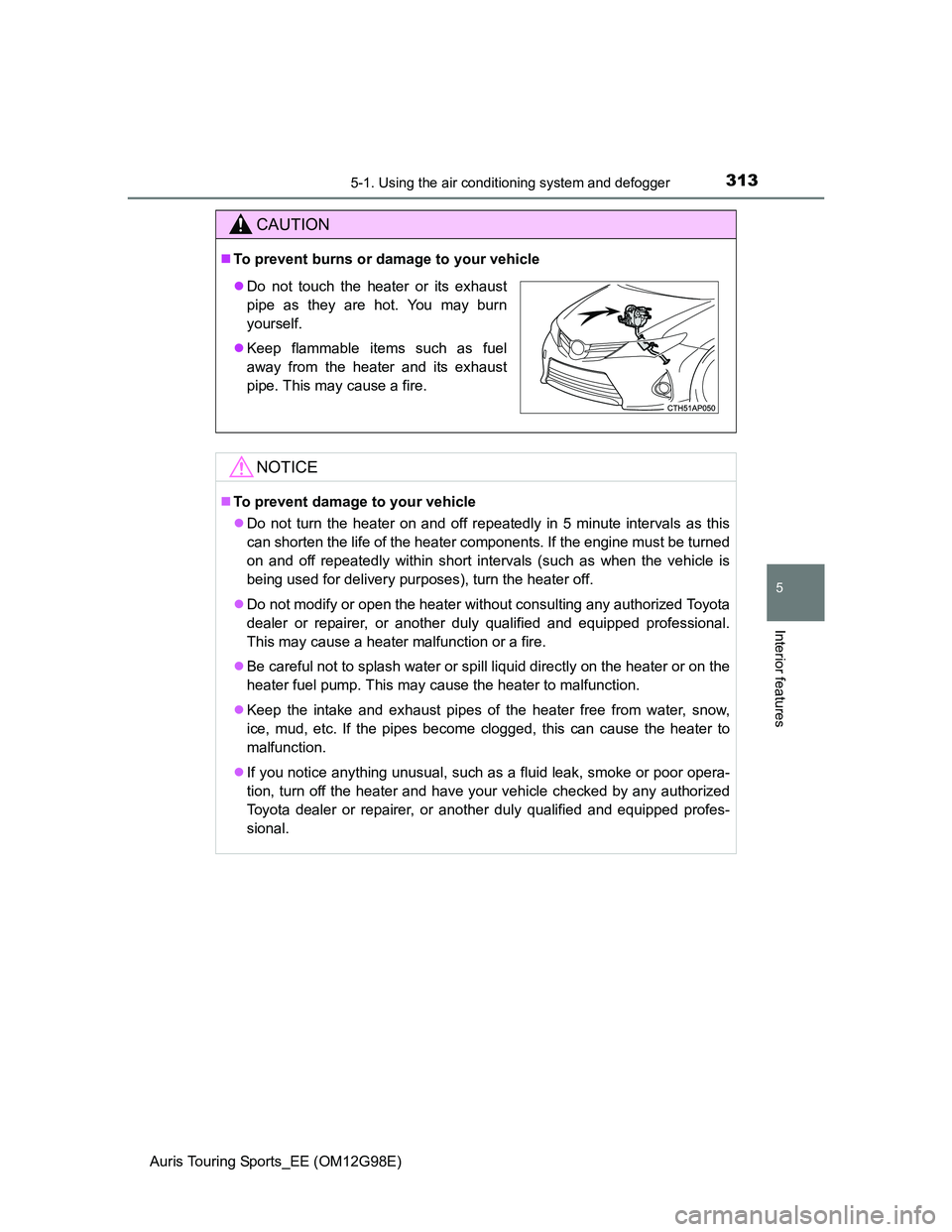

3135-1. Using the air conditioning system and defogger
Auris Touring Sports_EE (OM12G98E)
5
Interior features
CAUTION
To prevent burns or damage to your vehicle
NOTICE
To prevent damage to your vehicle
Do not turn the heater on and off repeatedly in 5 minute intervals as this
can shorten the life of the heater components. If the engine must be turned
on and off repeatedly within short intervals (such as when the vehicle is
being used for delivery purposes), turn the heater off.
Do not modify or open the heater without consulting any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
This may cause a heater malfunction or a fire.
Be careful not to splash water or spill liquid directly on the heater or on the
heater fuel pump. This may cause the heater to malfunction.
Keep the intake and exhaust pipes of the heater free from water, snow,
ice, mud, etc. If the pipes become clogged, this can cause the heater to
malfunction.
If you notice anything unusual, such as a fluid leak, smoke or poor opera-
tion, turn off the heater and have your vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
Do not touch the heater or its exhaust
pipe as they are hot. You may burn
yourself.
Keep flammable items such as fuel
away from the heater and its exhaust
pipe. This may cause a fire.

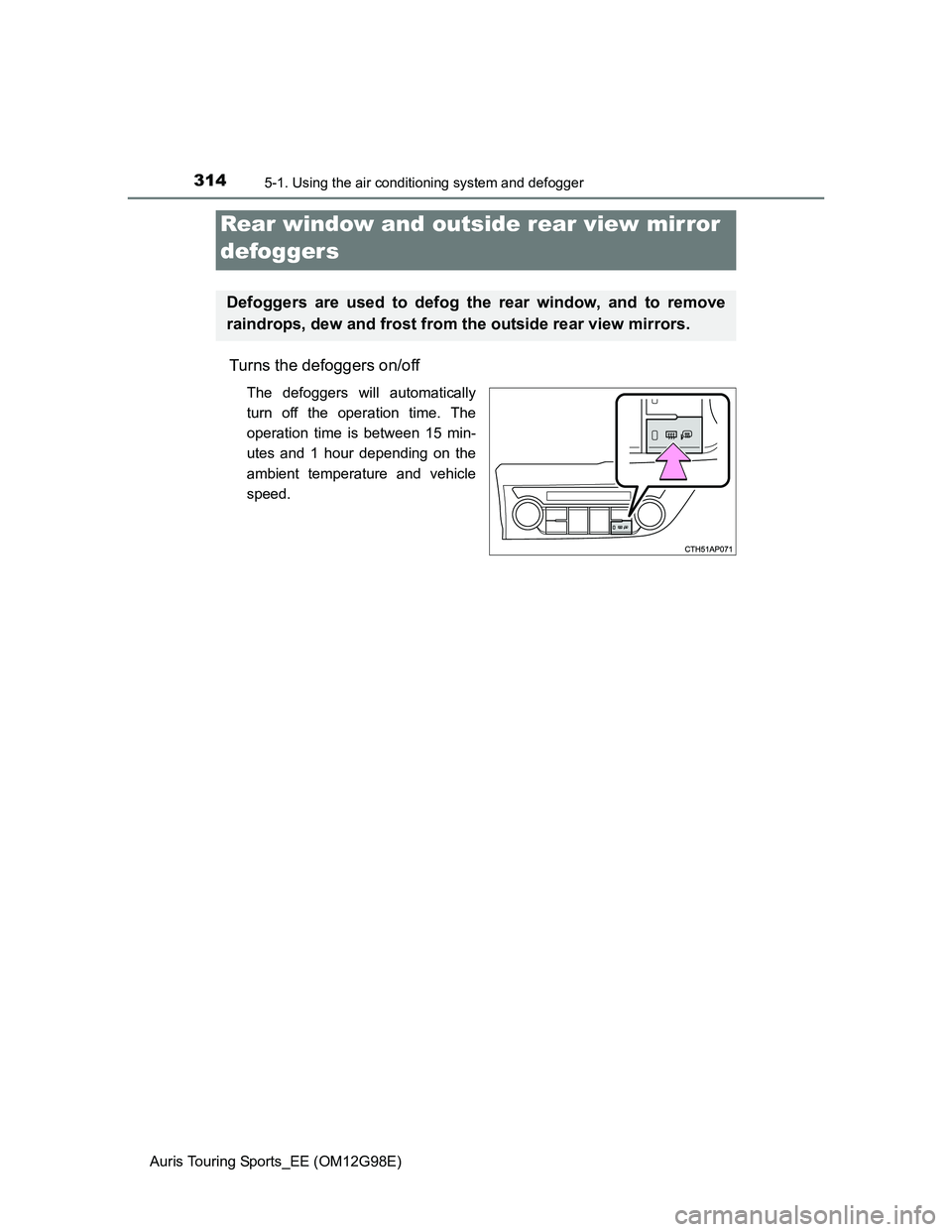

3145-1. Using the air conditioning system and defogger
Auris Touring Sports_EE (OM12G98E)
Turns the defoggers on/off
The defoggers will automatically
turn off the operation time. The
operation time is between 15 min-
utes and 1 hour depending on the
ambient temperature and vehicle
speed.
Rear window and outside rear view mirror
defoggers
Defoggers are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors.

3155-1. Using the air conditioning system and defogger
Auris Touring Sports_EE (OM12G98E)
5
Interior features
The defoggers can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
Outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.

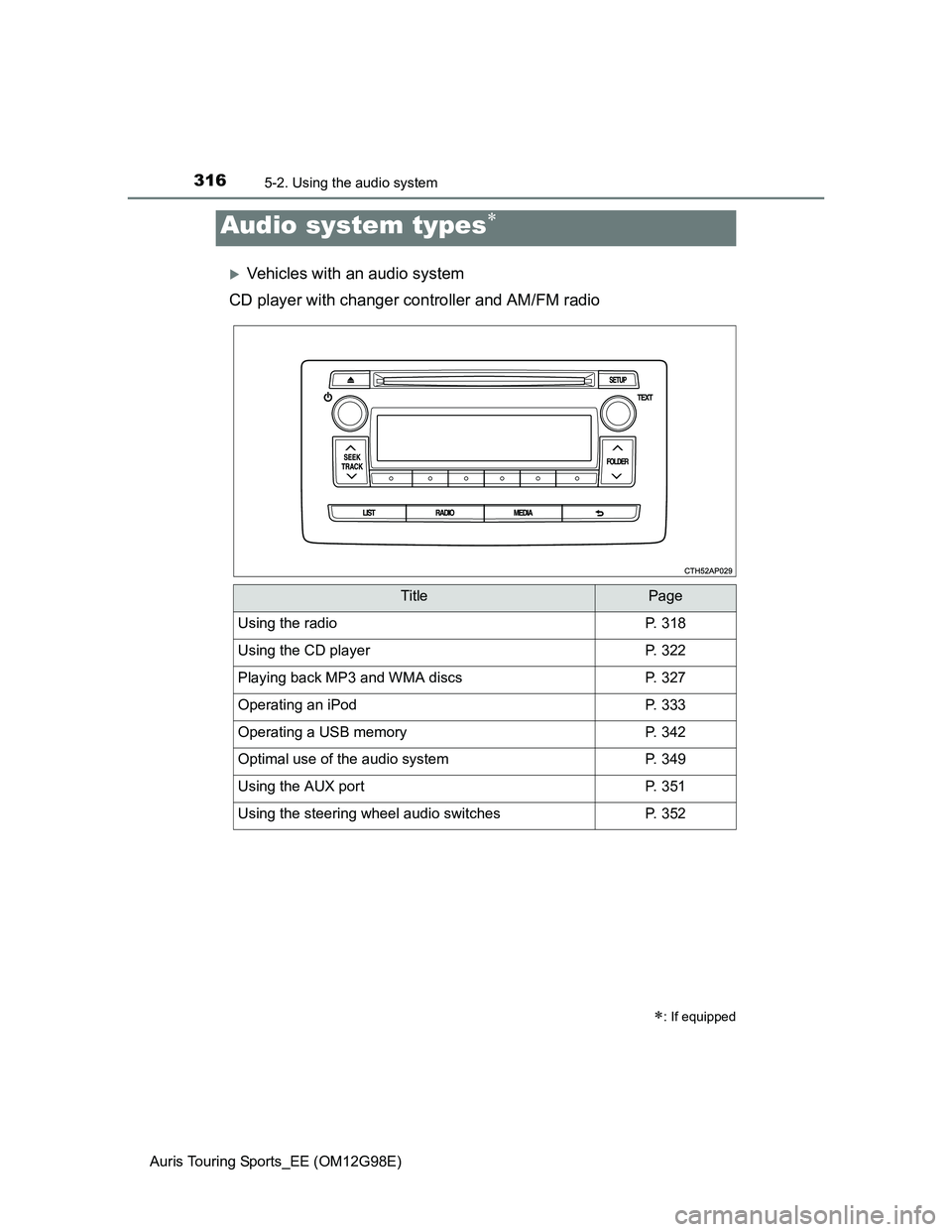

316
Auris Touring Sports_EE (OM12G98E)
5-2. Using the audio system
Vehicles with an audio system
CD player with changer controller and AM/FM radio
Audio system types
: If equipped
TitlePage
Using the radioP. 318
Using the CD playerP. 322
Playing back MP3 and WMA discsP. 327
Operating an iPodP. 333
Operating a USB memoryP. 342
Optimal use of the audio systemP. 349
Using the AUX portP. 351
Using the steering wheel audio switchesP. 352

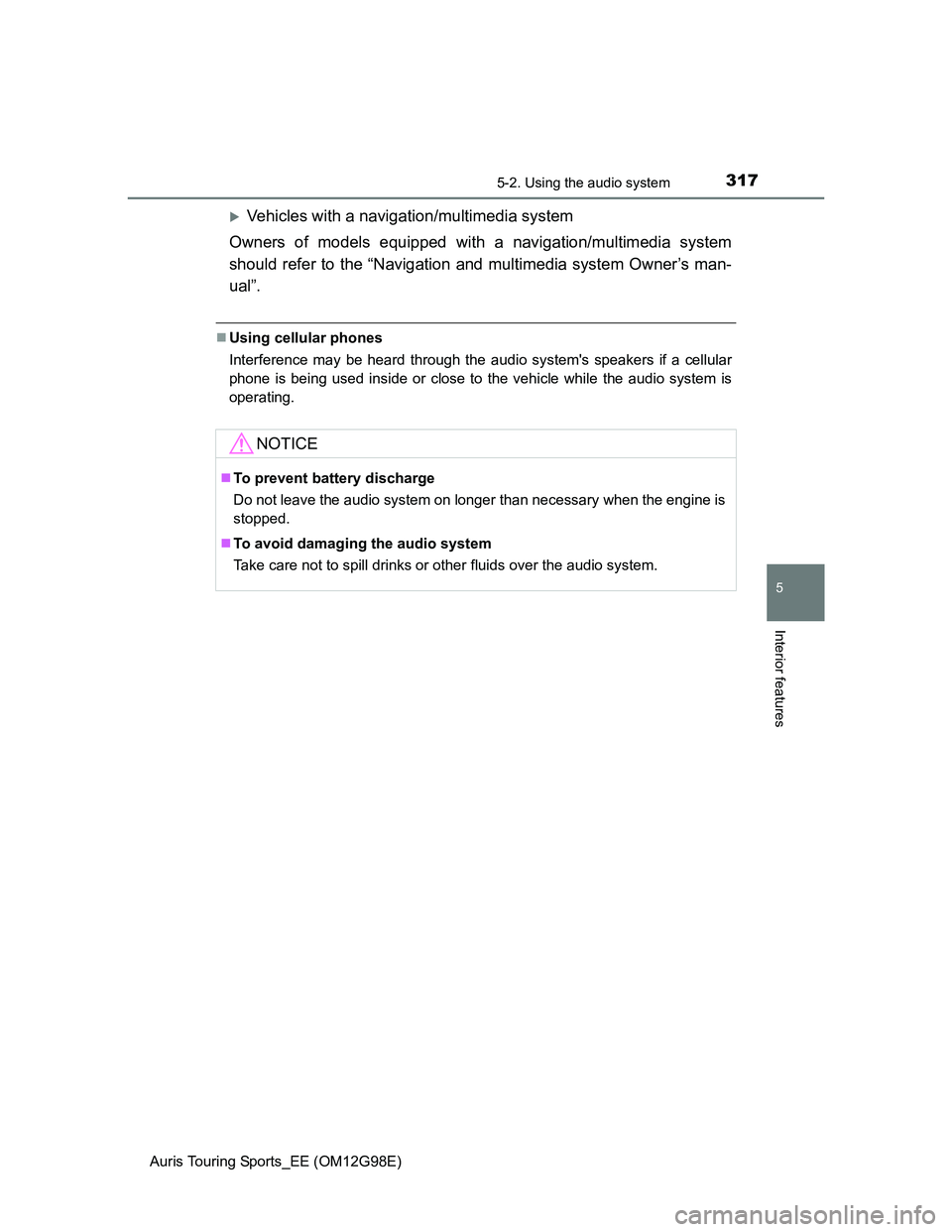

3175-2. Using the audio system
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Vehicles with a navigation/multimedia system
Owners of models equipped with a navigation/multimedia system
should refer to the “Navigation and multimedia system Owner’s man-
ual”.
Using cellular phones
Interference may be heard through the audio system's speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is
stopped.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

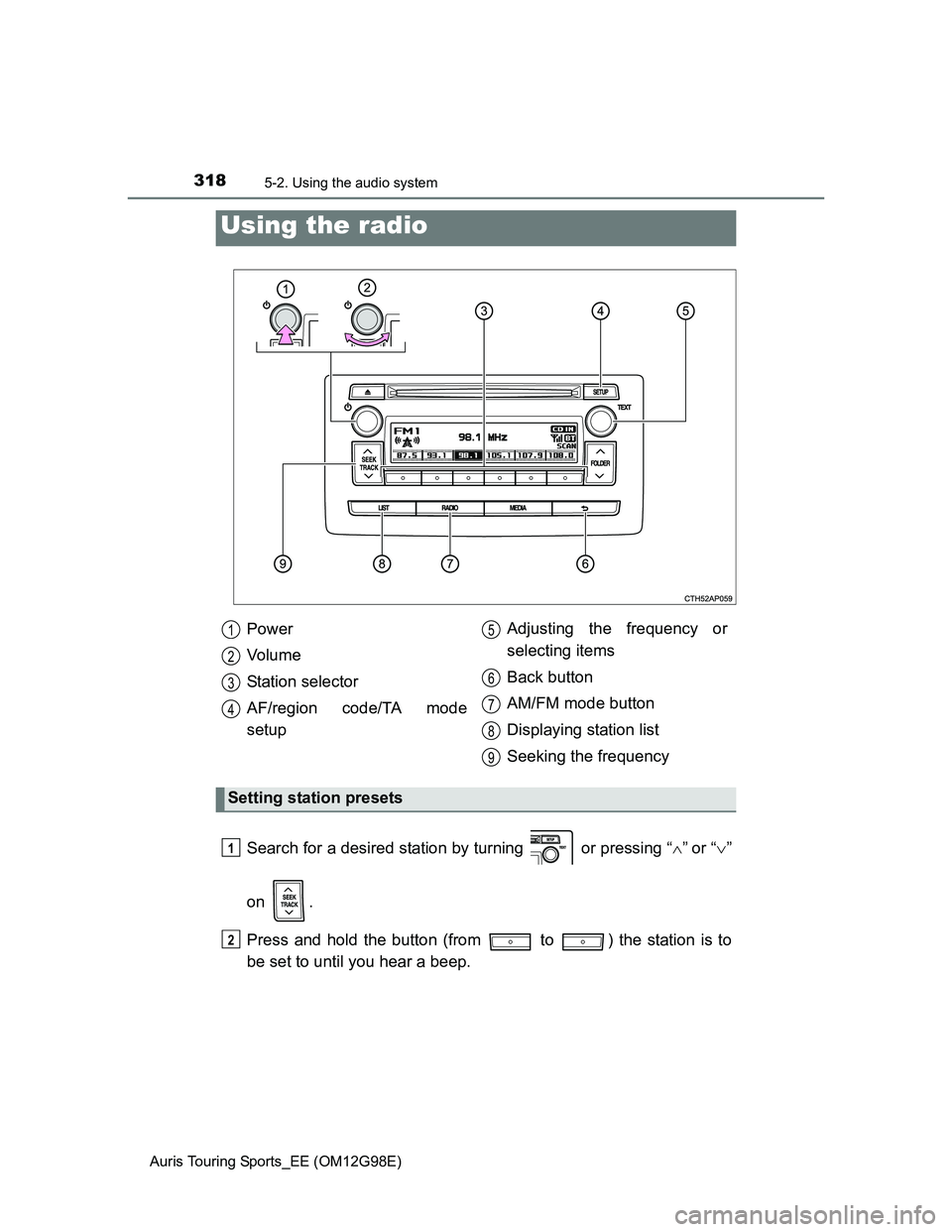

3185-2. Using the audio system
Auris Touring Sports_EE (OM12G98E)
Search for a desired station by turning or pressing “”or “”
on .
Press and hold the button (from to ) the station is to
be set to until you hear a beep.
Using the radio
Power
Vo l u m e
Station selector
AF/region code/TA mode
setupAdjusting the frequency or
selecting items
Back button
AM/FM mode button
Displaying station list
Seeking the frequency
Setting station presets
1
2
3
4
5
6
7
8
9
1
2

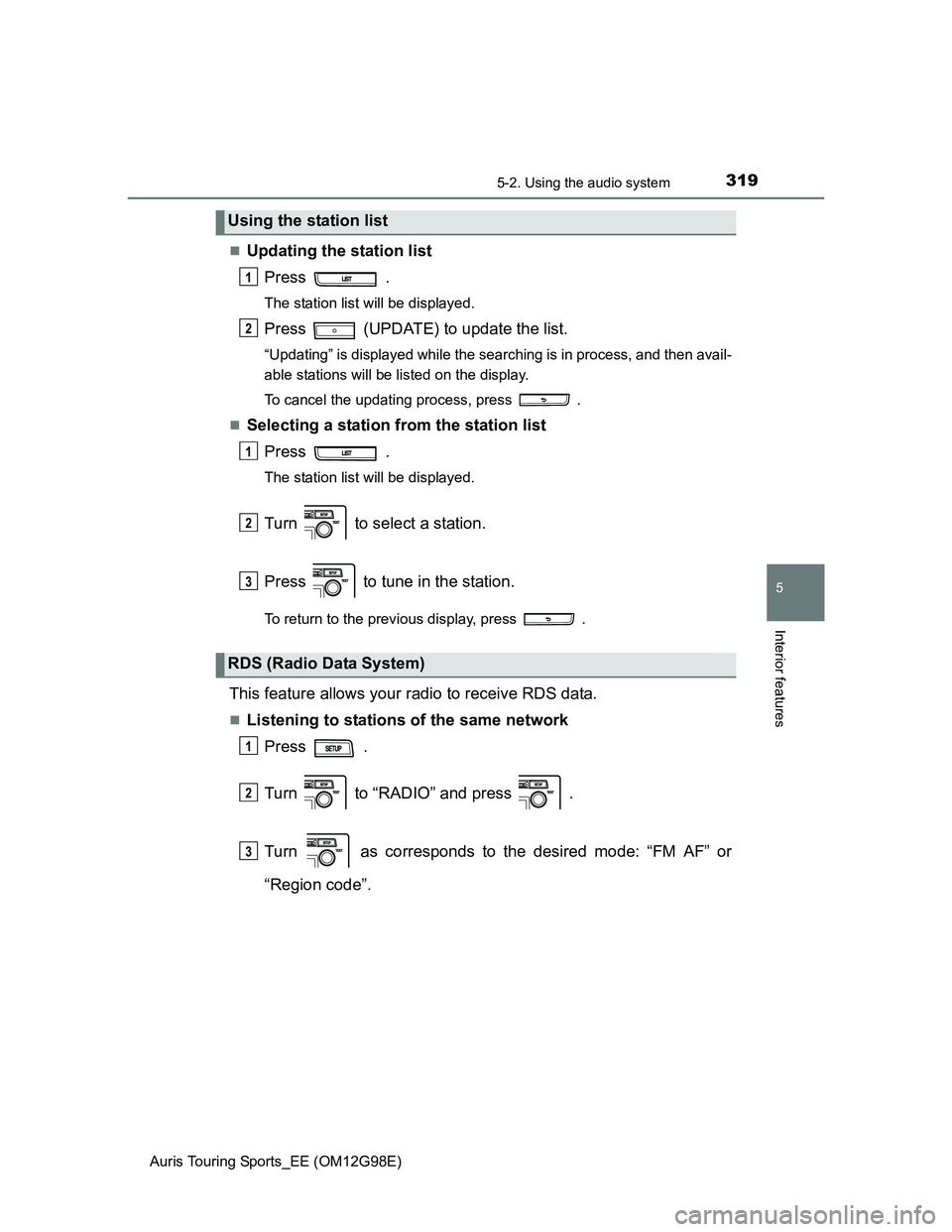

3195-2. Using the audio system
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Updating the station list
Press .
The station list will be displayed.
Press (UPDATE) to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press .

Selecting a station from the station list
Press .
The station list will be displayed.
Turn to select a station.
Press to tune in the station.
To return to the previous display, press .
This feature allows your radio to receive RDS data.
Listening to stations of the same network
Press .
Turn to “RADIO” and press .
Turn as corresponds to the desired mode: “FM AF” or
“Region code”.
Using the station list
RDS (Radio Data System)
1
2
1
2
3
1
2
3

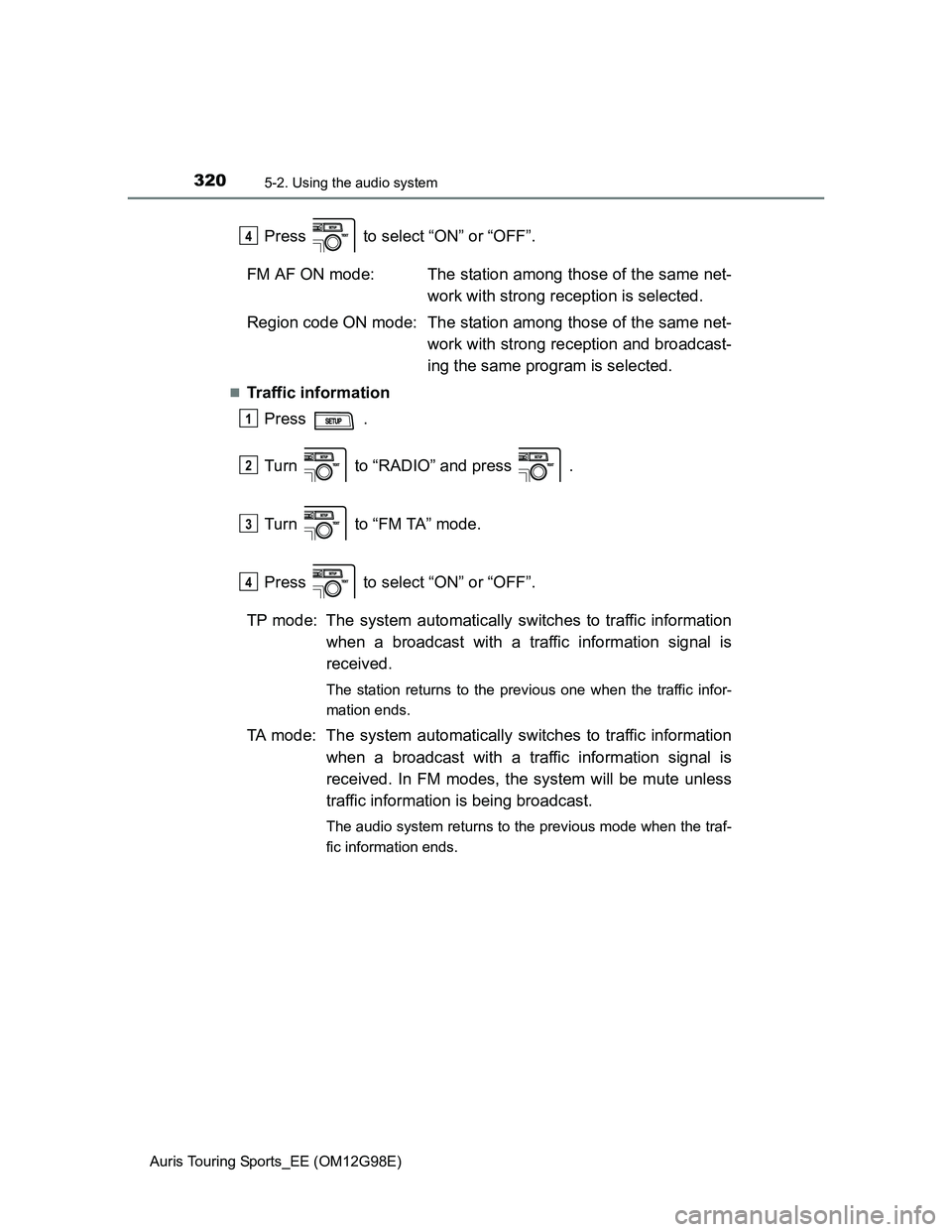

3205-2. Using the audio system
Auris Touring Sports_EE (OM12G98E)
Press to select “ON” or “OFF”.
FM AF ON mode: The station among those of the same net-
work with strong reception is selected.
Region code ON mode: The station among those of the same net-
work with strong reception and broadcast-
ing the same program is selected.
Traffic information
Press .
Turn to “RADIO” and press .
Turn to “FM TA” mode.
Press to select “ON” or “OFF”.
TP mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic infor-
mation ends.
TA mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received. In FM modes, the system will be mute unless
traffic information is being broadcast.
The audio system returns to the previous mode when the traf-
fic information ends.
4
1
2
3
4
