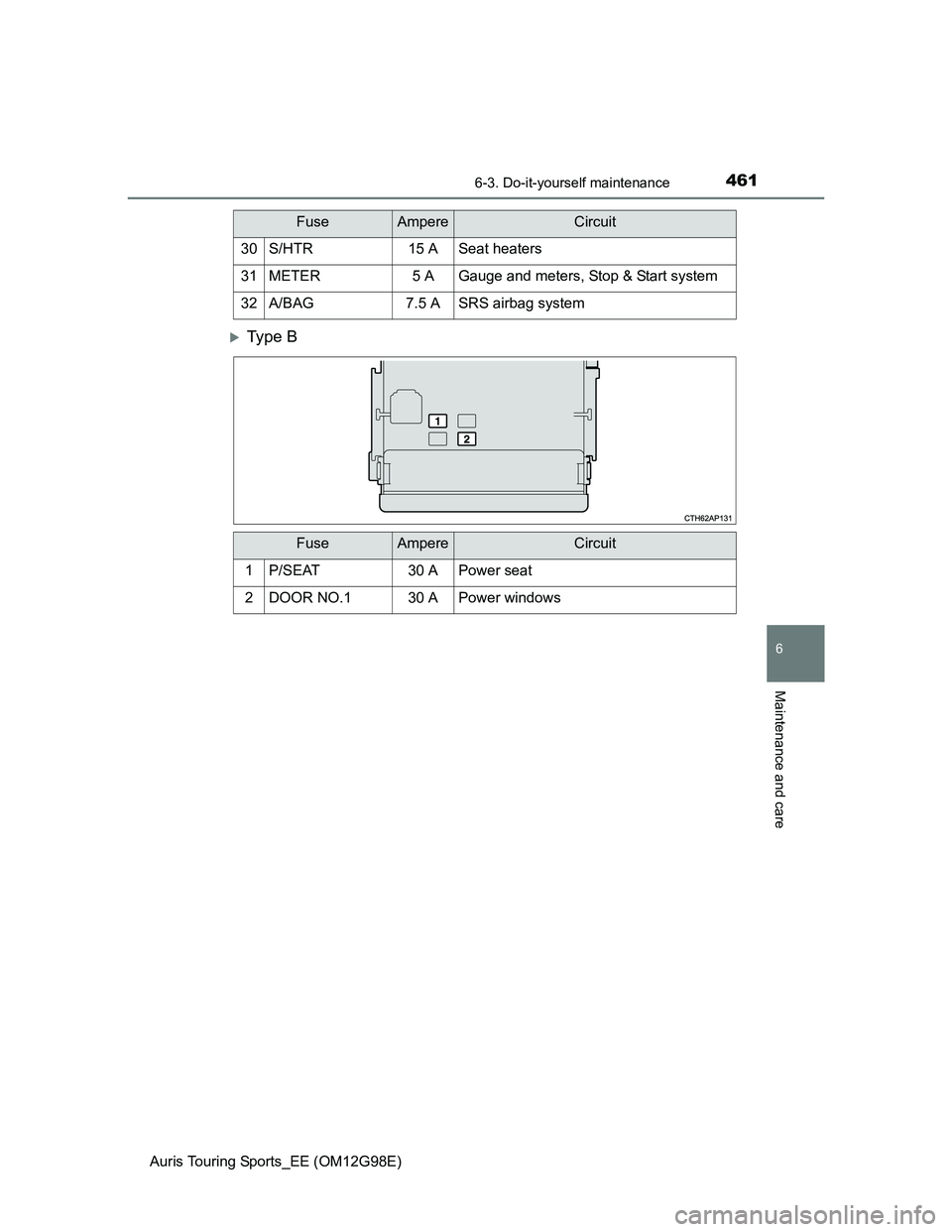

30S/HTR15 ASeat heaters
31METER5 AGauge and meters, Stop & Start system
32A/BAG7.5 ASRS airbag system
FuseAmpereCircuit
FuseAmpereCircuit
1P/SEAT30 APower seat
2DOOR NO.130 APower windows

4626-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)

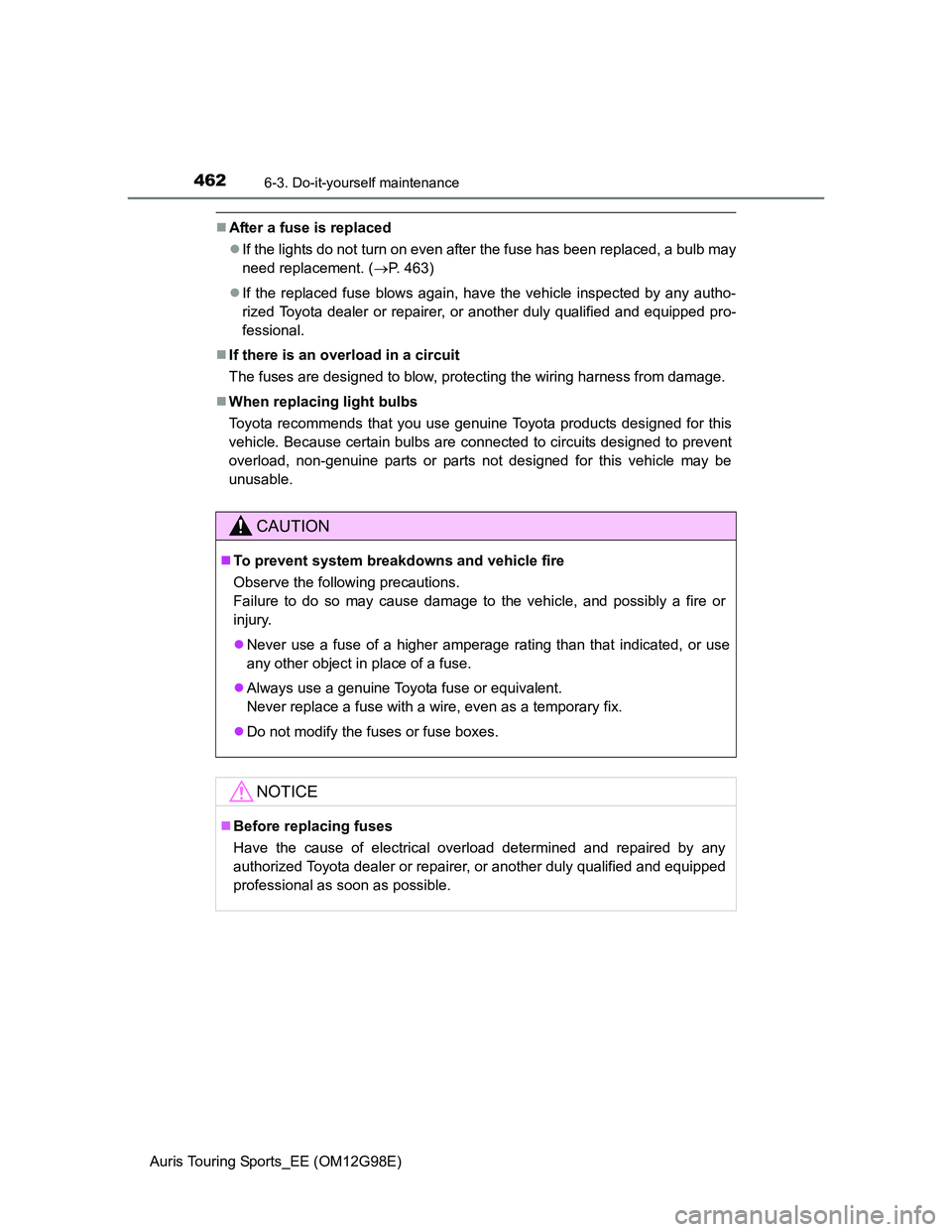

After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 463)
If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.

4636-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care
Check the wattage of the light bulb to be replaced. (P. 601)
Front
Vehicles with halogen headlights

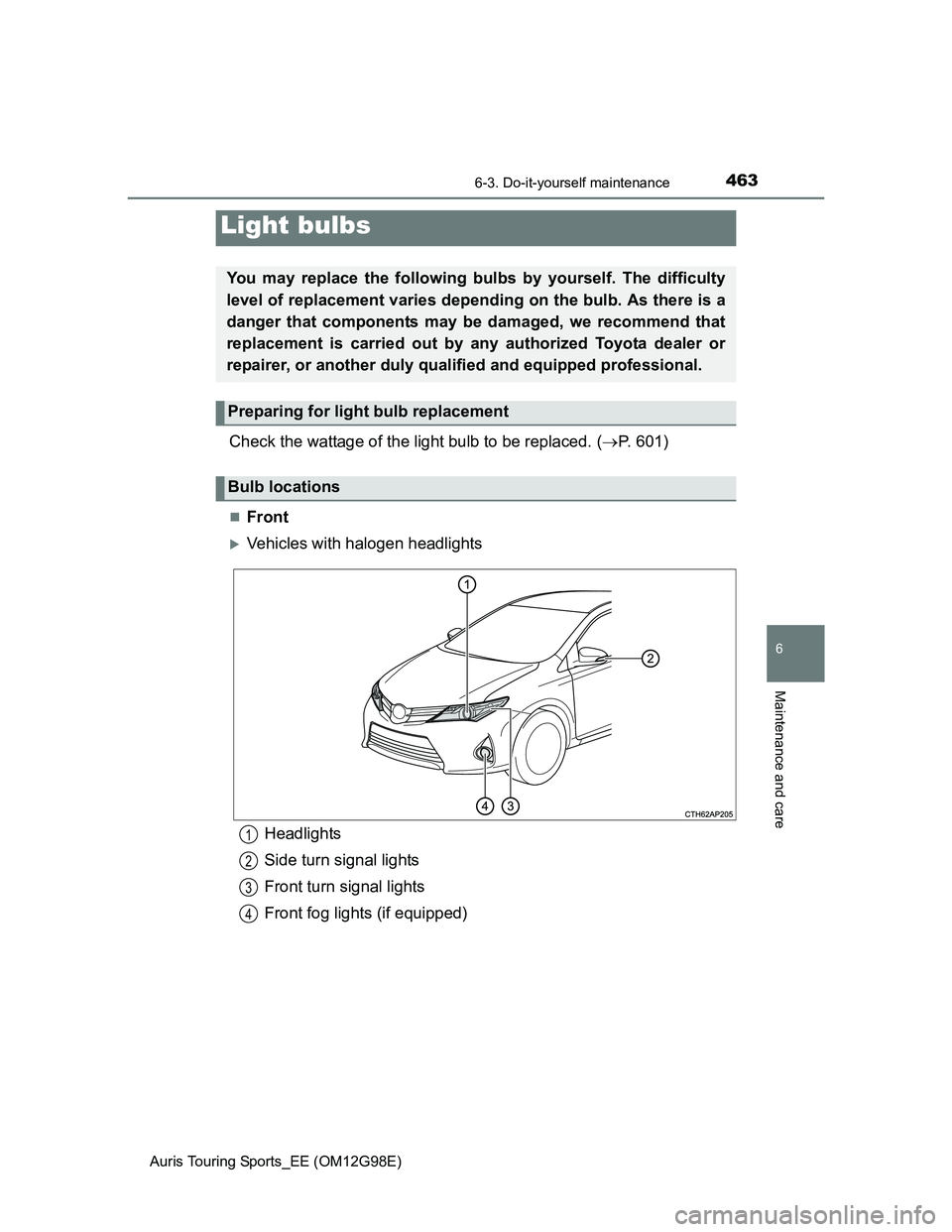

Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Bulb locations
Headlights
Side turn signal lights
Front turn signal lights
Front fog lights (if equipped)1
2
3
4

4646-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)

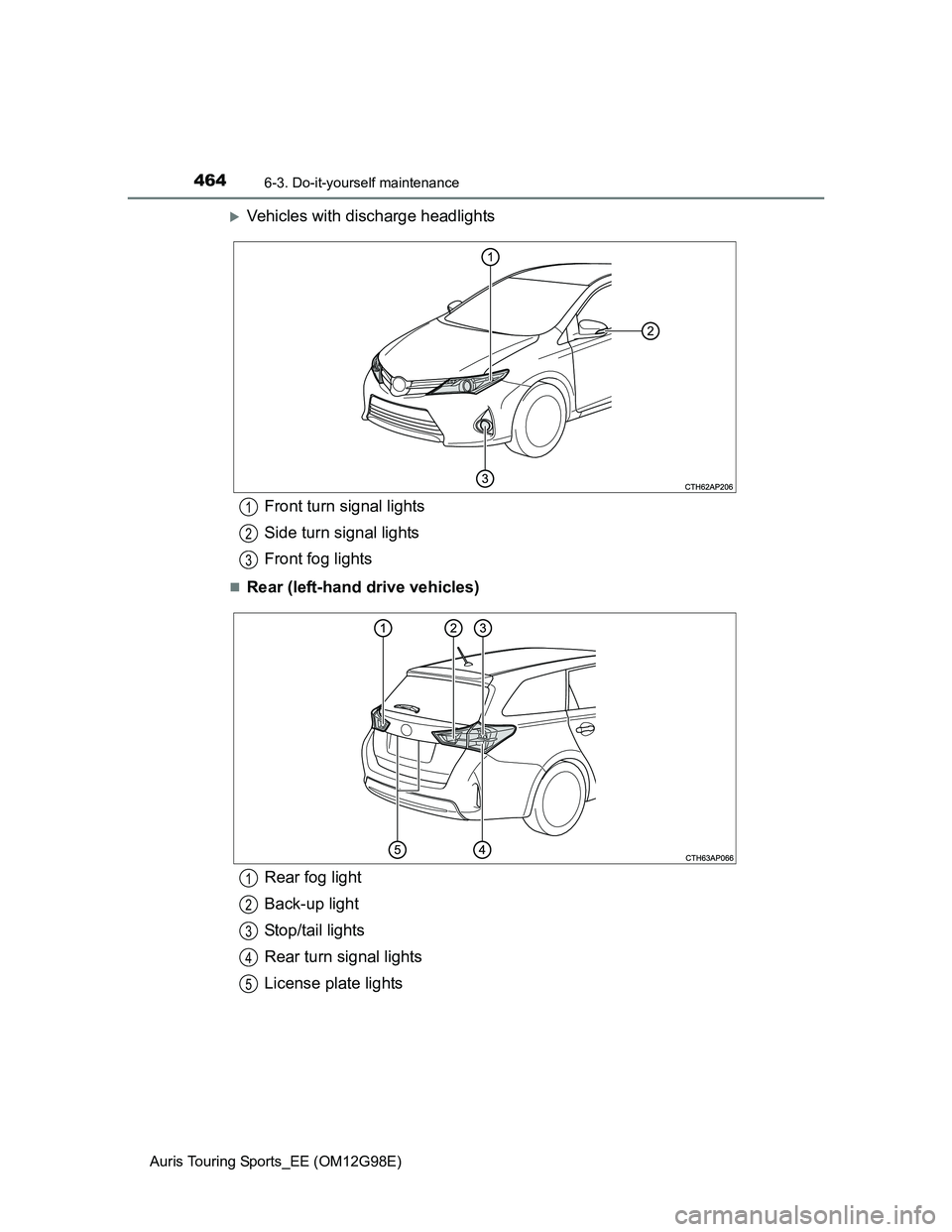

Vehicles with discharge headlights
Rear (left-hand drive vehicles)
Front turn signal lights
Side turn signal lights
Front fog lights1
2
3
Rear fog light
Back-up light
Stop/tail lights
Rear turn signal lights
License plate lights1
2
3
4
5

4656-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care

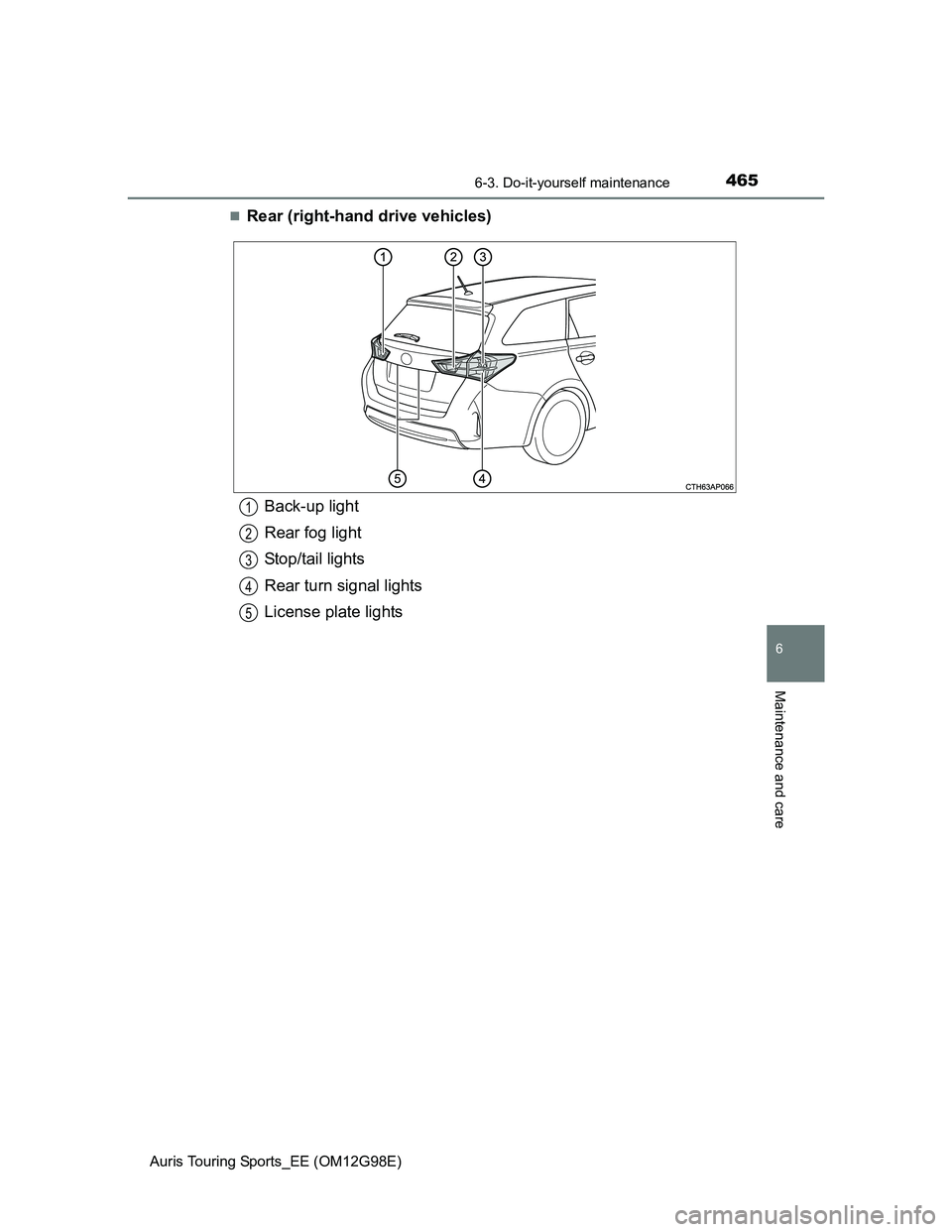

Rear (right-hand drive vehicles)
Back-up light
Rear fog light
Stop/tail lights
Rear turn signal lights
License plate lights1
2
3
4
5

4666-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)

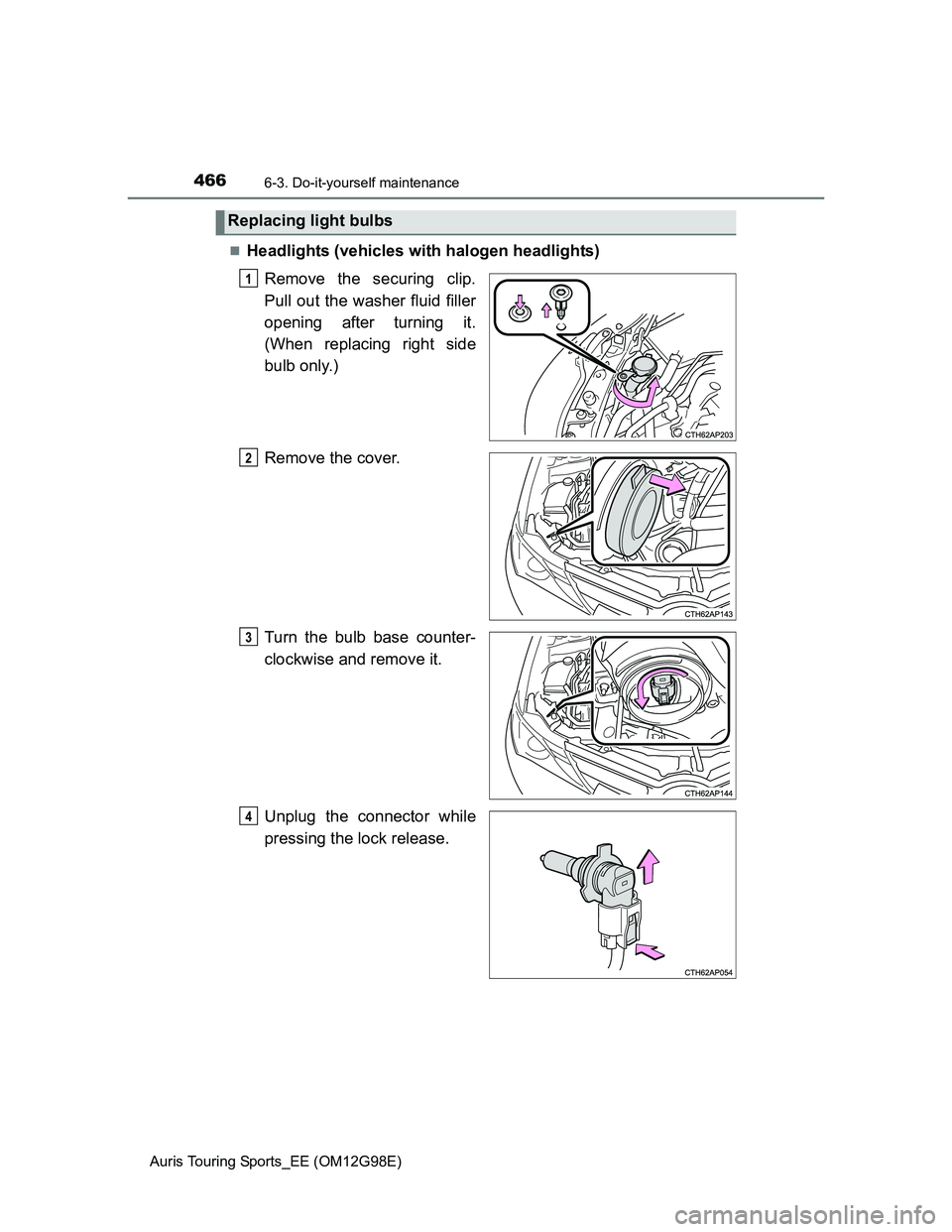

Headlights (vehicles with halogen headlights)
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Remove the cover.
Turn the bulb base counter-
clockwise and remove it.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3
4

4676-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care

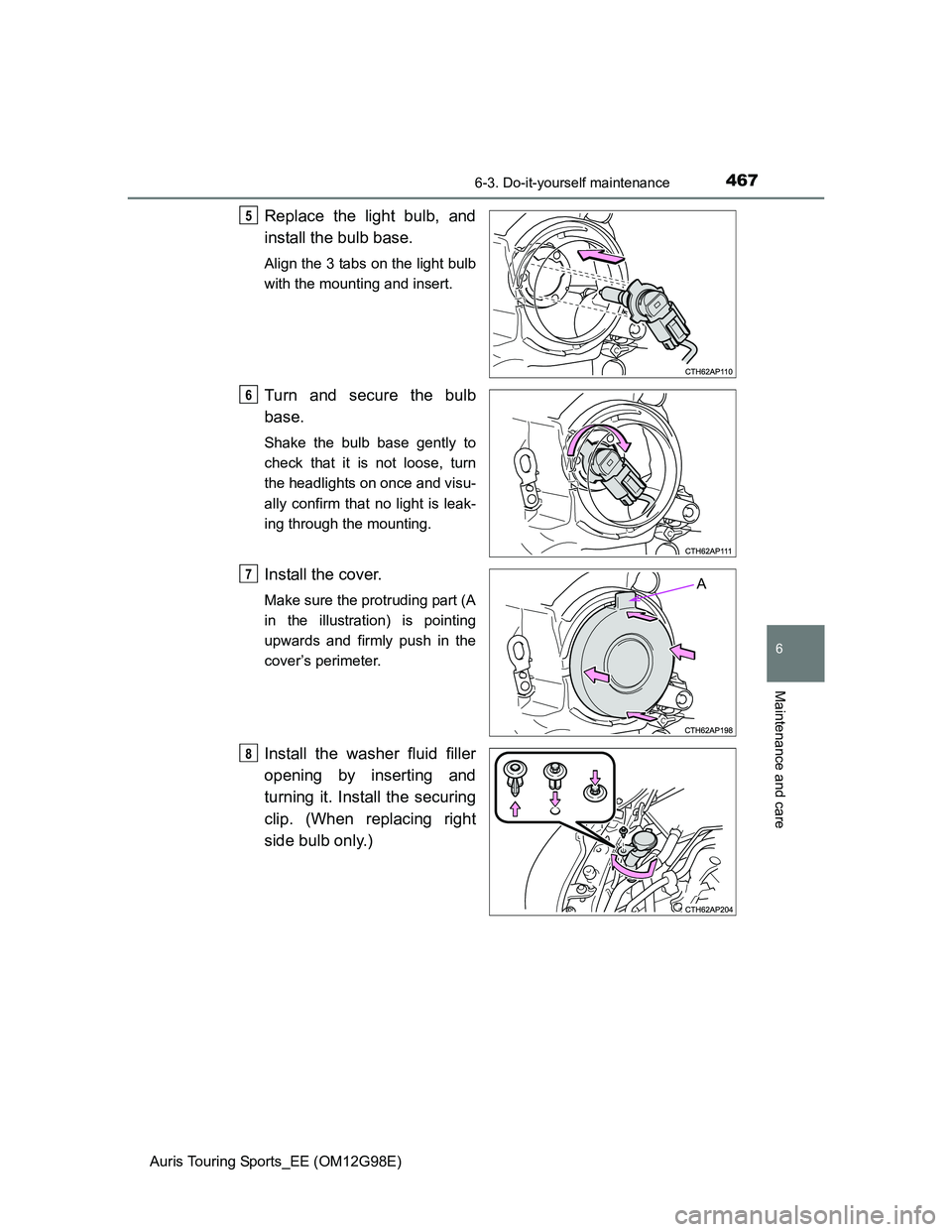

Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Install the cover.
Make sure the protruding part (A
in the illustration) is pointing
upwards and firmly push in the
cover’s perimeter.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
5
6
A7
8

4686-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)

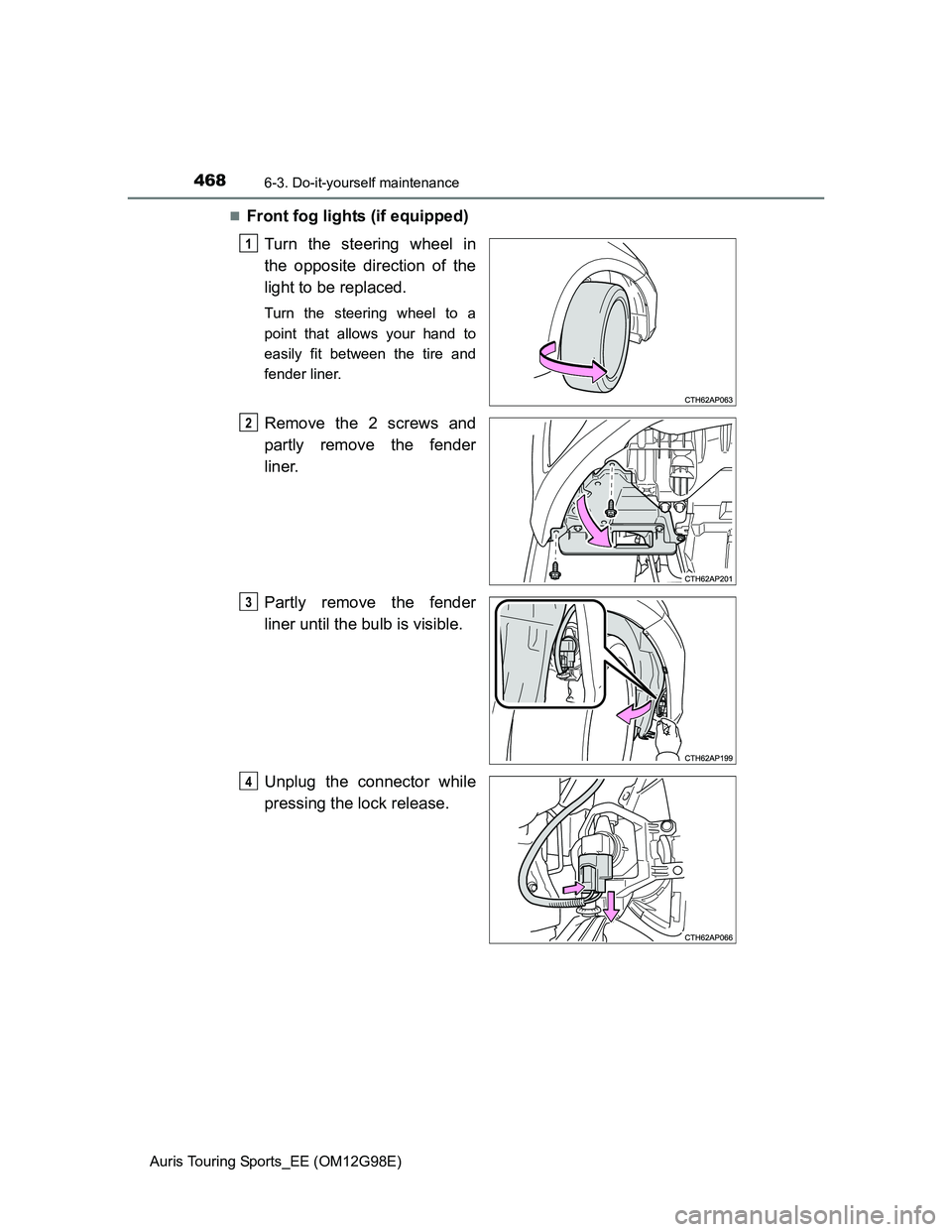

Front fog lights (if equipped)
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the 2 screws and
partly remove the fender
liner.
Partly remove the fender
liner until the bulb is visible.
Unplug the connector while
pressing the lock release.
1
2
3
4

4696-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care

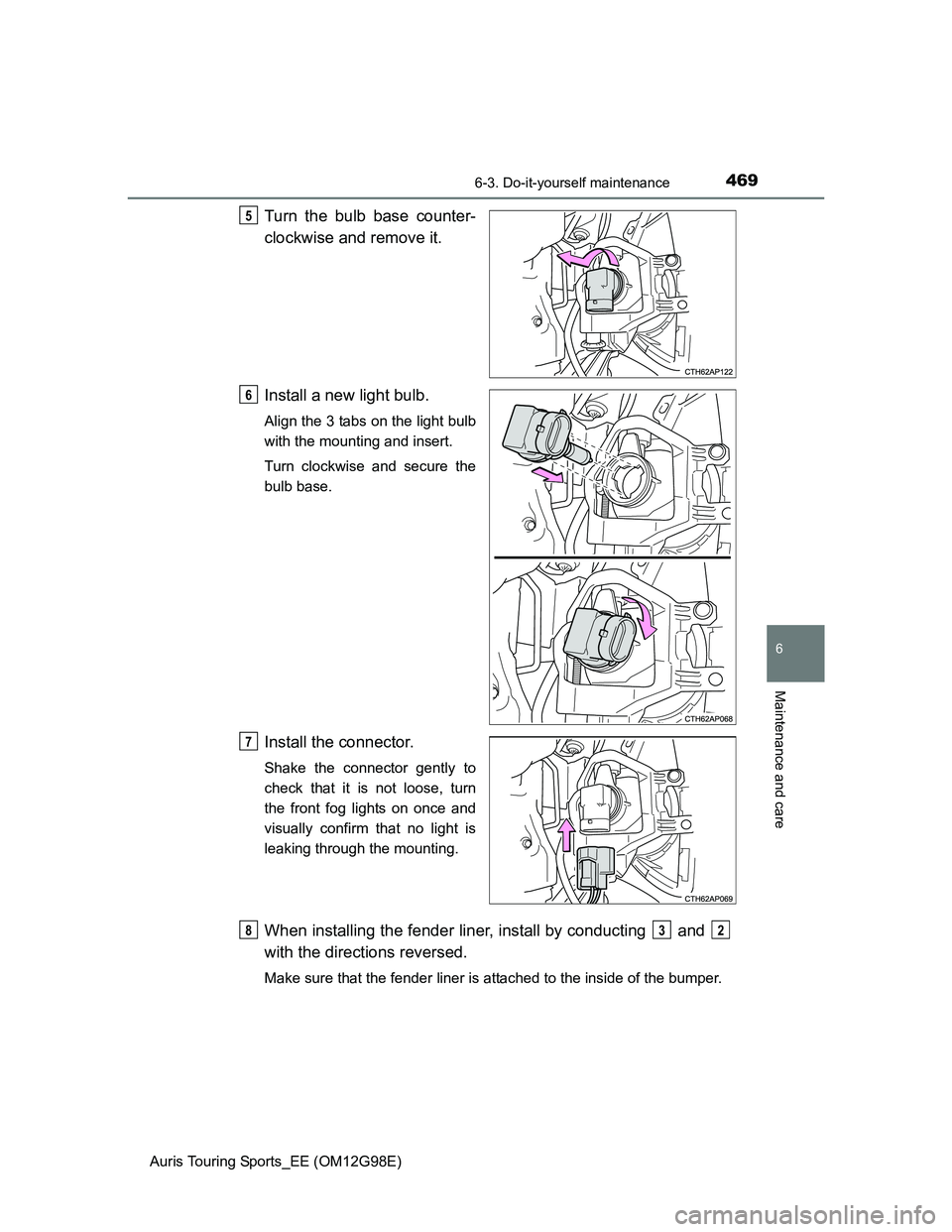

Turn the bulb base counter-
clockwise and remove it.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting and
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
5
6
7
832

4706-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)

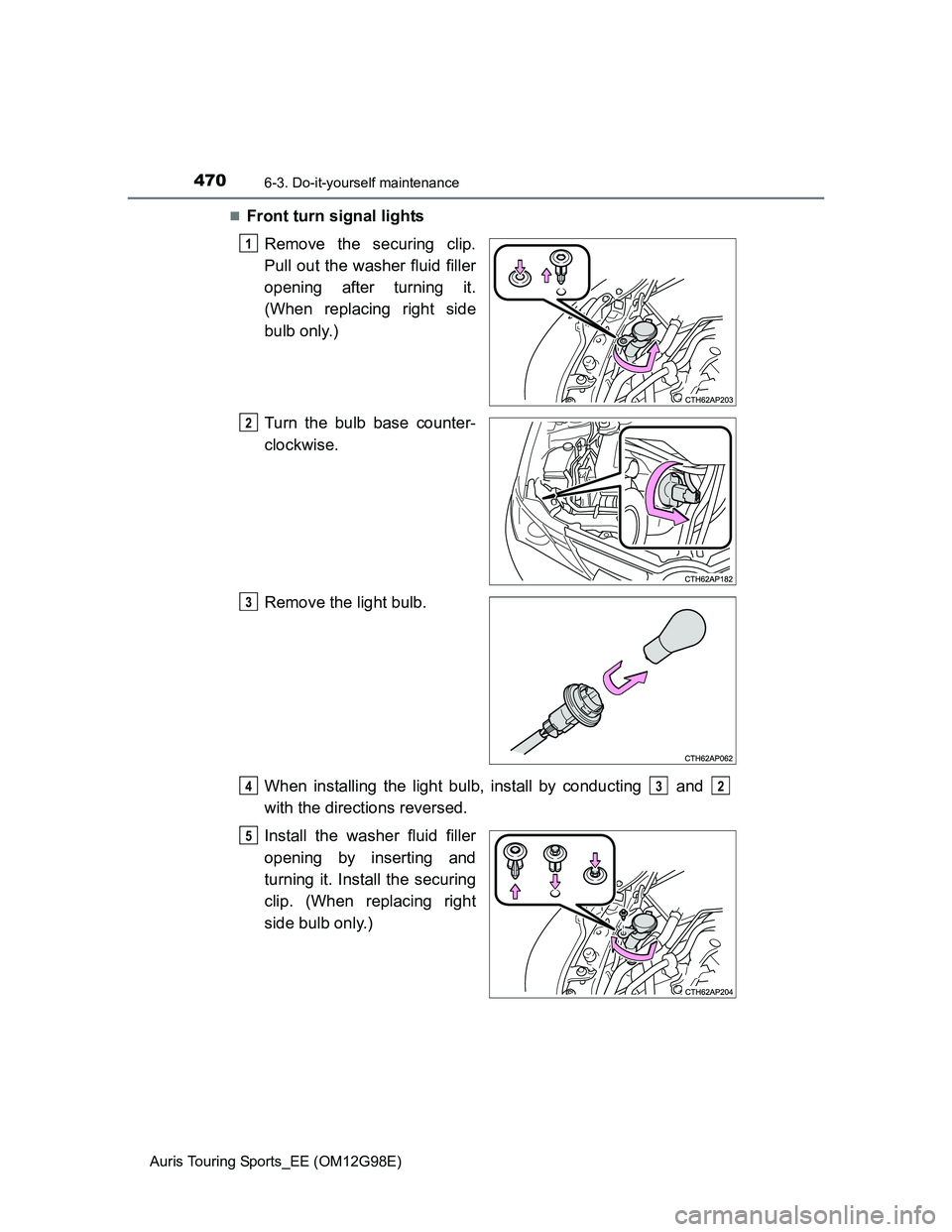

Front turn signal lights
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the light bulb, install by conducting and
with the directions reversed.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
1
2
3
432
5
