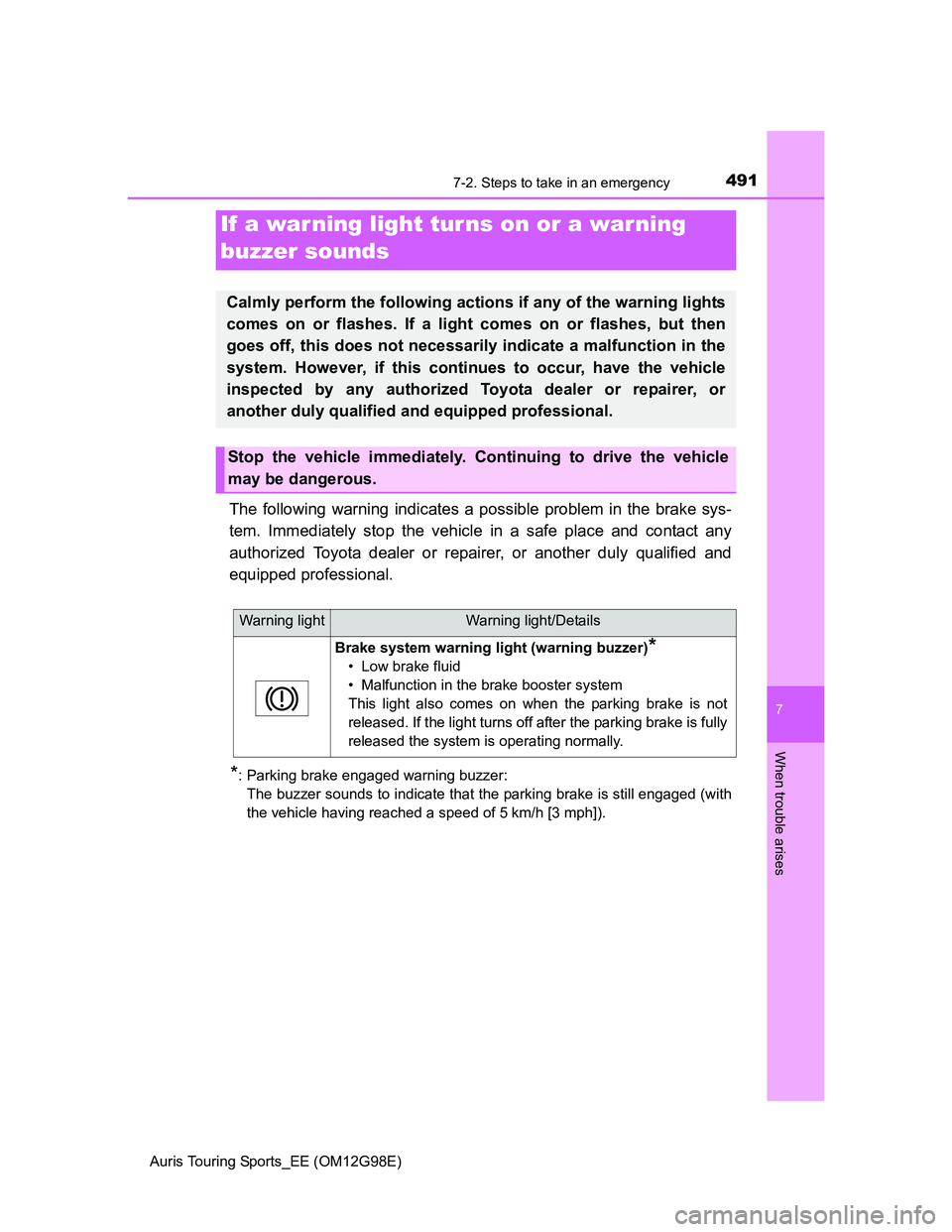

4917-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
Warning lightWarning light/Details
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake booster system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.

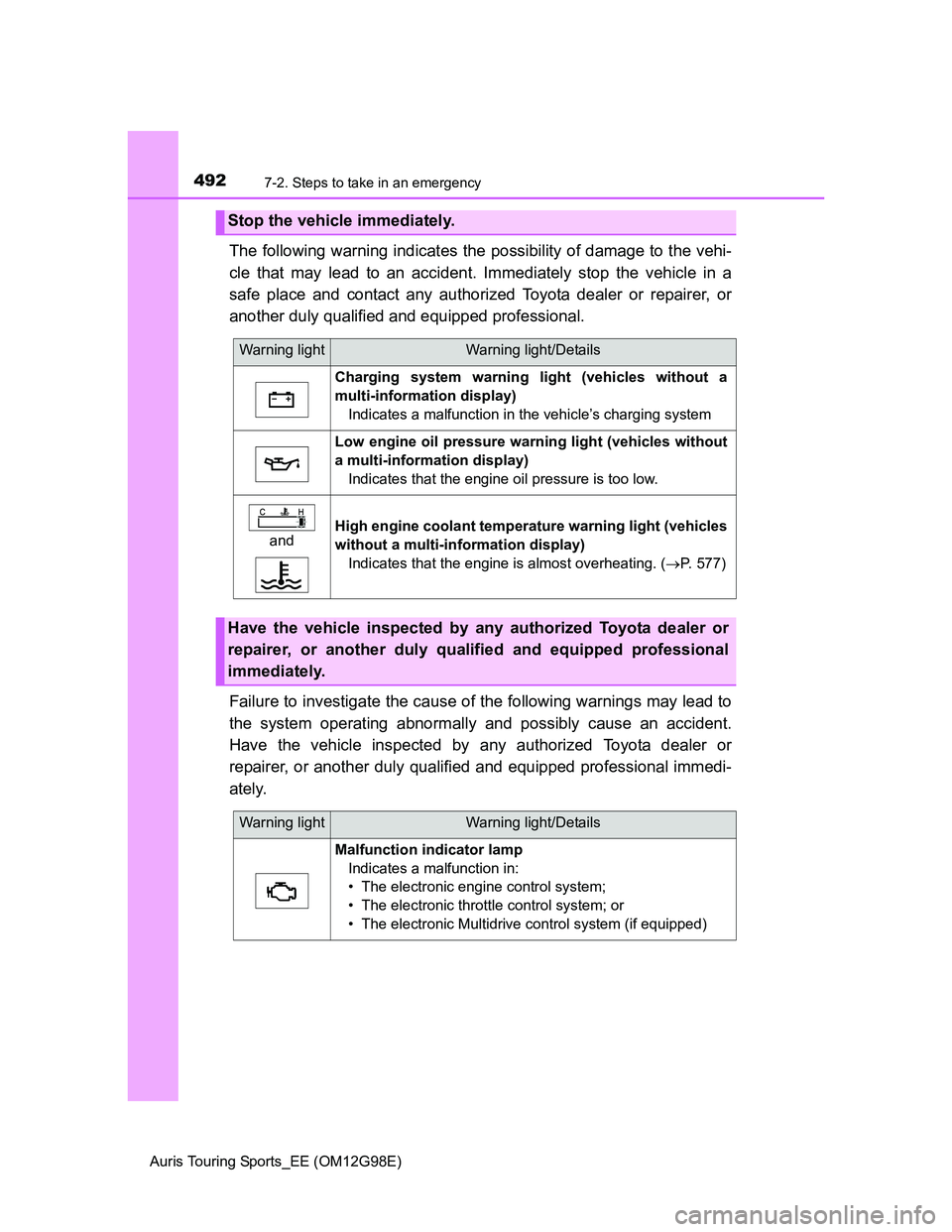

4927-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional immedi-
ately.
Stop the vehicle immediately.
Warning lightWarning light/Details
Charging system warning light (vehicles without a
multi-information display)
Indicates a malfunction in the vehicle’s charging system
Low engine oil pressure warning light (vehicles without
a multi-information display)
Indicates that the engine oil pressure is too low.
andHigh engine coolant temperature warning light (vehicles
without a multi-information display)
Indicates that the engine is almost overheating. (P. 577)
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic Multidrive control system (if equipped)

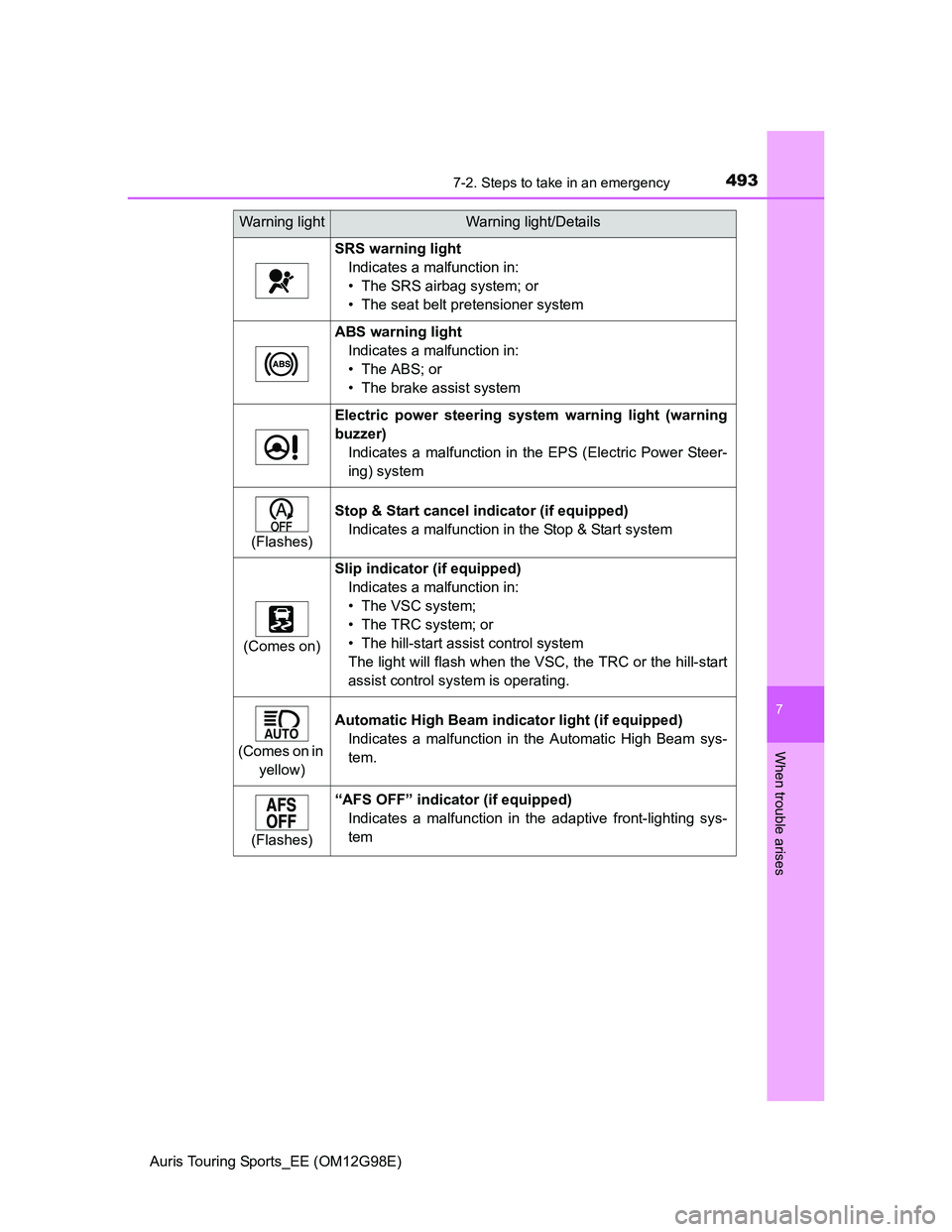

4937-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
(Flashes)
Stop & Start cancel indicator (if equipped)
Indicates a malfunction in the Stop & Start system
(Comes on)
Slip indicator (if equipped)
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
The light will flash when the VSC, the TRC or the hill-start
assist control system is operating.
(Comes on in
yellow)
Automatic High Beam indicator light (if equipped)
Indicates a malfunction in the Automatic High Beam sys-
tem.
(Flashes)
“AFS OFF” indicator (if equipped)
Indicates a malfunction in the adaptive front-lighting sys-
tem
Warning lightWarning light/Details

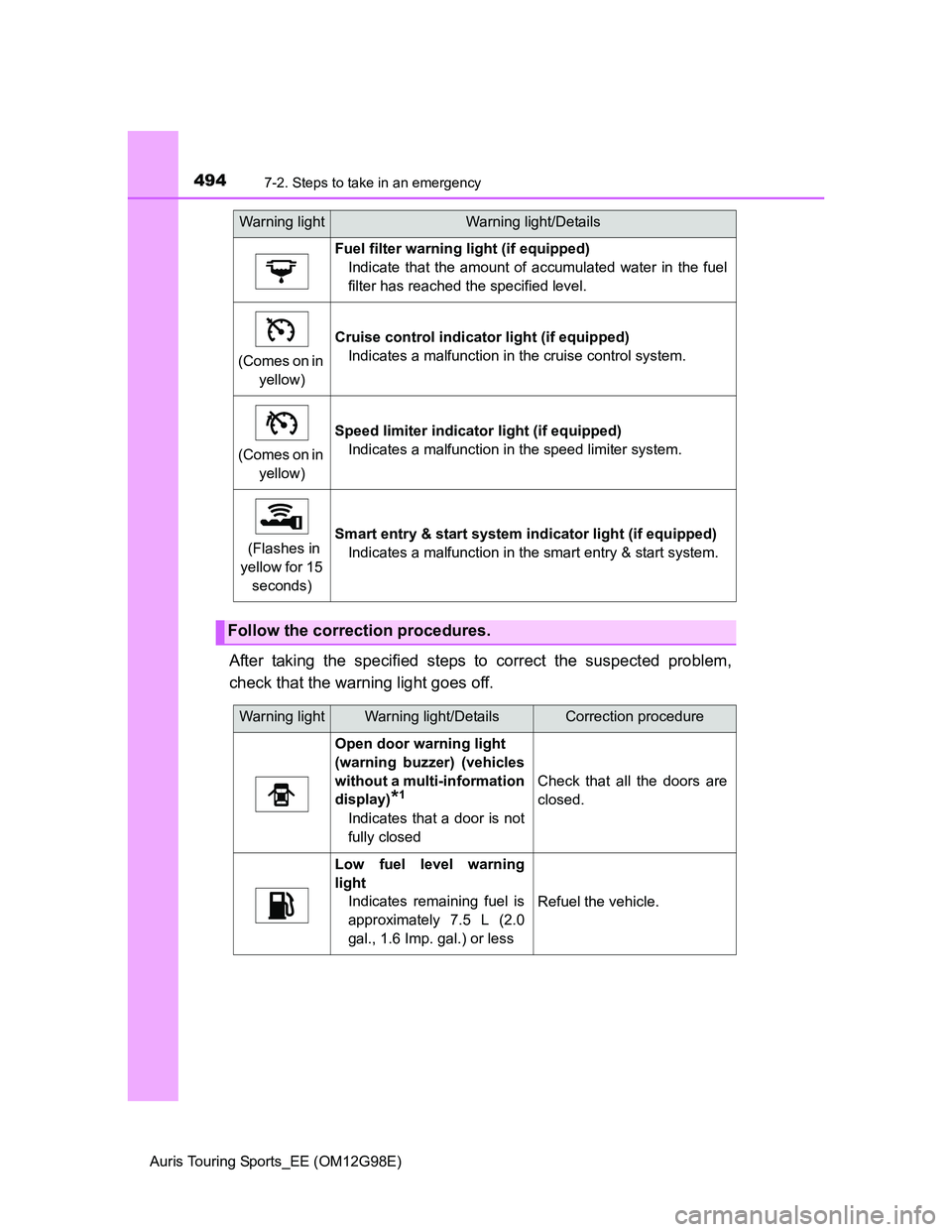

4947-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Fuel filter warning light (if equipped)
Indicate that the amount of accumulated water in the fuel
filter has reached the specified level.
(Comes on in
yellow)
Cruise control indicator light (if equipped)
Indicates a malfunction in the cruise control system.
(Comes on in
yellow)
Speed limiter indicator light (if equipped)
Indicates a malfunction in the speed limiter system.
(Flashes in
yellow for 15
seconds)Smart entry & start system indicator light (if equipped)
Indicates a malfunction in the smart entry & start system.
Follow the correction procedures.
Warning lightWarning light/Details
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer) (vehicles
without a multi-information
display)
*1
Indicates that a door is not
fully closed
Check that all the doors are
closed.
Low fuel level warning
light
Indicates remaining fuel is
approximately 7.5 L (2.0
gal., 1.6 Imp. gal.) or less
Refuel the vehicle.

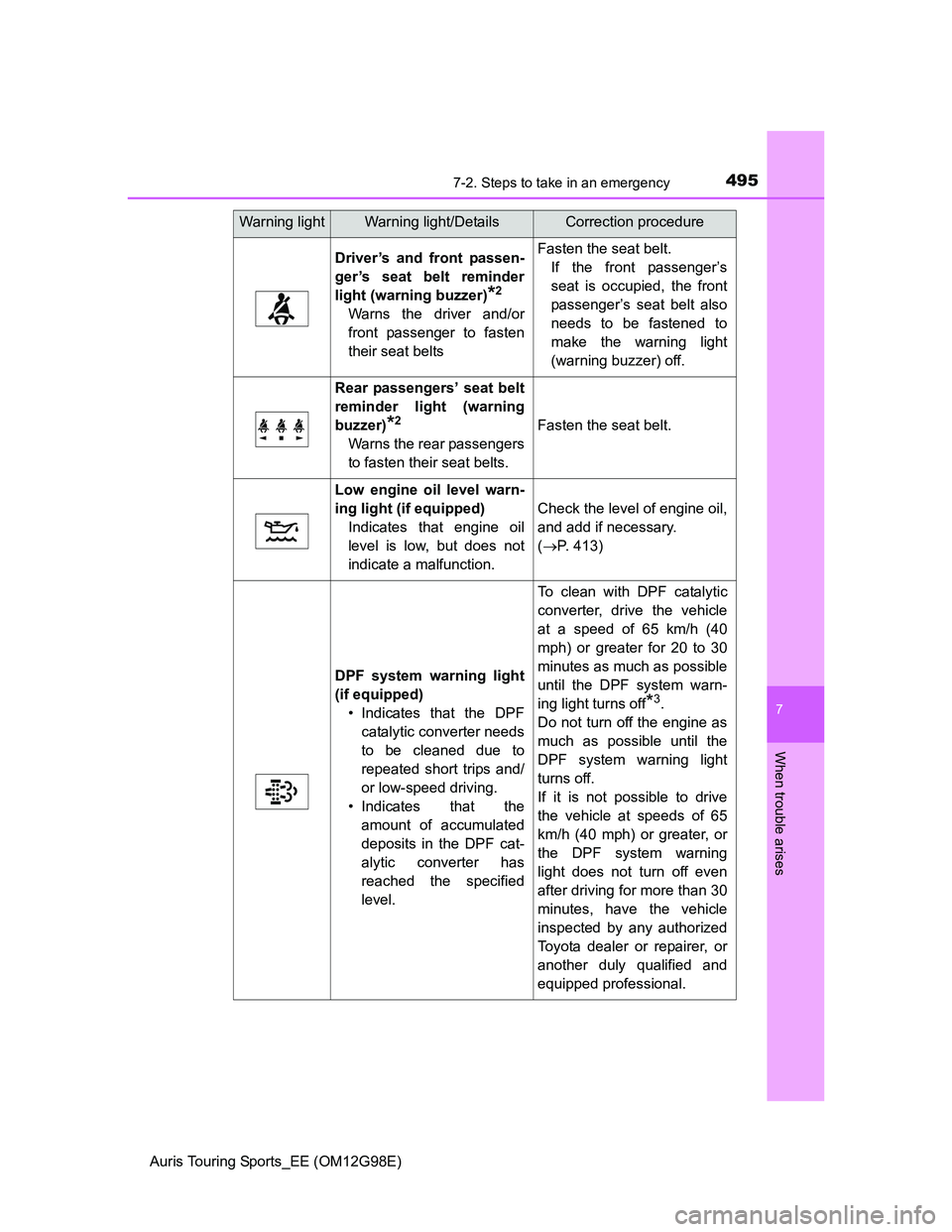

4957-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
Driver’s and front passen-
ger’s seat belt reminder
light (warning buzzer)
*2
Warns the driver and/or
front passenger to fasten
their seat belts
Fasten the seat belt.
If the front passenger’s
seat is occupied, the front
passenger’s seat belt also
needs to be fastened to
make the warning light
(warning buzzer) off.
Rear passengers’ seat belt
reminder light (warning
buzzer)
*2
Warns the rear passengers
to fasten their seat belts.
Fasten the seat belt.
Low engine oil level warn-
ing light (if equipped)
Indicates that engine oil
level is low, but does not
indicate a malfunction.
Check the level of engine oil,
and add if necessary.
(P. 413)
DPF system warning light
(if equipped)
• Indicates that the DPF
catalytic converter needs
to be cleaned due to
repeated short trips and/
or low-speed driving.
• Indicates that the
amount of accumulated
deposits in the DPF cat-
alytic converter has
reached the specified
level.
To clean with DPF catalytic
converter, drive the vehicle
at a speed of 65 km/h (40
mph) or greater for 20 to 30
minutes as much as possible
until the DPF system warn-
ing light turns off
*3.
Do not turn off the engine as
much as possible until the
DPF system warning light
turns off.
If it is not possible to drive
the vehicle at speeds of 65
km/h (40 mph) or greater, or
the DPF system warning
light does not turn off even
after driving for more than 30
minutes, have the vehicle
inspected by any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Warning lightWarning light/DetailsCorrection procedure

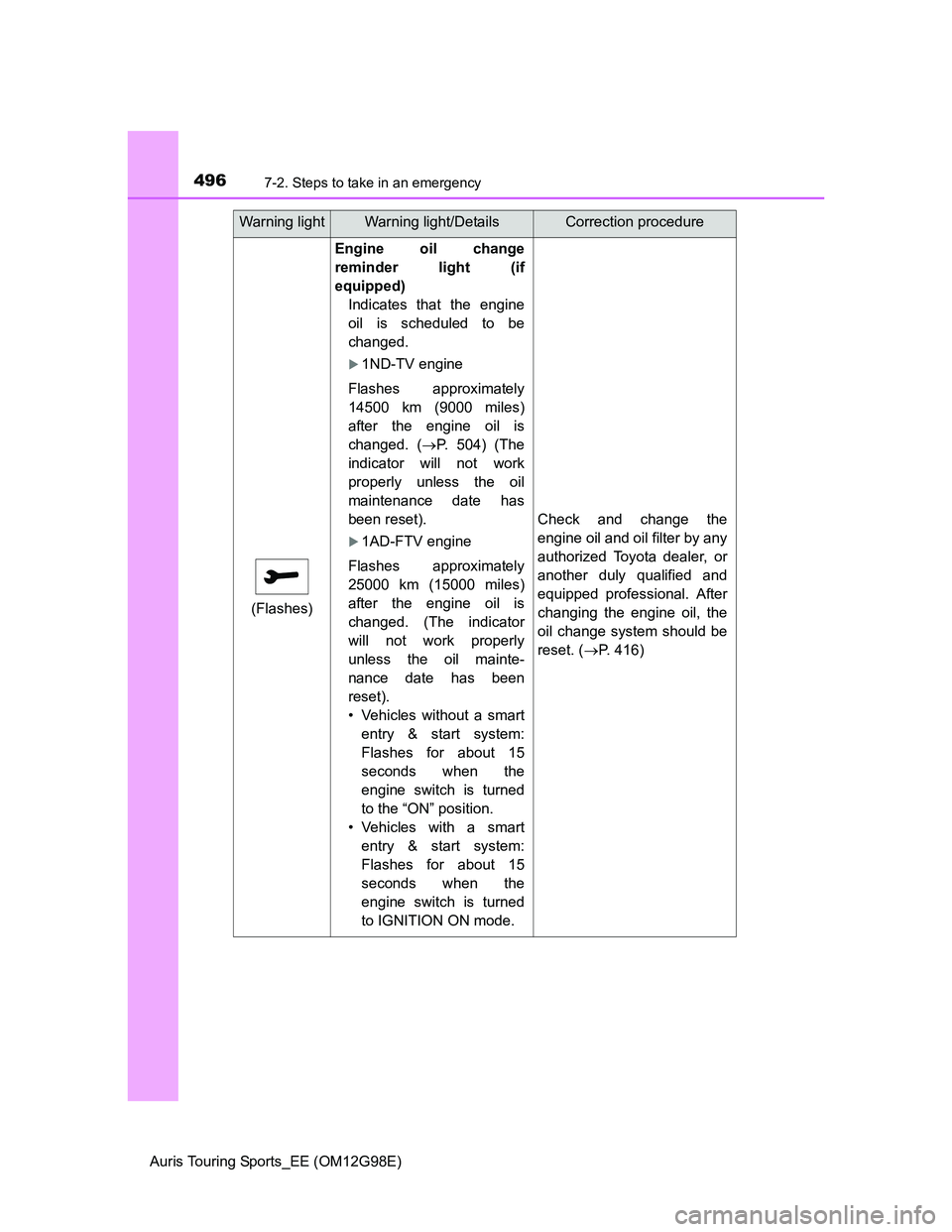

4967-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
(Flashes)
Engine oil change
reminder light (if
equipped)
Indicates that the engine
oil is scheduled to be
changed.
1ND-TV engine
Flashes approximately
14500 km (9000 miles)
after the engine oil is
changed. (P. 504) (The
indicator will not work
properly unless the oil
maintenance date has
been reset).
1AD-FTV engine
Flashes approximately
25000 km (15000 miles)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance date has been
reset).
• Vehicles without a smart
entry & start system:
Flashes for about 15
seconds when the
engine switch is turned
to the “ON” position.
• Vehicles with a smart
entry & start system:
Flashes for about 15
seconds when the
engine switch is turned
to IGNITION ON mode.
Check and change the
engine oil and oil filter by any
authorized Toyota dealer, or
another duly qualified and
equipped professional. After
changing the engine oil, the
oil change system should be
reset. (P. 416)
Warning lightWarning light/DetailsCorrection procedure

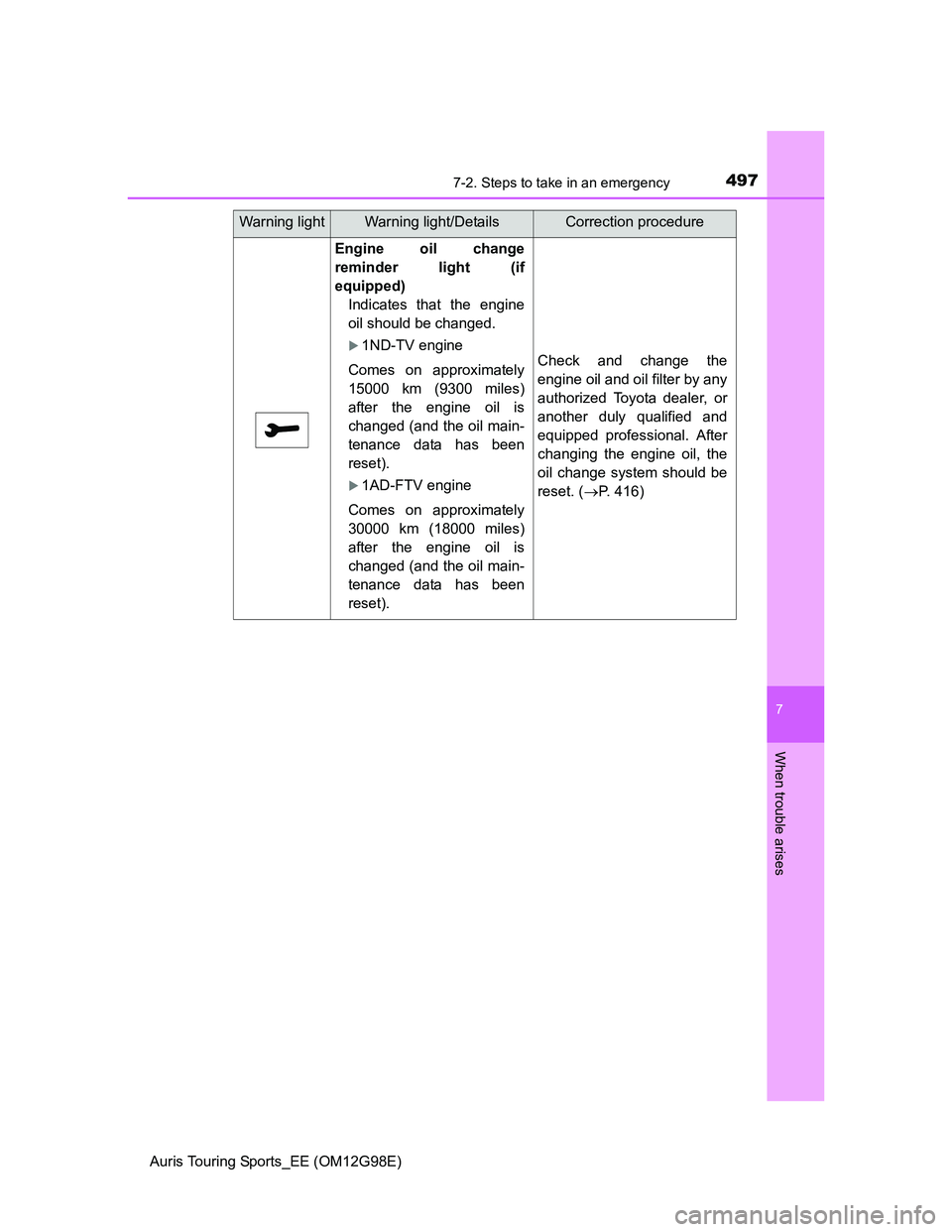

4977-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
Engine oil change
reminder light (if
equipped)
Indicates that the engine
oil should be changed.
1ND-TV engine
Comes on approximately
15000 km (9300 miles)
after the engine oil is
changed (and the oil main-
tenance data has been
reset).
1AD-FTV engine
Comes on approximately
30000 km (18000 miles)
after the engine oil is
changed (and the oil main-
tenance data has been
reset).
Check and change the
engine oil and oil filter by any
authorized Toyota dealer, or
another duly qualified and
equipped professional. After
changing the engine oil, the
oil change system should be
reset. (P. 416)
Warning lightWarning light/DetailsCorrection procedure

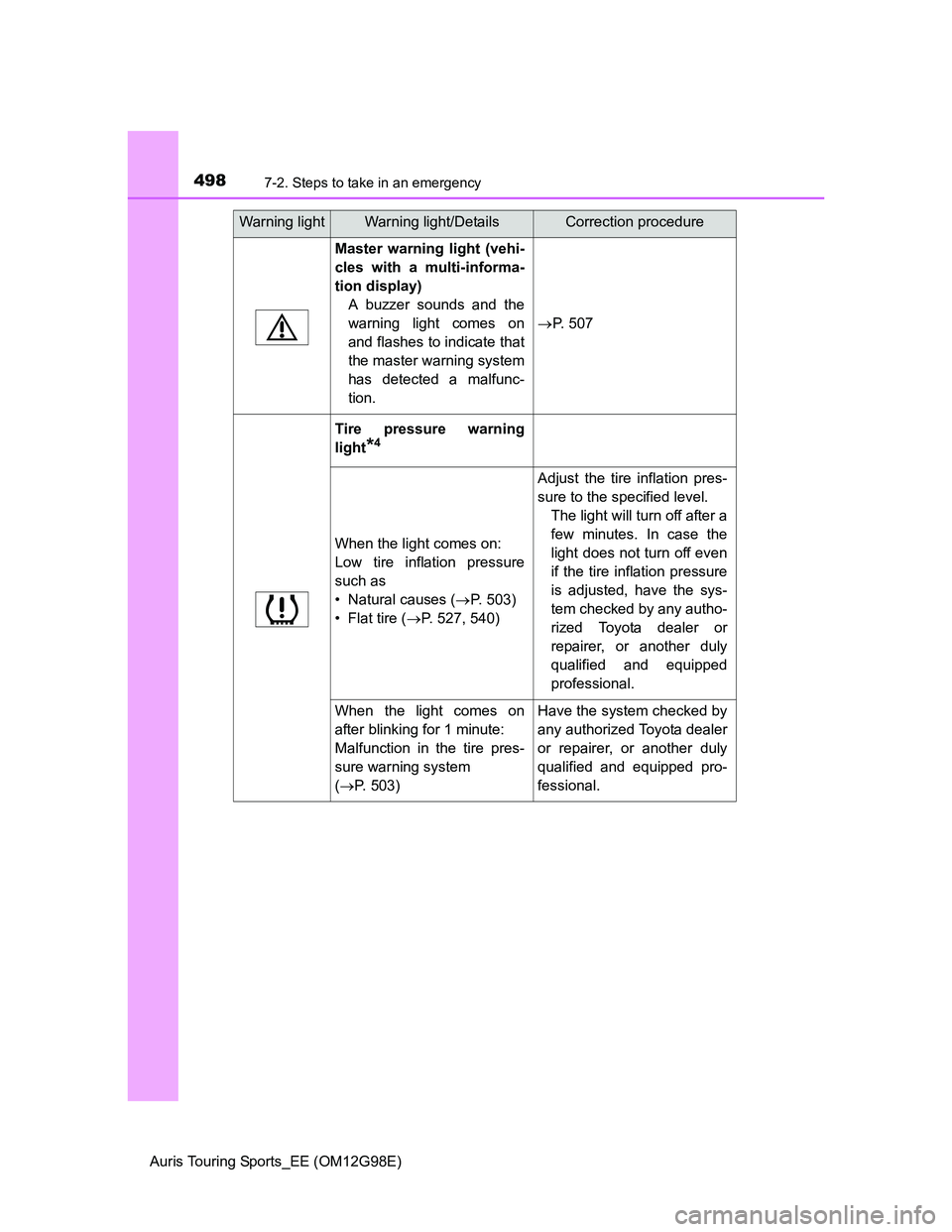

4987-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
Master warning light (vehi-
cles with a multi-informa-
tion display)
A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion.
P. 5 0 7
Tire pressure warning
light
*4
When the light comes on:
Low tire inflation pressure
such as
• Natural causes (P. 503)
•Flat tire (P. 527, 540)
Adjust the tire inflation pres-
sure to the specified level.
The light will turn off after a
few minutes. In case the
light does not turn off even
if the tire inflation pressure
is adjusted, have the sys-
tem checked by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
When the light comes on
after blinking for 1 minute:
Malfunction in the tire pres-
sure warning system
(P. 503)Have the system checked by
any authorized Toyota dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
Warning lightWarning light/DetailsCorrection procedure

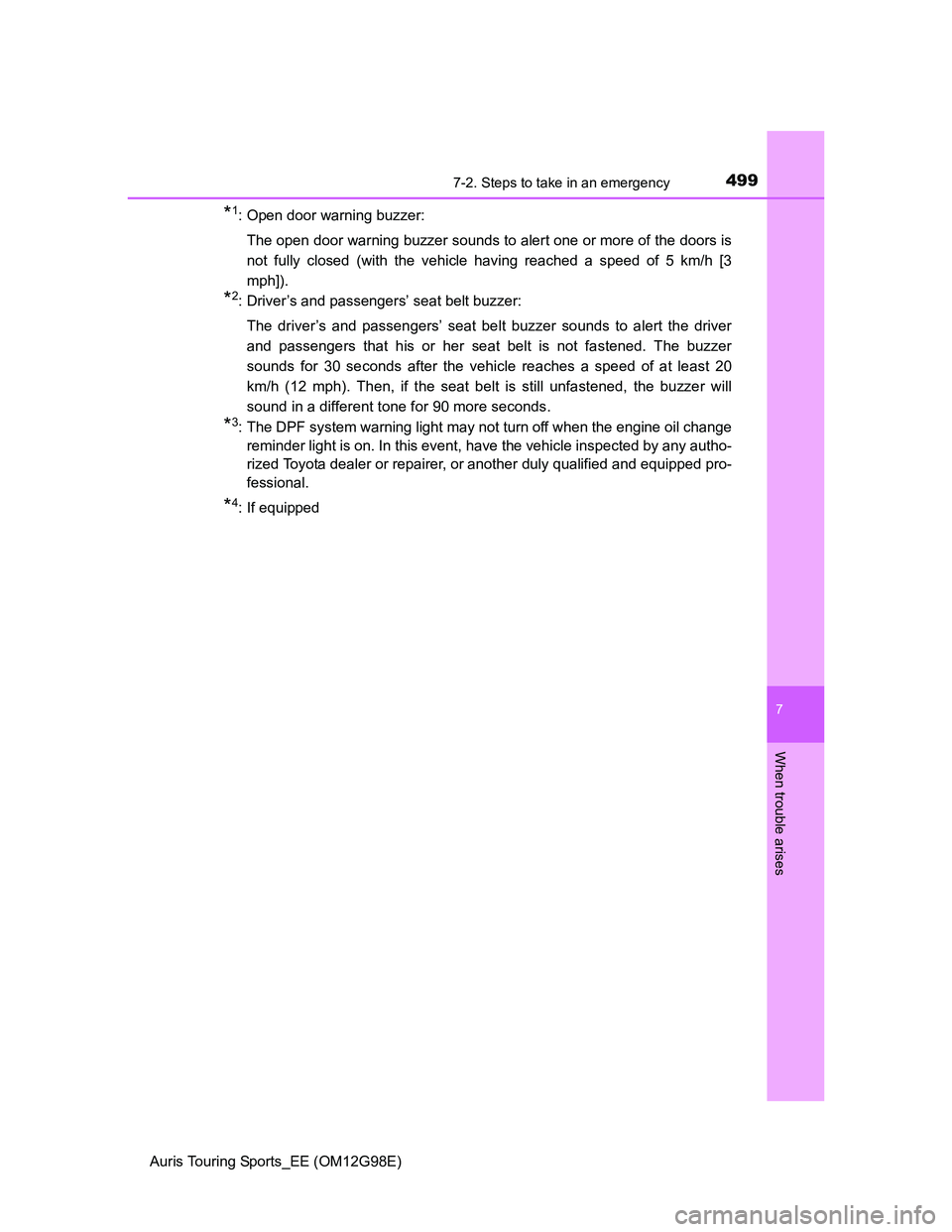

4997-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
*1: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle having reached a speed of 5 km/h [3
mph]).
*2: Driver’s and passengers’ seat belt buzzer:
The driver’s and passengers’ seat belt buzzer sounds to alert the driver
and passengers that his or her seat belt is not fastened. The buzzer
sounds for 30 seconds after the vehicle reaches a speed of at least 20
km/h (12 mph). Then, if the seat belt is still unfastened, the buzzer will
sound in a different tone for 90 more seconds.
*3: The DPF system warning light may not turn off when the engine oil change
reminder light is on. In this event, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
*4: If equipped

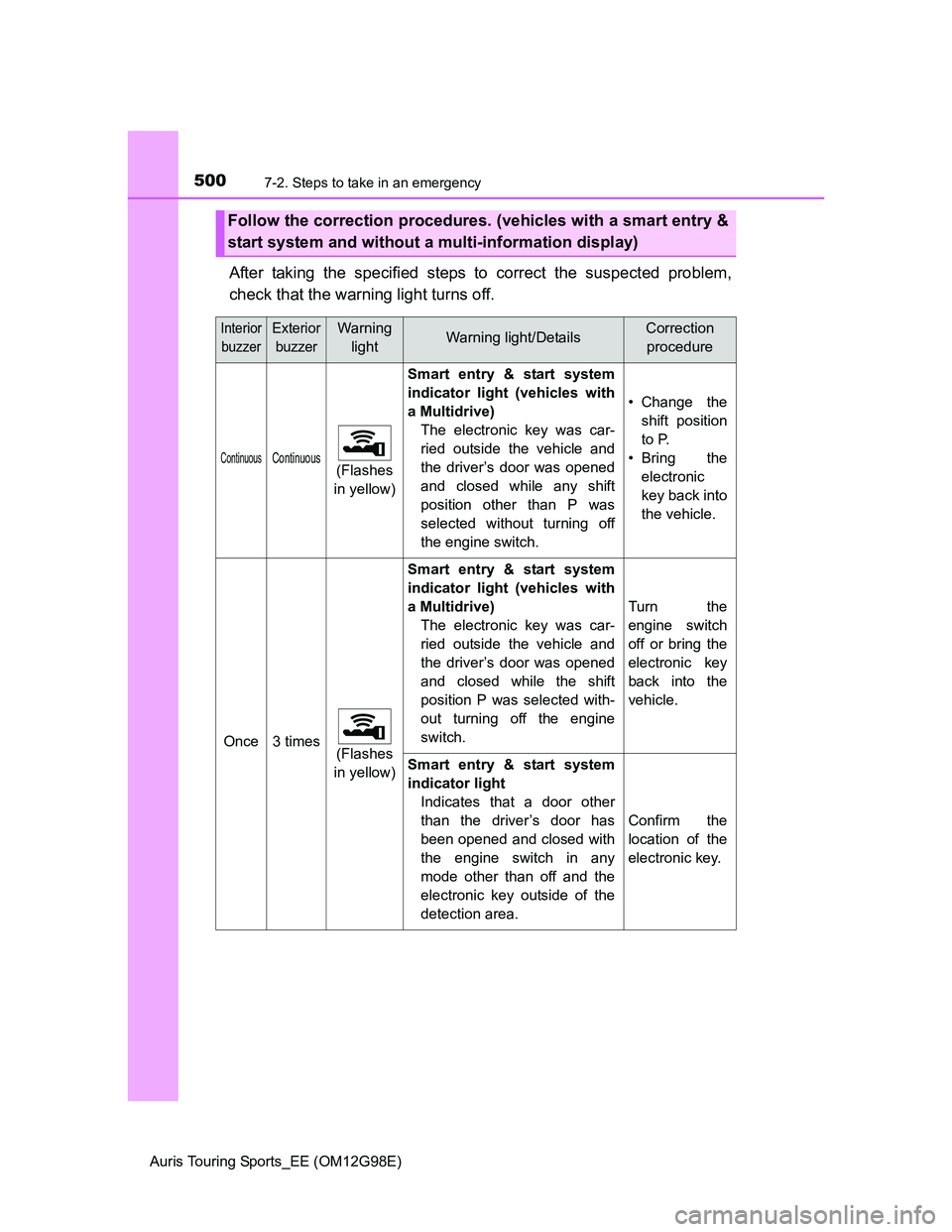

5007-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Follow the correction procedures. (vehicles with a smart entry &
start system and without a multi-information display)
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure
ContinuousContinuous(Flashes
in yellow)Smart entry & start system
indicator light (vehicles with
a Multidrive)
The electronic key was car-
ried outside the vehicle and
the driver’s door was opened
and closed while any shift
position other than P was
selected without turning off
the engine switch.• Change the
shift position
to P.
• Bring the
electronic
key back into
the vehicle.
Once3 times
(Flashes
in yellow)
Smart entry & start system
indicator light (vehicles with
a Multidrive)
The electronic key was car-
ried outside the vehicle and
the driver’s door was opened
and closed while the shift
position P was selected with-
out turning off the engine
switch.
Turn the
engine switch
off or bring the
electronic key
back into the
vehicle.
Smart entry & start system
indicator light
Indicates that a door other
than the driver’s door has
been opened and closed with
the engine switch in any
mode other than off and the
electronic key outside of the
detection area.
Confirm the
location of the
electronic key.
