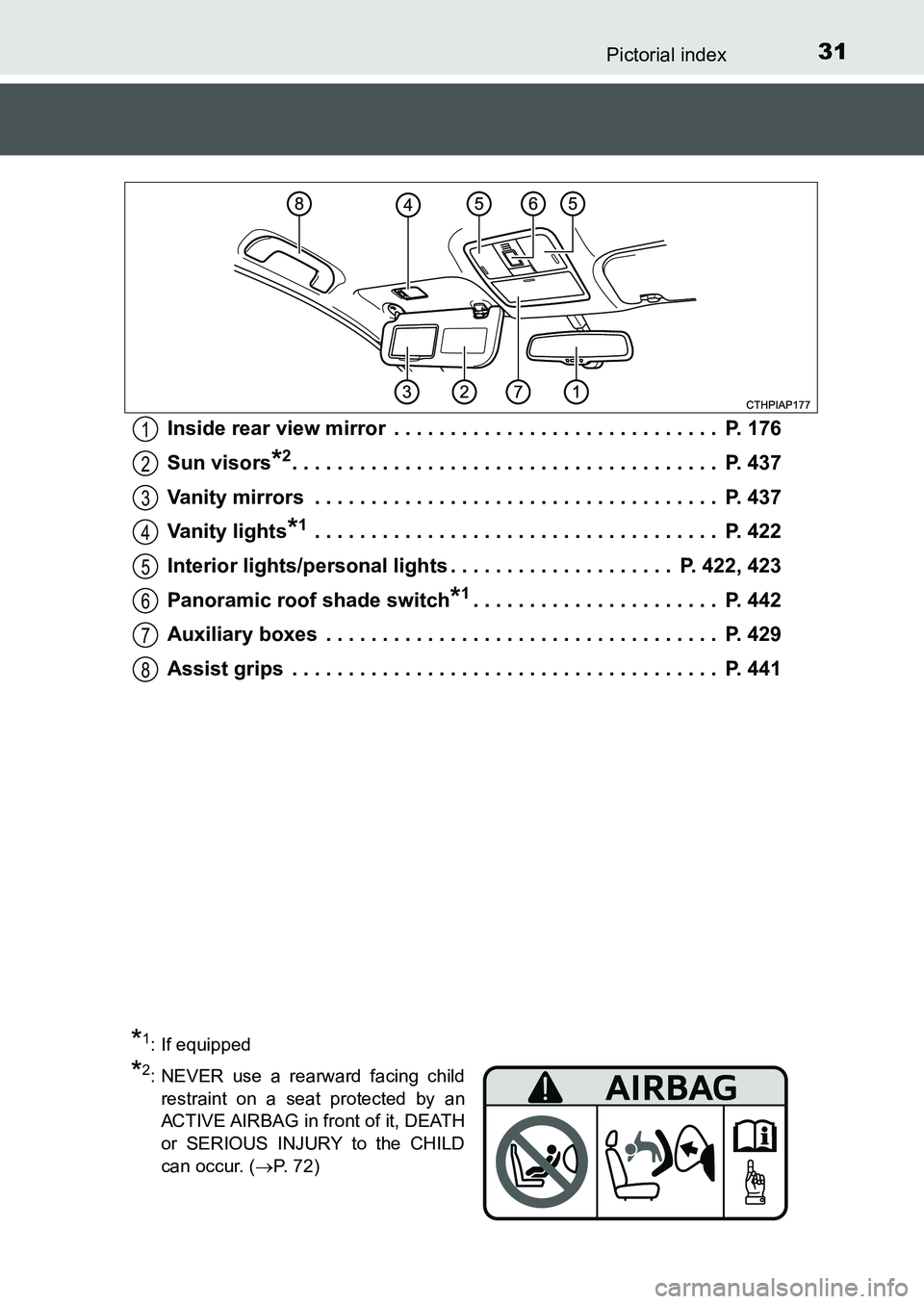

31Pictorial index
UK AURIS_HB_EE (OM12K97E)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 176
Sun visors
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Vanity lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 422, 423
Panoramic roof shade switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 442
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 441
1
2
3
4
5
6
7
8
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. (P. 72)
UK AURIS_HB_OM_Europe_OM12K97E.book 31 ページ ２０１６年６月２７日　月曜日　午後５時４２分

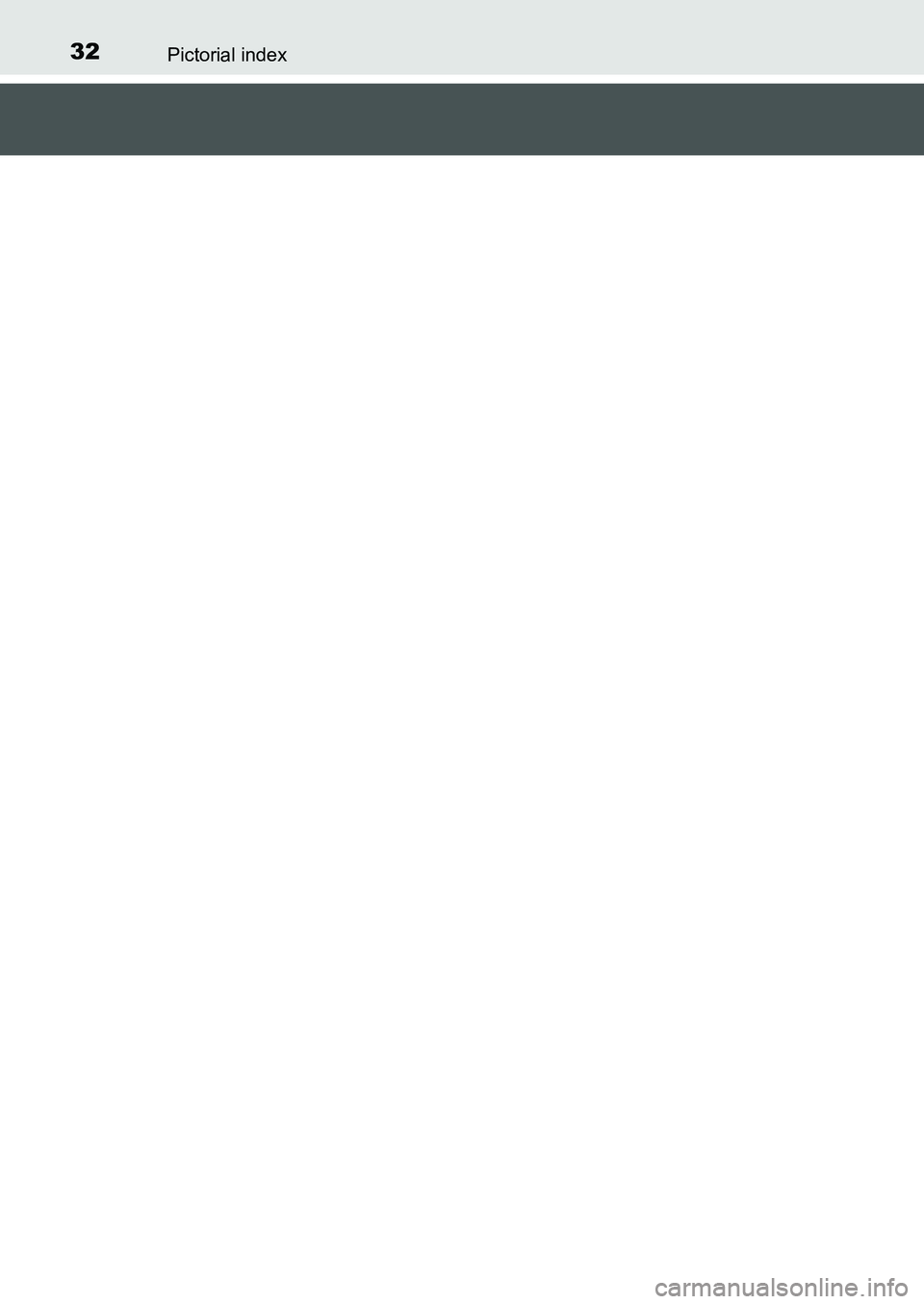

32Pictorial index
UK AURIS_HB_EE (OM12K97E)
UK AURIS_HB_OM_Europe_OM12K97E.book 32 ページ ２０１６年６月２７日　月曜日　午後５時４２分

33

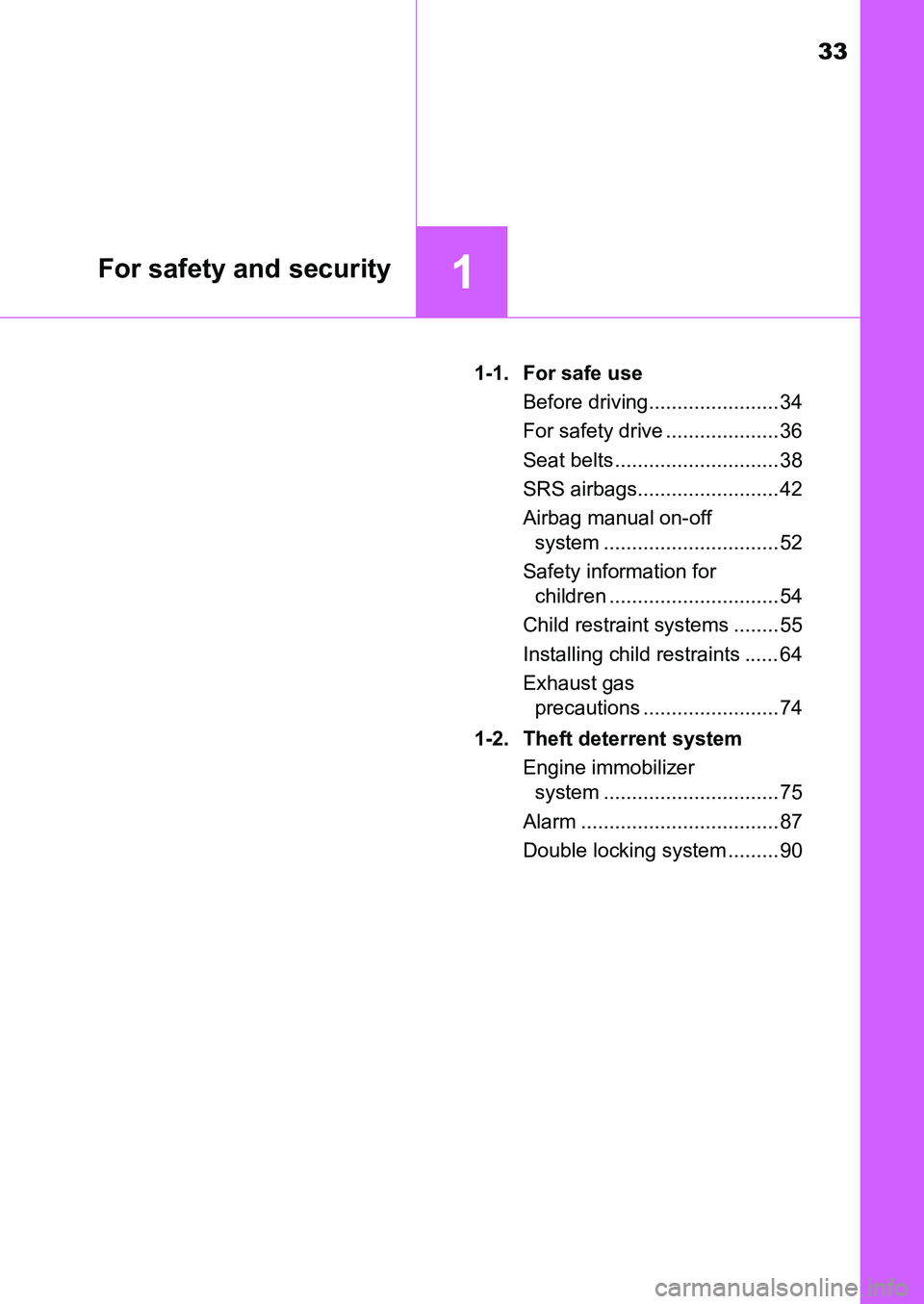

1For safety and security
UK AURIS_HB_EE (OM12K97E)1-1. For safe use
Before driving....................... 34
For safety drive .................... 36
Seat belts ............................. 38
SRS airbags......................... 42
Airbag manual on-off
system ............................... 52
Safety information for
children .............................. 54
Child restraint systems ........ 55
Installing child restraints ...... 64
Exhaust gas
precautions ........................ 74
1-2. Theft deterrent system
Engine immobilizer
system ............................... 75
Alarm ................................... 87
Double locking system ......... 90
UK AURIS_HB_OM_Europe_OM12K97E.book 33 ページ ２０１６年６月２７日　月曜日　午後５時４２分

34
UK AURIS_HB_EE (OM12K97E)
1-1. For safe use

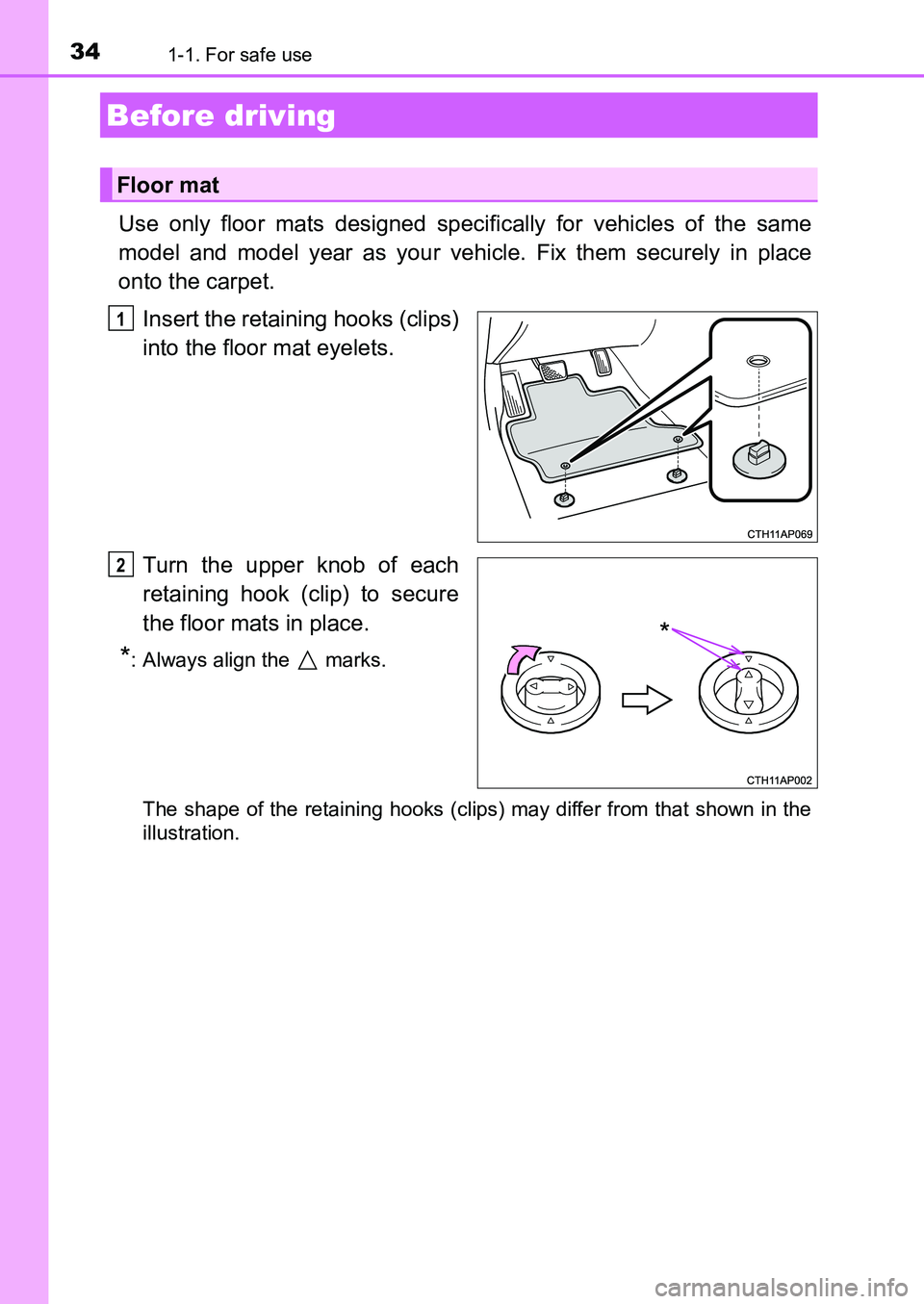

Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2
UK AURIS_HB_OM_Europe_OM12K97E.book 34 ページ ２０１６年６月２７日　月曜日　午後５時４２分

351-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
●With the engine stopped and the shift
lever in P (Multidrive) or N (manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.
UK AURIS_HB_OM_Europe_OM12K97E.book 35 ページ ２０１６年６月２７日　月曜日　午後５時４２分

361-1. For safe use
UK AURIS_HB_EE (OM12K97E)
Adjust the angle of the
seatback so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 168)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 168)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. (P. 172)
Wear the seat belt correctly. (P. 3 8 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 3 8 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 55)

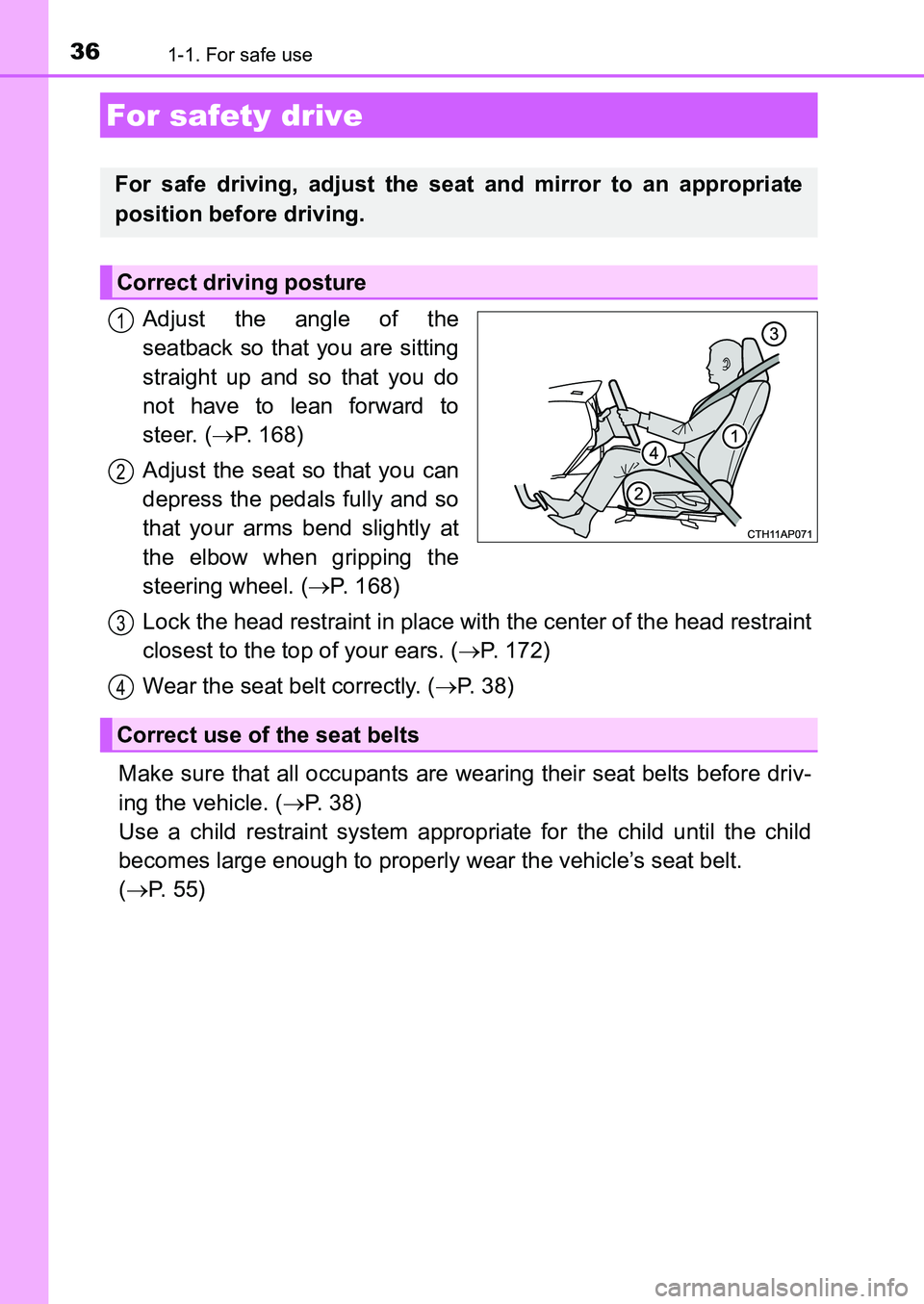

For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 36 ページ ２０１６年６月２７日　月曜日　午後５時４２分

371-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)

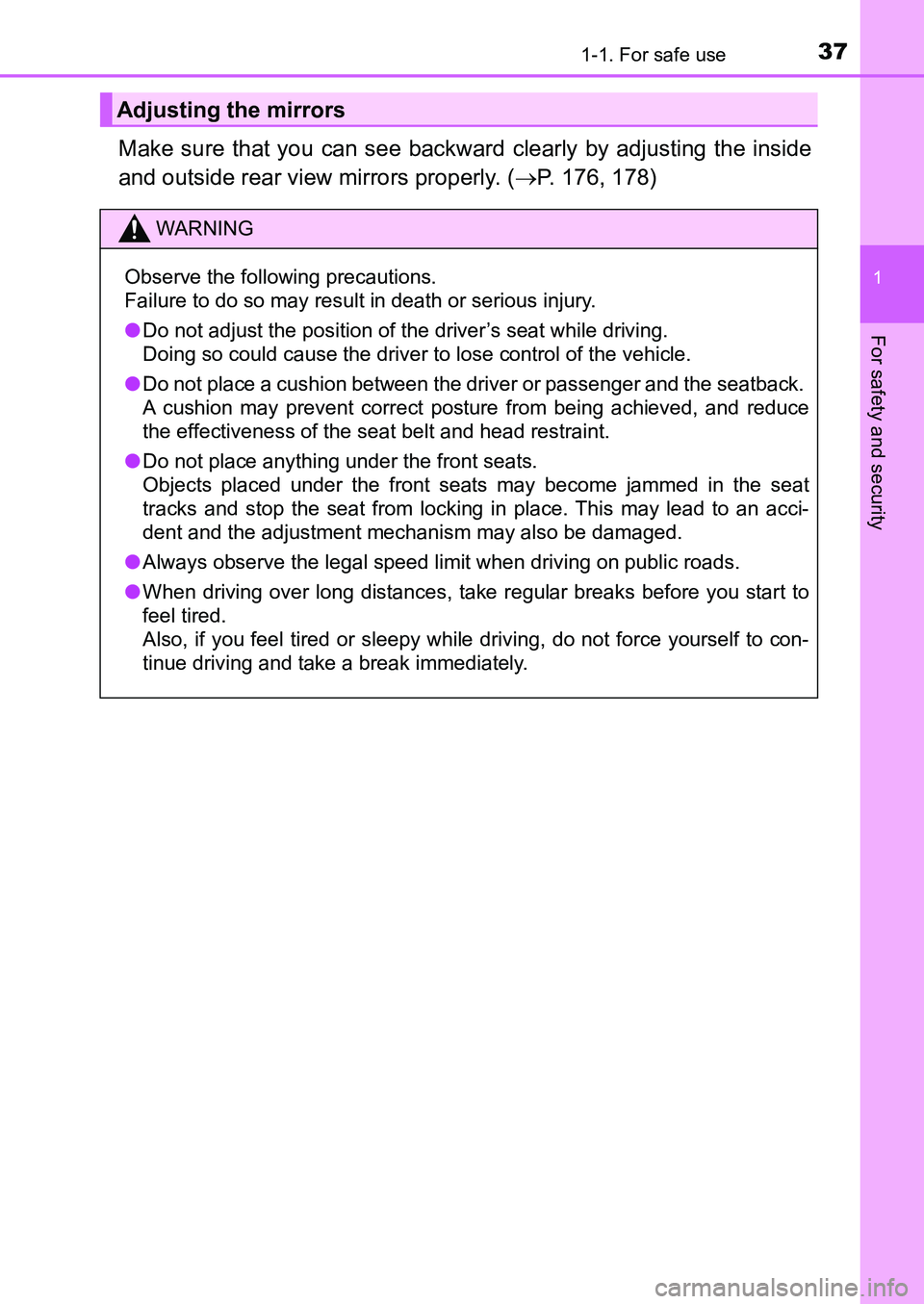

Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (P. 176, 178)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
UK AURIS_HB_OM_Europe_OM12K97E.book 37 ページ ２０１６年６月２７日　月曜日　午後５時４２分

381-1. For safe use
UK AURIS_HB_EE (OM12K97E)

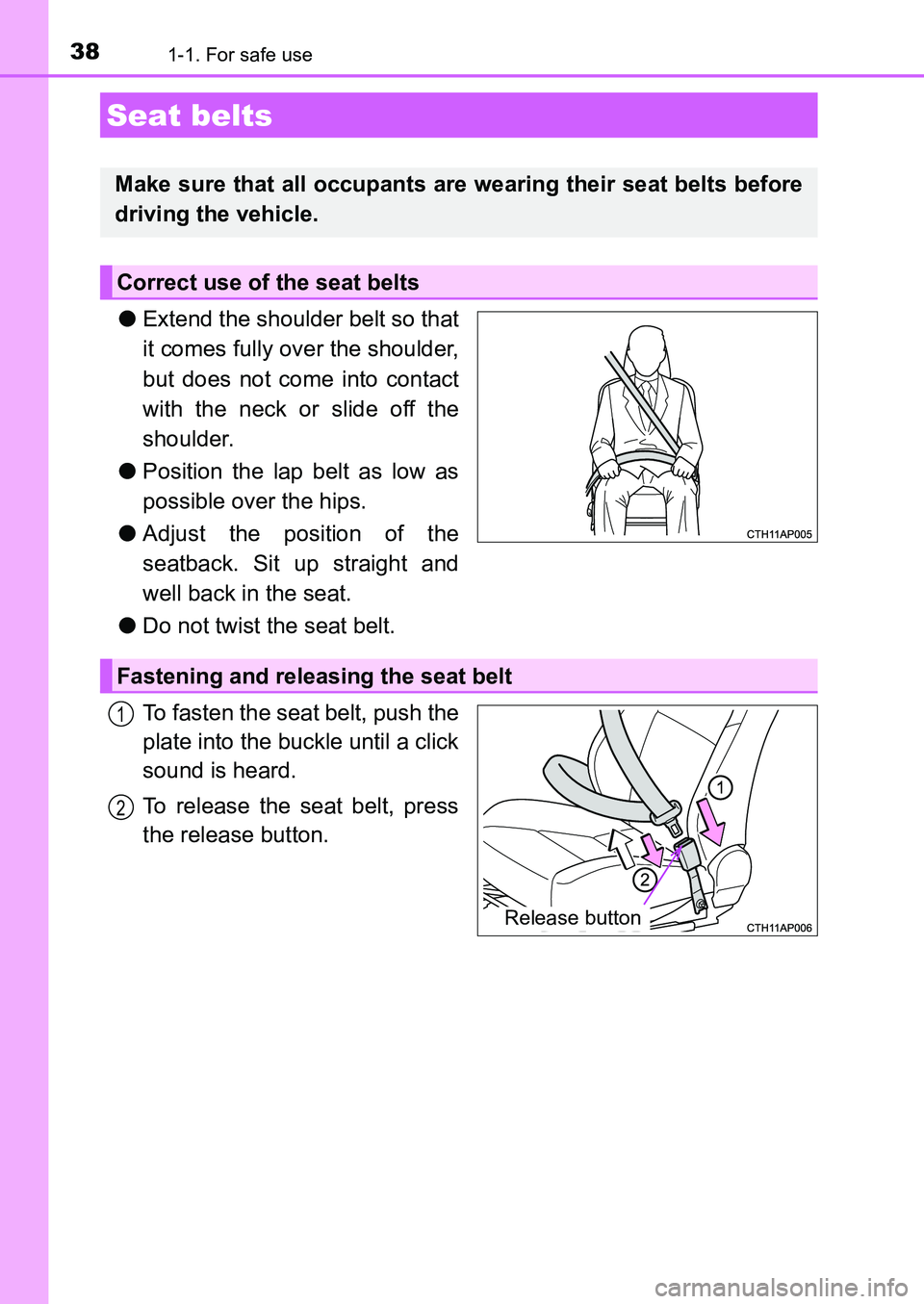

●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
●Position the lap belt as low as
possible over the hips.
●Adjust the position of the
seatback. Sit up straight and
well back in the seat.
●Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 38 ページ ２０１６年６月２７日　月曜日　午後５時４２分

391-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)

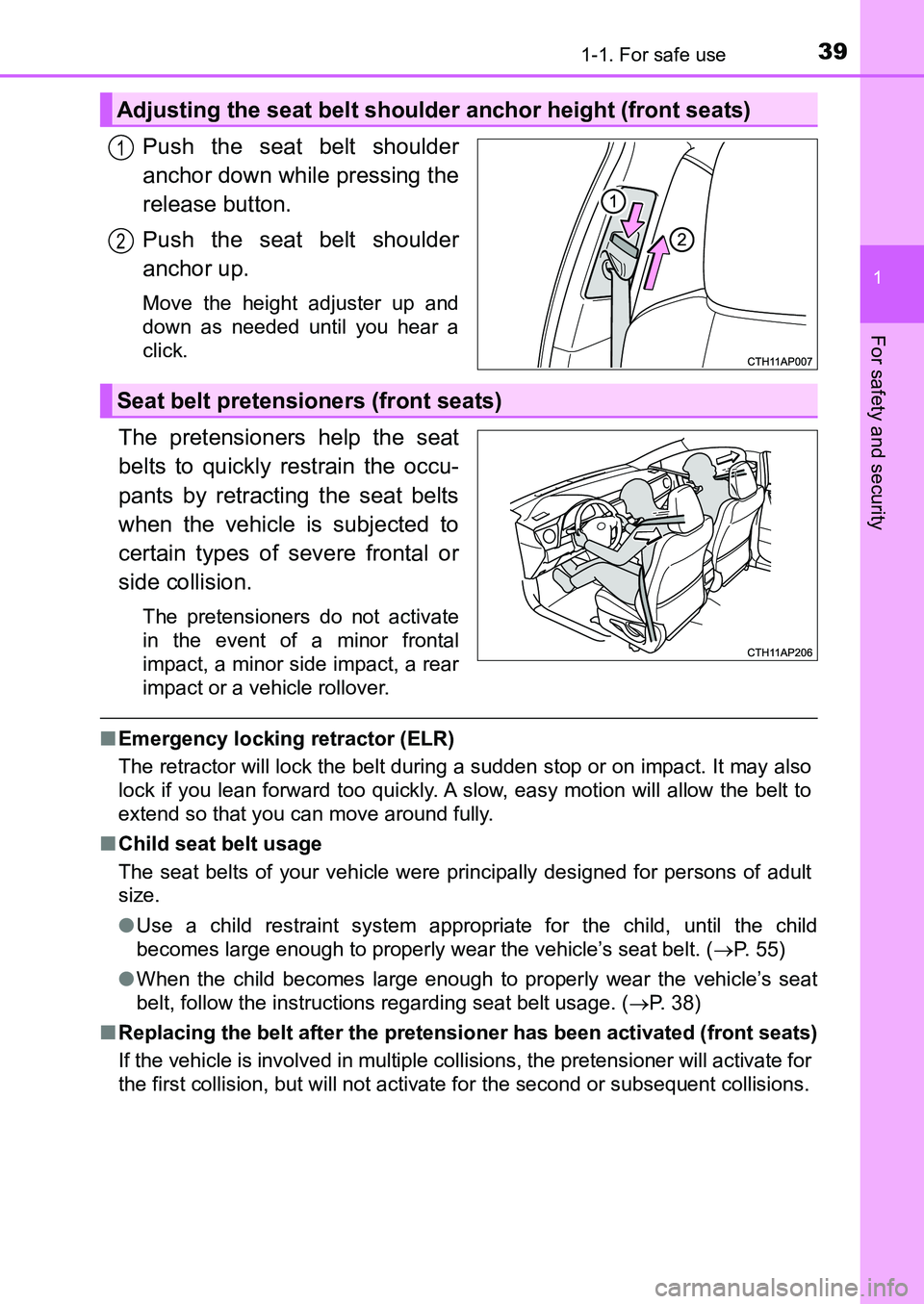

Push the seat belt shoulder
anchor down while pressing the
release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact, a rear
impact or a vehicle rollover.
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 55)
●When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. (P. 38)
■Replacing the belt after the pretensioner has been activated (front seats)
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt pretensioners (front seats)
UK AURIS_HB_OM_Europe_OM12K97E.book 39 ページ ２０１６年６月２７日　月曜日　午後５時４２分

401-1. For safe use

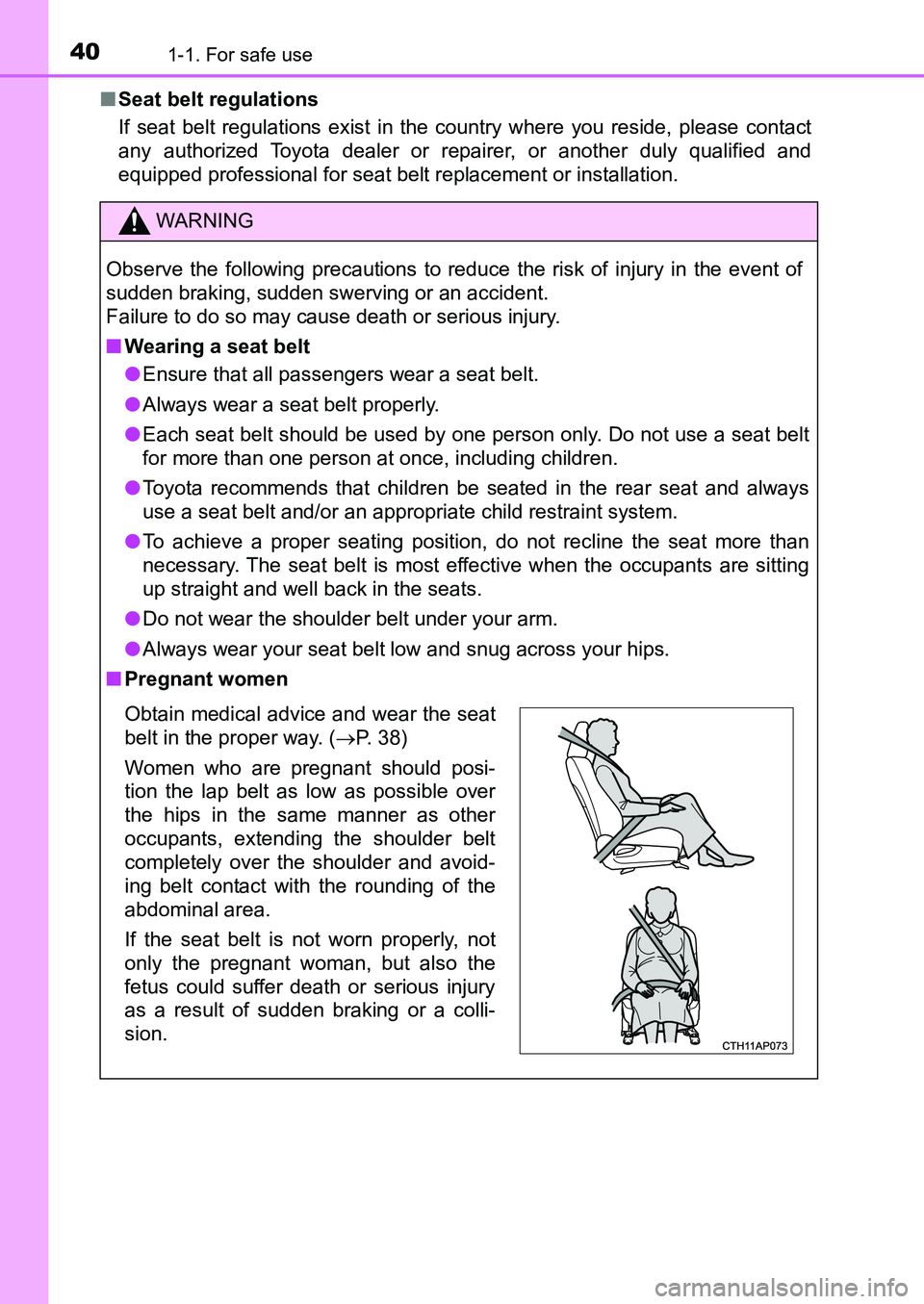

UK AURIS_HB_EE (OM12K97E)■Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for seat belt replacement or installation.
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
●Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (P. 38)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
