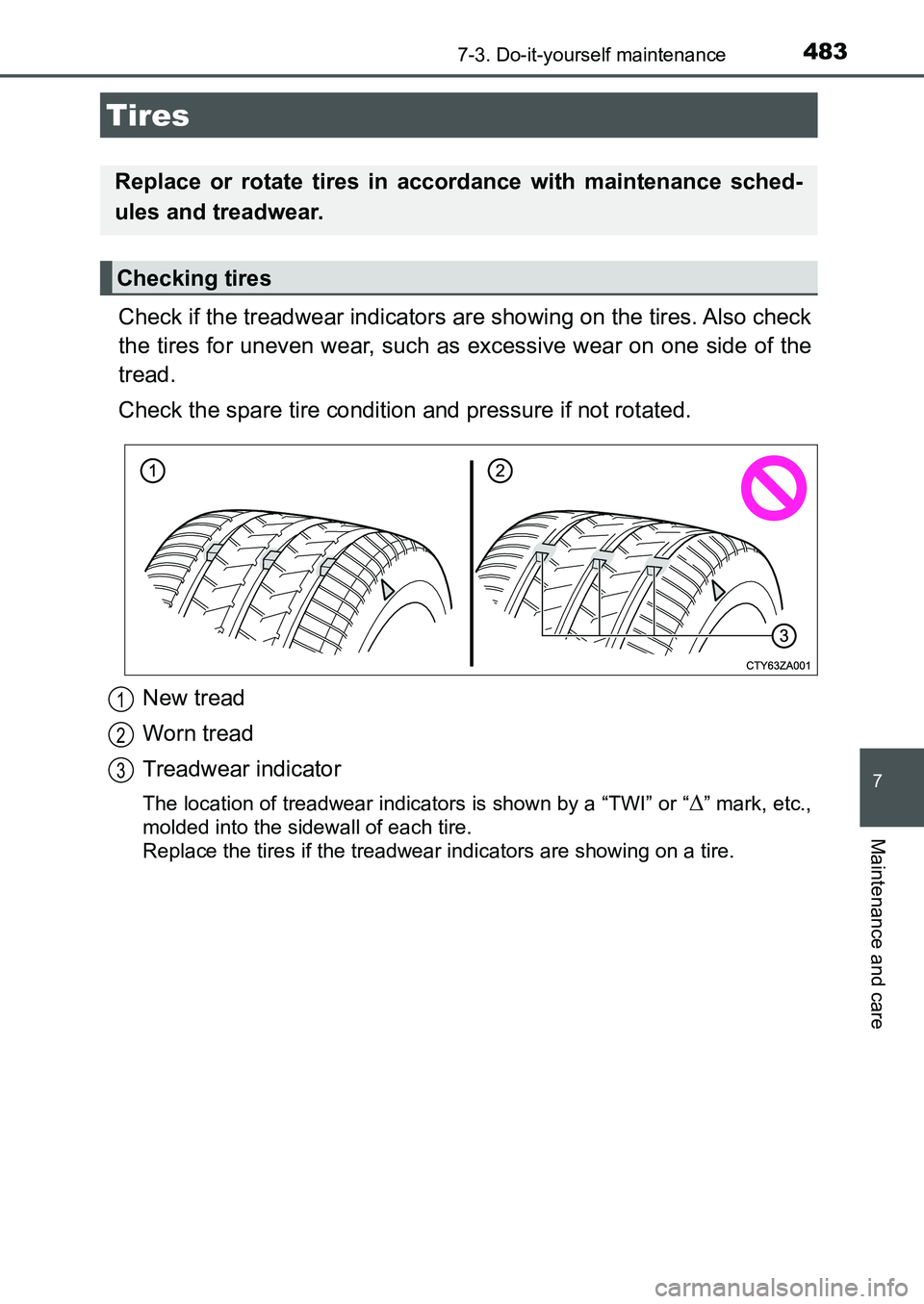

4837-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care
Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.
New tread
Worn tread
Treadwear indicator
The location of treadwear indicators is shown by a “TWI” or “” mark, etc.,
molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.
Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
Checking tires
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 483 ページ ２０１６年６月２７日　月曜日　午後５時４２分

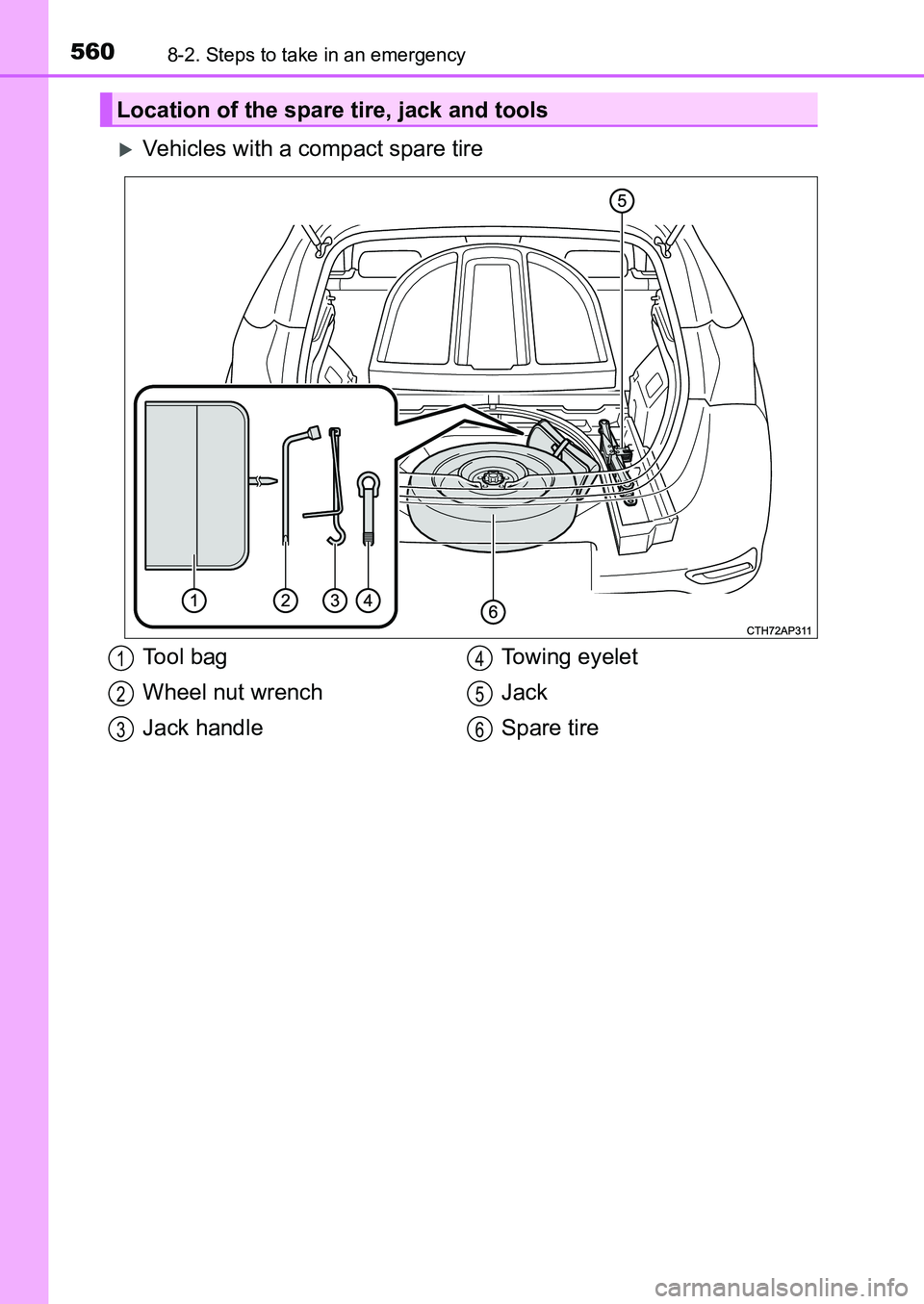

5608-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
Vehicles with a compact spare tire
Location of the spare tire, jack and tools
Tool bag
Wheel nut wrench
Jack handleTowing eyelet
Jack
Spare tire1
2
3
4
5
6
UK AURIS_HB_OM_Europe_OM12K97E.book 560 ページ ２０１６年６月２７日　月曜日　午後５時４２分

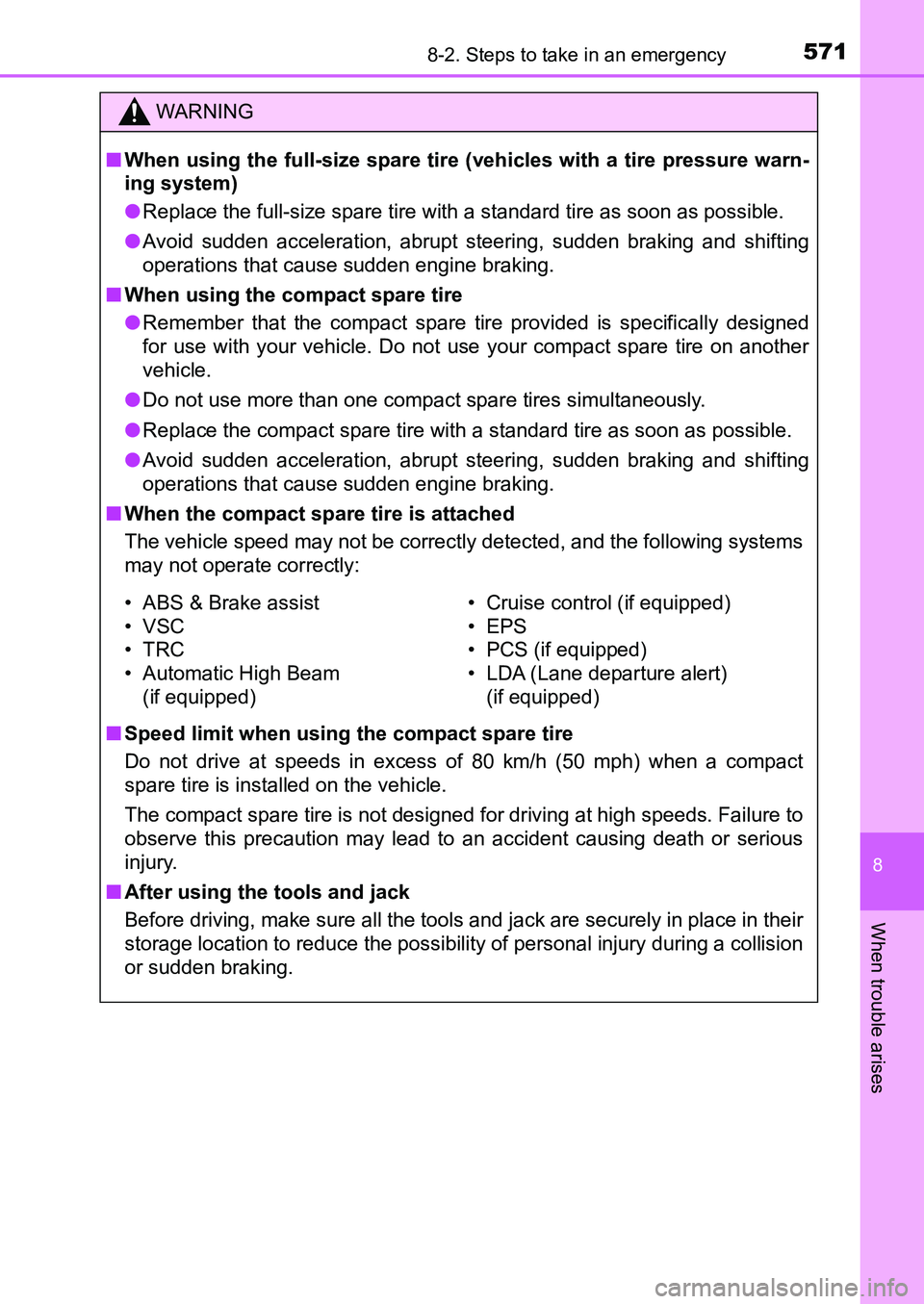

5718-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
WARNING
■When using the full-size spare tire (vehicles with a tire pressure warn-
ing system)
●Replace the full-size spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
• ABS & Brake assist
•VSC
•TRC
• Automatic High Beam
(if equipped)• Cruise control (if equipped)
•EPS
• PCS (if equipped)
• LDA (Lane departure alert)
(if equipped)
UK AURIS_HB_OM_Europe_OM12K97E.book 571 ページ ２０１６年６月２７日　月曜日　午後５時４２分

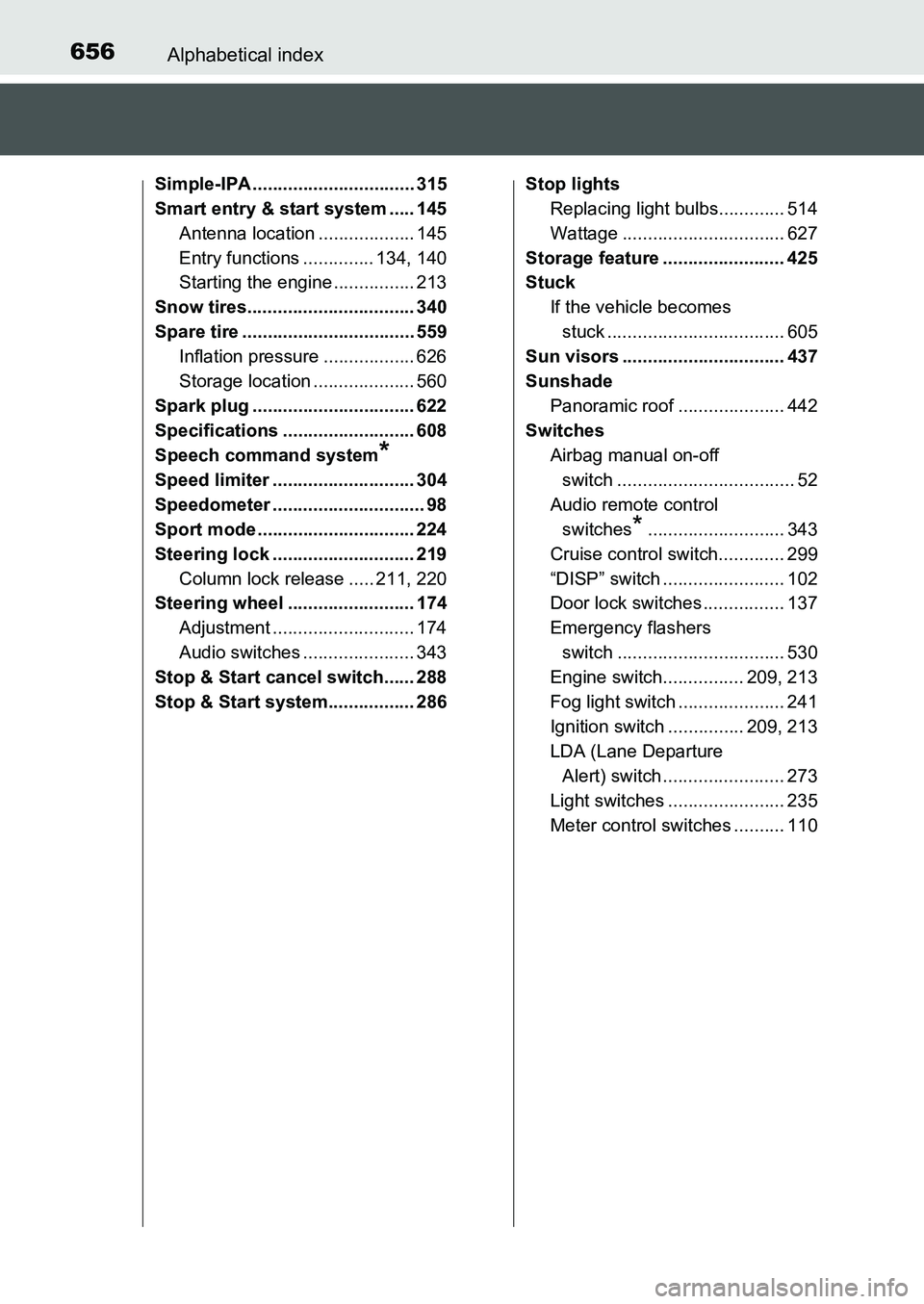

656Alphabetical index
UK AURIS_HB_EE (OM12K97E)
Simple-IPA ................................ 315
Smart entry & start system ..... 145
Antenna location ................... 145
Entry functions .............. 134, 140
Starting the engine ................ 213
Snow tires................................. 340
Spare tire .................................. 559
Inflation pressure .................. 626
Storage location .................... 560
Spark plug ................................ 622
Specifications .......................... 608
Speech command system
*
Speed limiter ............................ 304
Speedometer .............................. 98
Sport mode ............................... 224
Steering lock ............................ 219
Column lock release ..... 211, 220
Steering wheel ......................... 174
Adjustment ............................ 174
Audio switches ...................... 343
Stop & Start cancel switch...... 288
Stop & Start system................. 286Stop lights
Replacing light bulbs............. 514
Wattage ................................ 627
Storage feature ........................ 425
Stuck
If the vehicle becomes
stuck ................................... 605
Sun visors ................................ 437
Sunshade
Panoramic roof ..................... 442
Switches
Airbag manual on-off
switch ................................... 52
Audio remote control
switches
*........................... 343
Cruise control switch............. 299
“DISP” switch ........................ 102
Door lock switches ................ 137
Emergency flashers
switch ................................. 530
Engine switch................ 209, 213
Fog light switch ..................... 241
Ignition switch ............... 209, 213
LDA (Lane Departure
Alert) switch ........................ 273
Light switches ....................... 235
Meter control switches .......... 110
