TOYOTA AURIS 2018 Owners Manual (in English)

5619-1. Specifications
UK AURIS_HV_HB_EE (OM12M49E)
9
Vehicle specifications

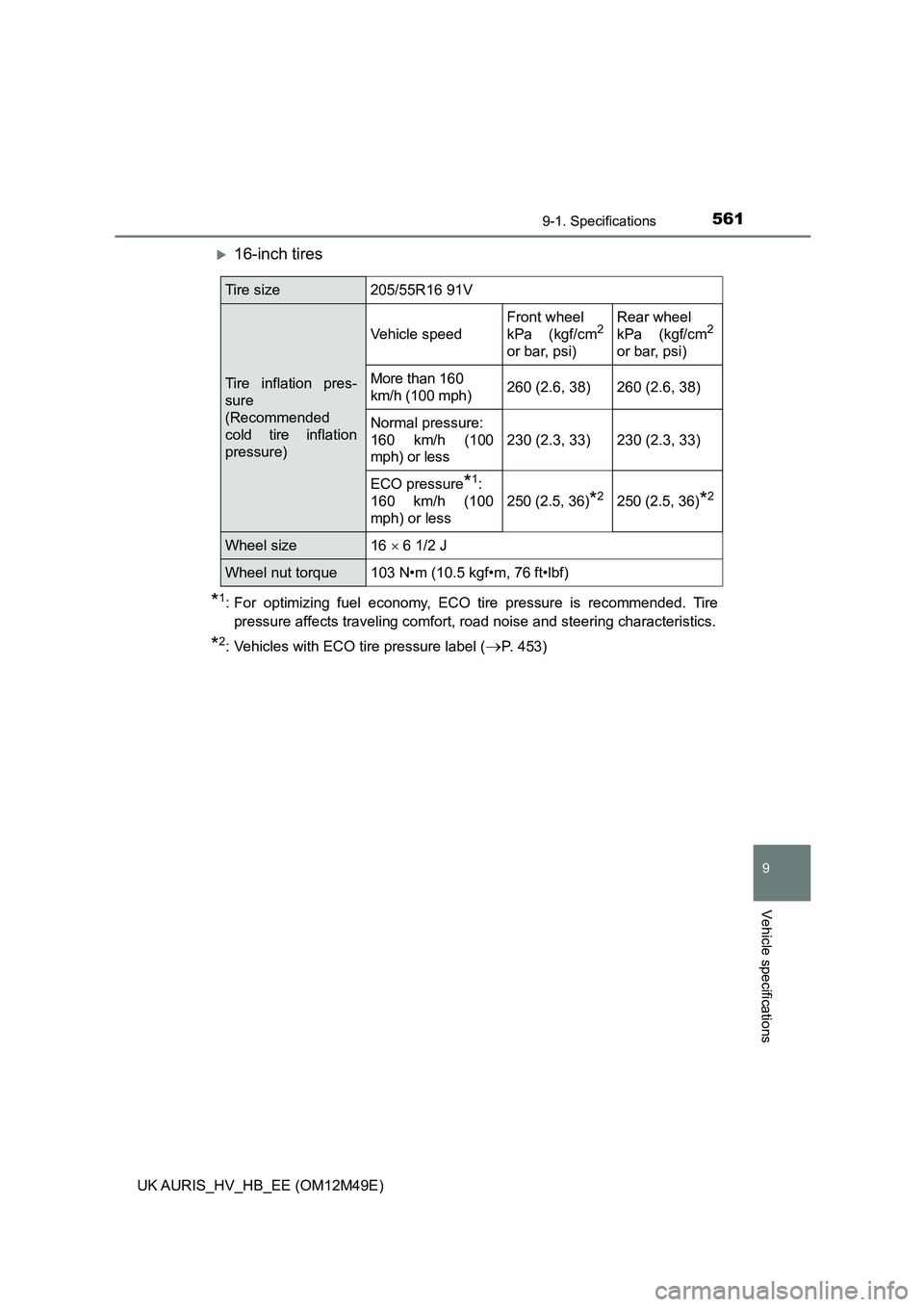

16-inch tires
*1: For optimizing fuel economy, ECO tire pressure is recommended. Tire
pressure affects traveling comfort, road noise and steering characteristics.
*2: Vehicles with ECO tire pressure label (P. 453)
Tire size205/55R16 91V
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
Normal pressure:
160 km/h (100
mph) or less
230 (2.3, 33)230 (2.3, 33)
ECO pressure*1:
160 km/h (100
mph) or less
250 (2.5, 36)*2250 (2.5, 36)*2
Wheel size16  6 1/2 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

5629-1. Specifications
UK AURIS_HV_HB_EE (OM12M49E)

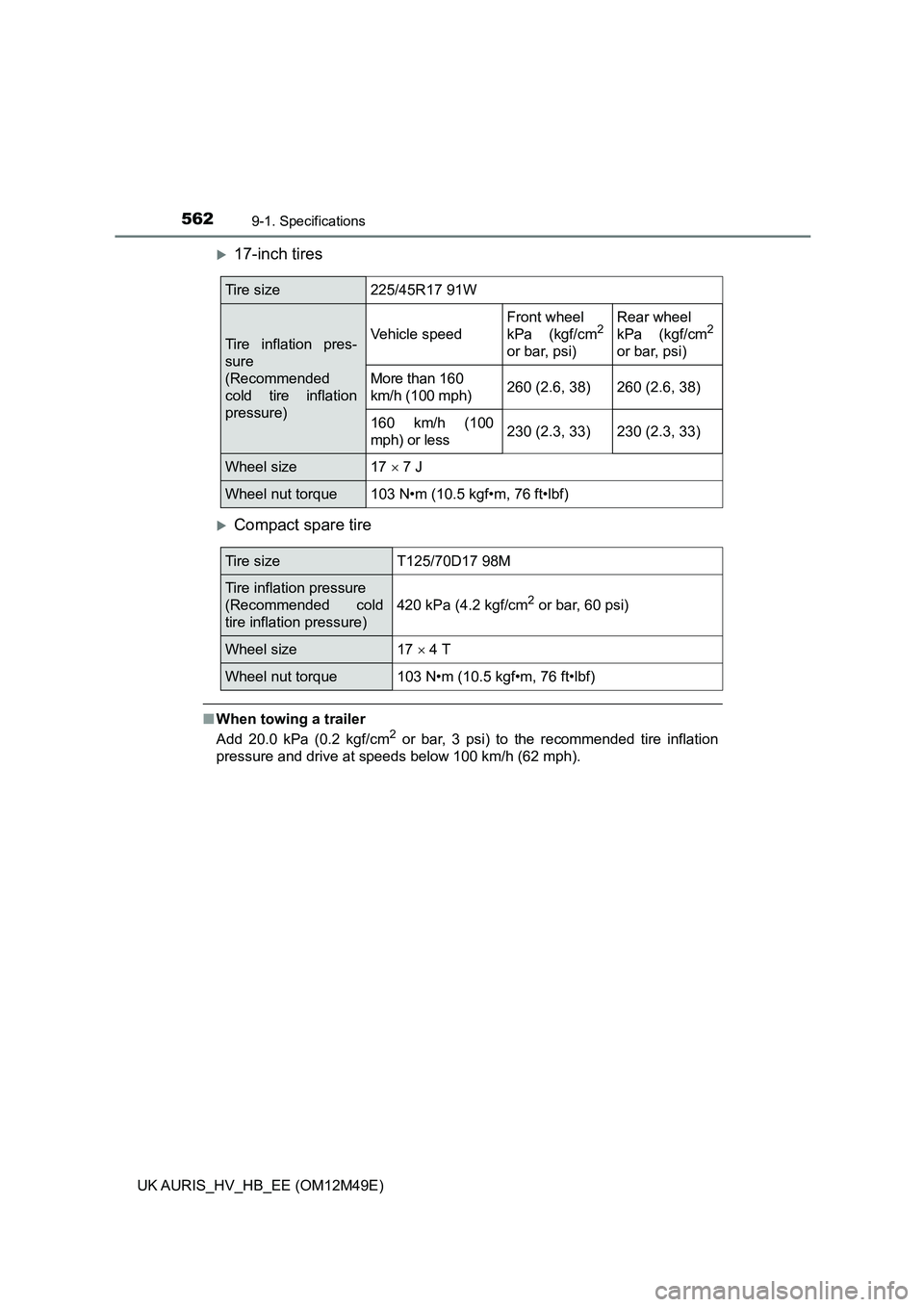

17-inch tires
Compact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size225/45R17 91W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less230 (2.3, 33)230 (2.3, 33)
Wheel size17  7 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4 T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

5639-1. Specifications
UK AURIS_HV_HB_EE (OM12M49E)
9
Vehicle specifications

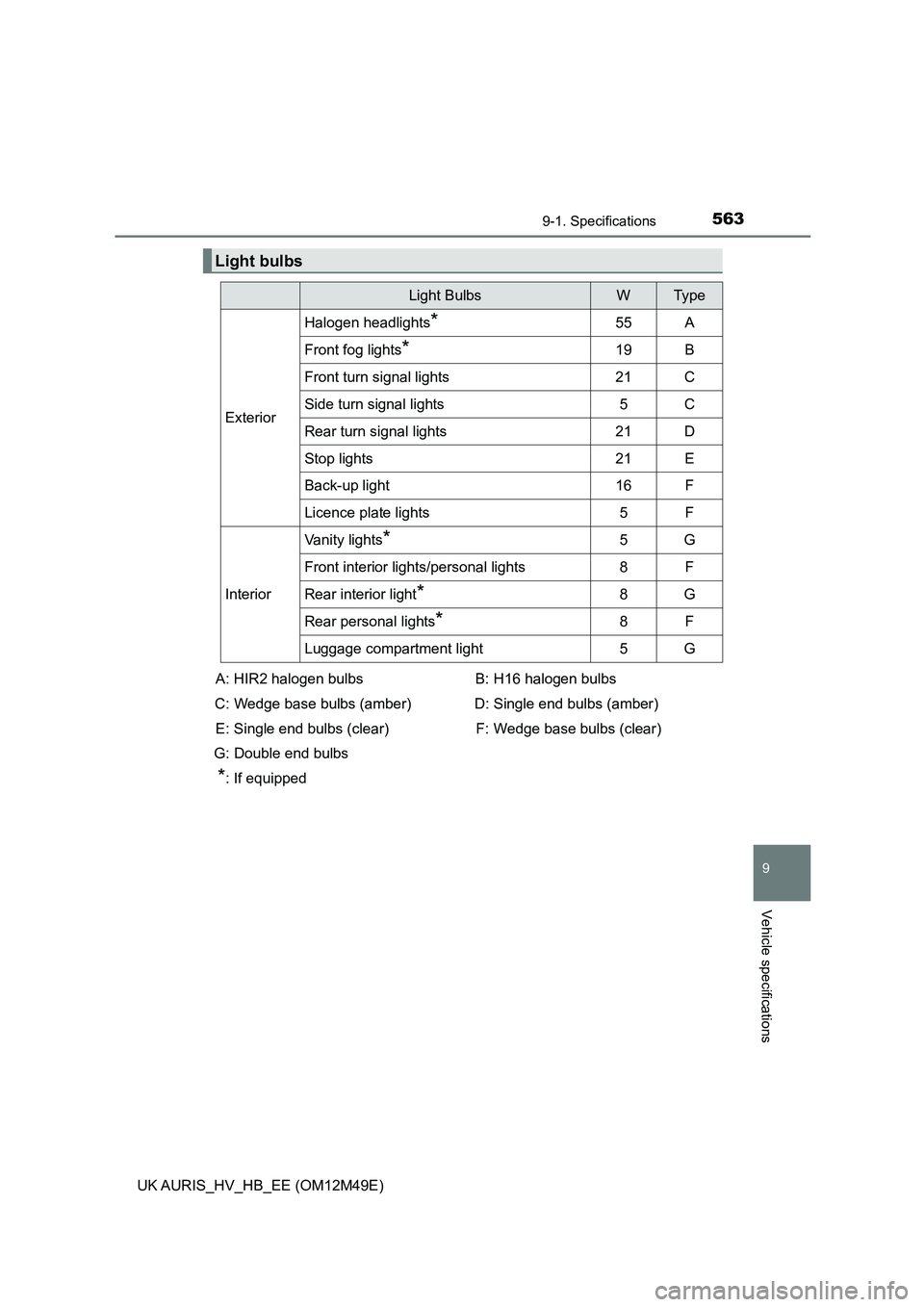

Light bulbs
Light BulbsWTy p e
Exterior
Halogen headlights*55A
Front fog lights*19B
Front turn signal lights21C
Side turn signal lights5C
Rear turn signal lights21D
Stop lights21E
Back-up light16F
Licence plate lights5F
Interior
Vanity lights*5G
Front interior lights/personal lights8F
Rear interior light*8G
Rear personal lights*8F
Luggage compartment light5G
A: HIR2 halogen bulbs
C: Wedge base bulbs (amber)
E: Single end bulbs (clear)
G: Double end bulbs
*: If equipped
B: H16 halogen bulbs
D: Single end bulbs (amber)
F: Wedge base bulbs (clear)

5649-1. Specifications
UK AURIS_HV_HB_EE (OM12M49E)

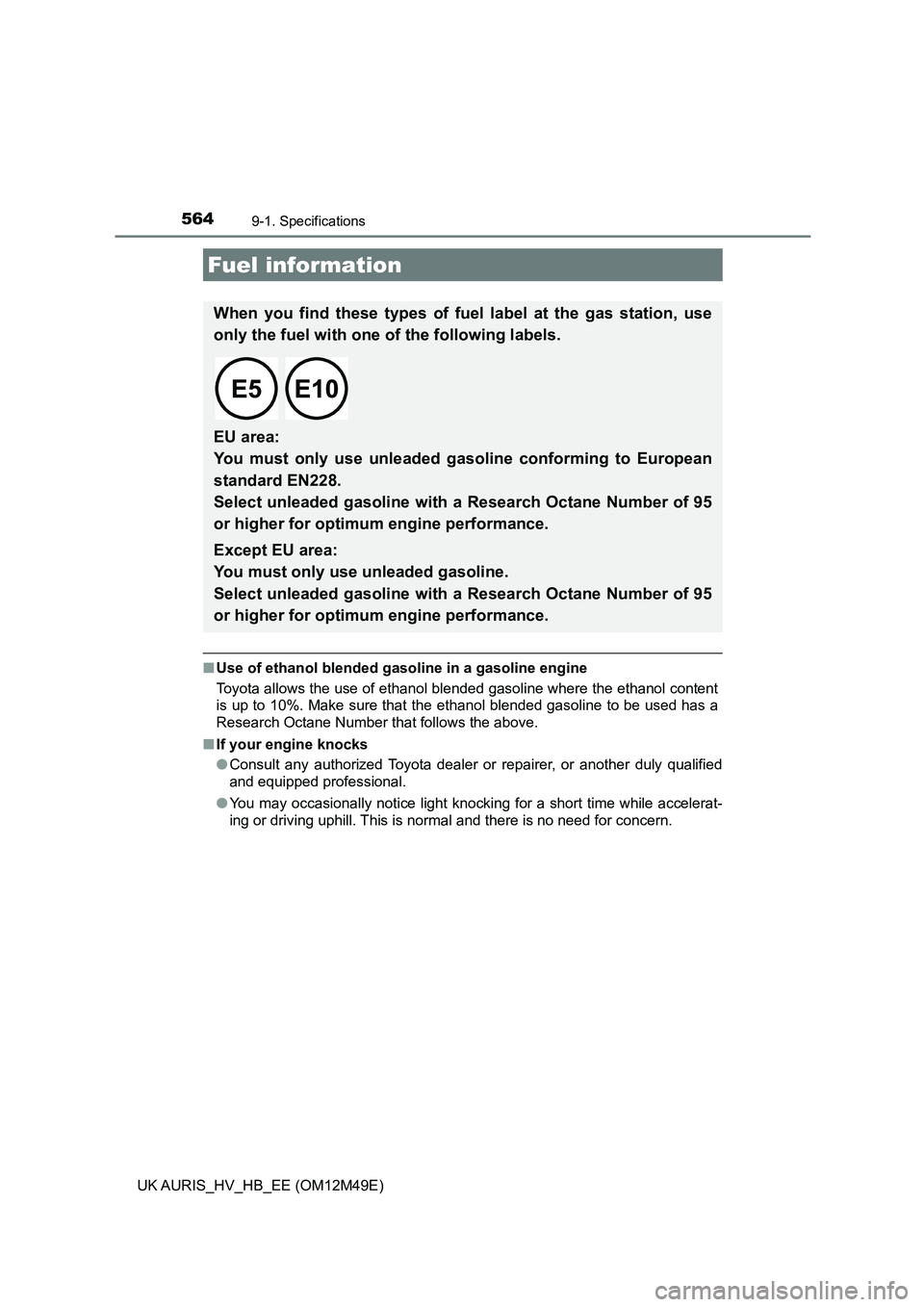

■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
Fuel information
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gaso line conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

5659-1. Specifications
UK AURIS_HV_HB_EE (OM12M49E)
9
Vehicle specifications

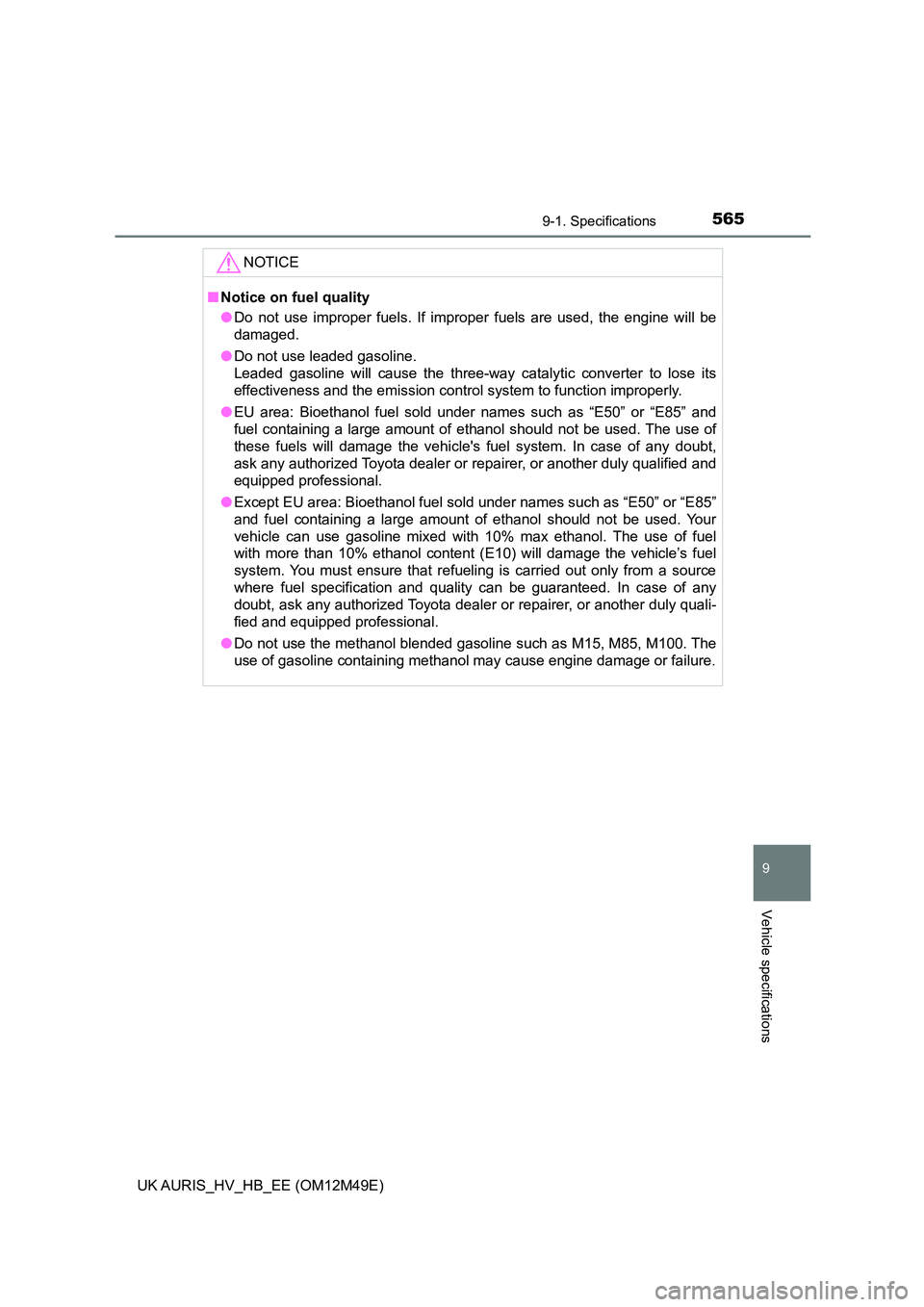

NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle's fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
●Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
●Do not use the methanol blended gasoline such as M15, M85, M100. The
use of gasoline containing methanol may cause engine damage or failure.

566
UK AURIS_HV_HB_EE (OM12M49E)

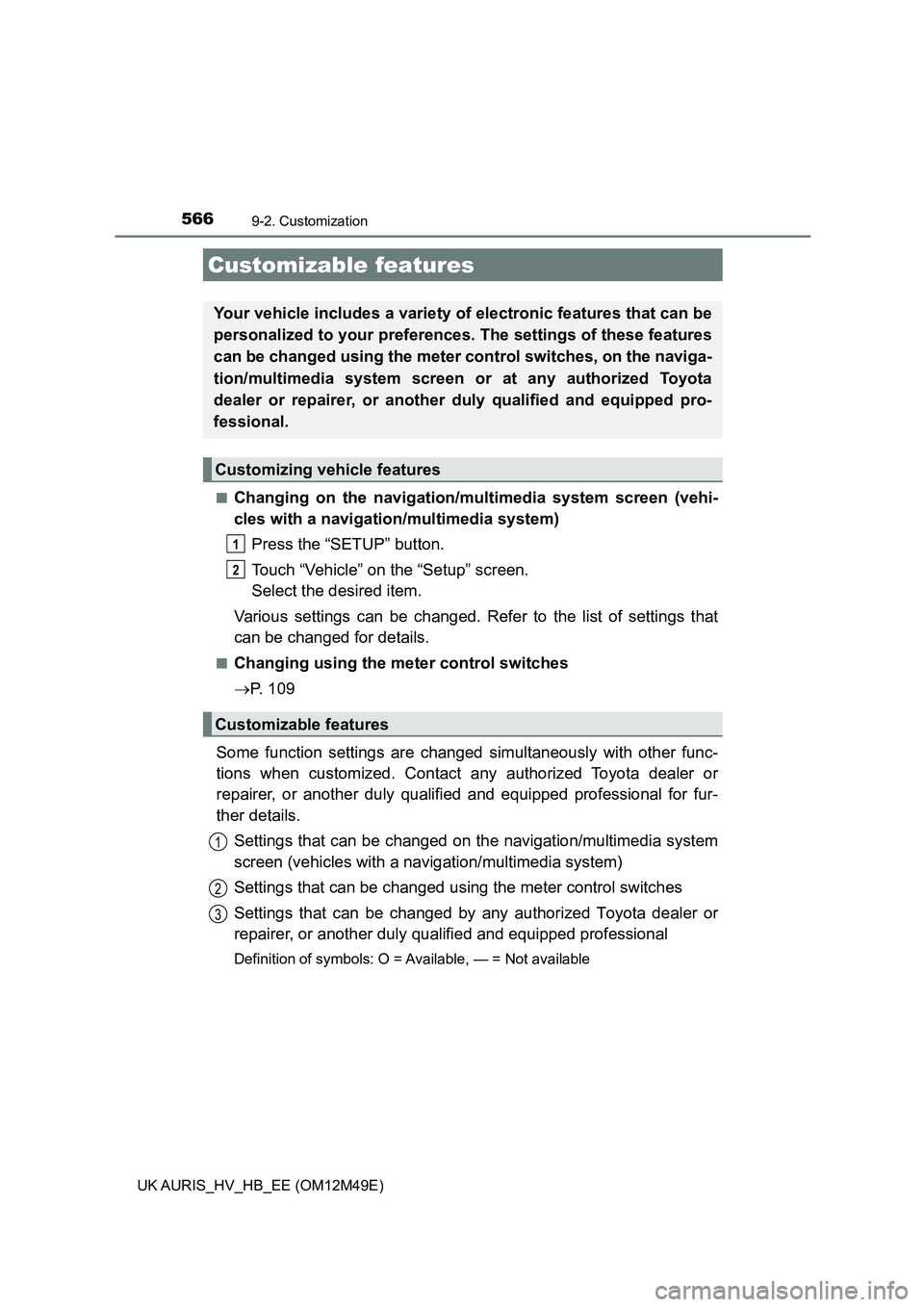

9-2. Customization
■Changing on the navigation/multimedia system screen (vehi-
cles with a navigation/multimedia system)
Press the “SETUP” button.
Touch “Vehicle” on t he “Setup” screen.
Select the desired item.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
■Changing using the meter control switches
 P. 1 0 9
Some function settings are changed simultaneously with other func-
tions when customized. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details.
Settings that can be changed on the navigation/multimedia system
screen (vehicles with a navigation/multimedia system)
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the meter control switches, on the naviga-
tion/multimedia system screen or at any authorized Toyota
dealer or repairer, or anothe r duly qualified and equipped pro-
fessional.
Customizing vehicle features
Customizable features
1
2
1
2
3

5679-2. Customization
UK AURIS_HV_HB_EE (OM12M49E)
9
Vehicle specifications

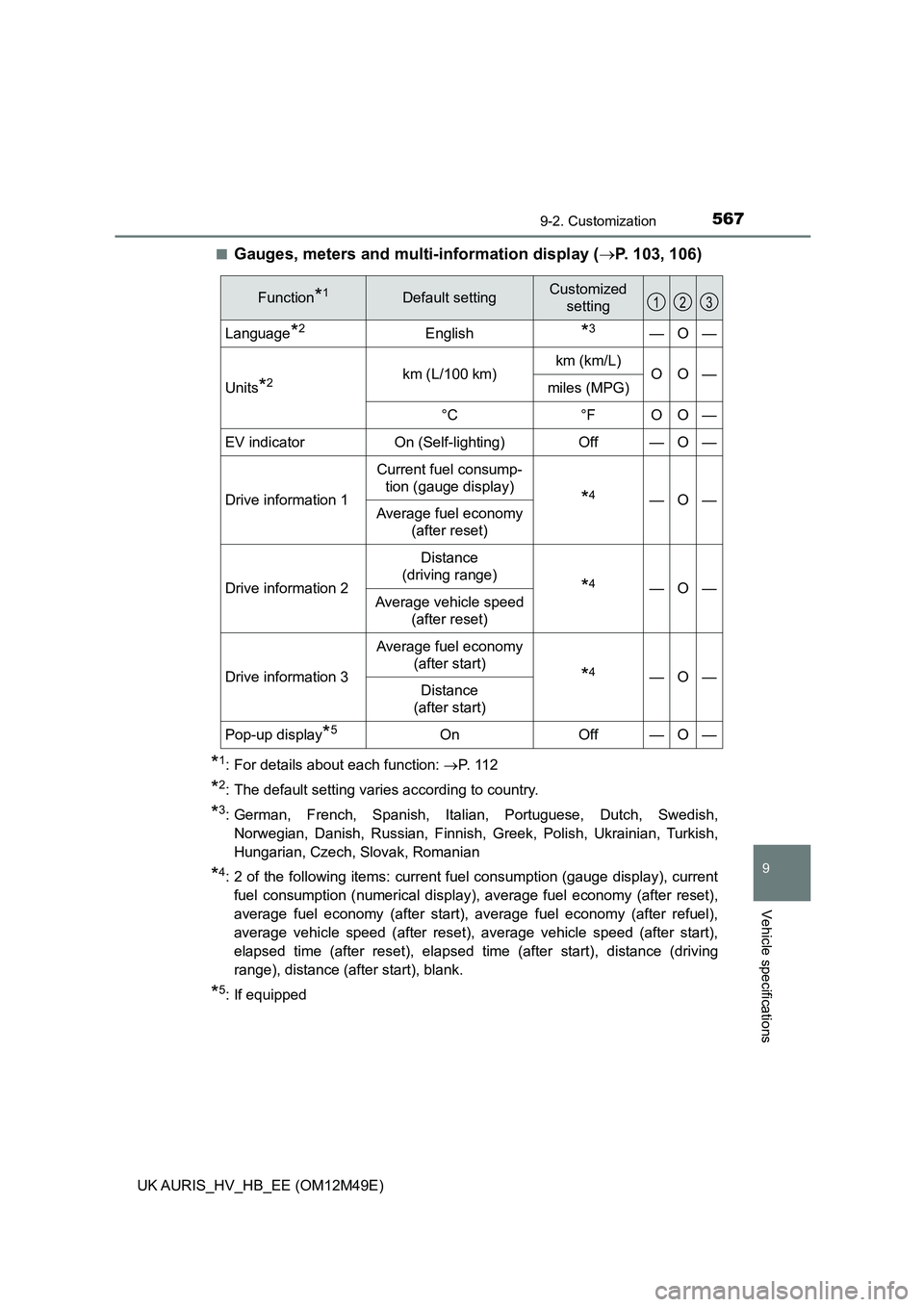

■Gauges, meters and multi-information display (P. 103, 106)
*1: For details about each function: P. 1 1 2
*2: The default setting varies according to country.
*3: German, French, Spanish, Italian, Portuguese, Dutch, Swedish,
Norwegian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish,
Hungarian, Czech, Slovak, Romanian
*4: 2 of the following items: current fuel consumption (gauge display), current
fuel consumption (numerical display), average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
average vehicle speed (after reset), average vehicle speed (after start),
elapsed time (after reset), elapsed time (after start), distance (driving
range), distance (after start), blank.
*5: If equipped
Function*1Default settingCustomized
setting
Language*2English*3—O—
Units*2km (L/100 km)km (km/L)OO—miles (MPG)
°C°FOO—
EV indicatorOn (Self-lighting)Off—O—
Drive information 1
Current fuel consump-
tion (gauge display)*4—O—Average fuel economy
(after reset)
Drive information 2
Distance
(driving range)*4—O—Average vehicle speed
(after reset)
Drive information 3
Average fuel economy
(after start)*4—O—Distance
(after start)
Pop-up display*5OnOff—O—
123

5689-2. Customization
UK AURIS_HV_HB_EE (OM12M49E)

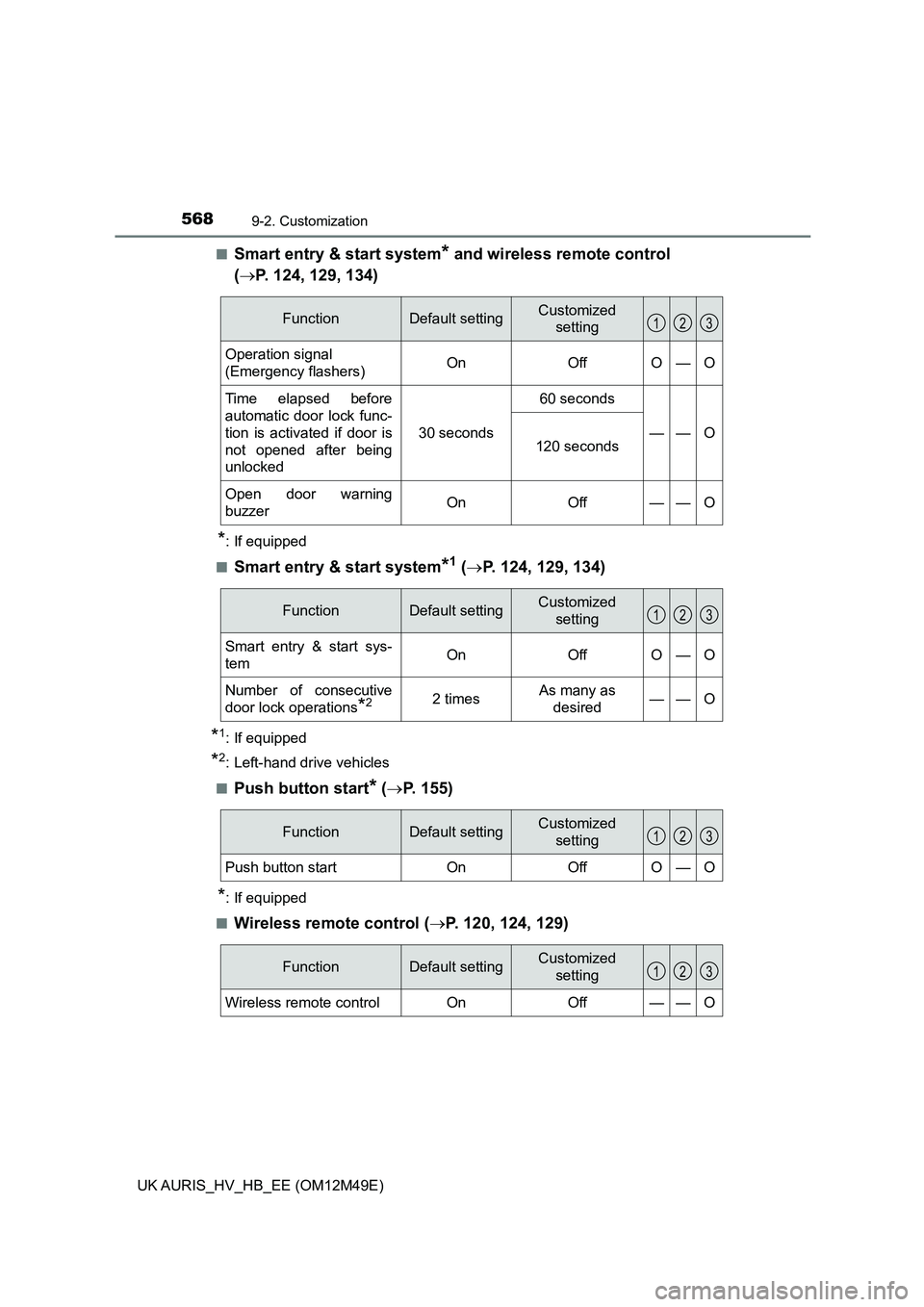

■Smart entry & start system* and wireless remote control
( P. 124, 129, 134)
*: If equipped
■Smart entry & start system*1 (P. 124, 129, 134)
*1: If equipped
*2: Left-hand drive vehicles
■Push button start* (P. 155)
*: If equipped
■Wireless remote control (P. 120, 124, 129)
FunctionDefault settingCustomized
setting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before
automatic door lock func-
tion is activated if door is
not opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning
buzzerOnOff——O
123
FunctionDefault settingCustomized
setting
Smart entry & start sys-
temOnOffO—O
Number of consecutive
door lock operations*22 timesAs many as
desired——O
123
FunctionDefault settingCustomized
setting
Push button startOnOffO—O
123
FunctionDefault settingCustomized
setting
Wireless remote controlOnOff——O
123

5699-2. Customization
UK AURIS_HV_HB_EE (OM12M49E)
9
Vehicle specifications
■Turn signal lever (P. 227)
■Automatic light control system* (P. 229)
*: If equipped
■Follow me home system (P. 231)
■LDA (Lane Departure Alert)* (P. 265)
*: If equipped
FunctionDefault settingCustomized
setting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
3
5
——O7
Off
123
FunctionDefault settingCustomized
setting
Light sensor sensitivityStandard-2 to 2O—O
123
FunctionDefault settingCustomized
setting
Time elapsed before
headlights automatically
turn off
30 seconds
60 seconds
——O90 seconds
120 seconds
123
FunctionDefault settingCustomized
setting
LDA warning sensitivityHighStandard—O—
123

5709-2. Customization
UK AURIS_HV_HB_EE (OM12M49E)
■RSA (Road Sign Assist)* (P. 274)
*: If equipped
■Toyota parking assist-sensor*1 (P. 284)
*1: If equipped
*2: Vehicles with a navigation/multimedia system
*3: When Toyota parking assist-sensor is operating.
FunctionDefault settingCustomized
setting
RSA systemOnOff—O—
Notification method of
excessive speed Only display
Display and
buzzer—O—
Off
Notification methods
other than excessive
speed
Only display
Display and
buzzer—O—
Off
Notification level of
excessive speed
2 km/h
(1 mph)
10 km/h (5 mph)—O—5 km/h (3 mph)
123
FunctionDefault settingCustomized
setting
Toyota parking assist-
sensor systemOnOff—O—
Detection distance of the
front center sensors*2FarNearO—O
Detection distance of the
rear center sensors*2FarNearO—O
Buzzer volume*251 to 4O—O
Display setting*2, 3All sensors
displayedDisplay offO—O
123
