TOYOTA AURIS HYBRID 2011 Owner's Manual

UK_AURIS_HV_EE
21
: If equipped
*1: Refer to ““touch screen” Owner’s manual”.
*2: For vehicles with a “touch screen”, refer to the ““touch screen” Owner’s manual”.

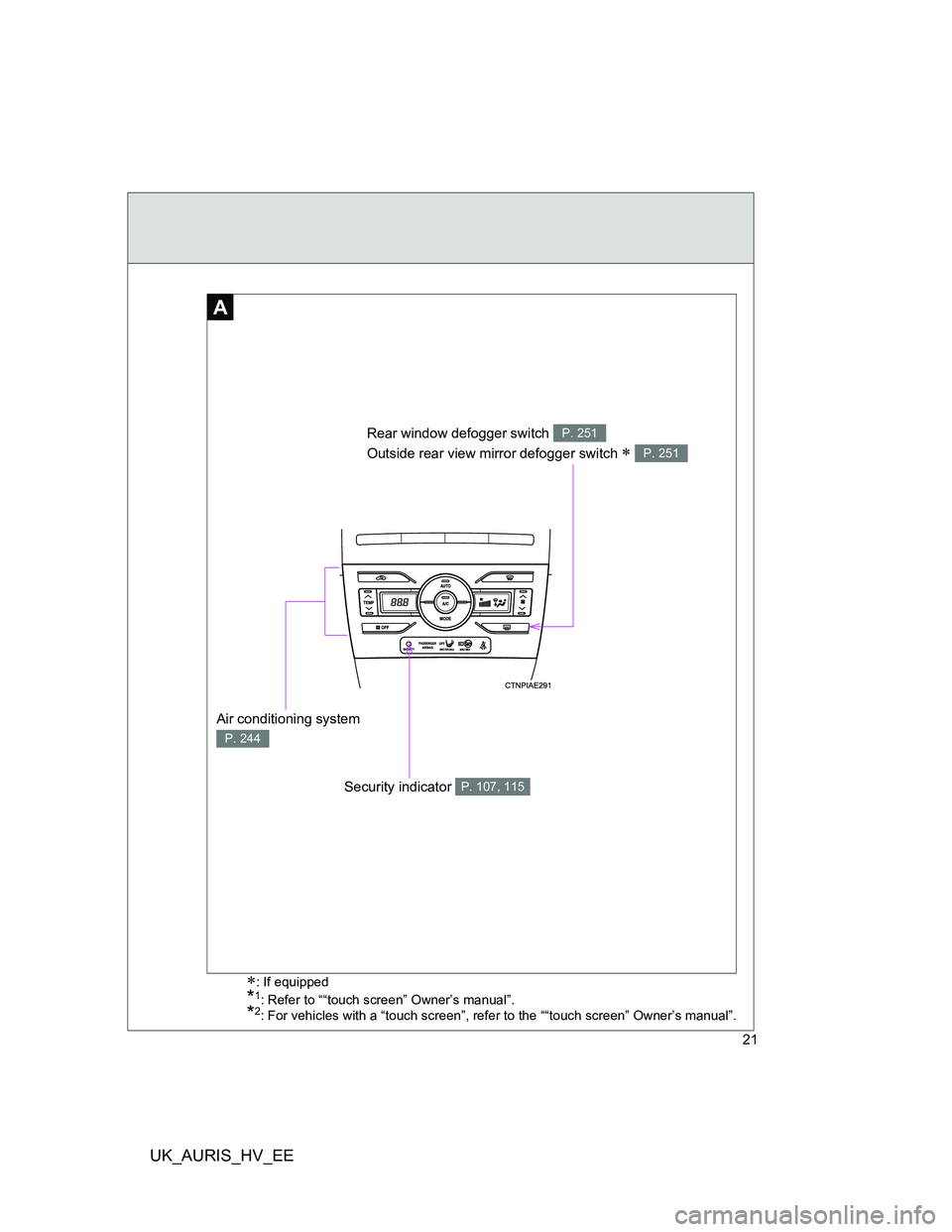

A
Rear window defogger switch
Outside rear view mirror defogger switch

P. 251
P. 251
Security indicator P. 107, 115
Air conditioning system
P. 244

UK_AURIS_HV_EE
22

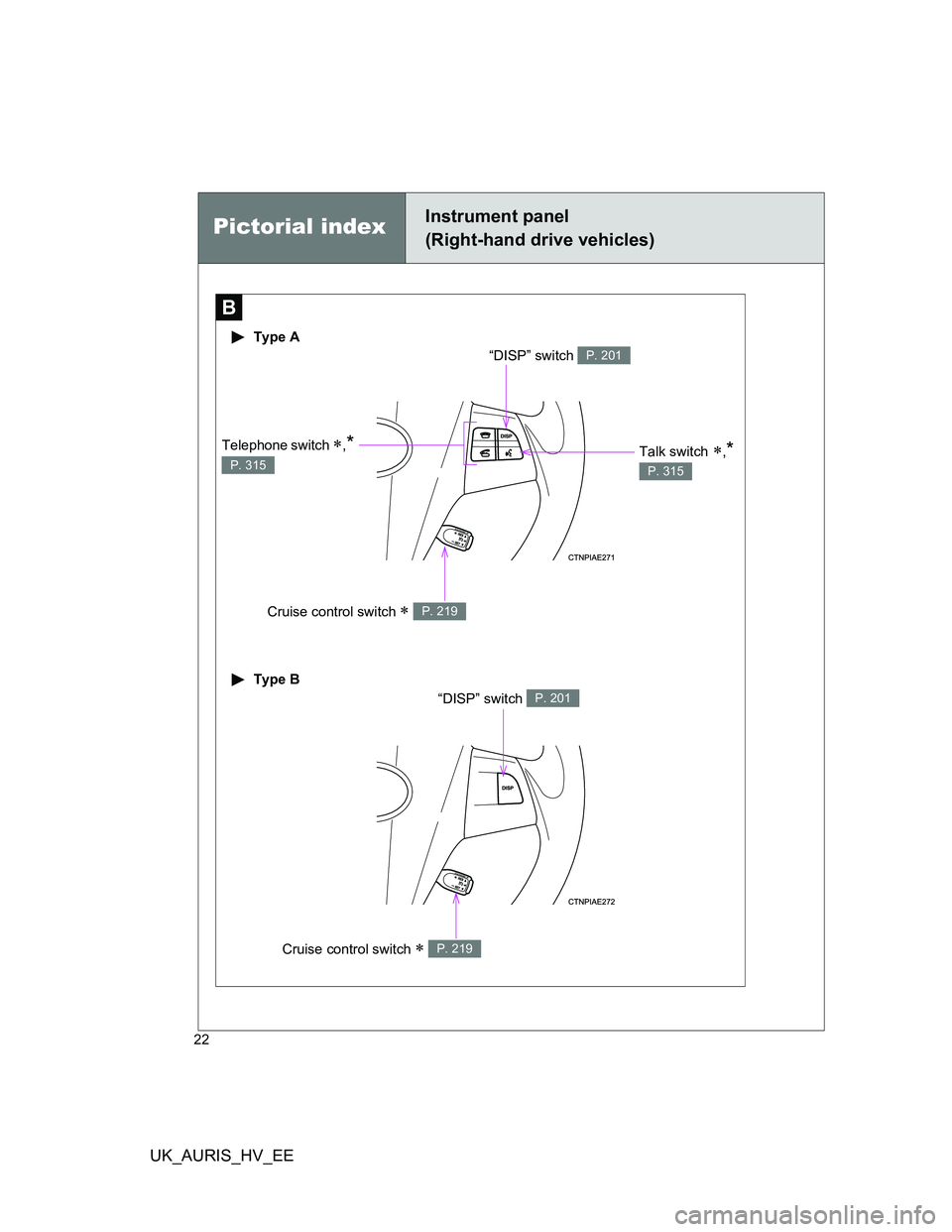

B
Cruise control switch  P. 219
Telephone switch,*
P. 315Talk switch,*
P. 315
“DISP” switch P. 201
Type A
Type B
“DISP” switch P. 201
Cruise control switch  P. 219
Pictorial indexInstrument panel
(Right-hand drive vehicles)

UK_AURIS_HV_EE
23
: If equipped
*: For vehicles with a “touch screen”, refer to the ““touch screen” Owner’s manual”.

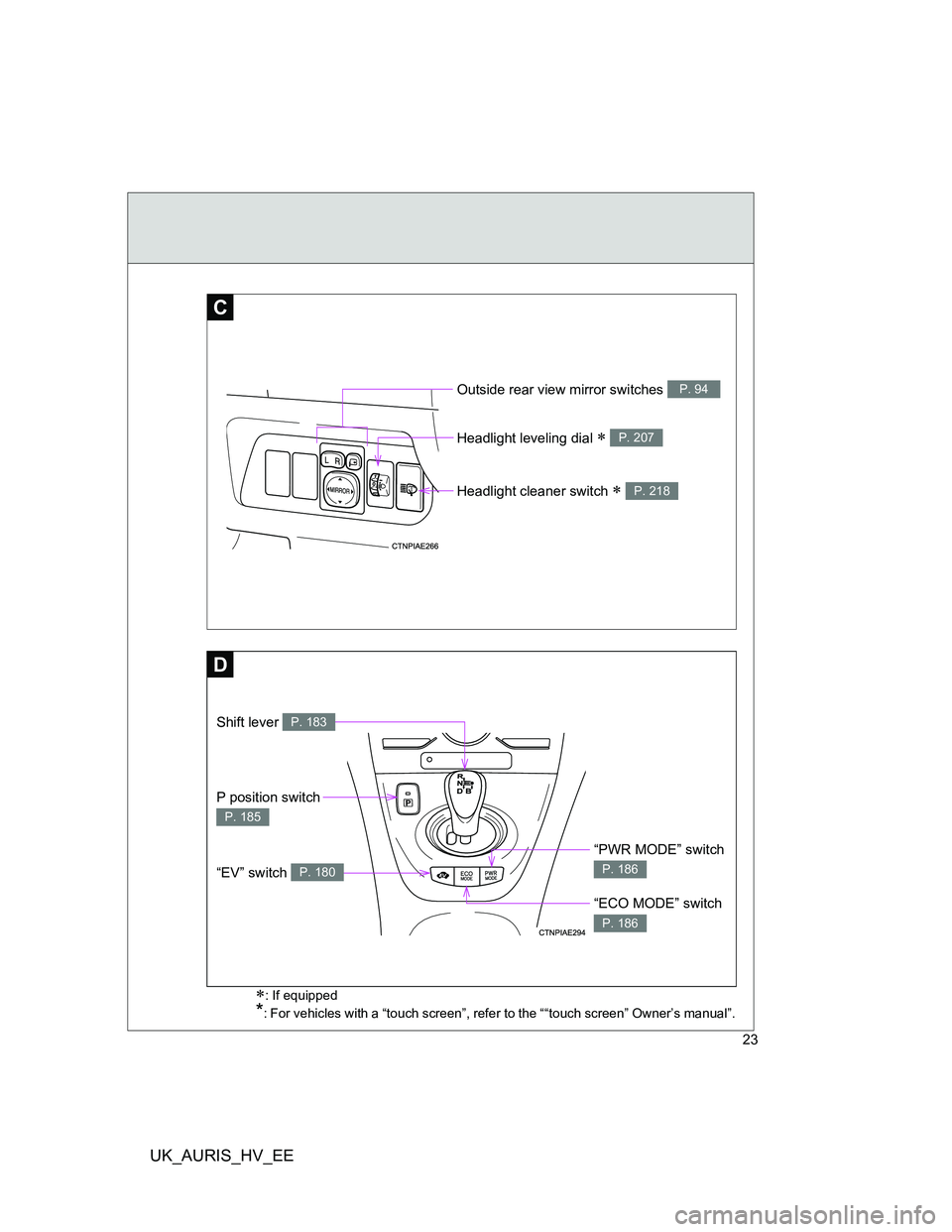

C
Headlight leveling dial  P. 207
Outside rear view mirror switches P. 94
Headlight cleaner switch  P. 218
D
“PWR MODE” switch
P. 186
P position switch
P. 185
“ECO MODE” switch
P. 186
Shift lever P. 183
“EV” switch P. 180

UK_AURIS_HV_EE
24

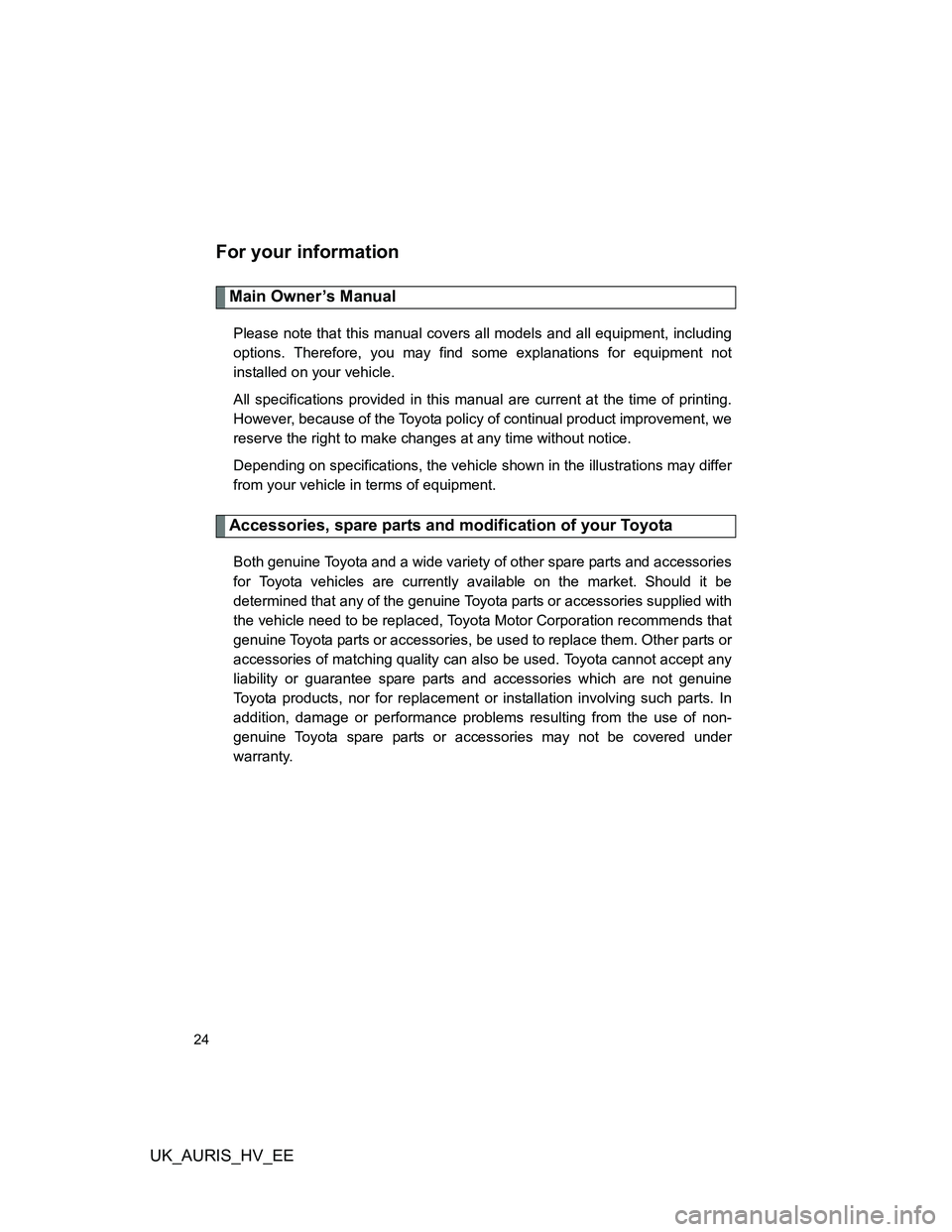

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be
determined that any of the genuine Toyota parts or accessories supplied with
the vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problems resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under
warranty.

UK_AURIS_HV_EE
25

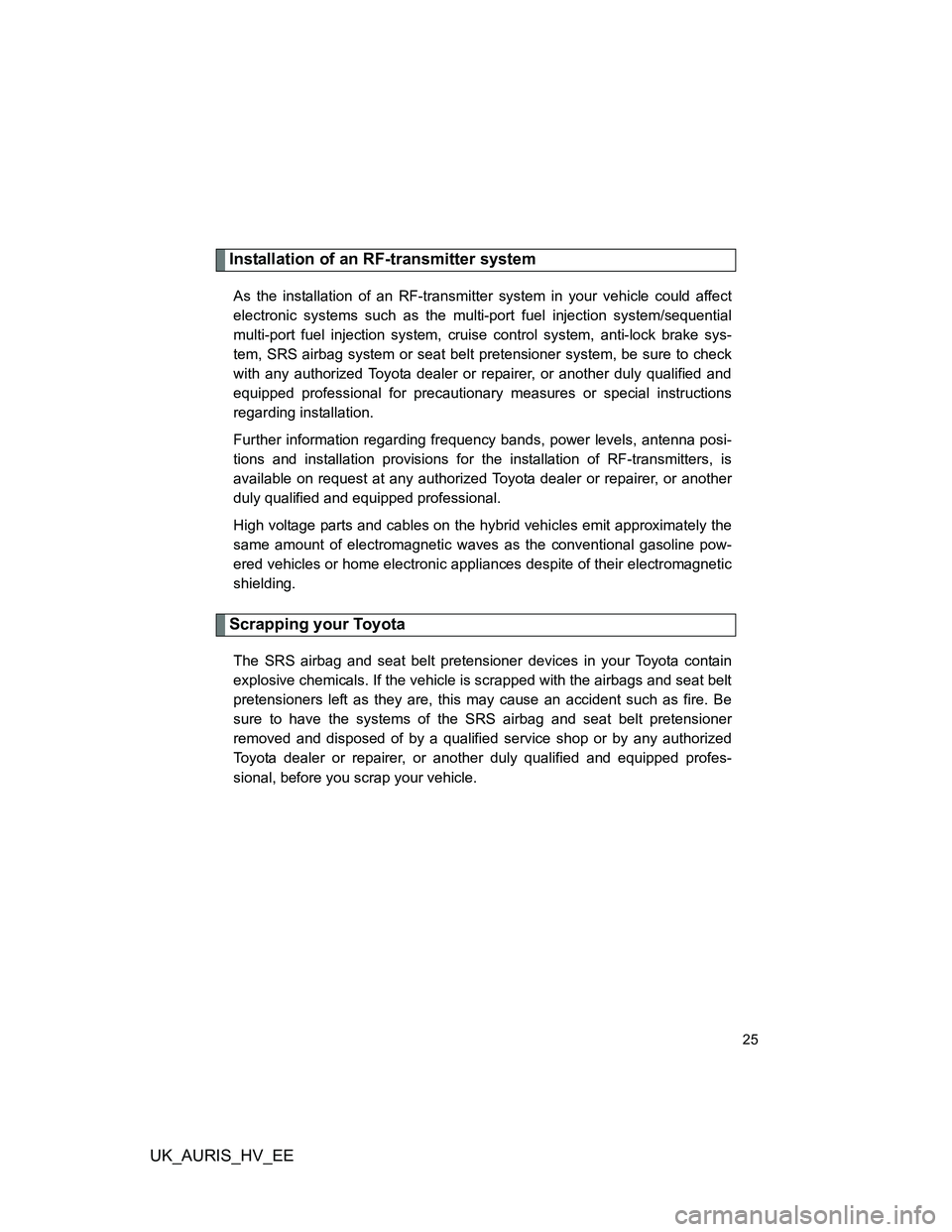

Installation of an RF-transmitter system
As the installation of an RF-transmitter system in your vehicle could affect
electronic systems such as the multi-port fuel injection system/sequential
multi-port fuel injection system, cruise control system, anti-lock brake sys-
tem, SRS airbag system or seat belt pretensioner system, be sure to check
with any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for precautionary measures or special instructions
regarding installation.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is
available on request at any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
High voltage parts and cables on the hybrid vehicles emit approximately the
same amount of electromagnetic waves as the conventional gasoline pow-
ered vehicles or home electronic appliances despite of their electromagnetic
shielding.
Scrapping your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.

UK_AURIS_HV_EE
26

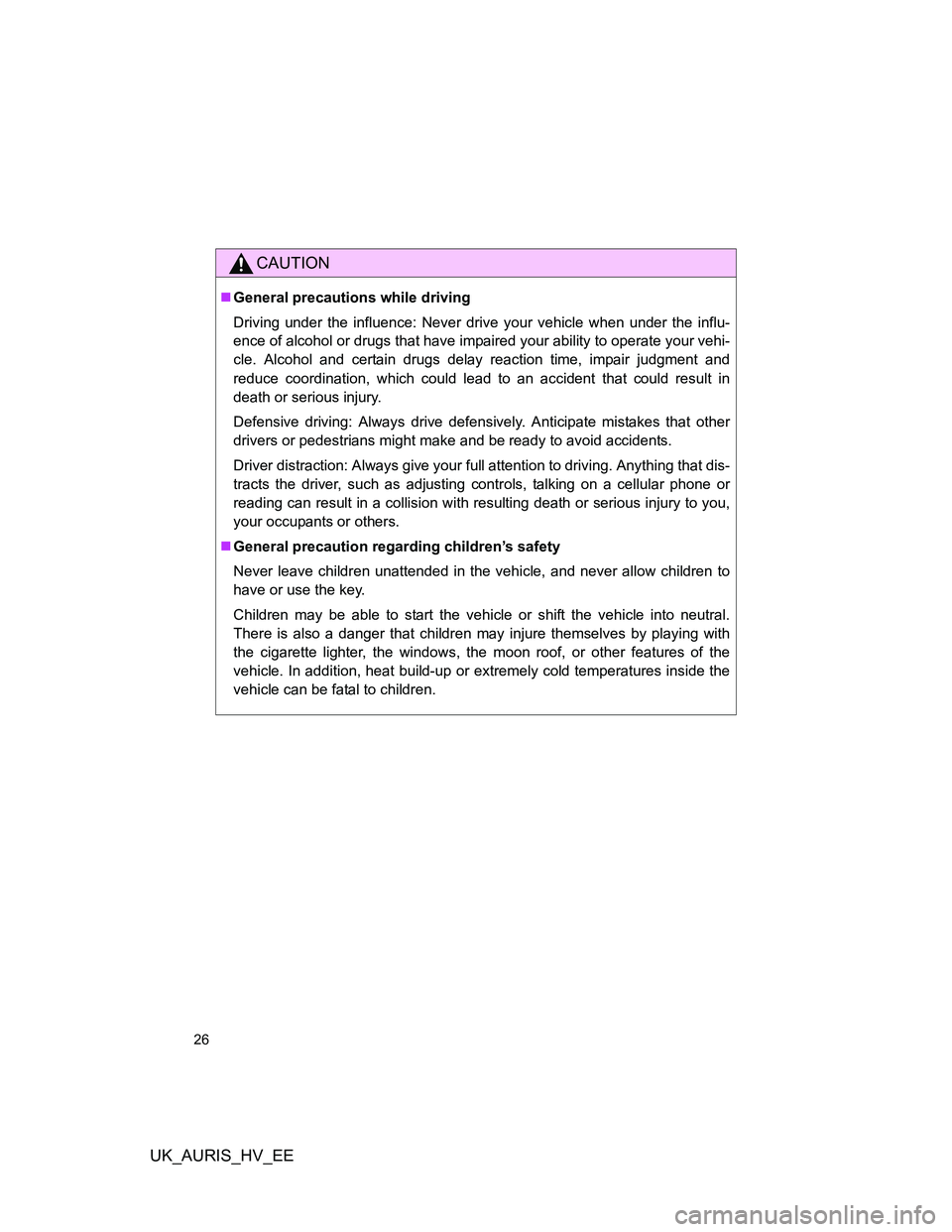

CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, the moon roof, or other features of the
vehicle. In addition, heat build-up or extremely cold temperatures inside the
vehicle can be fatal to children.

UK_AURIS_HV_EE
27

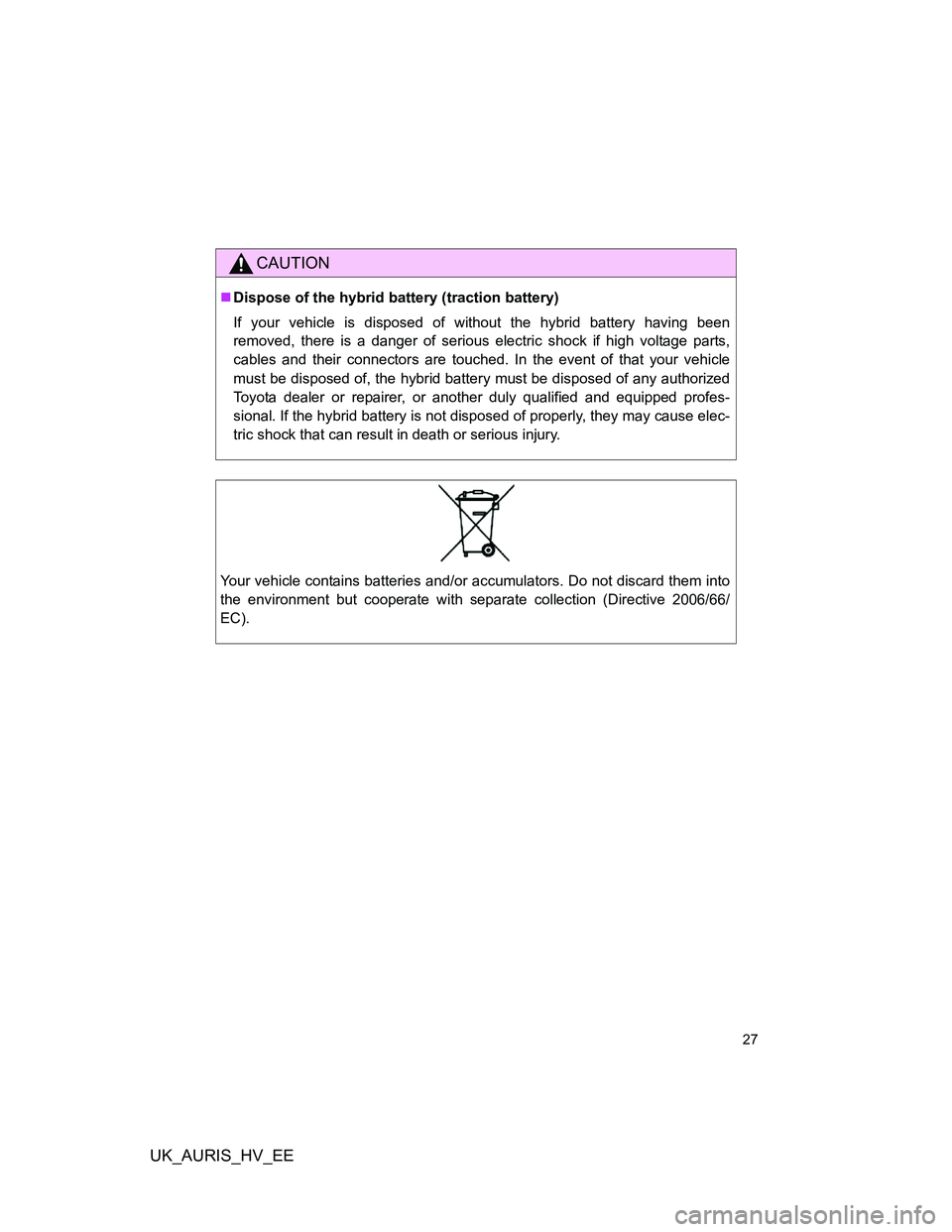

CAUTION
Dispose of the hybrid battery (traction battery)
If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event of that your vehicle
must be disposed of, the hybrid battery must be disposed of any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. If the hybrid battery is not disposed of properly, they may cause elec-
tric shock that can result in death or serious injury.
Your vehicle contains batteries and/or accumulators. Do not discard them into
the environment but cooperate with separate collection (Directive 2006/66/
EC).

UK_AURIS_HV_EE
28

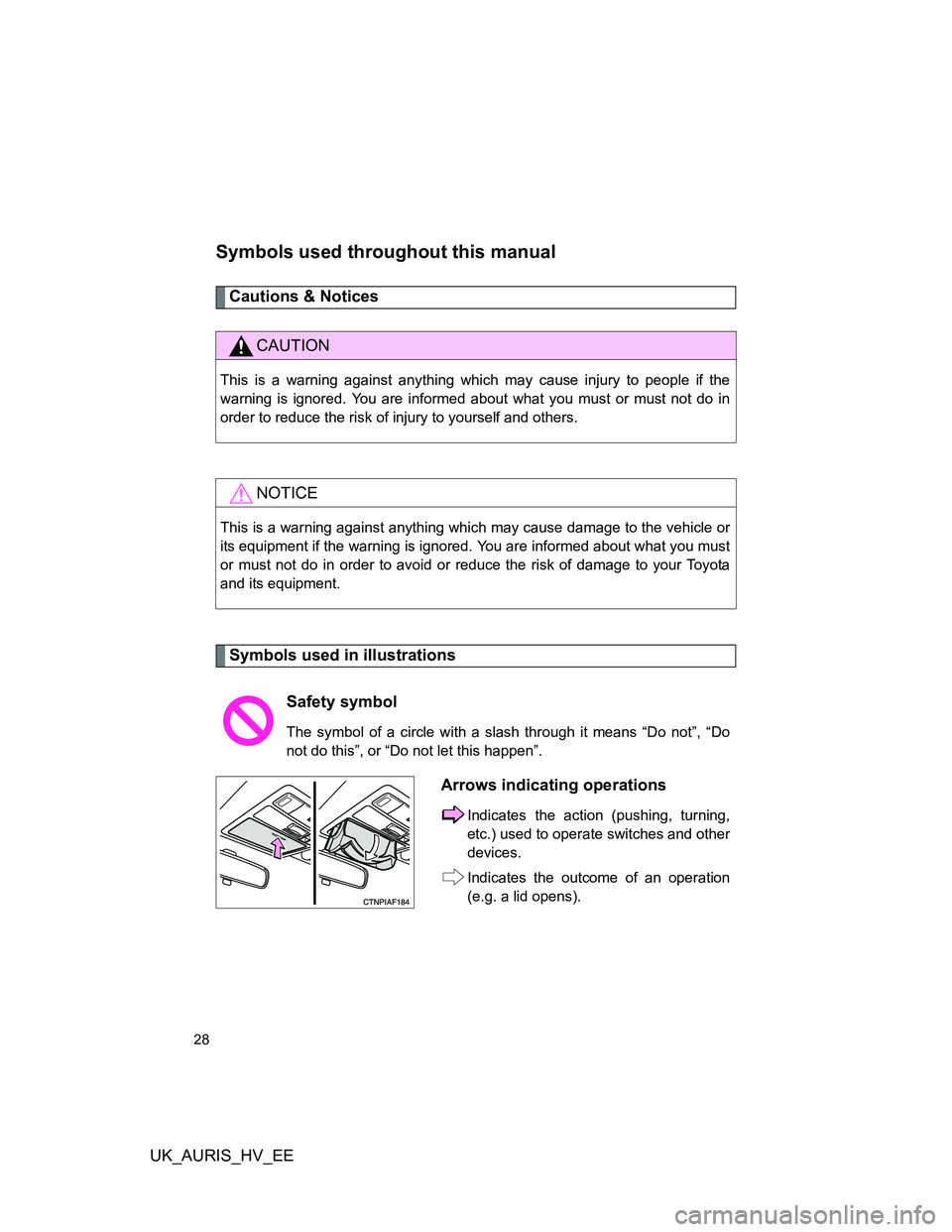

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).

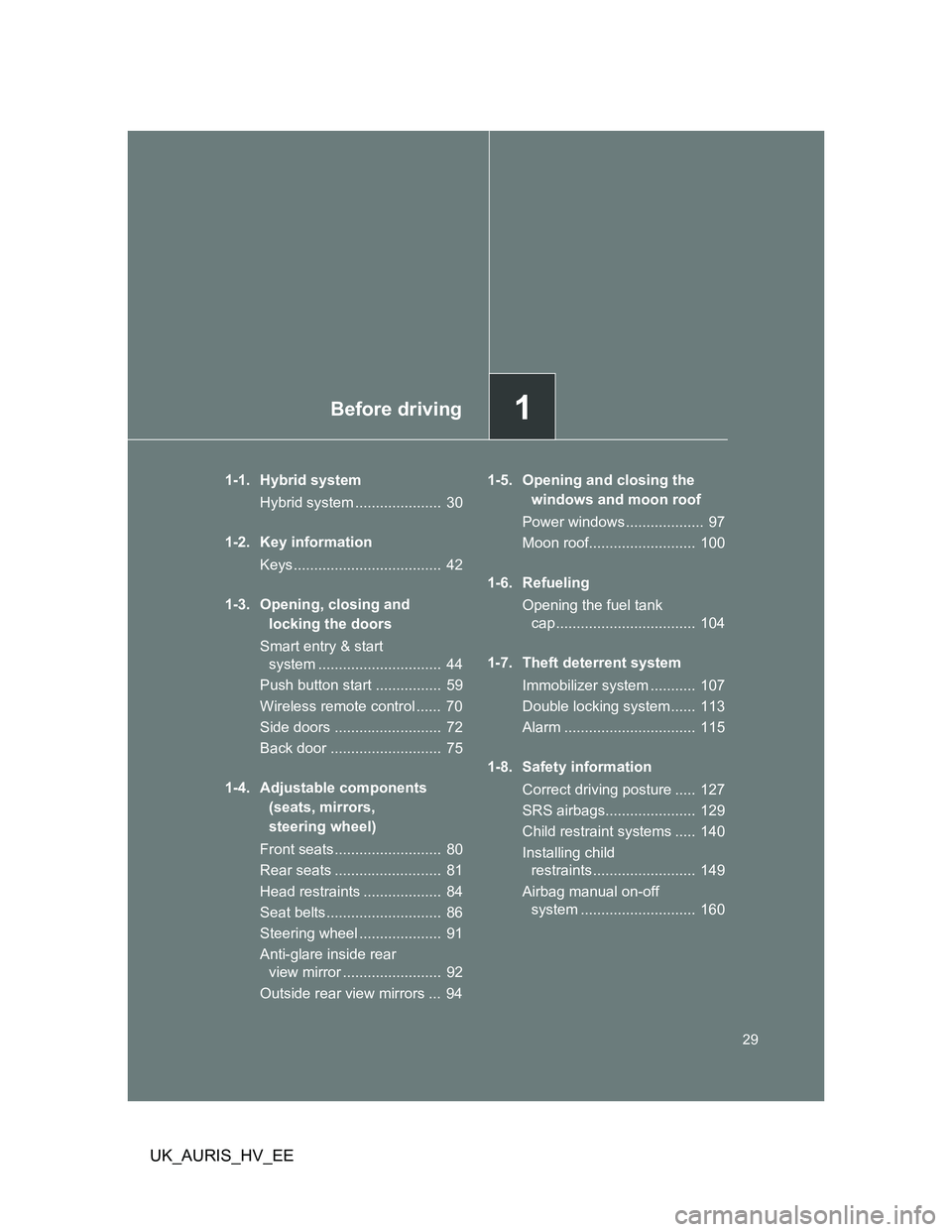

1Before driving
29
UK_AURIS_HV_EE
1-1. Hybrid system
Hybrid system ..................... 30
1-2. Key information
Keys.................................... 42
1-3. Opening, closing and
locking the doors
Smart entry & start
system .............................. 44
Push button start ................ 59
Wireless remote control ...... 70
Side doors .......................... 72
Back door ........................... 75
1-4. Adjustable components
(seats, mirrors,
steering wheel)
Front seats.......................... 80
Rear seats .......................... 81
Head restraints ................... 84
Seat belts............................ 86
Steering wheel .................... 91
Anti-glare inside rear
view mirror ........................ 92
Outside rear view mirrors ... 941-5. Opening and closing the
windows and moon roof
Power windows ................... 97
Moon roof.......................... 100
1-6. Refueling
Opening the fuel tank
cap .................................. 104
1-7. Theft deterrent system
Immobilizer system ........... 107
Double locking system ...... 113
Alarm ................................ 115
1-8. Safety information
Correct driving posture ..... 127
SRS airbags...................... 129
Child restraint systems ..... 140
Installing child
restraints ......................... 149
Airbag manual on-off
system ............................ 160

30
UK_AURIS_HV_EE

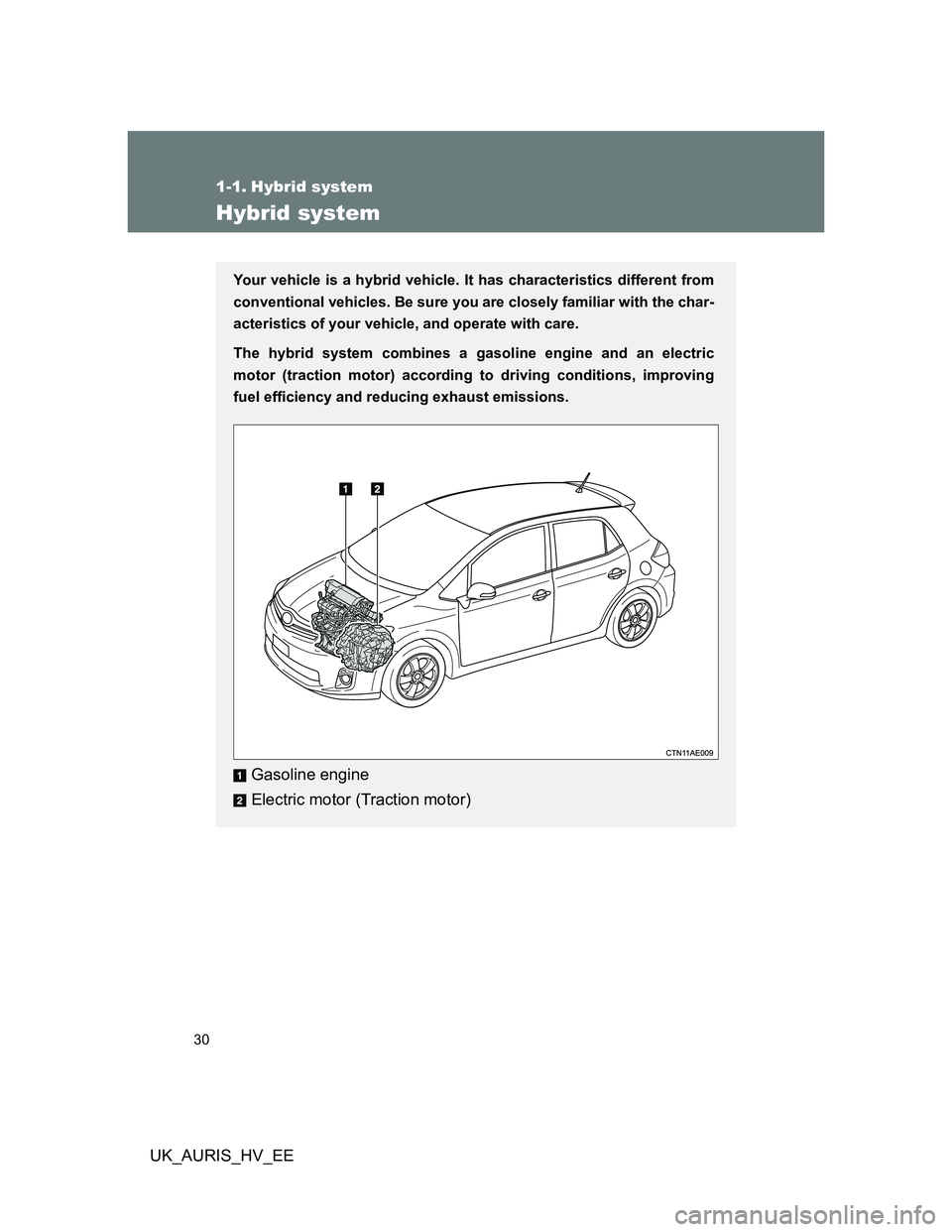

1-1. Hybrid system
Hybrid system
Your vehicle is a hybrid vehicle. It has characteristics different from
conventional vehicles. Be sure you are closely familiar with the char-
acteristics of your vehicle, and operate with care.
The hybrid system combines a gasoline engine and an electric
motor (traction motor) according to driving conditions, improving
fuel efficiency and reducing exhaust emissions.
Gasoline engine
Electric motor (Traction motor)
