check engine TOYOTA AURIS HYBRID 2011 Owners Manual

TABLE OF CONTENTSIndex
UK_AURIS_HV_EE
4
3-4. Using the hands-free
phone system
(for cellular phone)
Hands-free phone system
(for cellular phone)
features............................. 309
Using the hands-free
phone system
(for cellular phone)............ 314
Making a phone call ............ 320
Setting a cellular phone ...... 323
Security and system
setup ................................. 327
Using the phone book ......... 331
3-5. Using the interior lights
Interior lights list .................. 336
• Interior light ....................... 337
• Personal lights .................. 338
3-6. Using the storage features
List of storage features ....... 339
• Glove box ......................... 340
• Console box...................... 340
• Cup holders ...................... 341
• Auxiliary boxes ................. 342
3-7. Other interior features
Sun visors ........................... 343
Vanity mirrors...................... 344
Clock ................................... 345
Portable ashtray.................. 346
Cigarette lighter .................. 347
Power outlet ........................ 349
Seat heaters ....................... 350Floor mat ............................ 352
Luggage compartment
features ............................ 353
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ........... 356
Cleaning and protecting
the vehicle interior ............ 360
4-2. Maintenance
Maintenance
requirements .................... 363
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 366
Hood................................... 369
Positioning a floor jack ....... 371
Engine compartment .......... 373
12-volt battery .................... 381
Tires ................................... 387
Tire inflation pressure......... 390
Wheels ............................... 392
Air conditioning filter ........... 394
Key battery ......................... 397
Checking and replacing
fuses ................................ 400
Light bulbs .......................... 411
4Maintenance and care

169 2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE

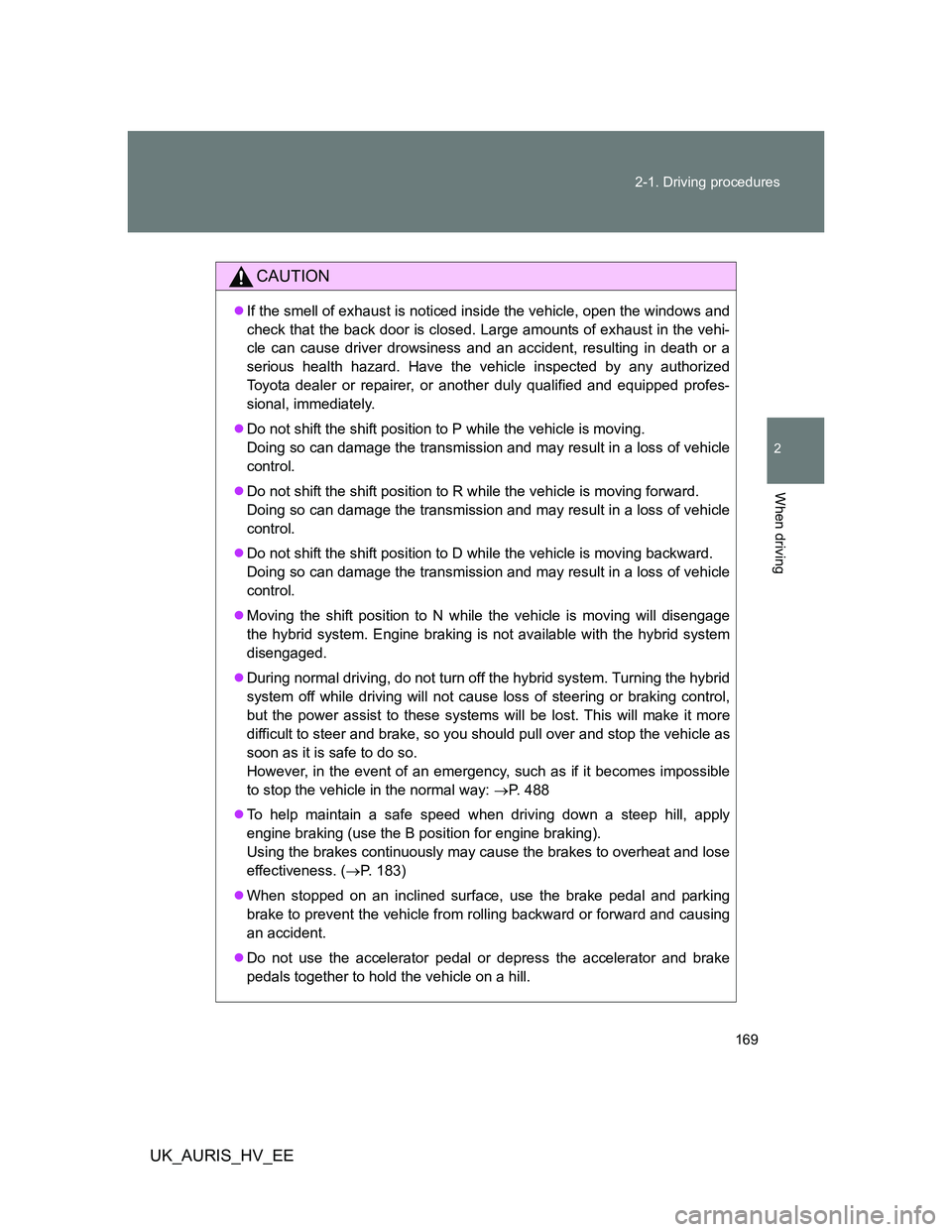

CAUTION
If the smell of exhaust is noticed inside the vehicle, open the windows and
check that the back door is closed. Large amounts of exhaust in the vehi-
cle can cause driver drowsiness and an accident, resulting in death or a
serious health hazard. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, immediately.
Do not shift the shift position to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift position to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift position to D while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Moving the shift position to N while the vehicle is moving will disengage
the hybrid system. Engine braking is not available with the hybrid system
disengaged.
During normal driving, do not turn off the hybrid system. Turning the hybrid
system off while driving will not cause loss of steering or braking control,
but the power assist to these systems will be lost. This will make it more
difficult to steer and brake, so you should pull over and stop the vehicle as
soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 488
To help maintain a safe speed when driving down a steep hill, apply
engine braking (use the B position for engine braking).
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. (P. 183)
When stopped on an inclined surface, use the brake pedal and parking
brake to prevent the vehicle from rolling backward or forward and causing
an accident.
Do not use the accelerator pedal or depress the accelerator and brake
pedals together to hold the vehicle on a hill.

170 2-1. Driving procedures
UK_AURIS_HV_EE

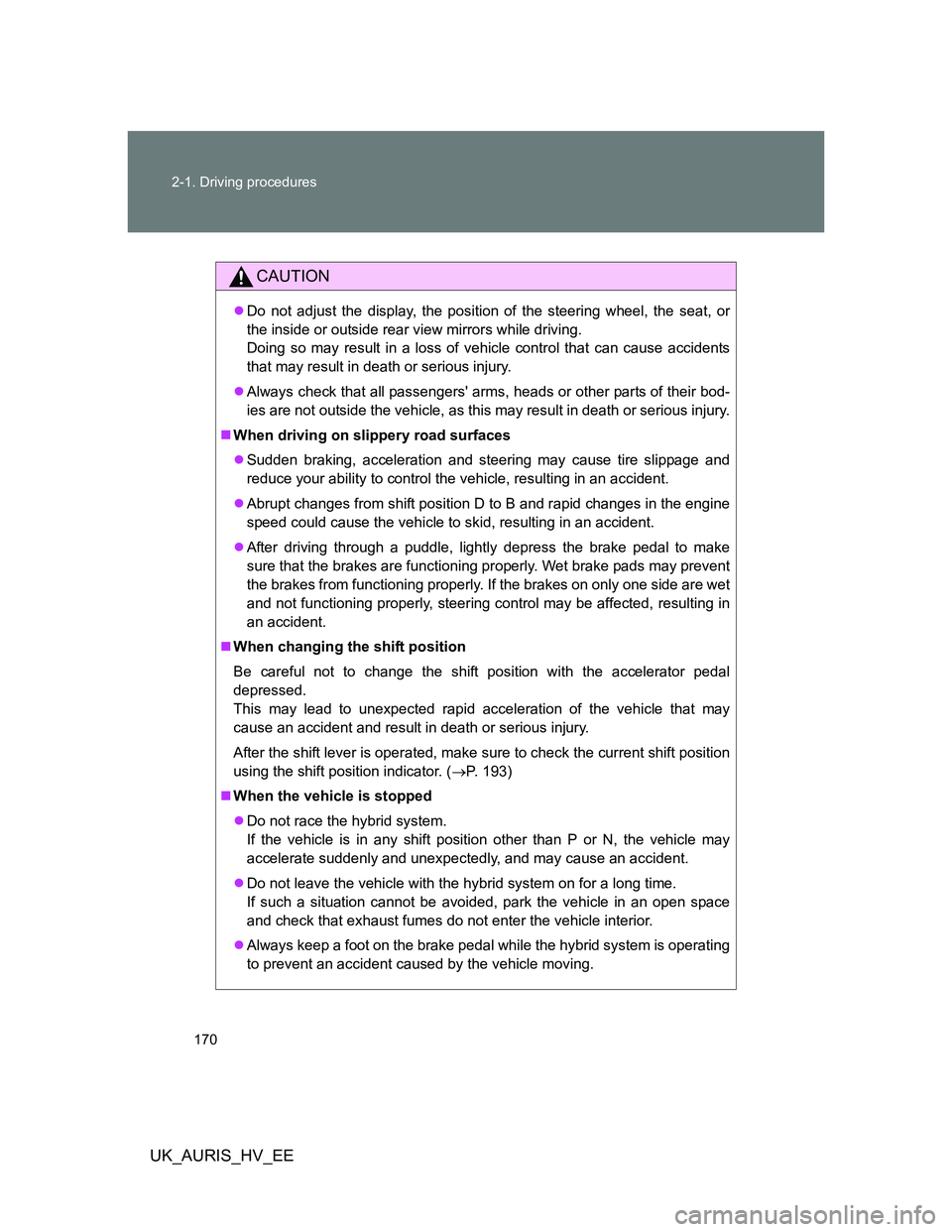

CAUTION
Do not adjust the display, the position of the steering wheel, the seat, or
the inside or outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents
that may result in death or serious injury.
Always check that all passengers' arms, heads or other parts of their bod-
ies are not outside the vehicle, as this may result in death or serious injury.
When driving on slippery road surfaces
Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle, resulting in an accident.
Abrupt changes from shift position D to B and rapid changes in the engine
speed could cause the vehicle to skid, resulting in an accident.
After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected, resulting in
an accident.
When changing the shift position
Be careful not to change the shift position with the accelerator pedal
depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
After the shift lever is operated, make sure to check the current shift position
using the shift position indicator. (P. 193)
When the vehicle is stopped
Do not race the hybrid system.
If the vehicle is in any shift position other than P or N, the vehicle may
accelerate suddenly and unexpectedly, and may cause an accident.
Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and check that exhaust fumes do not enter the vehicle interior.
Always keep a foot on the brake pedal while the hybrid system is operating
to prevent an accident caused by the vehicle moving.

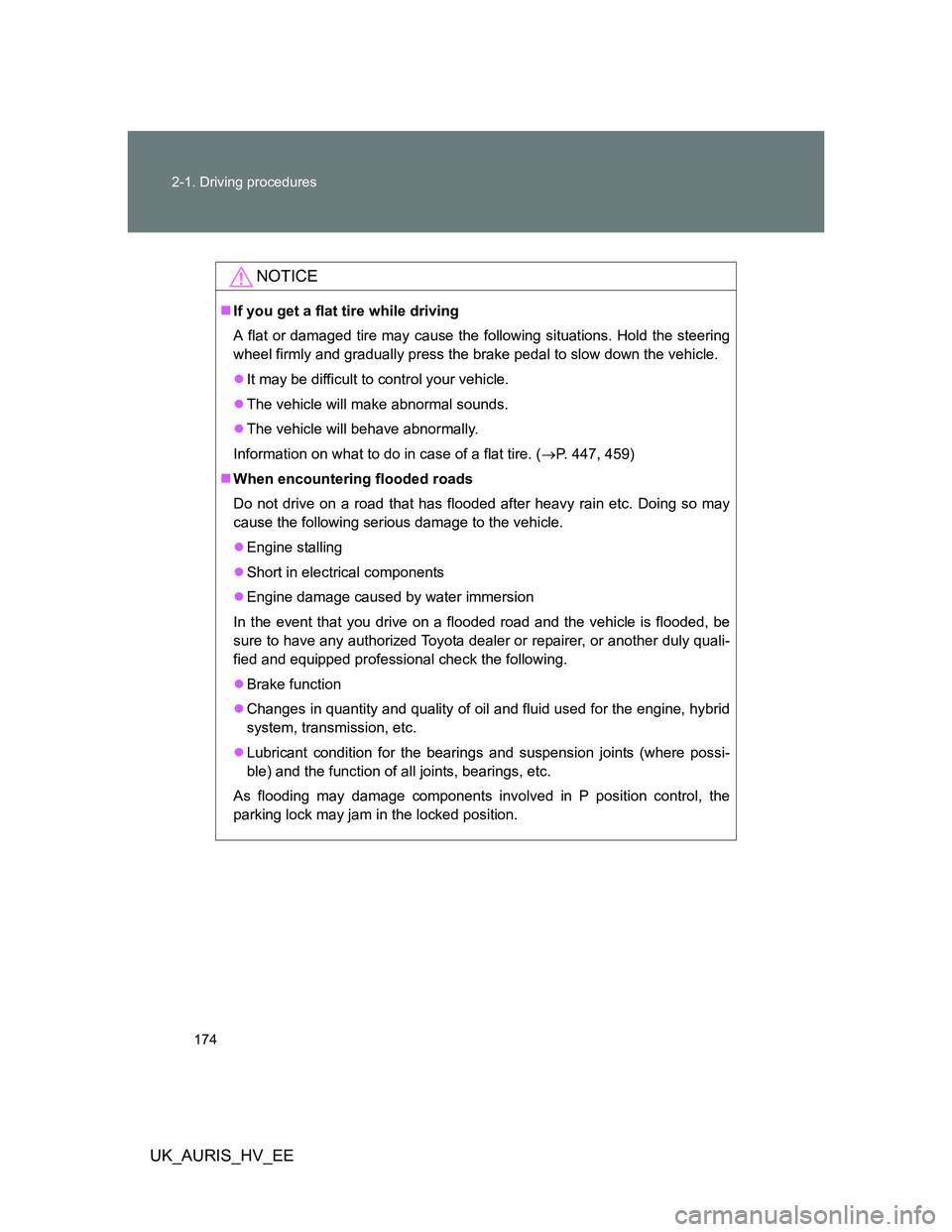

174 2-1. Driving procedures
UK_AURIS_HV_EE
NOTICE
If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually press the brake pedal to slow down the vehicle.
It may be difficult to control your vehicle.
The vehicle will make abnormal sounds.
The vehicle will behave abnormally.
Information on what to do in case of a flat tire. (P. 447, 459)
When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle.
Engine stalling
Short in electrical components
Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional check the following.
Brake function
Changes in quantity and quality of oil and fluid used for the engine, hybrid
system, transmission, etc.
Lubricant condition for the bearings and suspension joints (where possi-
ble) and the function of all joints, bearings, etc.
As flooding may damage components involved in P position control, the
parking lock may jam in the locked position.

175
2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE

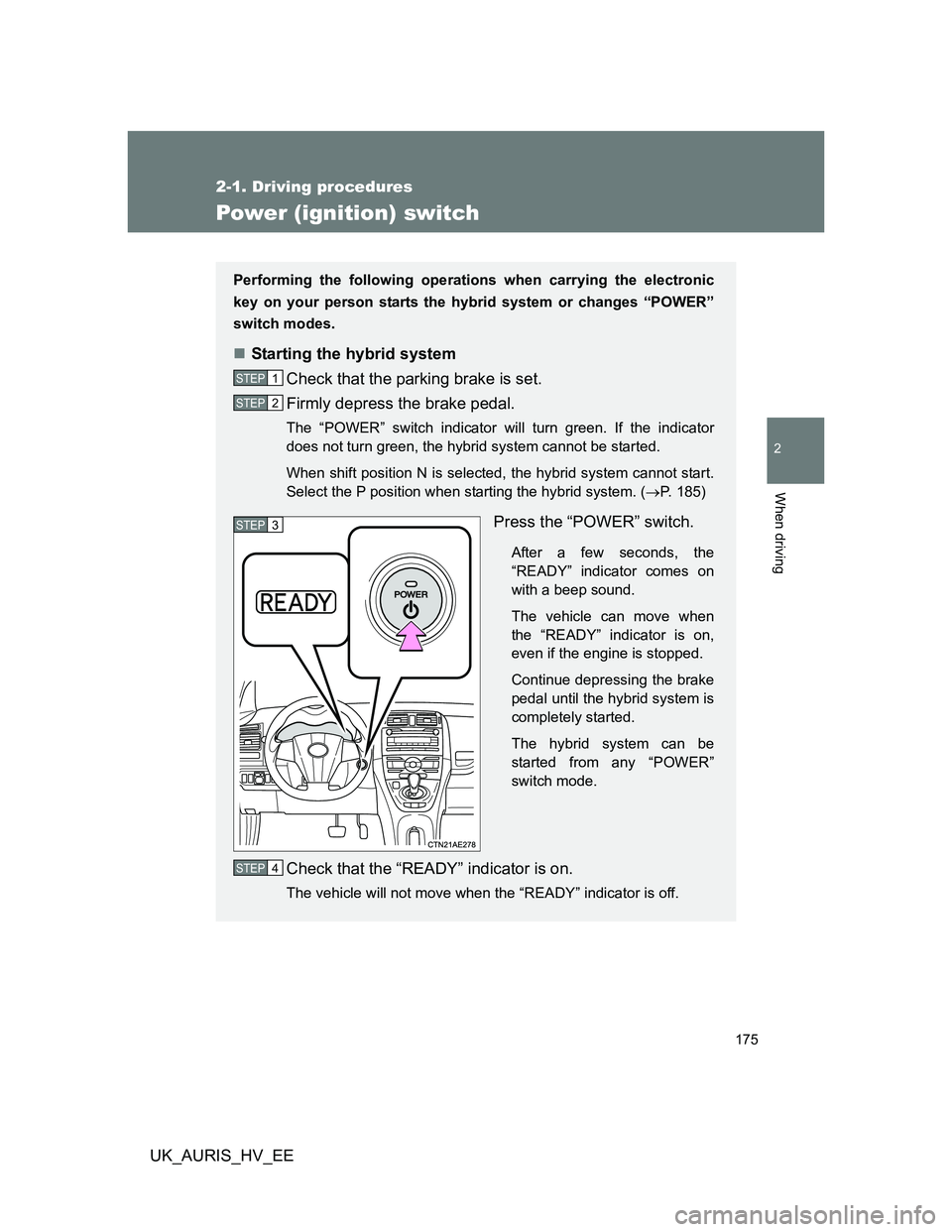

Power (ignition) switch
Performing the following operations when carrying the electronic
key on your person starts the hybrid system or changes “POWER”
switch modes.
Starting the hybrid system
Check that the parking brake is set.
Firmly depress the brake pedal.
The “POWER” switch indicator will turn green. If the indicator
does not turn green, the hybrid system cannot be started.
When shift position N is selected, the hybrid system cannot start.
Select the P position when starting the hybrid system. (P. 185)
Press the “POWER” switch.
After a few seconds, the
“READY” indicator comes on
with a beep sound.
The vehicle can move when
the “READY” indicator is on,
even if the engine is stopped.
Continue depressing the brake
pedal until the hybrid system is
completely started.
The hybrid system can be
started from any “POWER”
switch mode.
Check that the “READY” indicator is on.
The vehicle will not move when the “READY” indicator is off.
STEP1
STEP2
STEP3
STEP4

184 2-1. Driving procedures
UK_AURIS_HV_EE

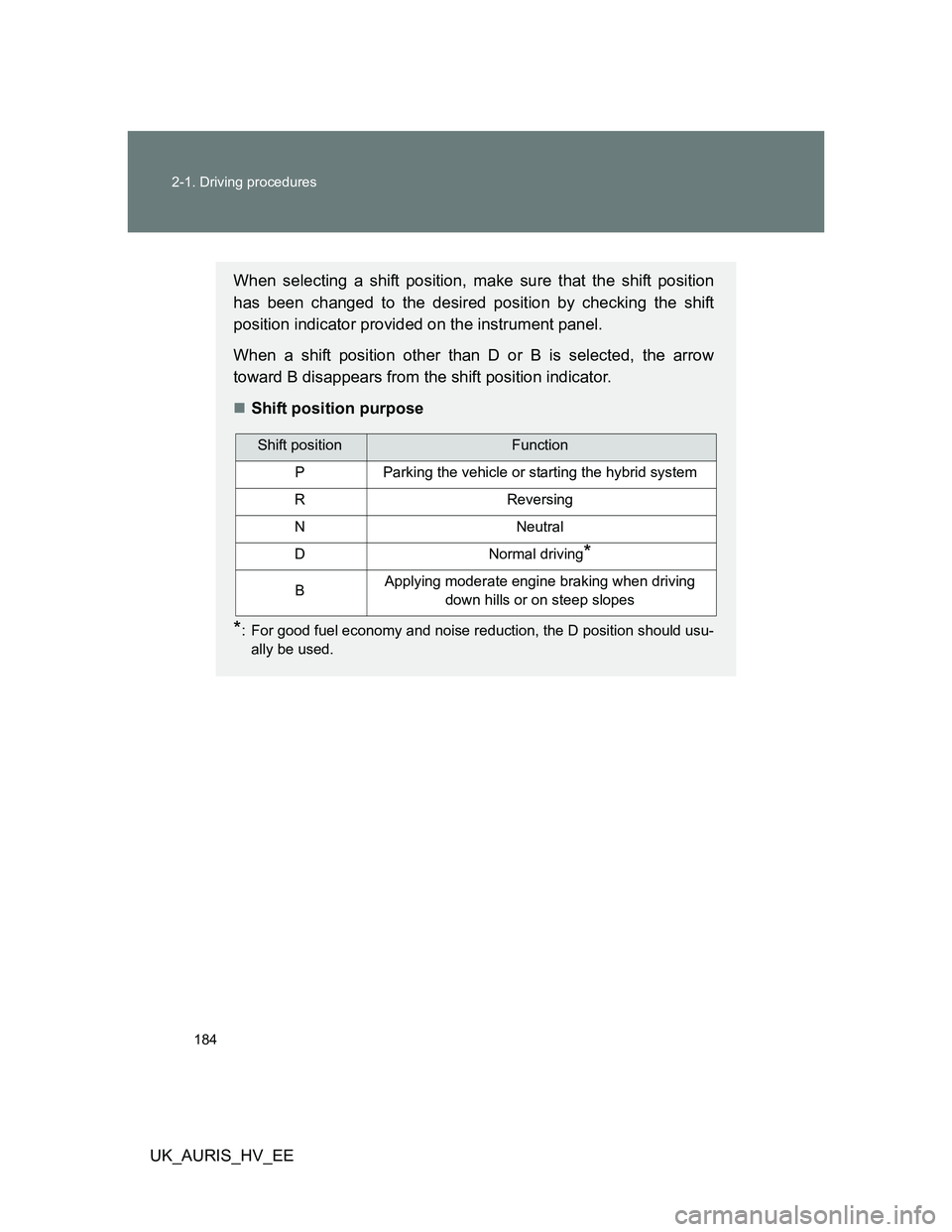

When selecting a shift position, make sure that the shift position
has been changed to the desired position by checking the shift
position indicator provided on the instrument panel.
When a shift position other than D or B is selected, the arrow
toward B disappears from the shift position indicator.
Shift position purpose
*: For good fuel economy and noise reduction, the D position should usu-
ally be used.
Shift positionFunction
PParking the vehicle or starting the hybrid system
RReversing
NNeutral
DNormal driving*
BApplying moderate engine braking when driving
down hills or on steep slopes

196 2-2. Instrument cluster
UK_AURIS_HV_EE

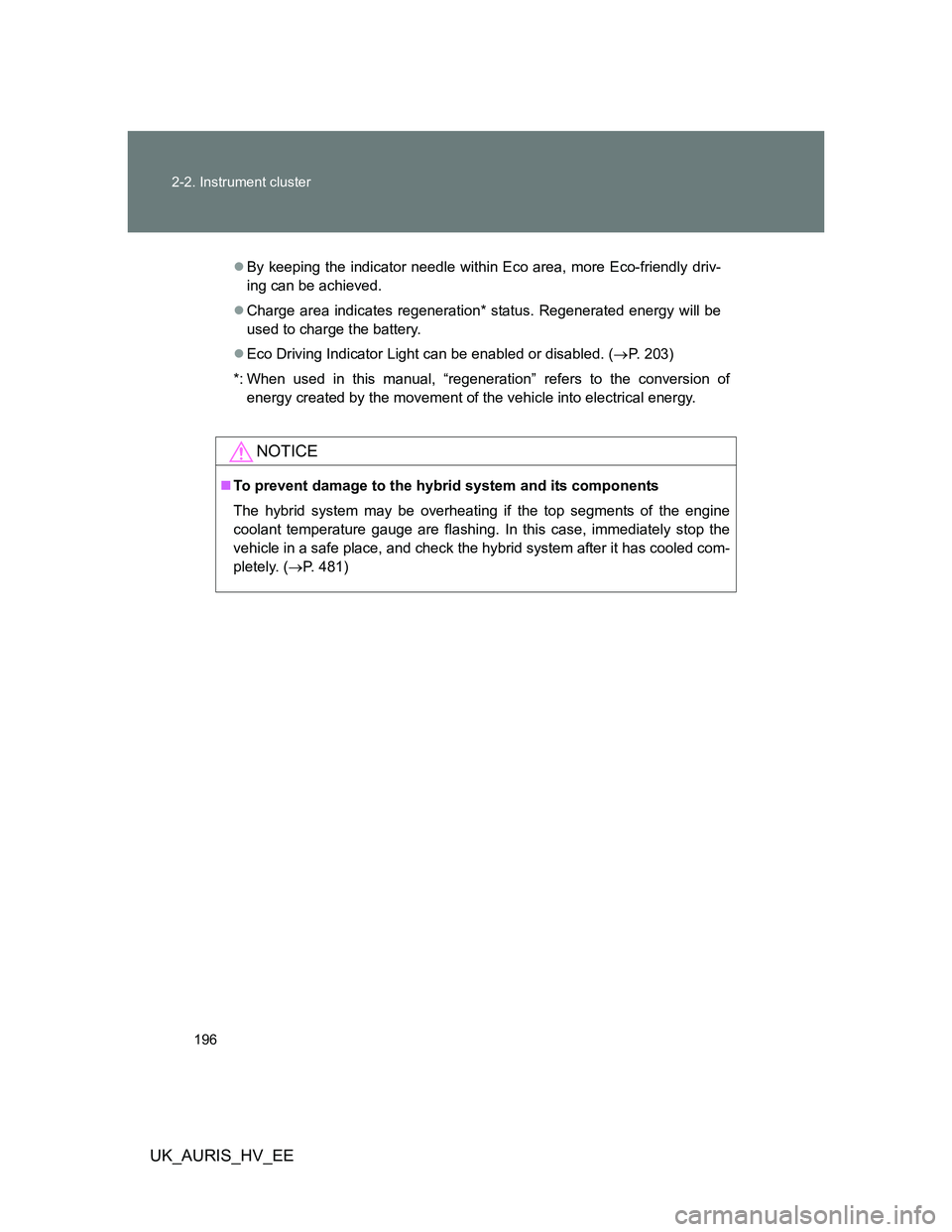

By keeping the indicator needle within Eco area, more Eco-friendly driv-
ing can be achieved.
Charge area indicates regeneration* status. Regenerated energy will be
used to charge the battery.
Eco Driving Indicator Light can be enabled or disabled. (P. 203)
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
NOTICE
To prevent damage to the hybrid system and its components
The hybrid system may be overheating if the top segments of the engine
coolant temperature gauge are flashing. In this case, immediately stop the
vehicle in a safe place, and check the hybrid system after it has cooled com-
pletely. (P. 481)

236
2-5. Driving information
UK_AURIS_HV_EE

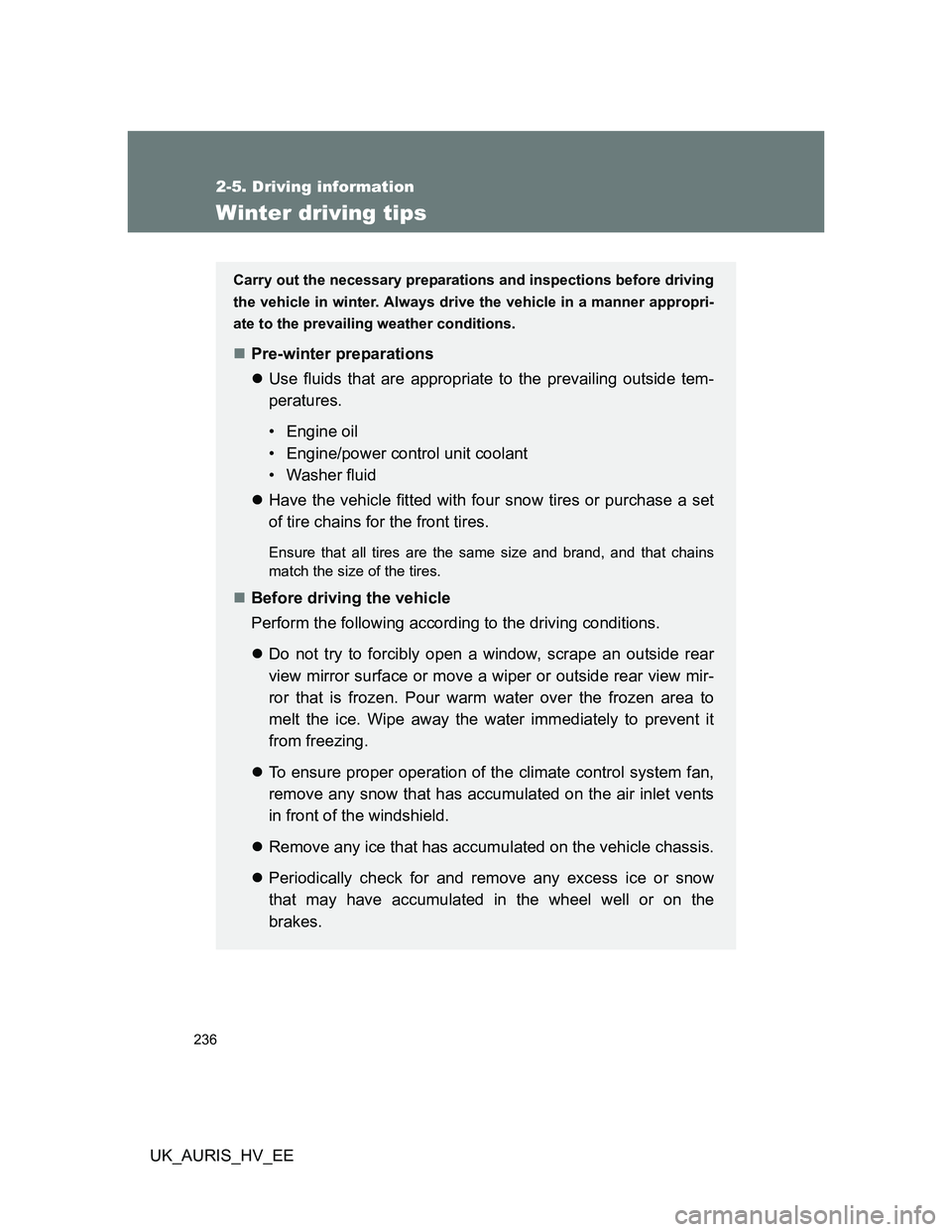

Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.
Pre-winter preparations
Use fluids that are appropriate to the prevailing outside tem-
peratures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
Have the vehicle fitted with four snow tires or purchase a set
of tire chains for the front tires.
Ensure that all tires are the same size and brand, and that chains
match the size of the tires.
Before driving the vehicle
Perform the following according to the driving conditions.
Do not try to forcibly open a window, scrape an outside rear
view mirror surface or move a wiper or outside rear view mir-
ror that is frozen. Pour warm water over the frozen area to
melt the ice. Wipe away the water immediately to prevent it
from freezing.
To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
Remove any ice that has accumulated on the vehicle chassis.
Periodically check for and remove any excess ice or snow
that may have accumulated in the wheel well or on the
brakes.

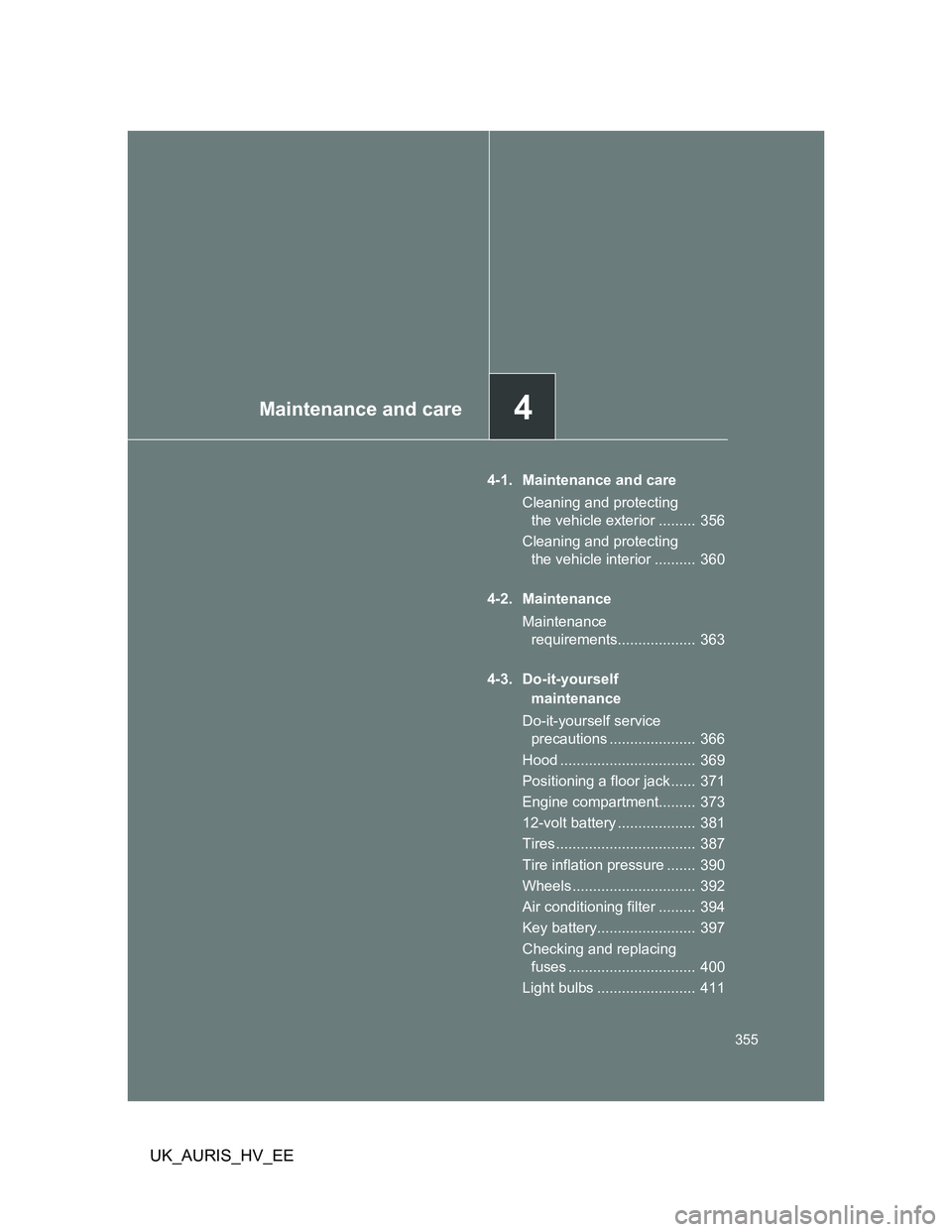

4Maintenance and care
355
UK_AURIS_HV_EE
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 356
Cleaning and protecting
the vehicle interior .......... 360
4-2. Maintenance
Maintenance
requirements................... 363
4-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ..................... 366
Hood ................................. 369
Positioning a floor jack ...... 371
Engine compartment......... 373
12-volt battery ................... 381
Tires .................................. 387
Tire inflation pressure ....... 390
Wheels .............................. 392
Air conditioning filter ......... 394
Key battery........................ 397
Checking and replacing
fuses ............................... 400
Light bulbs ........................ 411

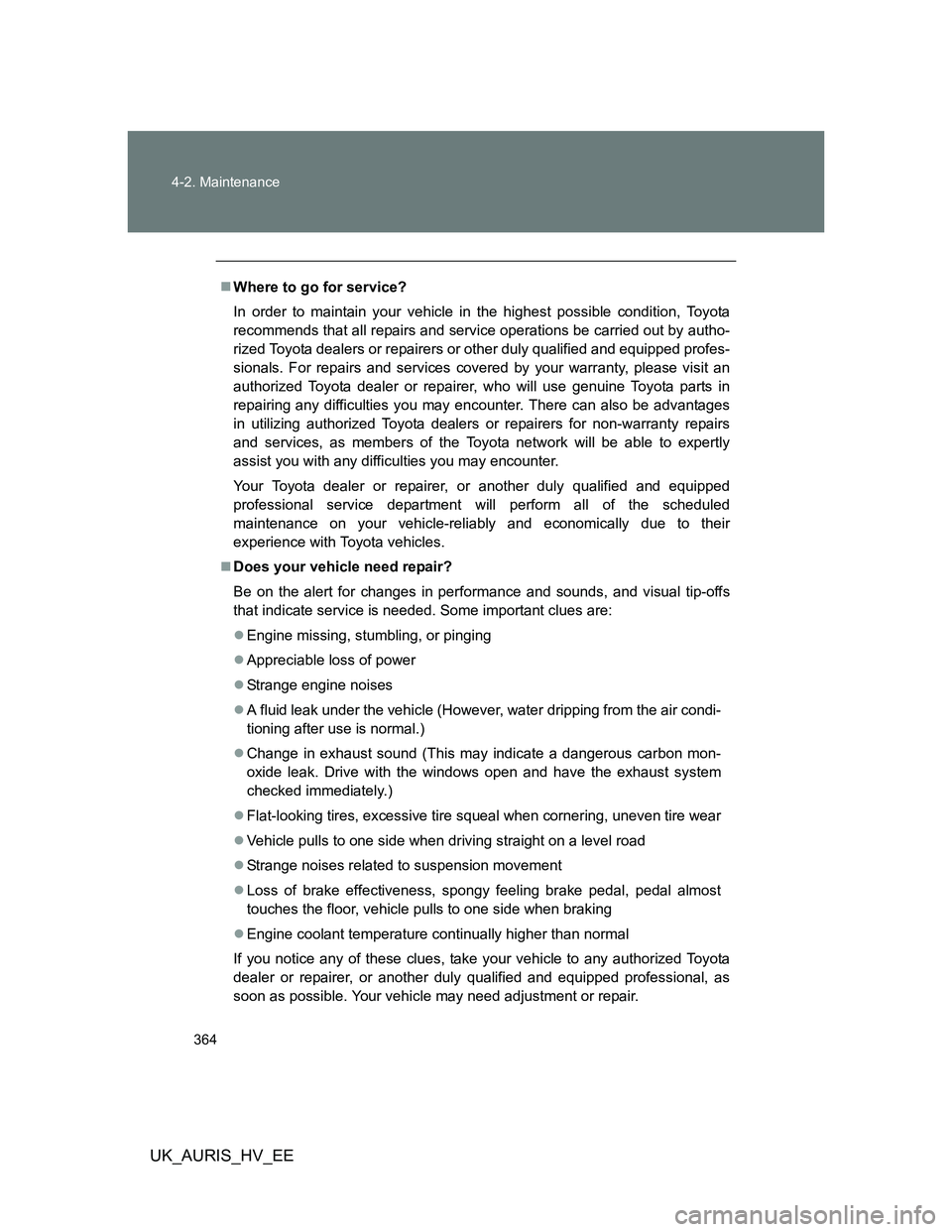

364 4-2. Maintenance
UK_AURIS_HV_EE
Where to go for service?
In order to maintain your vehicle in the highest possible condition, Toyota
recommends that all repairs and service operations be carried out by autho-
rized Toyota dealers or repairers or other duly qualified and equipped profes-
sionals. For repairs and services covered by your warranty, please visit an
authorized Toyota dealer or repairer, who will use genuine Toyota parts in
repairing any difficulties you may encounter. There can also be advantages
in utilizing authorized Toyota dealers or repairers for non-warranty repairs
and services, as members of the Toyota network will be able to expertly
assist you with any difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped
professional service department will perform all of the scheduled
maintenance on your vehicle-reliably and economically due to their
experience with Toyota vehicles.
Does your vehicle need repair?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (However, water dripping from the air condi-
tioning after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon mon-
oxide leak. Drive with the windows open and have the exhaust system
checked immediately.)
Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
Vehicle pulls to one side when driving straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness, spongy feeling brake pedal, pedal almost
touches the floor, vehicle pulls to one side when braking
Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, as
soon as possible. Your vehicle may need adjustment or repair.
