TOYOTA AURIS HYBRID 2012 Owners Manual

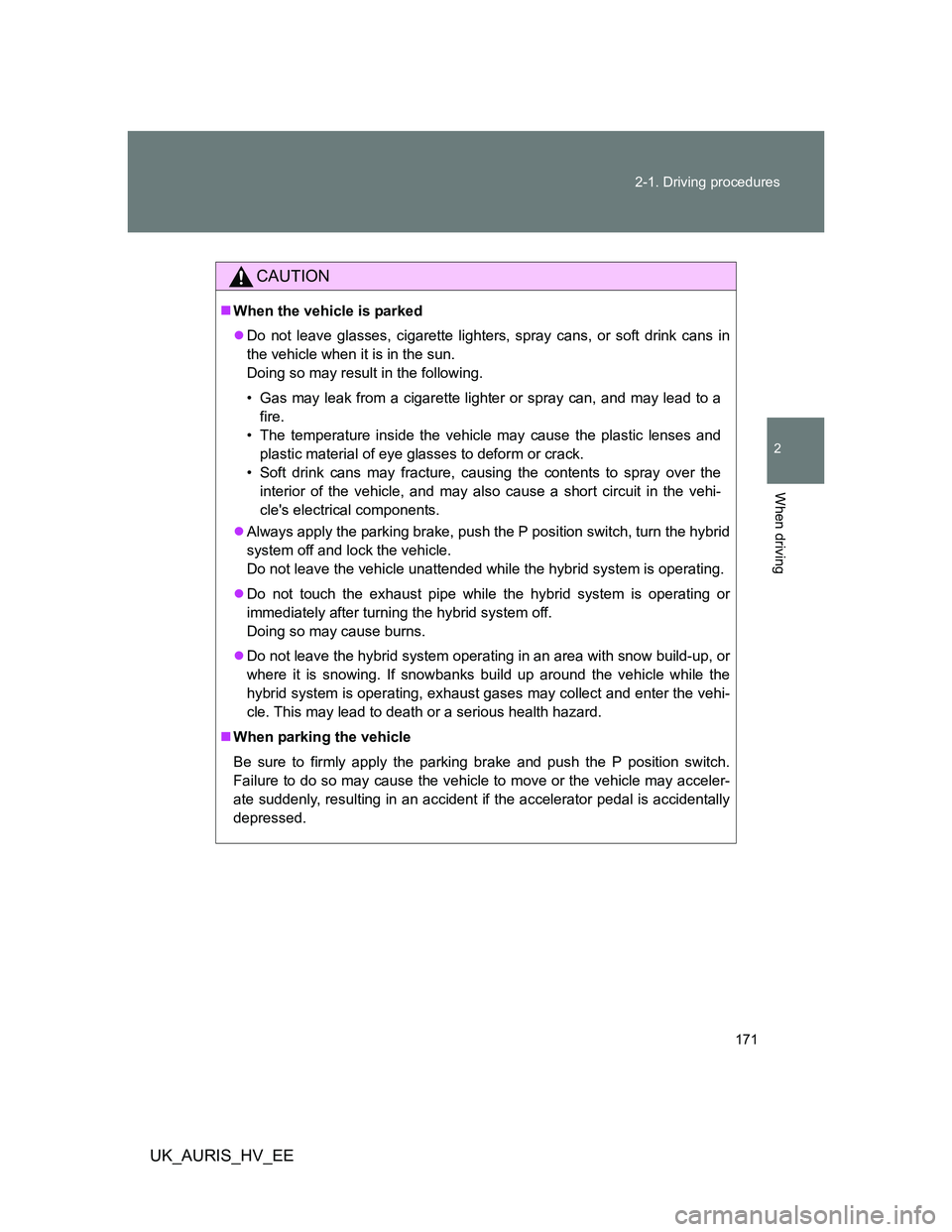

171 2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE
CAUTION
When the vehicle is parked
Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following.
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and
plastic material of eye glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehi-
cle's electrical components.
Always apply the parking brake, push the P position switch, turn the hybrid
system off and lock the vehicle.
Do not leave the vehicle unattended while the hybrid system is operating.
Do not touch the exhaust pipe while the hybrid system is operating or
immediately after turning the hybrid system off.
Doing so may cause burns.
Do not leave the hybrid system operating in an area with snow build-up, or
where it is snowing. If snowbanks build up around the vehicle while the
hybrid system is operating, exhaust gases may collect and enter the vehi-
cle. This may lead to death or a serious health hazard.
When parking the vehicle
Be sure to firmly apply the parking brake and push the P position switch.
Failure to do so may cause the vehicle to move or the vehicle may acceler-
ate suddenly, resulting in an accident if the accelerator pedal is accidentally
depressed.

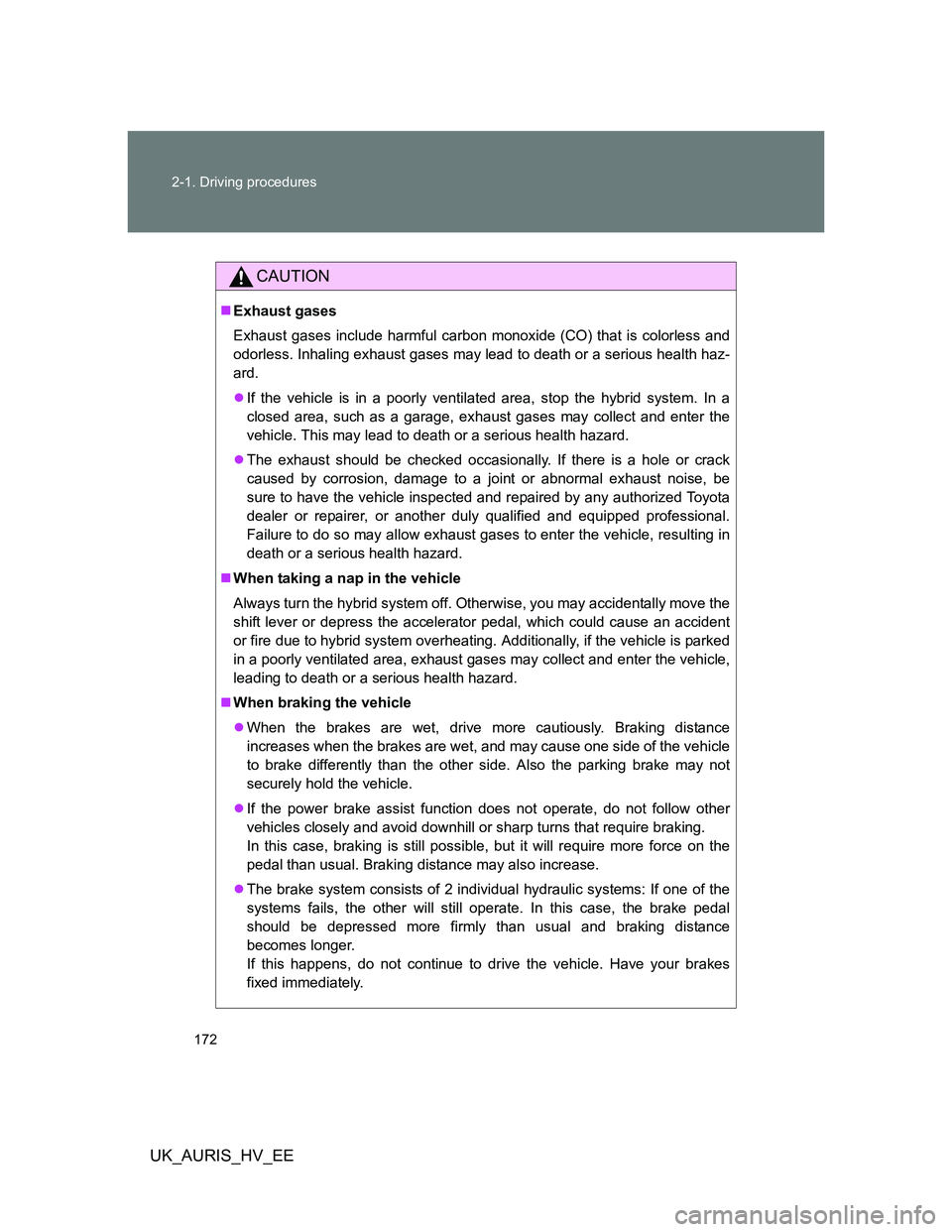

172 2-1. Driving procedures
UK_AURIS_HV_EE
CAUTION
Exhaust gases
Exhaust gases include harmful carbon monoxide (CO) that is colorless and
odorless. Inhaling exhaust gases may lead to death or a serious health haz-
ard.
If the vehicle is in a poorly ventilated area, stop the hybrid system. In a
closed area, such as a garage, exhaust gases may collect and enter the
vehicle. This may lead to death or a serious health hazard.
The exhaust should be checked occasionally. If there is a hole or crack
caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Failure to do so may allow exhaust gases to enter the vehicle, resulting in
death or a serious health hazard.
When taking a nap in the vehicle
Always turn the hybrid system off. Otherwise, you may accidentally move the
shift lever or depress the accelerator pedal, which could cause an accident
or fire due to hybrid system overheating. Additionally, if the vehicle is parked
in a poorly ventilated area, exhaust gases may collect and enter the vehicle,
leading to death or a serious health hazard.
When braking the vehicle
When the brakes are wet, drive more cautiously. Braking distance
increases when the brakes are wet, and may cause one side of the vehicle
to brake differently than the other side. Also the parking brake may not
securely hold the vehicle.
If the power brake assist function does not operate, do not follow other
vehicles closely and avoid downhill or sharp turns that require braking.
In this case, braking is still possible, but it will require more force on the
pedal than usual. Braking distance may also increase.
The brake system consists of 2 individual hydraulic systems: If one of the
systems fails, the other will still operate. In this case, the brake pedal
should be depressed more firmly than usual and braking distance
becomes longer.
If this happens, do not continue to drive the vehicle. Have your brakes
fixed immediately.

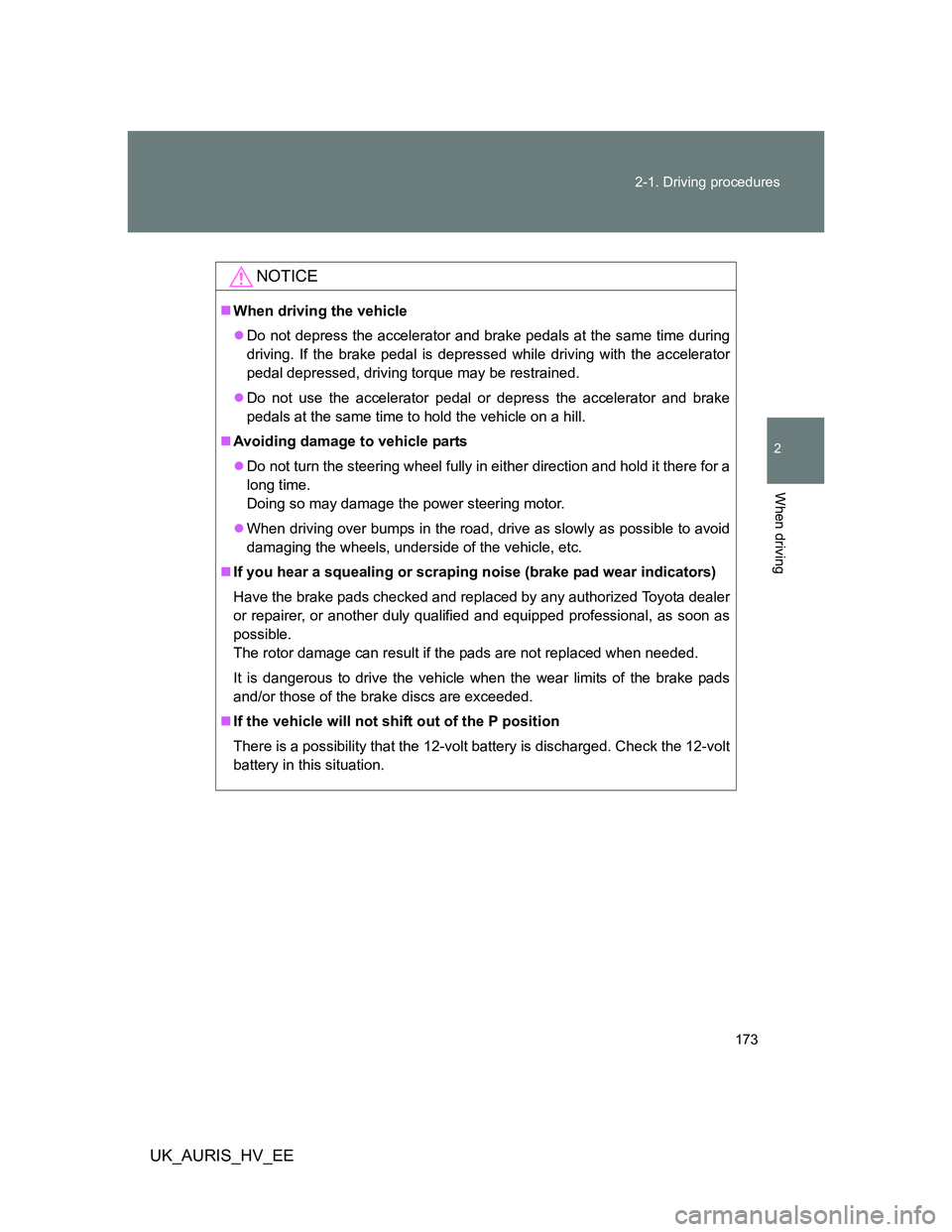

173 2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE
NOTICE
When driving the vehicle
Do not depress the accelerator and brake pedals at the same time during
driving. If the brake pedal is depressed while driving with the accelerator
pedal depressed, driving torque may be restrained.
Do not use the accelerator pedal or depress the accelerator and brake
pedals at the same time to hold the vehicle on a hill.
Avoiding damage to vehicle parts
Do not turn the steering wheel fully in either direction and hold it there for a
long time.
Doing so may damage the power steering motor.
When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
If you hear a squealing or scraping noise (brake pad wear indicators)
Have the brake pads checked and replaced by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional, as soon as
possible.
The rotor damage can result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or those of the brake discs are exceeded.
If the vehicle will not shift out of the P position
There is a possibility that the 12-volt battery is discharged. Check the 12-volt
battery in this situation.

174 2-1. Driving procedures
UK_AURIS_HV_EE
NOTICE
If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually press the brake pedal to slow down the vehicle.
It may be difficult to control your vehicle.
The vehicle will make abnormal sounds.
The vehicle will behave abnormally.
Information on what to do in case of a flat tire. (P. 447, 459)
When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle.
Engine stalling
Short in electrical components
Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional check the following.
Brake function
Changes in quantity and quality of oil and fluid used for the engine, hybrid
system, transmission, etc.
Lubricant condition for the bearings and suspension joints (where possi-
ble) and the function of all joints, bearings, etc.
As flooding may damage components involved in P position control, the
parking lock may jam in the locked position.

175
2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE
Power (ignition) switch
Performing the following operations when carrying the electronic
key on your person starts the hybrid system or changes “POWER”
switch modes.
Starting the hybrid system
Check that the parking brake is set.
Firmly depress the brake pedal.
The “POWER” switch indicator will turn green. If the indicator
does not turn green, the hybrid system cannot be started.
When shift position N is selected, the hybrid system cannot start.
Select the P position when starting the hybrid system. (P. 185)
Press the “POWER” switch.
After a few seconds, the
“READY” indicator comes on
with a beep sound.
The vehicle can move when
the “READY” indicator is on,
even if the engine is stopped.
Continue depressing the brake
pedal until the hybrid system is
completely started.
The hybrid system can be
started from any “POWER”
switch mode.
Check that the “READY” indicator is on.
The vehicle will not move when the “READY” indicator is off.
STEP1
STEP2
STEP3
STEP4

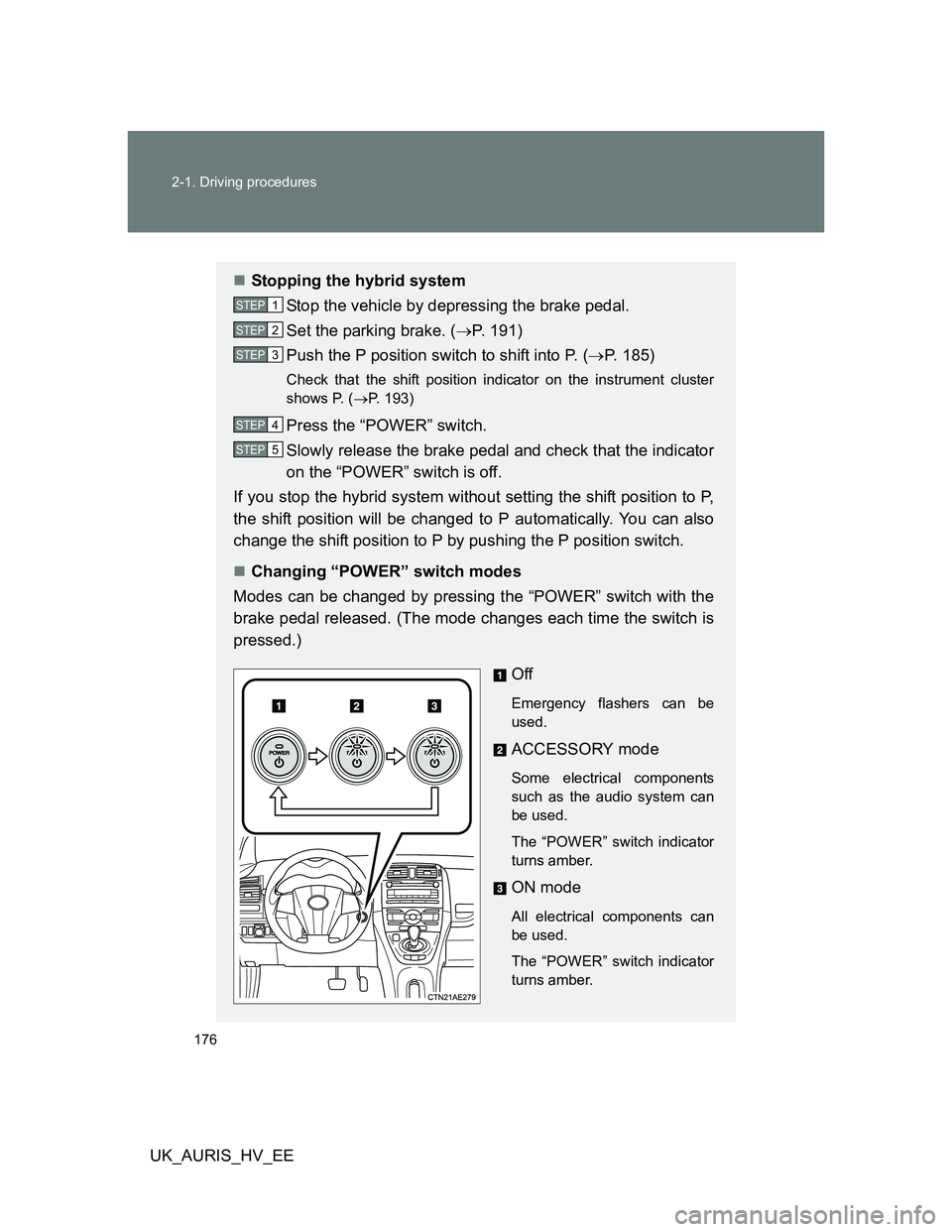

176 2-1. Driving procedures
UK_AURIS_HV_EE
Stopping the hybrid system
Stop the vehicle by depressing the brake pedal.
Set the parking brake. (P. 191)
Push the P position switch to shift into P. (P. 185)
Check that the shift position indicator on the instrument cluster
shows P. (P. 193)
Press the “POWER” switch.
Slowly release the brake pedal and check that the indicator
on the “POWER” switch is off.
If you stop the hybrid system without setting the shift position to P,
the shift position will be changed to P automatically. You can also
change the shift position to P by pushing the P position switch.
Changing “POWER” switch modes
Modes can be changed by pressing the “POWER” switch with the
brake pedal released. (The mode changes each time the switch is
pressed.)
Off
Emergency flashers can be
used.
ACCESSORY mode
Some electrical components
such as the audio system can
be used.
The “POWER” switch indicator
turns amber.
ON mode
All electrical components can
be used.
The “POWER” switch indicator
turns amber.
STEP1
STEP2
STEP3
STEP4
STEP5

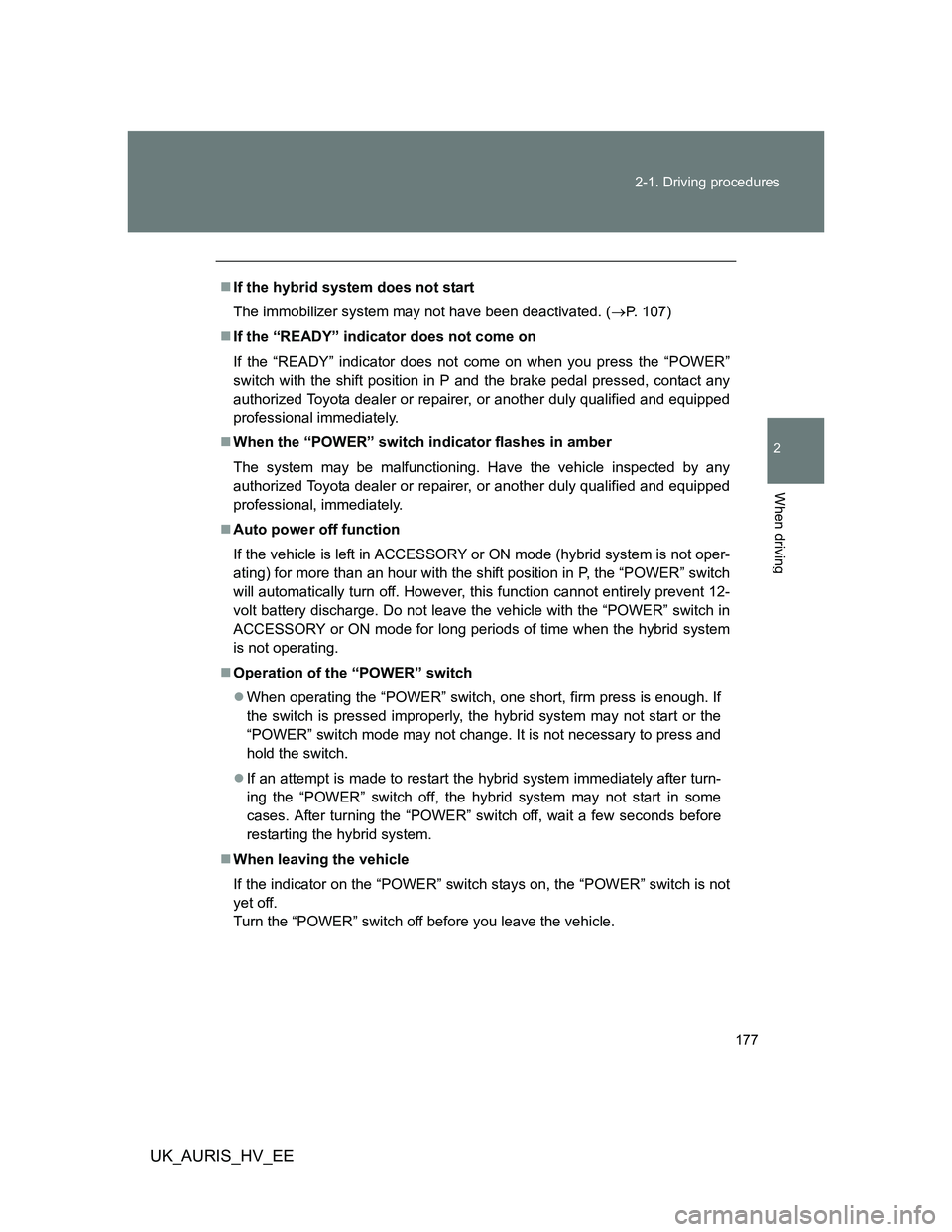

177 2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE
If the hybrid system does not start
The immobilizer system may not have been deactivated. (P. 107)
If the “READY” indicator does not come on
If the “READY” indicator does not come on when you press the “POWER”
switch with the shift position in P and the brake pedal pressed, contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
When the “POWER” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, immediately.
Auto power off function
If the vehicle is left in ACCESSORY or ON mode (hybrid system is not oper-
ating) for more than an hour with the shift position in P, the “POWER” switch
will automatically turn off. However, this function cannot entirely prevent 12-
volt battery discharge. Do not leave the vehicle with the “POWER” switch in
ACCESSORY or ON mode for long periods of time when the hybrid system
is not operating.
Operation of the “POWER” switch
When operating the “POWER” switch, one short, firm press is enough. If
the switch is pressed improperly, the hybrid system may not start or the
“POWER” switch mode may not change. It is not necessary to press and
hold the switch.
If an attempt is made to restart the hybrid system immediately after turn-
ing the “POWER” switch off, the hybrid system may not start in some
cases. After turning the “POWER” switch off, wait a few seconds before
restarting the hybrid system.
When leaving the vehicle
If the indicator on the “POWER” switch stays on, the “POWER” switch is not
yet off.
Turn the “POWER” switch off before you leave the vehicle.

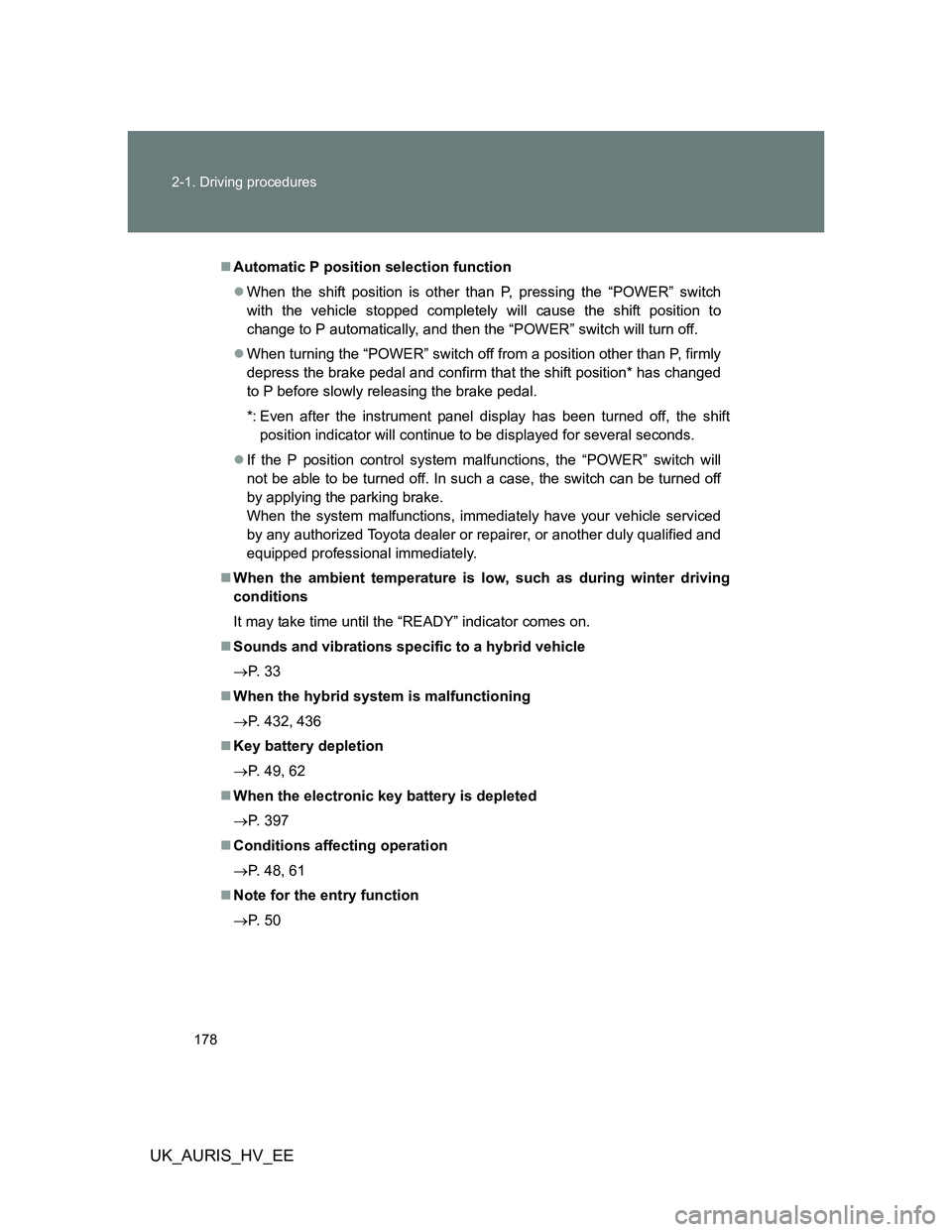

178 2-1. Driving procedures
UK_AURIS_HV_EE
Automatic P position selection function
When the shift position is other than P, pressing the “POWER” switch
with the vehicle stopped completely will cause the shift position to
change to P automatically, and then the “POWER” switch will turn off.
When turning the “POWER” switch off from a position other than P, firmly
depress the brake pedal and confirm that the shift position* has changed
to P before slowly releasing the brake pedal.
*: Even after the instrument panel display has been turned off, the shift
position indicator will continue to be displayed for several seconds.
If the P position control system malfunctions, the “POWER” switch will
not be able to be turned off. In such a case, the switch can be turned off
by applying the parking brake.
When the system malfunctions, immediately have your vehicle serviced
by any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional immediately.
When the ambient temperature is low, such as during winter driving
conditions
It may take time until the “READY” indicator comes on.
Sounds and vibrations specific to a hybrid vehicle
P. 3 3
When the hybrid system is malfunctioning
P. 432, 436
Key battery depletion
P. 49, 62
When the electronic key battery is depleted
P. 397
Conditions affecting operation
P. 48, 61
Note for the entry function
P. 5 0

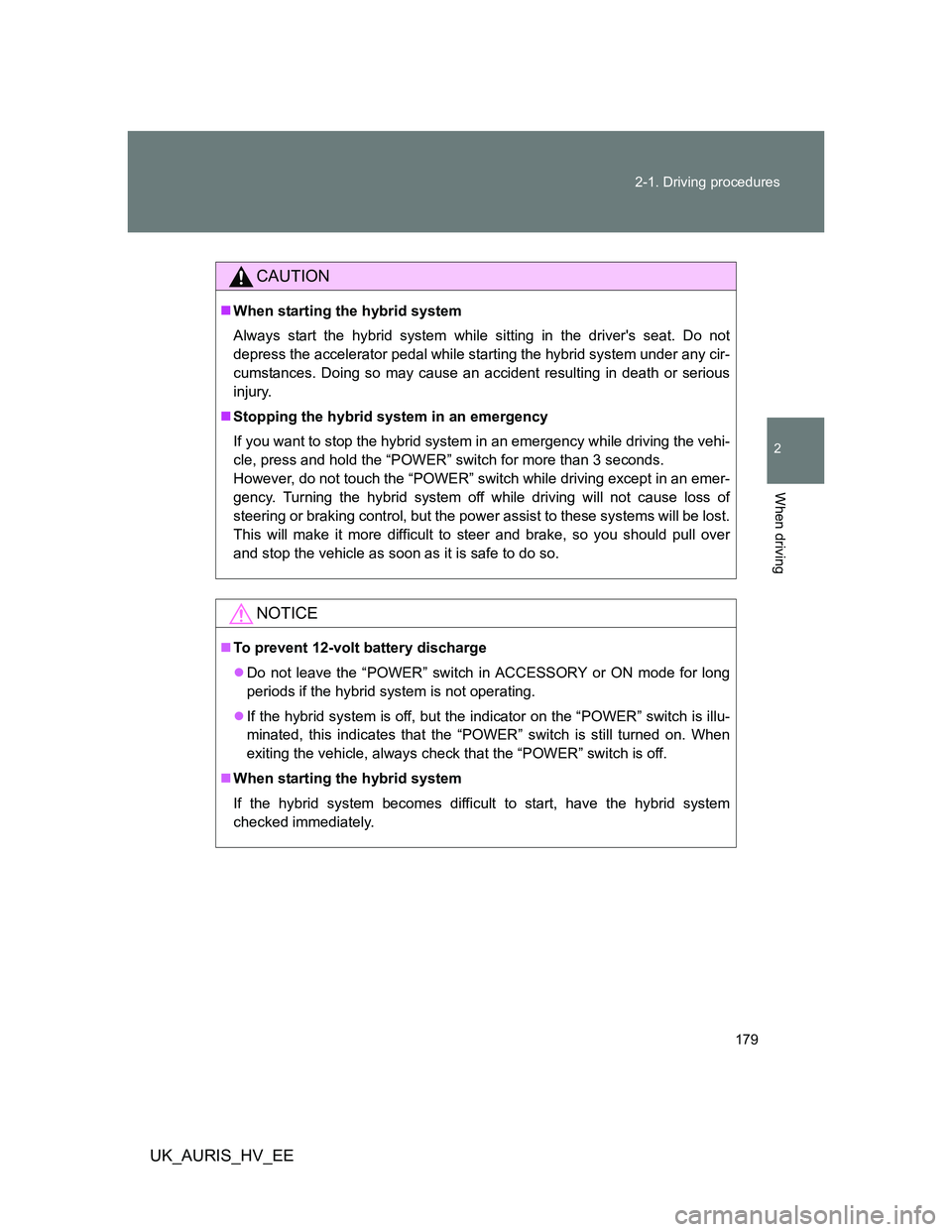

179 2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE
CAUTION
When starting the hybrid system
Always start the hybrid system while sitting in the driver's seat. Do not
depress the accelerator pedal while starting the hybrid system under any cir-
cumstances. Doing so may cause an accident resulting in death or serious
injury.
Stopping the hybrid system in an emergency
If you want to stop the hybrid system in an emergency while driving the vehi-
cle, press and hold the “POWER” switch for more than 3 seconds.
However, do not touch the “POWER” switch while driving except in an emer-
gency. Turning the hybrid system off while driving will not cause loss of
steering or braking control, but the power assist to these systems will be lost.
This will make it more difficult to steer and brake, so you should pull over
and stop the vehicle as soon as it is safe to do so.
NOTICE
To prevent 12-volt battery discharge
Do not leave the “POWER” switch in ACCESSORY or ON mode for long
periods if the hybrid system is not operating.
If the hybrid system is off, but the indicator on the “POWER” switch is illu-
minated, this indicates that the “POWER” switch is still turned on. When
exiting the vehicle, always check that the “POWER” switch is off.
When starting the hybrid system
If the hybrid system becomes difficult to start, have the hybrid system
checked immediately.

180
2-1. Driving procedures
UK_AURIS_HV_EE

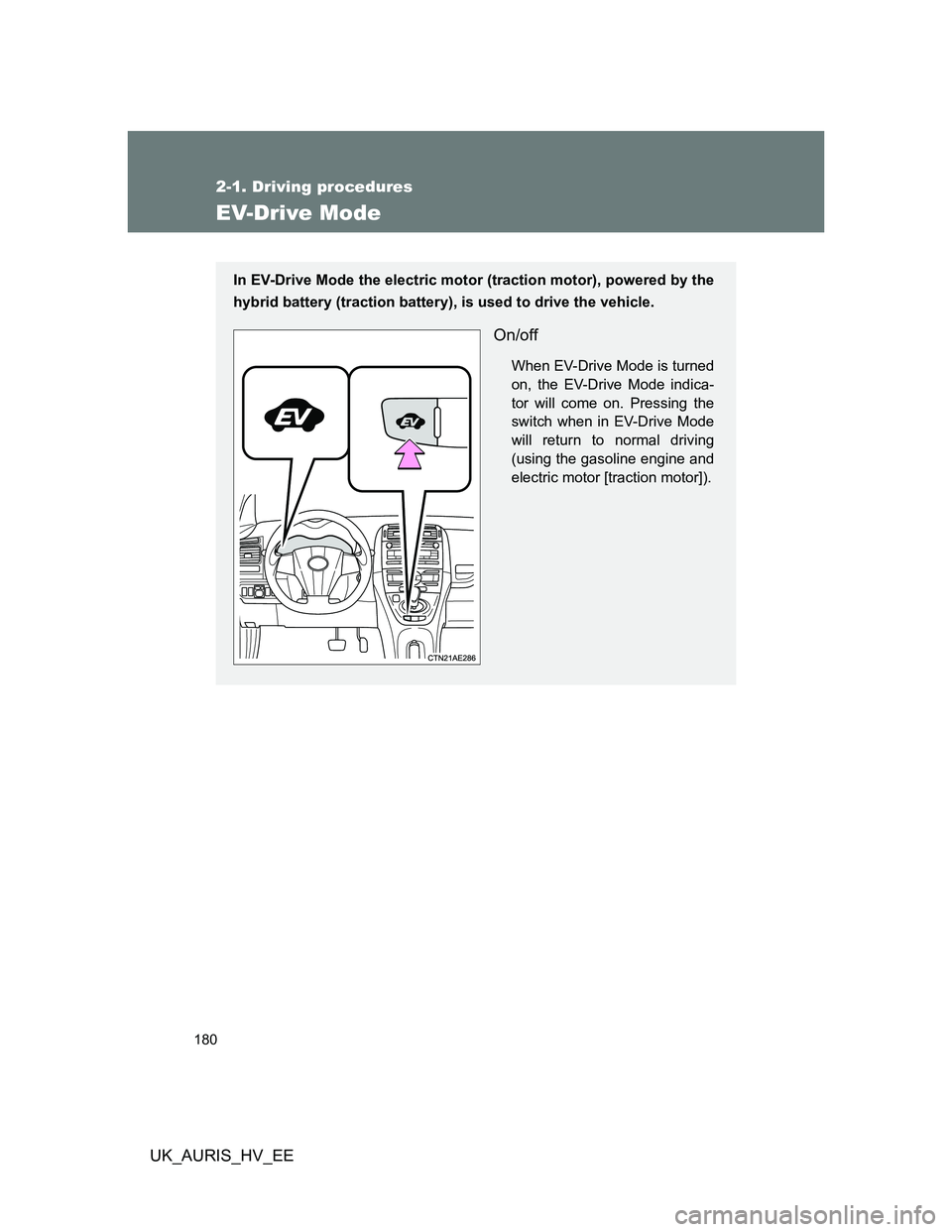

EV-Drive Mode
In EV-Drive Mode the electric motor (traction motor), powered by the
hybrid battery (traction battery), is used to drive the vehicle.
On/off
When EV-Drive Mode is turned
on, the EV-Drive Mode indica-
tor will come on. Pressing the
switch when in EV-Drive Mode
will return to normal driving
(using the gasoline engine and
electric motor [traction motor]).
