TOYOTA AURIS HYBRID 2012 Owners Manual

211
2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE

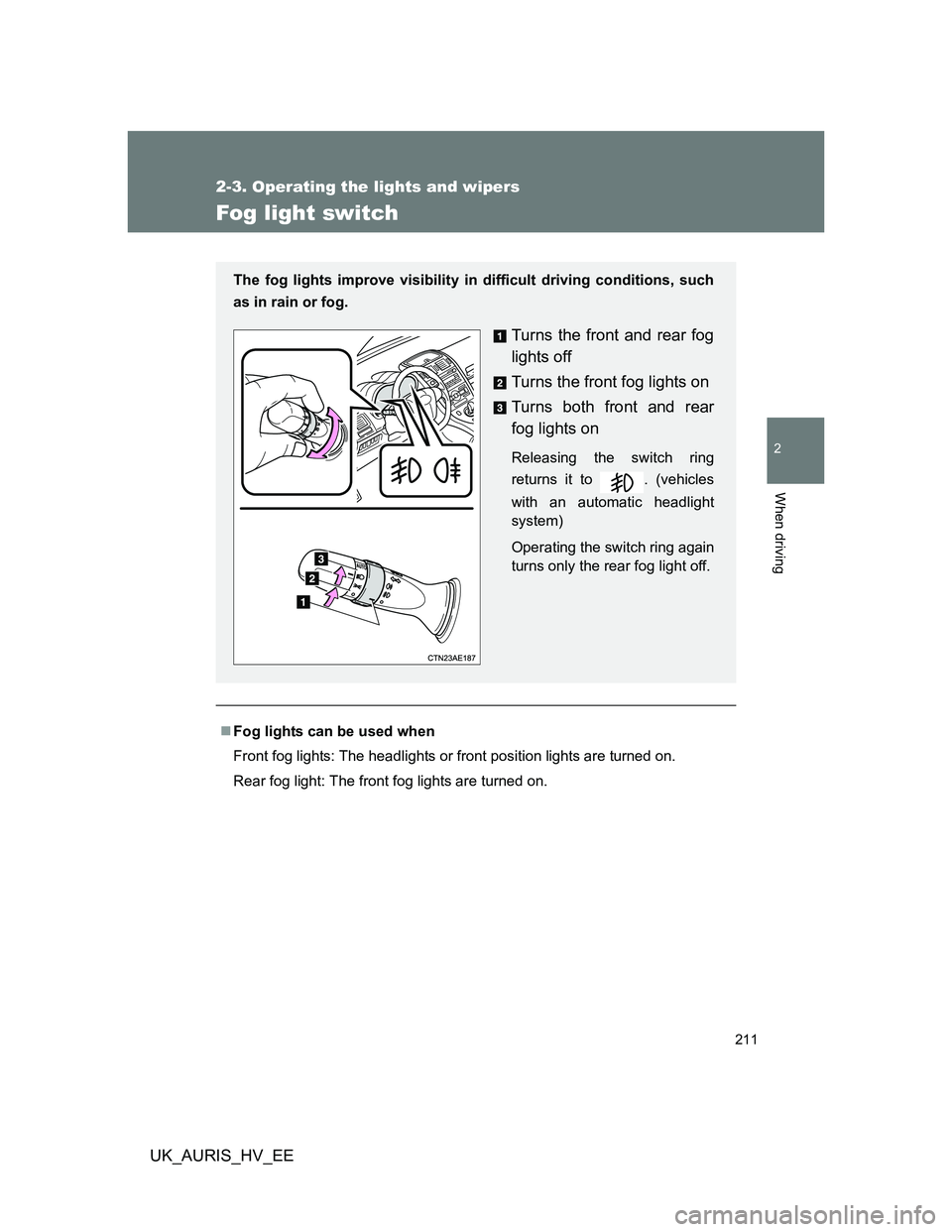

Fog light switch
Fog lights can be used when
Front fog lights: The headlights or front position lights are turned on.
Rear fog light: The front fog lights are turned on.
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog.
Turns the front and rear fog
lights off
Turns the front fog lights on
Turns both front and rear
fog lights on
Releasing the switch ring
returns it to . (vehicles
with an automatic headlight
system)
Operating the switch ring again
turns only the rear fog light off.

212
2-3. Operating the lights and wipers
UK_AURIS_HV_EE
Windshield wipers and washer
Intermittent windshield wiper with interval adjuster
When intermittent windshield wiper operation is selected, wiper
intervals can be adjusted.
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

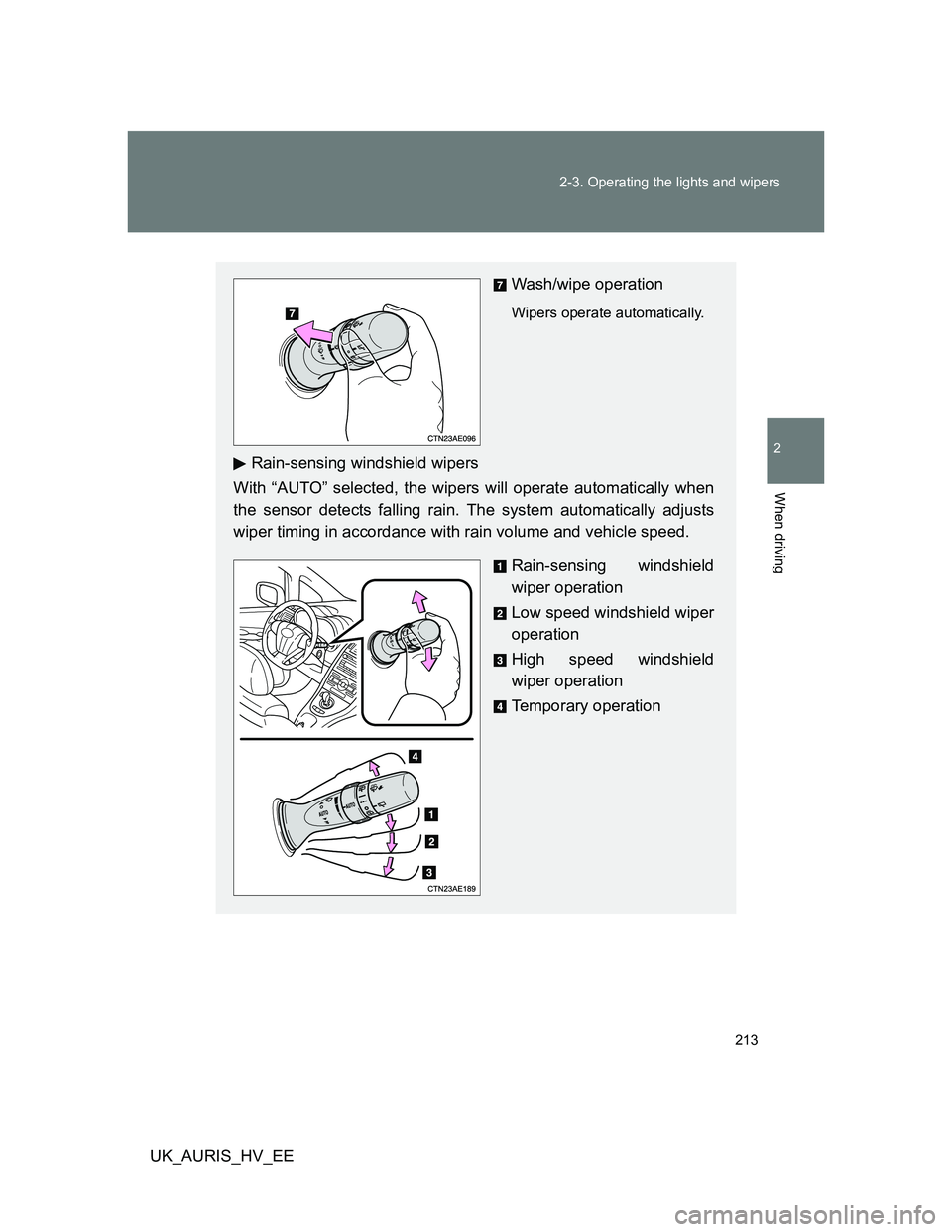

213 2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE
Wash/wipe operation
Wipers operate automatically.
Rain-sensing windshield wipers
With “AUTO” selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts
wiper timing in accordance with rain volume and vehicle speed.
Rain-sensing windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation

214 2-3. Operating the lights and wipers
UK_AURIS_HV_EE
The windshield wipers and washer can be operated when
The “POWER” switch is in ON mode.
Effects of vehicle speed on wiper operation (vehicles with rain-sensing
windshield wipers)
Even when the wipers are not in “AUTO” mode, wiper operation varies
depending on vehicle speed when the washer is being used (delay until drip
prevention wiper sweep occurs).

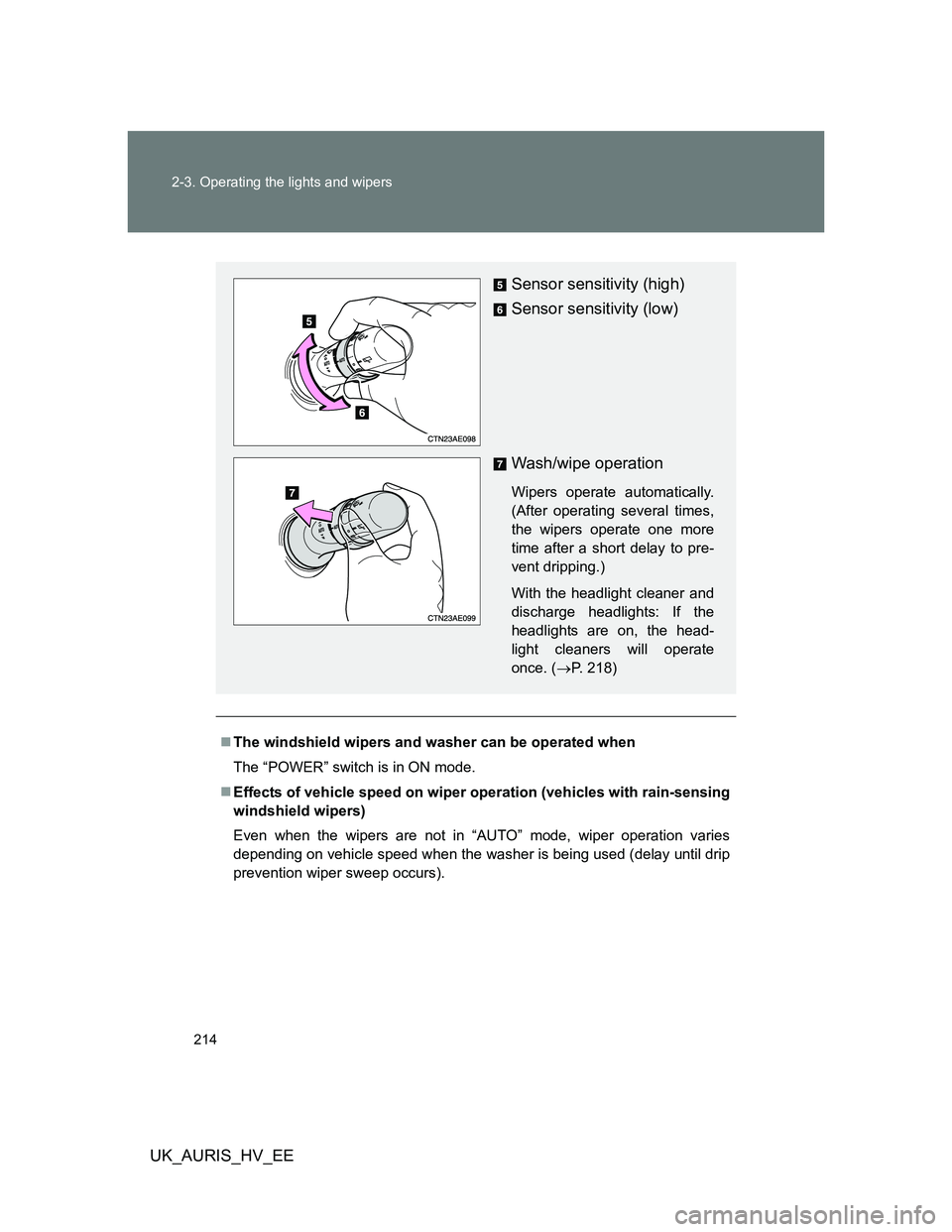

Sensor sensitivity (high)
Sensor sensitivity (low)
Wash/wipe operation
Wipers operate automatically.
(After operating several times,
the wipers operate one more
time after a short delay to pre-
vent dripping.)
With the headlight cleaner and
discharge headlights: If the
headlights are on, the head-
light cleaners will operate
once. (P. 218)

215 2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE

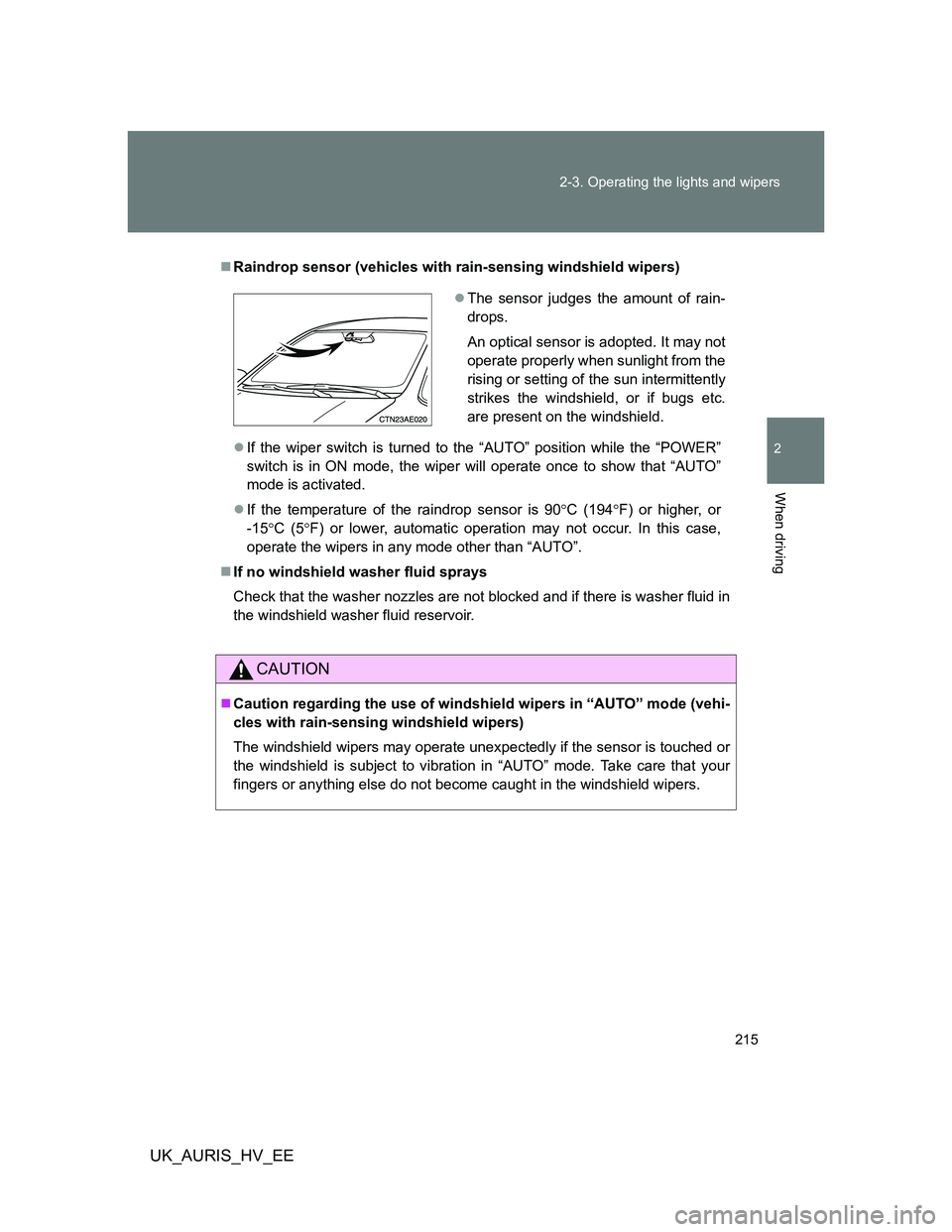

Raindrop sensor (vehicles with rain-sensing windshield wipers)
If the wiper switch is turned to the “AUTO” position while the “POWER”
switch is in ON mode, the wiper will operate once to show that “AUTO”
mode is activated.
If the temperature of the raindrop sensor is 90C (194F) or higher, or
-15C (5F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
CAUTION
Caution regarding the use of windshield wipers in “AUTO” mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
The sensor judges the amount of rain-
drops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc.
are present on the windshield.

216 2-3. Operating the lights and wipers
UK_AURIS_HV_EE

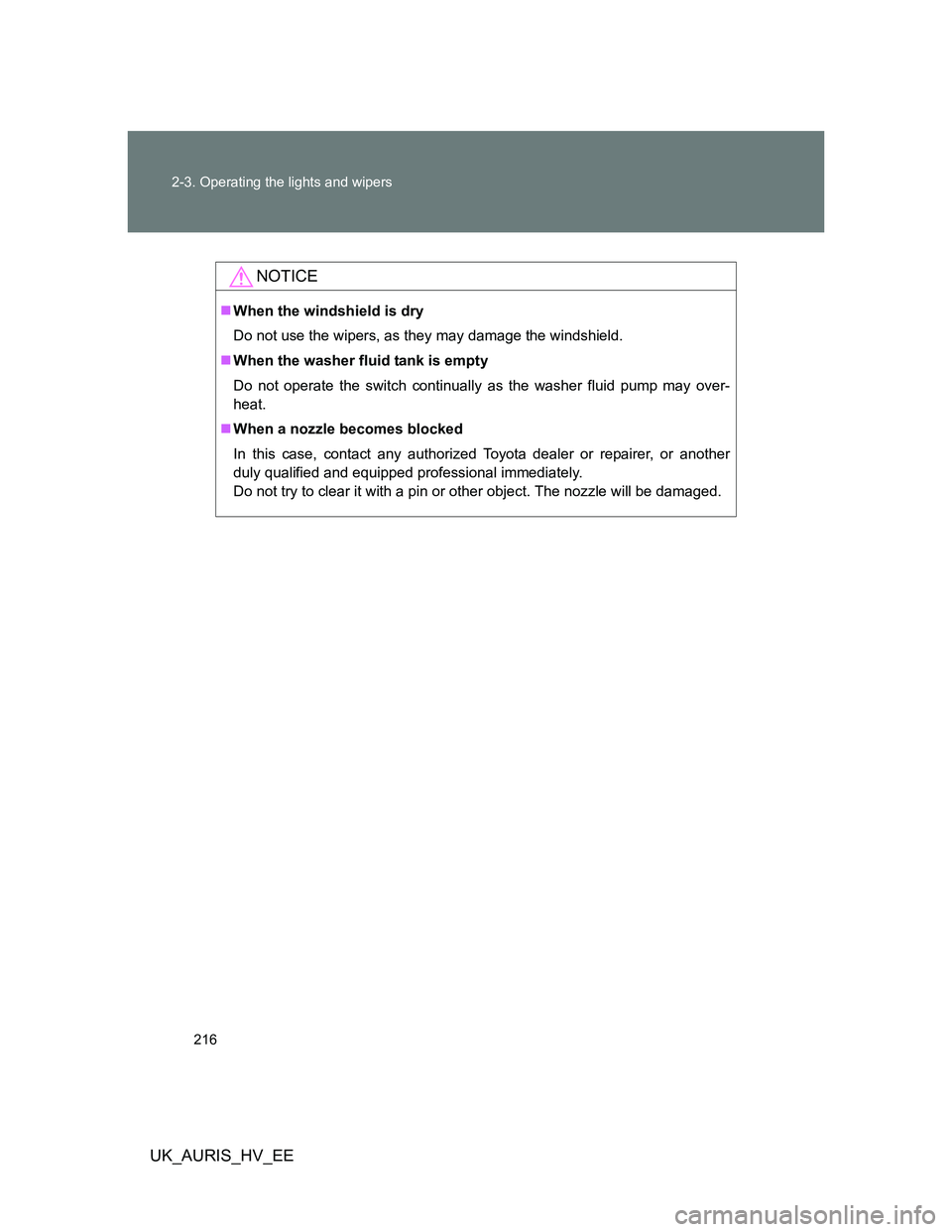

NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

217
2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE

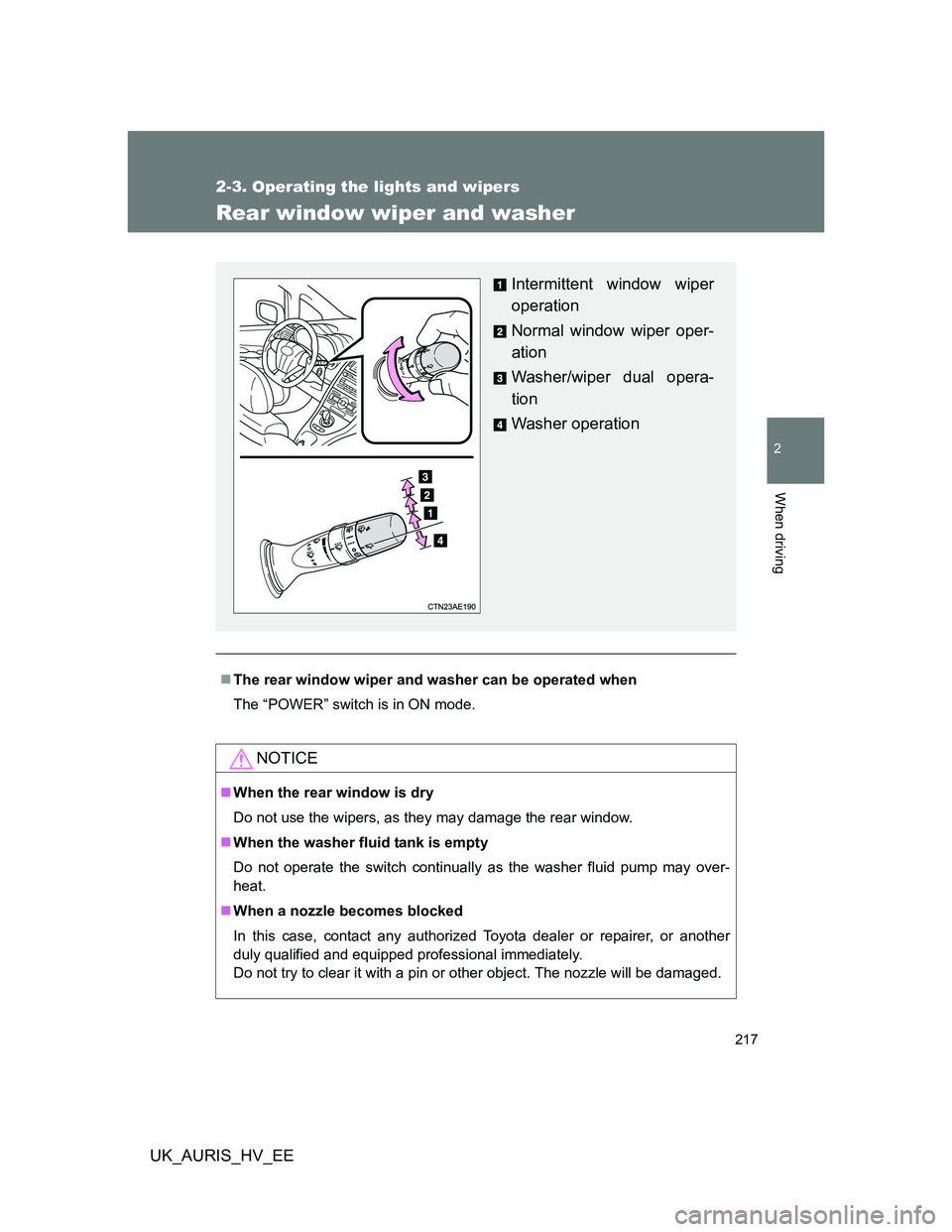

Rear window wiper and washer
The rear window wiper and washer can be operated when
The “POWER” switch is in ON mode.
NOTICE
When the rear window is dry
Do not use the wipers, as they may damage the rear window.
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer operation

218
2-3. Operating the lights and wipers
UK_AURIS_HV_EE

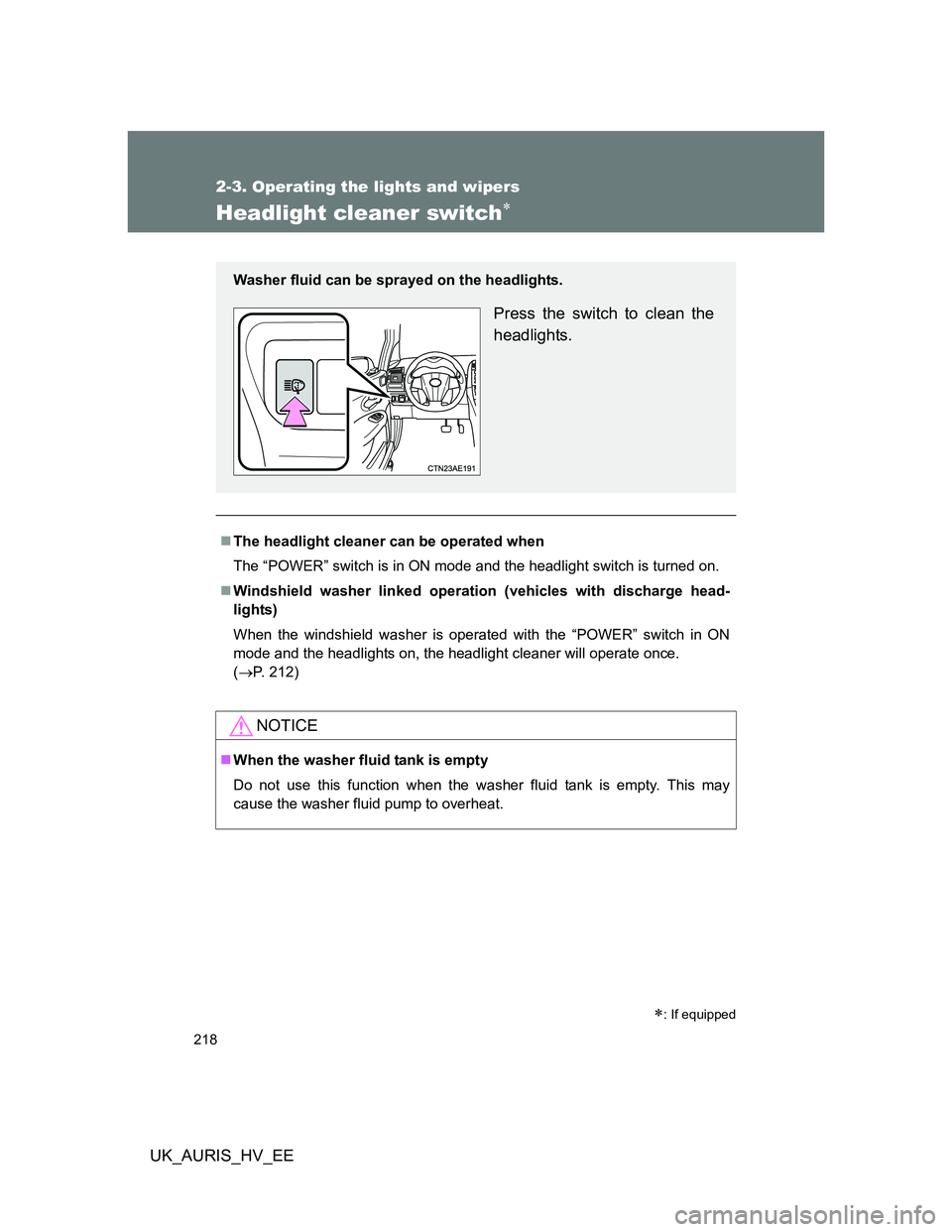

Headlight cleaner switch
The headlight cleaner can be operated when
The “POWER” switch is in ON mode and the headlight switch is turned on.
Windshield washer linked operation (vehicles with discharge head-
lights)
When the windshield washer is operated with the “POWER” switch in ON
mode and the headlights on, the headlight cleaner will operate once.
(P. 212)
NOTICE
When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty. This may
cause the washer fluid pump to overheat.
: If equipped
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

219
2
When driving
UK_AURIS_HV_EE
2-4. Using other driving systems

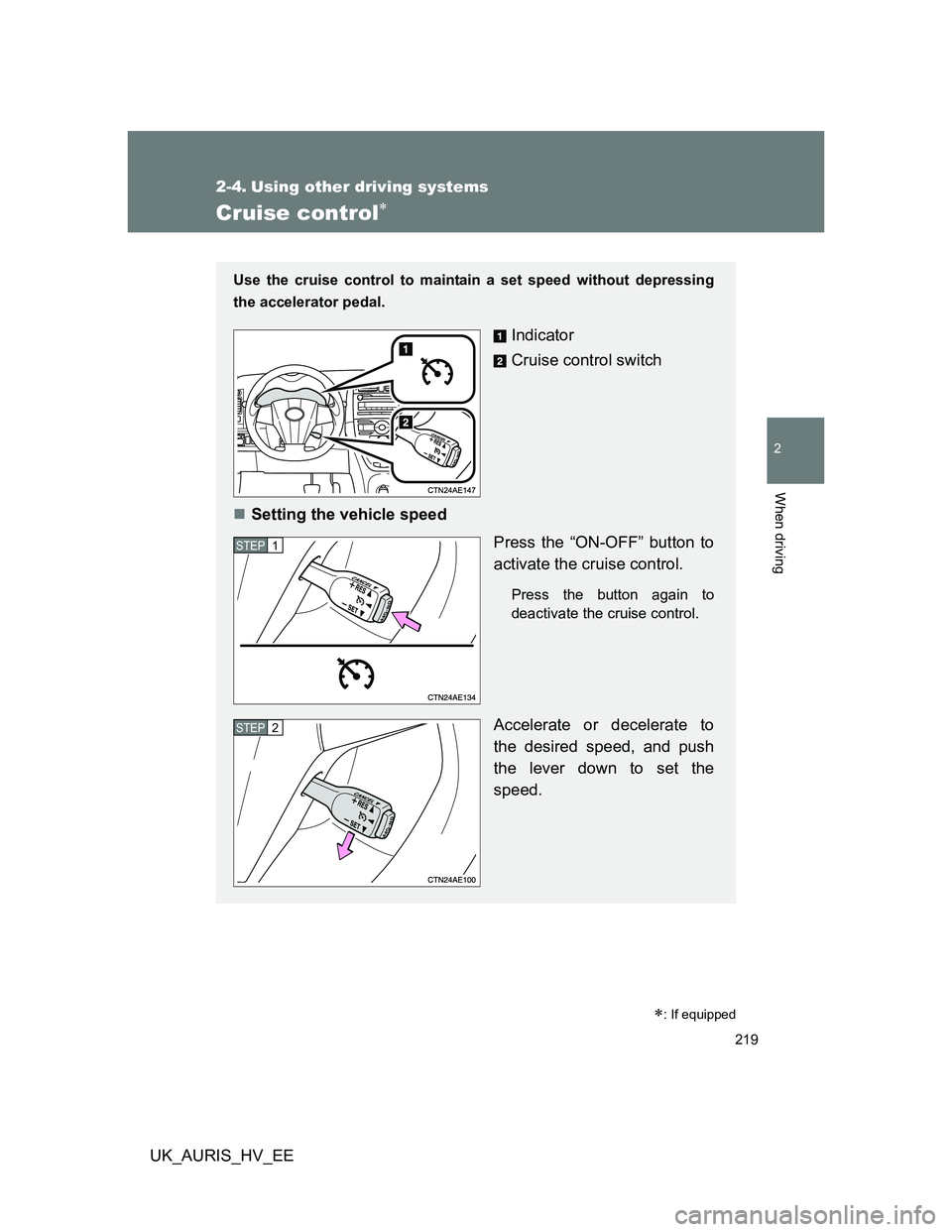

Cruise control
: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicator
Cruise control switch
Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate to
the desired speed, and push
the lever down to set the
speed.
STEP1
STEP2

220 2-4. Using other driving systems
UK_AURIS_HV_EE

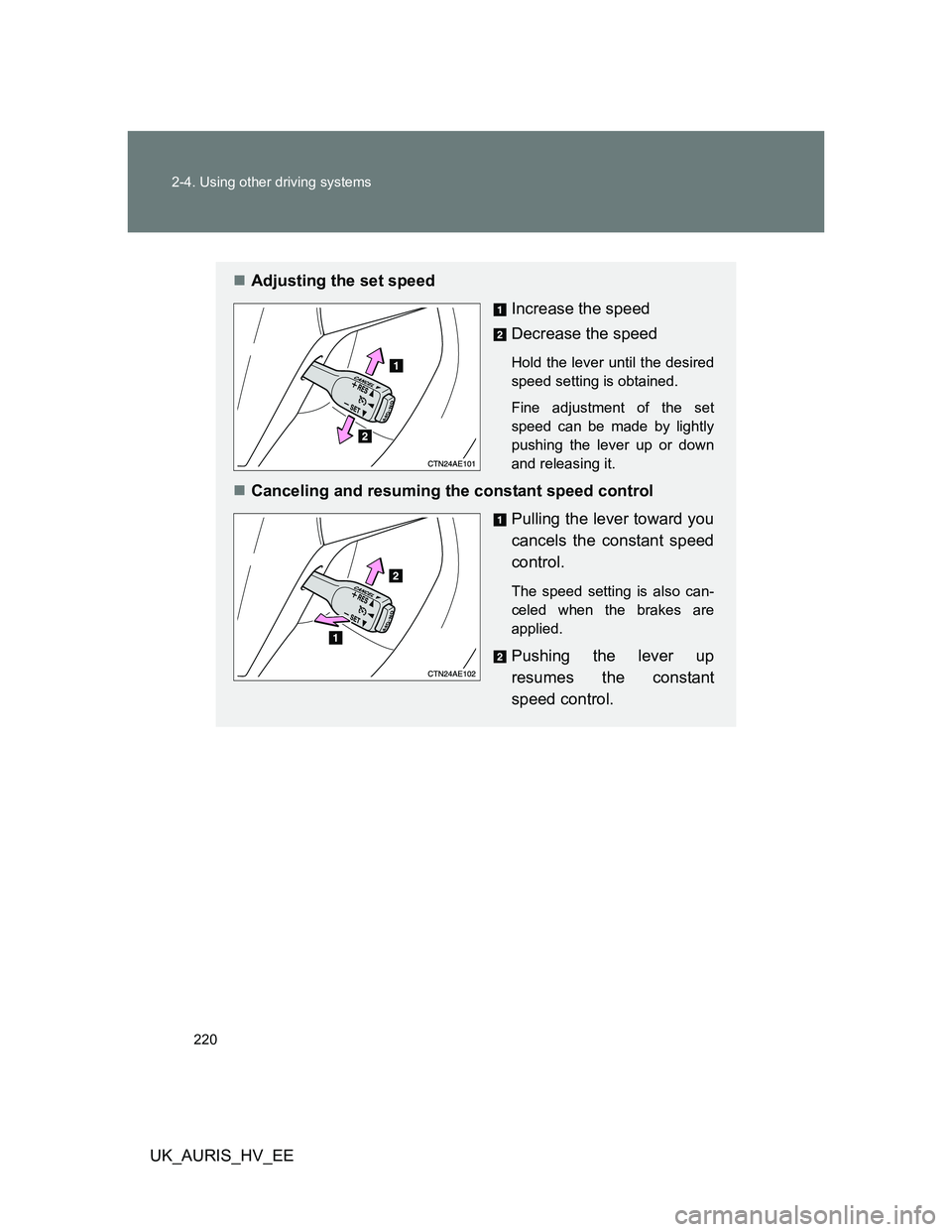

Adjusting the set speed
Increase the speed
Decrease the speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed can be made by lightly
pushing the lever up or down
and releasing it.
Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied.
Pushing the lever up
resumes the constant
speed control.
