TOYOTA AURIS HYBRID 2012 Owners Manual

351 3-7. Other interior features
3
Interior features
UK_AURIS_HV_EE

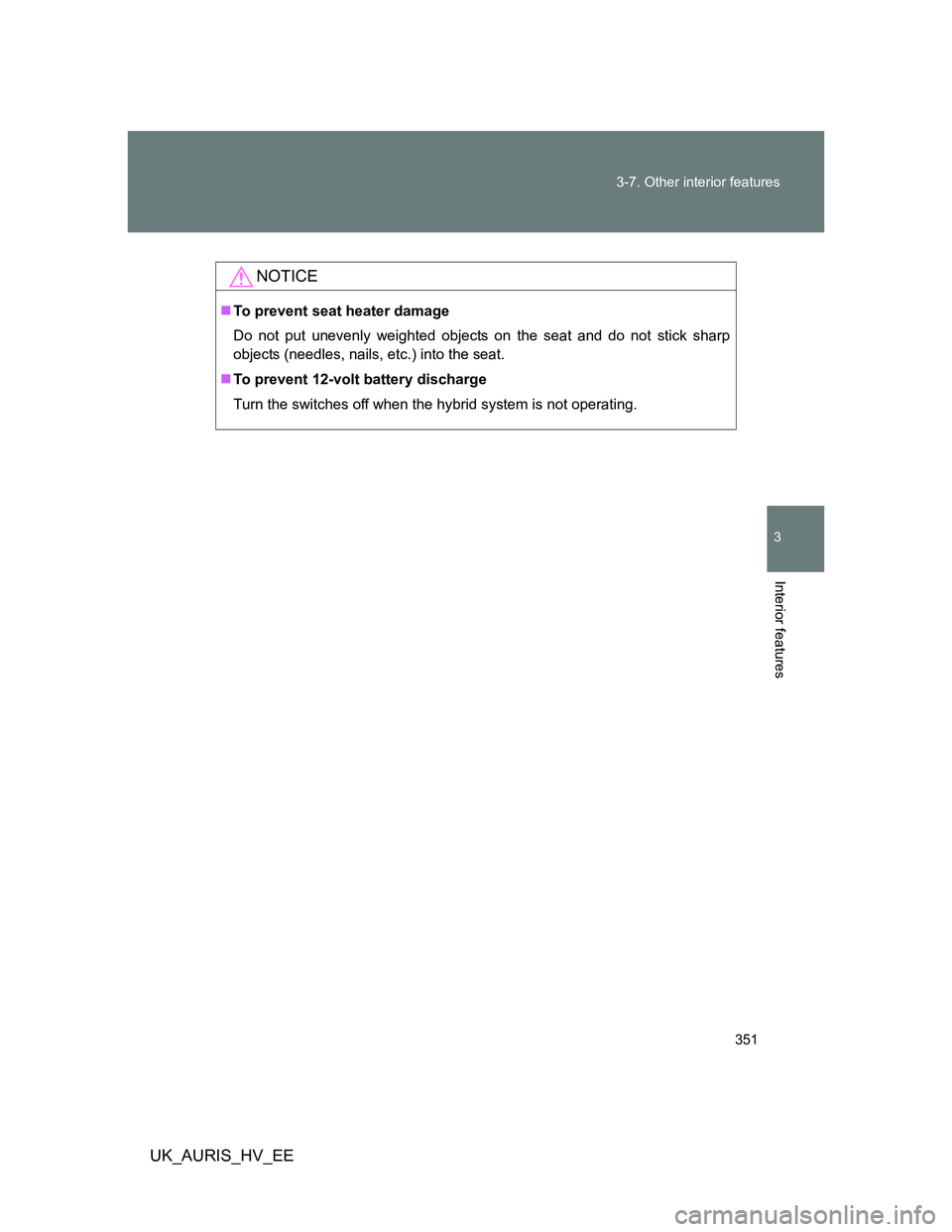

NOTICE
To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
To prevent 12-volt battery discharge
Turn the switches off when the hybrid system is not operating.

352
3-7. Other interior features
UK_AURIS_HV_EE

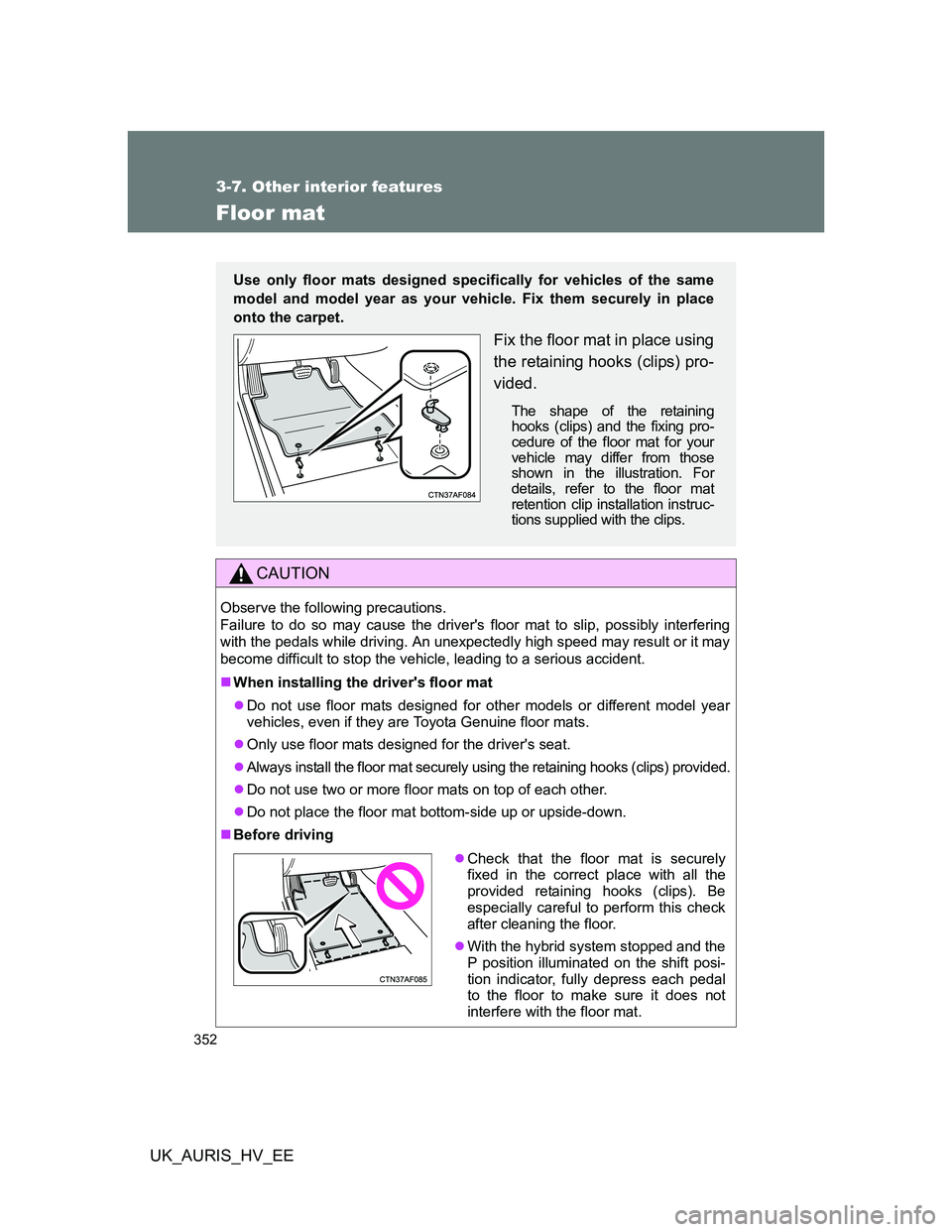

Floor mat
CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver's floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver's seat.
Always install the floor mat securely using the retaining hooks (clips) provided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing pro-
cedure of the floor mat for your
vehicle may differ from those
shown in the illustration. For
details, refer to the floor mat
retention clip installation instruc-
tions supplied with the clips.
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the hybrid system stopped and the
P position illuminated on the shift posi-
tion indicator, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

353
3-7. Other interior features
3
Interior features
UK_AURIS_HV_EE

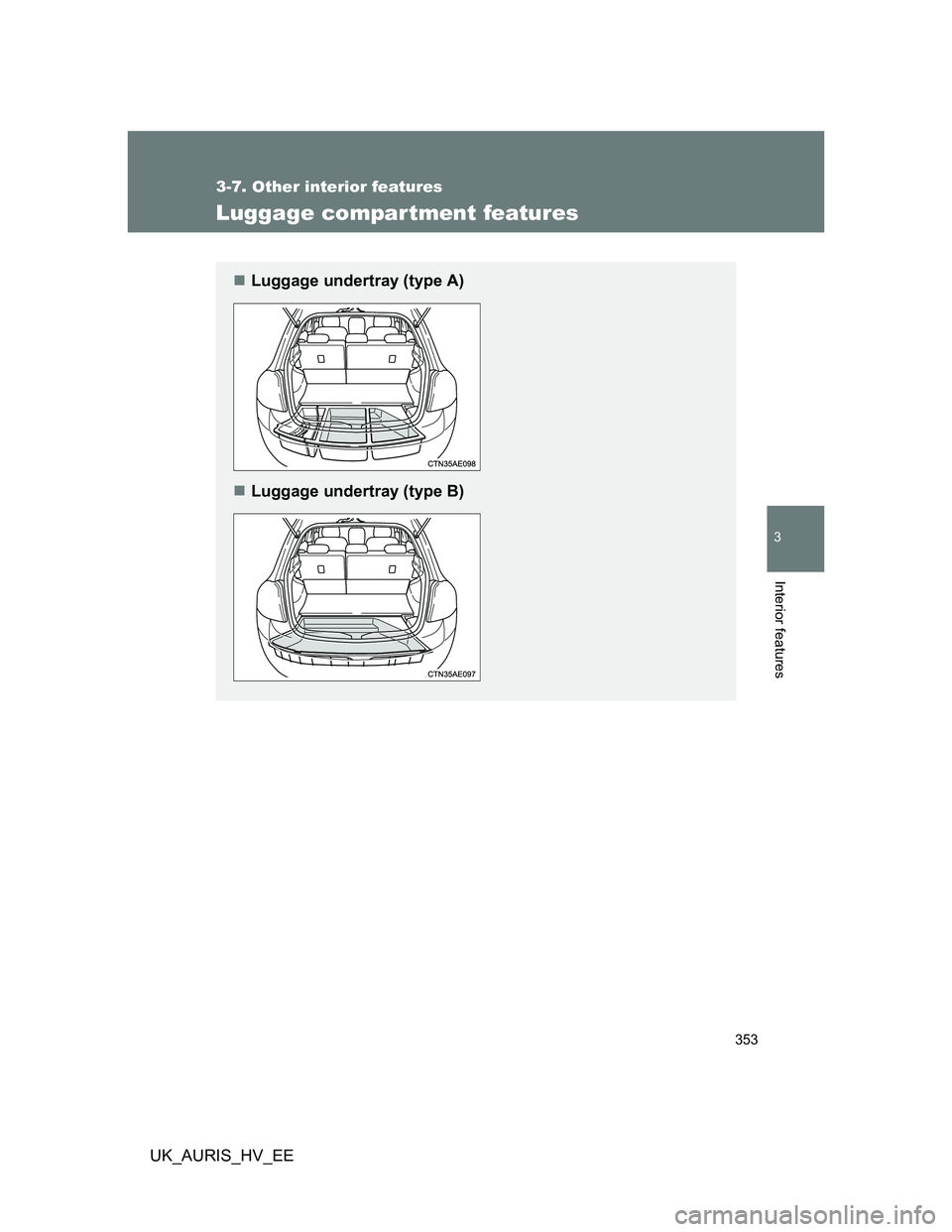

Luggage compar tment features
Luggage undertray (type A)
Luggage undertray (type B)

354 3-7. Other interior features
UK_AURIS_HV_EE

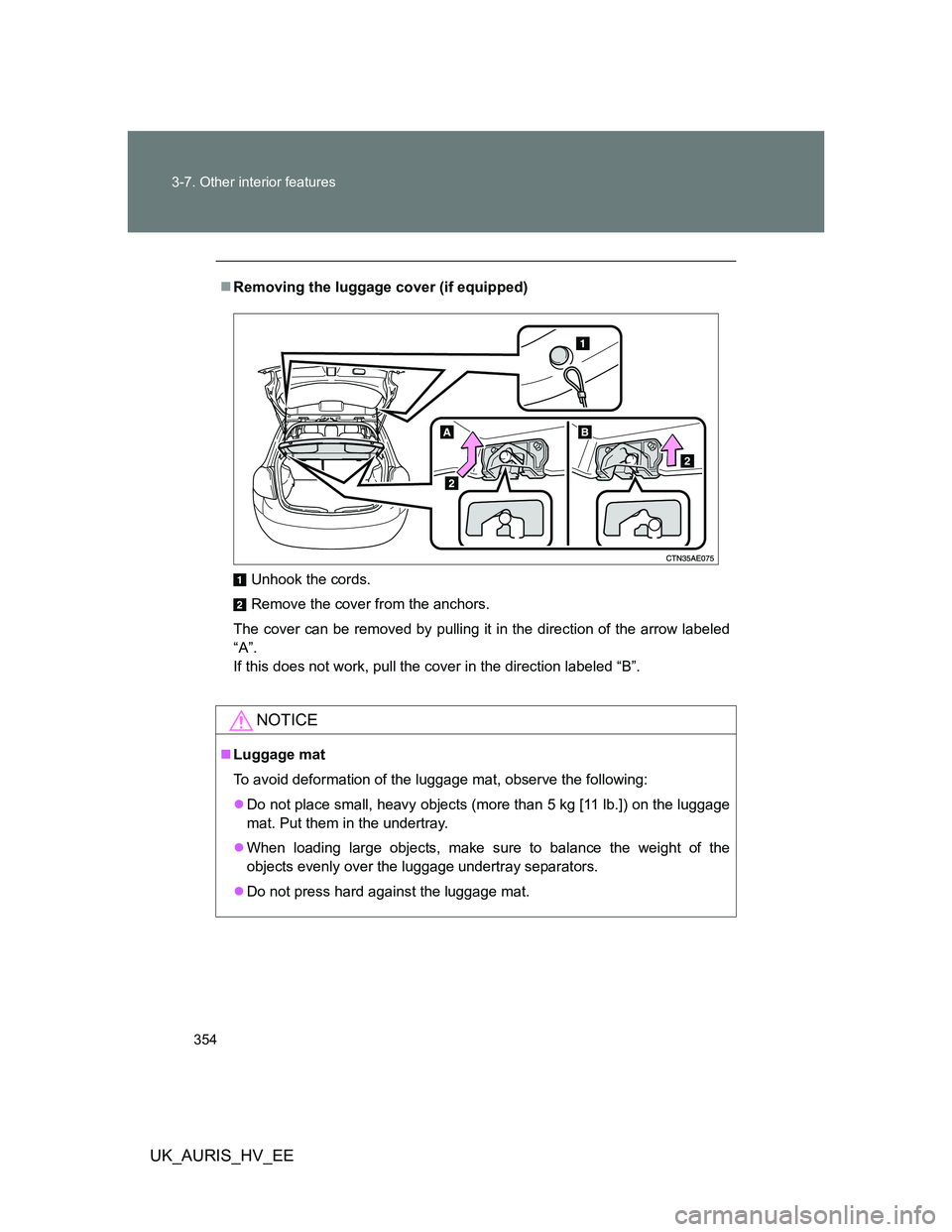

Removing the luggage cover (if equipped)
Unhook the cords.
Remove the cover from the anchors.
The cover can be removed by pulling it in the direction of the arrow labeled
“A”.
If this does not work, pull the cover in the direction labeled “B”.
NOTICE
Luggage mat
To avoid deformation of the luggage mat, observe the following:
Do not place small, heavy objects (more than 5 kg [11 lb.]) on the luggage
mat. Put them in the undertray.
When loading large objects, make sure to balance the weight of the
objects evenly over the luggage undertray separators.
Do not press hard against the luggage mat.

4Maintenance and care
355
UK_AURIS_HV_EE
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 356
Cleaning and protecting
the vehicle interior .......... 360
4-2. Maintenance
Maintenance
requirements................... 363
4-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ..................... 366
Hood ................................. 369
Positioning a floor jack ...... 371
Engine compartment......... 373
12-volt battery ................... 381
Tires .................................. 387
Tire inflation pressure ....... 390
Wheels .............................. 392
Air conditioning filter ......... 394
Key battery........................ 397
Checking and replacing
fuses ............................... 400
Light bulbs ........................ 411

356
UK_AURIS_HV_EE
4-1. Maintenance and care

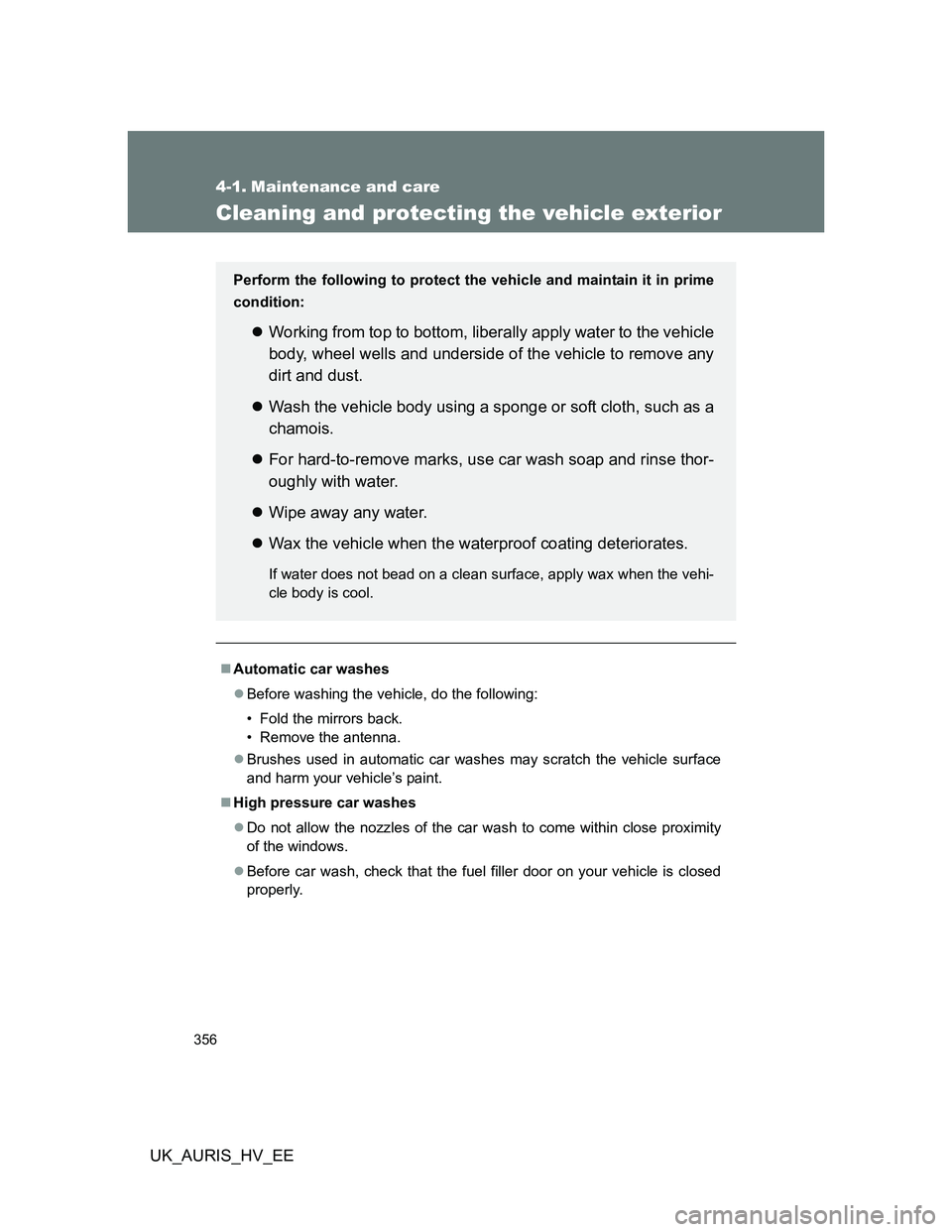

Cleaning and protecting the vehicle exterior
Automatic car washes
Before washing the vehicle, do the following:
• Fold the mirrors back.
• Remove the antenna.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity
of the windows.
Before car wash, check that the fuel filler door on your vehicle is closed
properly.
Perform the following to protect the vehicle and maintain it in prime
condition:
Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehi-
cle body is cool.

357 4-1. Maintenance and care
4
Maintenance and care
UK_AURIS_HV_EE

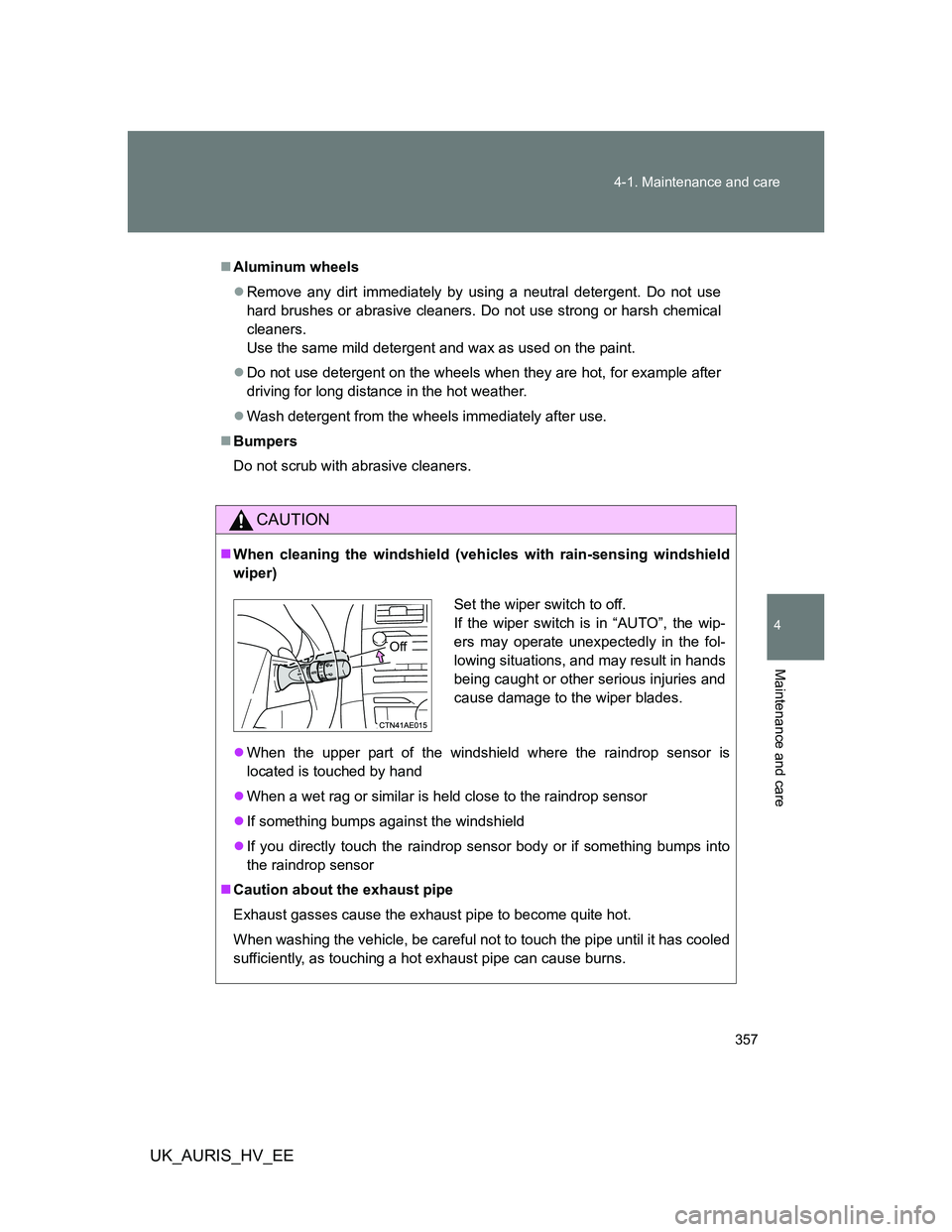

Aluminum wheels
Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners.
Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
Wash detergent from the wheels immediately after use.
Bumpers
Do not scrub with abrasive cleaners.
CAUTION
When cleaning the windshield (vehicles with rain-sensing windshield
wiper)
When the upper part of the windshield where the raindrop sensor is
located is touched by hand
When a wet rag or similar is held close to the raindrop sensor
If something bumps against the windshield
If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
Caution about the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-
ers may operate unexpectedly in the fol-
lowing situations, and may result in hands
being caught or other serious injuries and
cause damage to the wiper blades.
Off

358 4-1. Maintenance and care
UK_AURIS_HV_EE

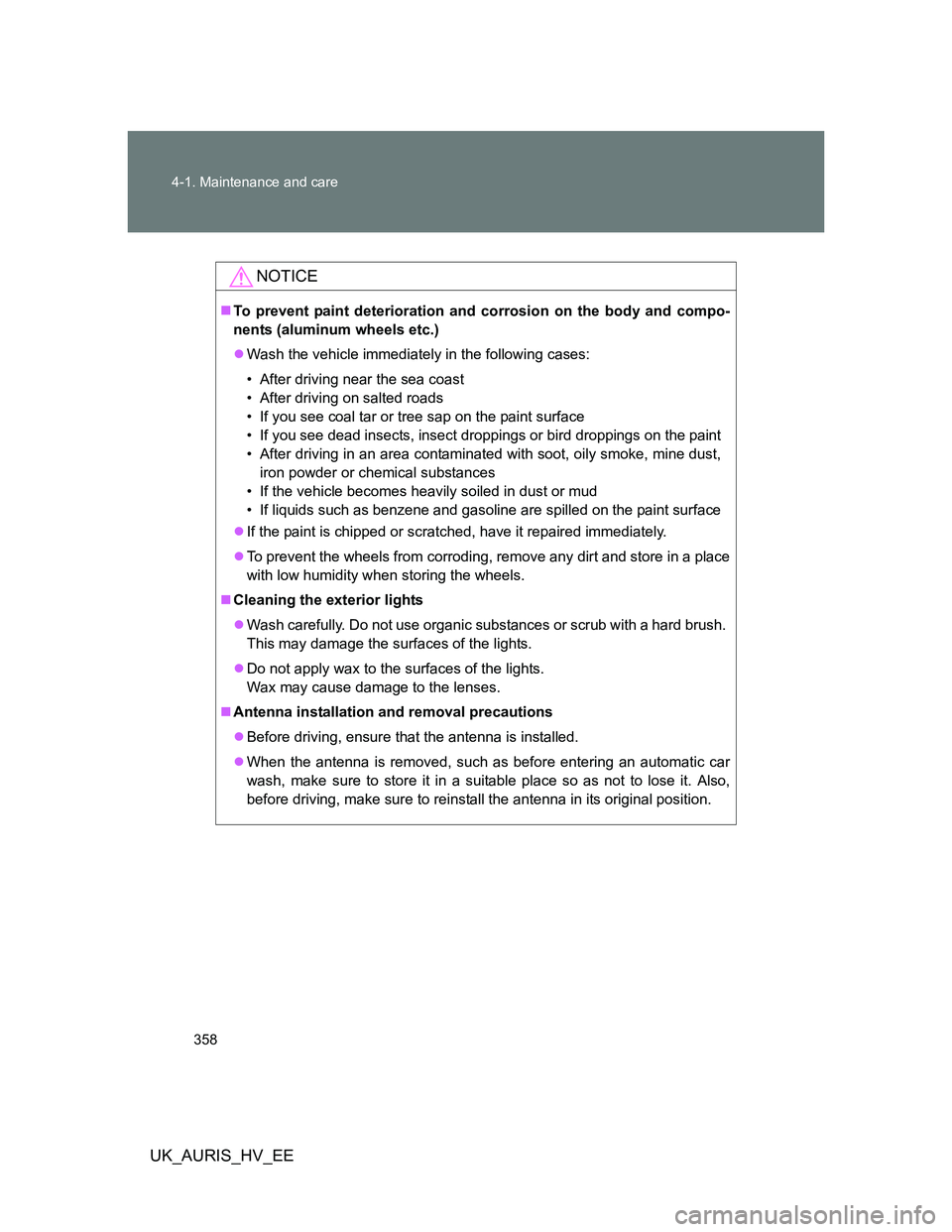

NOTICE
To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects, insect droppings or bird droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
If the paint is chipped or scratched, have it repaired immediately.
To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
Antenna installation and removal precautions
Before driving, ensure that the antenna is installed.
When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.

359 4-1. Maintenance and care
4
Maintenance and care
UK_AURIS_HV_EE

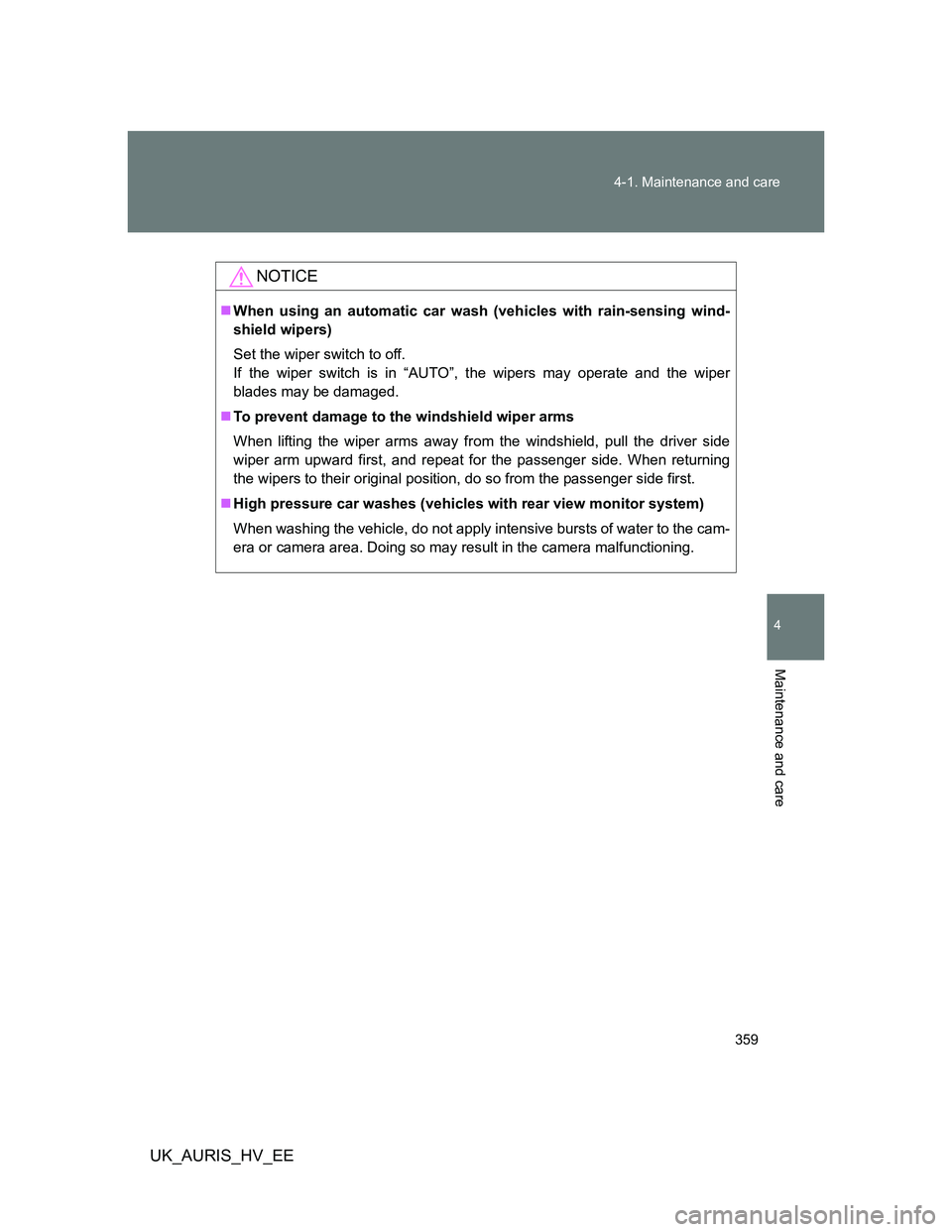

NOTICE
When using an automatic car wash (vehicles with rain-sensing wind-
shield wipers)
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wipers may operate and the wiper
blades may be damaged.
To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.
High pressure car washes (vehicles with rear view monitor system)
When washing the vehicle, do not apply intensive bursts of water to the cam-
era or camera area. Doing so may result in the camera malfunctioning.

360
4-1. Maintenance and care
UK_AURIS_HV_EE

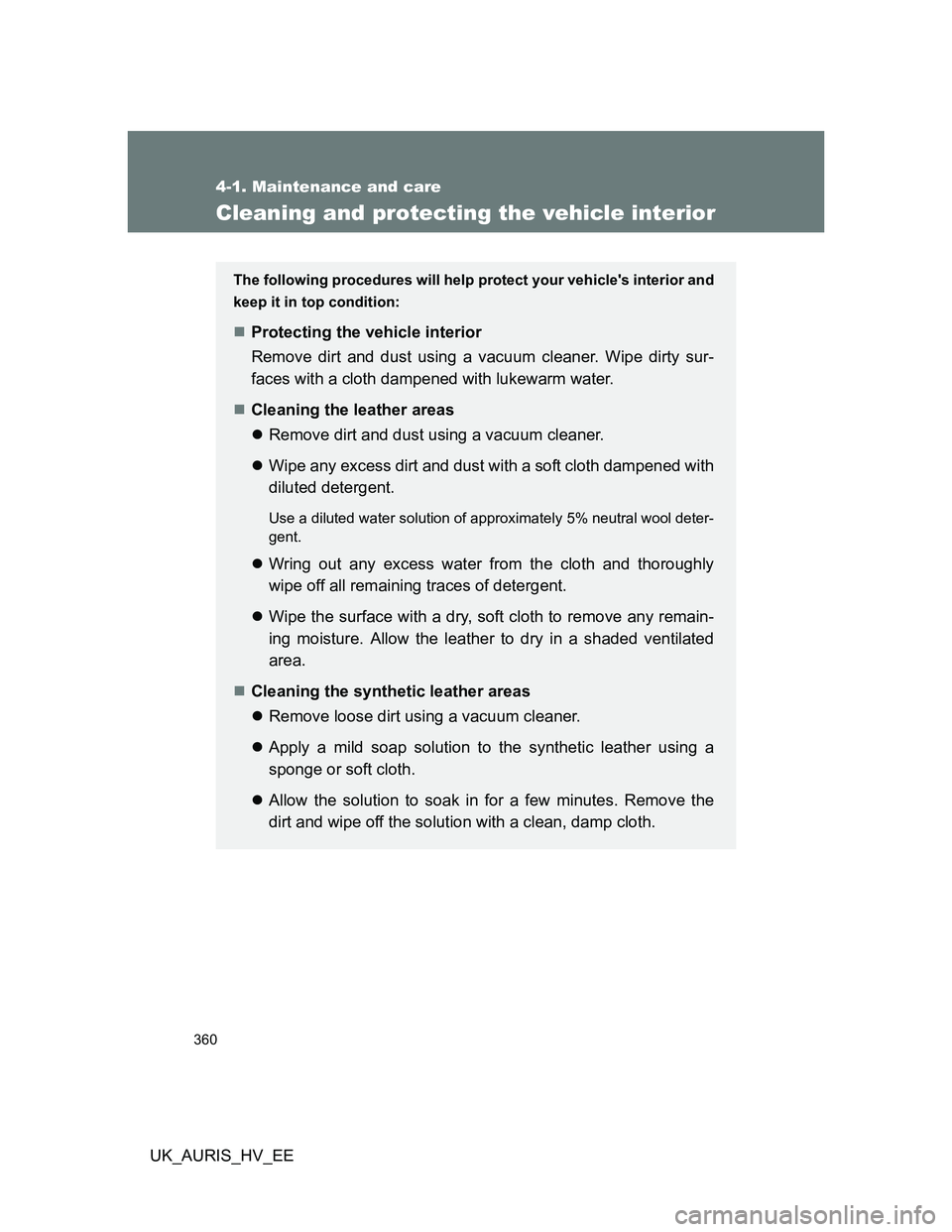

Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle's interior and
keep it in top condition:
Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with lukewarm water.
Cleaning the leather areas
Remove dirt and dust using a vacuum cleaner.
Wipe any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool deter-
gent.
Wring out any excess water from the cloth and thoroughly
wipe off all remaining traces of detergent.
Wipe the surface with a dry, soft cloth to remove any remain-
ing moisture. Allow the leather to dry in a shaded ventilated
area.
Cleaning the synthetic leather areas
Remove loose dirt using a vacuum cleaner.
Apply a mild soap solution to the synthetic leather using a
sponge or soft cloth.
Allow the solution to soak in for a few minutes. Remove the
dirt and wipe off the solution with a clean, damp cloth.
