TOYOTA AURIS HYBRID 2012 Owners Manual

5

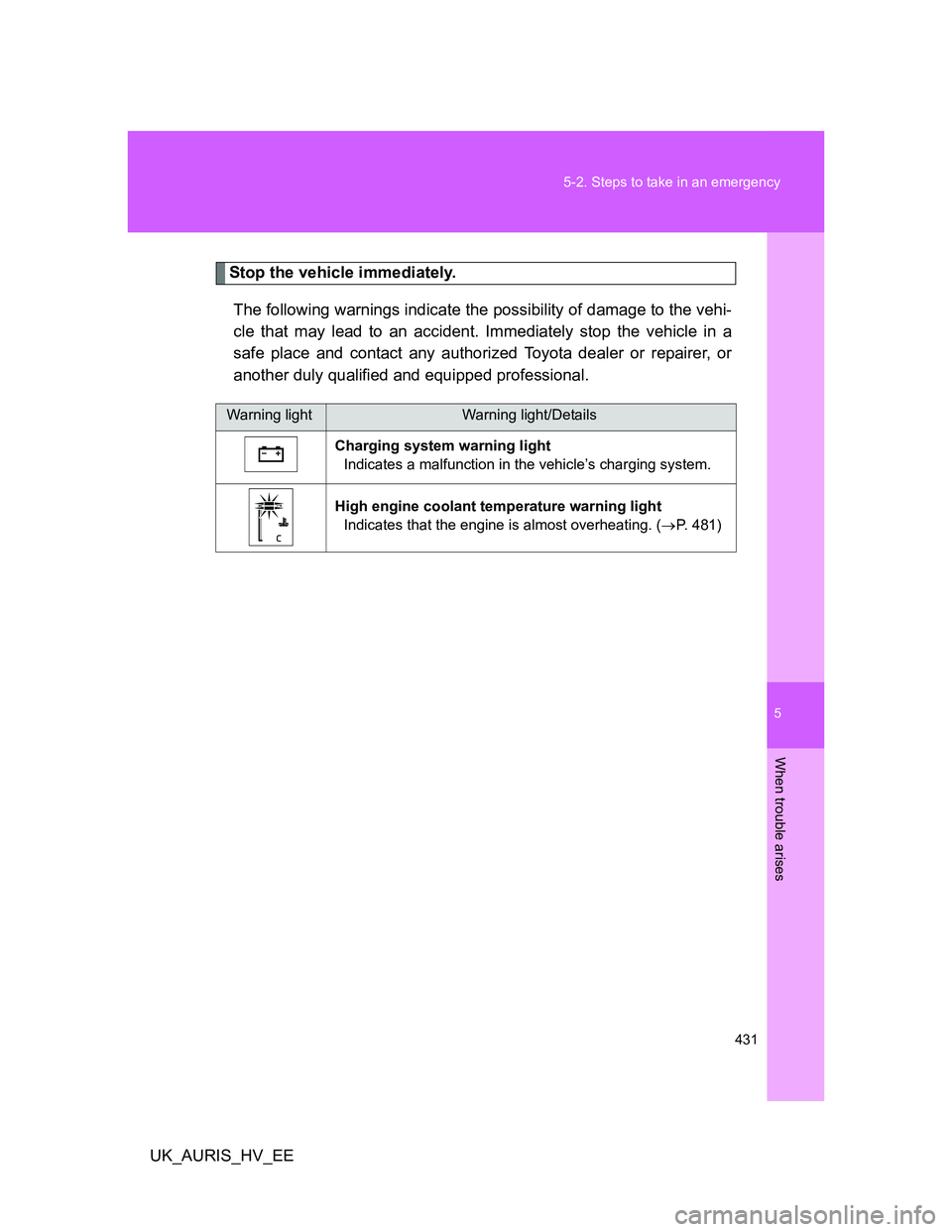

431 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
Stop the vehicle immediately.
The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system.
High engine coolant temperature warning light
Indicates that the engine is almost overheating. (P. 481)

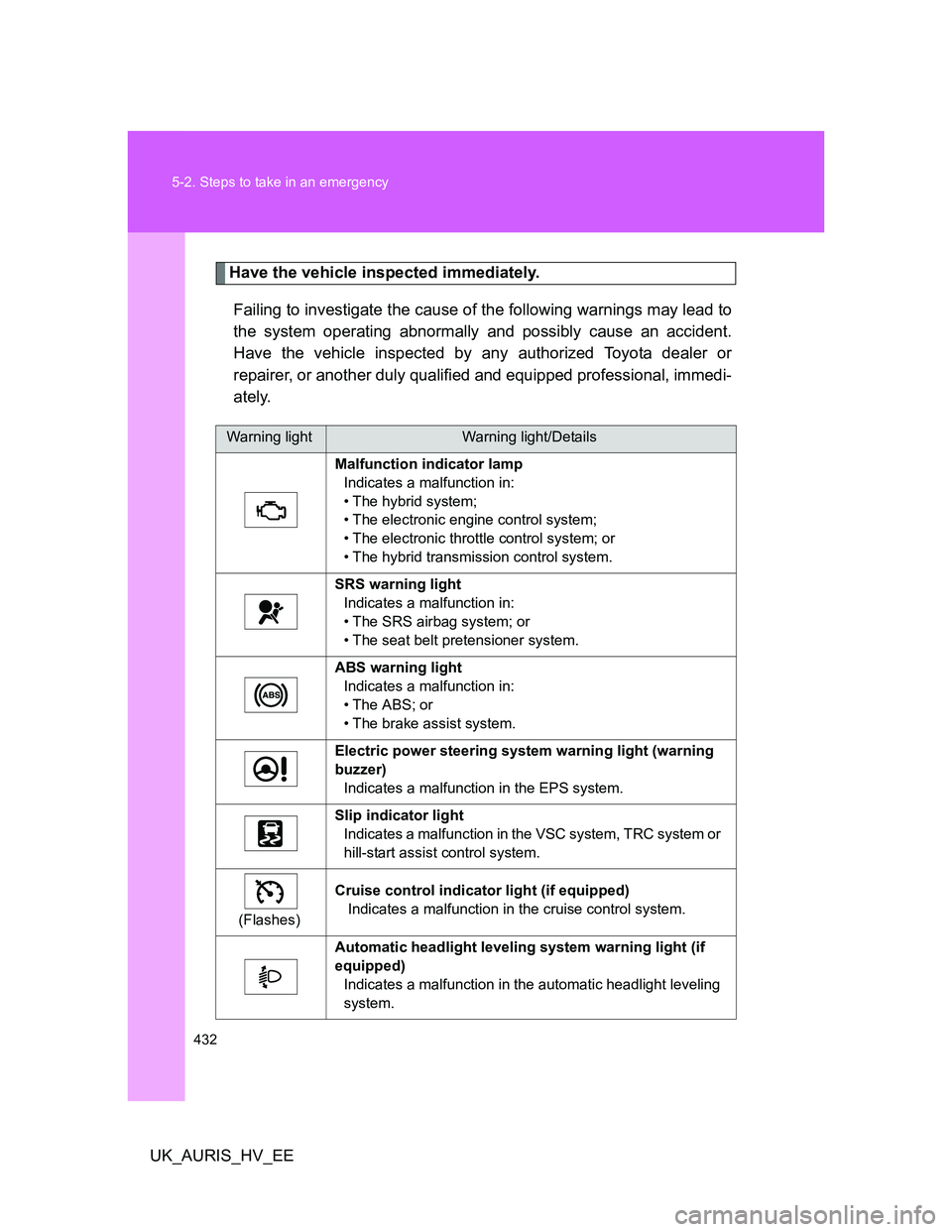

432 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The hybrid transmission control system.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS system.
Slip indicator light
Indicates a malfunction in the VSC system, TRC system or
hill-start assist control system.
(Flashes)Cruise control indicator light (if equipped)
Indicates a malfunction in the cruise control system.
Automatic headlight leveling system warning light (if
equipped)
Indicates a malfunction in the automatic headlight leveling
system.

5

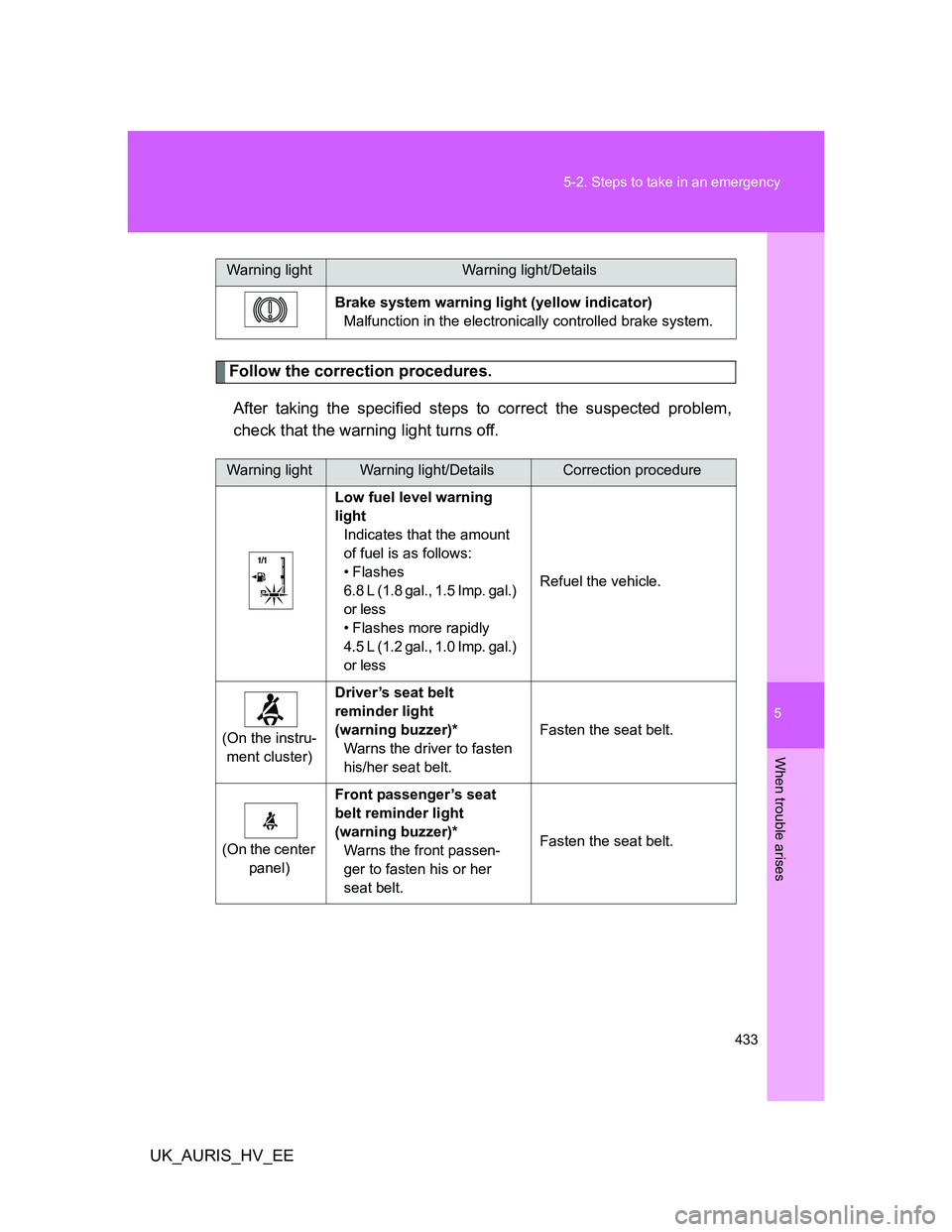

433 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Brake system warning light (yellow indicator)
Malfunction in the electronically controlled brake system.
Warning lightWarning light/DetailsCorrection procedure
Low fuel level warning
light
Indicates that the amount
of fuel is as follows:
• Flashes
6.8 L (1.8 gal., 1.5 Imp. gal.)
or less
• Flashes more rapidly
4.5 L (1.2 gal., 1.0 Imp. gal.)
or lessRefuel the vehicle.
(On the instru-
ment cluster)Driver’s seat belt
reminder light
(warning buzzer)*
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(On the center
panel)Front passenger’s seat
belt reminder light
(warning buzzer)*
Warns the front passen-
ger to fasten his or her
seat belt.Fasten the seat belt.
Warning lightWarning light/Details

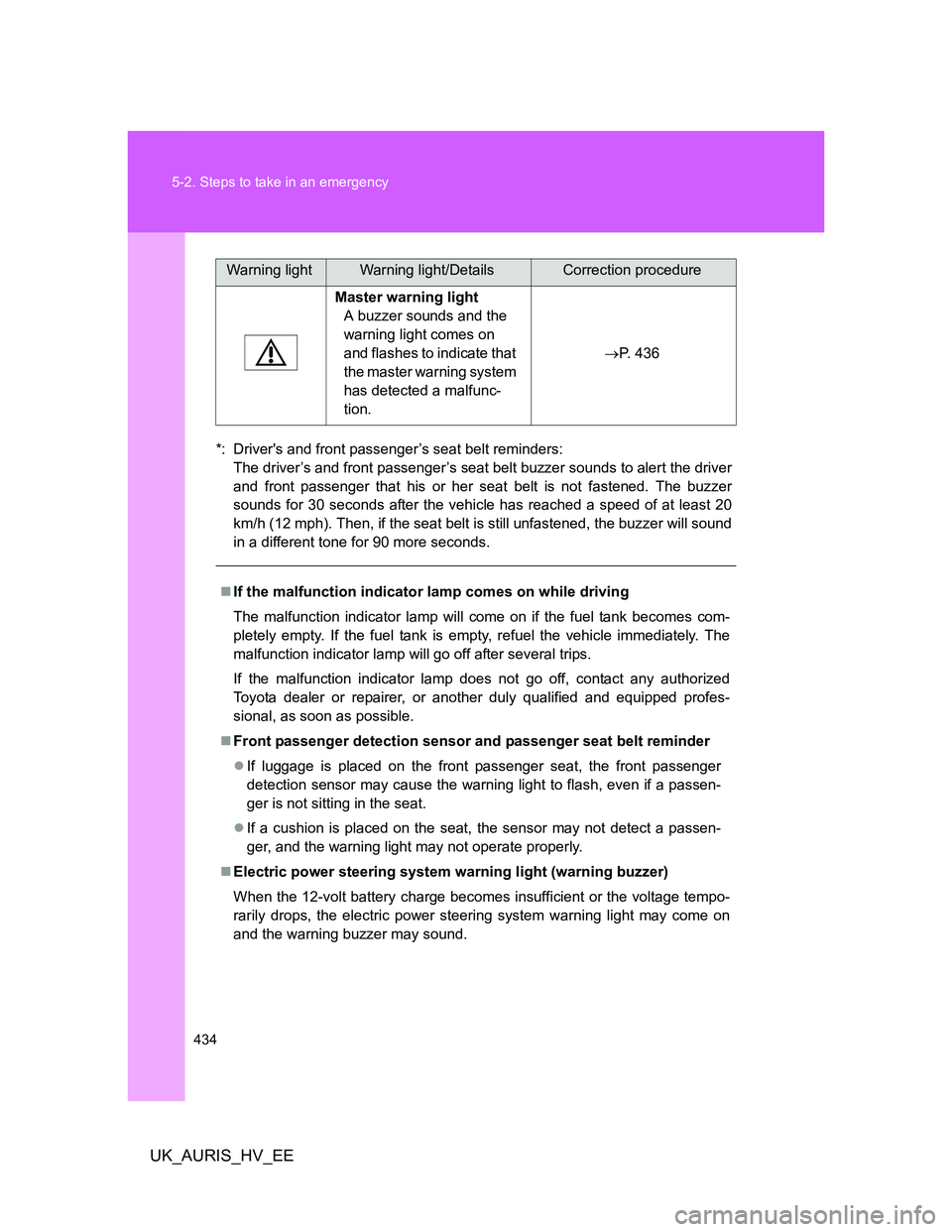

434 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
*: Driver's and front passenger’s seat belt reminders:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver
and front passenger that his or her seat belt is not fastened. The buzzer
sounds for 30 seconds after the vehicle has reached a speed of at least 20
km/h (12 mph). Then, if the seat belt is still unfastened, the buzzer will sound
in a different tone for 90 more seconds.
Master warning light
A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion.P. 436
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, as soon as possible.
Front passenger detection sensor and passenger seat belt reminder
If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash, even if a passen-
ger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.
Warning lightWarning light/DetailsCorrection procedure

5

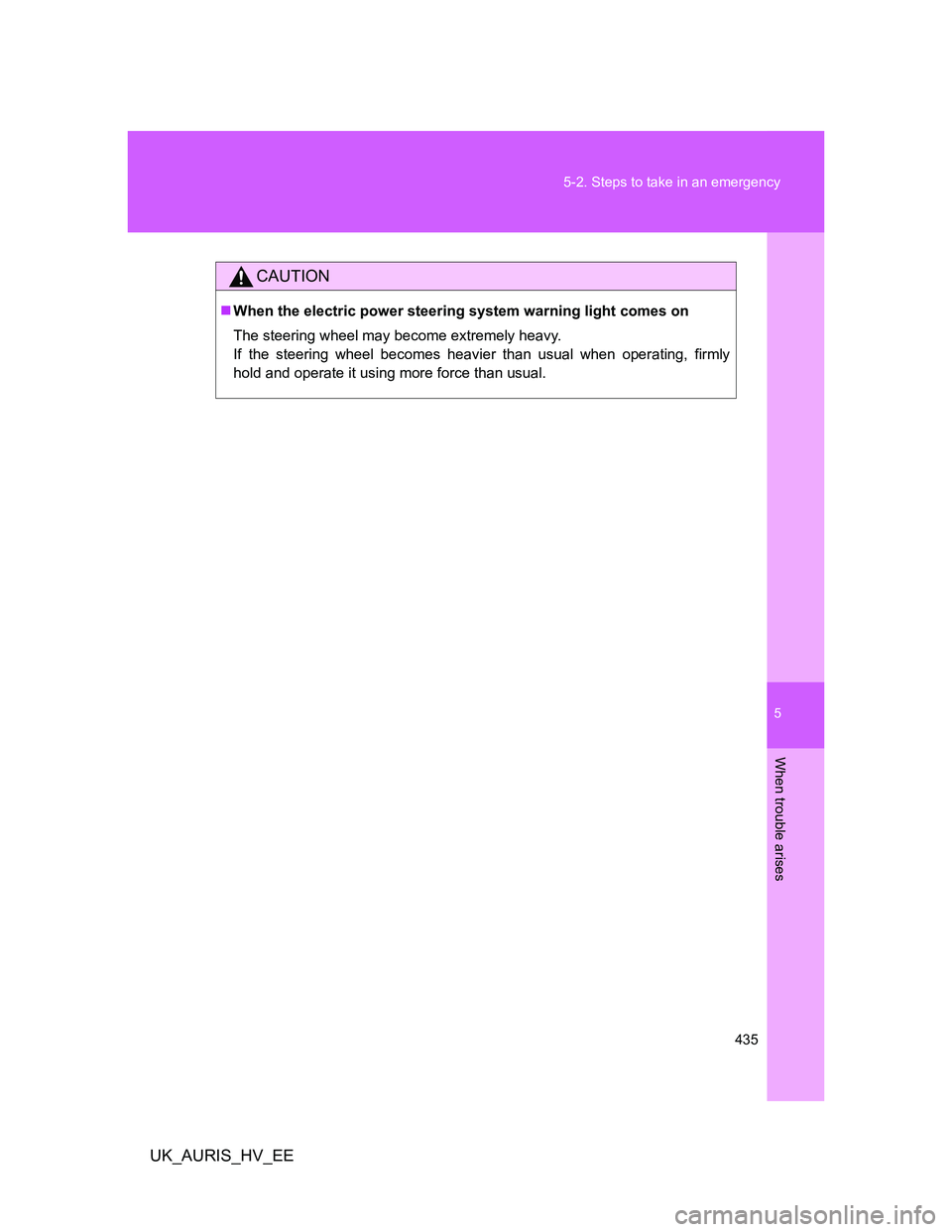

435 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
CAUTION
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, firmly
hold and operate it using more force than usual.

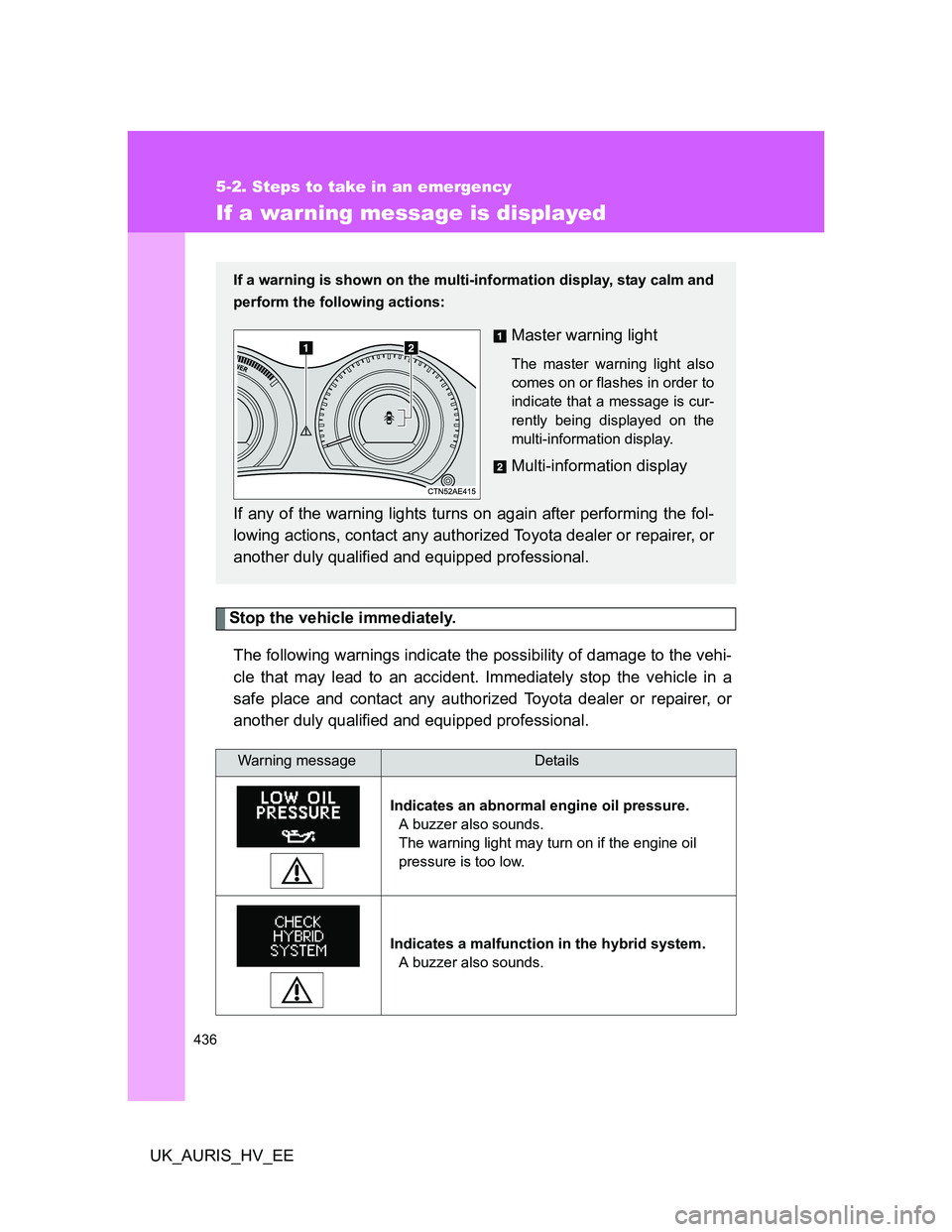

436
5-2. Steps to take in an emergency
UK_AURIS_HV_EE
If a warning message is displayed
Stop the vehicle immediately.
The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Warning messageDetails
Indicates an abnormal engine oil pressure.
A buzzer also sounds.
The warning light may turn on if the engine oil
pressure is too low.
Indicates a malfunction in the hybrid system.
A buzzer also sounds.
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning lights turns on again after performing the fol-
lowing actions, contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

5

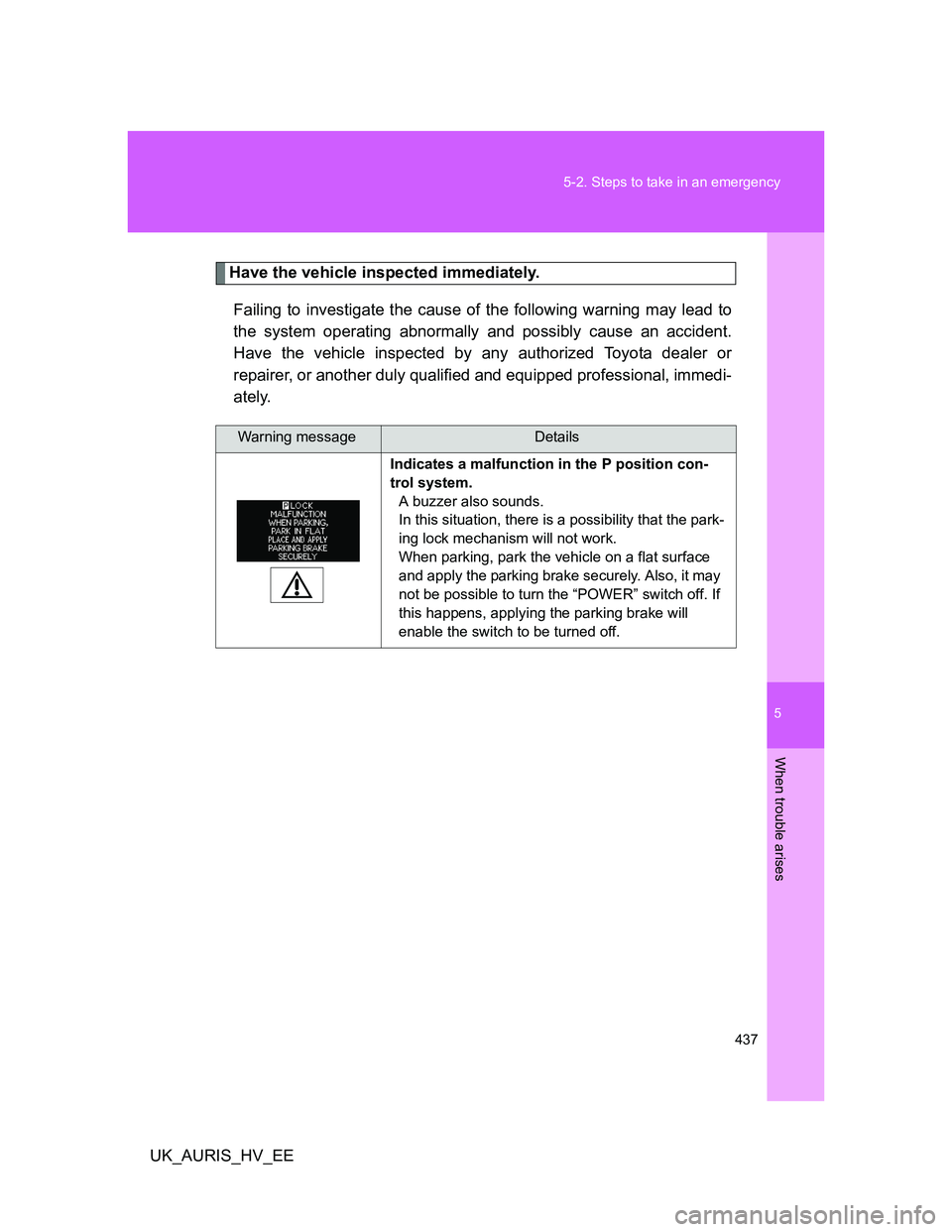

437 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warning may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
Warning messageDetails
Indicates a malfunction in the P position con-
trol system.
A buzzer also sounds.
In this situation, there is a possibility that the park-
ing lock mechanism will not work.
When parking, park the vehicle on a flat surface
and apply the parking brake securely. Also, it may
not be possible to turn the “POWER” switch off. If
this happens, applying the parking brake will
enable the switch to be turned off.

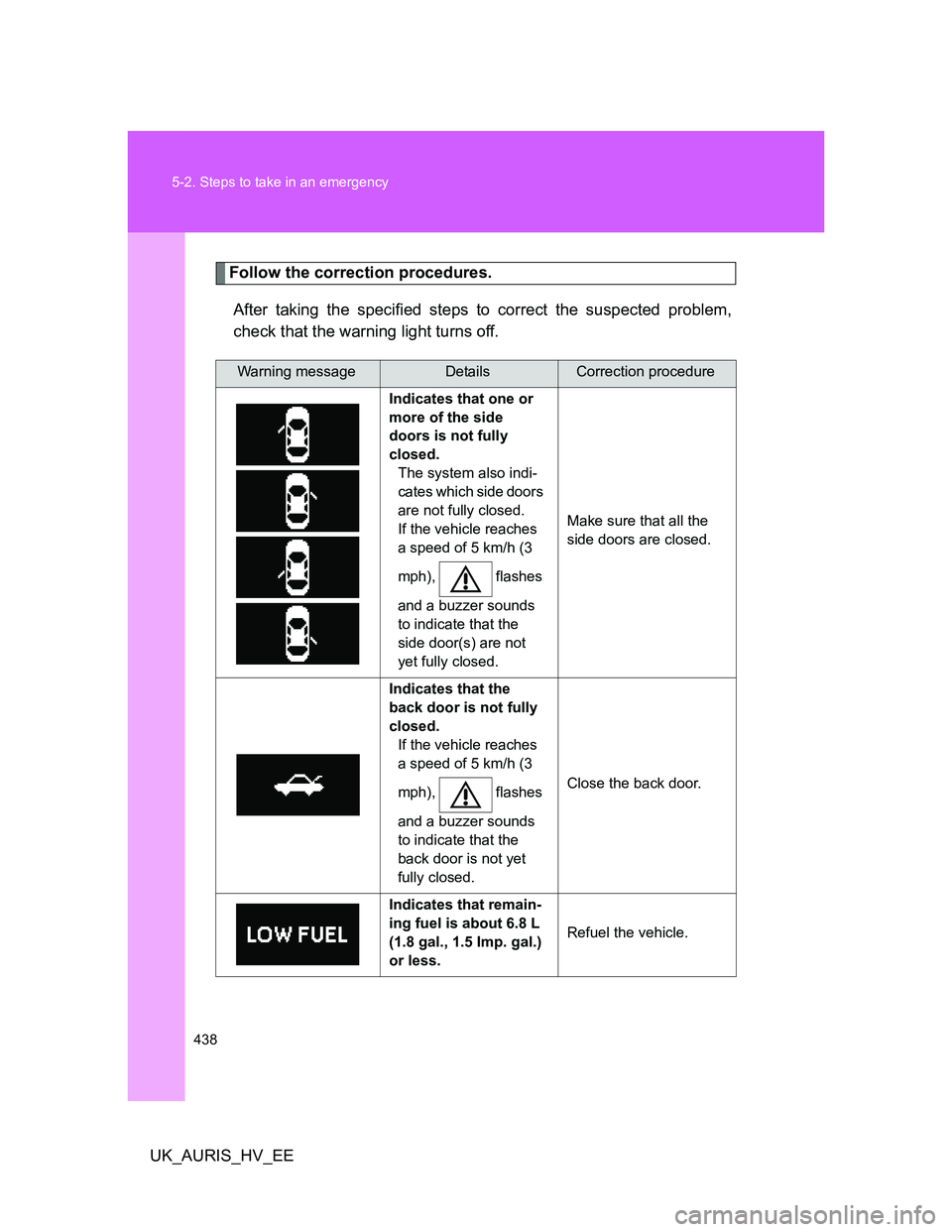

438 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the side
doors is not fully
closed.
The system also indi-
cates which side doors
are not fully closed.
If the vehicle reaches
a speed of 5 km/h (3
mph), flashes
and a buzzer sounds
to indicate that the
side door(s) are not
yet fully closed.Make sure that all the
side doors are closed.
Indicates that the
back door is not fully
closed.
If the vehicle reaches
a speed of 5 km/h (3
mph), flashes
and a buzzer sounds
to indicate that the
back door is not yet
fully closed.Close the back door.
Indicates that remain-
ing fuel is about 6.8 L
(1.8 gal., 1.5 Imp. gal.)
or less.Refuel the vehicle.

5

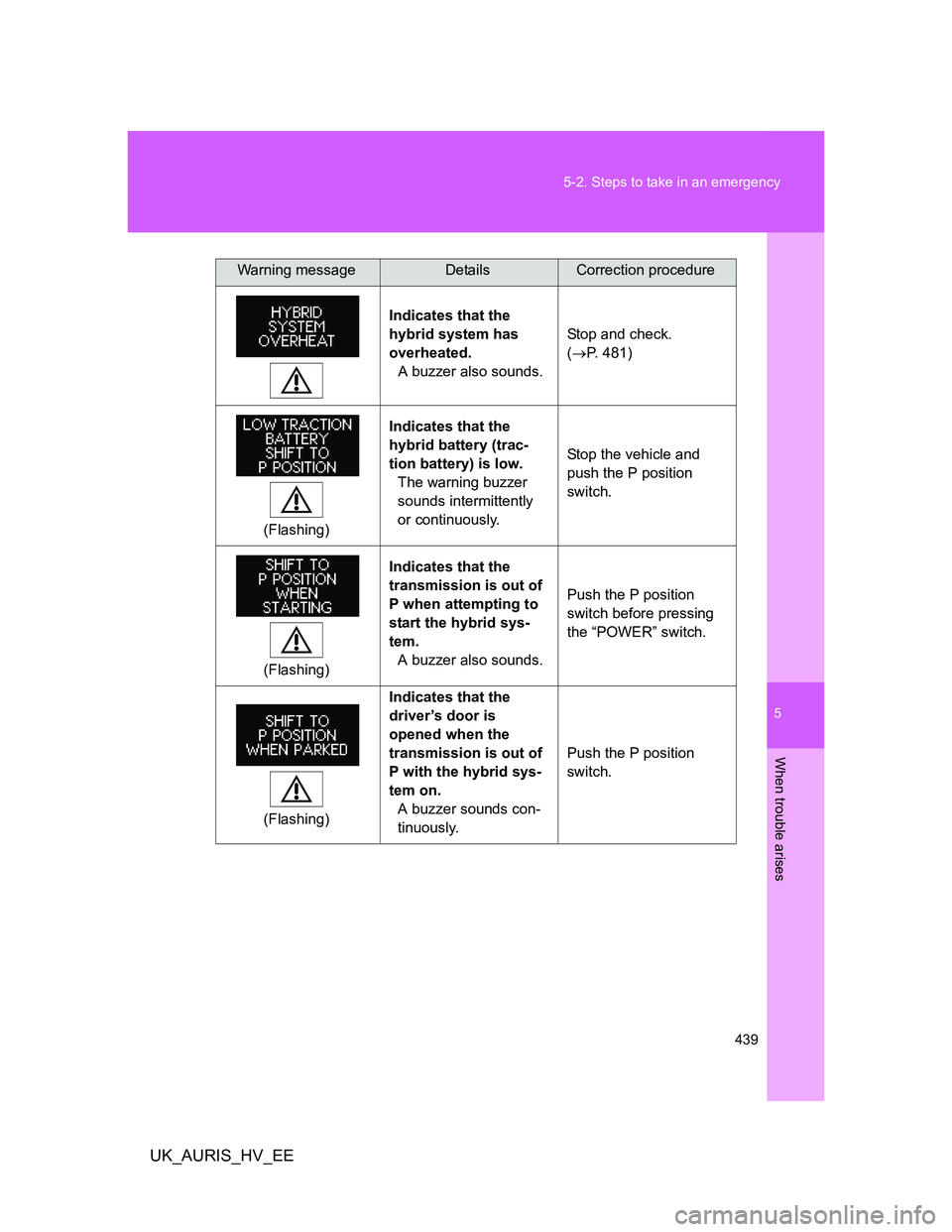

439 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
Indicates that the
hybrid system has
overheated.
A buzzer also sounds.Stop and check.
(P. 481)

(Flashing)Indicates that the
hybrid battery (trac-
tion battery) is low.
The warning buzzer
sounds intermittently
or continuously.Stop the vehicle and
push the P position
switch.

(Flashing)Indicates that the
transmission is out of
P when attempting to
start the hybrid sys-
tem.
A buzzer also sounds.Push the P position
switch before pressing
the “POWER” switch.

(Flashing)Indicates that the
driver’s door is
opened when the
transmission is out of
P with the hybrid sys-
tem on.
A buzzer sounds con-
tinuously.Push the P position
switch.
Warning messageDetailsCorrection procedure

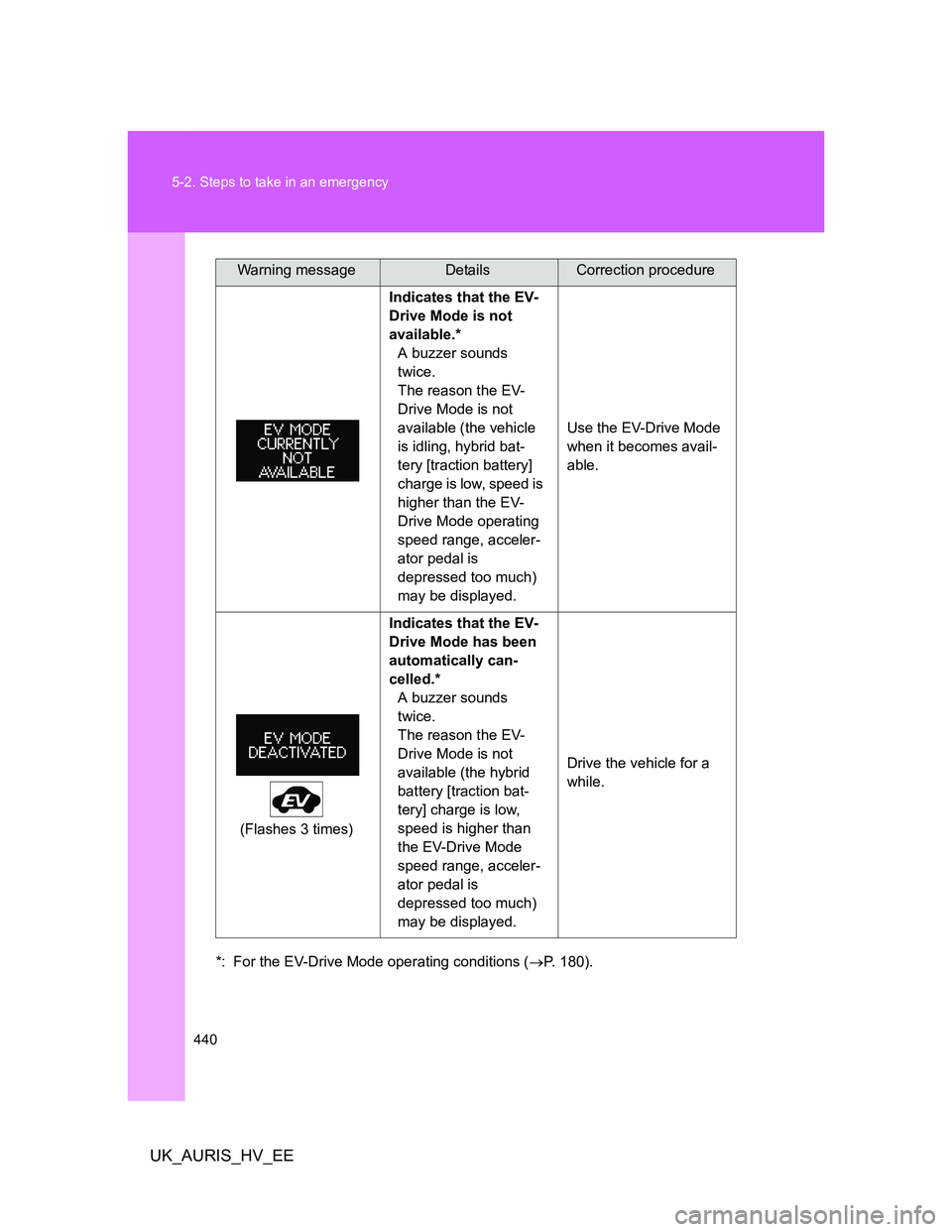

440 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
*: For the EV-Drive Mode operating conditions (P. 180). Indicates that the EV-
Drive Mode is not
available.*
A buzzer sounds
twice.
The reason the EV-
Drive Mode is not
available (the vehicle
is idling, hybrid bat-
tery [traction battery]
charge is low, speed is
higher than the EV-
Drive Mode operating
speed range, acceler-
ator pedal is
depressed too much)
may be displayed.Use the EV-Drive Mode
when it becomes avail-
able.

(Flashes 3 times)Indicates that the EV-
Drive Mode has been
automatically can-
celled.*
A buzzer sounds
twice.
The reason the EV-
Drive Mode is not
available (the hybrid
battery [traction bat-
tery] charge is low,
speed is higher than
the EV-Drive Mode
speed range, acceler-
ator pedal is
depressed too much)
may be displayed.Drive the vehicle for a
while.
Warning messageDetailsCorrection procedure
