451 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE

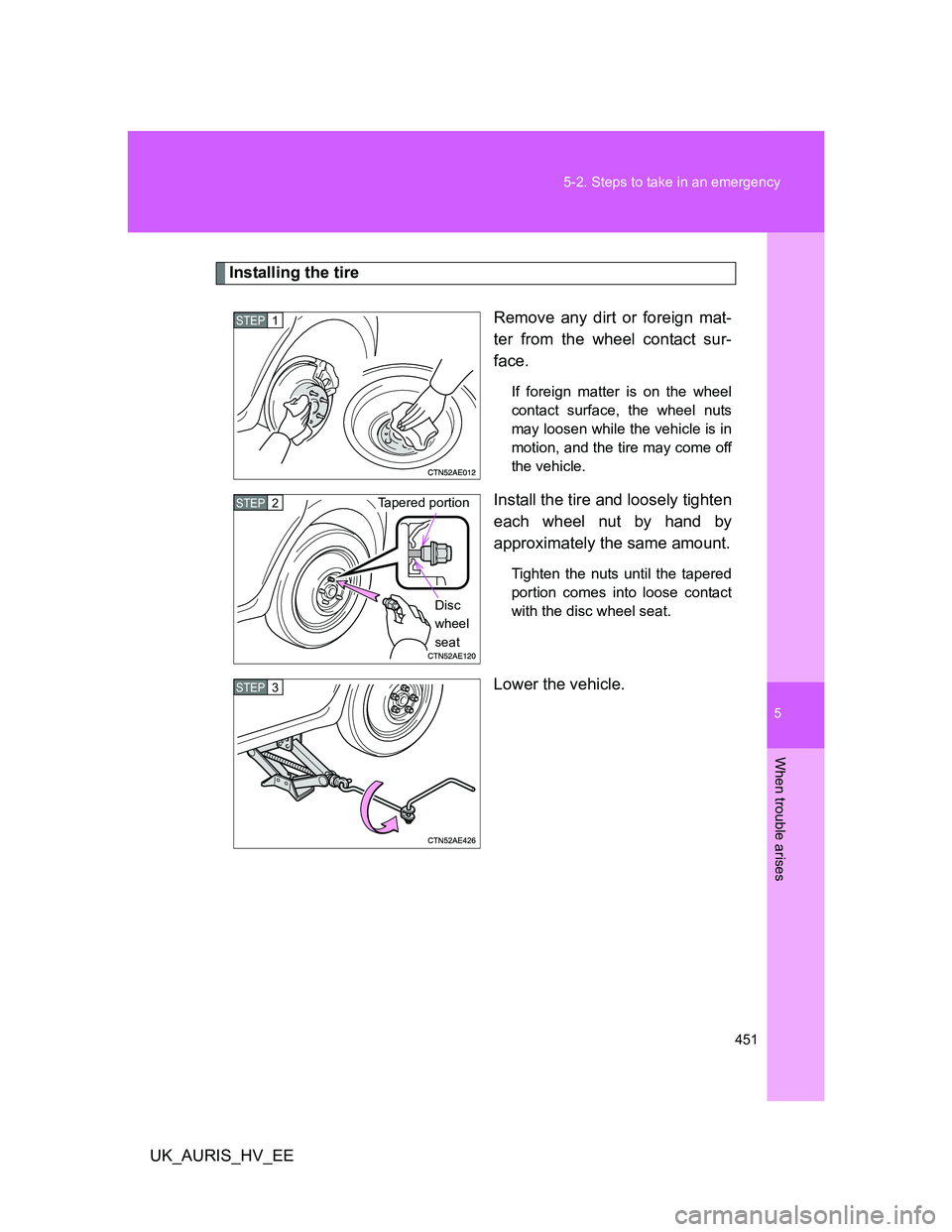

Installing the tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
Install the tire and loosely tighten
each wheel nut by hand by
approximately the same amount.
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Lower the vehicle.
STEP1
Tapered portion
Disc
wheel
seatSTEP2
STEP3

452 5-2. Steps to take in an emergency

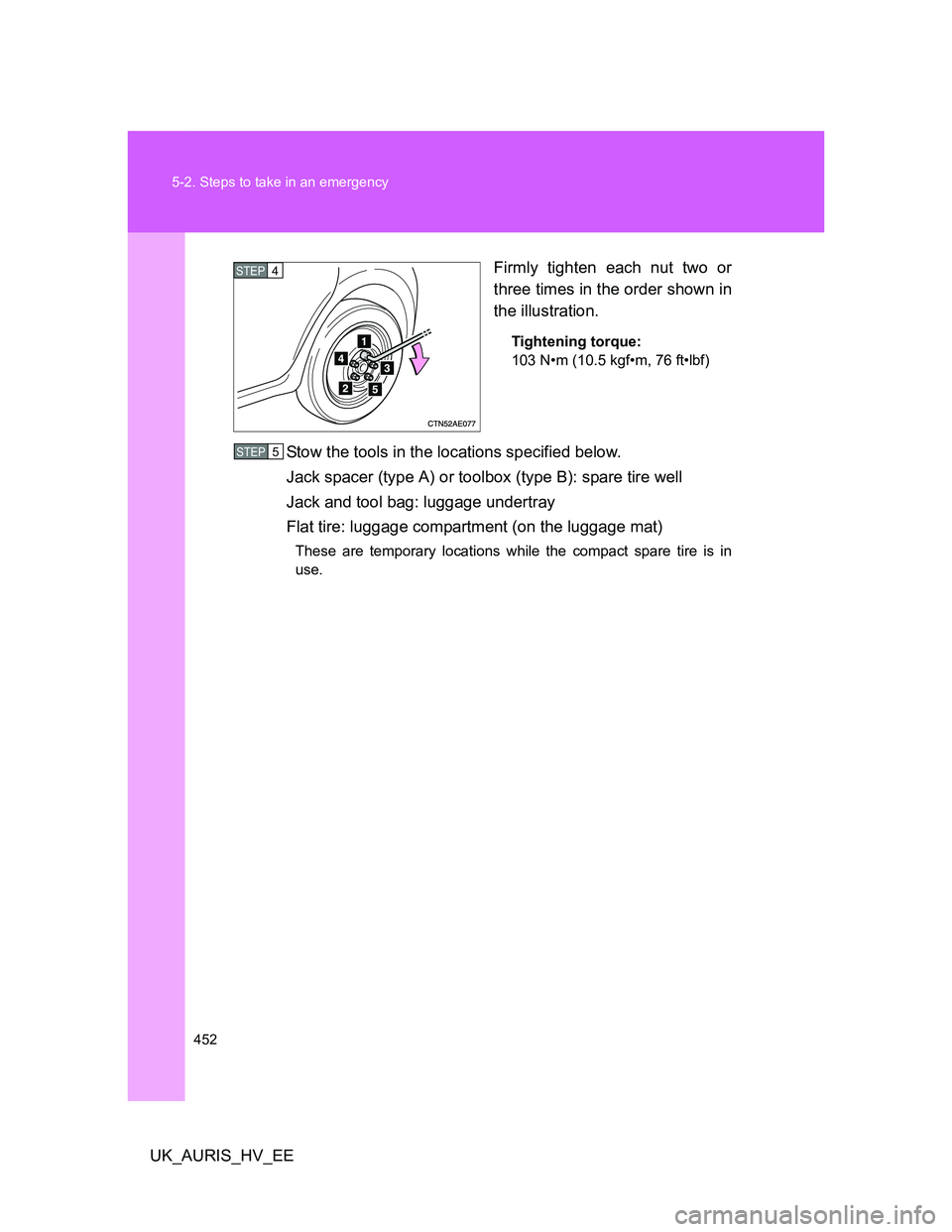

UK_AURIS_HV_EEFirmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the tools in the locations specified below.
Jack spacer (type A) or toolbox (type B): spare tire well
Jack and tool bag: luggage undertray
Flat tire: luggage compartment (on the luggage mat)
These are temporary locations while the compact spare tire is in
use.
STEP4
STEP5

5
453 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE

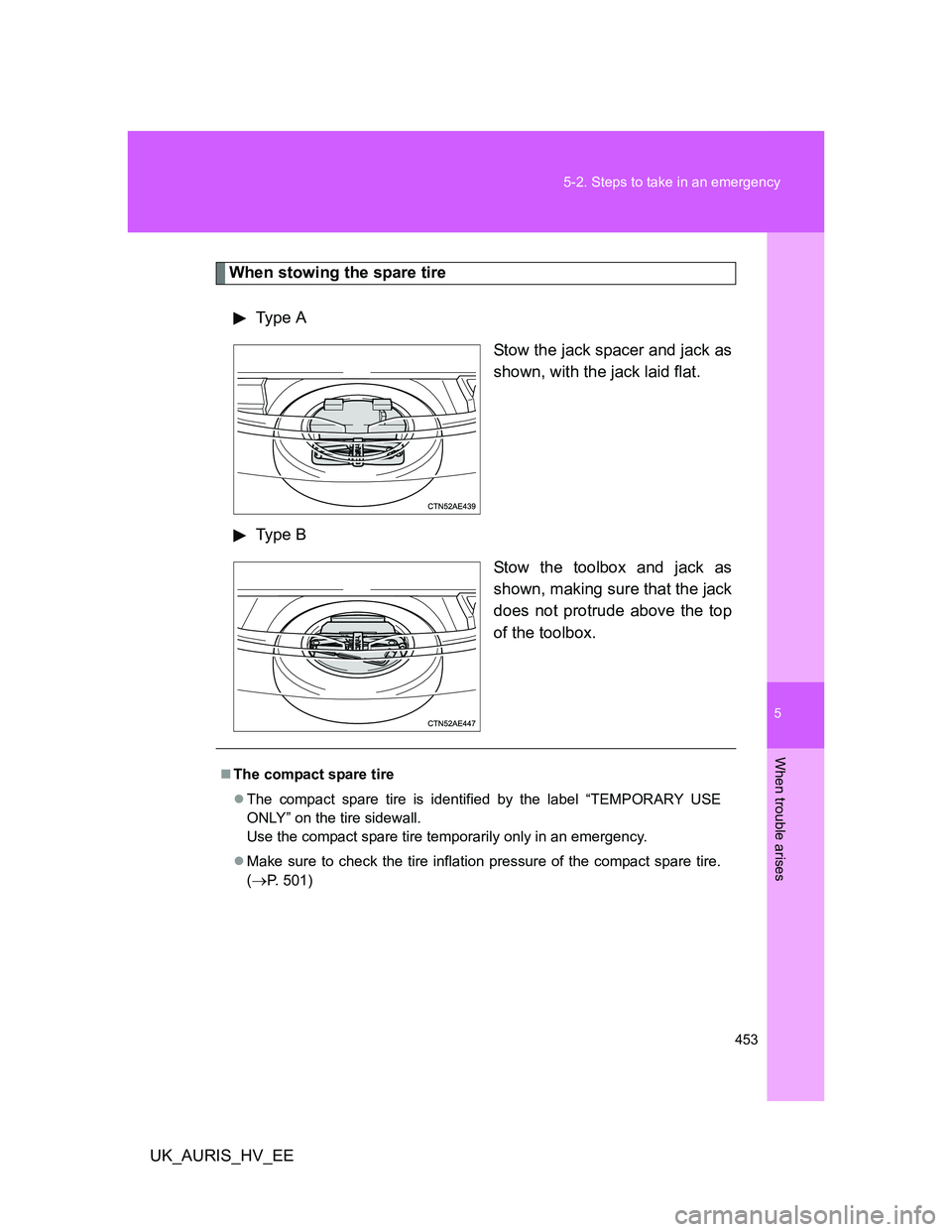

When stowing the spare tire
Type A
Stow the jack spacer and jack as
shown, with the jack laid flat.
Type B
Stow the toolbox and jack as
shown, making sure that the jack
does not protrude above the top
of the toolbox.
The compact spare tire
The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
Make sure to check the tire inflation pressure of the compact spare tire.
(
P. 501)

454 5-2. Steps to take in an emergency
UK_AURIS_HV_EE

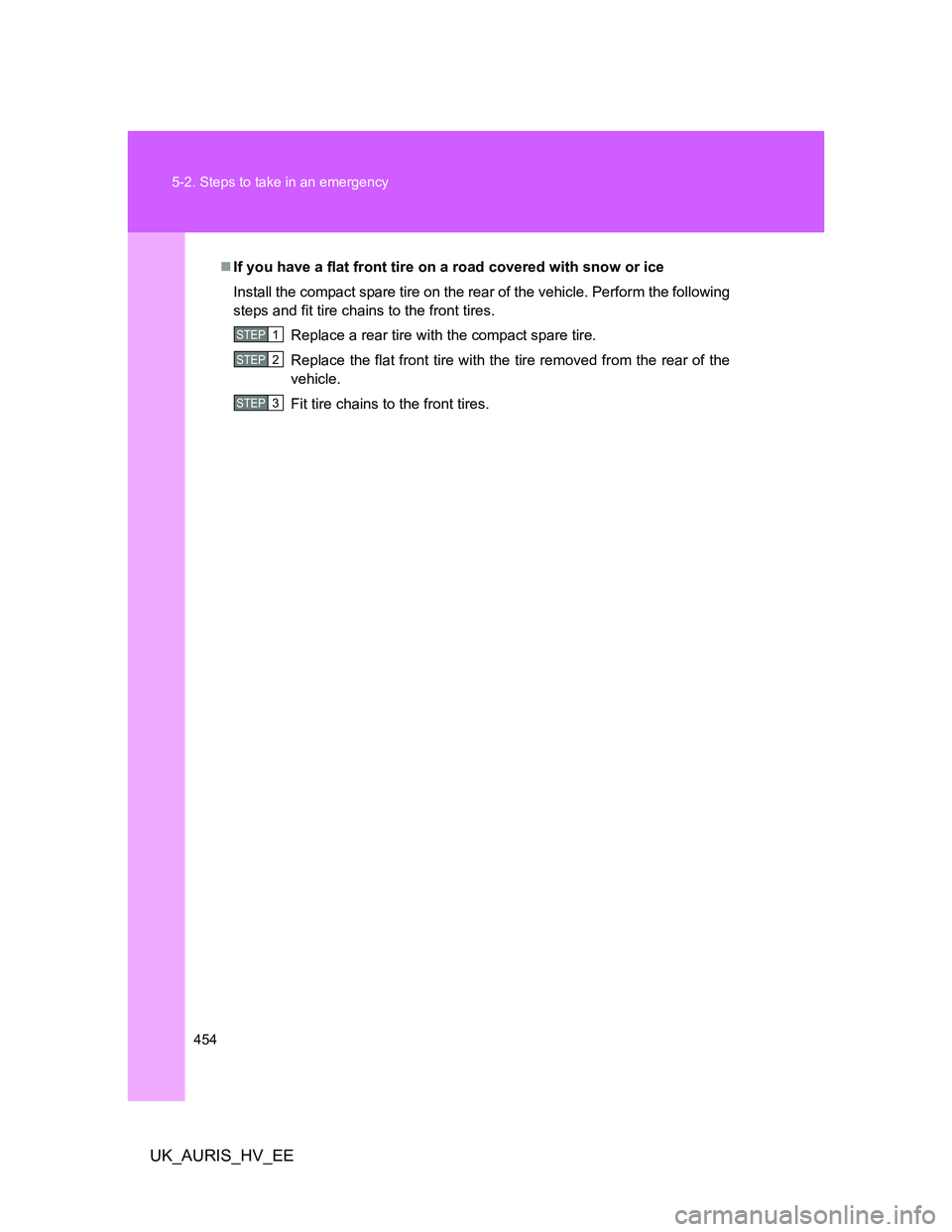

If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on the rear of the vehicle. Perform the following
steps and fit tire chains to the front tires.
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the
vehicle.
Fit tire chains to the front tires.
STEP1
STEP2
STEP3

5
455 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE

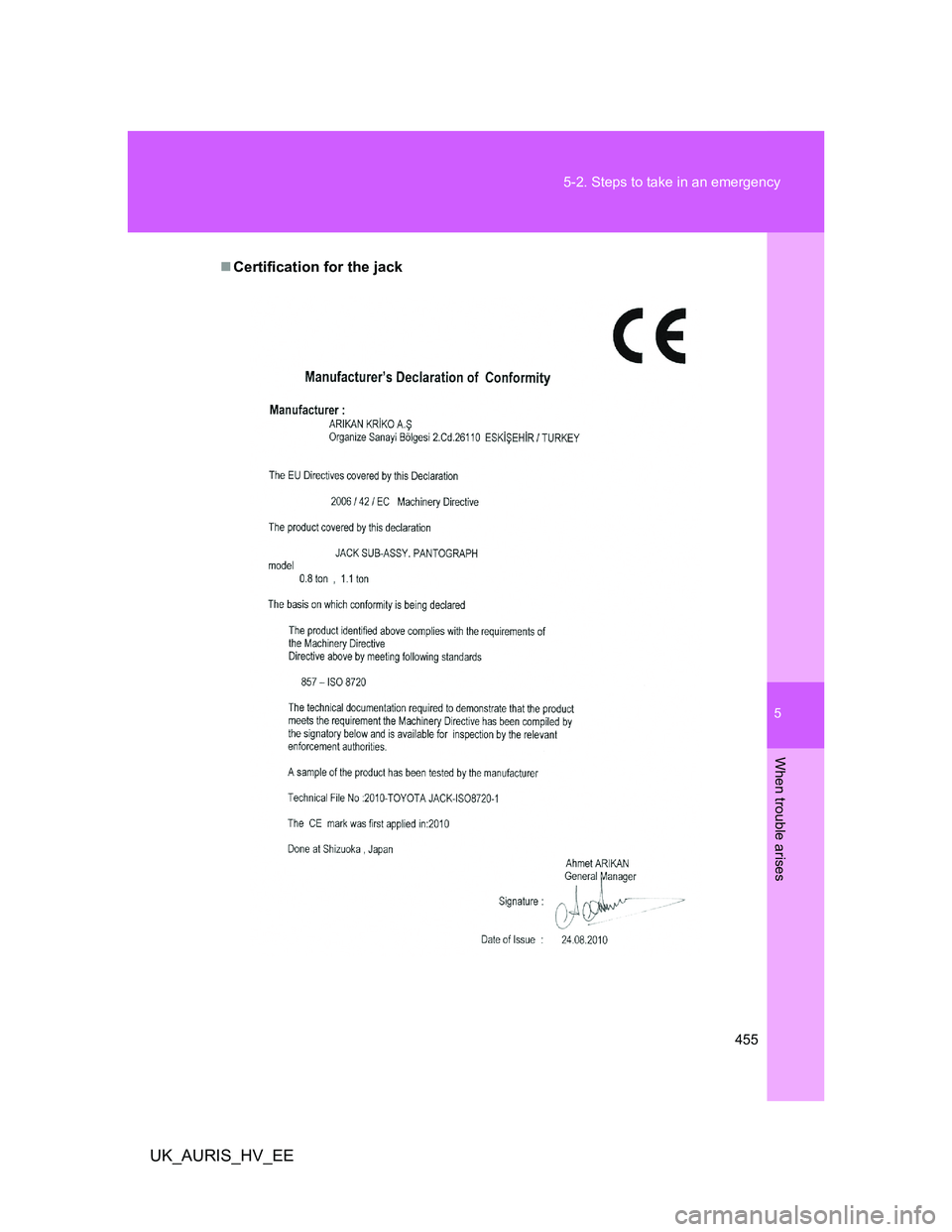

Certification for the jack

456 5-2. Steps to take in an emergency
UK_AURIS_HV_EE

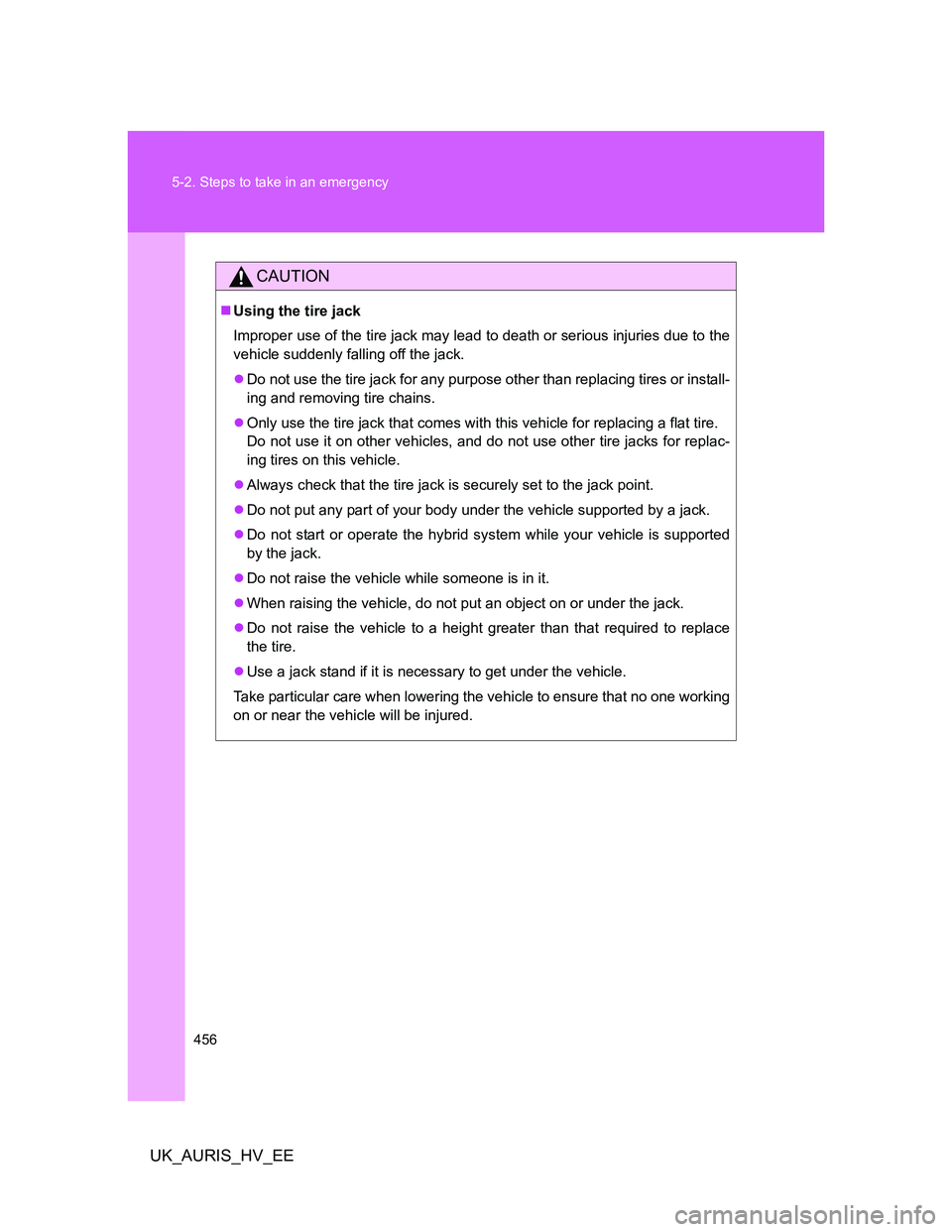

CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or operate the hybrid system while your vehicle is supported
by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle will be injured.

5
457 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE

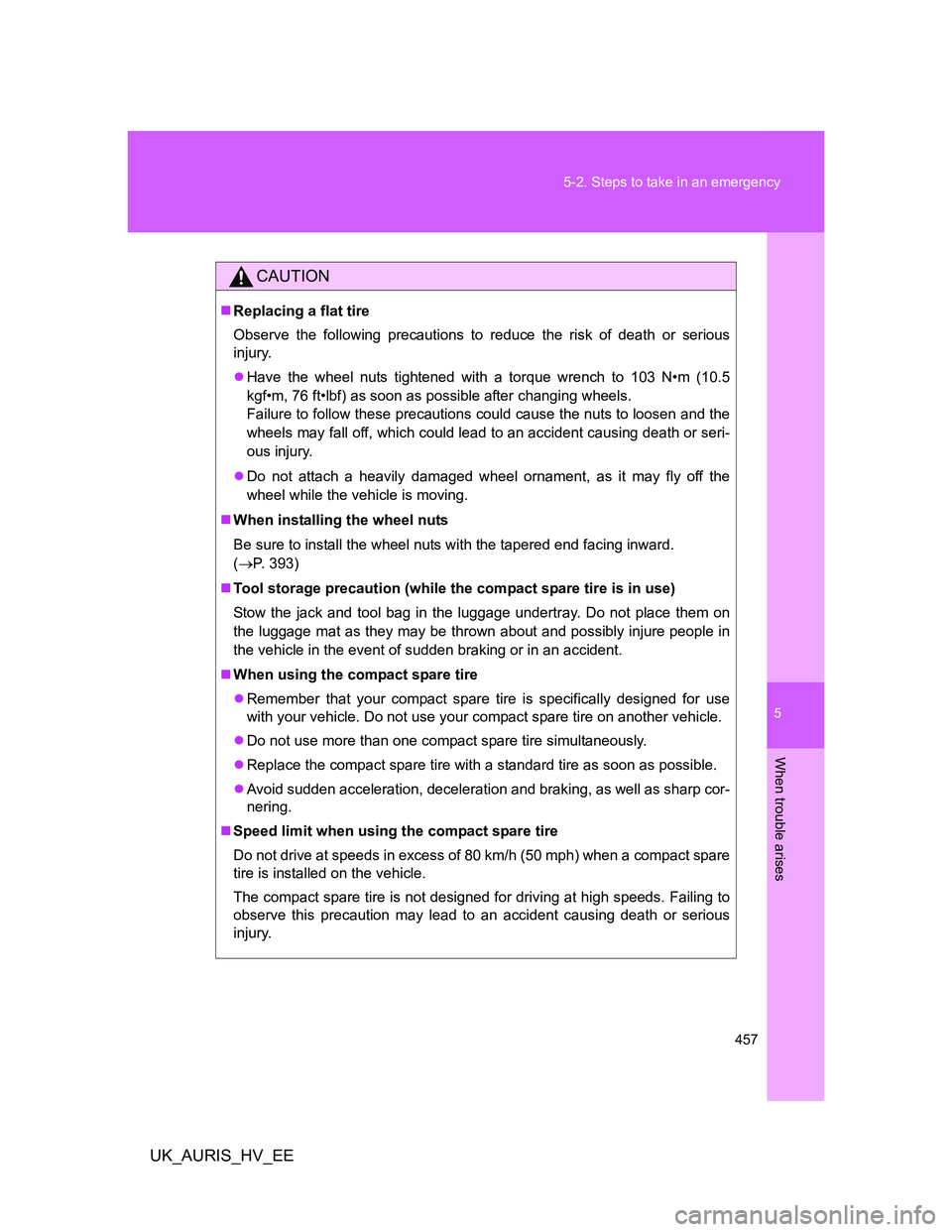

CAUTION
Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious
injury.
Have the wheel nuts tightened with a torque wrench to 103 N•m (10.5
kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and the
wheels may fall off, which could lead to an accident causing death or seri-
ous injury.
Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
When installing the wheel nuts
Be sure to install the wheel nuts with the tapered end facing inward.
(P. 393)
Tool storage precaution (while the compact spare tire is in use)
Stow the jack and tool bag in the luggage undertray. Do not place them on
the luggage mat as they may be thrown about and possibly injure people in
the vehicle in the event of sudden braking or in an accident.
When using the compact spare tire
Remember that your compact spare tire is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
Do not use more than one compact spare tire simultaneously.
Replace the compact spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to
observe this precaution may lead to an accident causing death or serious
injury.

458 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
CAUTION

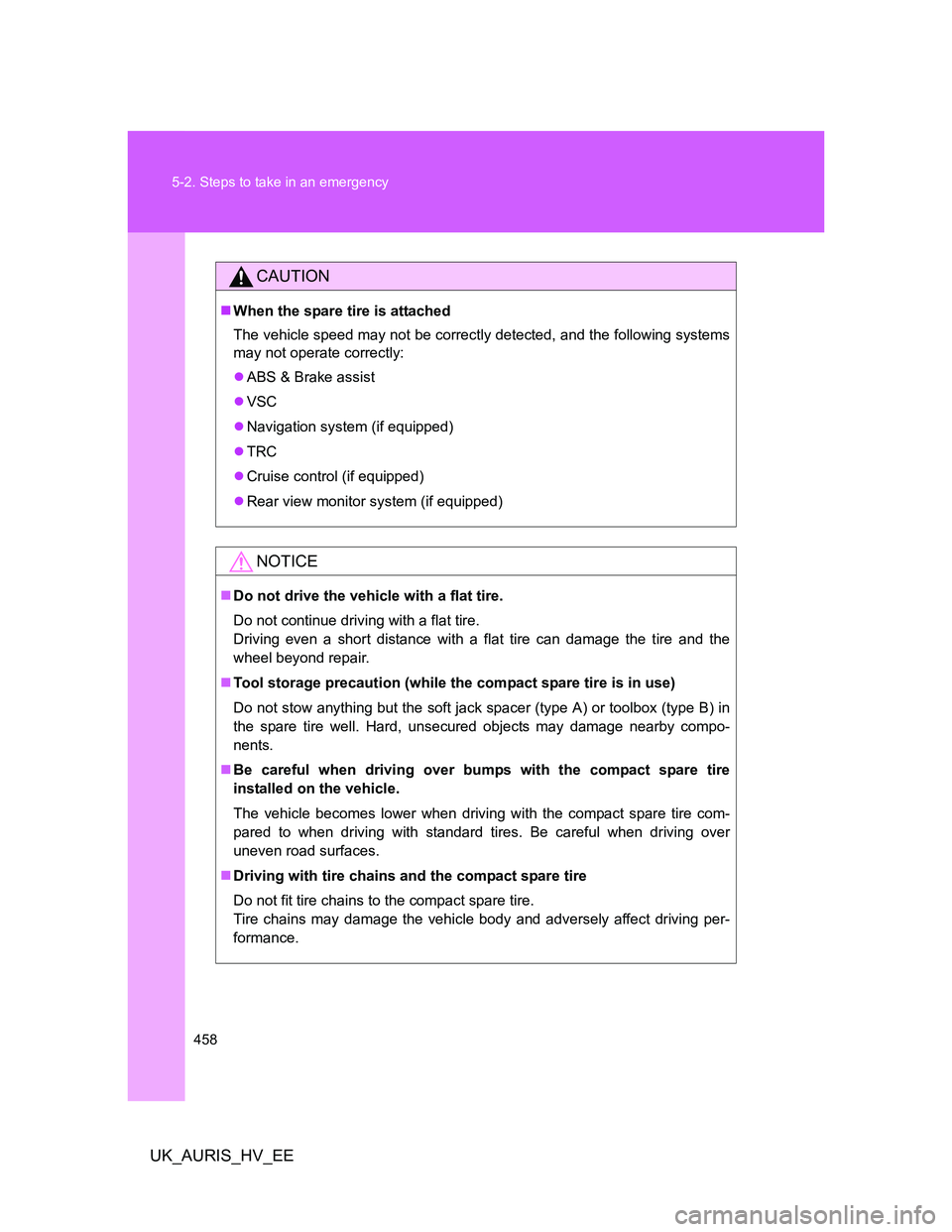

When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
ABS & Brake assist
VSC
Navigation system (if equipped)
TRC
Cruise control (if equipped)
Rear view monitor system (if equipped)
NOTICE
Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Tool storage precaution (while the compact spare tire is in use)
Do not stow anything but the soft jack spacer (type A) or toolbox (type B) in
the spare tire well. Hard, unsecured objects may damage nearby compo-
nents.
Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.

5
459
5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE

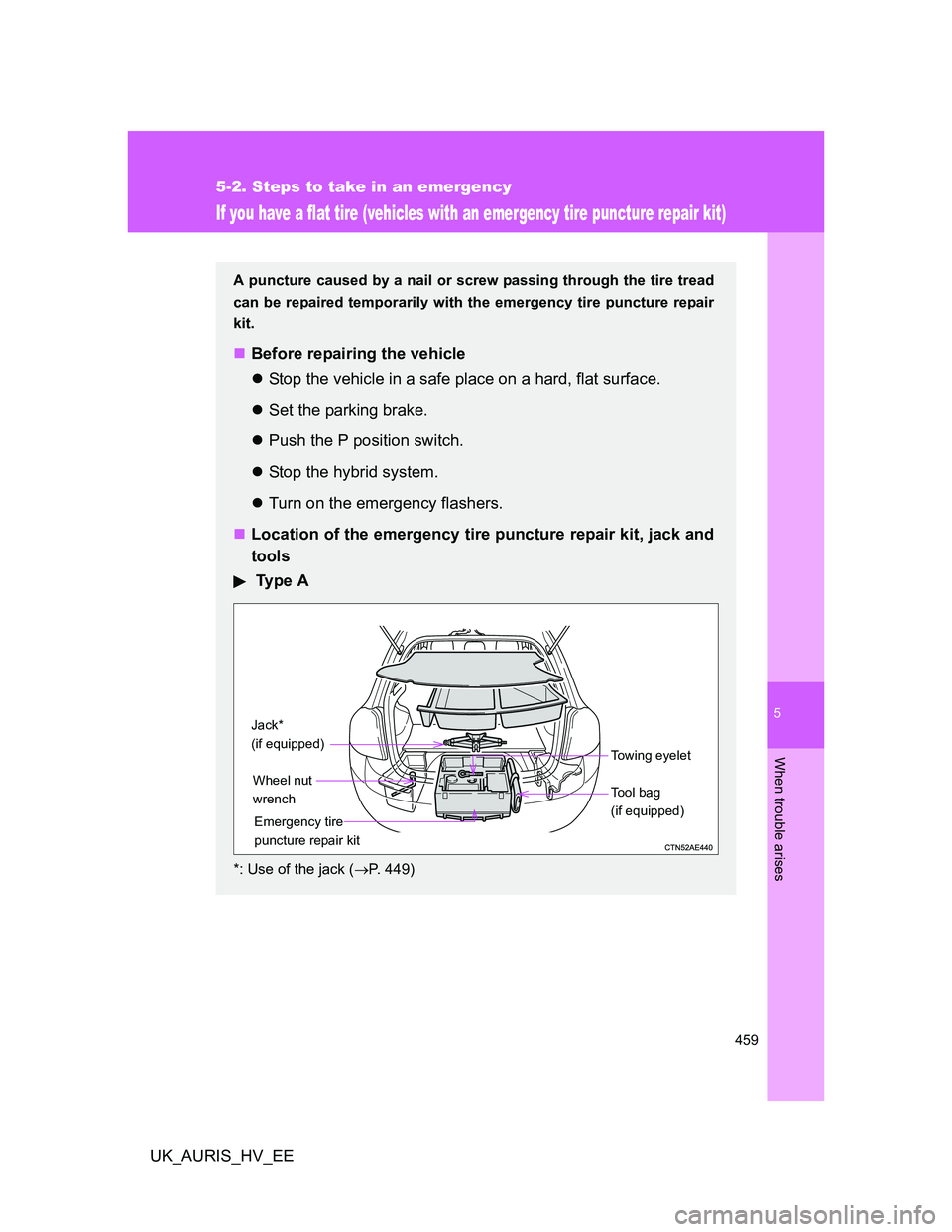

If you have a flat tire (vehicles with an emergency tire puncture repair kit)
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily with the emergency tire puncture repair
kit.
Before repairing the vehicle
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Push the P position switch.
Stop the hybrid system.
Turn on the emergency flashers.
Location of the emergency tire puncture repair kit, jack and
tools
Ty p e A
*: Use of the jack (P. 449)
Tool bag
(if equipped) Jack*
(if equipped)Wheel nut
wrench
Emergency tire
puncture repair kit
Towing eyelet

460 5-2. Steps to take in an emergency
UK_AURIS_HV_EE

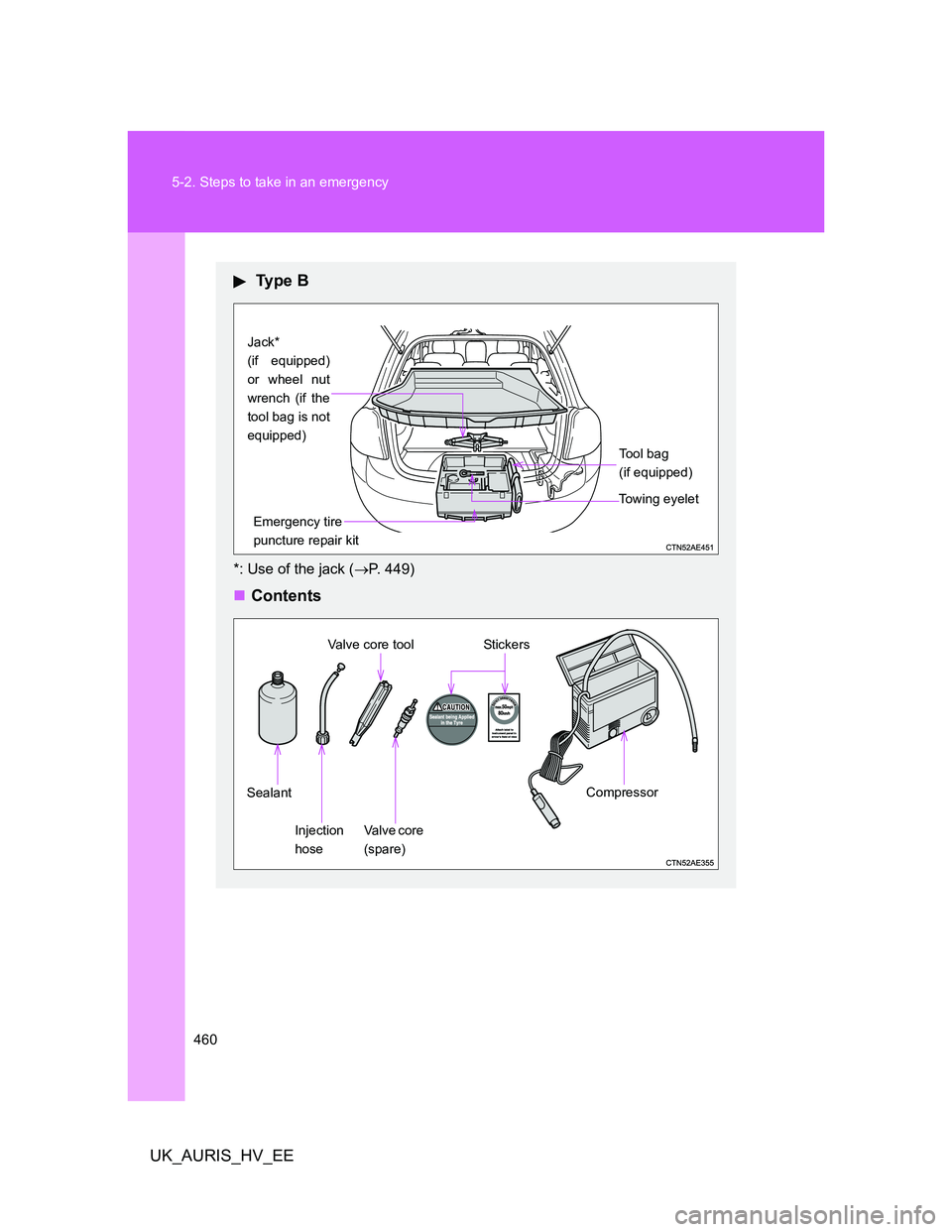

Ty p e B
*: Use of the jack (P. 449)
Contents
Tool bag
(if equipped) Jack*
(if equipped)
or wheel nut
wrench (if the
tool bag is not
equipped)
Emergency tire
puncture repair kit
Towing eyelet
Sealant
Injection
hoseValve core tool
Va l v e c o r e
(spare)Compressor
Stickers
