TOYOTA AURIS HYBRID 2012 Service Manual

41 1-1. Hybrid system
1
Before driving
UK_AURIS_HV_EE

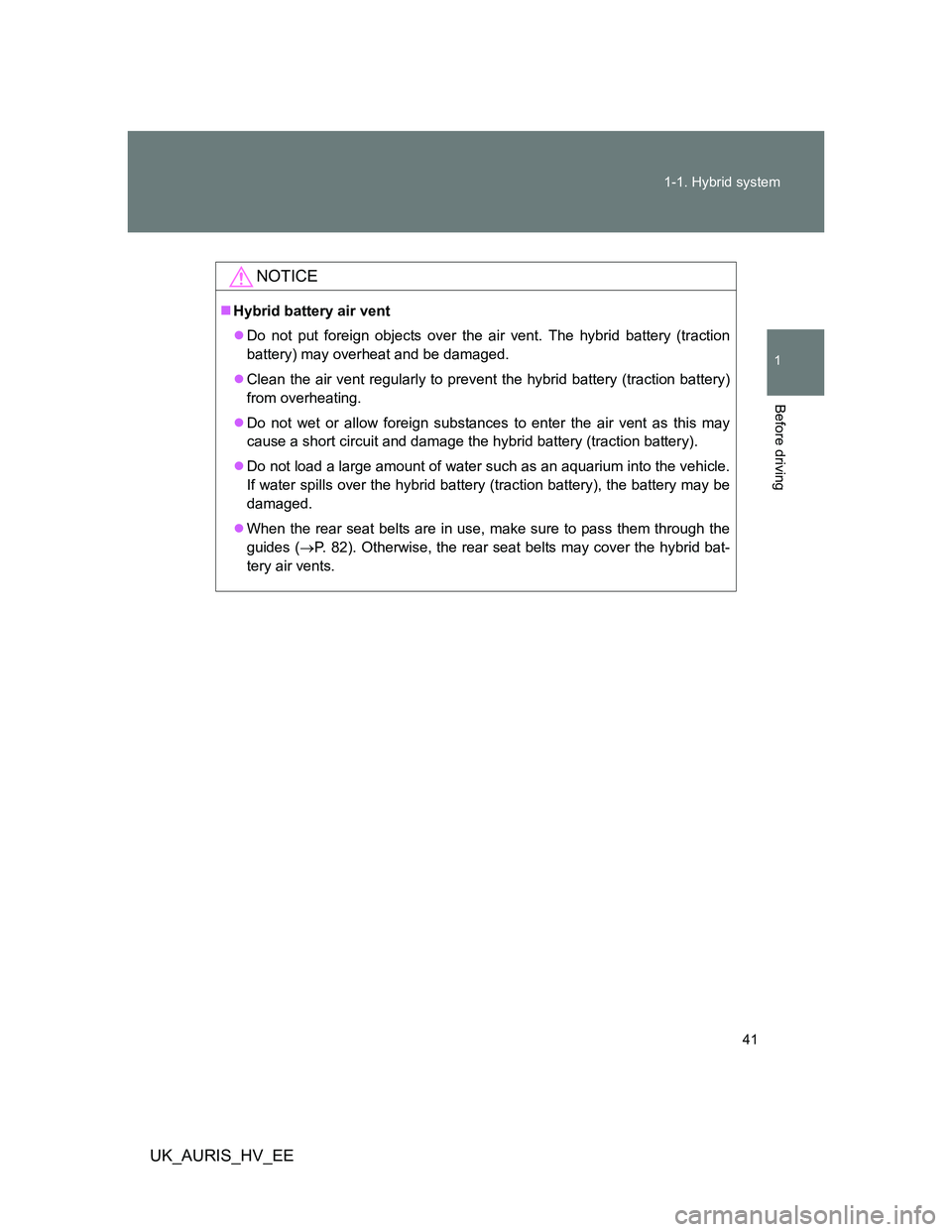

NOTICE
Hybrid battery air vent
Do not put foreign objects over the air vent. The hybrid battery (traction
battery) may overheat and be damaged.
Clean the air vent regularly to prevent the hybrid battery (traction battery)
from overheating.
Do not wet or allow foreign substances to enter the air vent as this may
cause a short circuit and damage the hybrid battery (traction battery).
Do not load a large amount of water such as an aquarium into the vehicle.
If water spills over the hybrid battery (traction battery), the battery may be
damaged.
When the rear seat belts are in use, make sure to pass them through the
guides (P. 82). Otherwise, the rear seat belts may cover the hybrid bat-
tery air vents.

42
UK_AURIS_HV_EE
1-2. Key information
Keys
Using the mechanical key
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key. (P. 474)

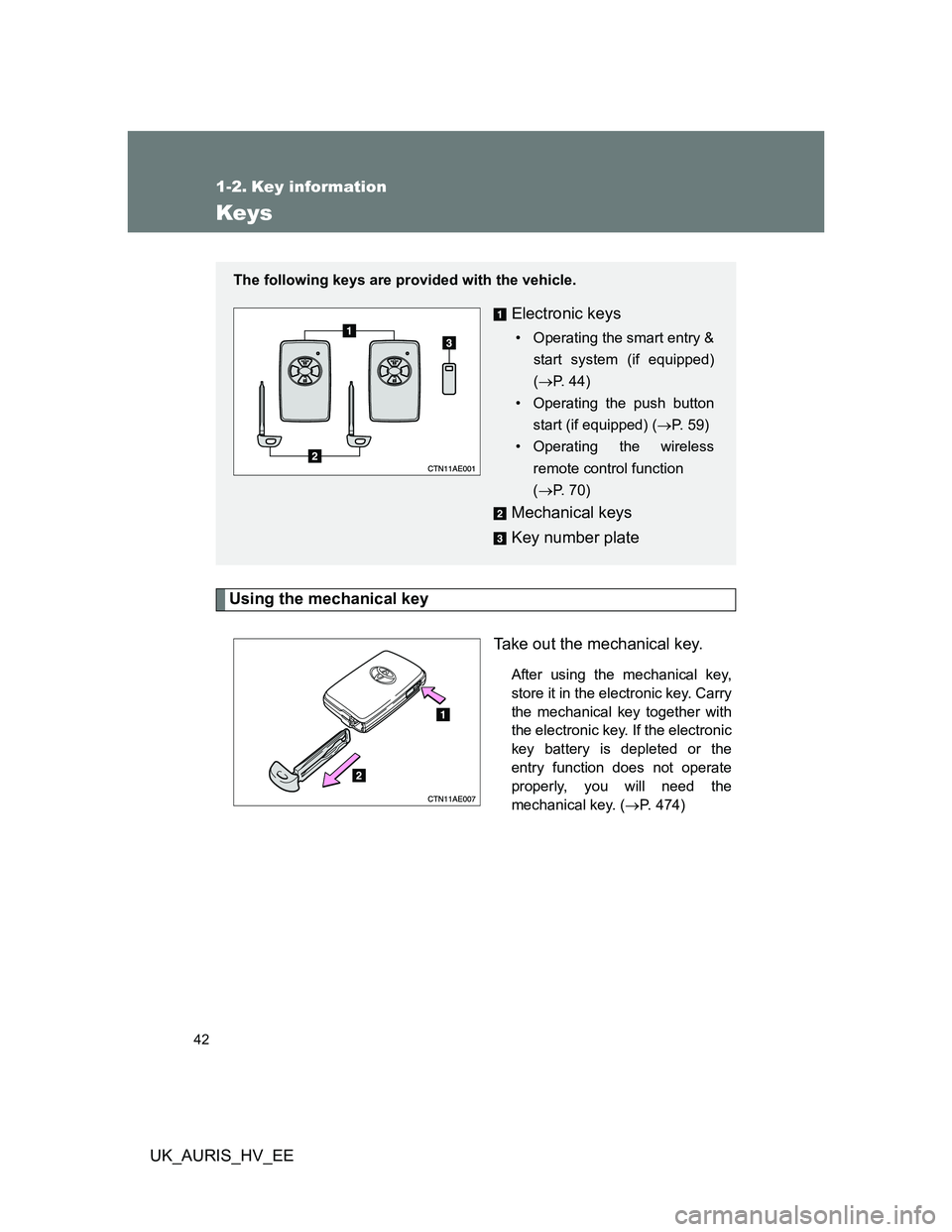

The following keys are provided with the vehicle.
Electronic keys
• Operating the smart entry &
start system (if equipped)
(P. 44)
• Operating the push button
start (if equipped) (P. 59)
• Operating the wireless
remote control function
(P. 70)
Mechanical keys
Key number plate

43 1-2. Key information
1
Before driving
UK_AURIS_HV_EE

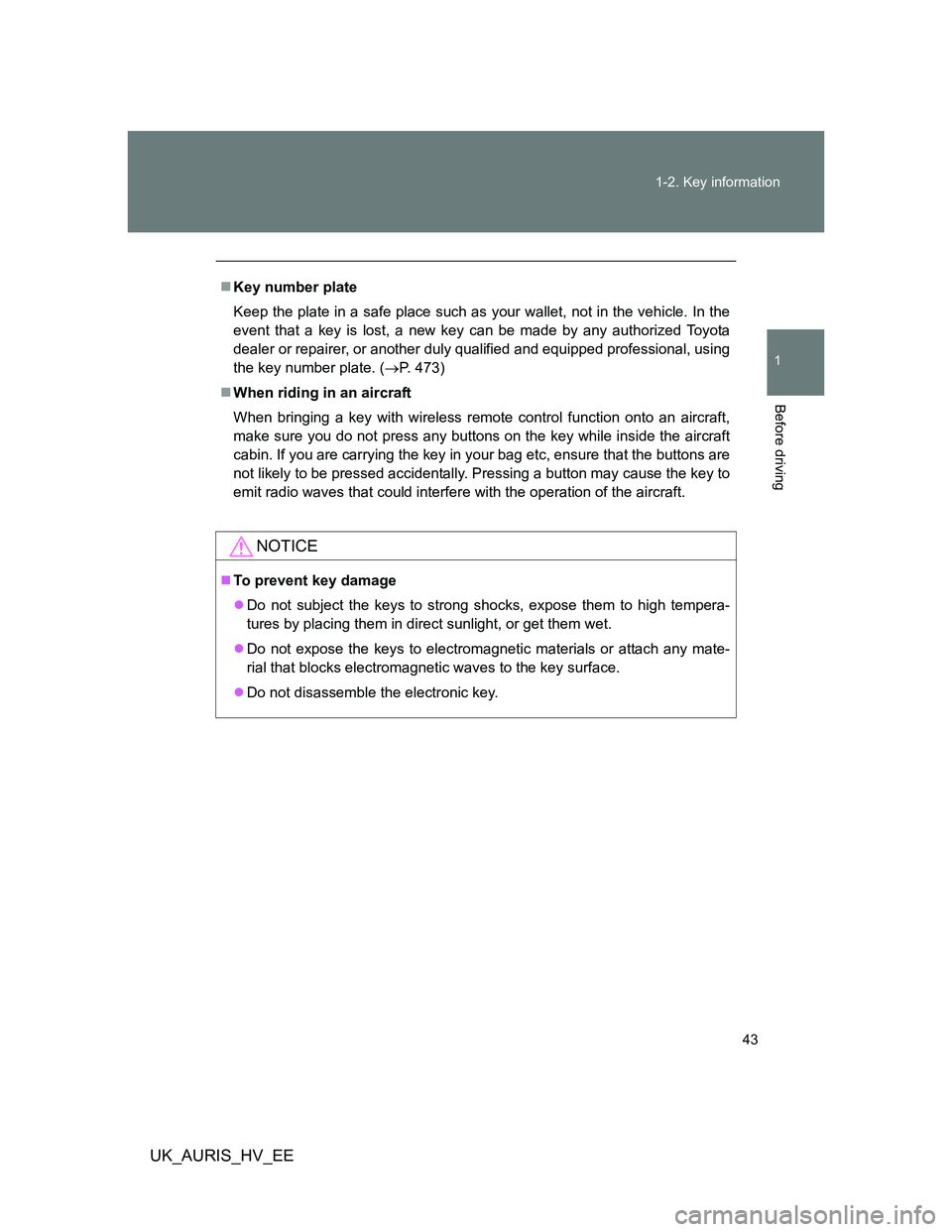

Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, using
the key number plate. (P. 473)
When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc, ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
NOTICE
To prevent key damage
Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Do not disassemble the electronic key.

44
UK_AURIS_HV_EE
1-3. Opening, closing and locking the doors

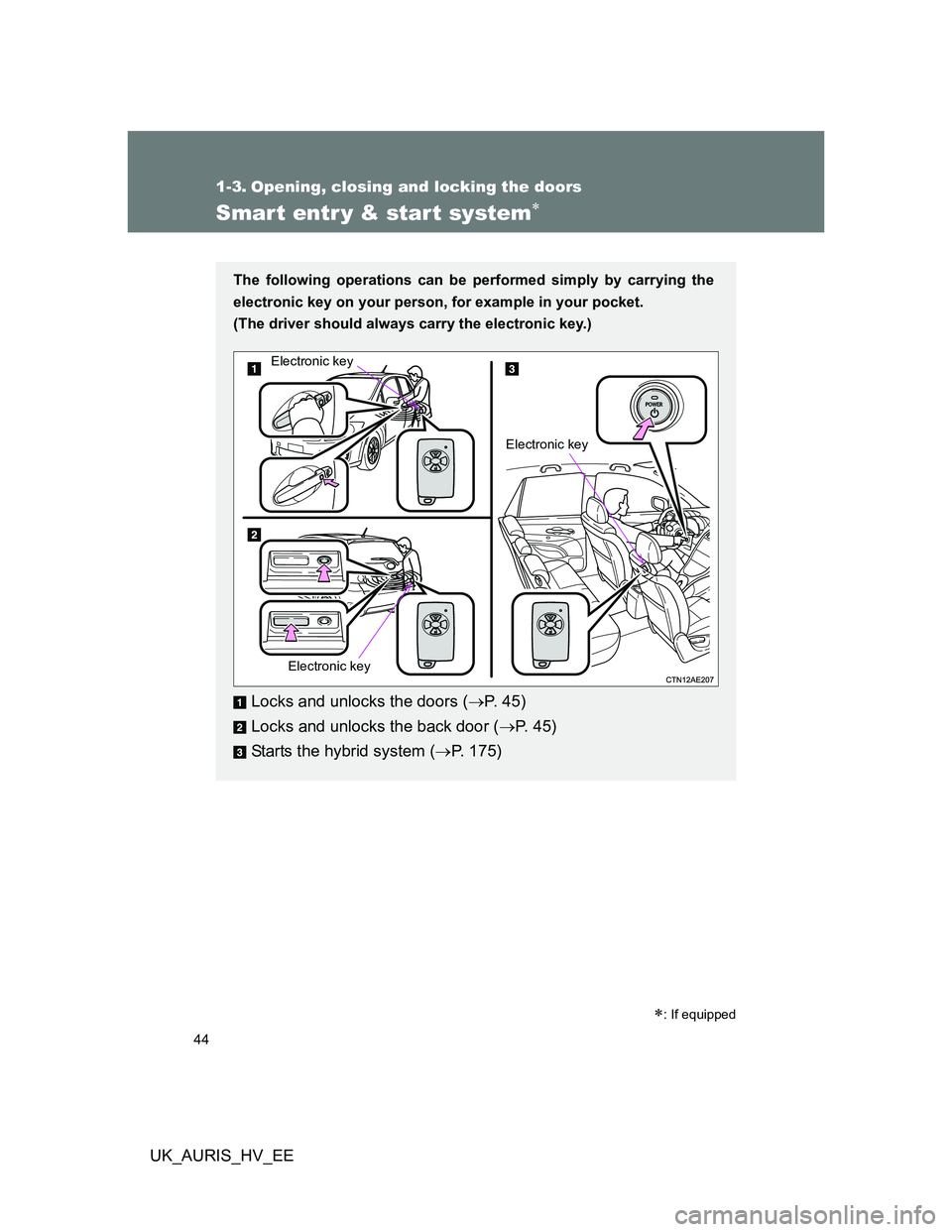

Smart entr y & start system
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (P. 4 5 )
Locks and unlocks the back door (P. 45)
Starts the hybrid system (P. 175)
Electronic key
Electronic keyElectronic key

: If equipped

45 1-3. Opening, closing and locking the doors
1
Before driving
UK_AURIS_HV_EE

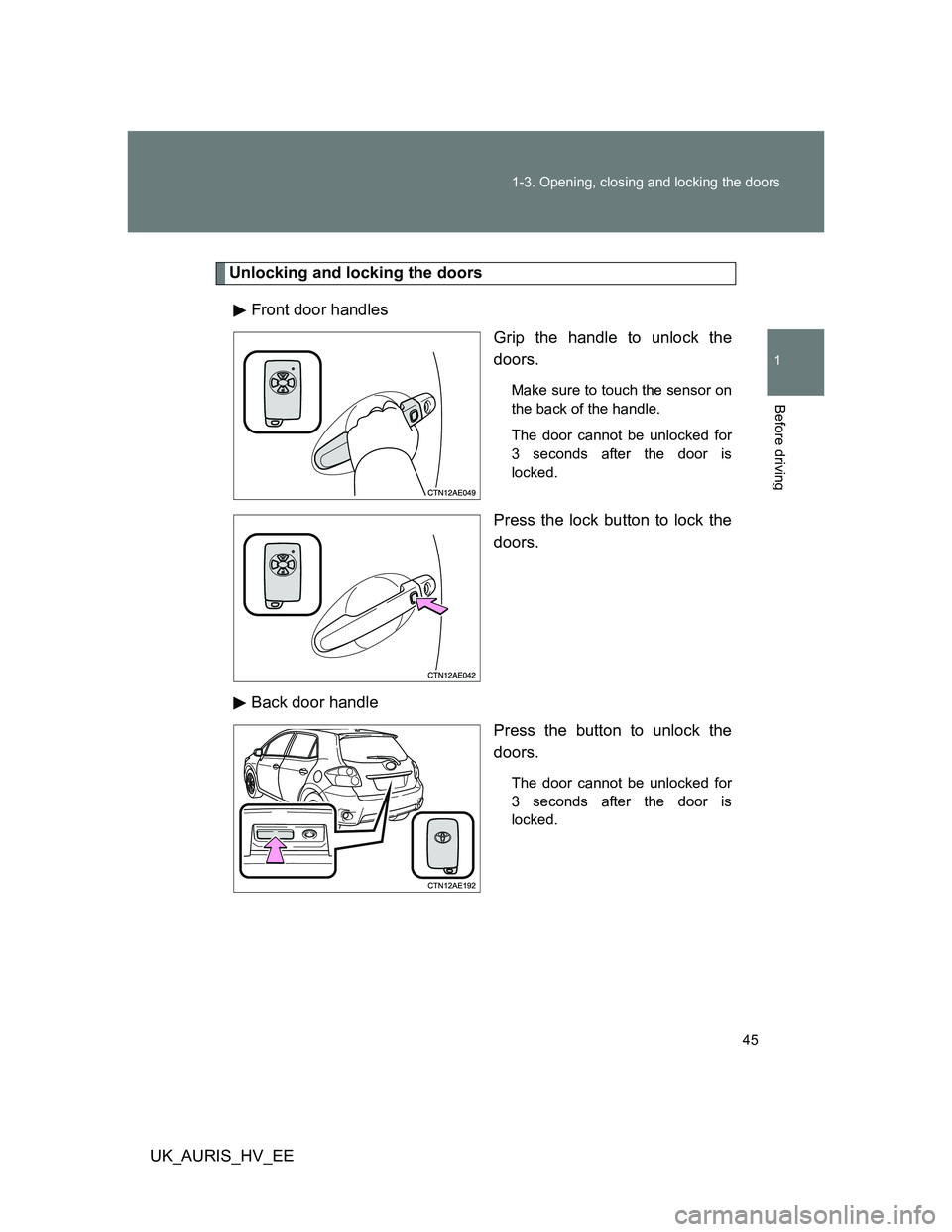

Unlocking and locking the doors
Front door handles
Grip the handle to unlock the
doors.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for
3 seconds after the door is
locked.
Press the lock button to lock the
doors.
Back door handle
Press the button to unlock the
doors.
The door cannot be unlocked for
3 seconds after the door is
locked.

46 1-3. Opening, closing and locking the doors
UK_AURIS_HV_EEPress the button to lock the
doors.

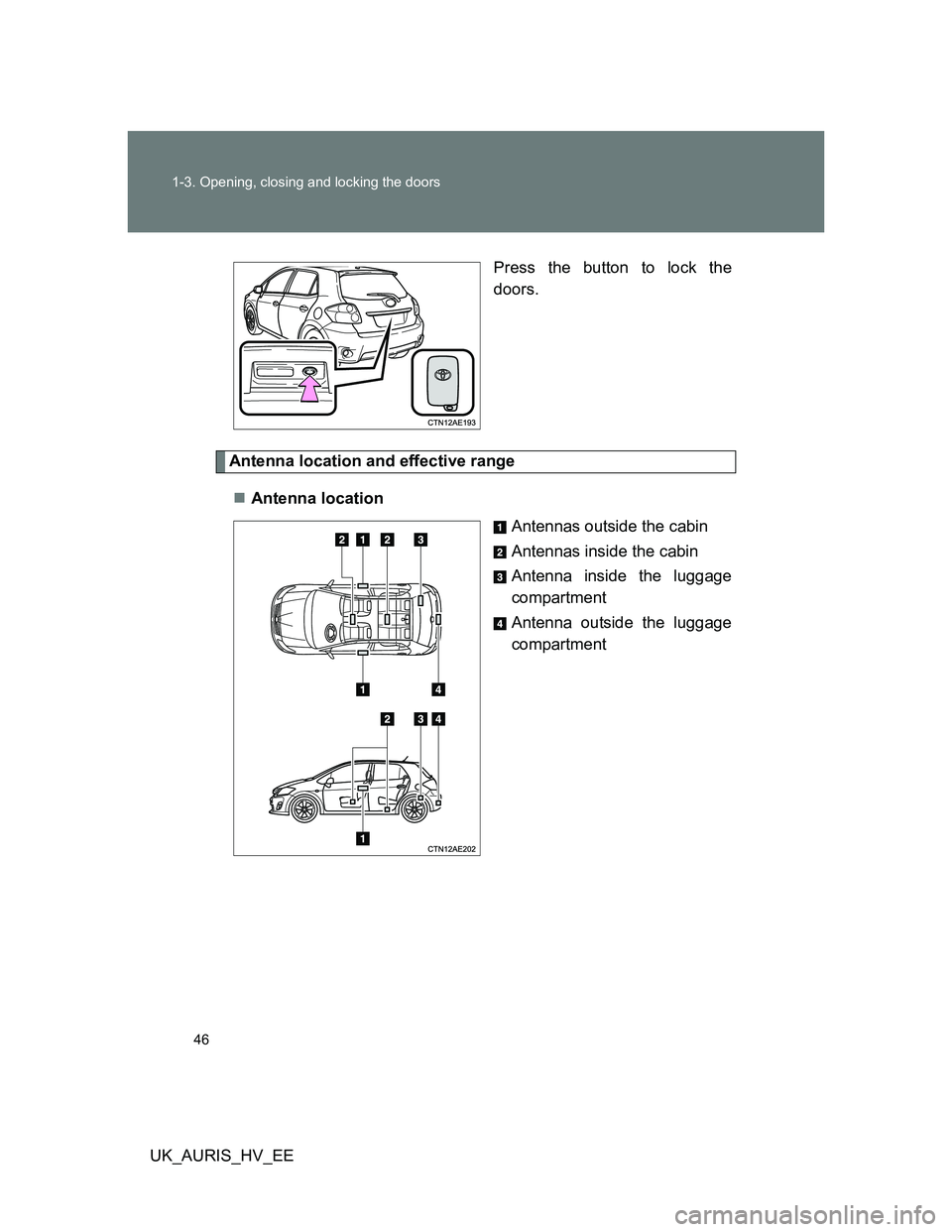

Antenna location and effective range
Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna inside the luggage
compartment
Antenna outside the luggage
compartment

47 1-3. Opening, closing and locking the doors
1
Before driving

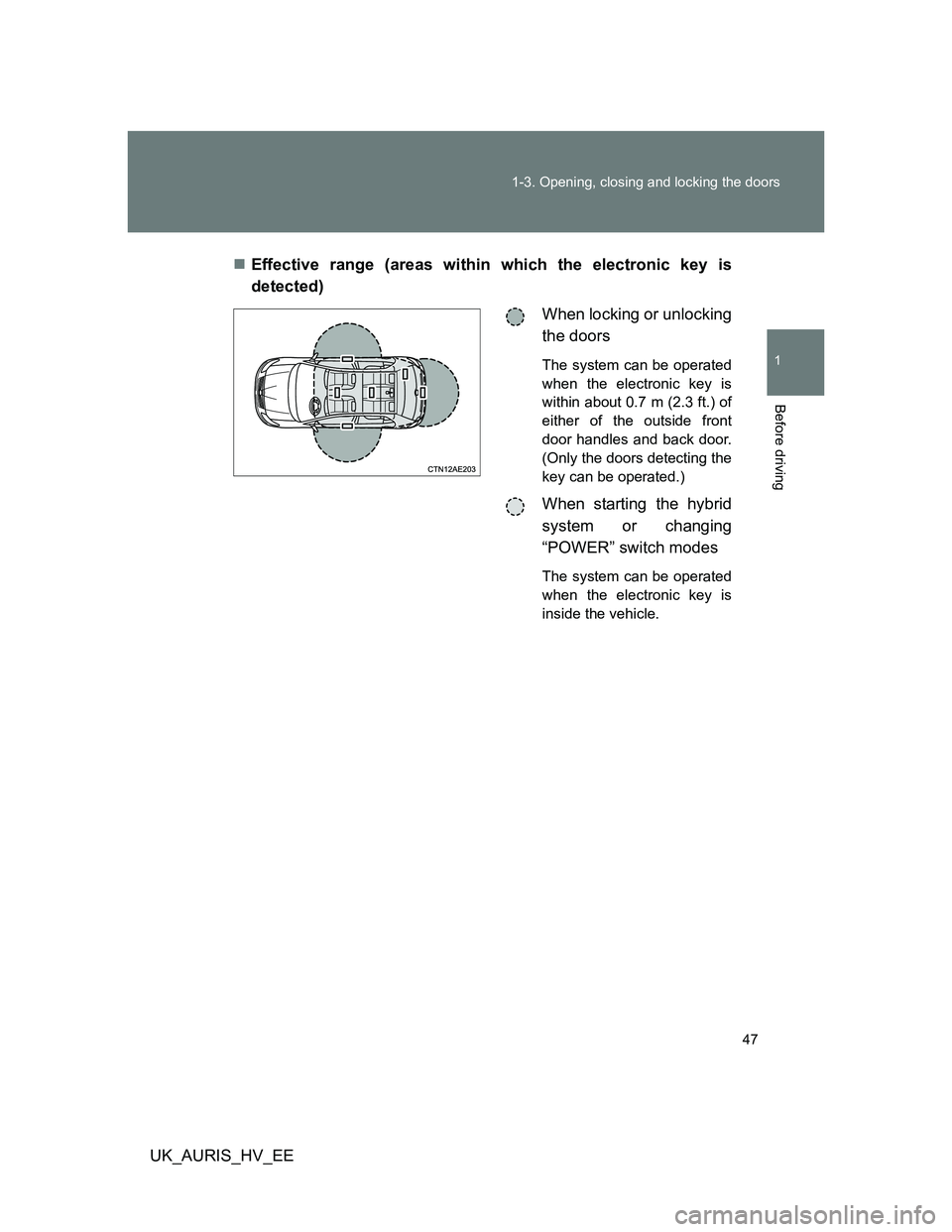

UK_AURIS_HV_EEEffective range (areas within which the electronic key is
detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.) of
either of the outside front
door handles and back door.
(Only the doors detecting the
key can be operated.)
When starting the hybrid
system or changing
“POWER” switch modes
The system can be operated
when the electronic key is
inside the vehicle.

48 1-3. Opening, closing and locking the doors
UK_AURIS_HV_EE

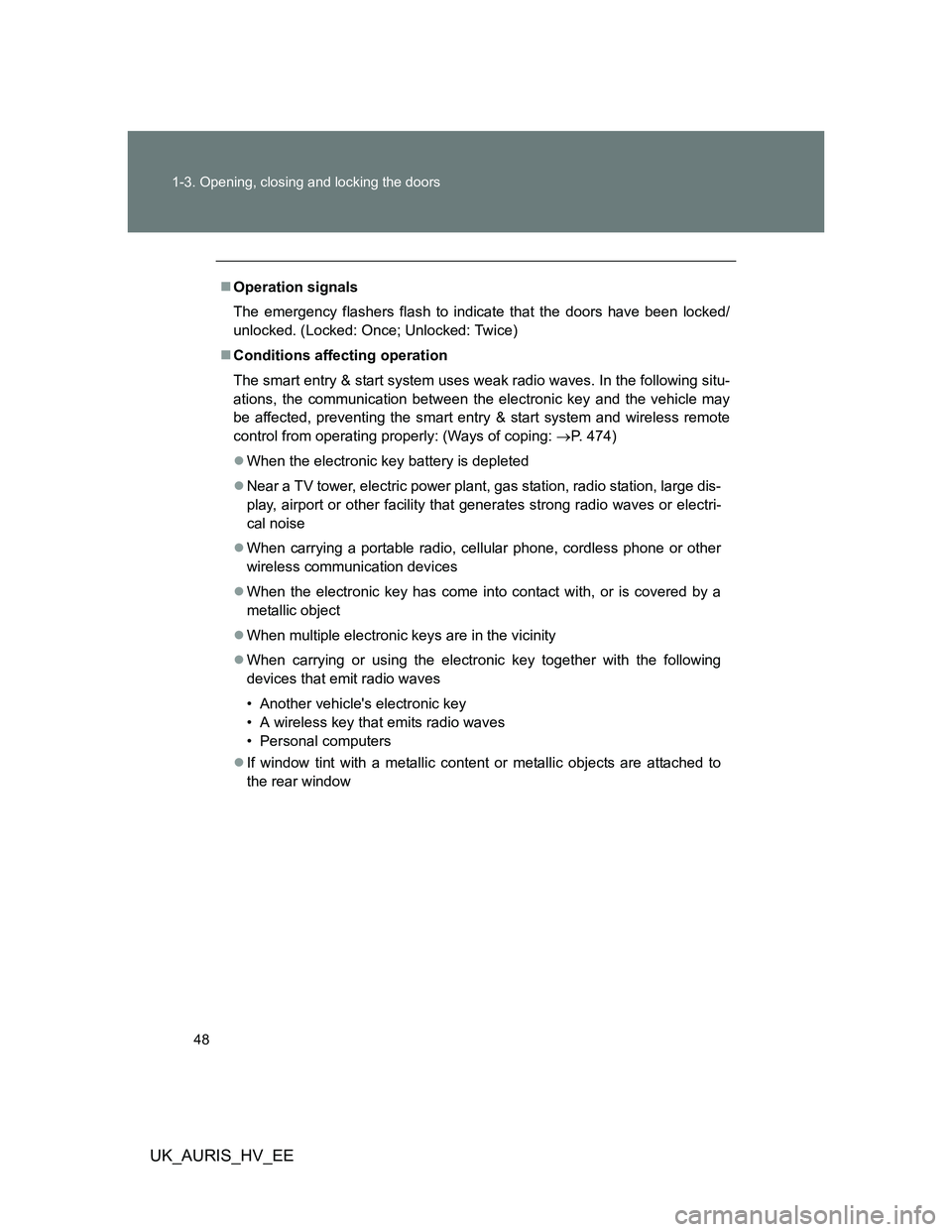

Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situ-
ations, the communication between the electronic key and the vehicle may
be affected, preventing the smart entry & start system and wireless remote
control from operating properly: (Ways of coping: P. 474)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key has come into contact with, or is covered by a
metallic object
When multiple electronic keys are in the vicinity
When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle's electronic key
• A wireless key that emits radio waves
• Personal computers
If window tint with a metallic content or metallic objects are attached to
the rear window

49 1-3. Opening, closing and locking the doors
1
Before driving
UK_AURIS_HV_EE

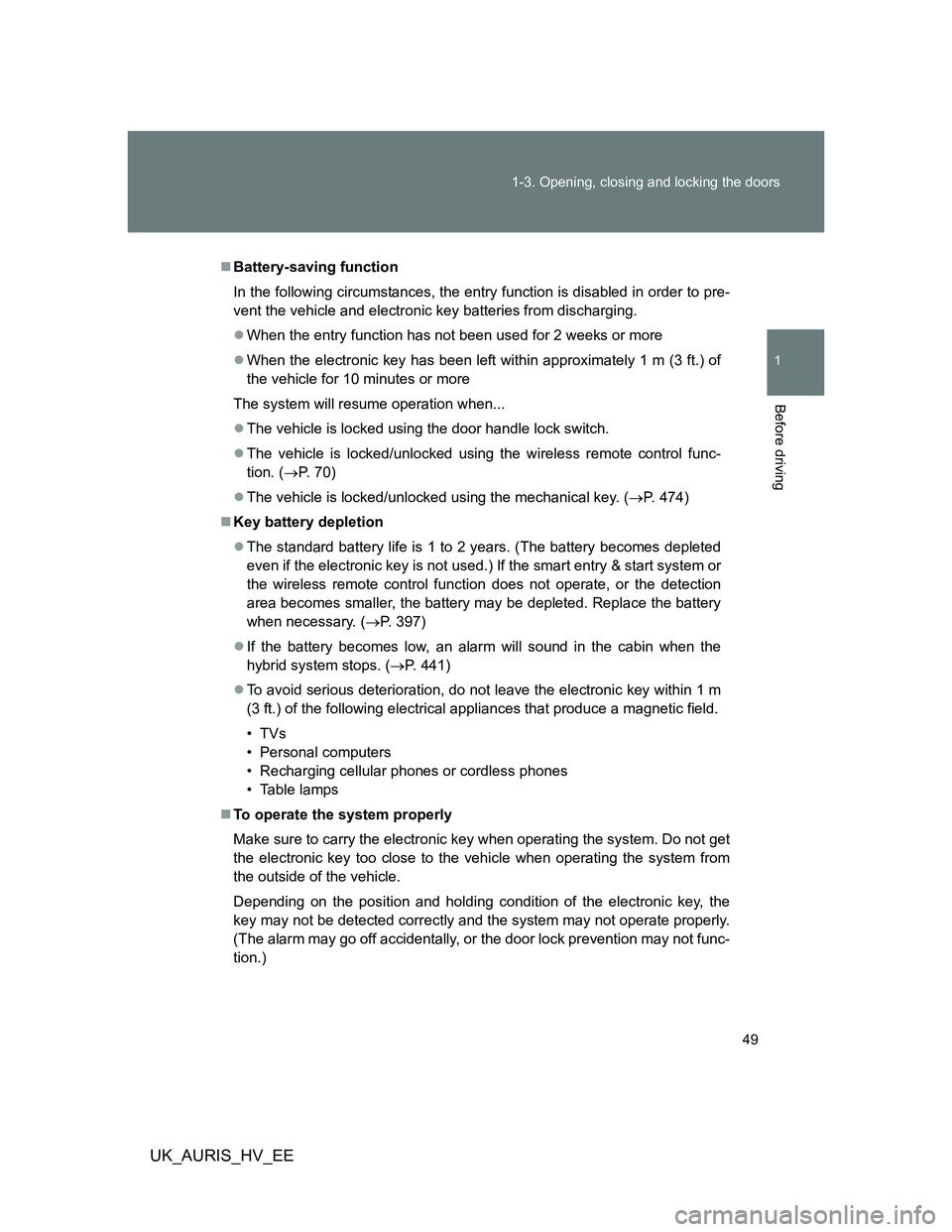

Battery-saving function
In the following circumstances, the entry function is disabled in order to pre-
vent the vehicle and electronic key batteries from discharging.
When the entry function has not been used for 2 weeks or more
When the electronic key has been left within approximately 1 m (3 ft.) of
the vehicle for 10 minutes or more
The system will resume operation when...
The vehicle is locked using the door handle lock switch.
The vehicle is locked/unlocked using the wireless remote control func-
tion. (P. 70)
The vehicle is locked/unlocked using the mechanical key. (P. 474)
Key battery depletion
The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the electronic key is not used.) If the smart entry & start system or
the wireless remote control function does not operate, or the detection
area becomes smaller, the battery may be depleted. Replace the battery
when necessary. (P. 397)
If the battery becomes low, an alarm will sound in the cabin when the
hybrid system stops. (P. 441)
To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
• Table lamps
To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not func-
tion.)

50 1-3. Opening, closing and locking the doors
UK_AURIS_HV_EE

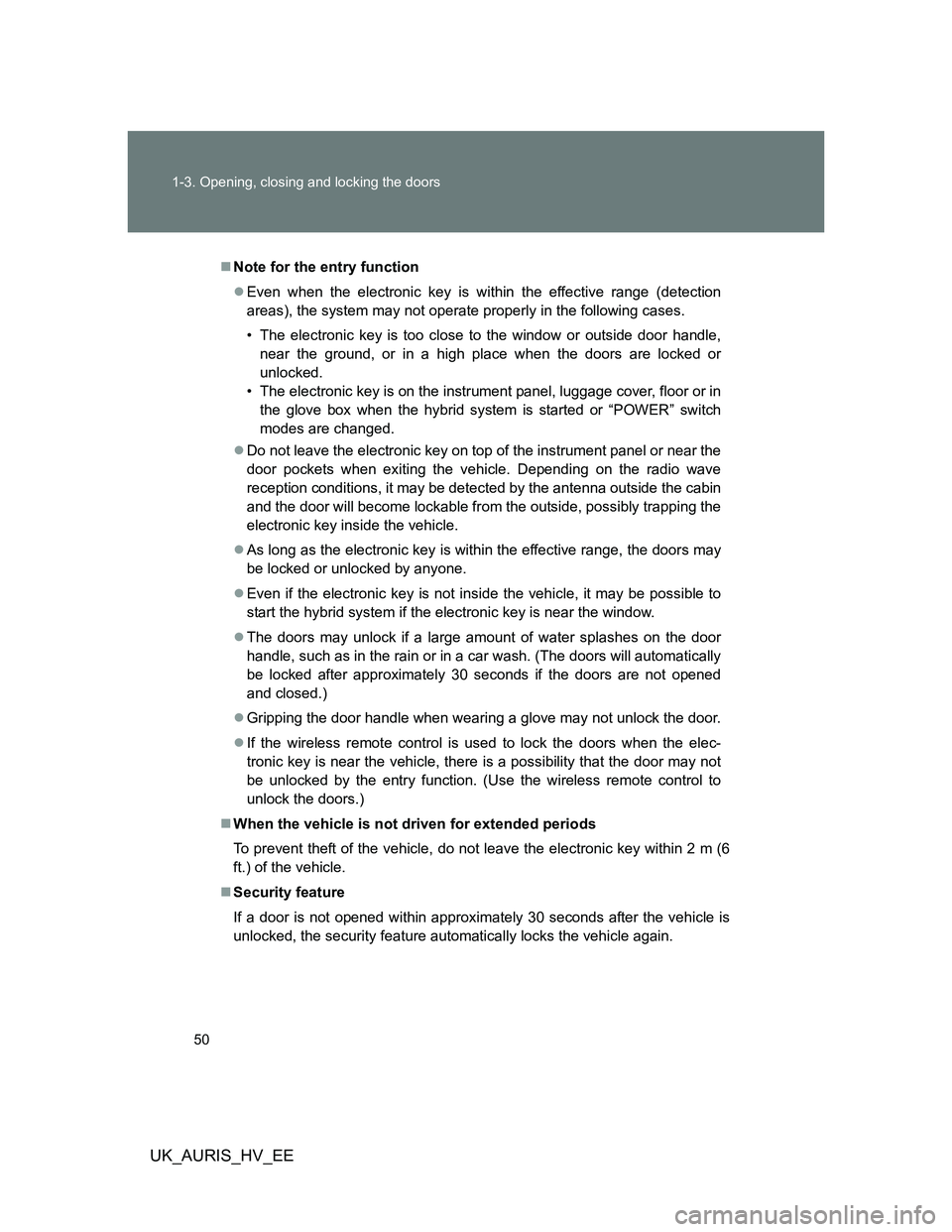

Note for the entry function
Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is on the instrument panel, luggage cover, floor or in
the glove box when the hybrid system is started or “POWER” switch
modes are changed.
Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping the
electronic key inside the vehicle.
As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
Even if the electronic key is not inside the vehicle, it may be possible to
start the hybrid system if the electronic key is near the window.
The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash. (The doors will automatically
be locked after approximately 30 seconds if the doors are not opened
and closed.)
Gripping the door handle when wearing a glove may not unlock the door.
If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the entry function. (Use the wireless remote control to
unlock the doors.)
When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 2 m (6
ft.) of the vehicle.
Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
