71 1-3. Opening, closing and locking the doors
1
Before driving
UK_AURIS_HV_EE
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. wireless remote control system) can be changed.
(Customizable features P. 506)

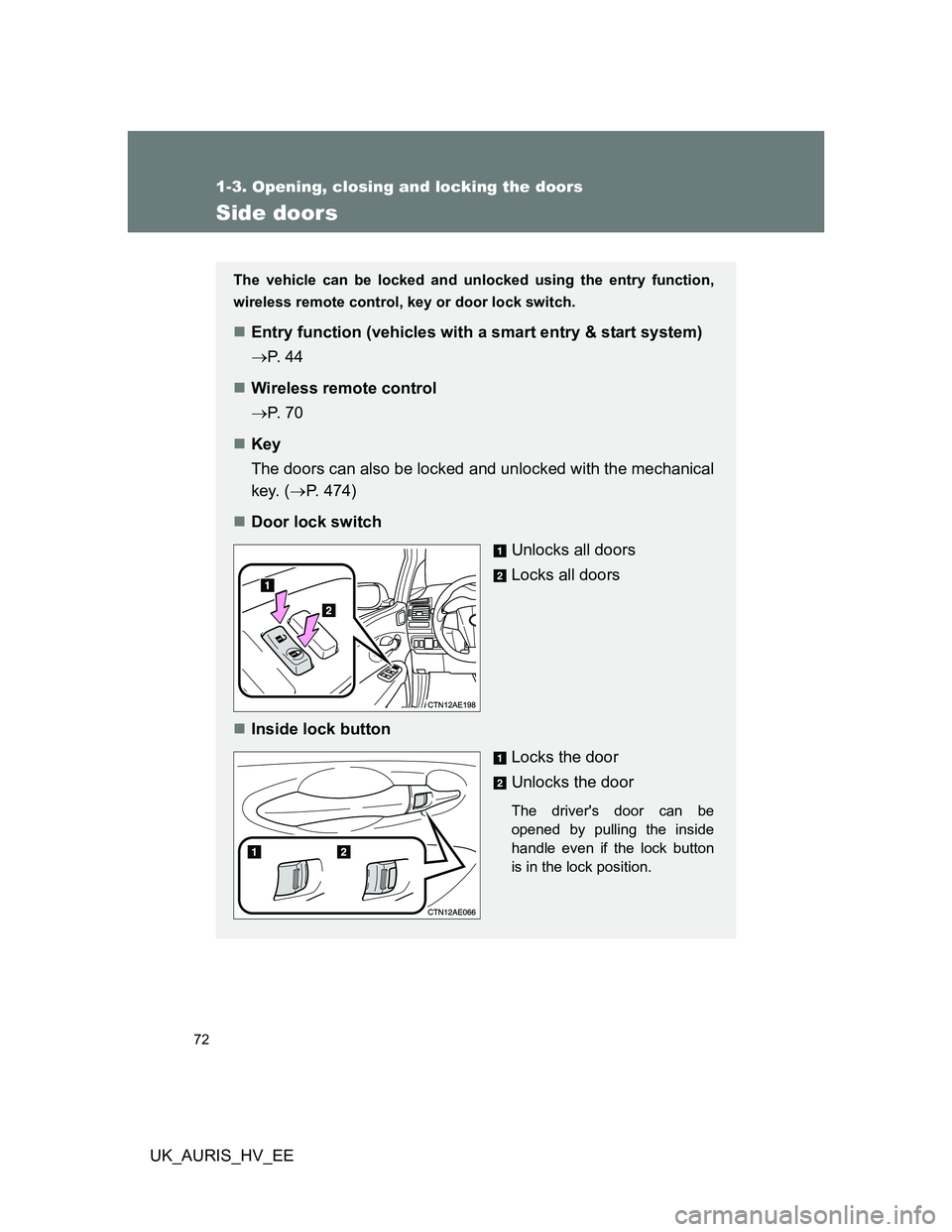

72
1-3. Opening, closing and locking the doors
UK_AURIS_HV_EE
Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switch.
Entry function (vehicles with a smart entry & start system)
P. 4 4
Wireless remote control
P. 7 0
Key
The doors can also be locked and unlocked with the mechanical
key. (P. 474)
Door lock switch
Unlocks all doors
Locks all doors
Inside lock button
Locks the door
Unlocks the door
The driver's door can be
opened by pulling the inside
handle even if the lock button
is in the lock position.

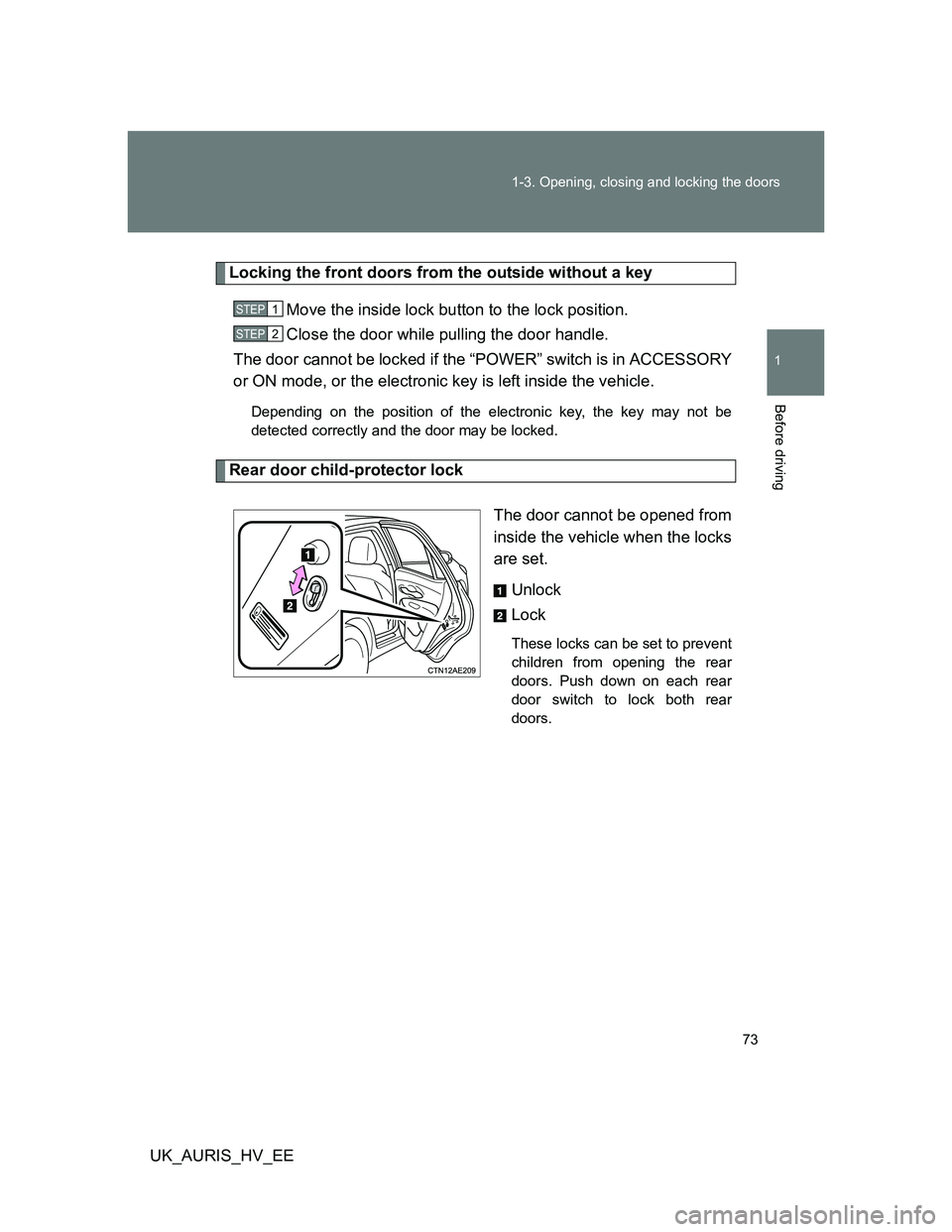

73 1-3. Opening, closing and locking the doors
1
Before driving
UK_AURIS_HV_EE
Locking the front doors from the outside without a key
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the “POWER” switch is in ACCESSORY
or ON mode, or the electronic key is left inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP1
STEP2

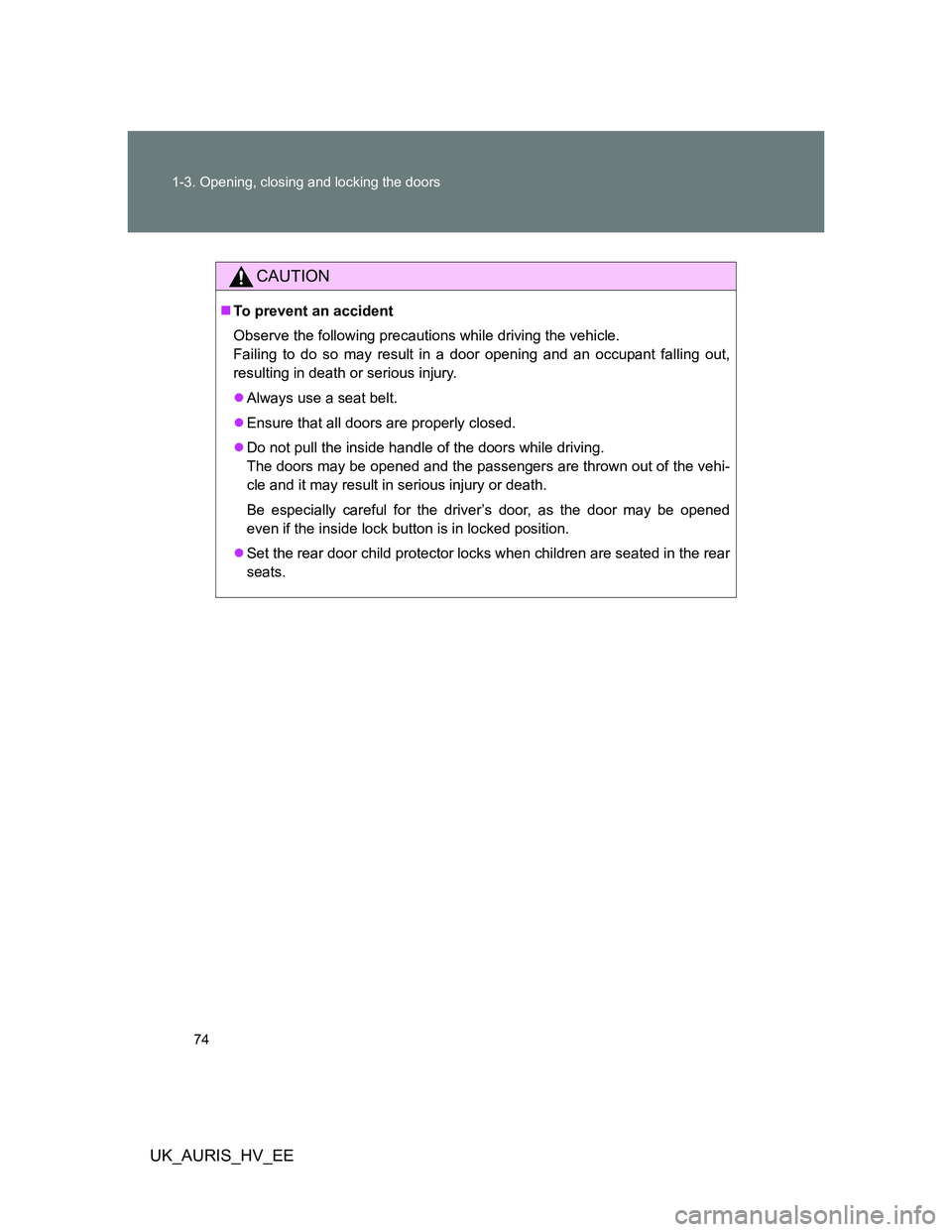

74 1-3. Opening, closing and locking the doors
UK_AURIS_HV_EE
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the driver’s door, as the door may be opened
even if the inside lock button is in locked position.
Set the rear door child protector locks when children are seated in the rear
seats.

75
1
1-3. Opening, closing and locking the doors
Before driving
UK_AURIS_HV_EE

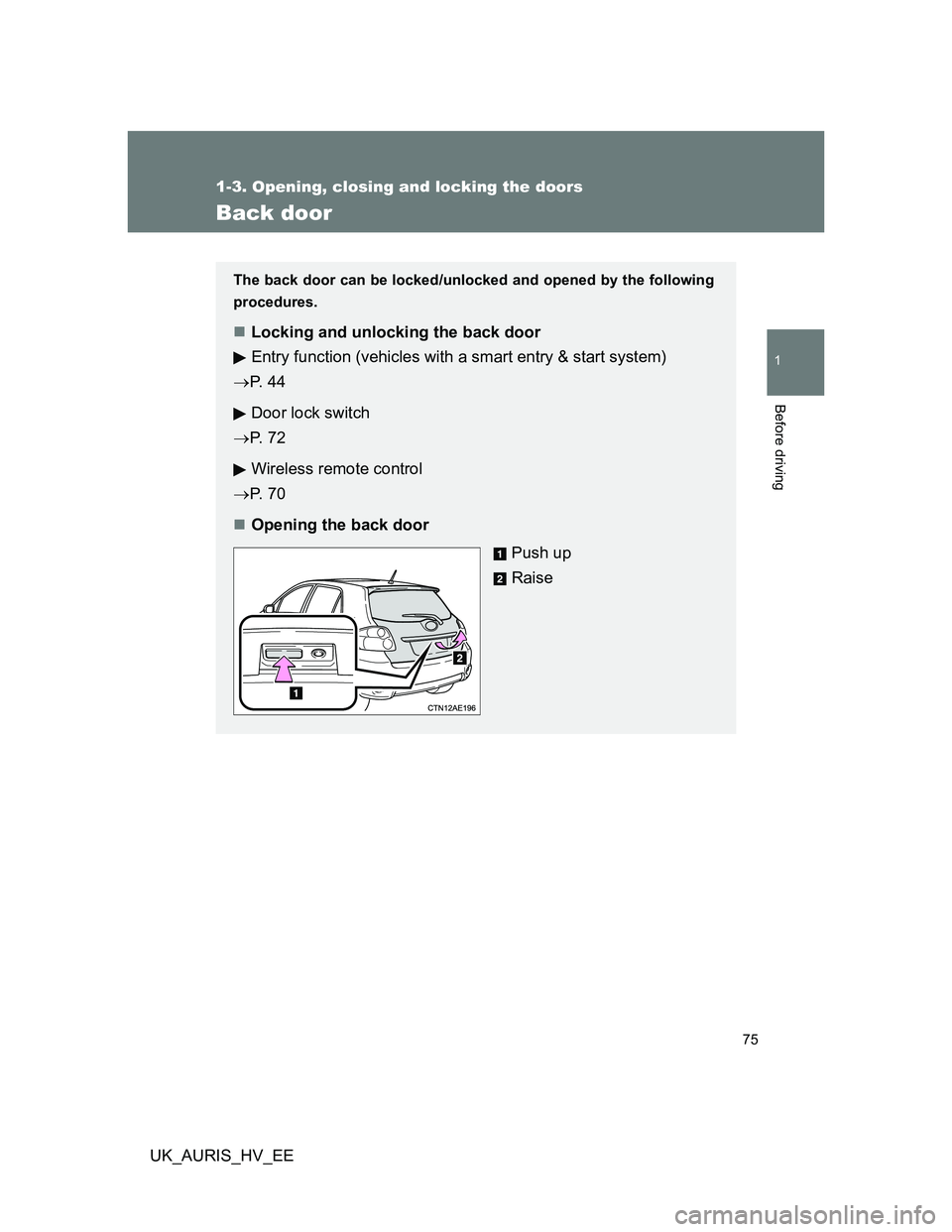

Back door
The back door can be locked/unlocked and opened by the following
procedures.
Locking and unlocking the back door
Entry function (vehicles with a smart entry & start system)
P. 4 4
Door lock switch
P. 7 2
Wireless remote control
P. 7 0
Opening the back door
Push up
Raise

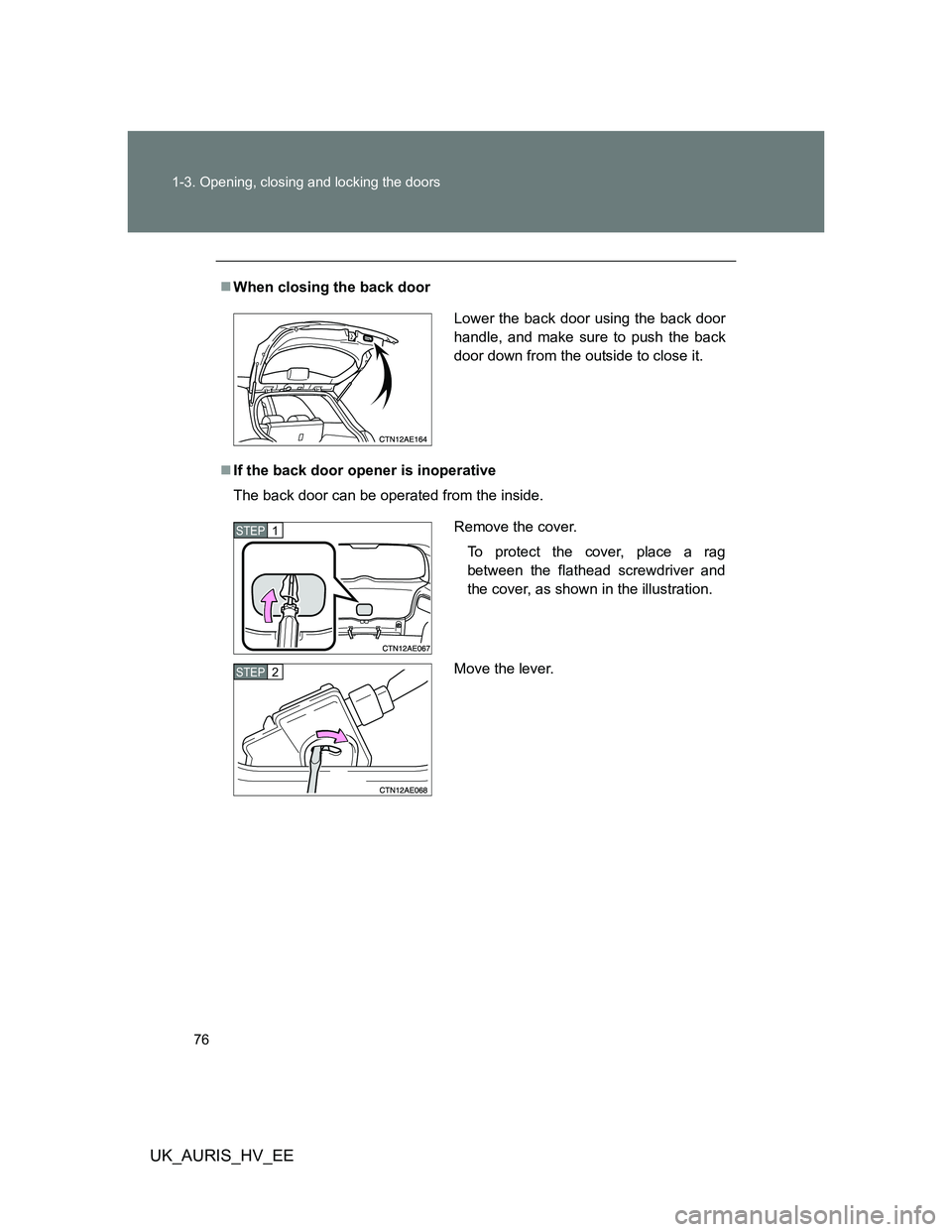

76 1-3. Opening, closing and locking the doors
UK_AURIS_HV_EE
When closing the back door
If the back door opener is inoperative
The back door can be operated from the inside.
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
Remove the cover.
To protect the cover, place a rag
between the flathead screwdriver and
the cover, as shown in the illustration.
Move the lever.STEP1
STEP2

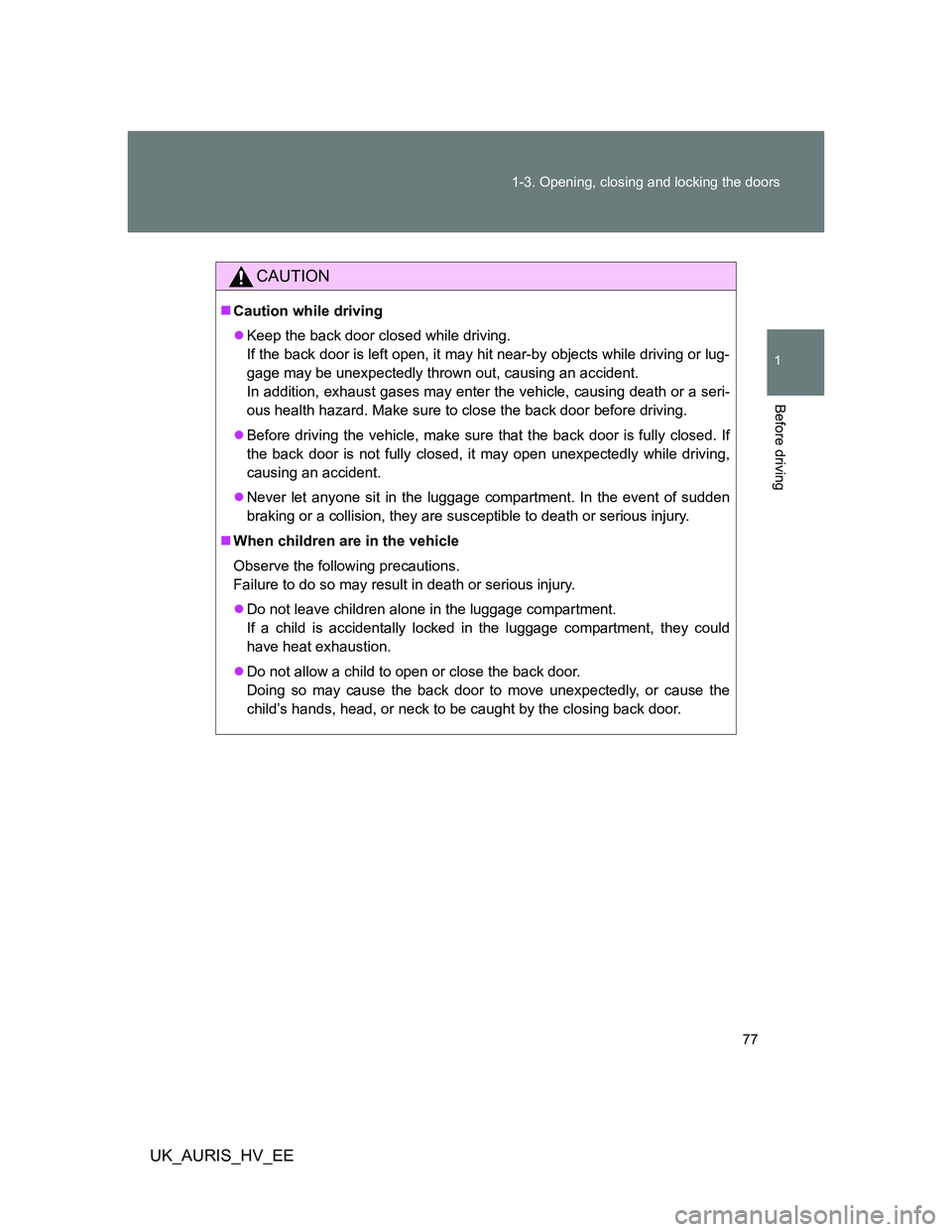

77 1-3. Opening, closing and locking the doors
1
Before driving
UK_AURIS_HV_EE
CAUTION
Caution while driving
Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

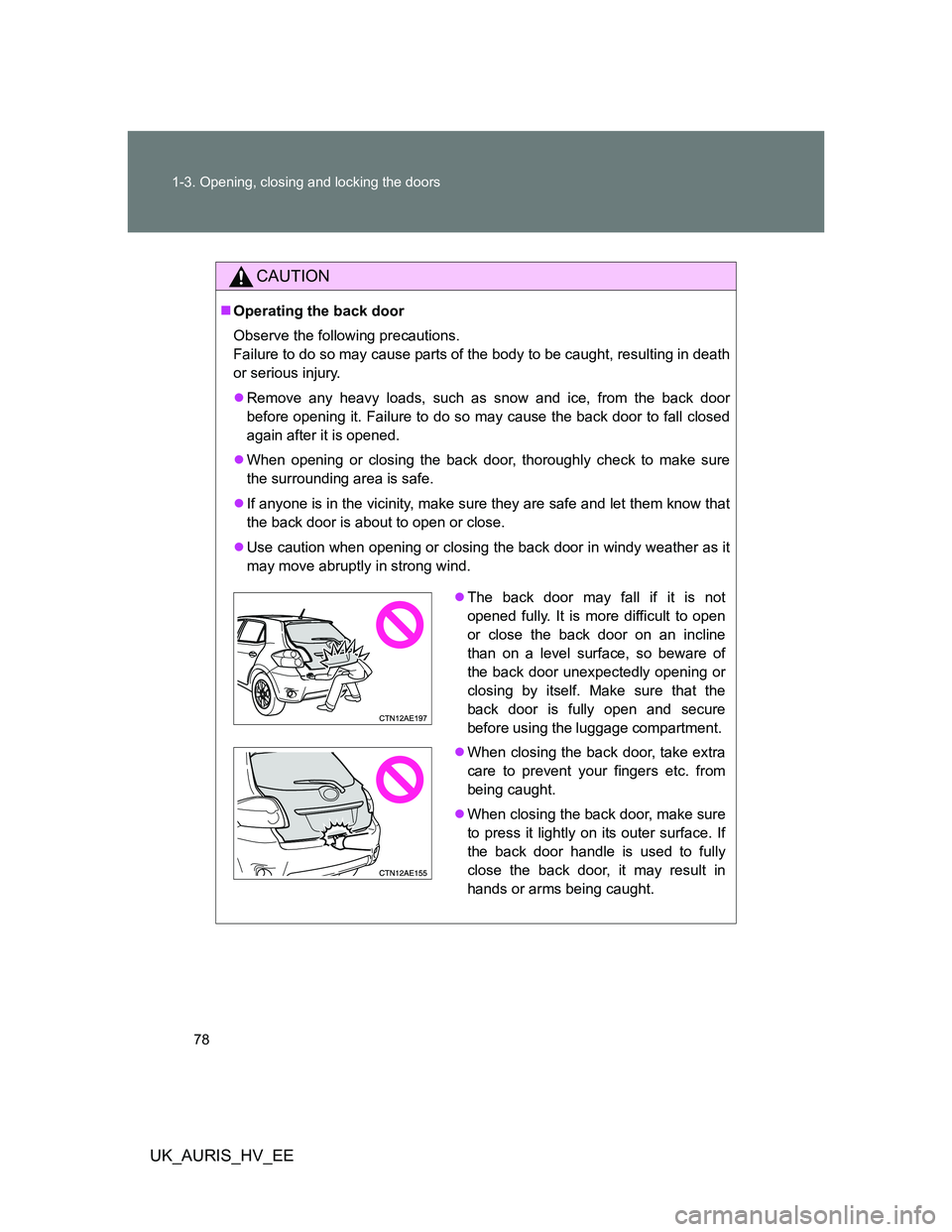

78 1-3. Opening, closing and locking the doors
UK_AURIS_HV_EE
CAUTION
Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to fall closed
again after it is opened.
When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
The back door may fall if it is not
opened fully. It is more difficult to open
or close the back door on an incline
than on a level surface, so beware of
the back door unexpectedly opening or
closing by itself. Make sure that the
back door is fully open and secure
before using the luggage compartment.
When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

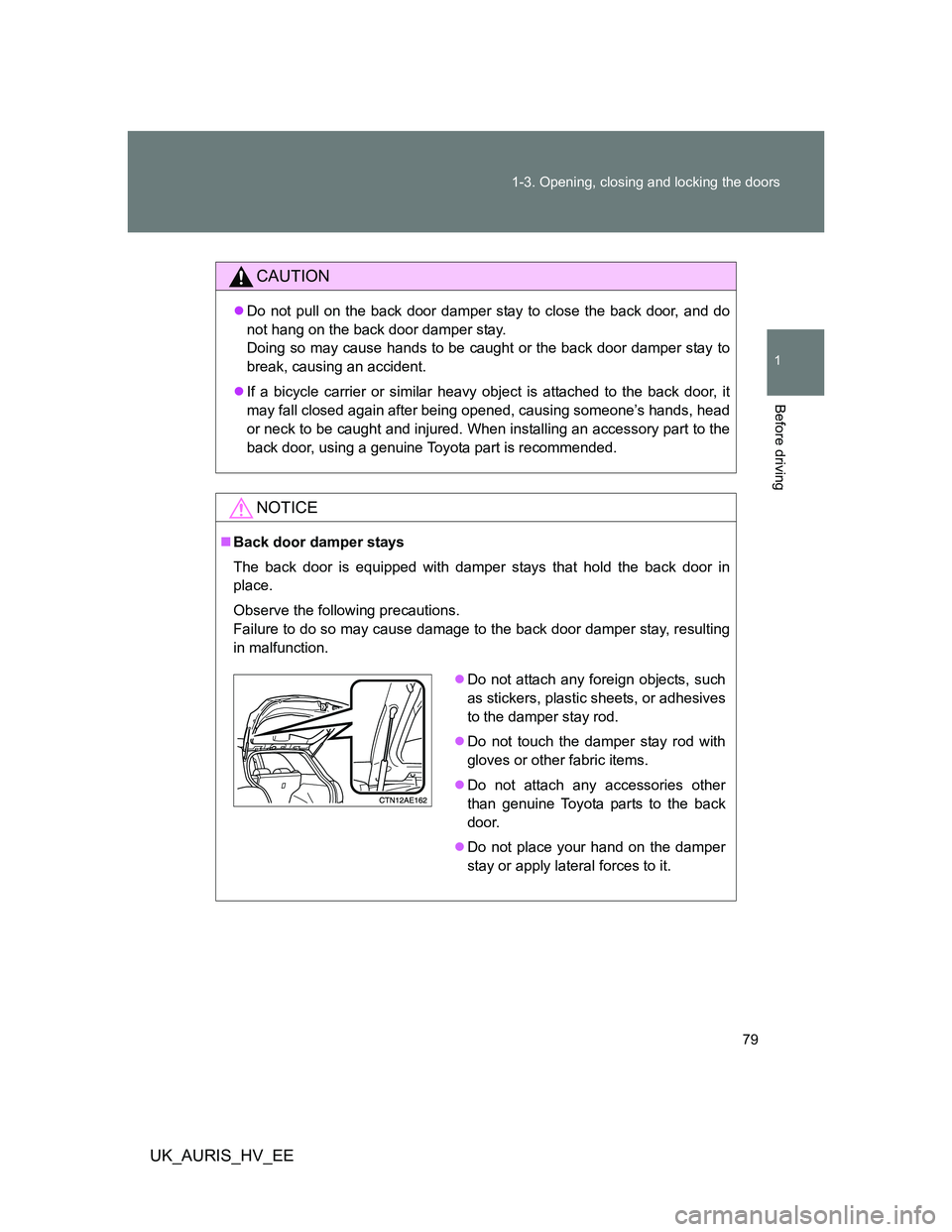

79 1-3. Opening, closing and locking the doors
1
Before driving
UK_AURIS_HV_EE
CAUTION
Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
If a bicycle carrier or similar heavy object is attached to the back door, it
may fall closed again after being opened, causing someone’s hands, head
or neck to be caught and injured. When installing an accessory part to the
back door, using a genuine Toyota part is recommended.
NOTICE
Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
Do not touch the damper stay rod with
gloves or other fabric items.
Do not attach any accessories other
than genuine Toyota parts to the back
door.
Do not place your hand on the damper
stay or apply lateral forces to it.

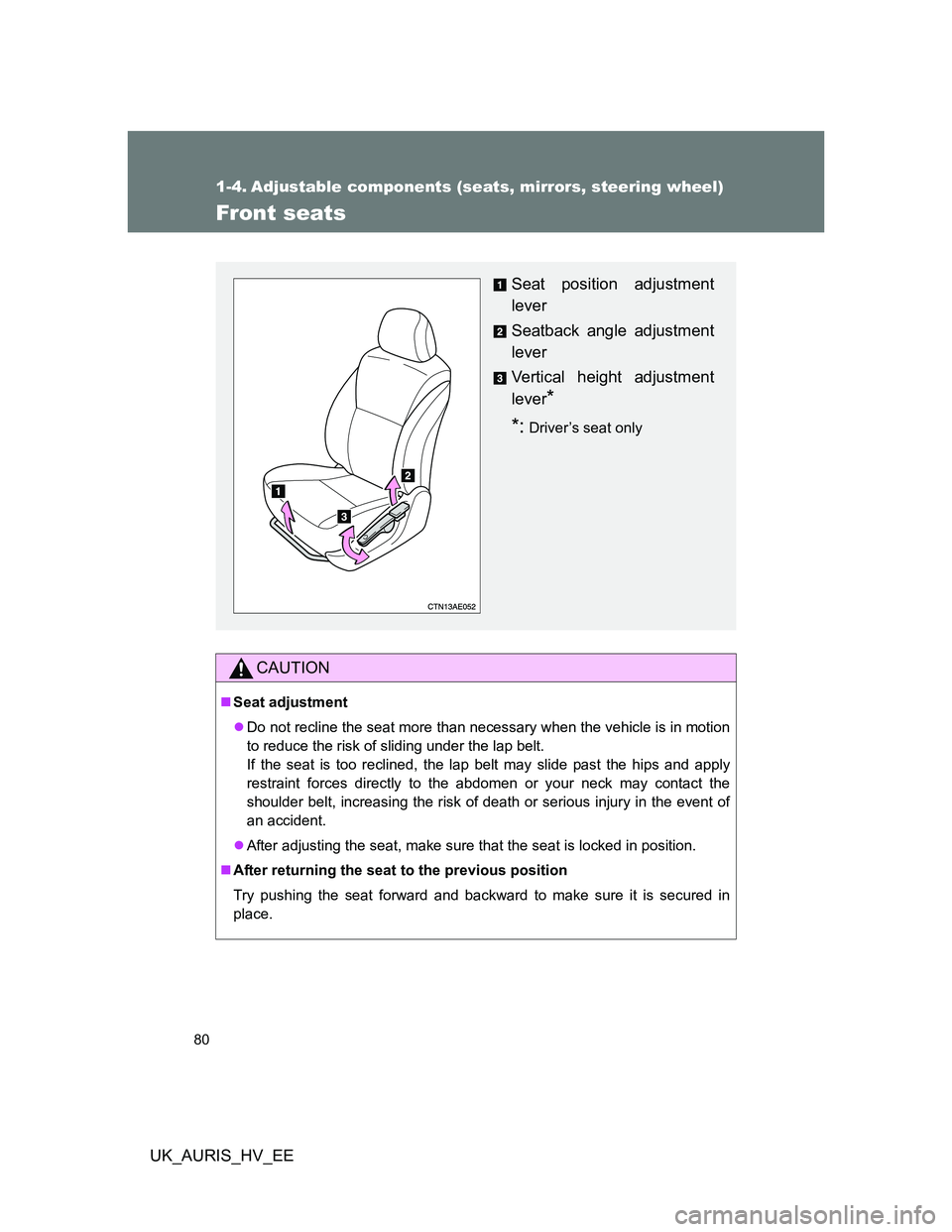

80
UK_AURIS_HV_EE
1-4. Adjustable components (seats, mirrors, steering wheel)
Front seats
CAUTION
Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
After adjusting the seat, make sure that the seat is locked in position.
After returning the seat to the previous position
Try pushing the seat forward and backward to make sure it is secured in
place.
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever
*
*:
Driver’s seat only
