TOYOTA AURIS HYBRID 2012 Owners Manual

501 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE

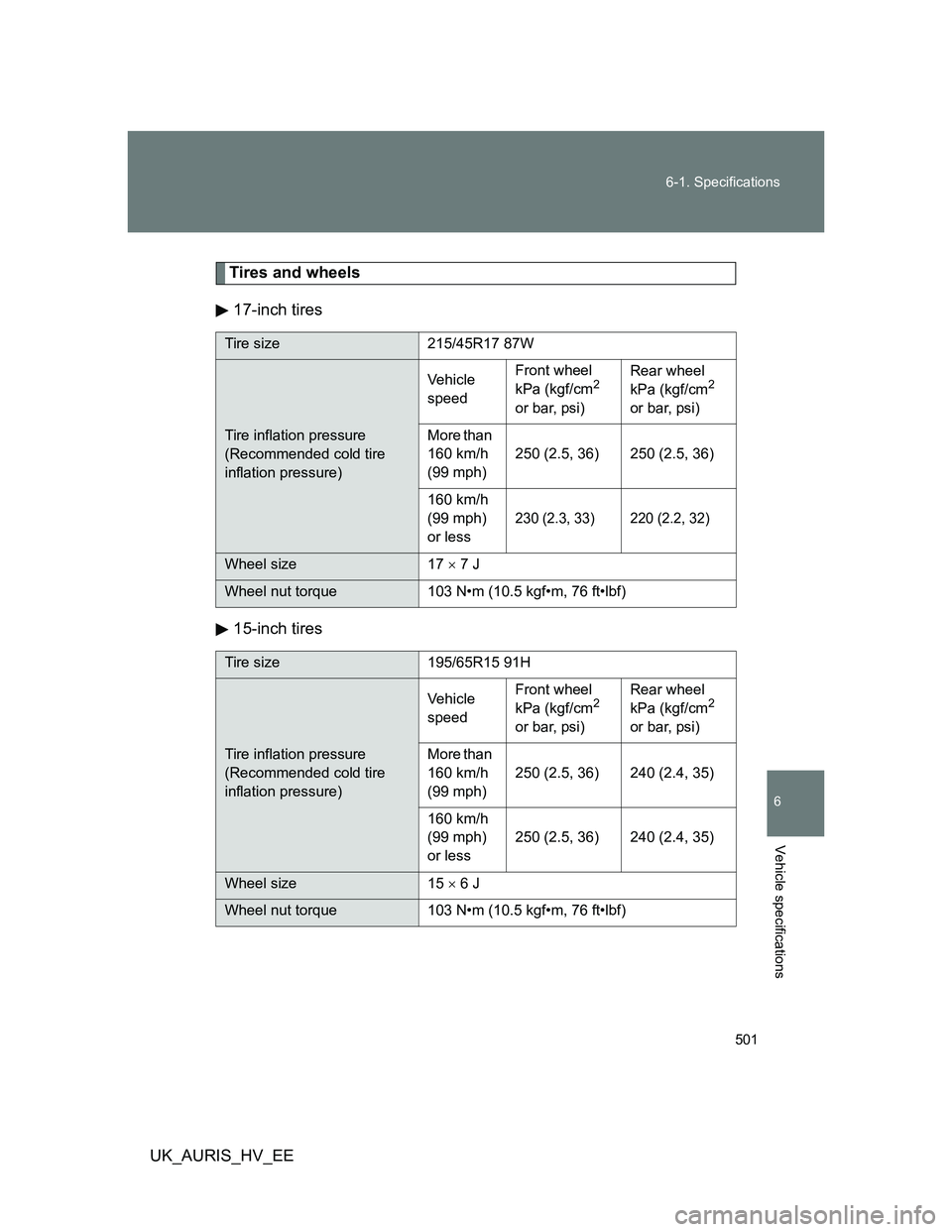

Tires and wheels
17-inch tires
15-inch tires
Tire size 215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)250 (2.5, 36) 250 (2.5, 36)
160 km/h
(99 mph)
or less
230 (2.3, 33) 220 (2.2, 32)
Wheel size 17  7 J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 195/65R15 91H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)250 (2.5, 36) 240 (2.4, 35)
160 km/h
(99 mph)
or less250 (2.5, 36) 240 (2.4, 35)
Wheel size 15  6 J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

502 6-1. Specifications

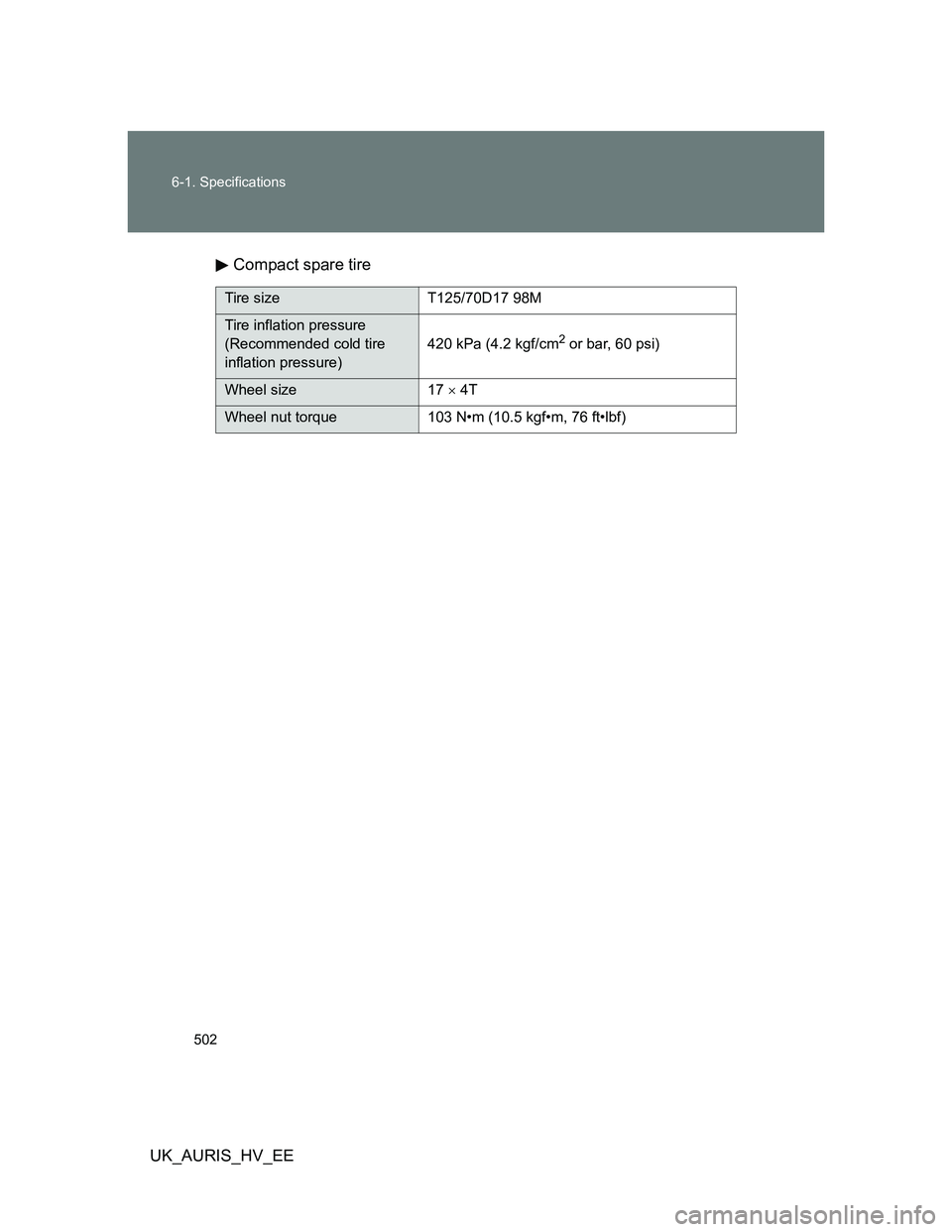

UK_AURIS_HV_EECompact spare tire
Tire size T125/70D17 98M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17  4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

503 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE

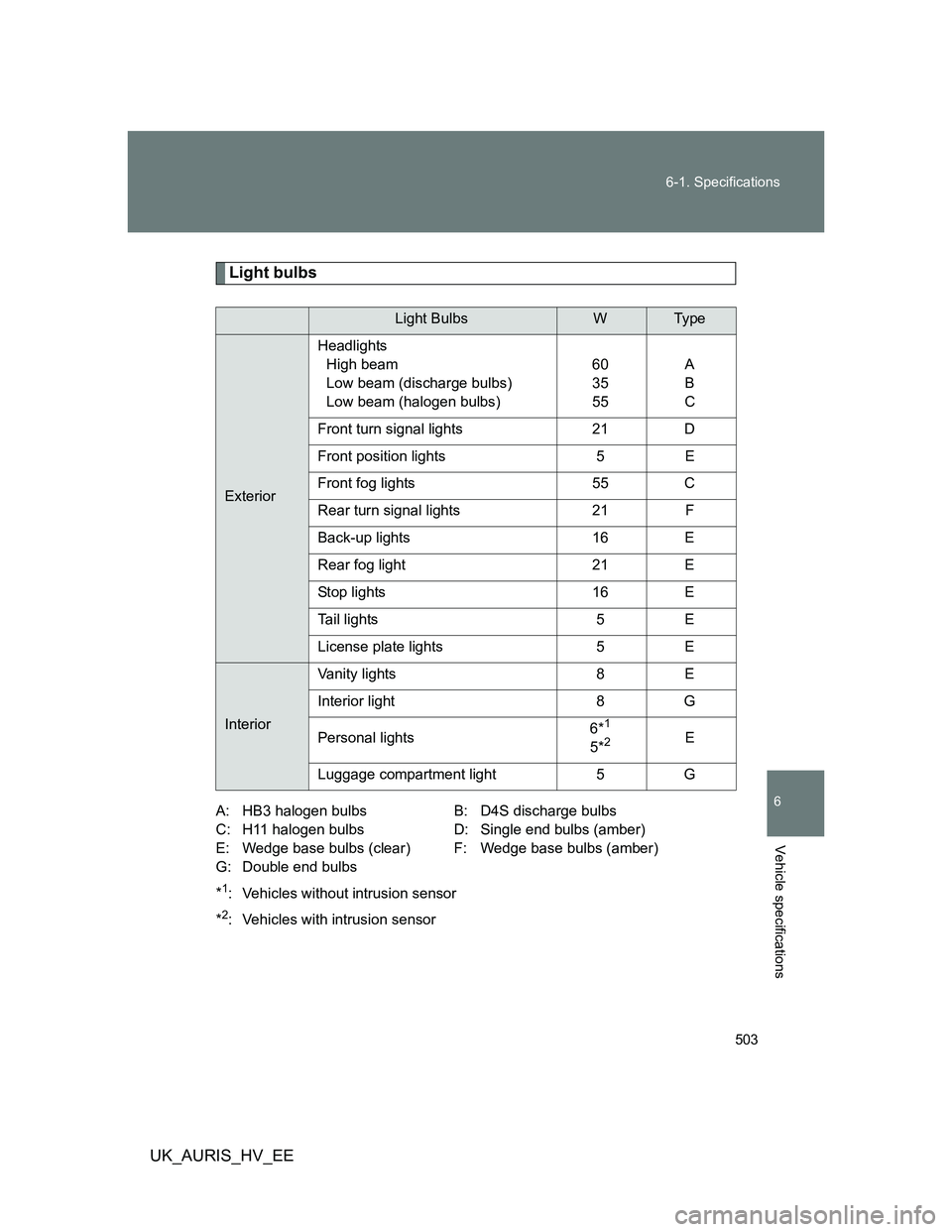

Light bulbs
A: HB3 halogen bulbs B: D4S discharge bulbs
C: H11 halogen bulbs D: Single end bulbs (amber)
E: Wedge base bulbs (clear) F: Wedge base bulbs (amber)
G: Double end bulbs
*
1: Vehicles without intrusion sensor
*
2: Vehicles with intrusion sensor
Light BulbsWTy p e
ExteriorHeadlights
High beam
Low beam (discharge bulbs)
Low beam (halogen bulbs)60
35
55A
B
C
Front turn signal lights 21 D
Front position lights 5 E
Front fog lights 55 C
Rear turn signal lights 21 F
Back-up lights 16 E
Rear fog light 21 E
Stop lights 16 E
Tail lights 5 E
License plate lights 5 E
InteriorVanity lights 8 E
Interior light 8 G
Personal lights6*1
5*2E
Luggage compartment light 5 G

504
6-1. Specifications
UK_AURIS_HV_EE

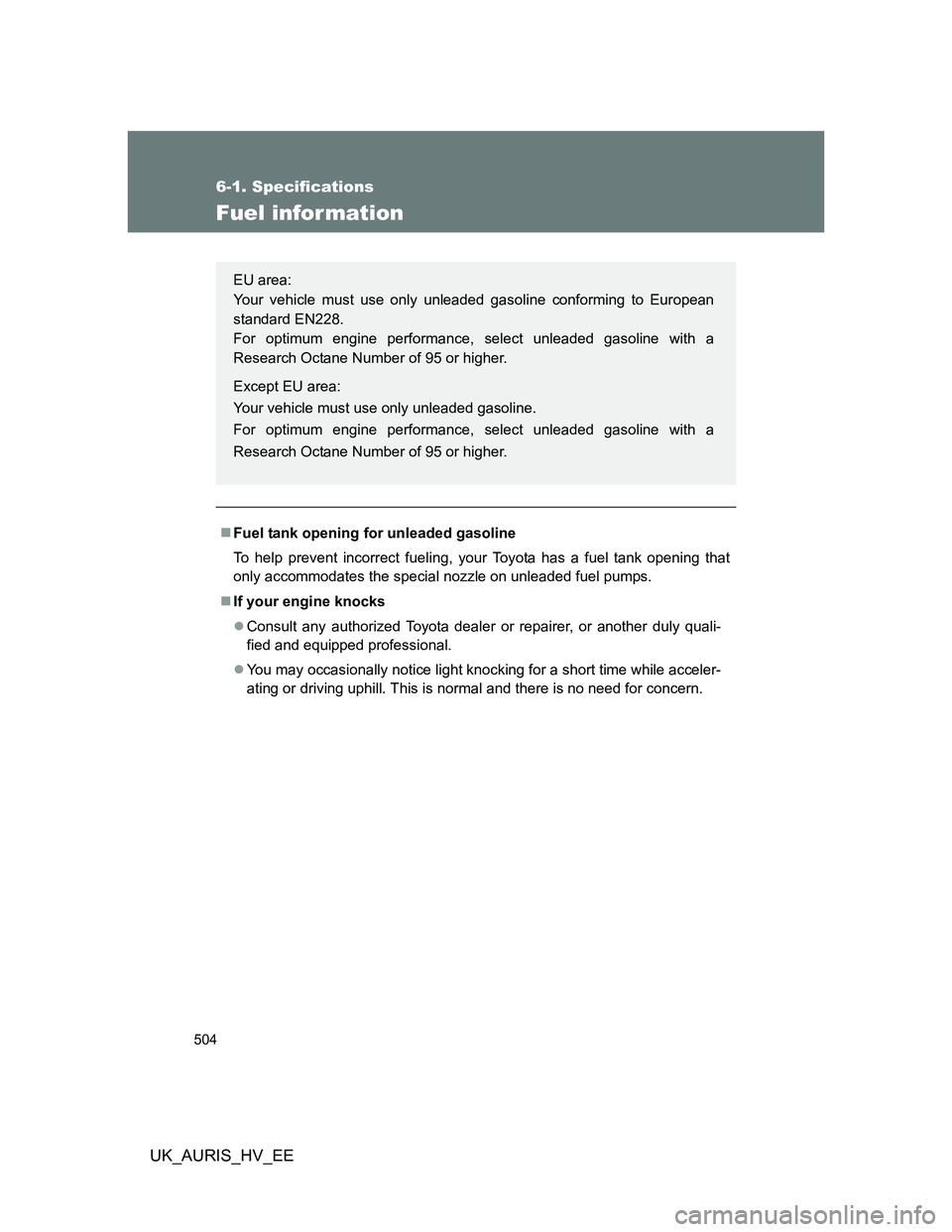

Fuel infor mation
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
EU area:
Your vehicle must use only unleaded gasoline conforming to European
standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.

505 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE

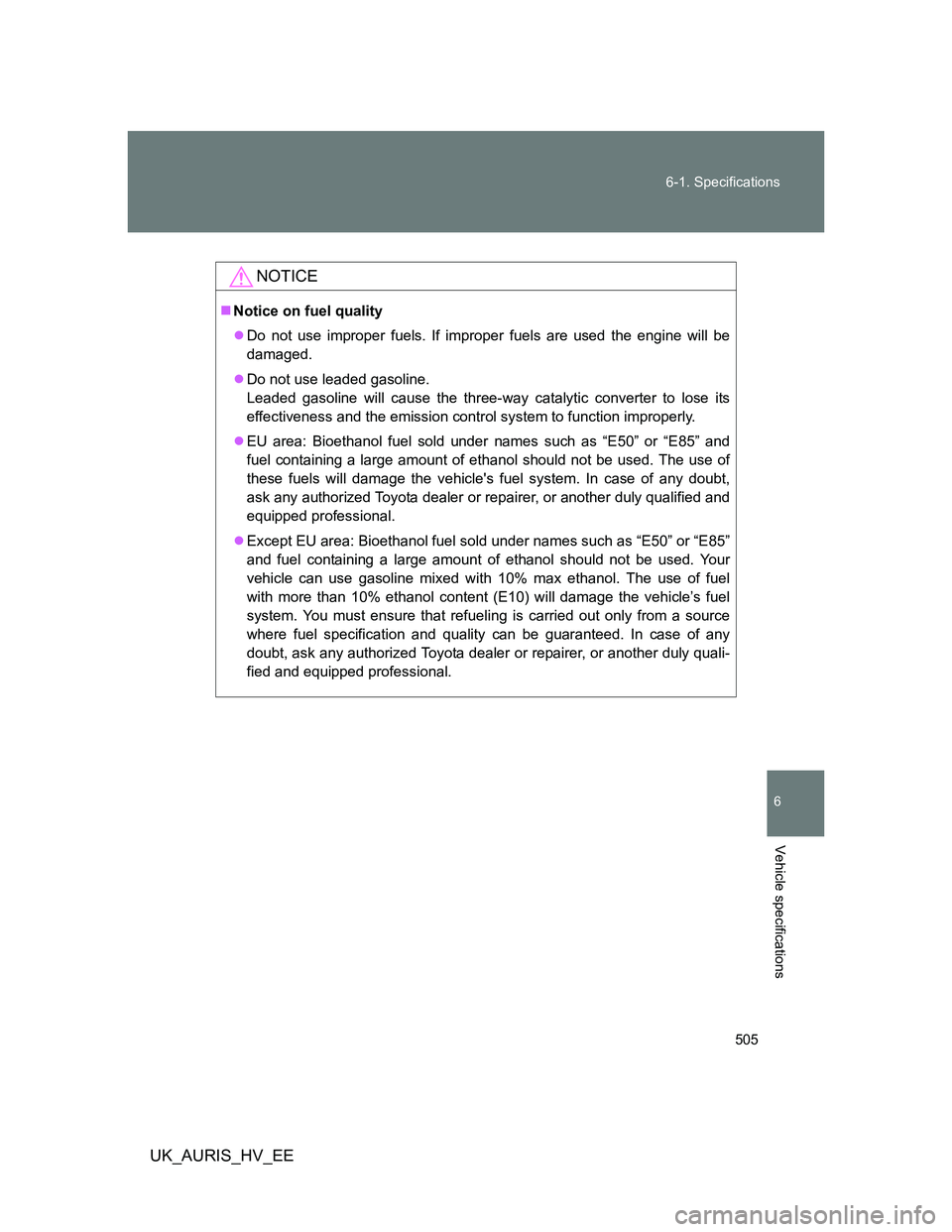

NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle's fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.

506
UK_AURIS_HV_EE

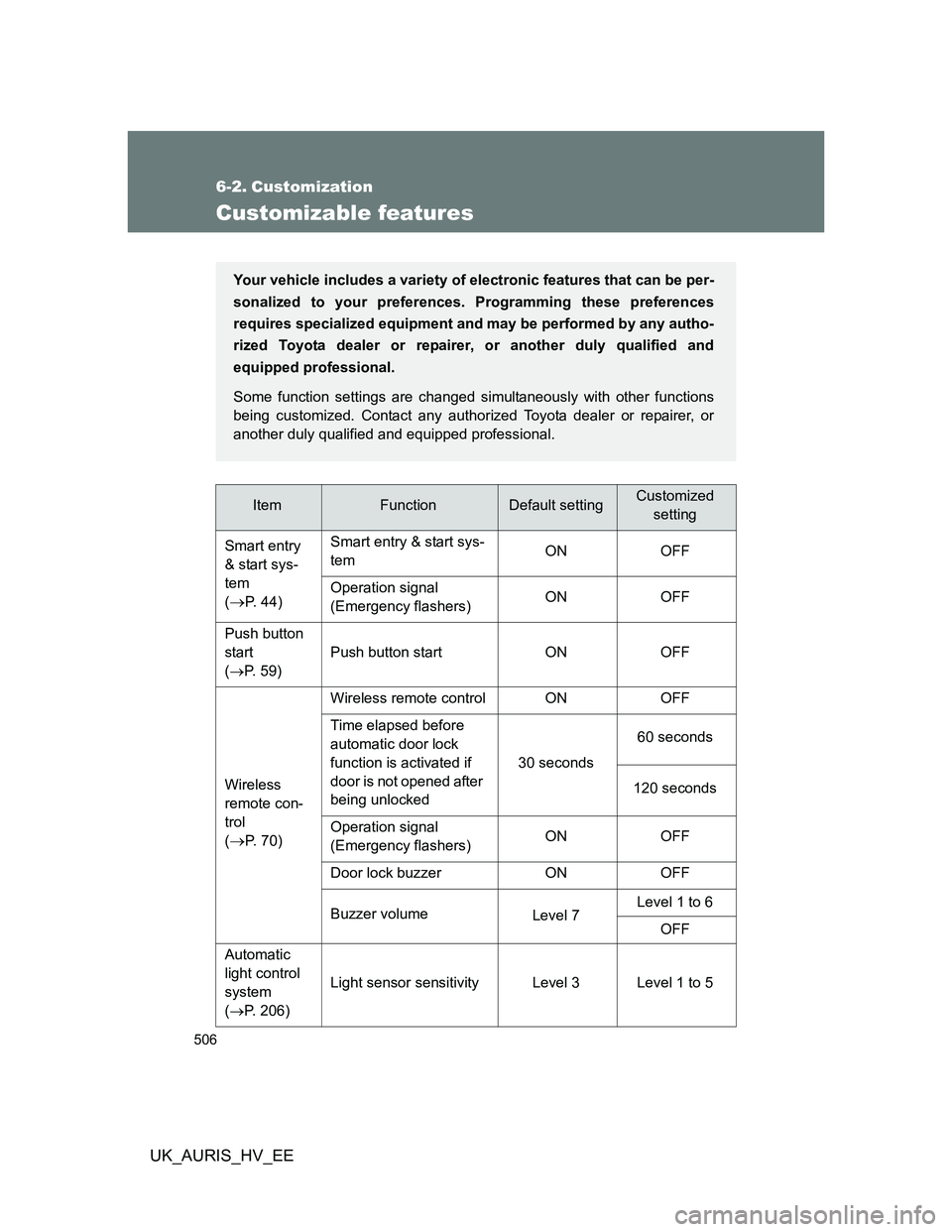

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomized
setting
Smart entry
& start sys-
tem
(
P. 44)Smart entry & start sys-
temON OFF
Operation signal
(Emergency flashers) ON OFF
Push button
start
(P. 59)Push button start ON OFF
Wireless
remote con-
trol
(
P. 70)Wireless remote control ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked30 seconds60 seconds
120 seconds
Operation signal
(Emergency flashers)ON OFF
Door lock buzzer ON OFF
Buzzer volume
Level 7Level 1 to 6
OFF
Automatic
light control
system
(P. 206)Light sensor sensitivity Level 3 Level 1 to 5
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

507 6-2. Customization
6
Vehicle specifications
UK_AURIS_HV_EE

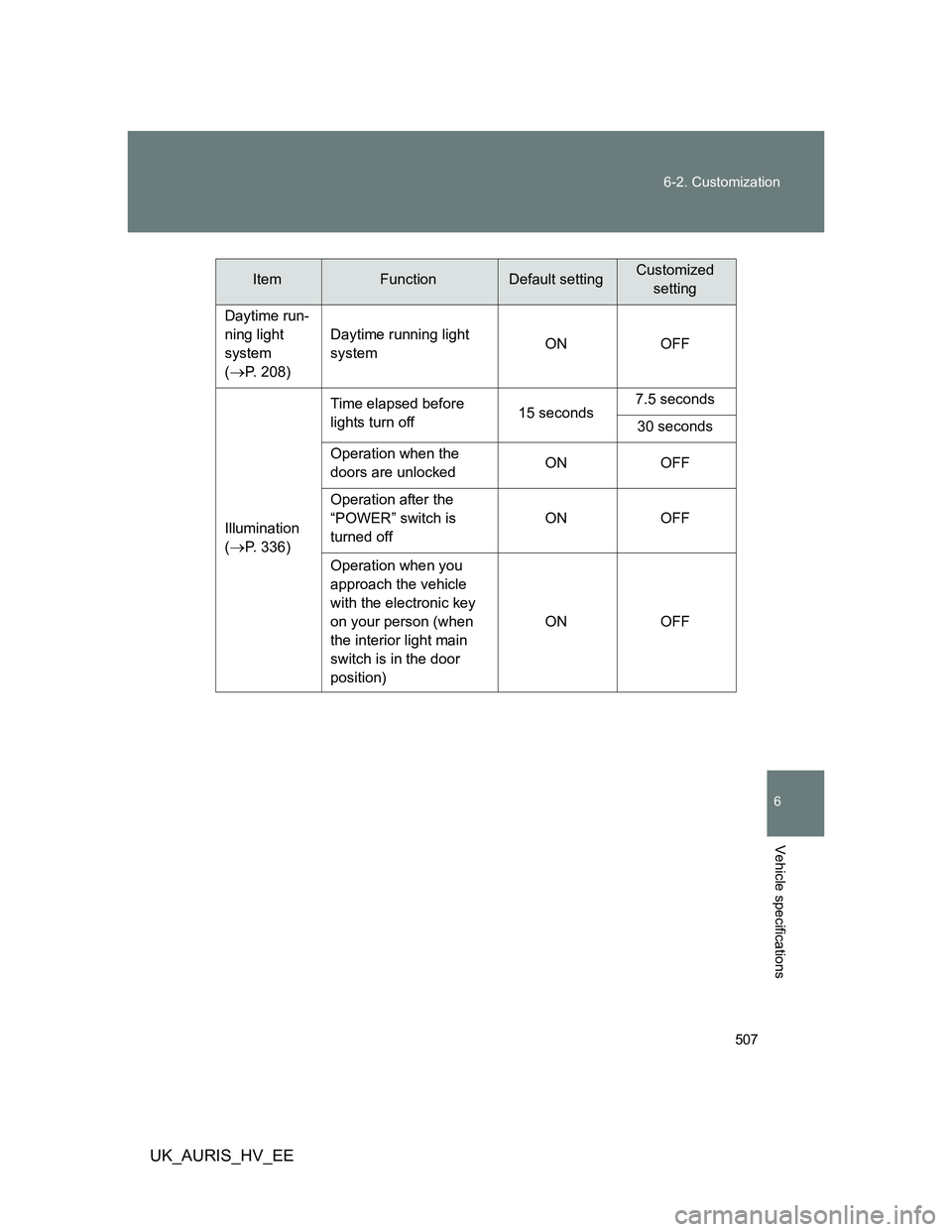

Daytime run-
ning light
system
(
P. 208)Daytime running light
systemON OFF
Illumination
(
P. 336)Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlockedON OFF
Operation after the
“POWER” switch is
turned offON OFF
Operation when you
approach the vehicle
with the electronic key
on your person (when
the interior light main
switch is in the door
position)ON OFF
ItemFunctionDefault settingCustomized
setting

508 6-2. Customization
UK_AURIS_HV_EE

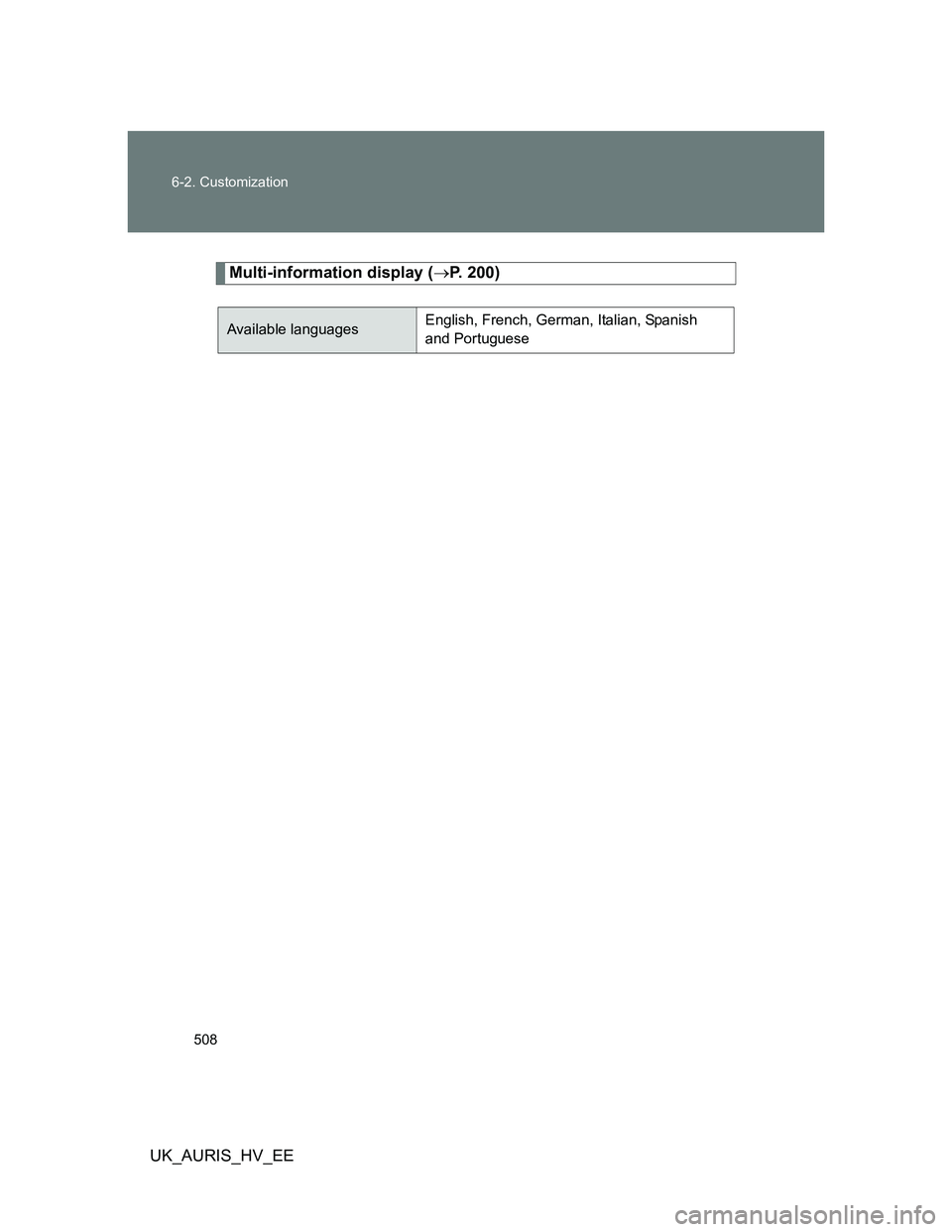

Multi-information display (P. 200)
Available languagesEnglish, French, German, Italian, Spanish
and Portuguese

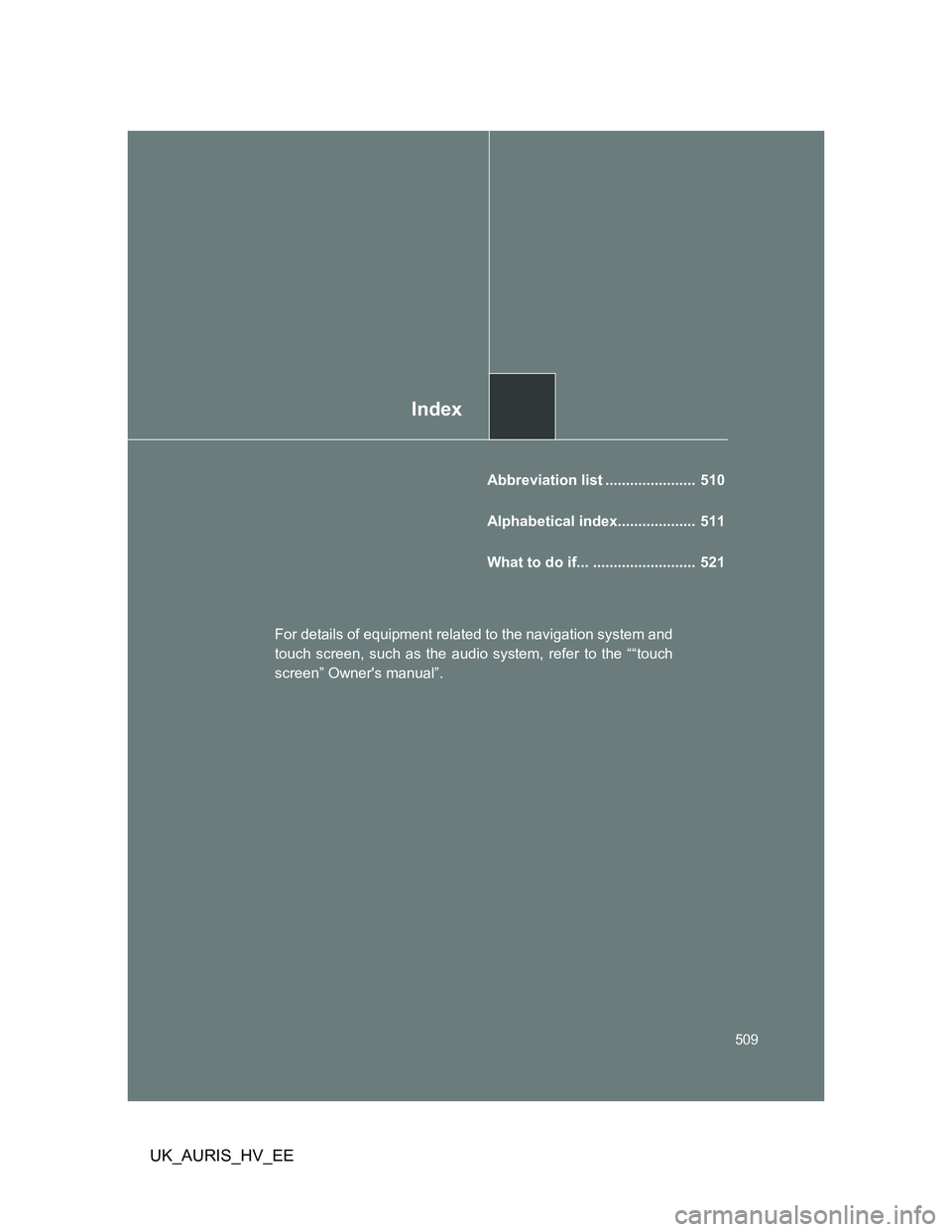

Index
509
UK_AURIS_HV_EE
Abbreviation list ...................... 510
Alphabetical index................... 511
What to do if... ......................... 521
For details of equipment related to the navigation system and
touch screen, such as the audio system, refer to the ““touch
screen” Owner's manual”.

510
UK_AURIS_HV_EE

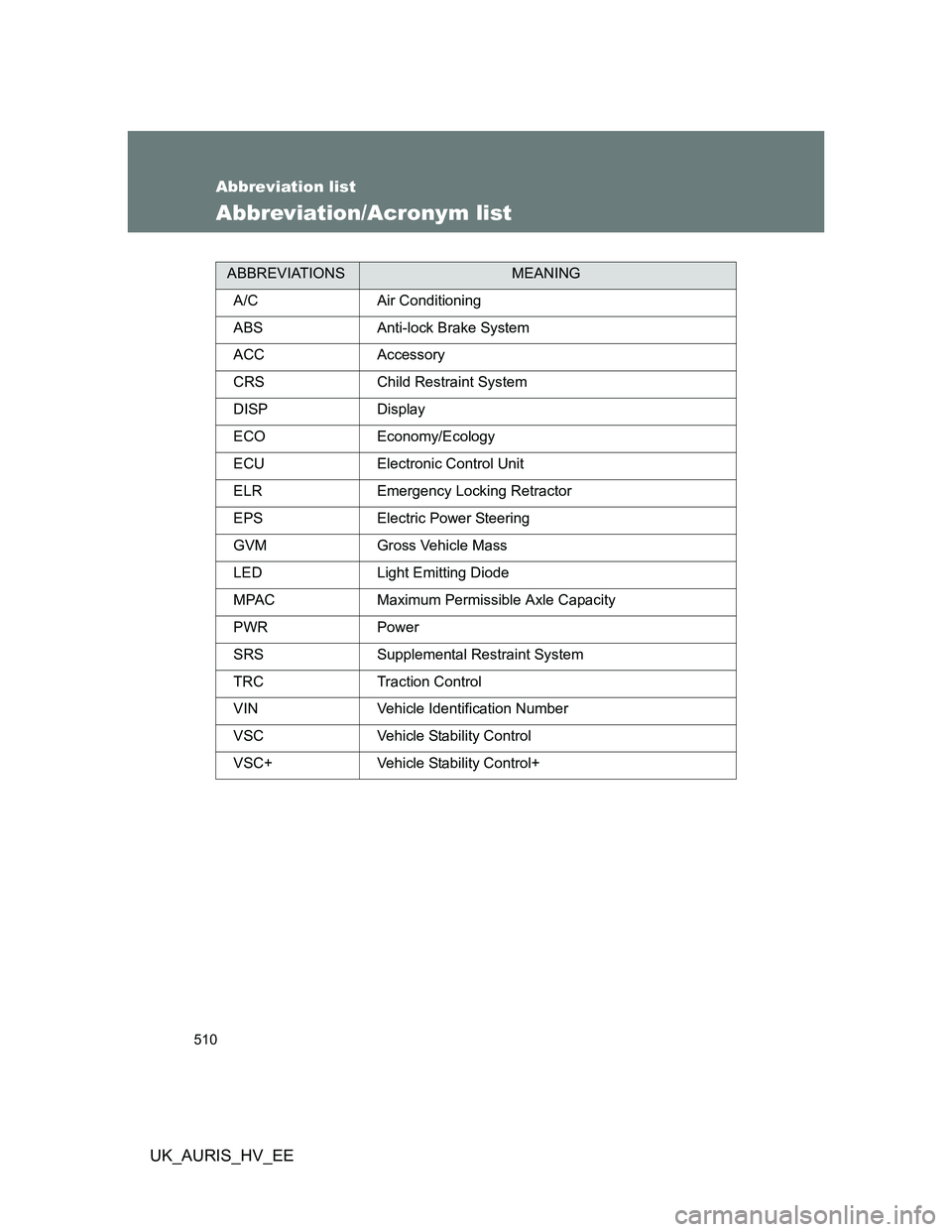

Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A/C Air Conditioning
ABS Anti-lock Brake System
ACC Accessory
CRS Child Restraint System
DISP Display
ECO Economy/Ecology
ECU Electronic Control Unit
ELR Emergency Locking Retractor
EPS Electric Power Steering
GVM Gross Vehicle Mass
LED Light Emitting Diode
MPAC Maximum Permissible Axle Capacity
PWR Power
SRS Supplemental Restraint System
TRC Traction Control
VIN Vehicle Identification Number
VSC Vehicle Stability Control
VSC+ Vehicle Stability Control+
