TOYOTA AURIS HYBRID 2012 Owners Manual

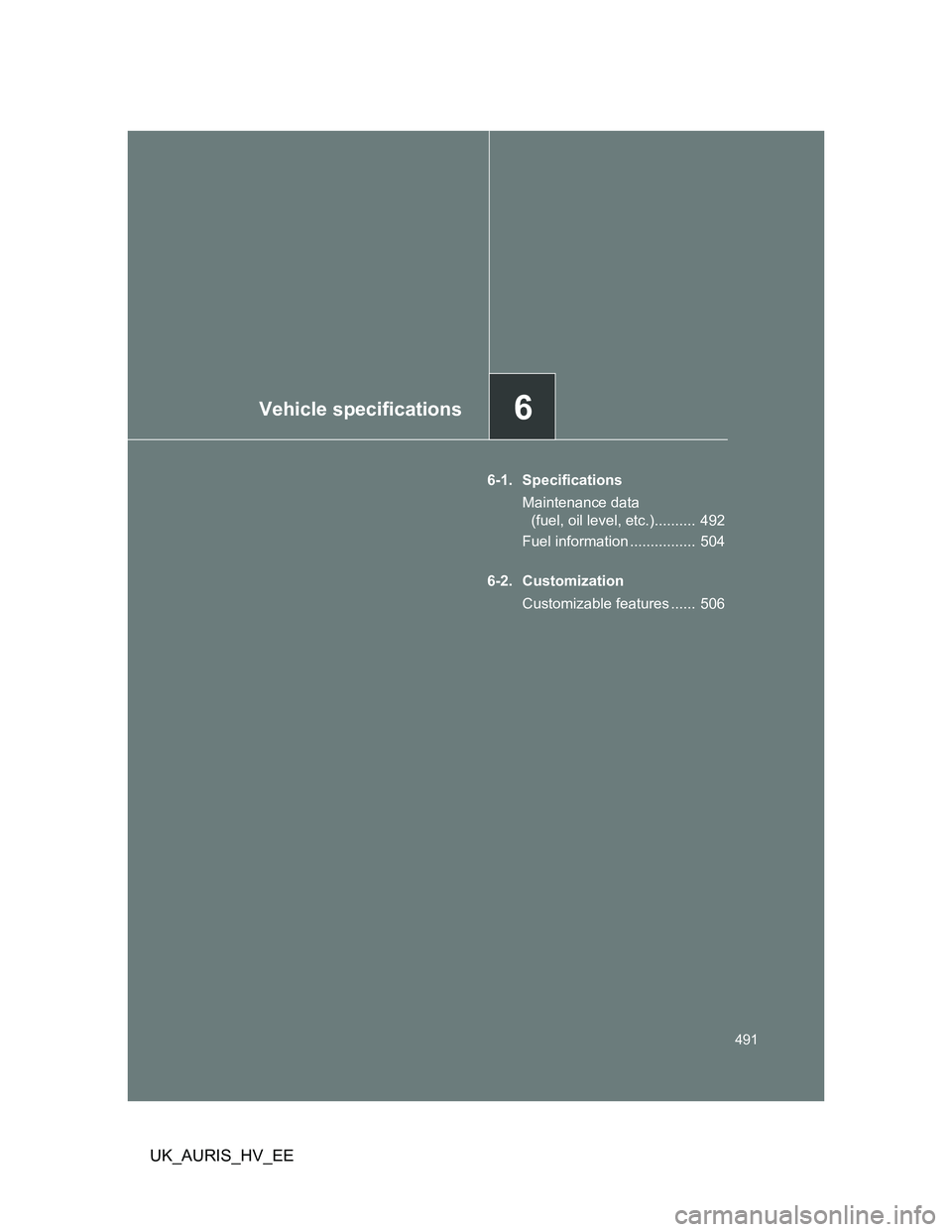

6Vehicle specifications
491
UK_AURIS_HV_EE
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 492
Fuel information ................ 504
6-2. Customization
Customizable features ...... 506

492
UK_AURIS_HV_EE
6-1. Specifications

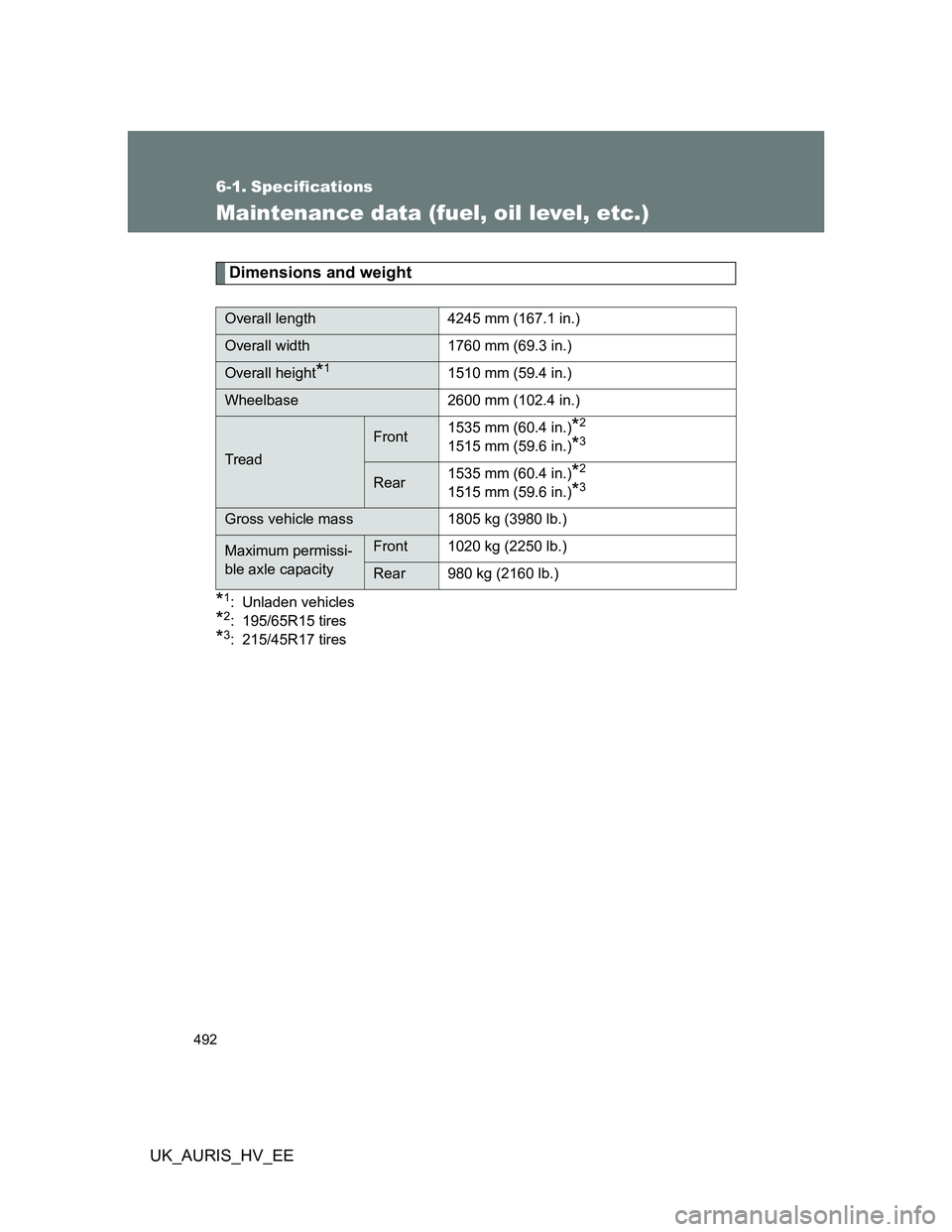

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicles
*2: 195/65R15 tires
*3: 215/45R17 tires
Overall length 4245 mm (167.1 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11510 mm (59.4 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)*2
1515 mm (59.6 in.)*3
Rear1535 mm (60.4 in.)*2
1515 mm (59.6 in.)*3
Gross vehicle mass 1805 kg (3980 lb.)
Maximum permissi-
ble axle capacityFront 1020 kg (2250 lb.)
Rear 980 kg (2160 lb.)

493 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE

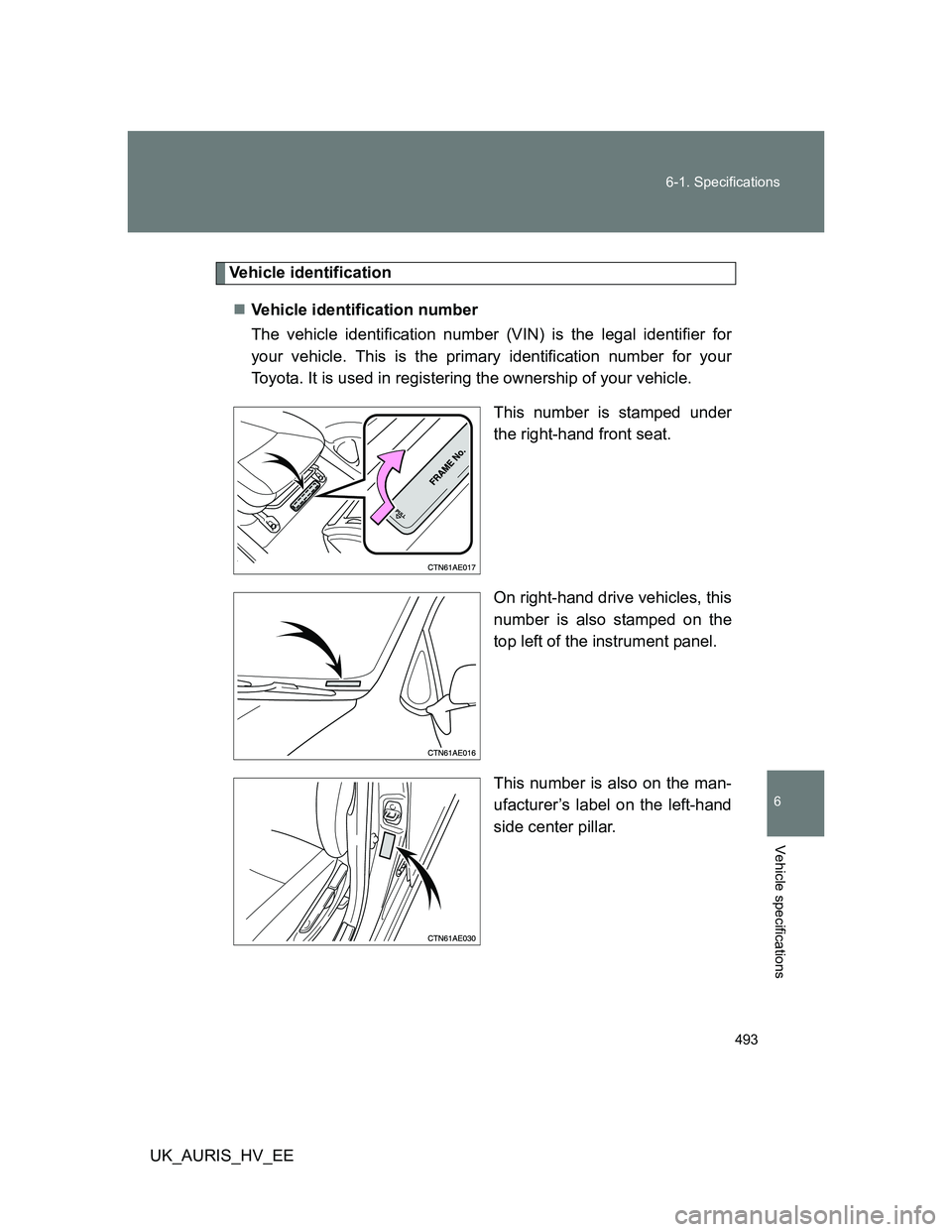

Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
On right-hand drive vehicles, this
number is also stamped on the
top left of the instrument panel.
This number is also on the man-
ufacturer’s label on the left-hand
side center pillar.

494 6-1. Specifications

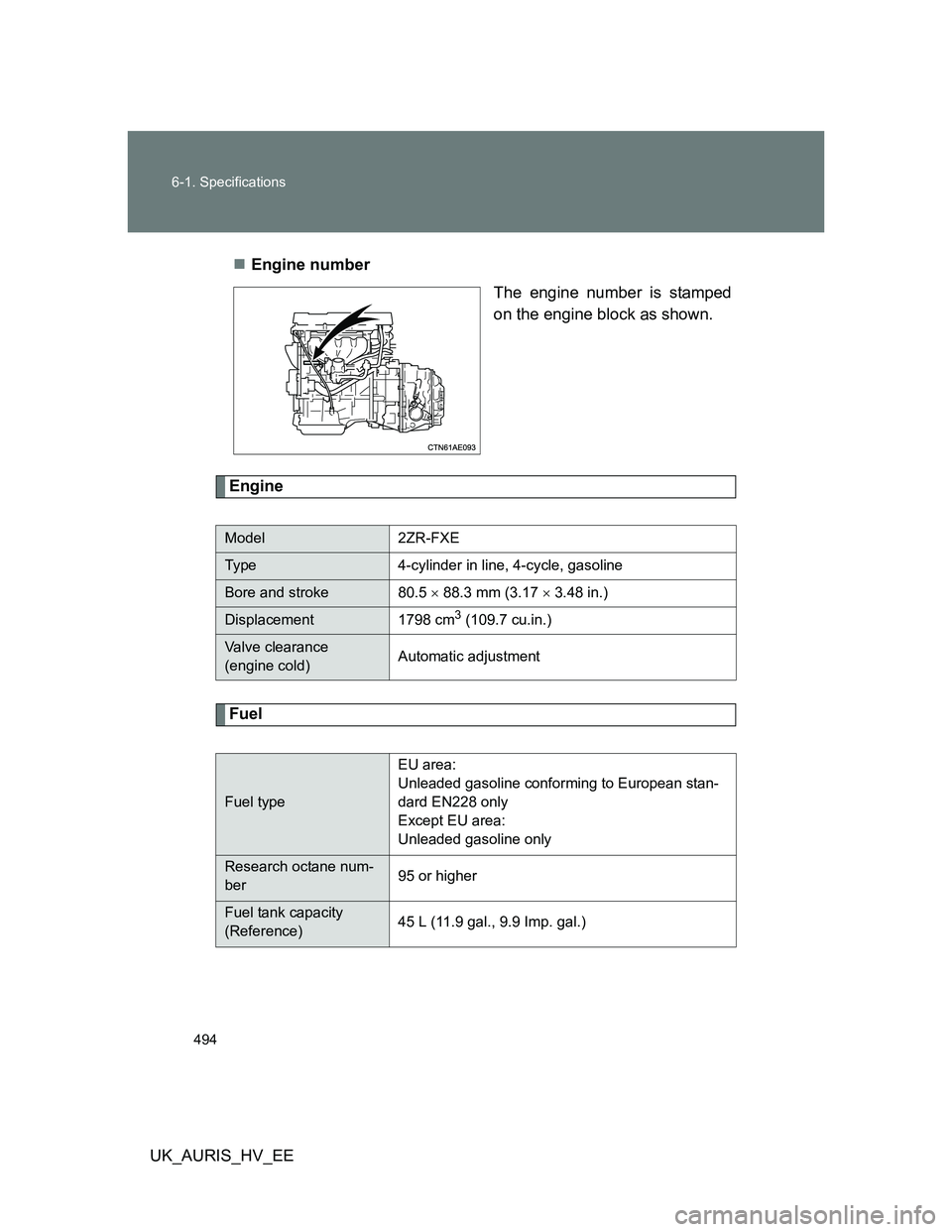

UK_AURIS_HV_EEEngine number
The engine number is stamped
on the engine block as shown.
Engine
Fuel
Model2ZR-FXE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 80.5  88.3 mm (3.17  3.48 in.)
Displacement 1798 cm3 (109.7 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Fuel typeEU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane num-
ber95 or higher
Fuel tank capacity
(Reference)45 L (11.9 gal., 9.9 Imp. gal.)

495 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE
Electric motor (Traction motor)
Hybrid battery (Traction battery)
Lubrication system
Ty p ePermanent magnet motor
Maximum output 60 kW
Maximum torque 207 N•m (21.1 kgf•m, 153 ft•lbf)
Ty p eNickel-Metal hydride battery
Voltage 7.2 V/module
Capacity 6.5 Ah (3HR)
Quantity 28 modules
Overall voltage 201.6 V
Oil capacity
(Drain and refill
ref-
erence)
With filter
Without filter4.2 L (4.4 qt., 3.7 Imp. qt.)
3.9 L (4.1 qt., 3.4 Imp. qt.)

496 6-1. Specifications

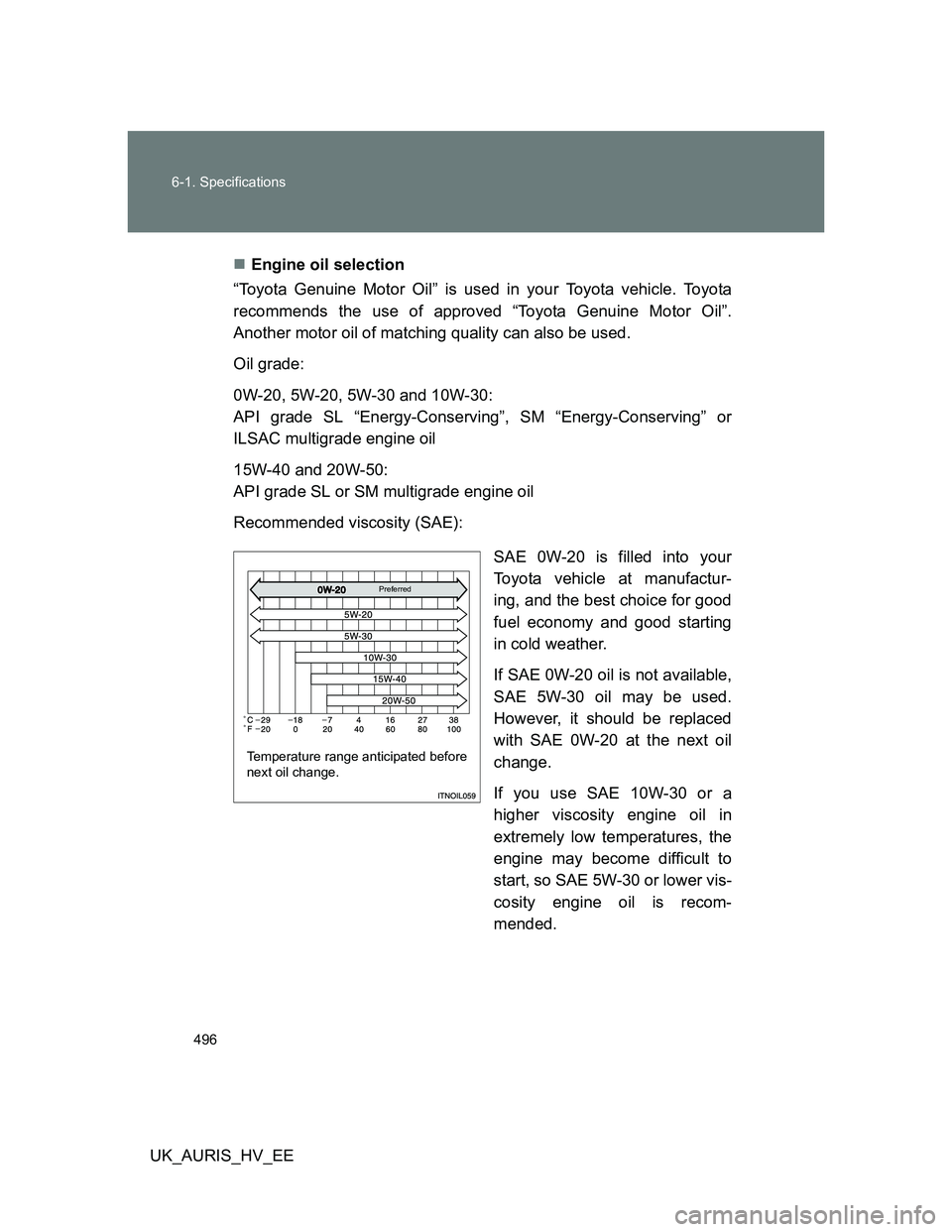

UK_AURIS_HV_EEEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for good
fuel economy and good starting
in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Temperature range anticipated before
next oil change.
Preferred

497 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE

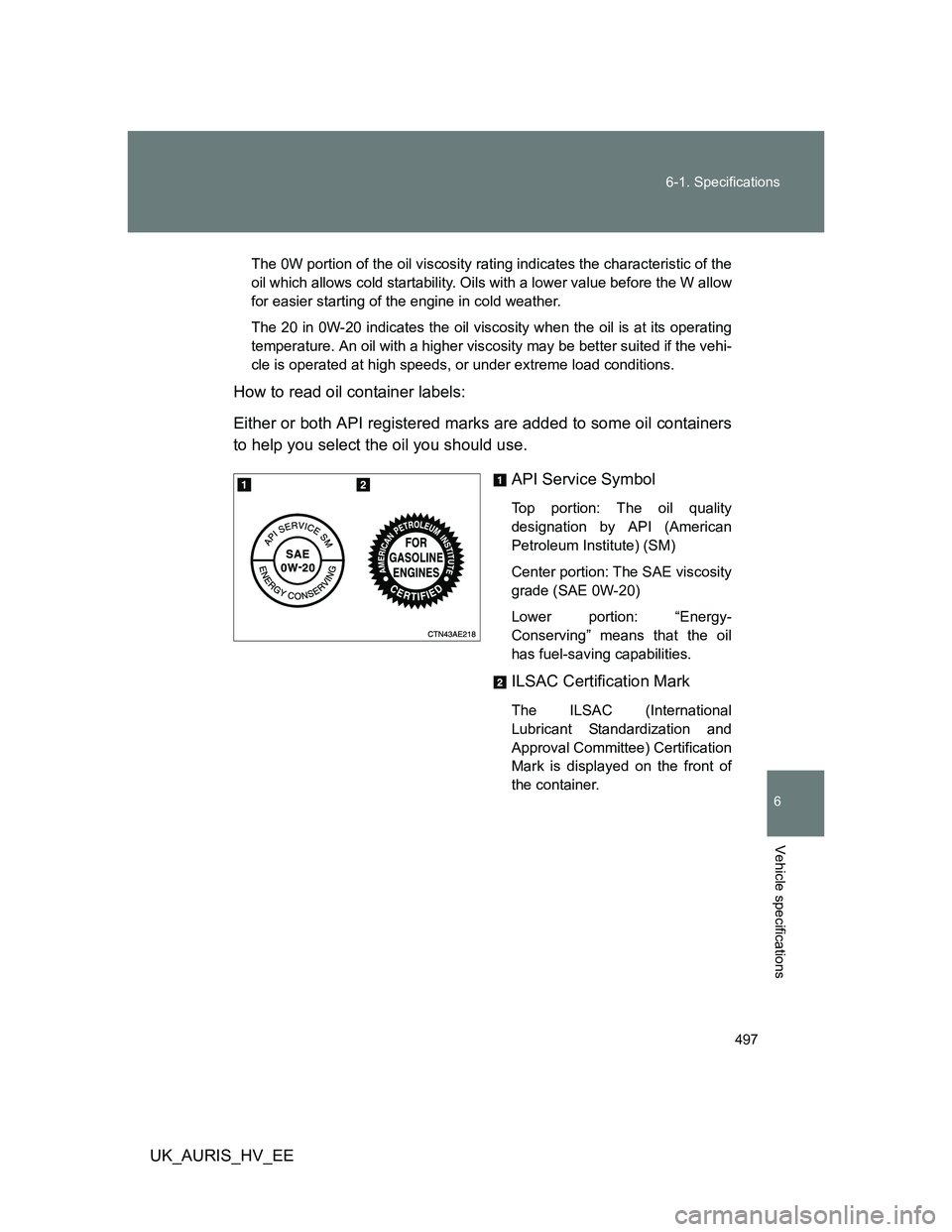

The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality
designation by API (American
Petroleum Institute) (SM)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Energy-
Conserving” means that the oil
has fuel-saving capabilities.
ILSAC Certification Mark
The ILSAC (International
Lubricant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

498 6-1. Specifications
UK_AURIS_HV_EE

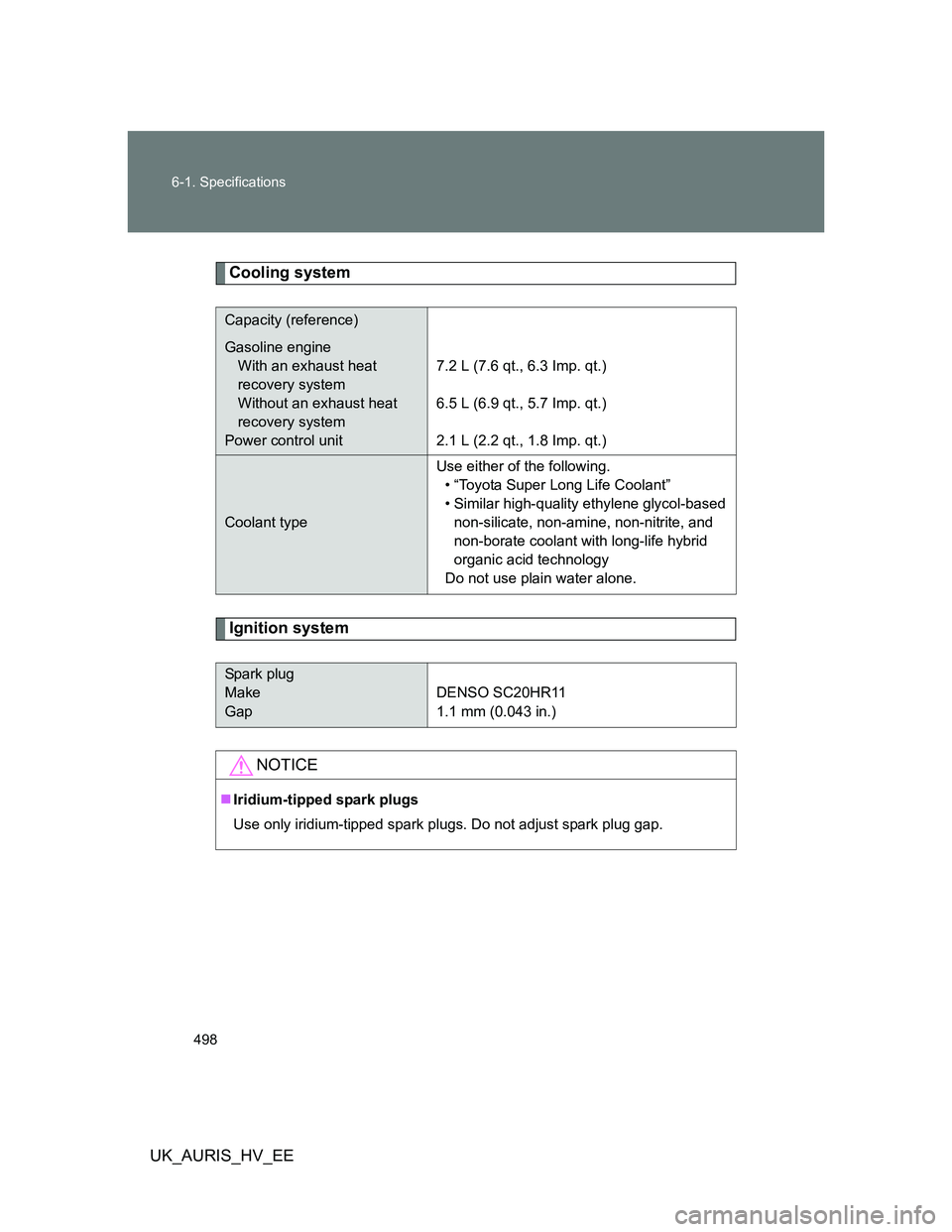

Cooling system
Ignition system
Capacity (reference)
Gasoline engine
With an exhaust heat
recovery system
Without an exhaust heat
recovery system
Power control unit7.2 L (7.6 qt., 6.3 Imp. qt.)
6.5 L (6.9 qt., 5.7 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
Make
GapDENSO SC20HR11
1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

499 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE

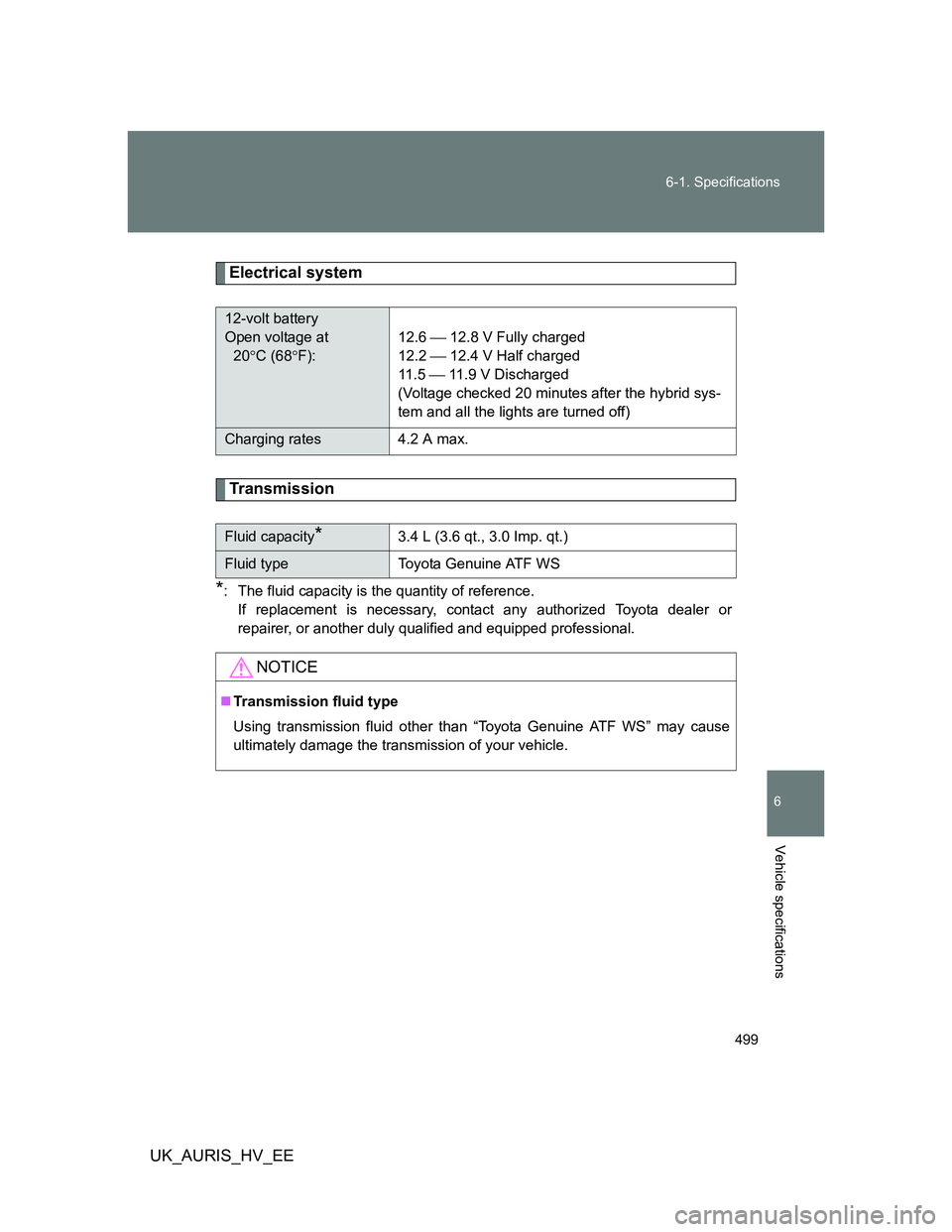

Electrical system
Transmission
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
12-volt battery
Open voltage at
20C (68F):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 5  11.9 V Discharged
(Voltage checked 20 minutes after the hybrid sys-
tem and all the lights are turned off)
Charging rates 4.2 A max.
Fluid capacity*3.4 L (3.6 qt., 3.0 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
ultimately damage the transmission of your vehicle.

500 6-1. Specifications
UK_AURIS_HV_EE

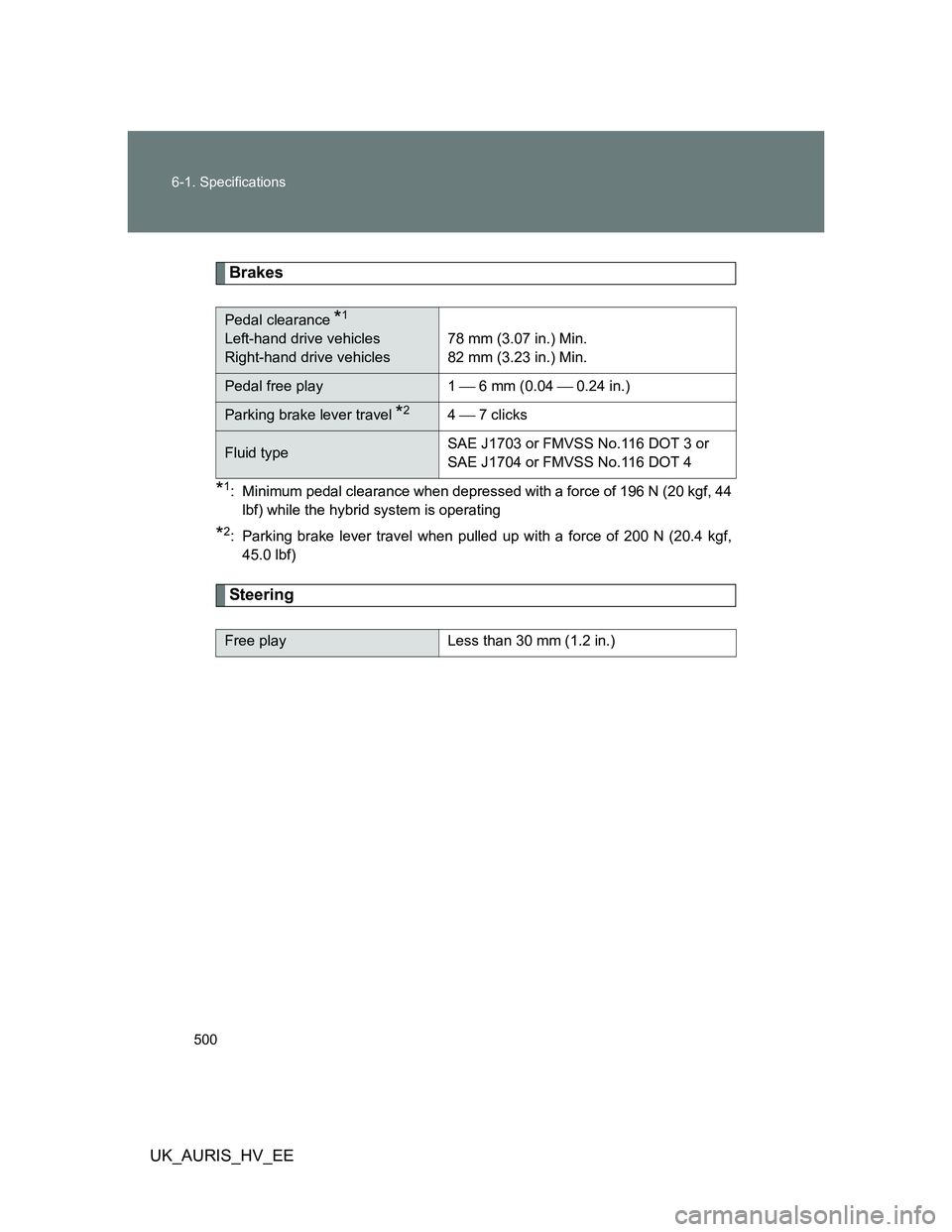

Brakes
*1: Minimum pedal clearance when depressed with a force of 196 N (20 kgf, 44
lbf) while the hybrid system is operating
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Steering
Pedal clearance *1
Left-hand drive vehicles
Right-hand drive vehicles78 mm (3.07 in.) Min.
82 mm (3.23 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel *24  7 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Free play Less than 30 mm (1.2 in.)
