TOYOTA AURIS HYBRID 2013 Owners Manual

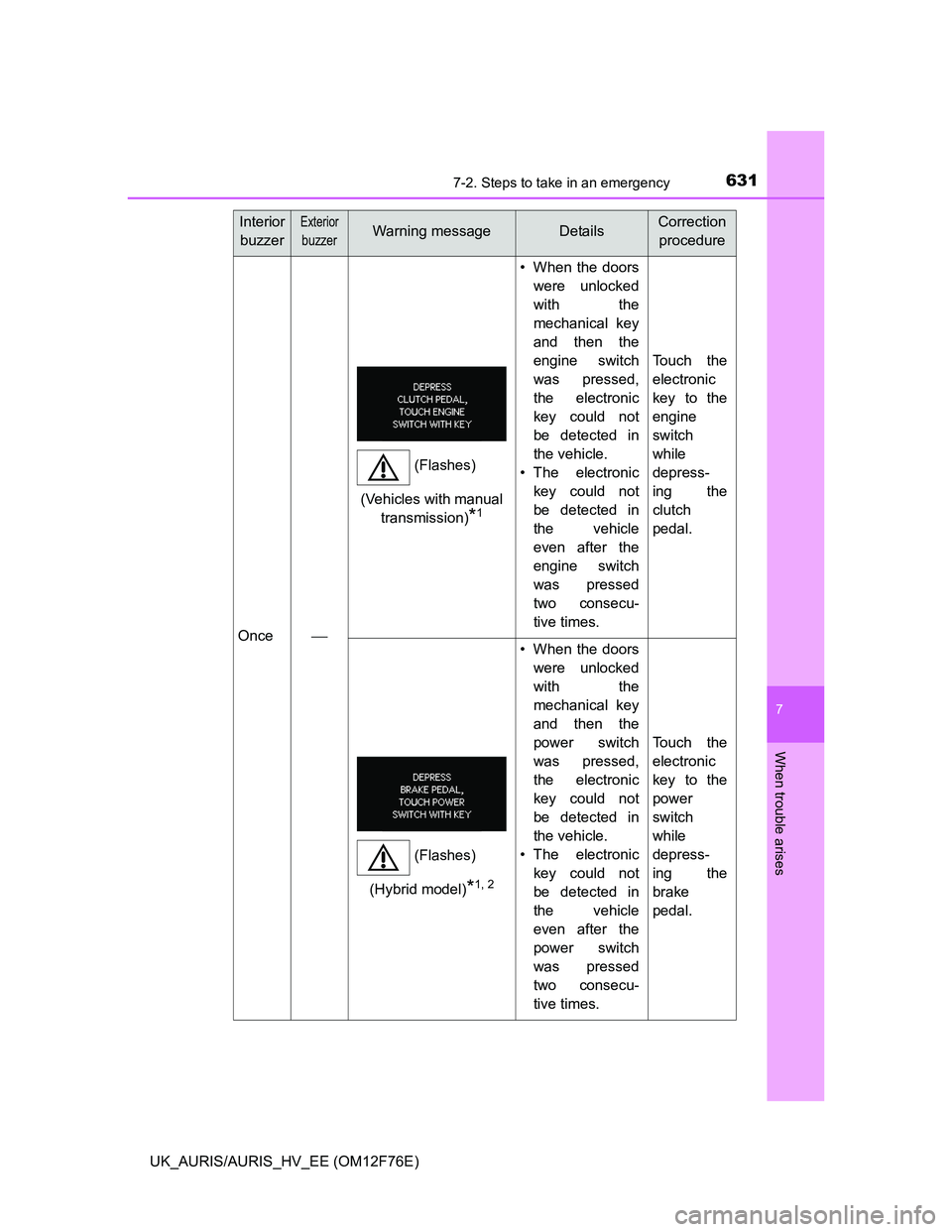

6317-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises
Once
• When the doors
were unlocked
with the
mechanical key
and then the
engine switch
was pressed,
the electronic
key could not
be detected in
the vehicle.
• The electronic
key could not
be detected in
the vehicle
even after the
engine switch
was pressed
two consecu-
tive times.
Touch the
electronic
key to the
engine
switch
while
depress-
ing the
clutch
pedal.
• When the doors
were unlocked
with the
mechanical key
and then the
power switch
was pressed,
the electronic
key could not
be detected in
the vehicle.
• The electronic
key could not
be detected in
the vehicle
even after the
power switch
was pressed
two consecu-
tive times.
Touch the
electronic
key to the
power
switch
while
depress-
ing the
brake
pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with manual
transmission)
*1
(Flashes)
(Hybrid model)
*1, 2

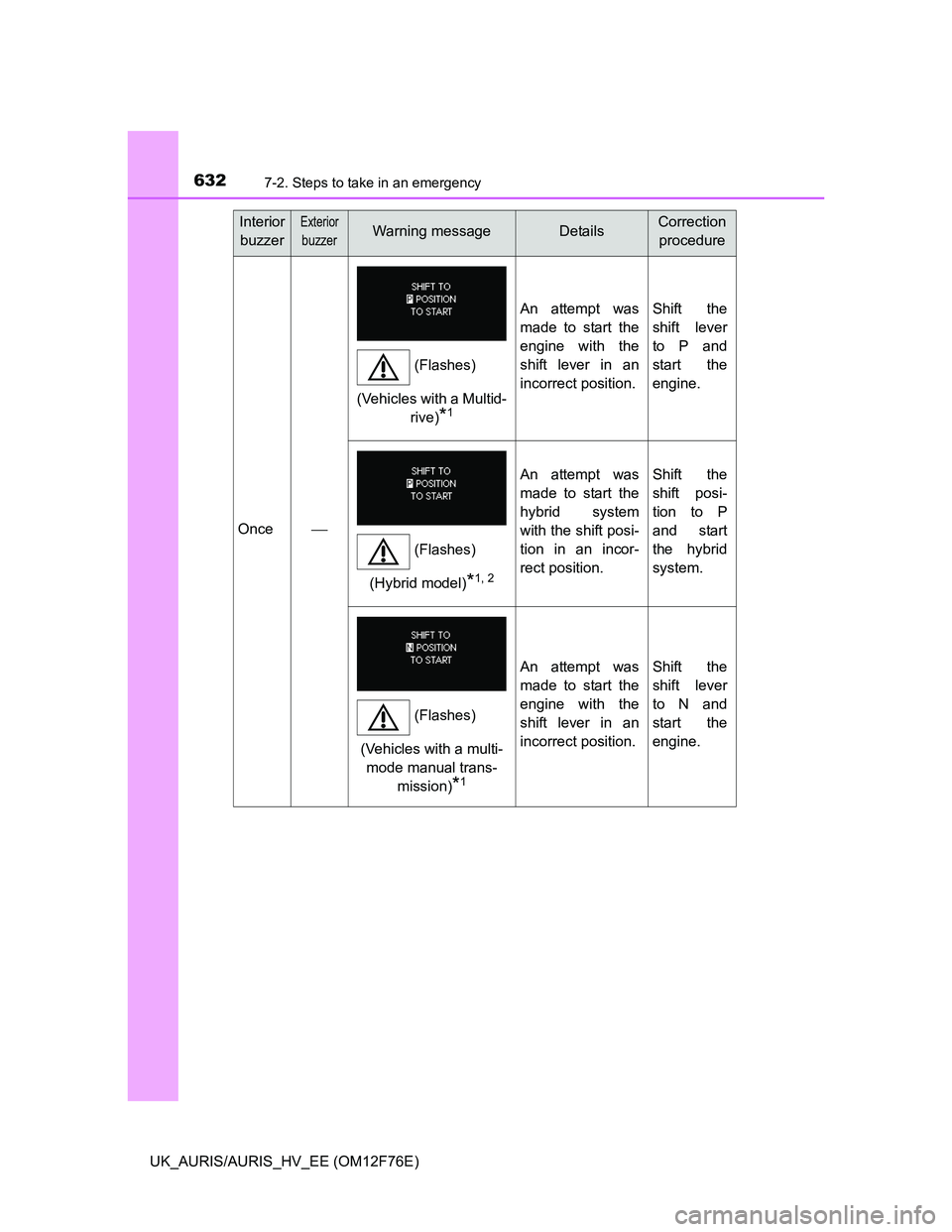

6327-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
Once
An attempt was
made to start the
engine with the
shift lever in an
incorrect position.Shift the
shift lever
to P and
start the
engine.
An attempt was
made to start the
hybrid system
with the shift posi-
tion in an incor-
rect position.Shift the
shift posi-
tion to P
and start
the hybrid
system.
An attempt was
made to start the
engine with the
shift lever in an
incorrect position.Shift the
shift lever
to N and
start the
engine.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive)
*1
(Flashes)
(Hybrid model)
*1, 2
(Flashes)
(Vehicles with a multi-
mode manual trans-
mission)
*1

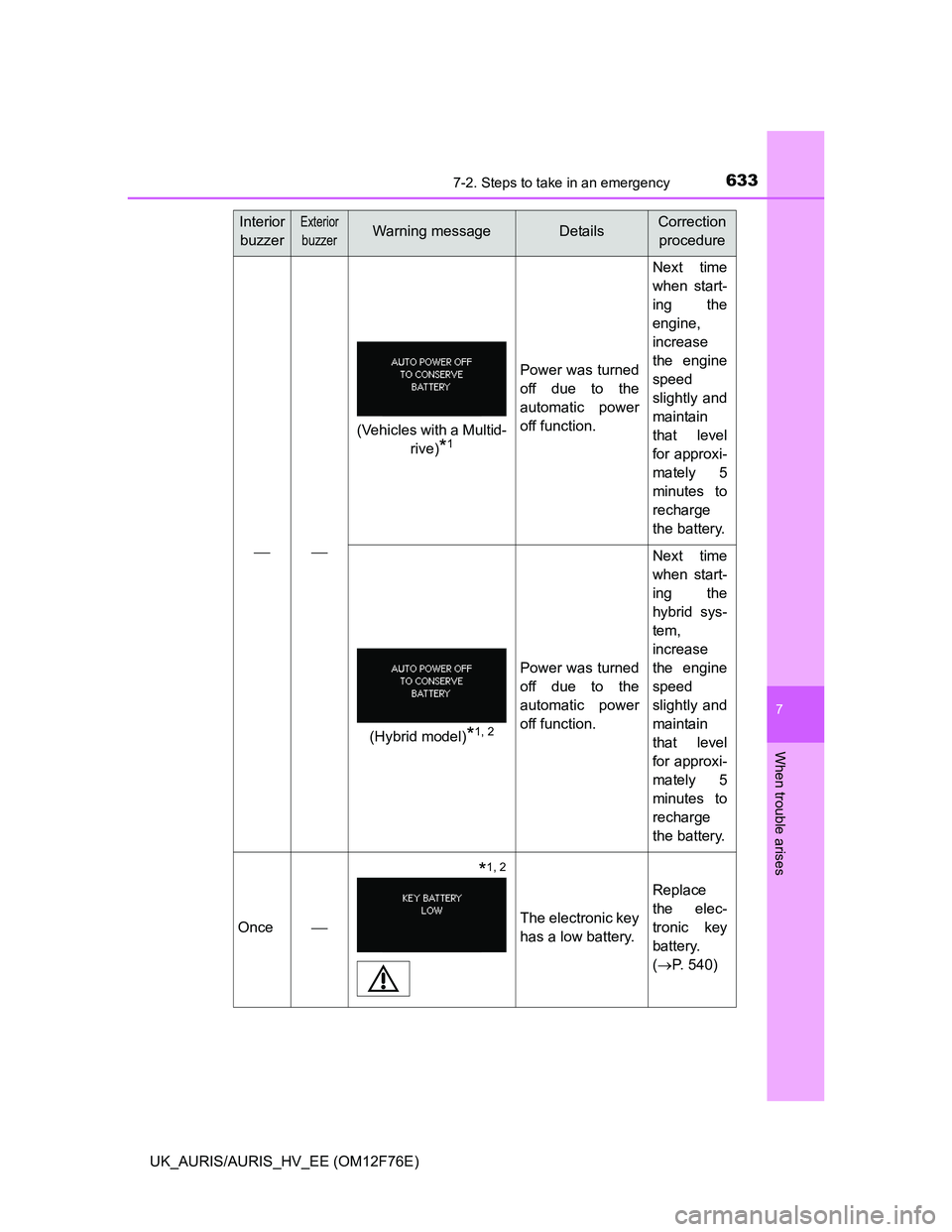

6337-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises

Power was turned
off due to the
automatic power
off function.
Next time
when start-
ing the
engine,
increase
the engine
speed
slightly and
maintain
that level
for approxi-
mately 5
minutes to
recharge
the battery.
Power was turned
off due to the
automatic power
off function.
Next time
when start-
ing the
hybrid sys-
tem,
increase
the engine
speed
slightly and
maintain
that level
for approxi-
mately 5
minutes to
recharge
the battery.
OnceThe electronic key
has a low battery.
Replace
the elec-
tronic key
battery.
(P. 540)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Vehicles with a Multid-
rive)
*1
(Hybrid model)*1, 2
*1, 2

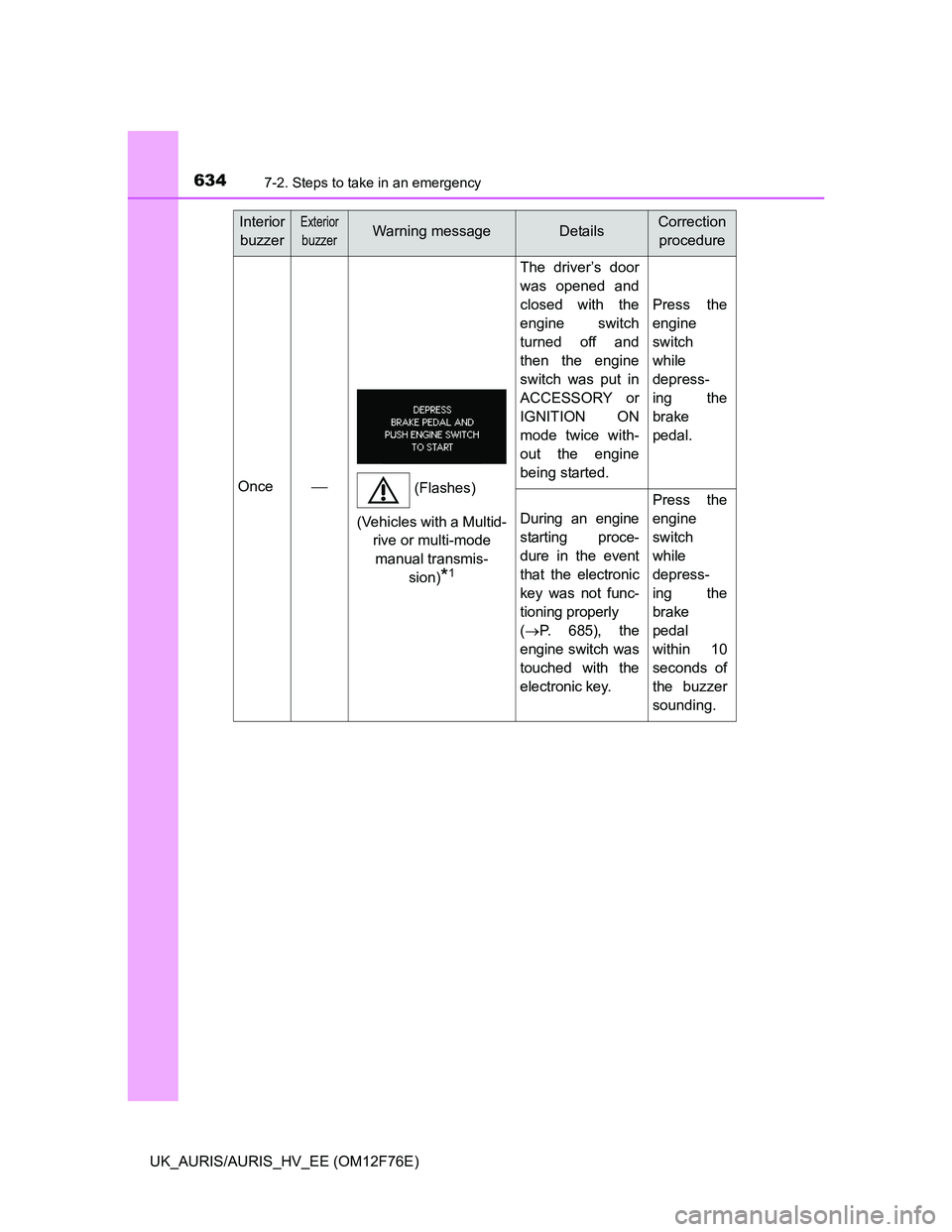

6347-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
Once
The driver’s door
was opened and
closed with the
engine switch
turned off and
then the engine
switch was put in
ACCESSORY or
IGNITION ON
mode twice with-
out the engine
being started.
Press the
engine
switch
while
depress-
ing the
brake
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
(P. 6 8 5 ) , t h e
engine switch was
touched with the
electronic key.
Press the
engine
switch
while
depress-
ing the
brake
pedal
within 10
seconds of
the buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive or multi-mode
manual transmis-
sion)
*1

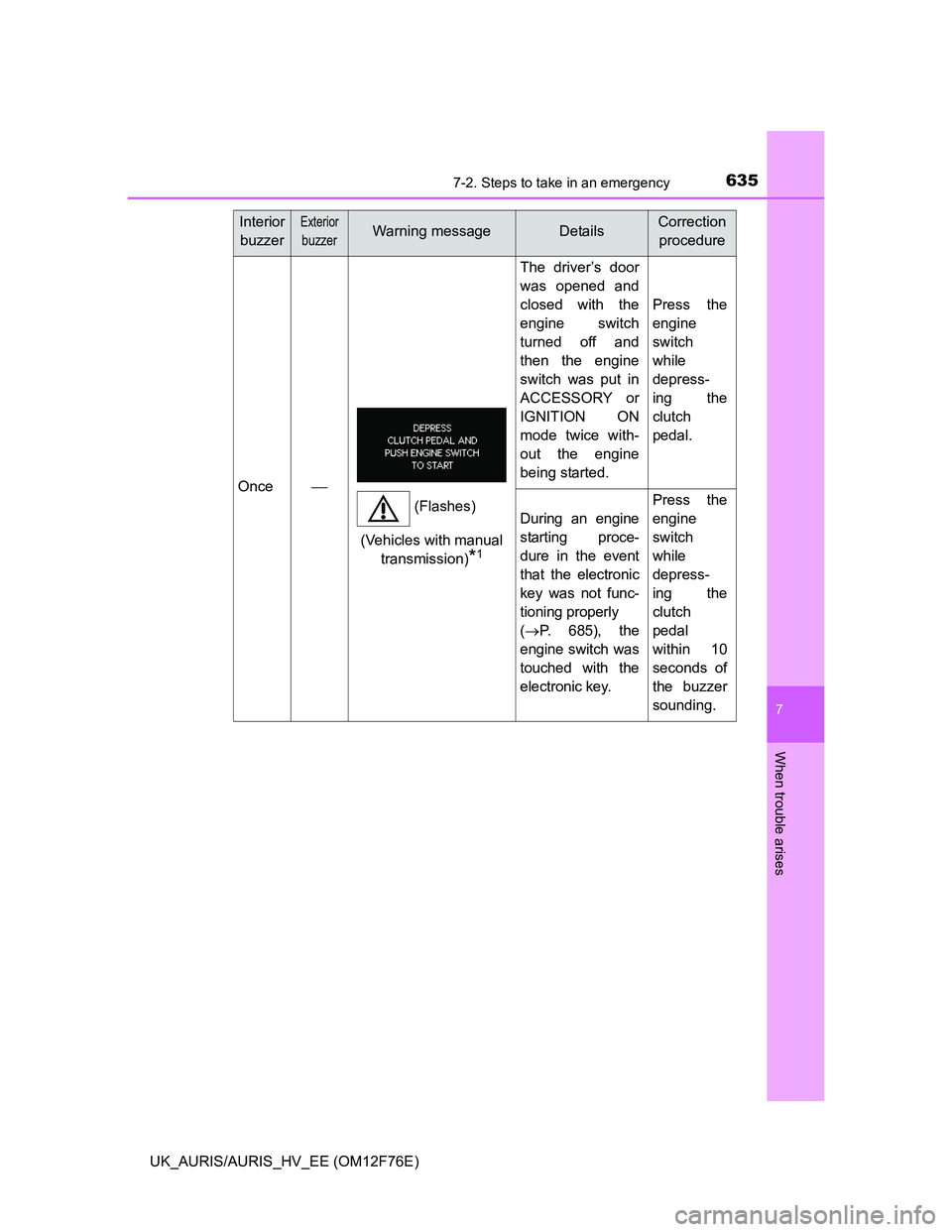

6357-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises
Once
The driver’s door
was opened and
closed with the
engine switch
turned off and
then the engine
switch was put in
ACCESSORY or
IGNITION ON
mode twice with-
out the engine
being started.
Press the
engine
switch
while
depress-
ing the
clutch
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
(P. 6 8 5 ) , t h e
engine switch was
touched with the
electronic key.
Press the
engine
switch
while
depress-
ing the
clutch
pedal
within 10
seconds of
the buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with manual
transmission)
*1

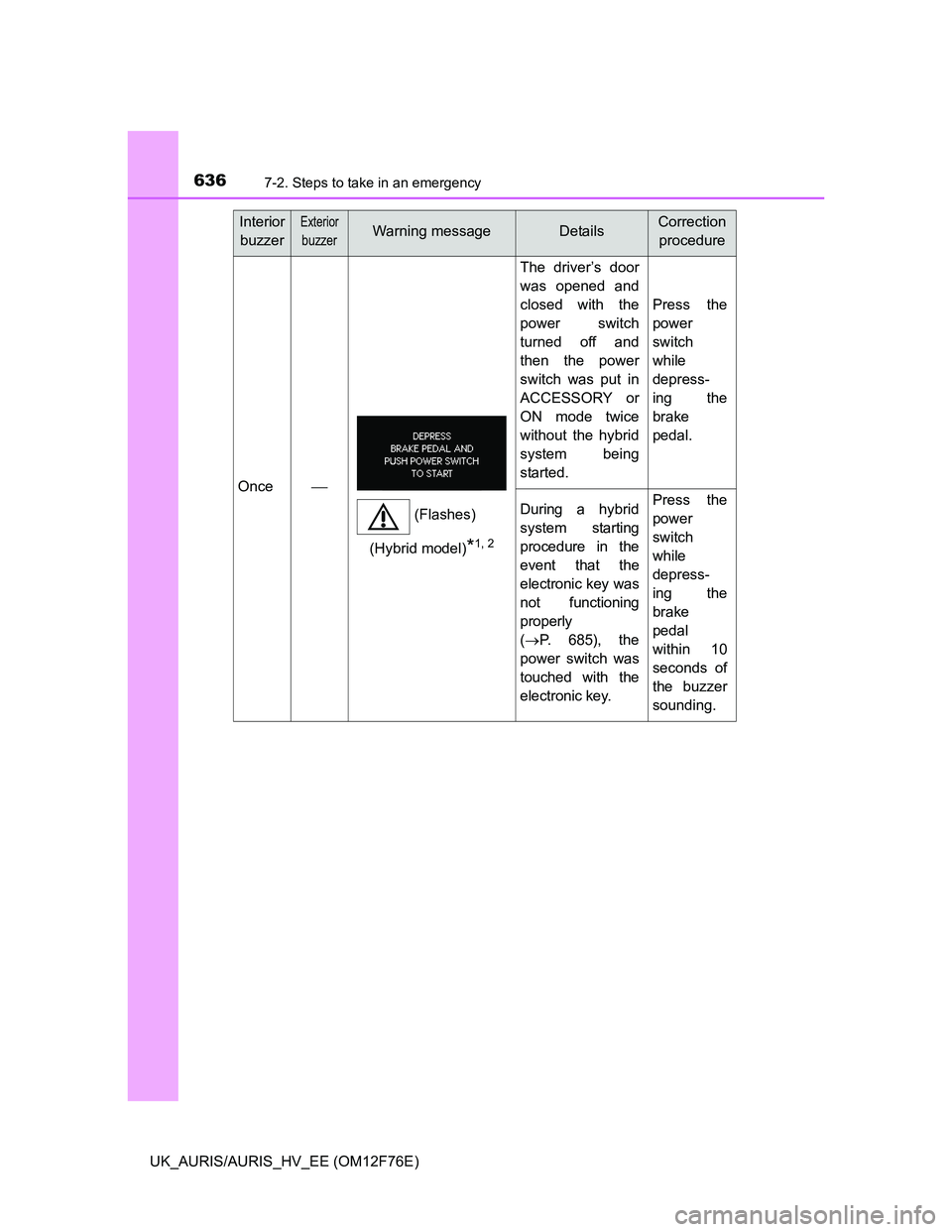

6367-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
Once
The driver’s door
was opened and
closed with the
power switch
turned off and
then the power
switch was put in
ACCESSORY or
ON mode twice
without the hybrid
system being
started.
Press the
power
switch
while
depress-
ing the
brake
pedal.
During a hybrid
system starting
procedure in the
event that the
electronic key was
not functioning
properly
(P. 685), the
power switch was
touched with the
electronic key.Press the
power
switch
while
depress-
ing the
brake
pedal
within 10
seconds of
the buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Hybrid model)
*1, 2

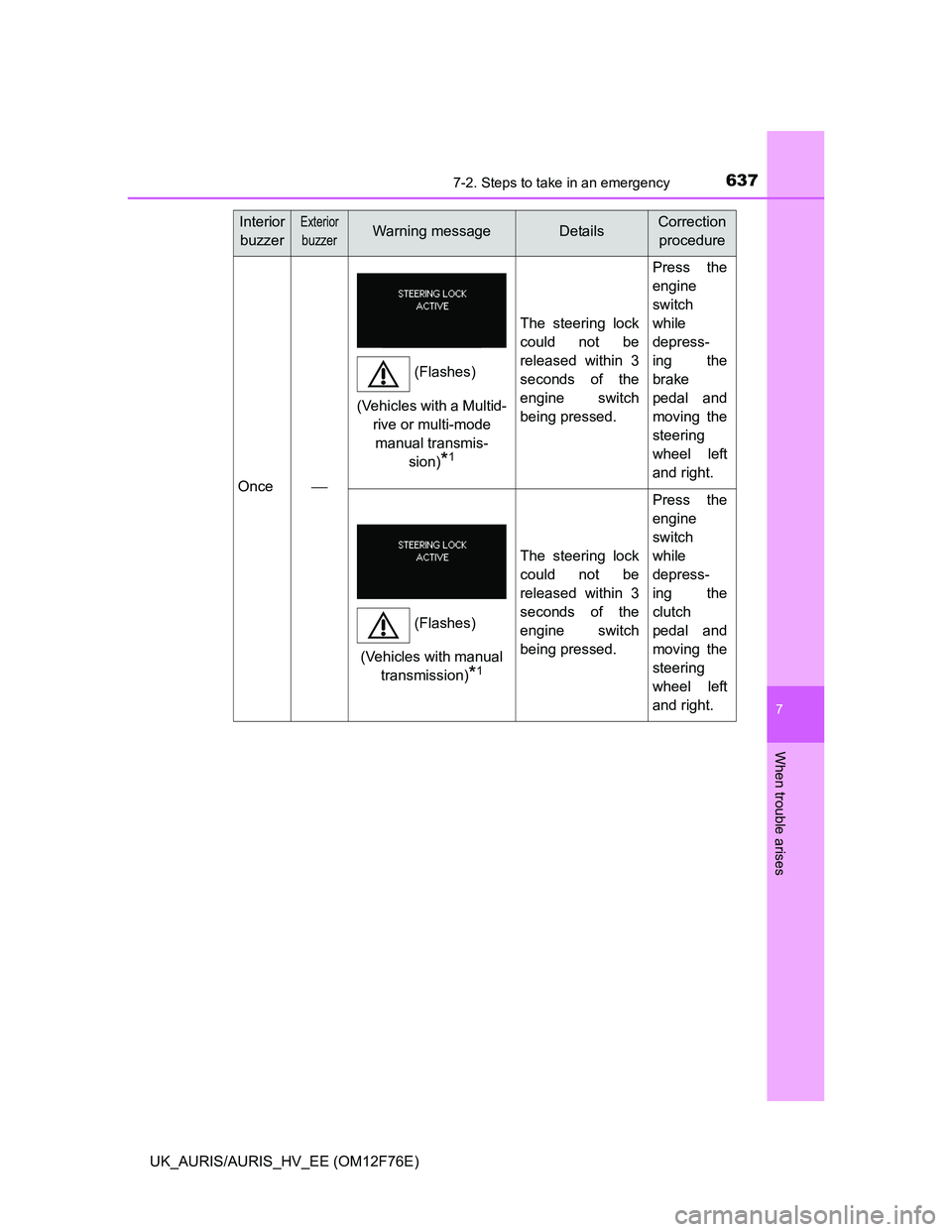

6377-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises
Once
The steering lock
could not be
released within 3
seconds of the
engine switch
being pressed.
Press the
engine
switch
while
depress-
ing the
brake
pedal and
moving the
steering
wheel left
and right.
The steering lock
could not be
released within 3
seconds of the
engine switch
being pressed.
Press the
engine
switch
while
depress-
ing the
clutch
pedal and
moving the
steering
wheel left
and right.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive or multi-mode
manual transmis-
sion)
*1
(Flashes)
(Vehicles with manual
transmission)
*1

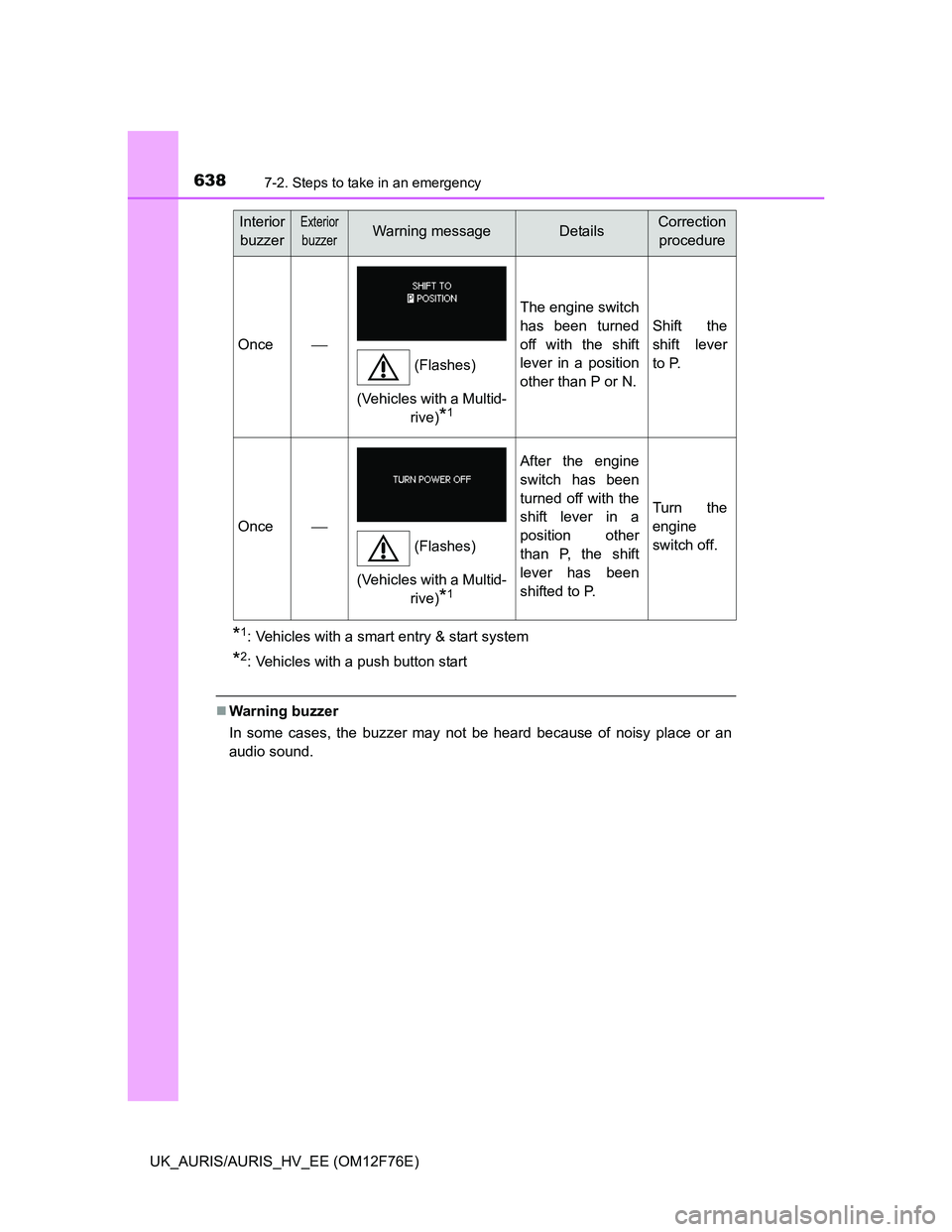

6387-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
*1: Vehicles with a smart entry & start system
*2: Vehicles with a push button start
Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Once
The engine switch
has been turned
off with the shift
lever in a position
other than P or N.
Shift the
shift lever
to P.
Once
After the engine
switch has been
turned off with the
shift lever in a
position other
than P, the shift
lever has been
shifted to P.
Turn the
engine
switch off.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive)
*1
(Flashes)
(Vehicles with a Multid-
rive)
*1

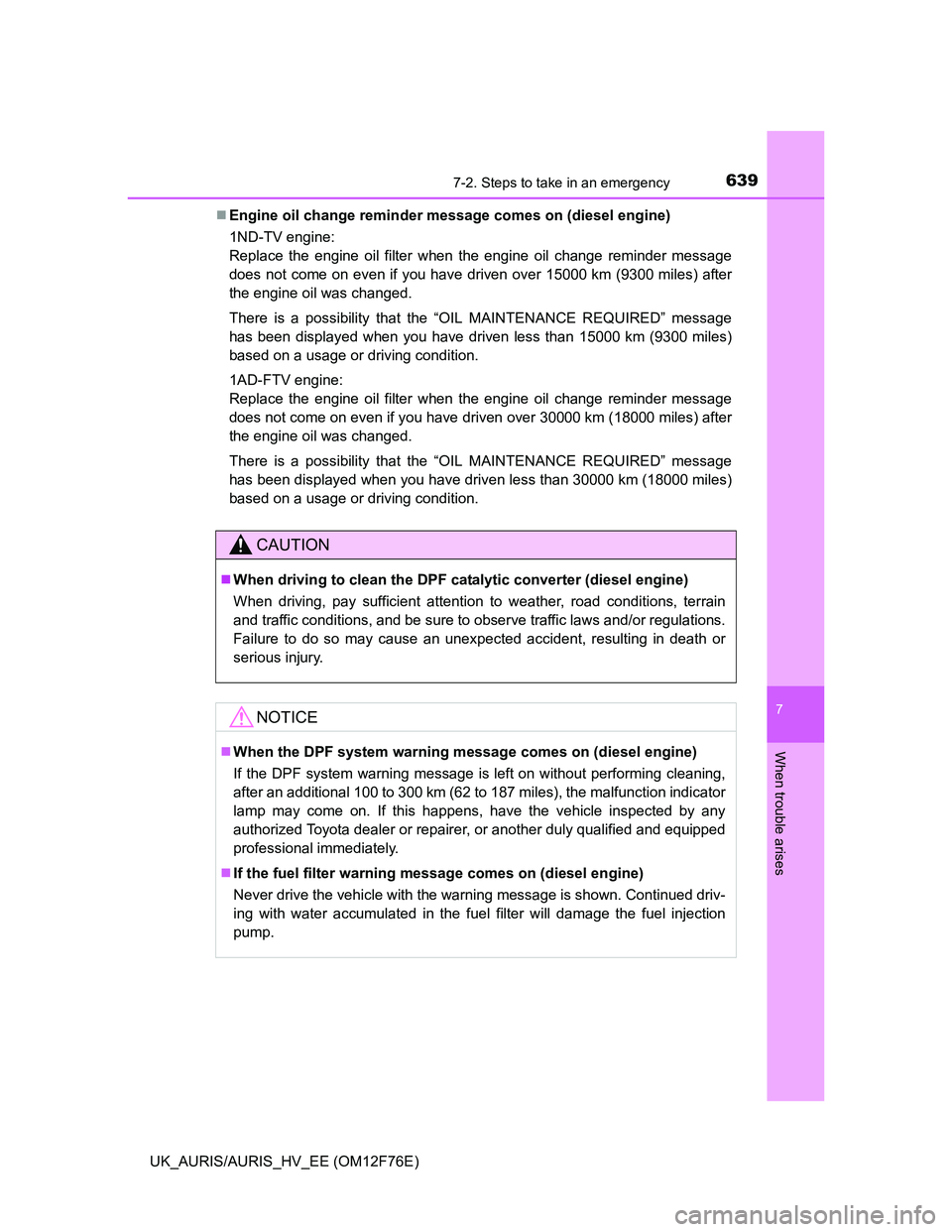

6397-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises
Engine oil change reminder message comes on (diesel engine)
1ND-TV engine:
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 15000 km (9300 miles) after
the engine oil was changed.
There is a possibility that the “OIL MAINTENANCE REQUIRED” message
has been displayed when you have driven less than 15000 km (9300 miles)
based on a usage or driving condition.
1AD-FTV engine:
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 30000 km (18000 miles) after
the engine oil was changed.
There is a possibility that the “OIL MAINTENANCE REQUIRED” message
has been displayed when you have driven less than 30000 km (18000 miles)
based on a usage or driving condition.
CAUTION
When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
NOTICE
When the DPF system warning message comes on (diesel engine)
If the DPF system warning message is left on without performing cleaning,
after an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
If the fuel filter warning message comes on (diesel engine)
Never drive the vehicle with the warning message is shown. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

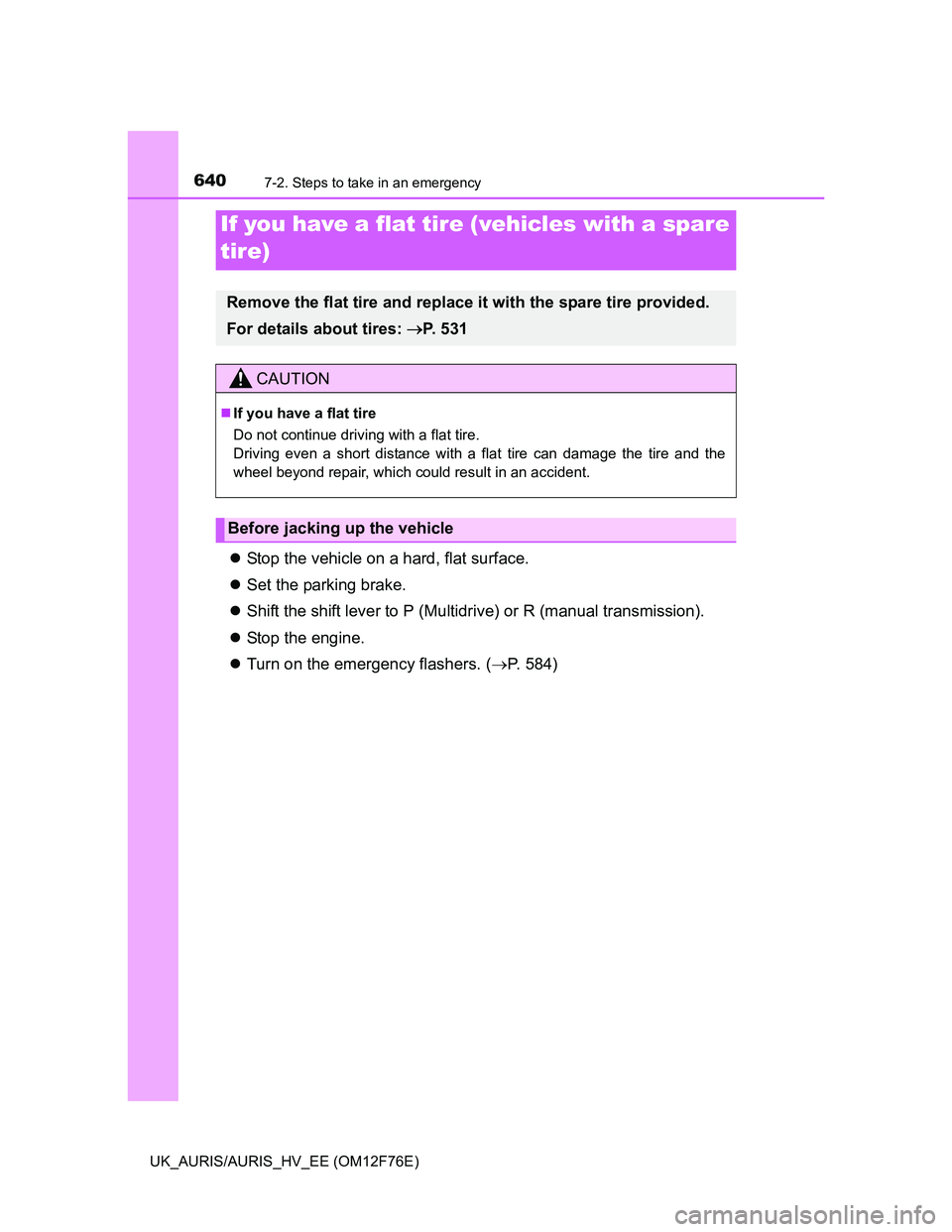

6407-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to P (Multidrive) or R (manual transmission).
Stop the engine.
Turn on the emergency flashers. (P. 584)
If you have a flat tire (vehicles with a spare
tire)
Remove the flat tire and replace it with the spare tire provided.
For details about tires: P. 531
CAUTION
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
