TOYOTA AURIS HYBRID 2013 Owners Manual

6617-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises

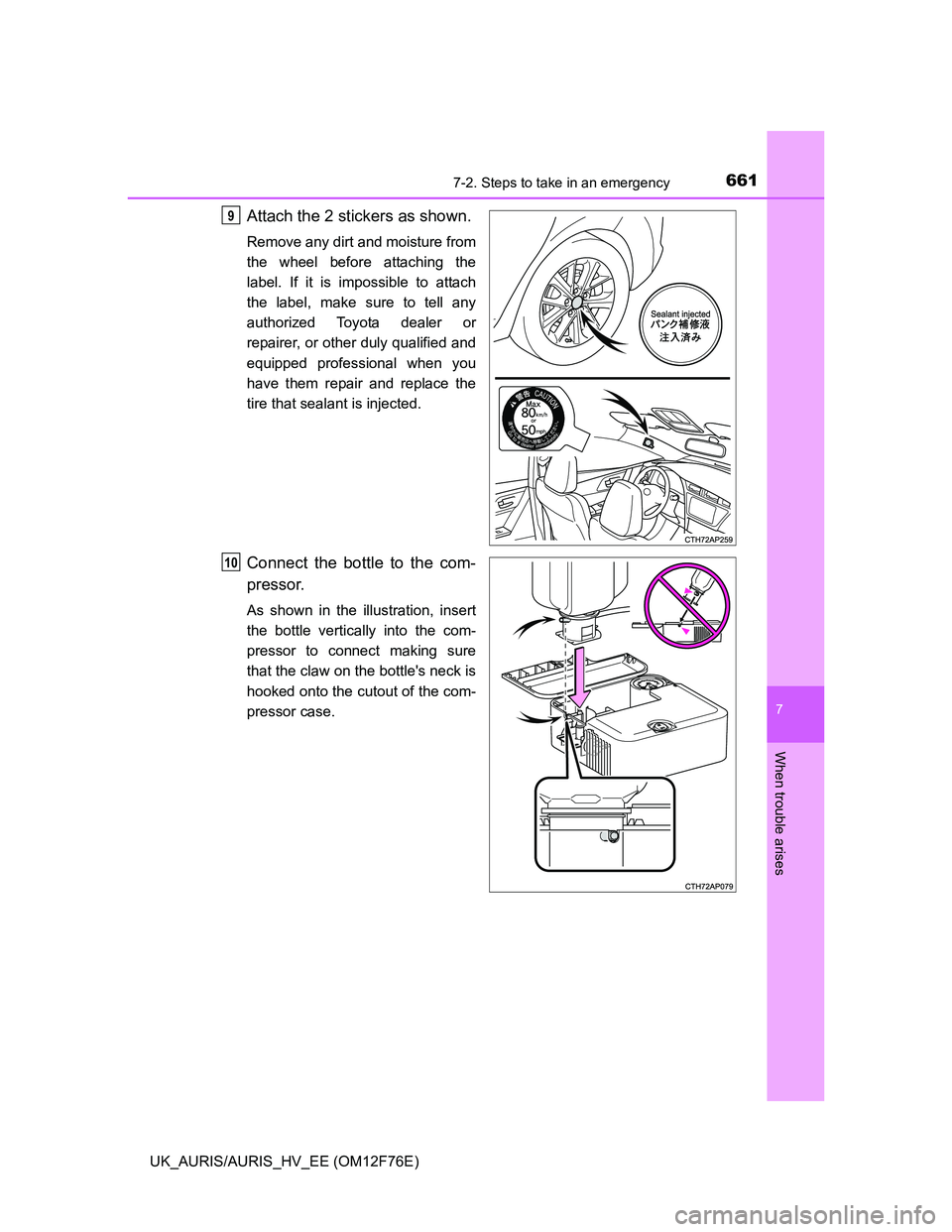

Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
Connect the bottle to the com-
pressor.
As shown in the illustration, insert
the bottle vertically into the com-
pressor to connect making sure
that the claw on the bottle's neck is
hooked onto the cutout of the com-
pressor case.
9
10

6627-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)

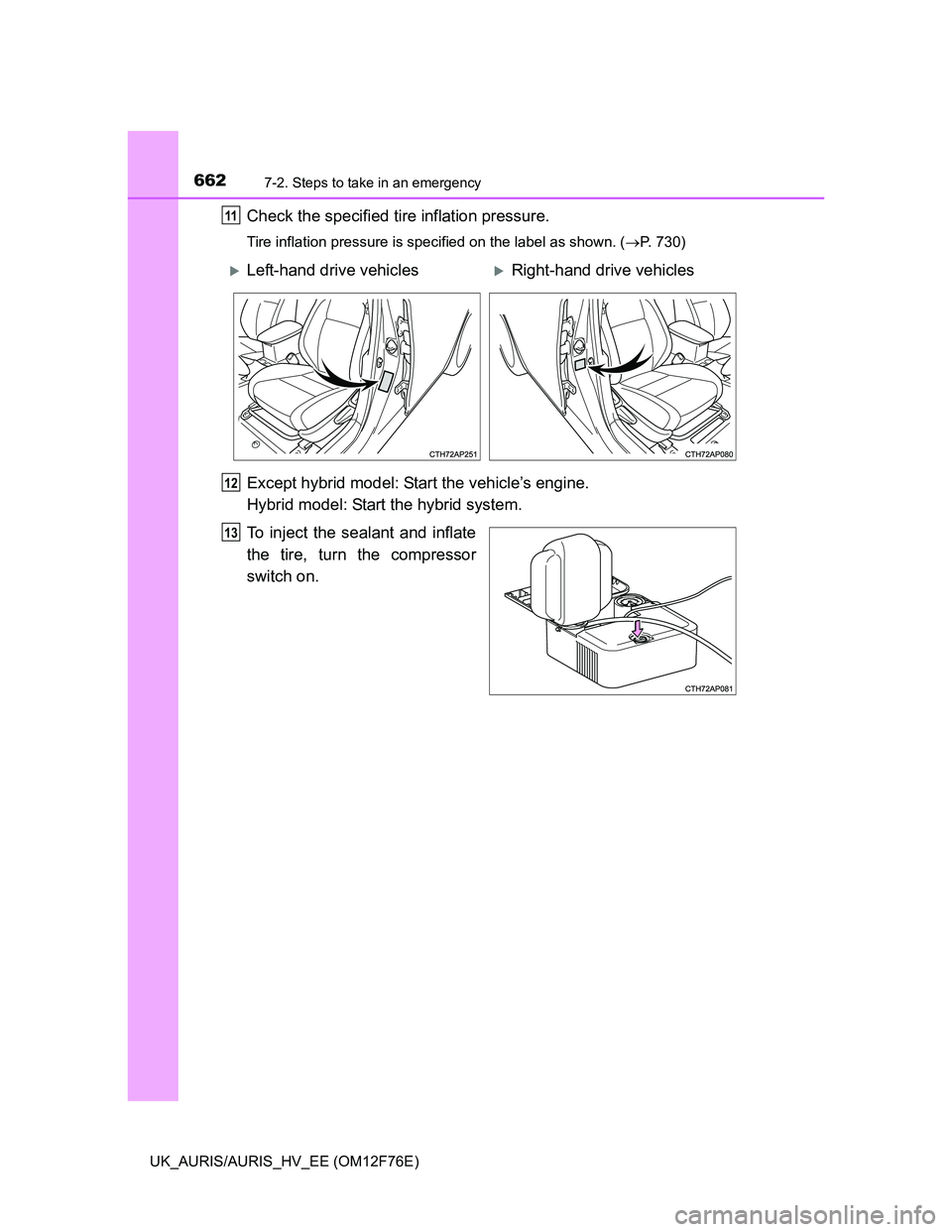

Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 730)
Except hybrid model: Start the vehicle’s engine.
Hybrid model: Start the hybrid system.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
11
Left-hand drive vehiclesRight-hand drive vehicles
12
13

6637-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises

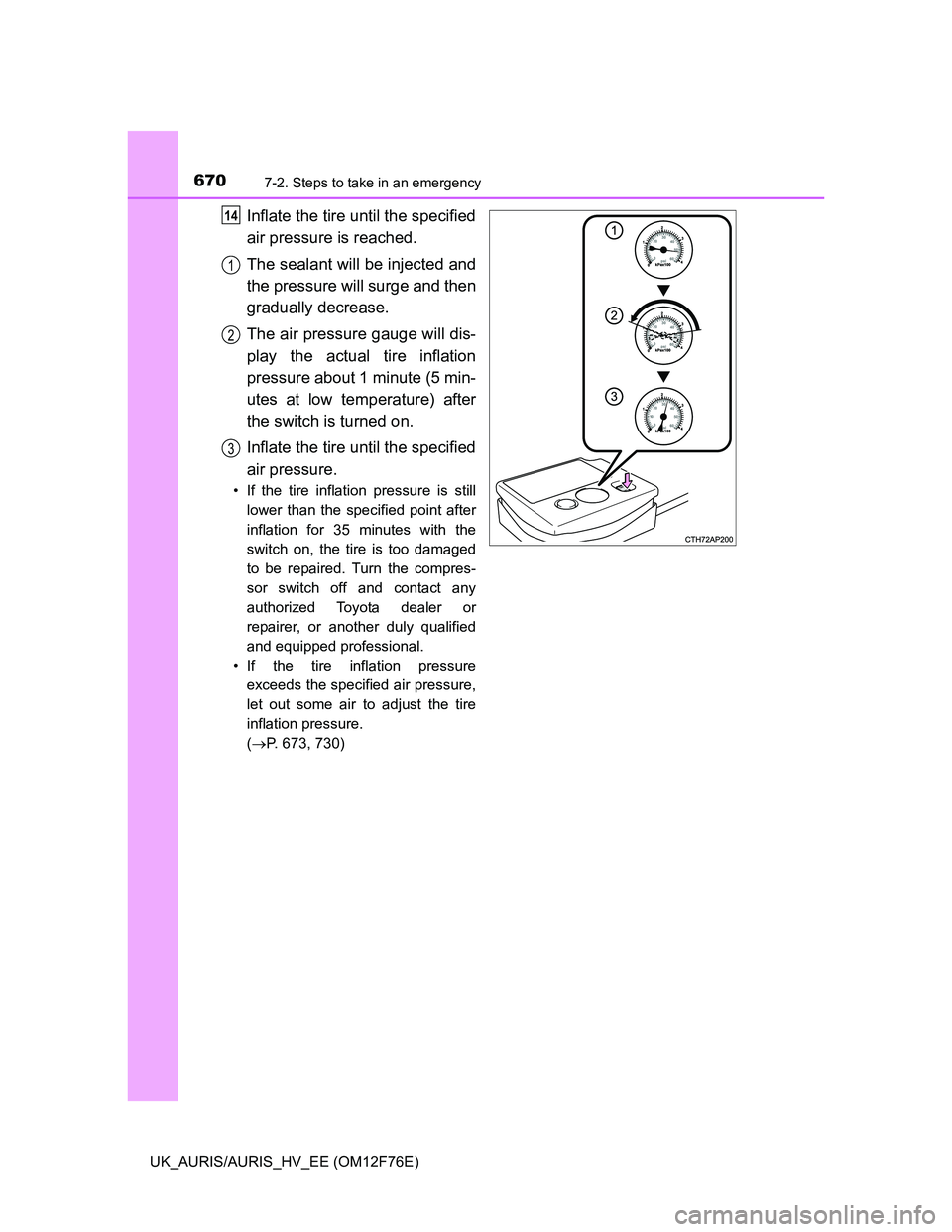

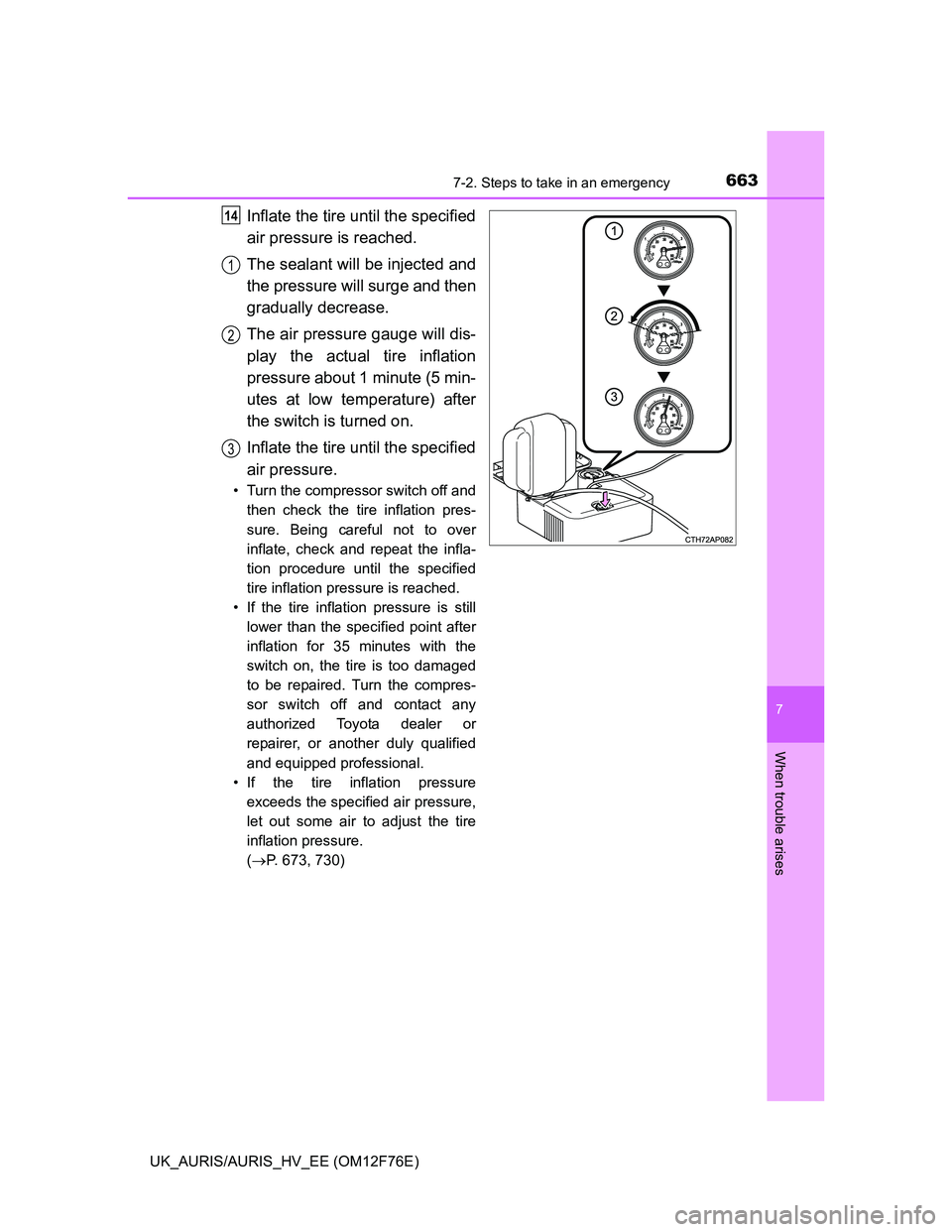

Inflate the tire until the specified
air pressure is reached.
The sealant will be injected and
the pressure will surge and then
gradually decrease.
The air pressure gauge will dis-
play the actual tire inflation
pressure about 1 minute (5 min-
utes at low temperature) after
the switch is turned on.
Inflate the tire until the specified
air pressure.
• Turn the compressor switch off and
then check the tire inflation pres-
sure. Being careful not to over
inflate, check and repeat the infla-
tion procedure until the specified
tire inflation pressure is reached.
• If the tire inflation pressure is still
lower than the specified point after
inflation for 35 minutes with the
switch on, the tire is too damaged
to be repaired. Turn the compres-
sor switch off and contact any
authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional.
• If the tire inflation pressure
exceeds the specified air pressure,
let out some air to adjust the tire
inflation pressure.
(P. 673, 730)
14
1
2
3

6647-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)

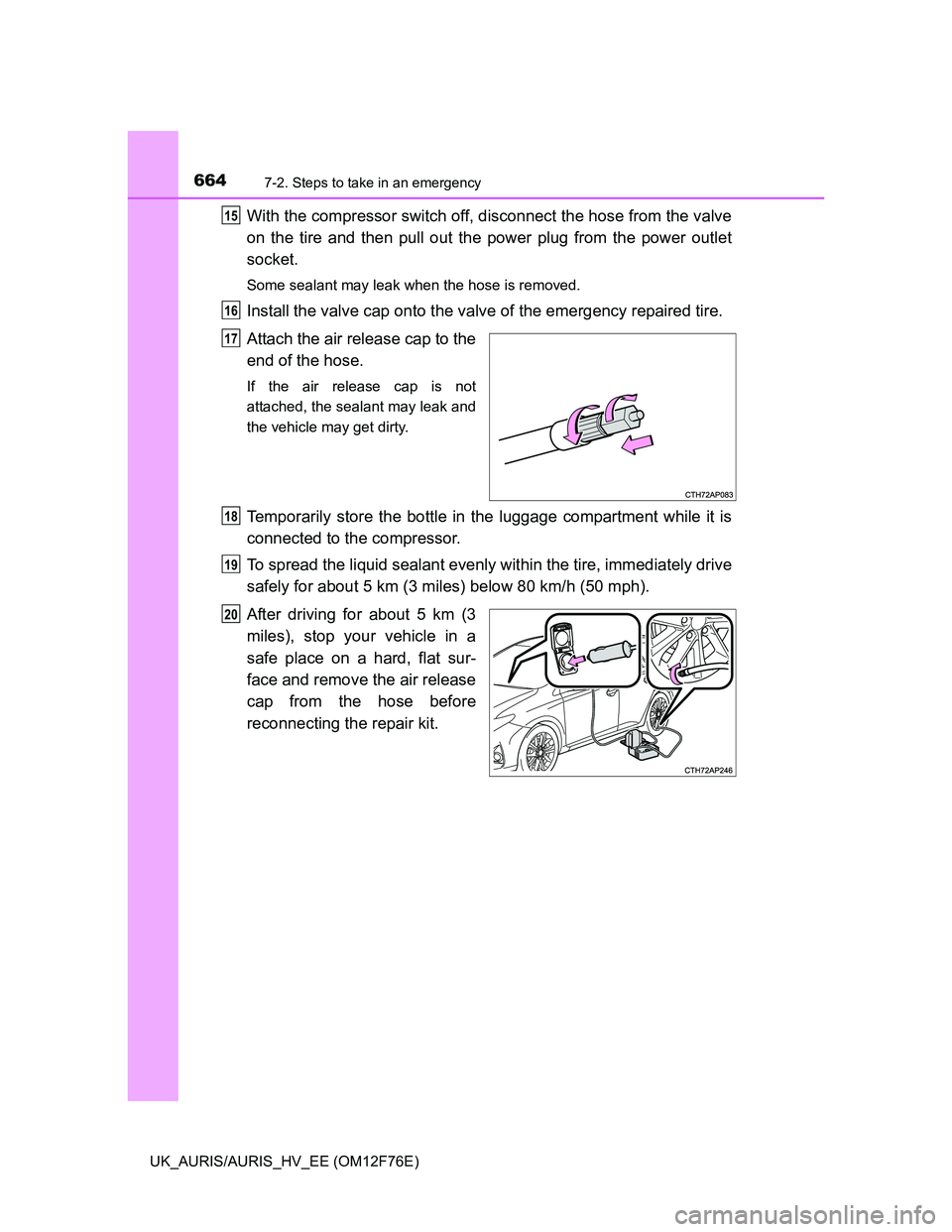

With the compressor switch off, disconnect the hose from the valve
on the tire and then pull out the power plug from the power outlet
socket.
Some sealant may leak when the hose is removed.
Install the valve cap onto the valve of the emergency repaired tire.
Attach the air release cap to the
end of the hose.
If the air release cap is not
attached, the sealant may leak and
the vehicle may get dirty.
Temporarily store the bottle in the luggage compartment while it is
connected to the compressor.
To spread the liquid sealant evenly within the tire, immediately drive
safely for about 5 km (3 miles) below 80 km/h (50 mph).
After driving for about 5 km (3
miles), stop your vehicle in a
safe place on a hard, flat sur-
face and remove the air release
cap from the hose before
reconnecting the repair kit.
15
16
17
18
19
20

6657-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises

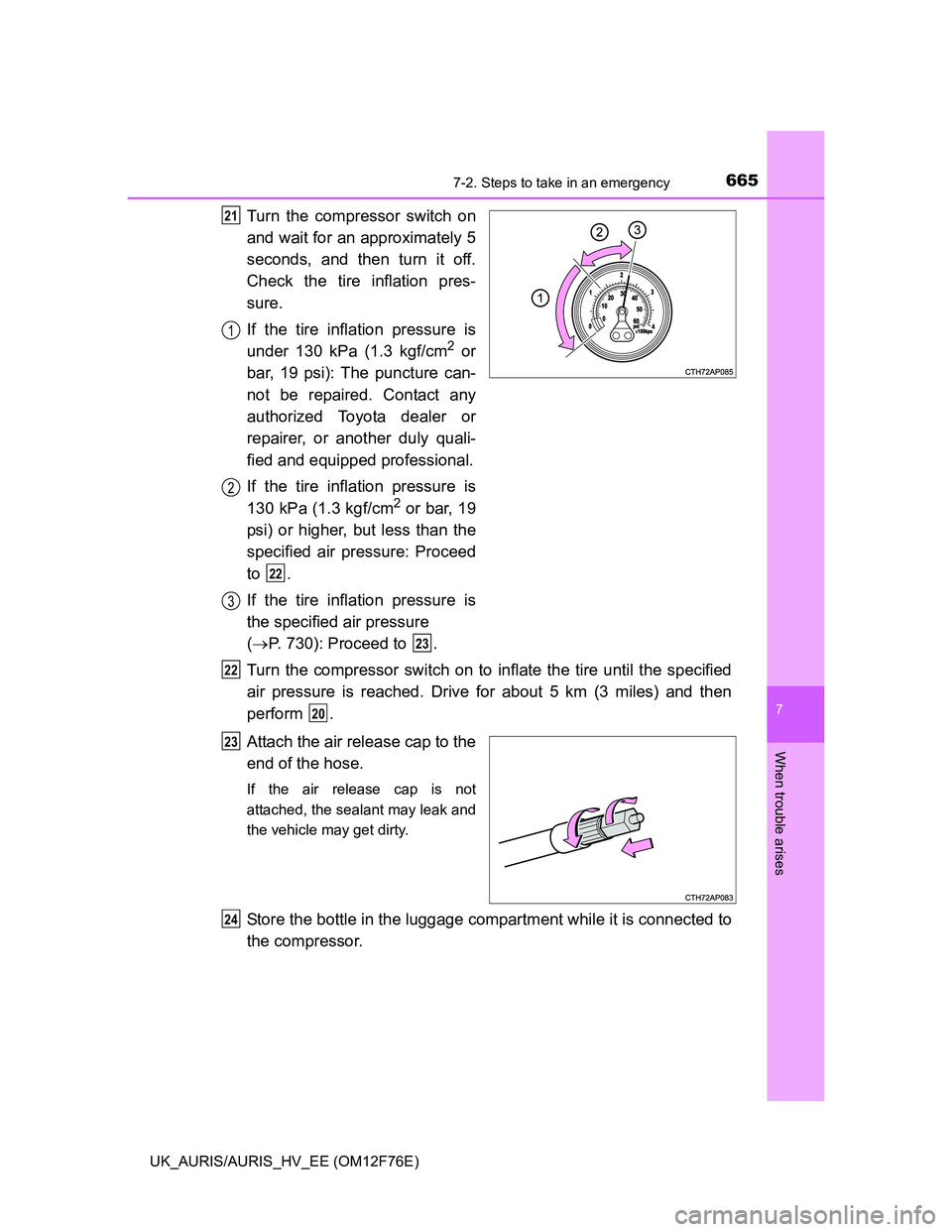

Turn the compressor switch on
and wait for an approximately 5
seconds, and then turn it off.
Check the tire inflation pres-
sure.
If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm
2 or
bar, 19 psi): The puncture can-
not be repaired. Contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
If the tire inflation pressure is
130 kPa (1.3 kgf/cm
2 or bar, 19
psi) or higher, but less than the
specified air pressure: Proceed
to .
If the tire inflation pressure is
the specified air pressure
(P. 730): Proceed to .
Turn the compressor switch on to inflate the tire until the specified
air pressure is reached. Drive for about 5 km (3 miles) and then
perform .
Attach the air release cap to the
end of the hose.
If the air release cap is not
attached, the sealant may leak and
the vehicle may get dirty.
Store the bottle in the luggage compartment while it is connected to
the compressor.
21
1
2
22
3
23
22
20
23
24

6667-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)

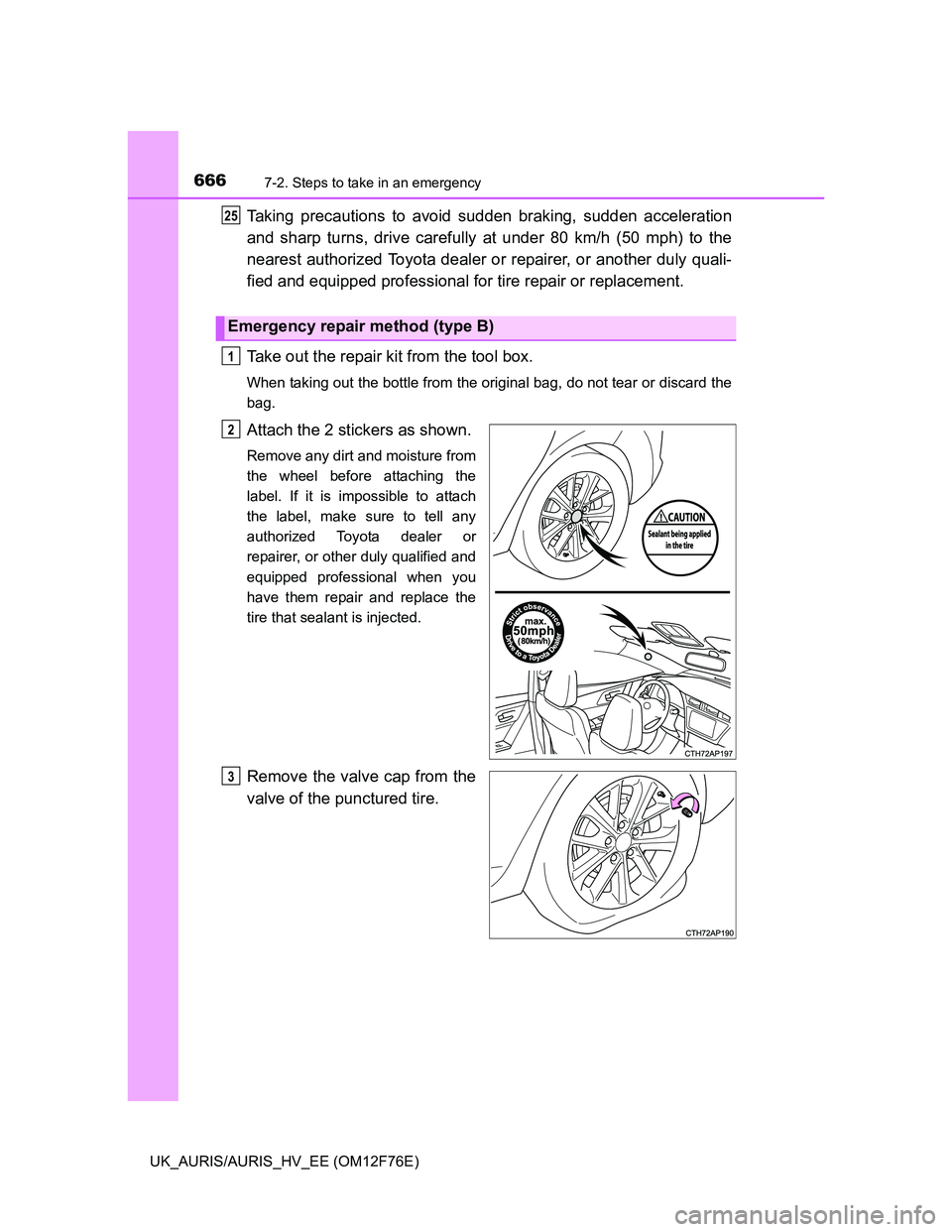

Taking precautions to avoid sudden braking, sudden acceleration
and sharp turns, drive carefully at under 80 km/h (50 mph) to the
nearest authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional for tire repair or replacement.
Take out the repair kit from the tool box.
When taking out the bottle from the original bag, do not tear or discard the
bag.
Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Emergency repair method (type B)
25
1

2
3

6677-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises
Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Remove the cap from the bot-
tle.
Pull the hose out from the com-
pressor.
Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.
4
5
6
7

6687-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)

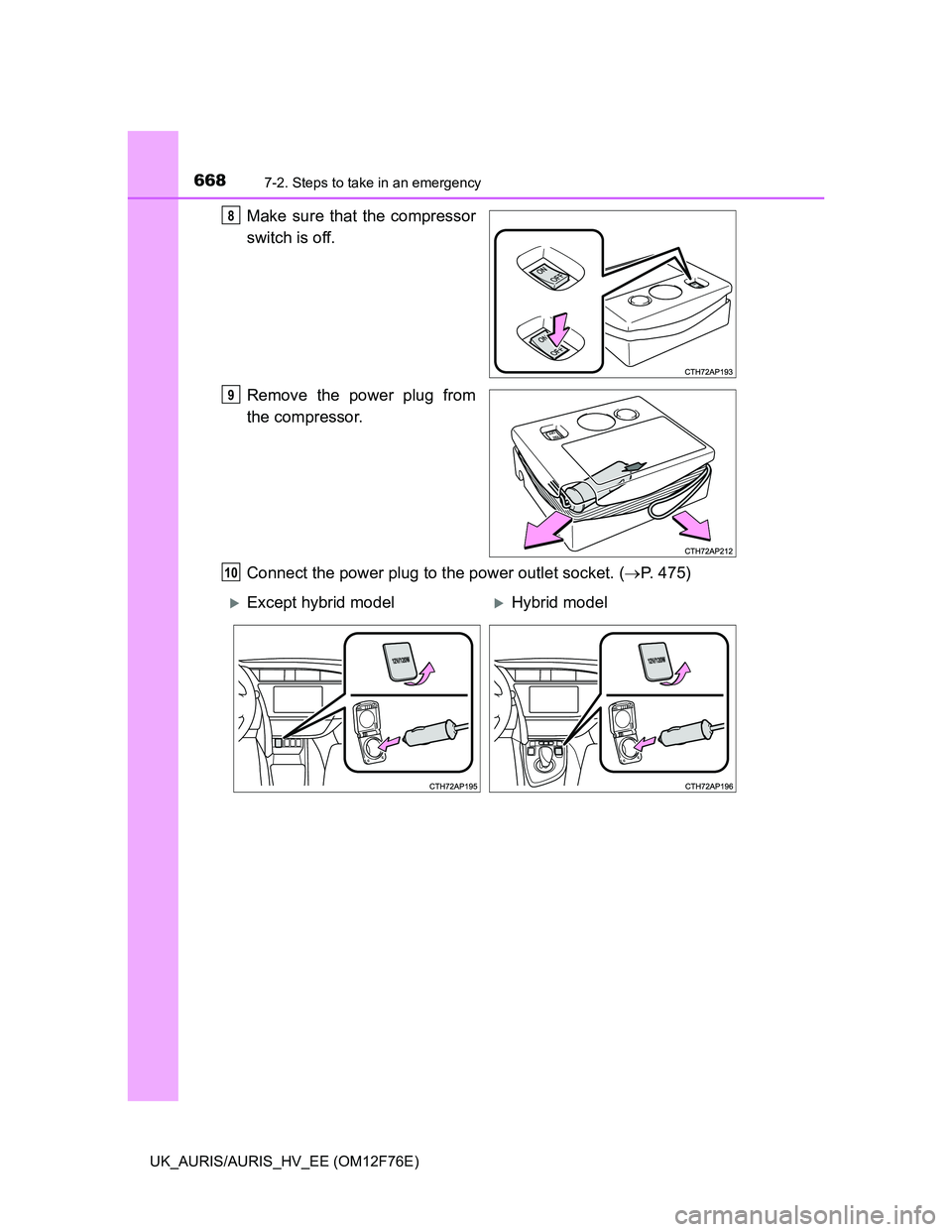

Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the power outlet socket. (P. 475)8
9
10
Except hybrid modelHybrid model

6697-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
7
When trouble arises

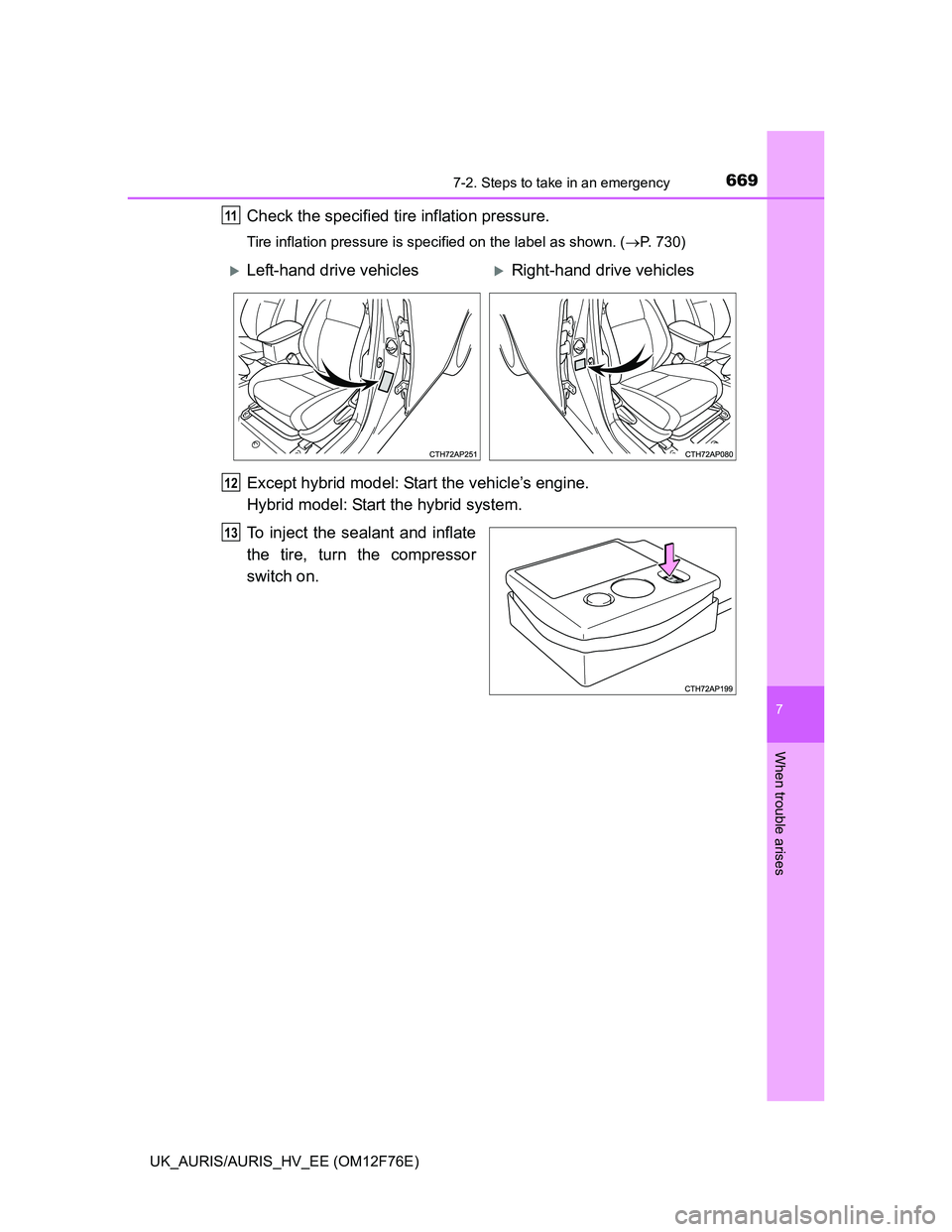

Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 730)
Except hybrid model: Start the vehicle’s engine.
Hybrid model: Start the hybrid system.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
11
Left-hand drive vehiclesRight-hand drive vehicles
12
13

6707-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12F76E)
Inflate the tire until the specified
air pressure is reached.
The sealant will be injected and
the pressure will surge and then
gradually decrease.
The air pressure gauge will dis-
play the actual tire inflation
pressure about 1 minute (5 min-
utes at low temperature) after
the switch is turned on.
Inflate the tire until the specified
air pressure.
• If the tire inflation pressure is still
lower than the specified point after
inflation for 35 minutes with the
switch on, the tire is too damaged
to be repaired. Turn the compres-
sor switch off and contact any
authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional.
• If the tire inflation pressure
exceeds the specified air pressure,
let out some air to adjust the tire
inflation pressure.
(P. 673, 730)
14
1
2
3
