TOYOTA AURIS HYBRID 2014 Owners Manual

461
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
5-4. Using the storage features
List of storage features
Auxiliary boxes (P. 465)
Glove box (P. 462)
Bottle holders (P. 463)Cup holders (P. 464)
Console box (P. 462)
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5

4625-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)

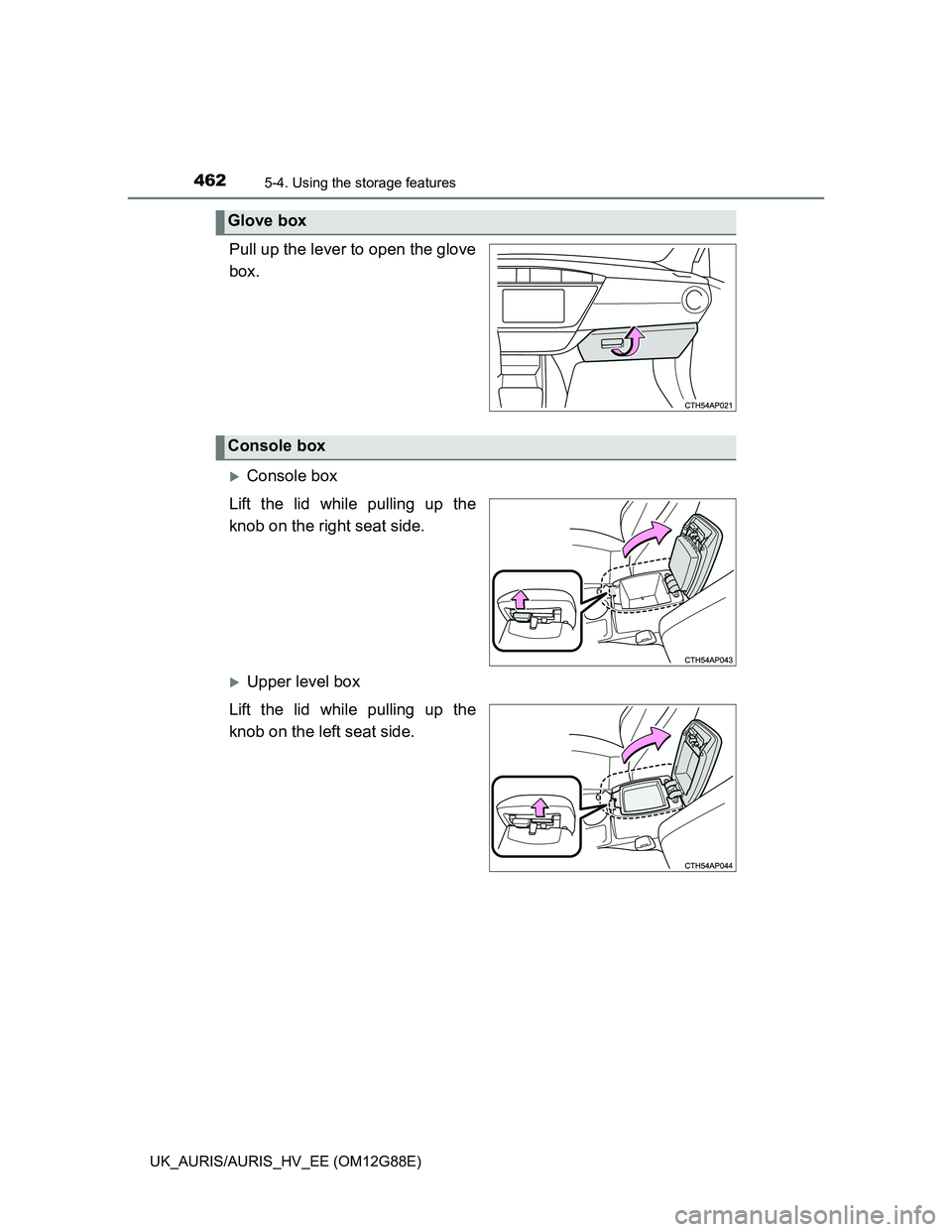

Pull up the lever to open the glove
box.
Console box
Lift the lid while pulling up the
knob on the right seat side.
Upper level box
Lift the lid while pulling up the
knob on the left seat side.
Glove box
Console box

4635-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features

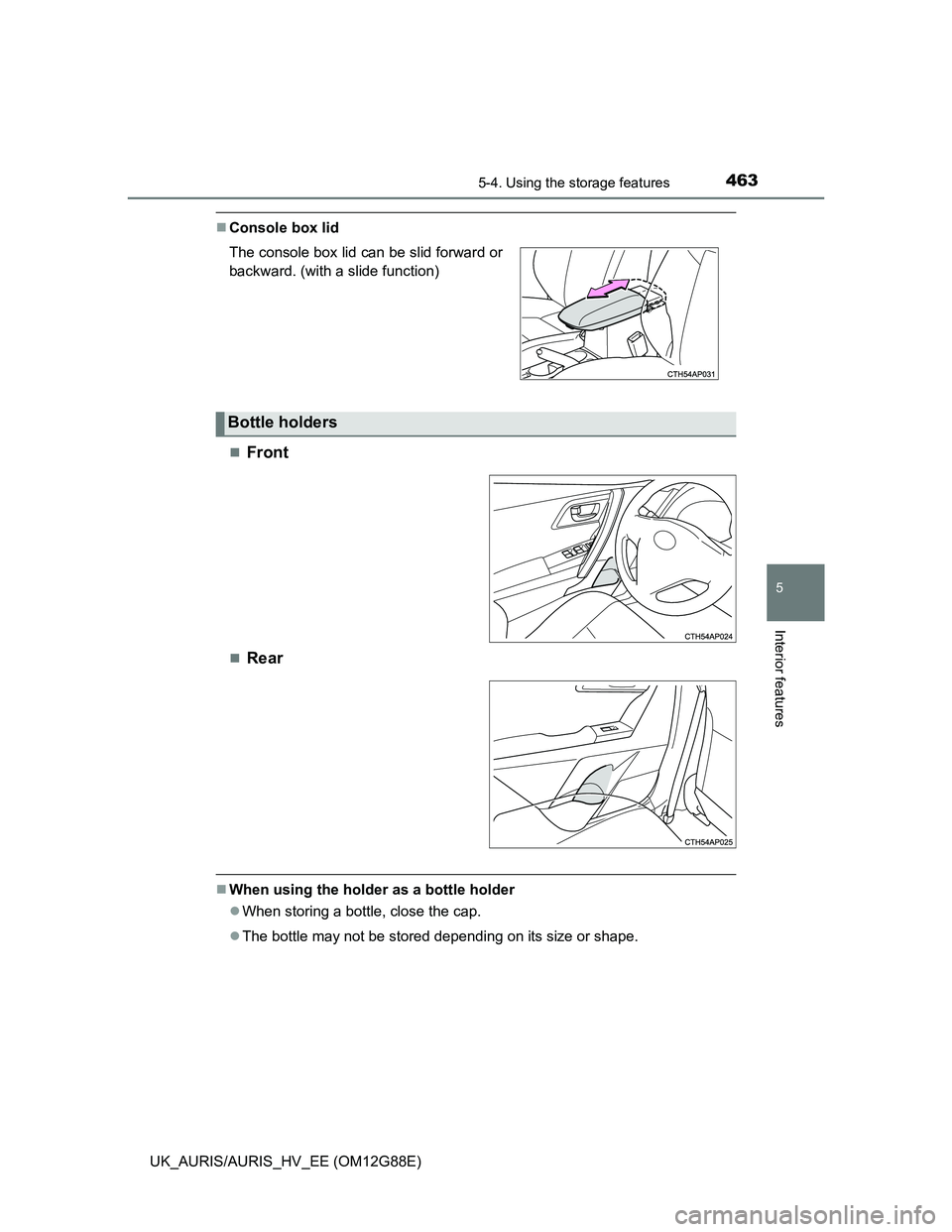

Console box lid

Front
Rear
When using the holder as a bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape. The console box lid can be slid forward or
backward. (with a slide function)
Bottle holders

4645-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)
Front
Rear
Pull the armrest down.
Removing the cup holder insert (front cup holder)

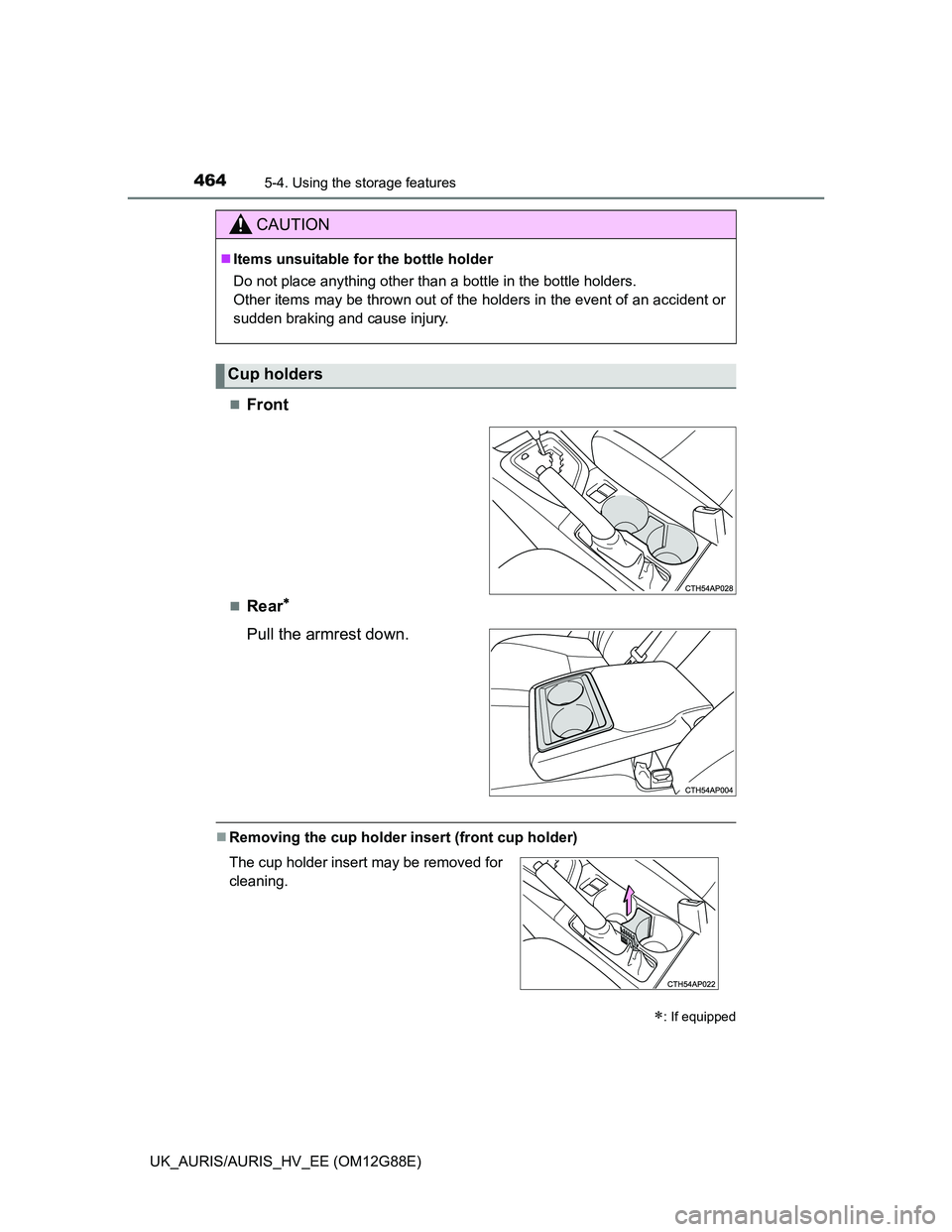

CAUTION
Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
Cup holders
: If equipped
The cup holder insert may be removed for
cleaning.

4655-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features

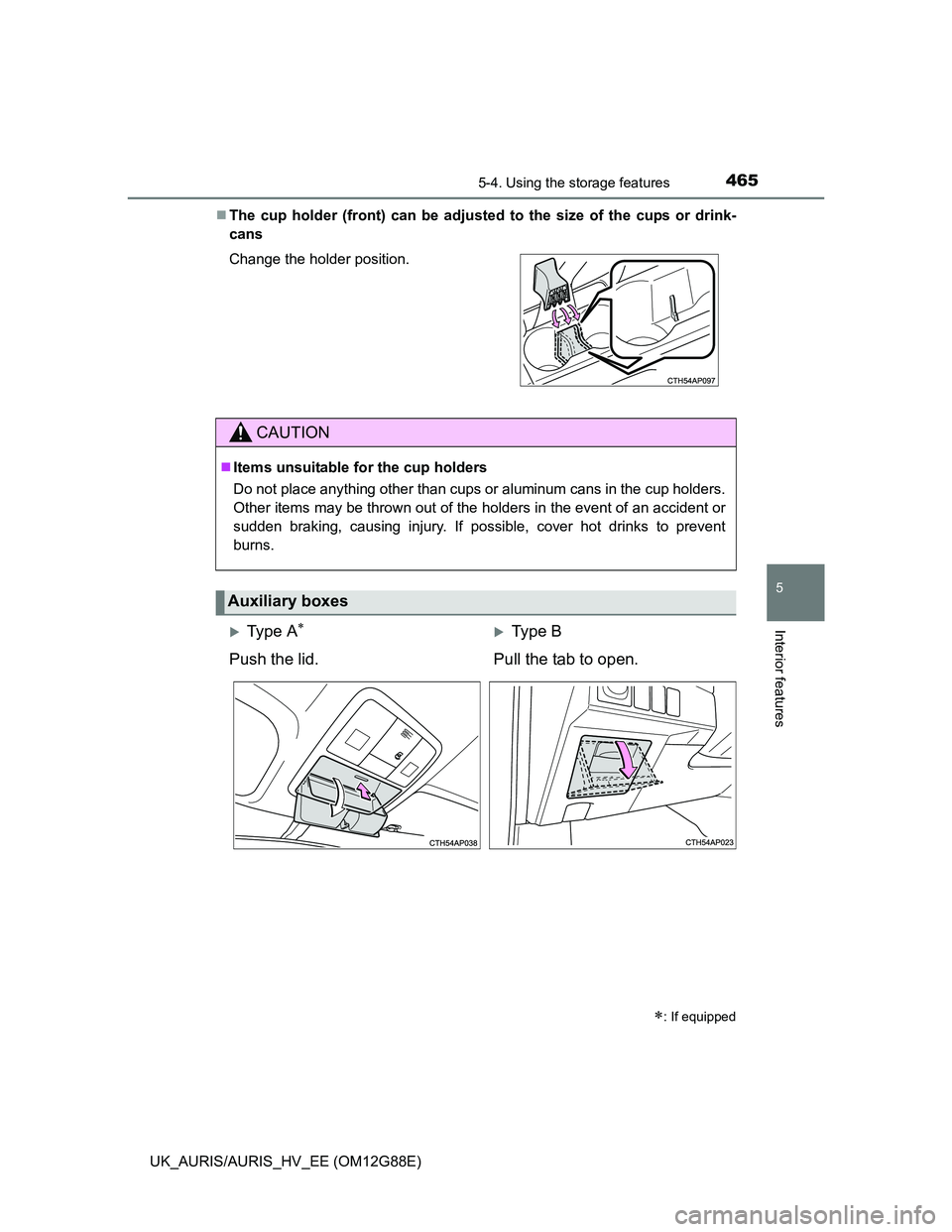

The cup holder (front) can be adjusted to the size of the cups or drink-
cans
Change the holder position.
CAUTION
Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.
Auxiliary boxes
: If equipped
Ty p e AType B
Push the lid. Pull the tab to open.

4665-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)

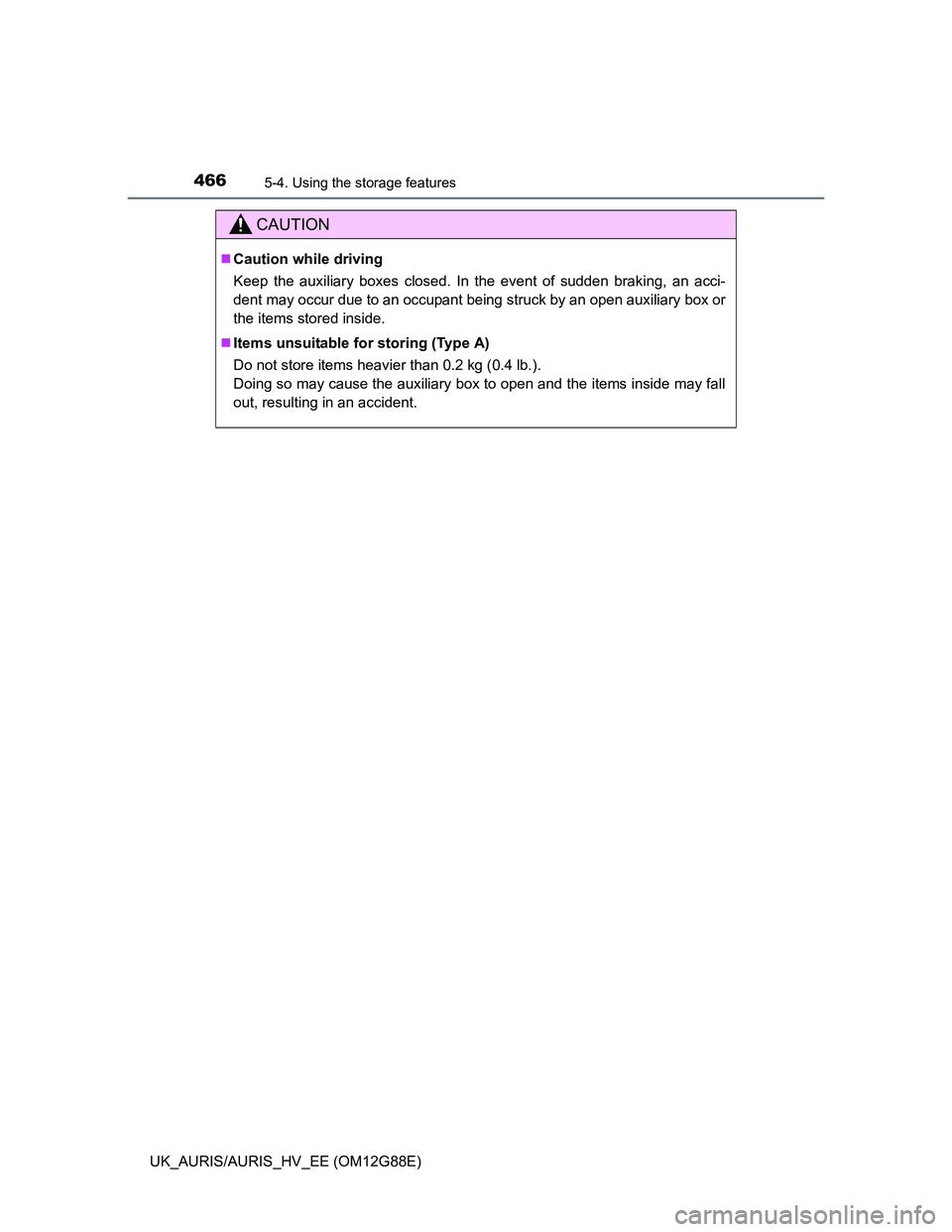

CAUTION
Caution while driving
Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box or
the items stored inside.
Items unsuitable for storing (Type A)
Do not store items heavier than 0.2 kg (0.4 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

4675-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features

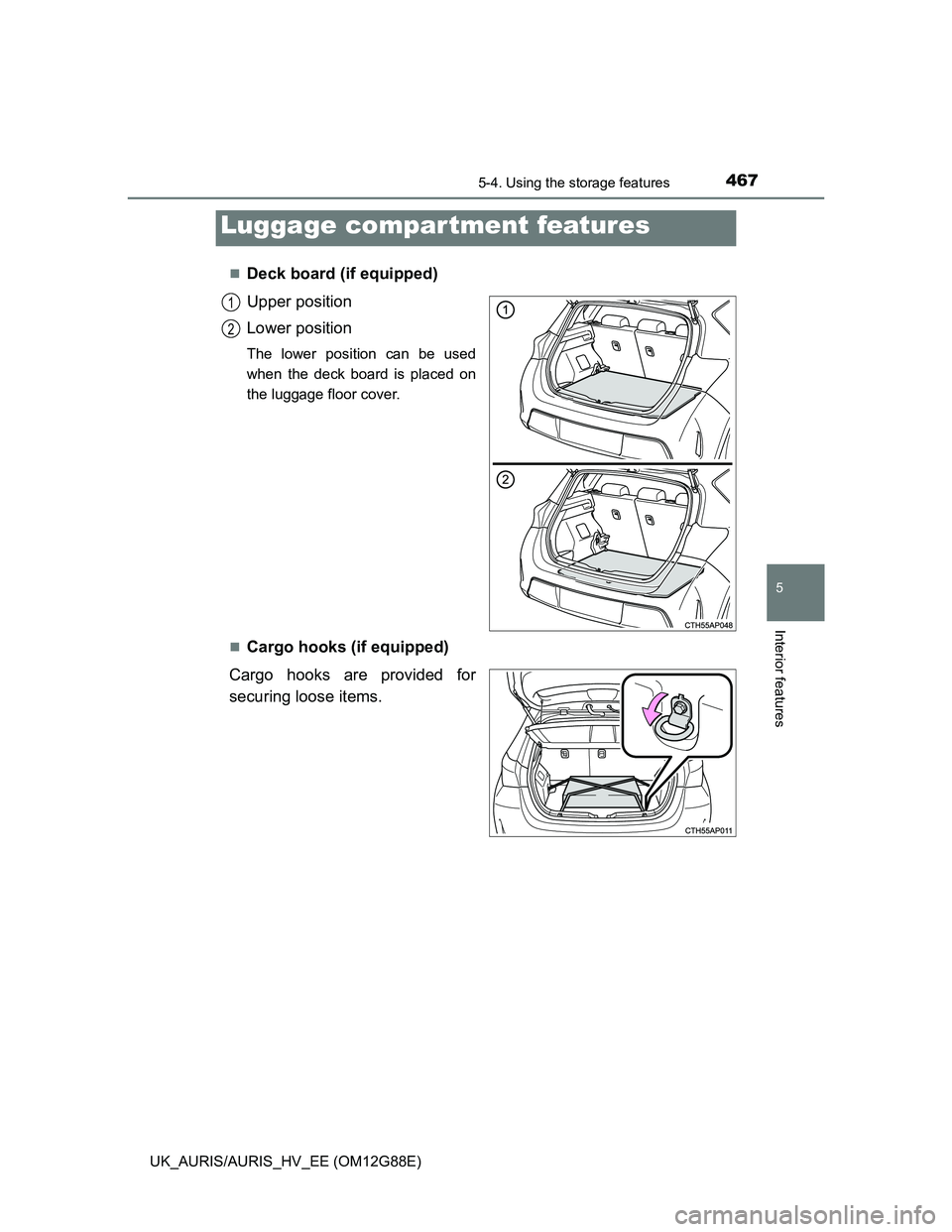

Deck board (if equipped)
Upper position
Lower position
The lower position can be used
when the deck board is placed on
the luggage floor cover.

Cargo hooks (if equipped)
Cargo hooks are provided for
securing loose items.
Luggage compar tment features
1
2

4685-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)

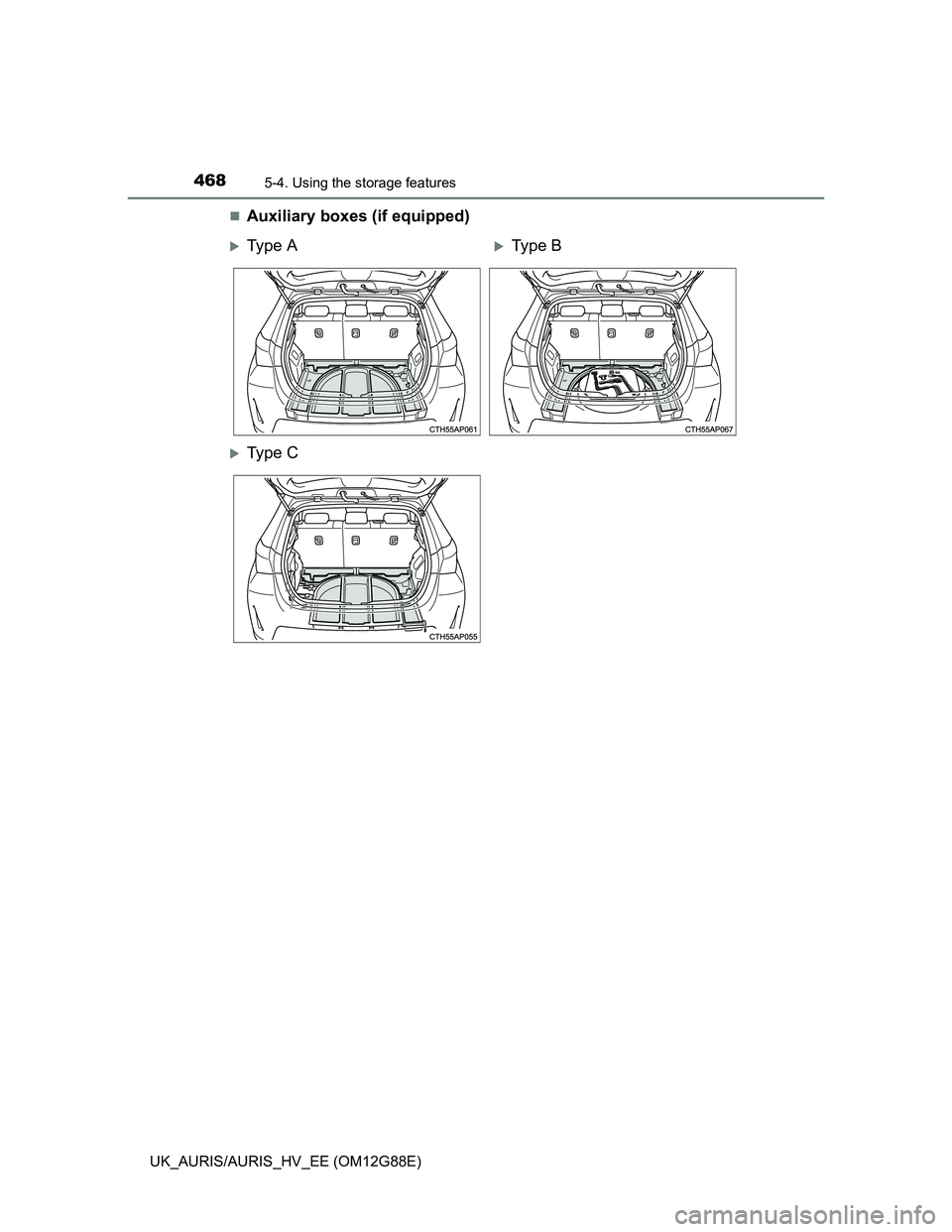

Auxiliary boxes (if equipped)
Ty p e AType B
Ty p e C

4695-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features

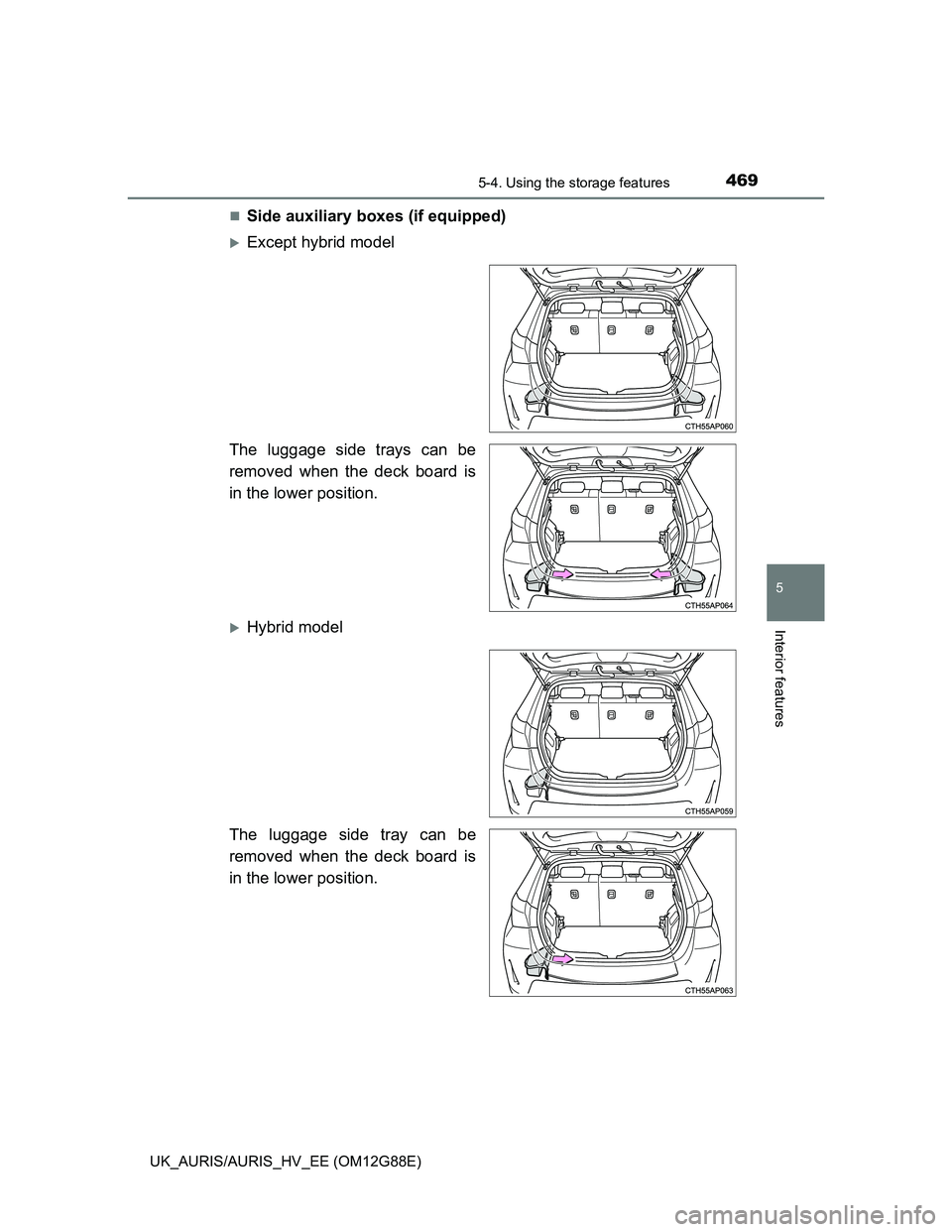

Side auxiliary boxes (if equipped)
Except hybrid model
The luggage side trays can be
removed when the deck board is
in the lower position.
Hybrid model
The luggage side tray can be
removed when the deck board is
in the lower position.

4705-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)

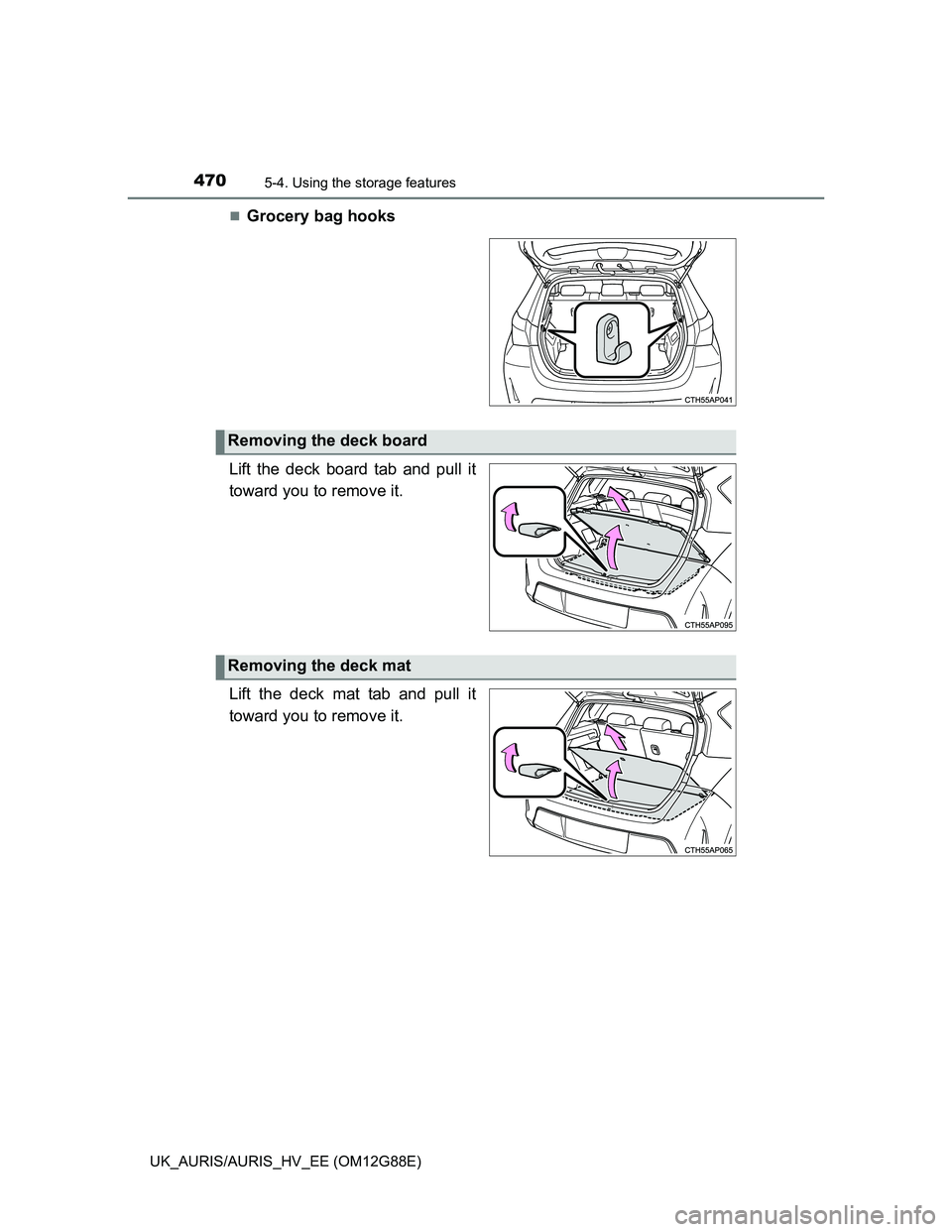

Grocery bag hooks
Lift the deck board tab and pull it
toward you to remove it.
Lift the deck mat tab and pull it
toward you to remove it.
Removing the deck board
Removing the deck mat
