5016-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

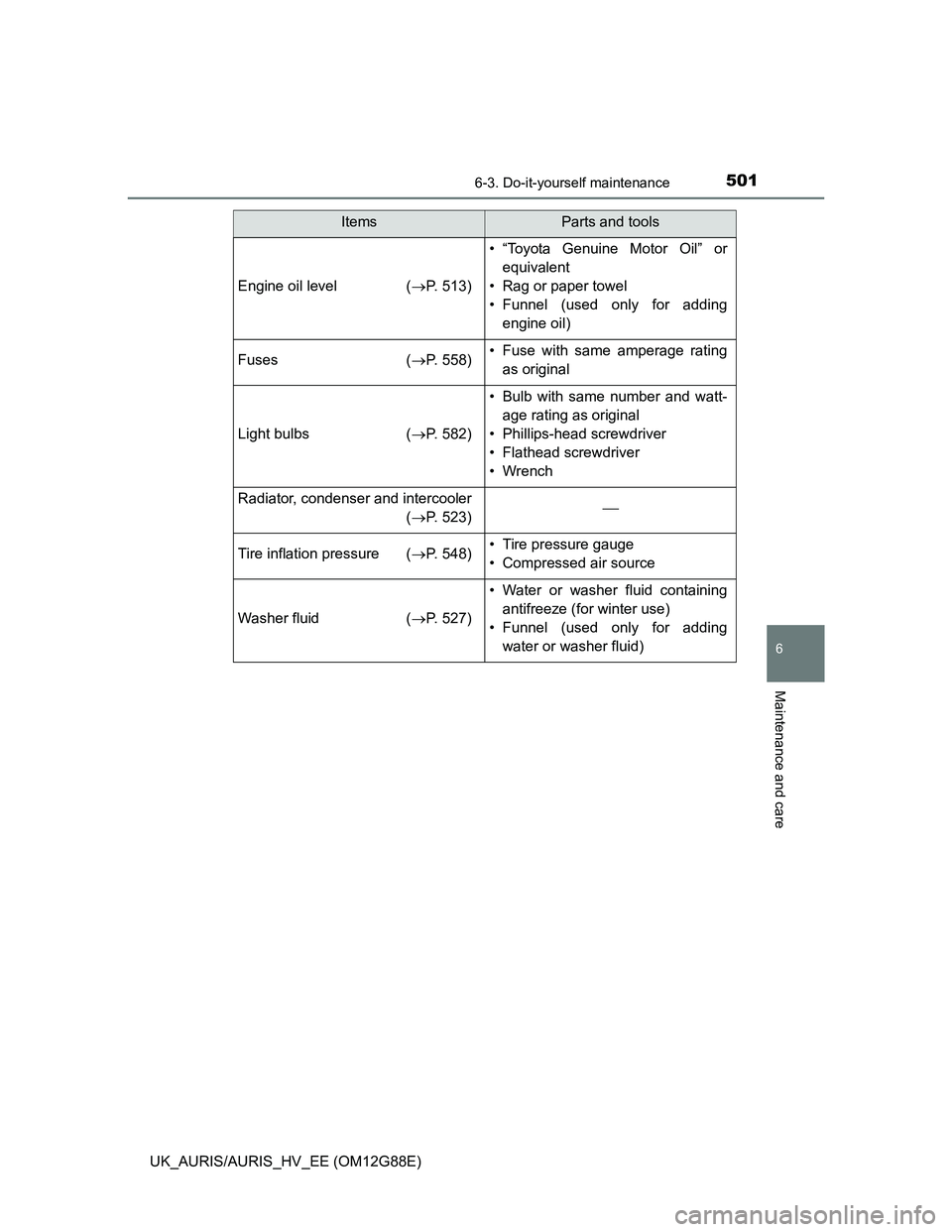

Engine oil level (P. 513)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (P. 558)• Fuse with same amperage rating
as original
Light bulbs (P. 582)
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator, condenser and intercooler
(P. 523)
Tire inflation pressure (P. 548)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 527)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding
water or washer fluid)
ItemsParts and tools

5026-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

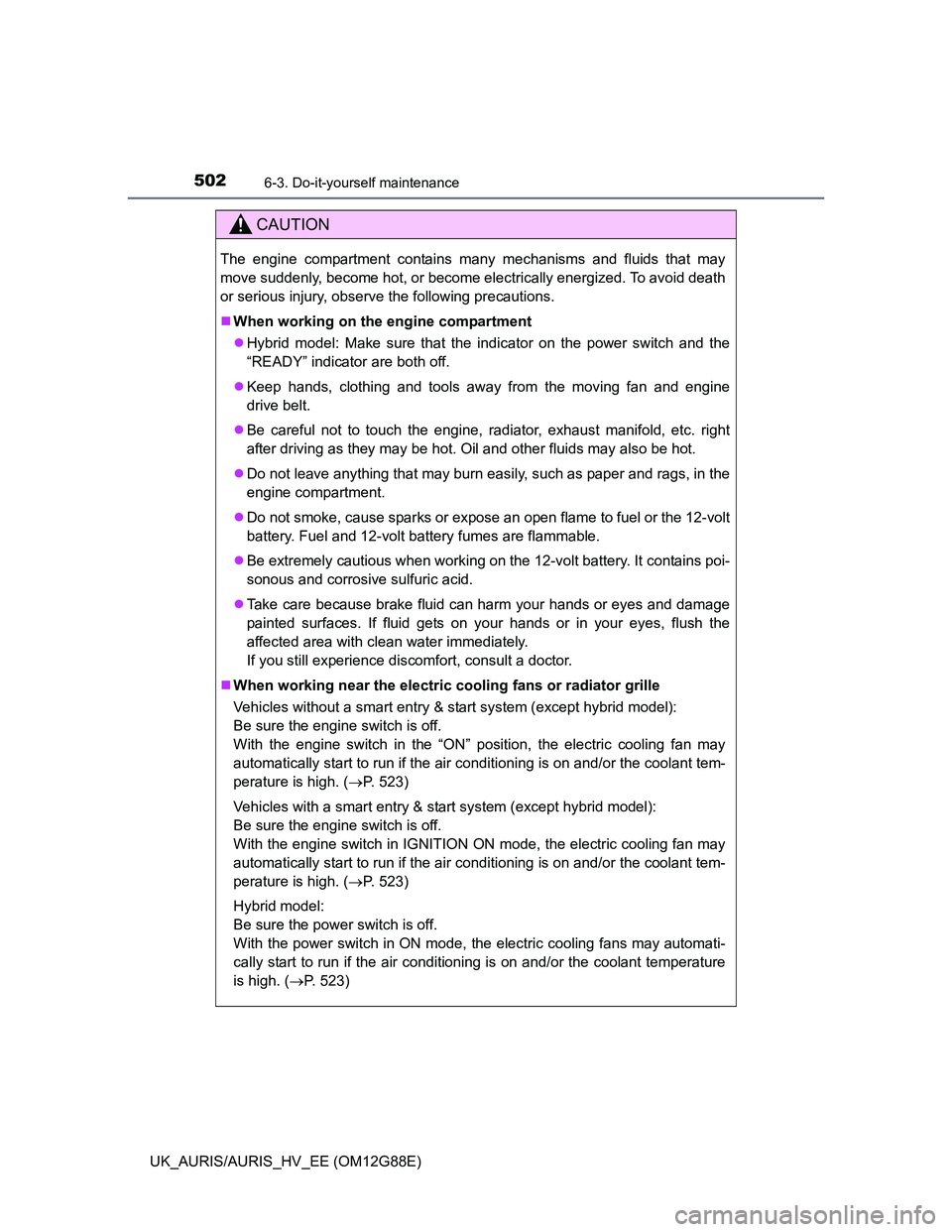

CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
When working on the engine compartment
Hybrid model: Make sure that the indicator on the power switch and the
“READY” indicator are both off.
Keep hands, clothing and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel or the 12-volt
battery. Fuel and 12-volt battery fumes are flammable.
Be extremely cautious when working on the 12-volt battery. It contains poi-
sonous and corrosive sulfuric acid.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
When working near the electric cooling fans or radiator grille
Vehicles without a smart entry & start system (except hybrid model):
Be sure the engine switch is off.
With the engine switch in the “ON” position, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. (P. 523)
Vehicles with a smart entry & start system (except hybrid model):
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. (P. 523)
Hybrid model:
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. (P. 523)

5036-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

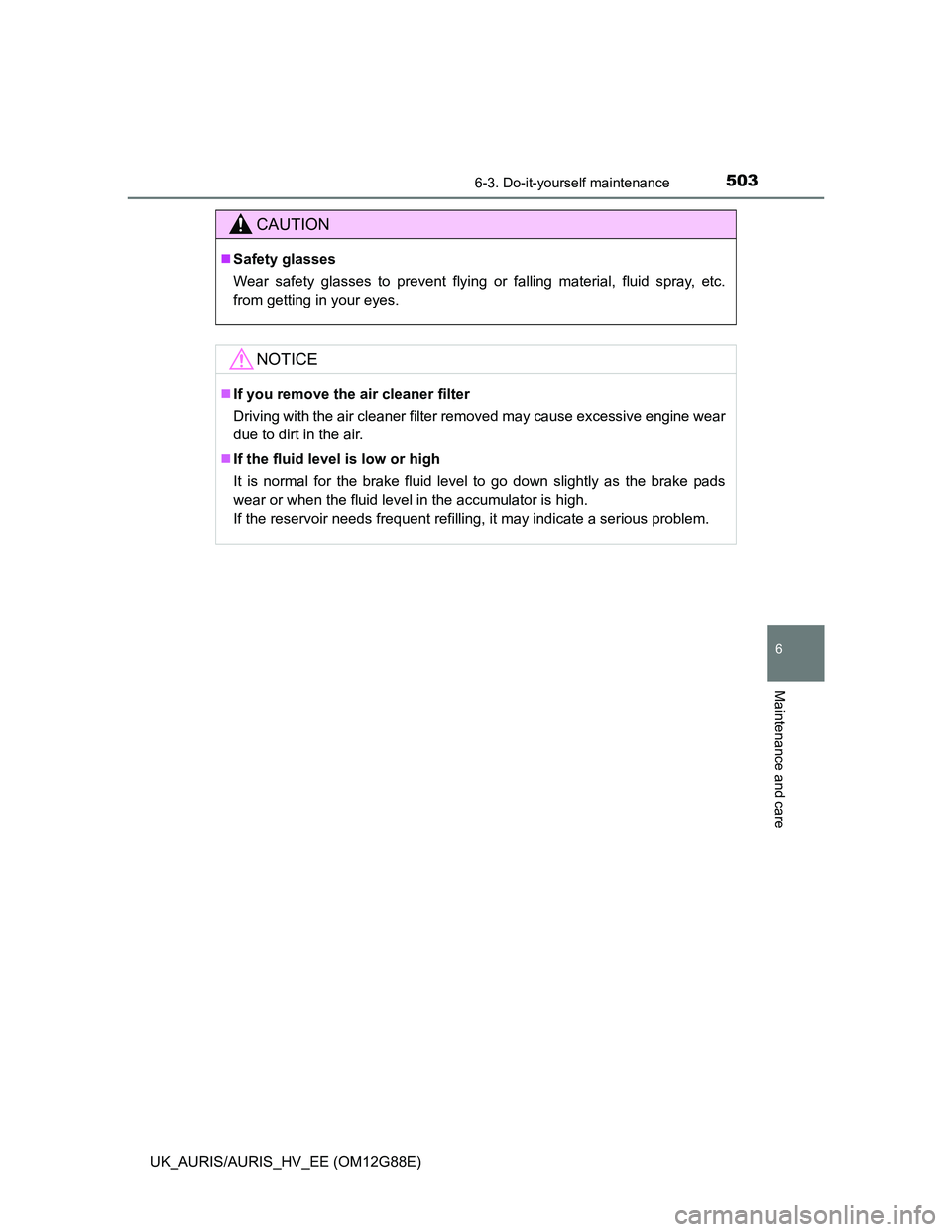

CAUTION
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.
NOTICE
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

5046-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the support rod into the slot.
Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
3

5056-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

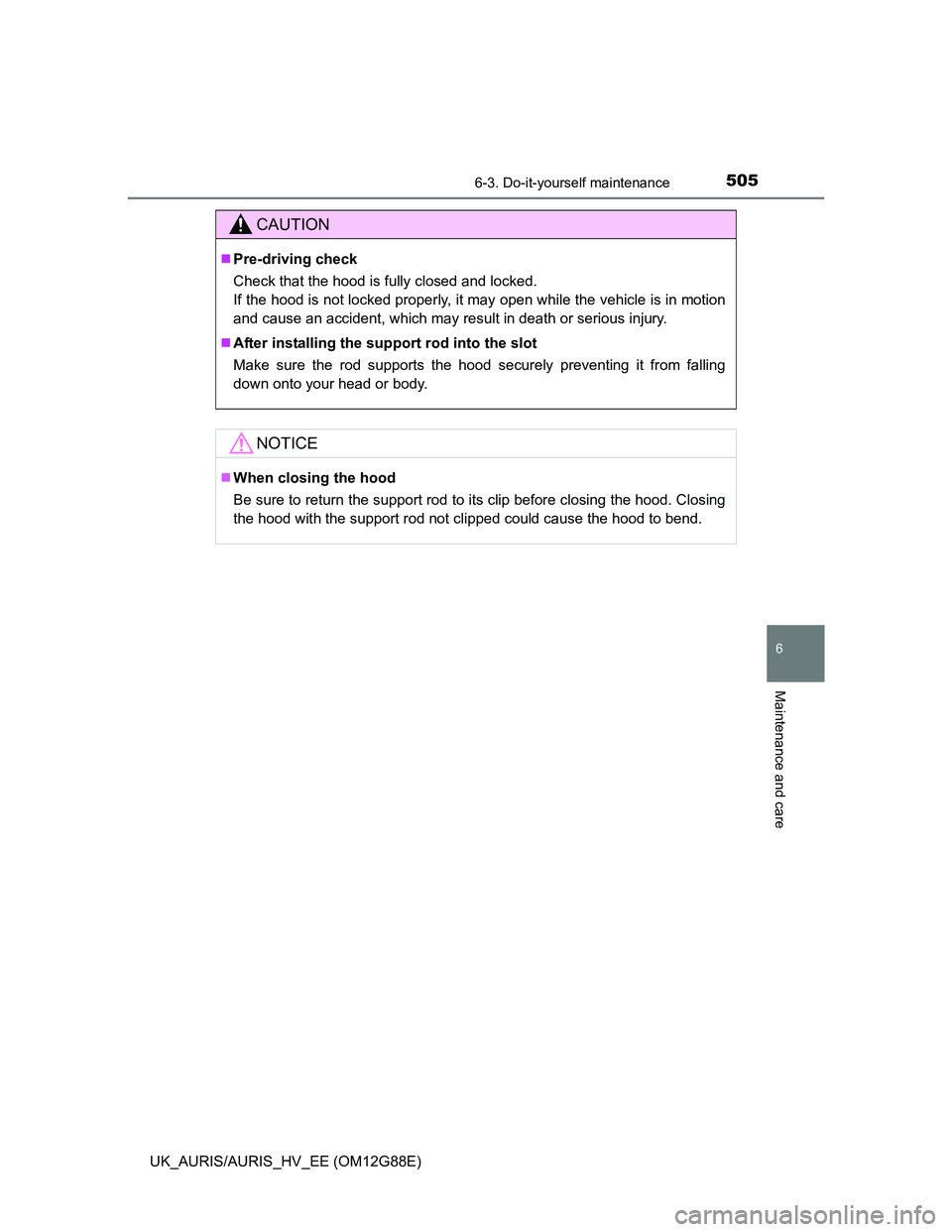

CAUTION
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
After installing the support rod into the slot
Make sure the rod supports the hood securely preventing it from falling
down onto your head or body.
NOTICE
When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod not clipped could cause the hood to bend.

5066-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
Front
Rear

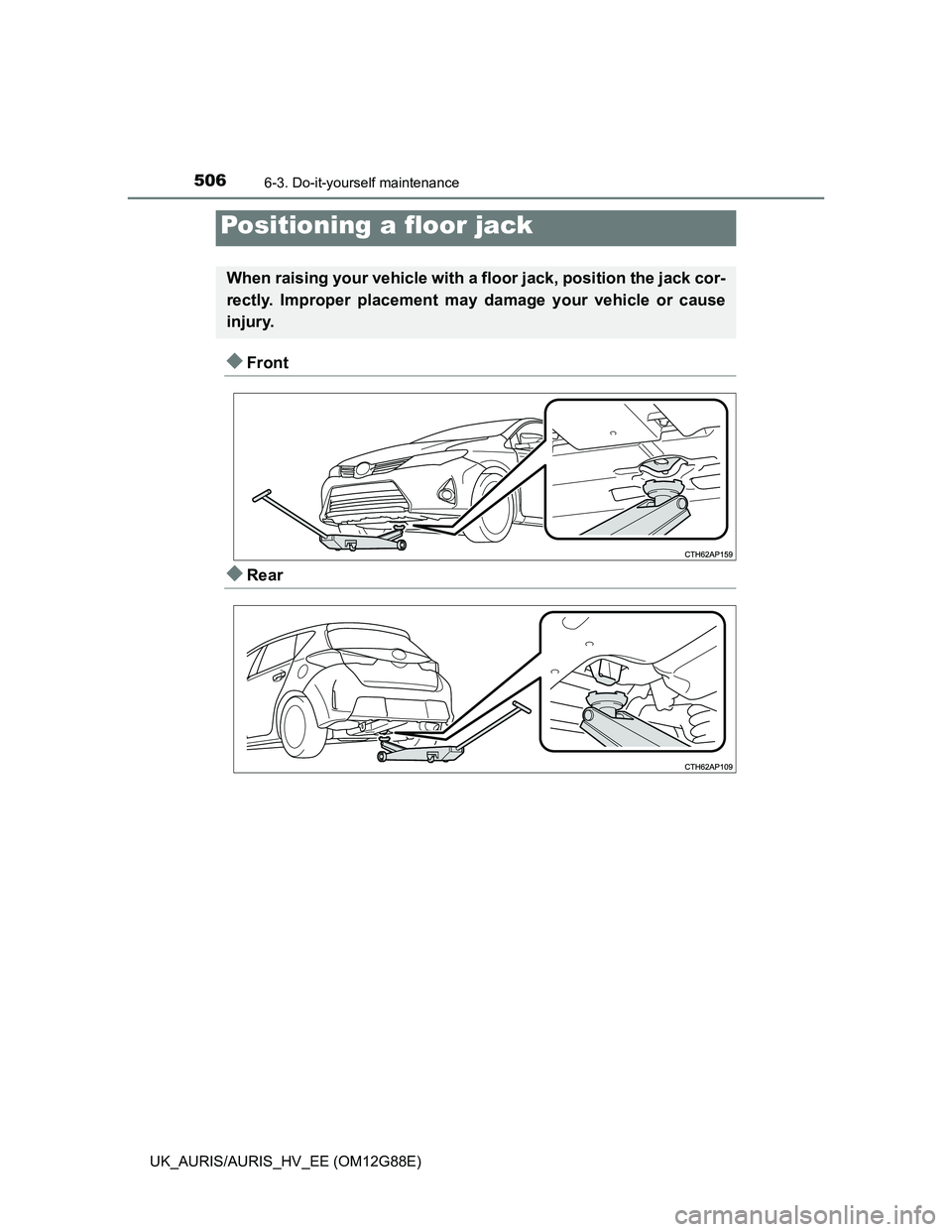

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

5076-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care
CAUTION

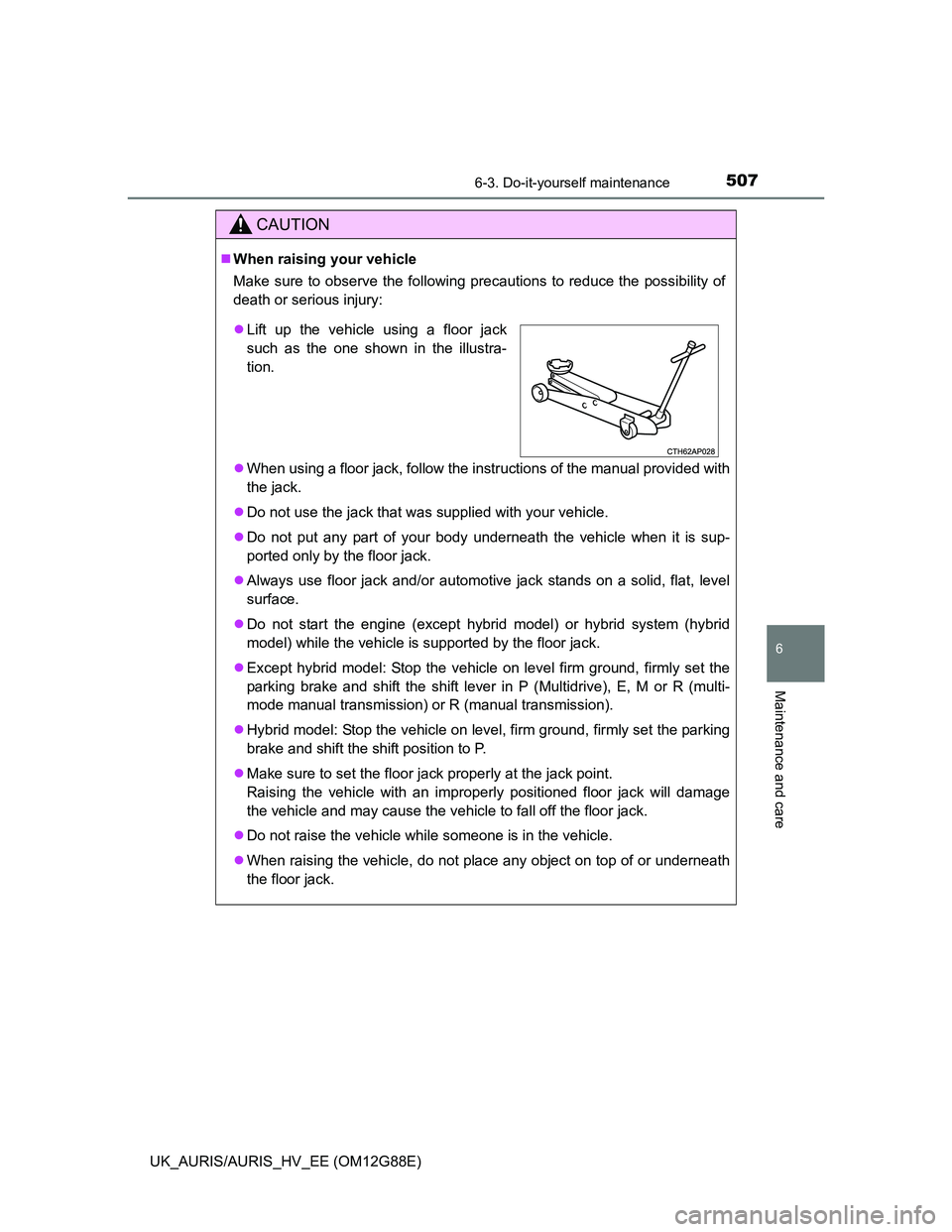

When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
When using a floor jack, follow the instructions of the manual provided with
the jack.
Do not use the jack that was supplied with your vehicle.
Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
Do not start the engine (except hybrid model) or hybrid system (hybrid
model) while the vehicle is supported by the floor jack.
Except hybrid model: Stop the vehicle on level firm ground, firmly set the
parking brake and shift the shift lever in P (Multidrive), E, M or R (multi-
mode manual transmission) or R (manual transmission).
Hybrid model: Stop the vehicle on level, firm ground, firmly set the parking
brake and shift the shift position to P.
Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
Do not raise the vehicle while someone is in the vehicle.
When raising the vehicle, do not place any object on top of or underneath
the floor jack.
Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

5086-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

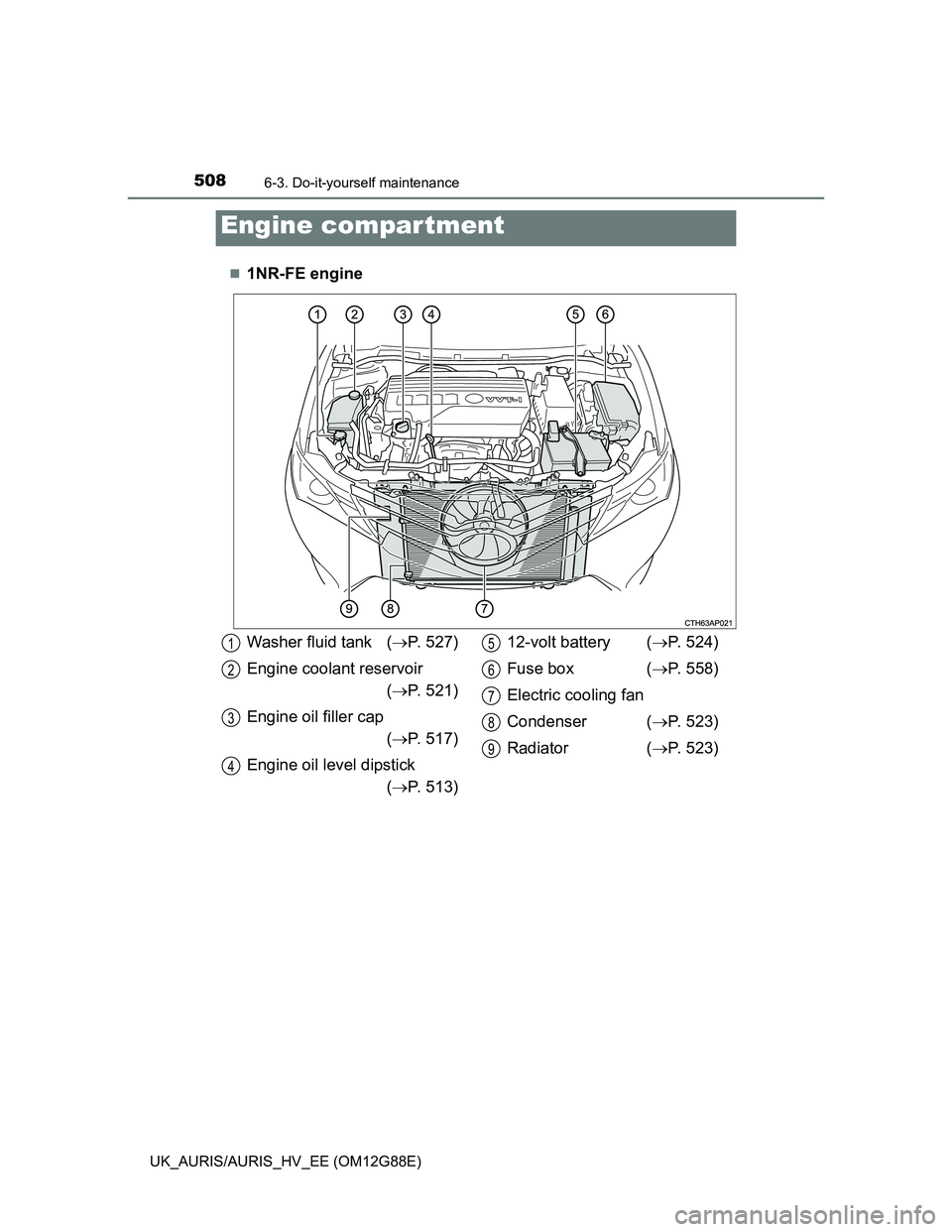

1NR-FE engine
Engine compar tment
Washer fluid tank (P. 527)
Engine coolant reservoir
(P. 521)
Engine oil filler cap
(P. 517)
Engine oil level dipstick
(P. 513)12-volt battery (P. 524)
Fuse box (P. 558)
Electric cooling fan
Condenser (P. 523)
Radiator (P. 523)1
2
3
4
5
6
7
8
9

5096-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

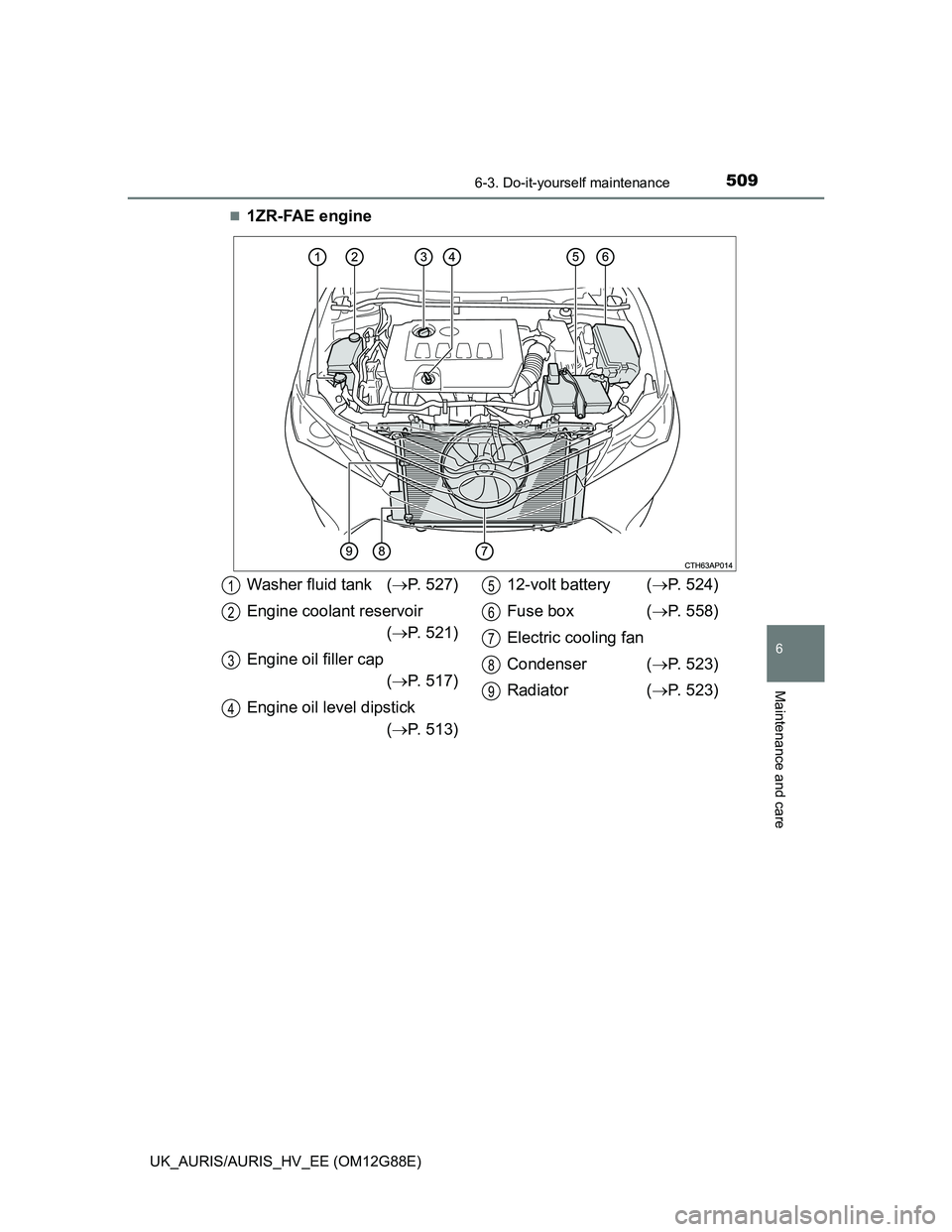

1ZR-FAE engine
Washer fluid tank (P. 527)
Engine coolant reservoir
(P. 521)
Engine oil filler cap
(P. 517)
Engine oil level dipstick
(P. 513)12-volt battery (P. 524)
Fuse box (P. 558)
Electric cooling fan
Condenser (P. 523)
Radiator (P. 523)1
2
3
4
5
6
7
8
9

5106-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

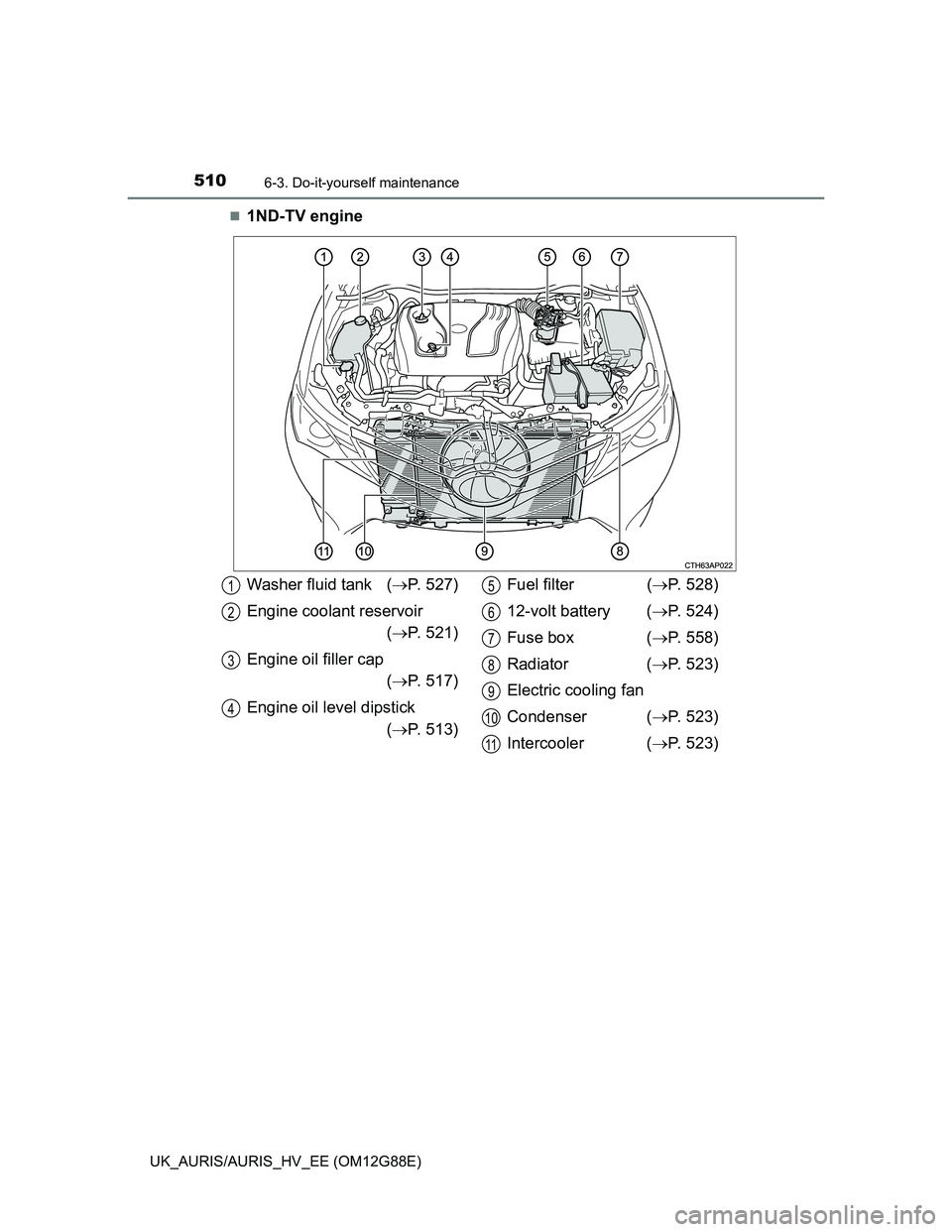

1ND-TV engine
Washer fluid tank (P. 527)
Engine coolant reservoir
(P. 521)
Engine oil filler cap
(P. 517)
Engine oil level dipstick
(P. 513)Fuel filter (P. 528)
12-volt battery (P. 524)
Fuse box (P. 558)
Radiator (P. 523)
Electric cooling fan
Condenser (P. 523)
Intercooler (P. 523)1
2
3
4
5
6
7
8
9
10
11
