TOYOTA AURIS HYBRID 2014 Owners Manual

6717-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises

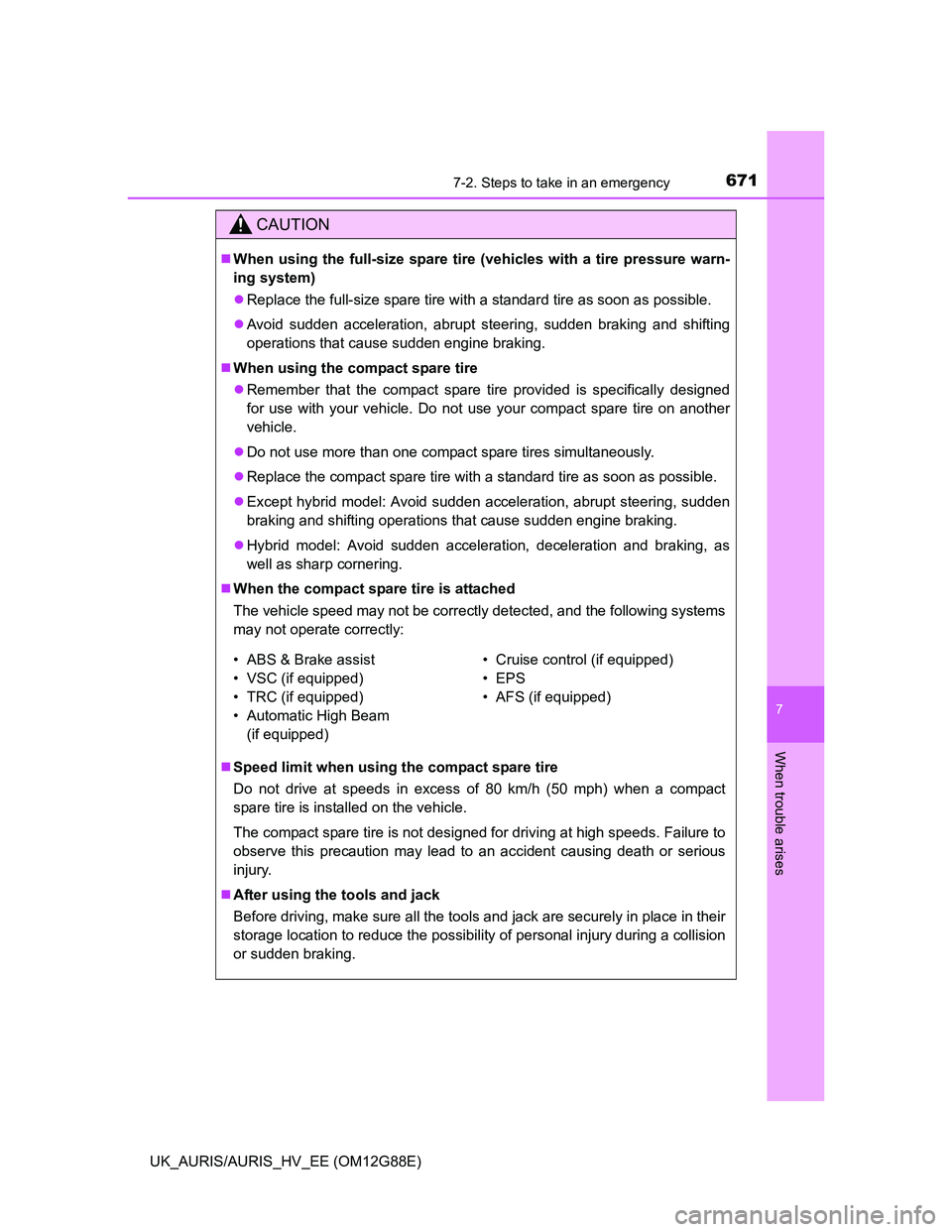

CAUTION
When using the full-size spare tire (vehicles with a tire pressure warn-
ing system)
Replace the full-size spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
When using the compact spare tire
Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
Do not use more than one compact spare tires simultaneously.
Replace the compact spare tire with a standard tire as soon as possible.
Except hybrid model: Avoid sudden acceleration, abrupt steering, sudden
braking and shifting operations that cause sudden engine braking.
Hybrid model: Avoid sudden acceleration, deceleration and braking, as
well as sharp cornering.
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
• ABS & Brake assist
• VSC (if equipped)
• TRC (if equipped)
• Automatic High Beam
(if equipped)• Cruise control (if equipped)
•EPS
• AFS (if equipped)

6727-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)

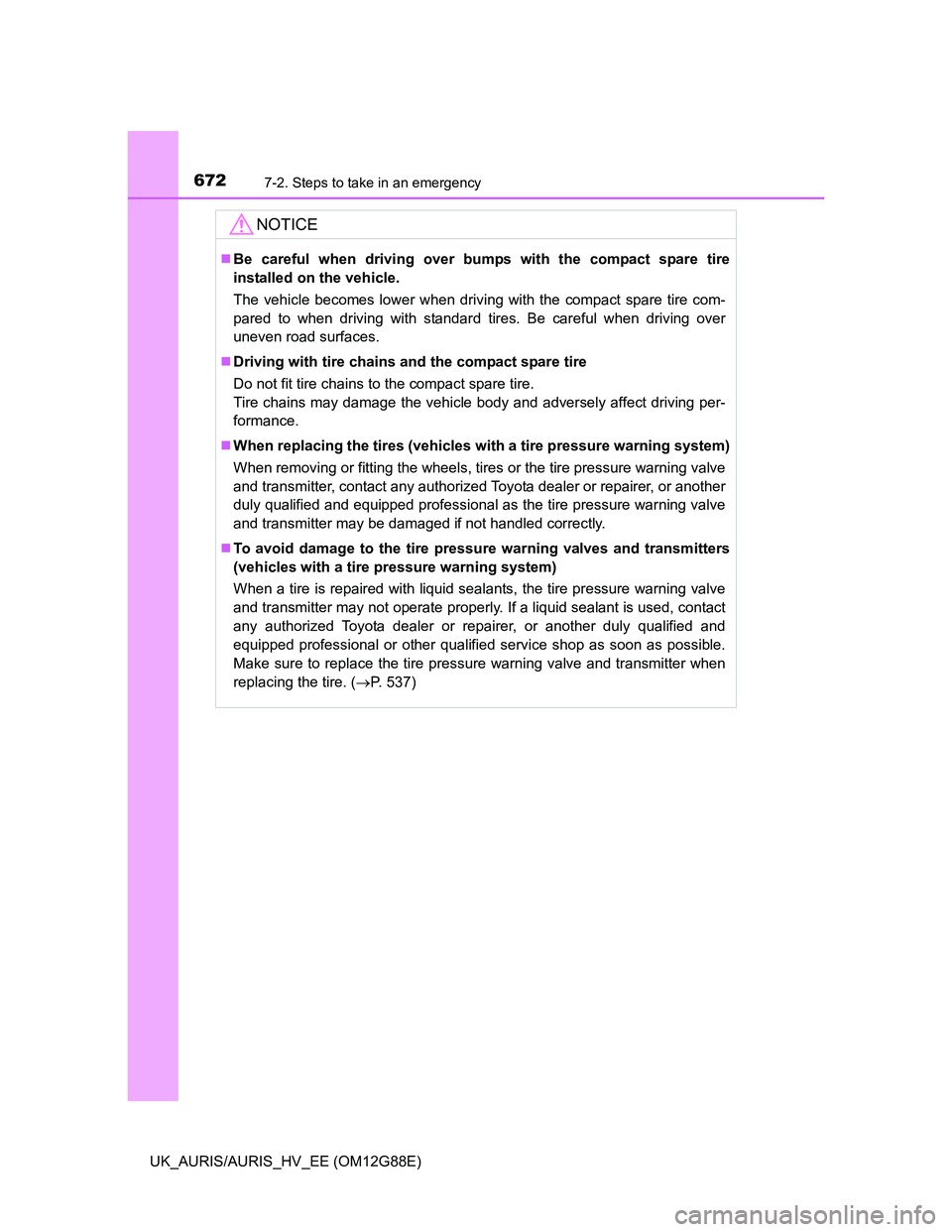

NOTICE
Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
When replacing the tires (vehicles with a tire pressure warning system)
When removing or fitting the wheels, tires or the tire pressure warning valve
and transmitter, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valve
and transmitter may be damaged if not handled correctly.
To avoid damage to the tire pressure warning valves and transmitters
(vehicles with a tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when
replacing the tire. (P. 537)

6737-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Before repairing the tire
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Except hybrid model: Shift the shift lever to P (vehicles with a
Multidrive) or N (vehicles with a multi-mode manual transmission
and manual transmission).
Hybrid model: Shift the shift position to P.
Except hybrid model: Stop the engine.
Hybrid model: Stop the hybrid system.
Turn on the emergency flashers. (P. 600)

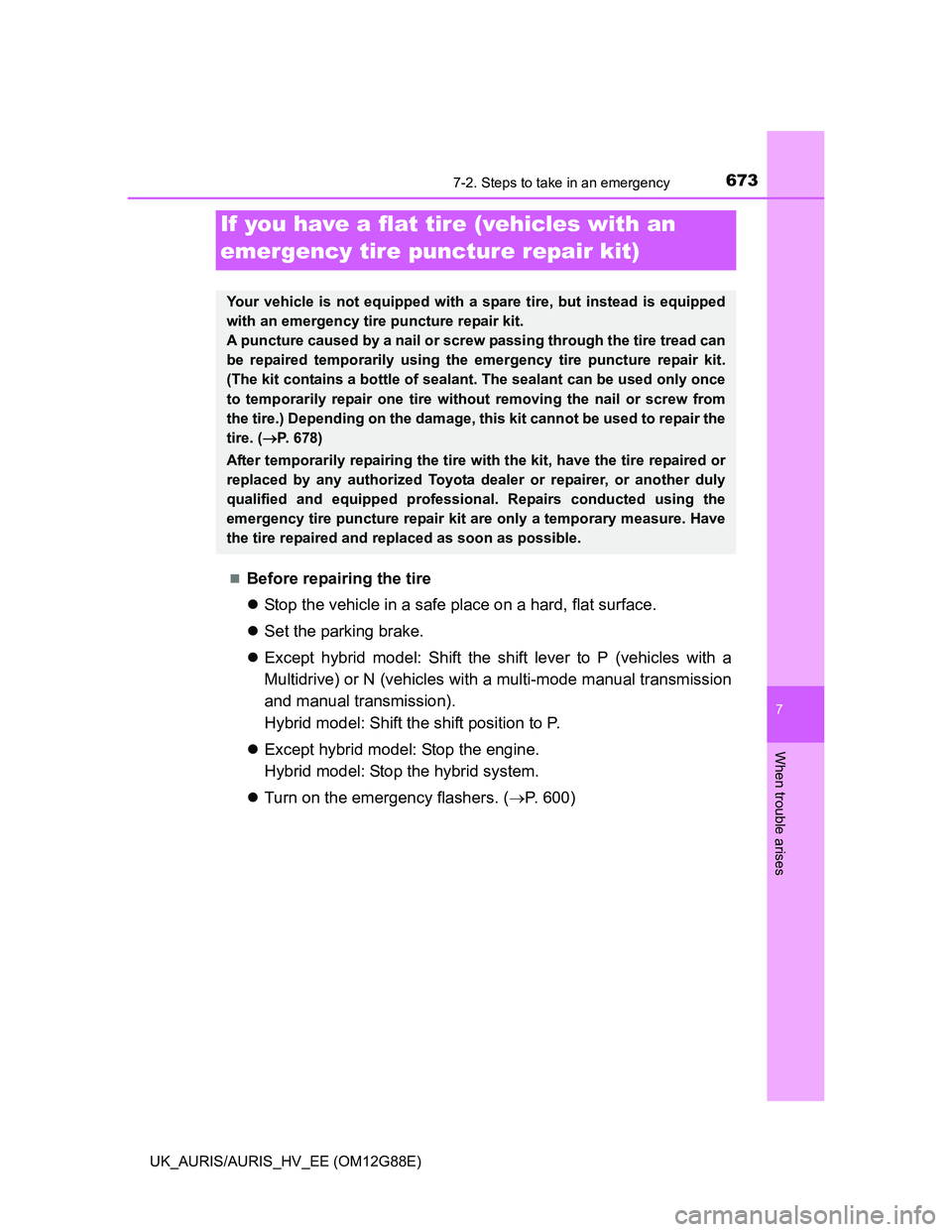

If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is equipped
with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can
be repaired temporarily using the emergency tire puncture repair kit.
(The kit contains a bottle of sealant. The sealant can be used only once
to temporarily repair one tire without removing the nail or screw from
the tire.) Depending on the damage, this kit cannot be used to repair the
tire. (P. 678)
After temporarily repairing the tire with the kit, have the tire repaired or
replaced by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. Repairs conducted using the
emergency tire puncture repair kit are only a temporary measure. Have
the tire repaired and replaced as soon as possible.

6747-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)

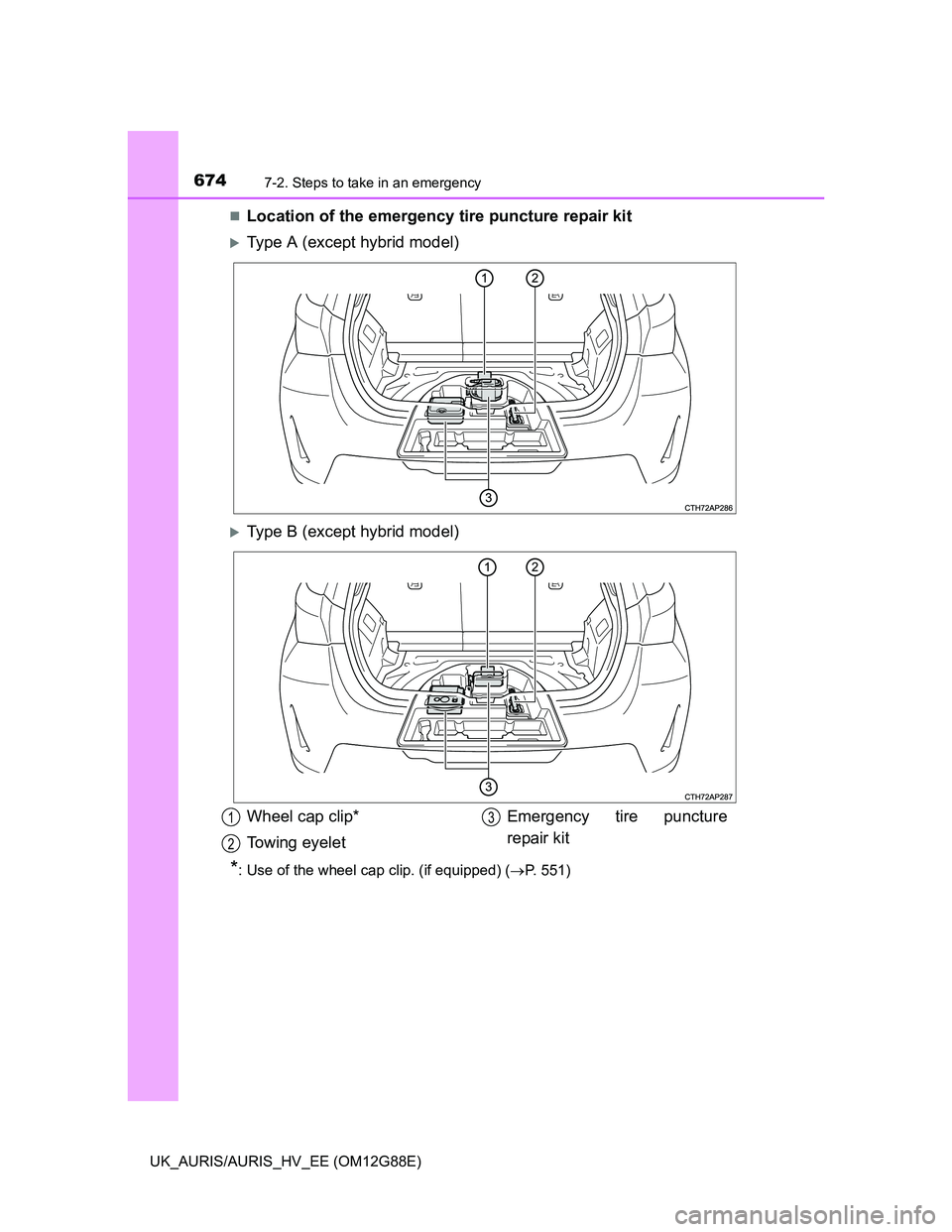

Location of the emergency tire puncture repair kit
Type A (except hybrid model)
Type B (except hybrid model)
*: Use of the wheel cap clip. (if equipped) (P. 551)
Wheel cap clip*
Towing eyeletEmergency tire puncture
repair kit1
2
3

6757-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises

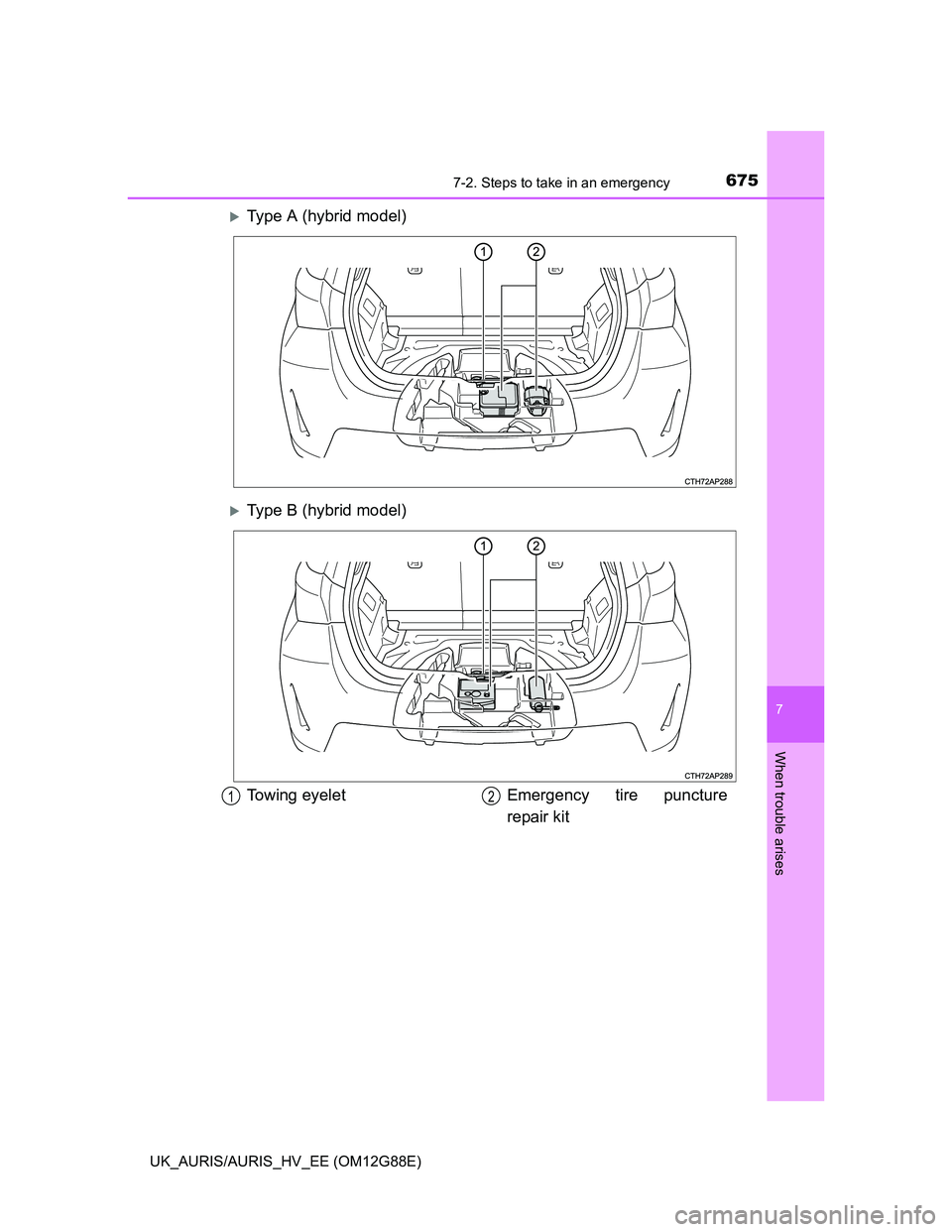

Type A (hybrid model)
Type B (hybrid model)
Towing eyelet Emergency tire puncture
repair kit12

6767-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Emergency tire puncture repair kit components
Ty p e A
Hose
Air release cap
Air pressure gaugeCompressor switch
Power plug
St ic ke rs1
2
3
4
5
6

6777-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises

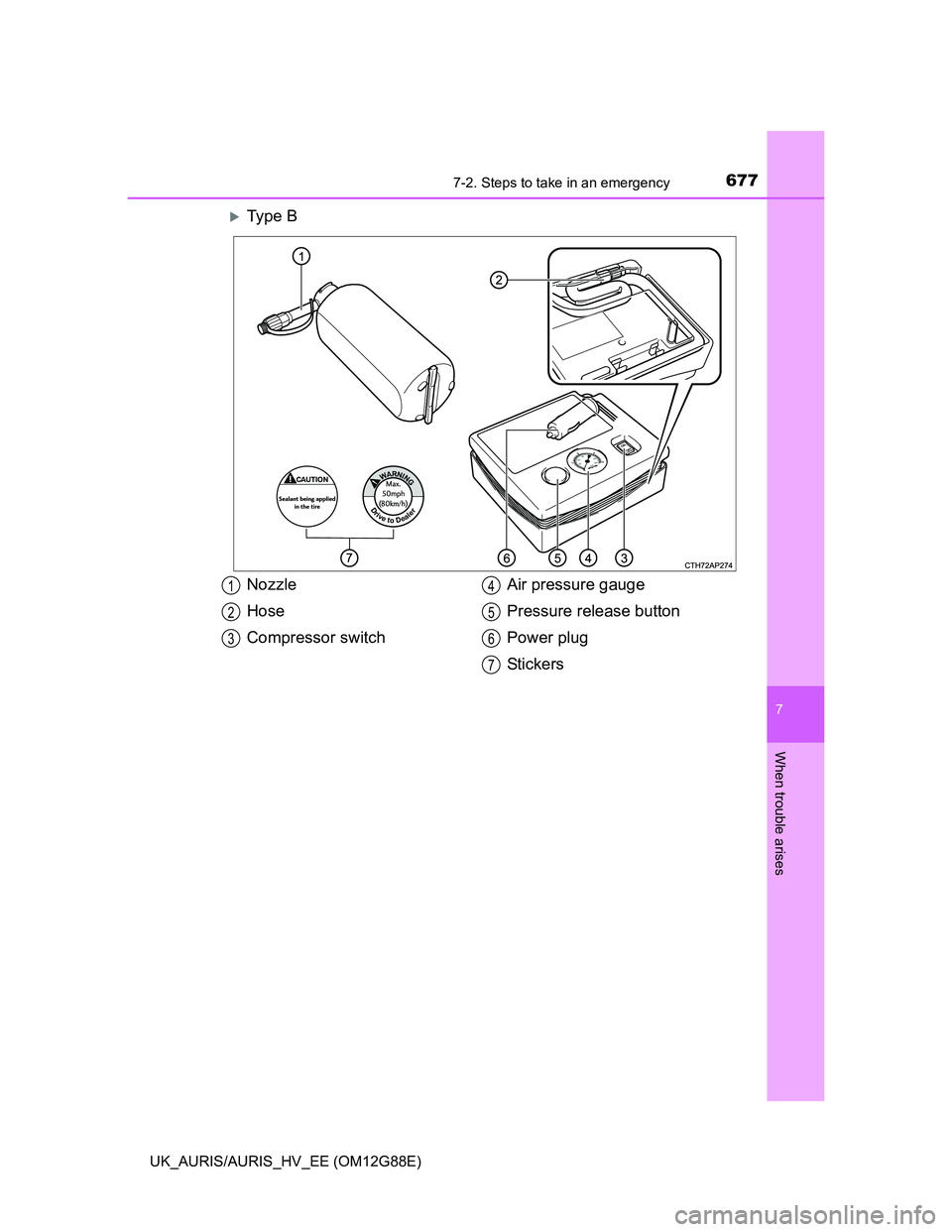

Ty p e B
Nozzle
Hose
Compressor switchAir pressure gauge
Pressure release button
Power plug
St ic ke rs1
2
3
4
5
6
7

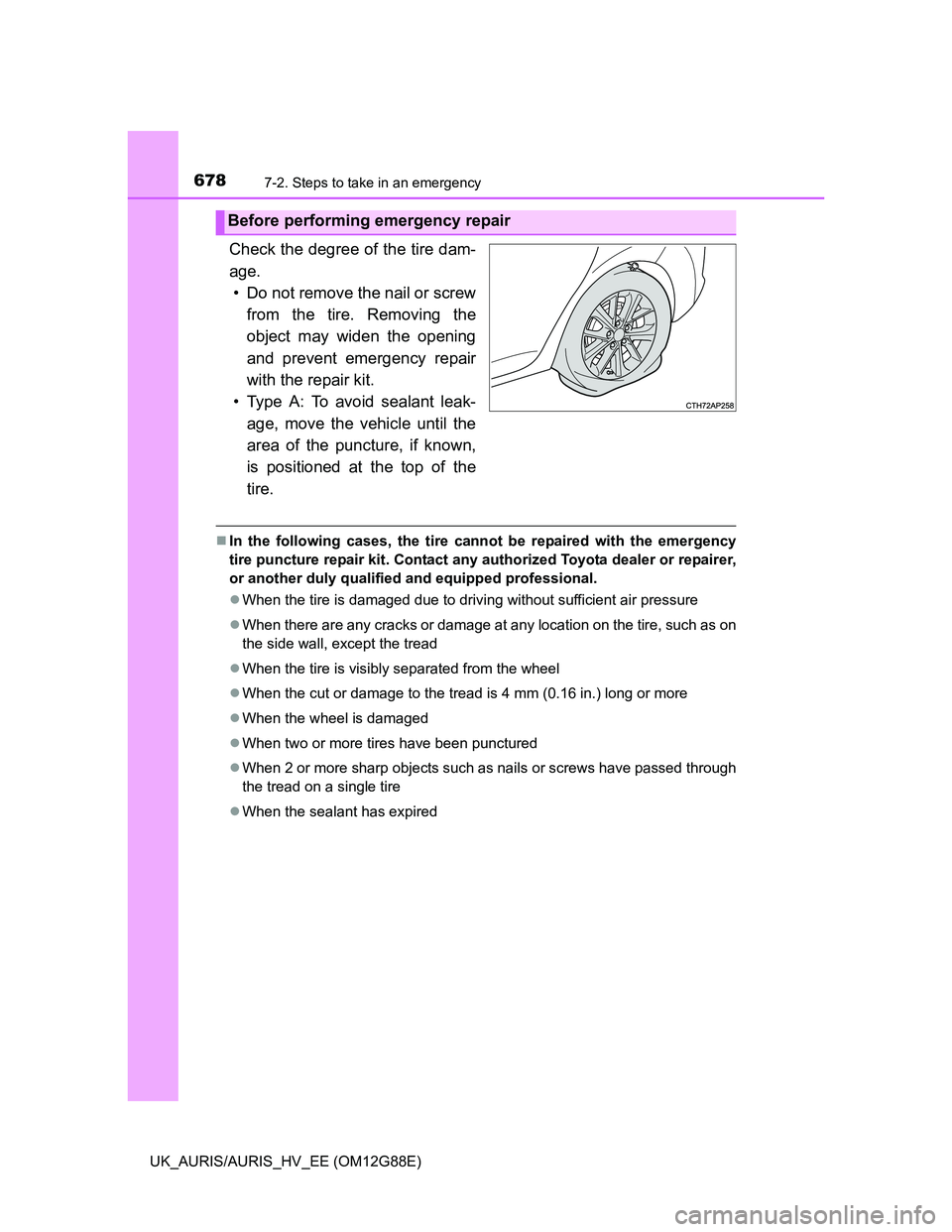

6787-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Check the degree of the tire dam-
age.
• Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and prevent emergency repair
with the repair kit.
• Type A: To avoid sealant leak-
age, move the vehicle until the
area of the puncture, if known,
is positioned at the top of the
tire.
In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
When the tire is damaged due to driving without sufficient air pressure
When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
When the tire is visibly separated from the wheel
When the cut or damage to the tread is 4 mm (0.16 in.) long or more
When the wheel is damaged
When two or more tires have been punctured
When 2 or more sharp objects such as nails or screws have passed through
the tread on a single tire
When the sealant has expired
Before performing emergency repair

6797-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Remove the deck mat. (P. 470)
Take out the emergency tire puncture repair kit. (P. 674)
Take out the repair kit.
Remove the valve cap from the
valve of the punctured tire.
Remove the protective film from
the bottle and extend the hose.
Remove the air release cap
from the hose.
Attach the stickers enclosed with
the bottle on the specified loca-
tions. (See step 9.)
You will use the air release cap
again. Therefore keep it in a safe
place.
Connect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
Taking out the emergency tire puncture repair kit
Emergency repair method (type A)
1
2
1
2
3
4

6807-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)

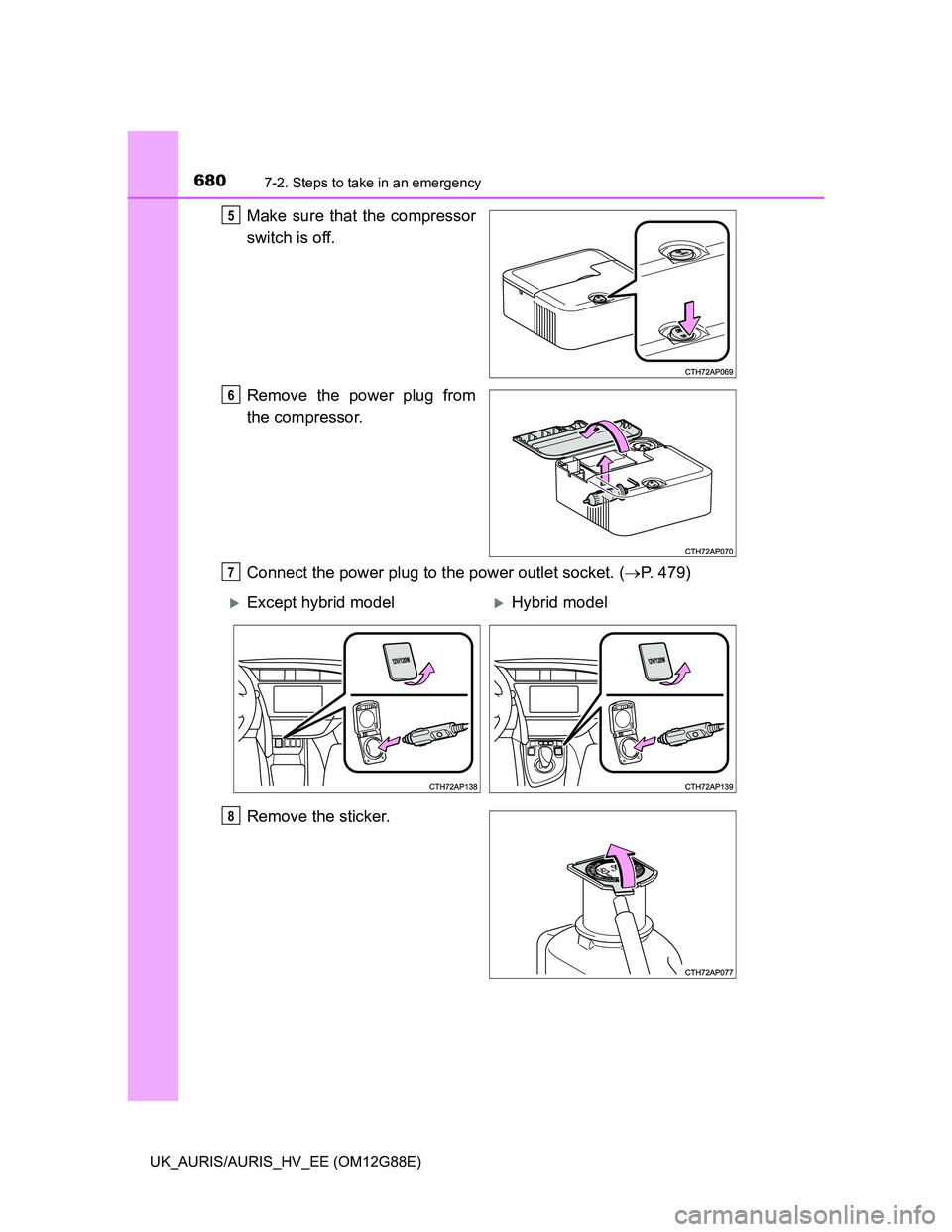

Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the power outlet socket. (P. 479)
Remove the sticker.5
6
7
Except hybrid modelHybrid model
8
