TOYOTA AURIS HYBRID 2014 Owners Manual

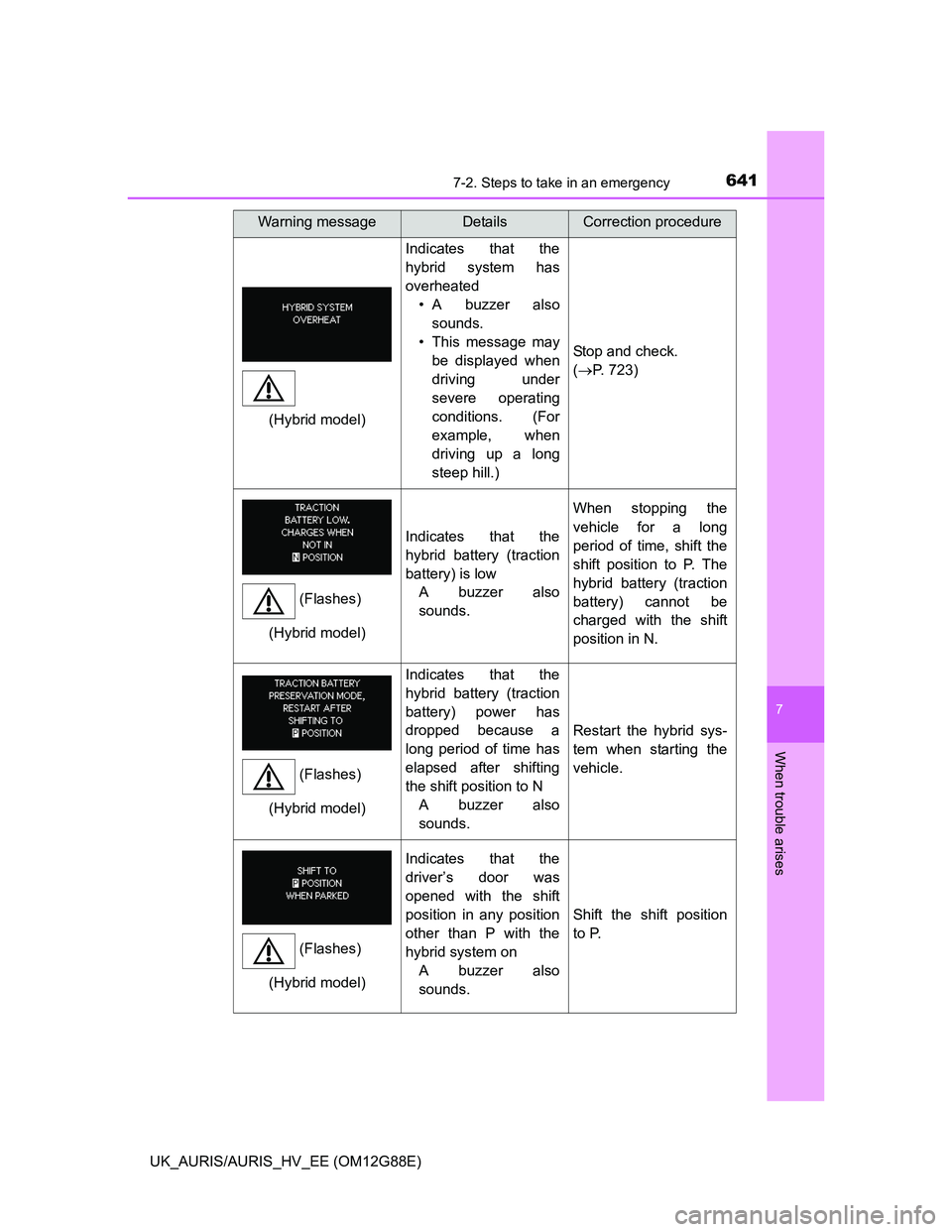

6417-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Indicates that the
hybrid system has
overheated
• A buzzer also
sounds.
• This message may
be displayed when
driving under
severe operating
conditions. (For
example, when
driving up a long
steep hill.)
Stop and check.
(P. 723)
Indicates that the
hybrid battery (traction
battery) is low
A buzzer also
sounds.
When stopping the
vehicle for a long
period of time, shift the
shift position to P. The
hybrid battery (traction
battery) cannot be
charged with the shift
position in N.
Indicates that the
hybrid battery (traction
battery) power has
dropped because a
long period of time has
elapsed after shifting
the shift position to N
A buzzer also
sounds.
Restart the hybrid sys-
tem when starting the
vehicle.
Indicates that the
driver’s door was
opened with the shift
position in any position
other than P with the
hybrid system on
A buzzer also
sounds.
Shift the shift position
to P.
Warning messageDetailsCorrection procedure
(Hybrid model)
(Flashes)
(Hybrid model)
(Flashes)
(Hybrid model)
(Flashes)
(Hybrid model)

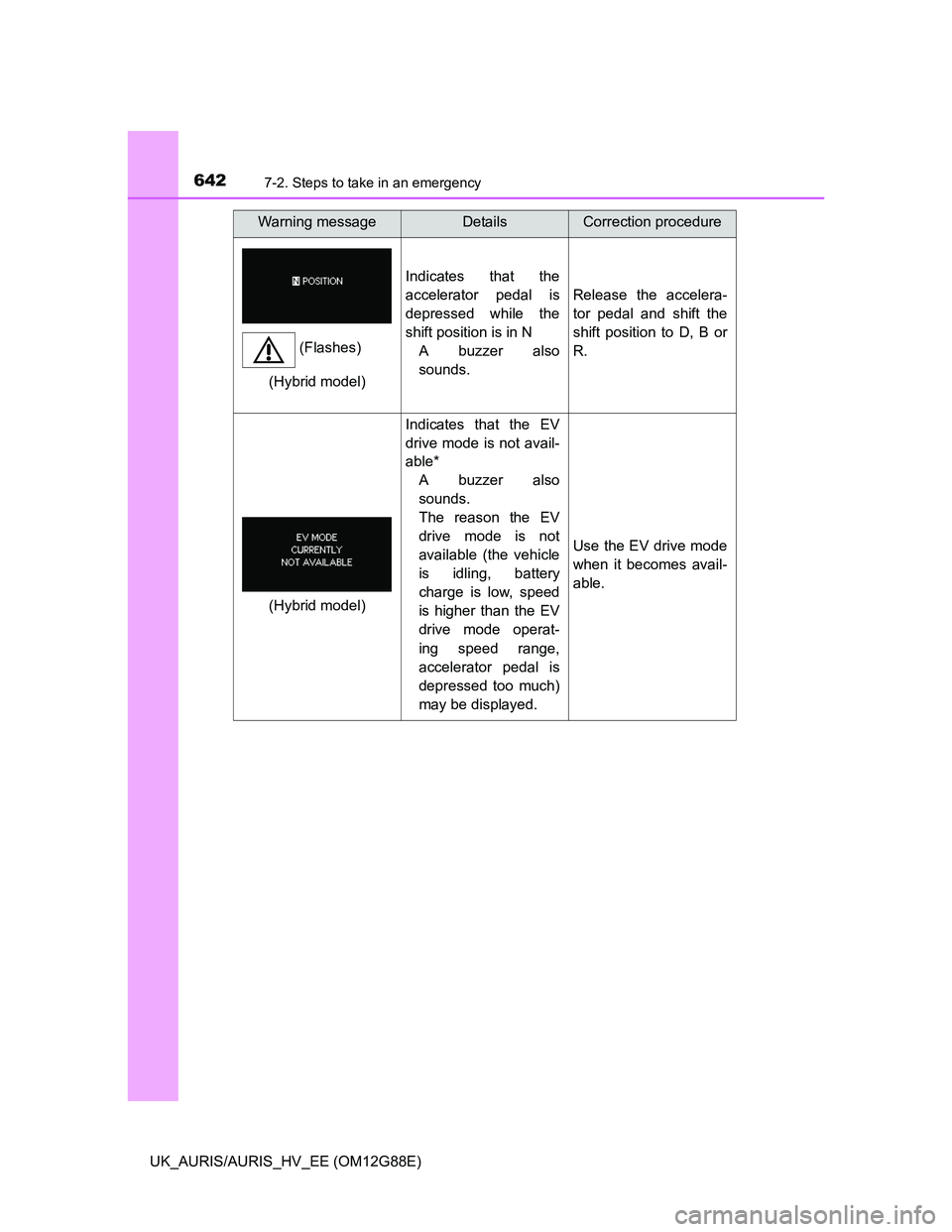

6427-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Indicates that the
accelerator pedal is
depressed while the
shift position is in N
A buzzer also
sounds.
Release the accelera-
tor pedal and shift the
shift position to D, B or
R.
Indicates that the EV
drive mode is not avail-
able*
A buzzer also
sounds.
The reason the EV
drive mode is not
available (the vehicle
is idling, battery
charge is low, speed
is higher than the EV
drive mode operat-
ing speed range,
accelerator pedal is
depressed too much)
may be displayed.
Use the EV drive mode
when it becomes avail-
able.
Warning messageDetailsCorrection procedure
(Flashes)
(Hybrid model)
(Hybrid model)

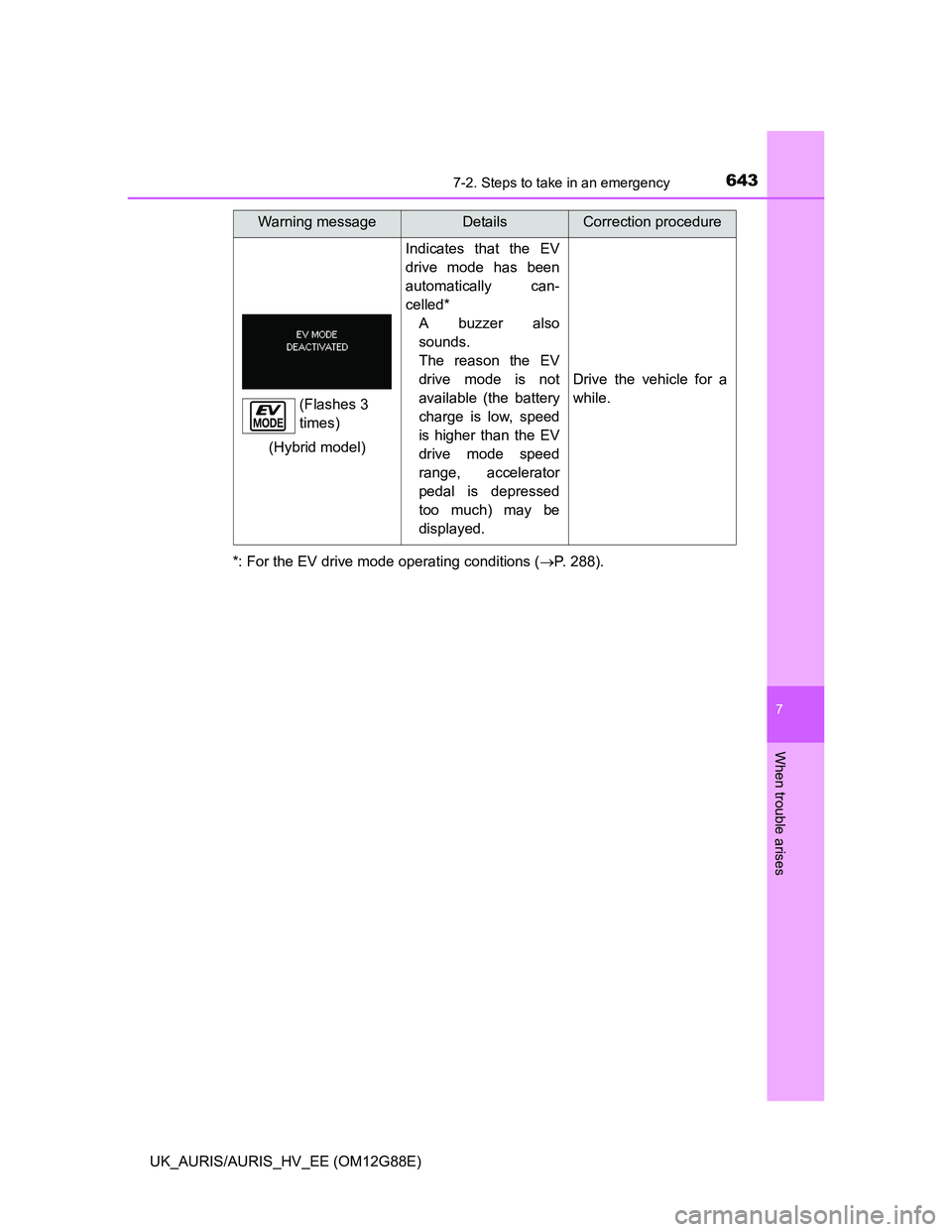

6437-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
*: For the EV drive mode operating conditions (P. 288).
Indicates that the EV
drive mode has been
automatically can-
celled*
A buzzer also
sounds.
The reason the EV
drive mode is not
available (the battery
charge is low, speed
is higher than the EV
drive mode speed
range, accelerator
pedal is depressed
too much) may be
displayed.
Drive the vehicle for a
while.
Warning messageDetailsCorrection procedure
(Flashes 3
times)
(Hybrid model)

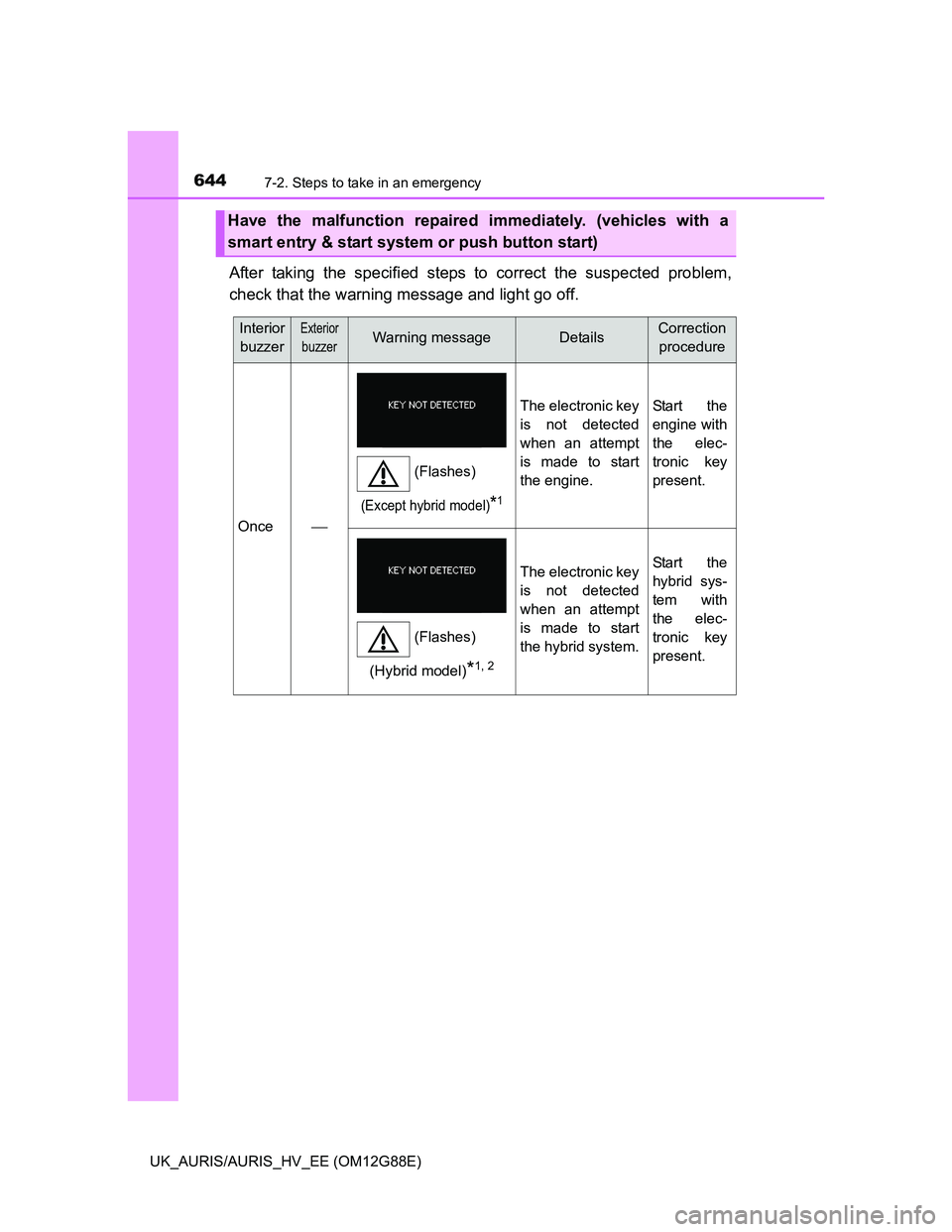

6447-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Have the malfunction repaired immediately. (vehicles with a
smart entry & start system or push button start)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
OnceThe electronic key
is not detected
when an attempt
is made to start
the engine.Start the
engine with
the elec-
tronic key
present.
The electronic key
is not detected
when an attempt
is made to start
the hybrid system.Start the
hybrid sys-
tem with
the elec-
tronic key
present.
(Flashes)
(Except hybrid model)*1
(Flashes)
(Hybrid model)
*1, 2

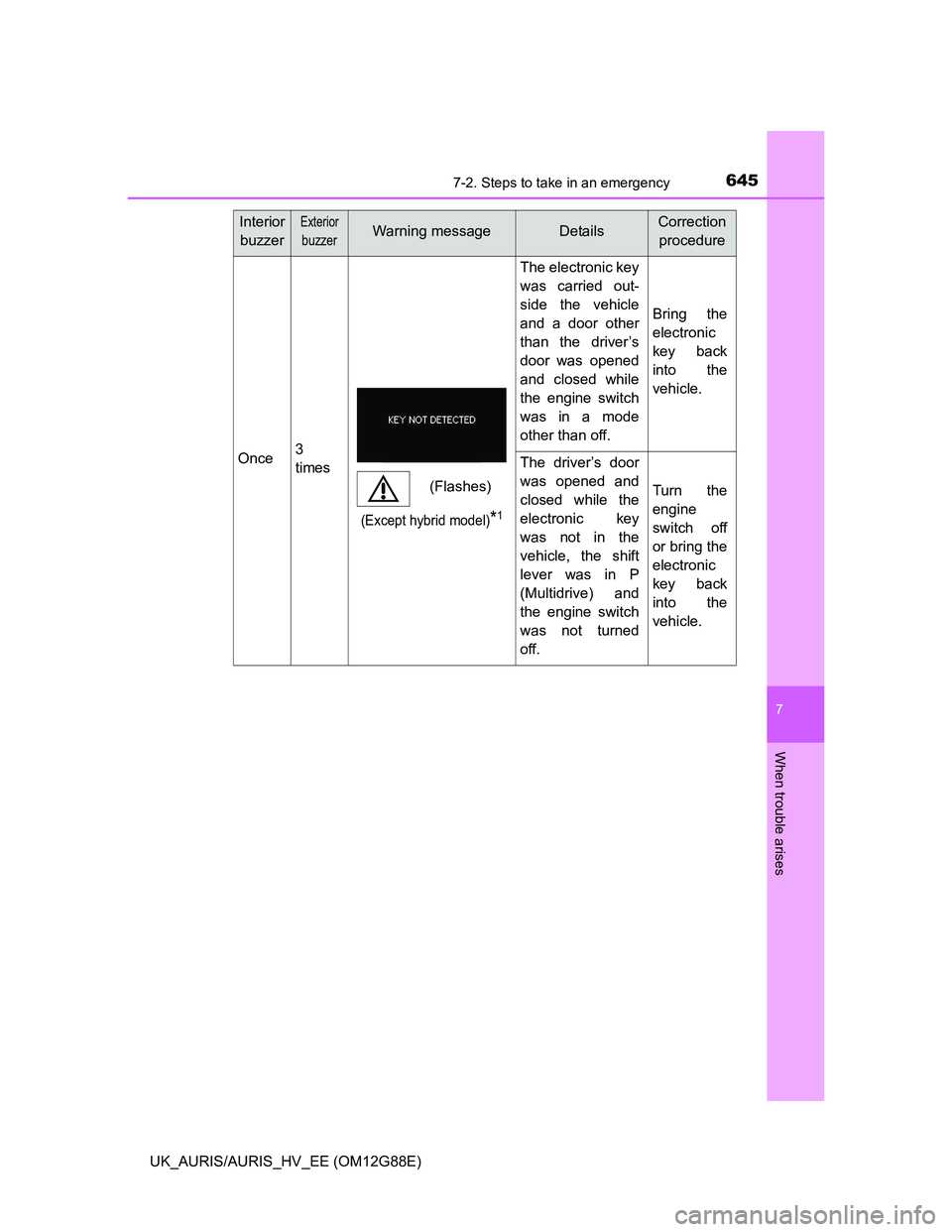

6457-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Once3
times
The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the engine switch
was in a mode
other than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key
was not in the
vehicle, the shift
lever was in P
(Multidrive) and
the engine switch
was not turned
off.
Turn the
engine
switch off
or bring the
electronic
key back
into the
vehicle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Except hybrid model)*1

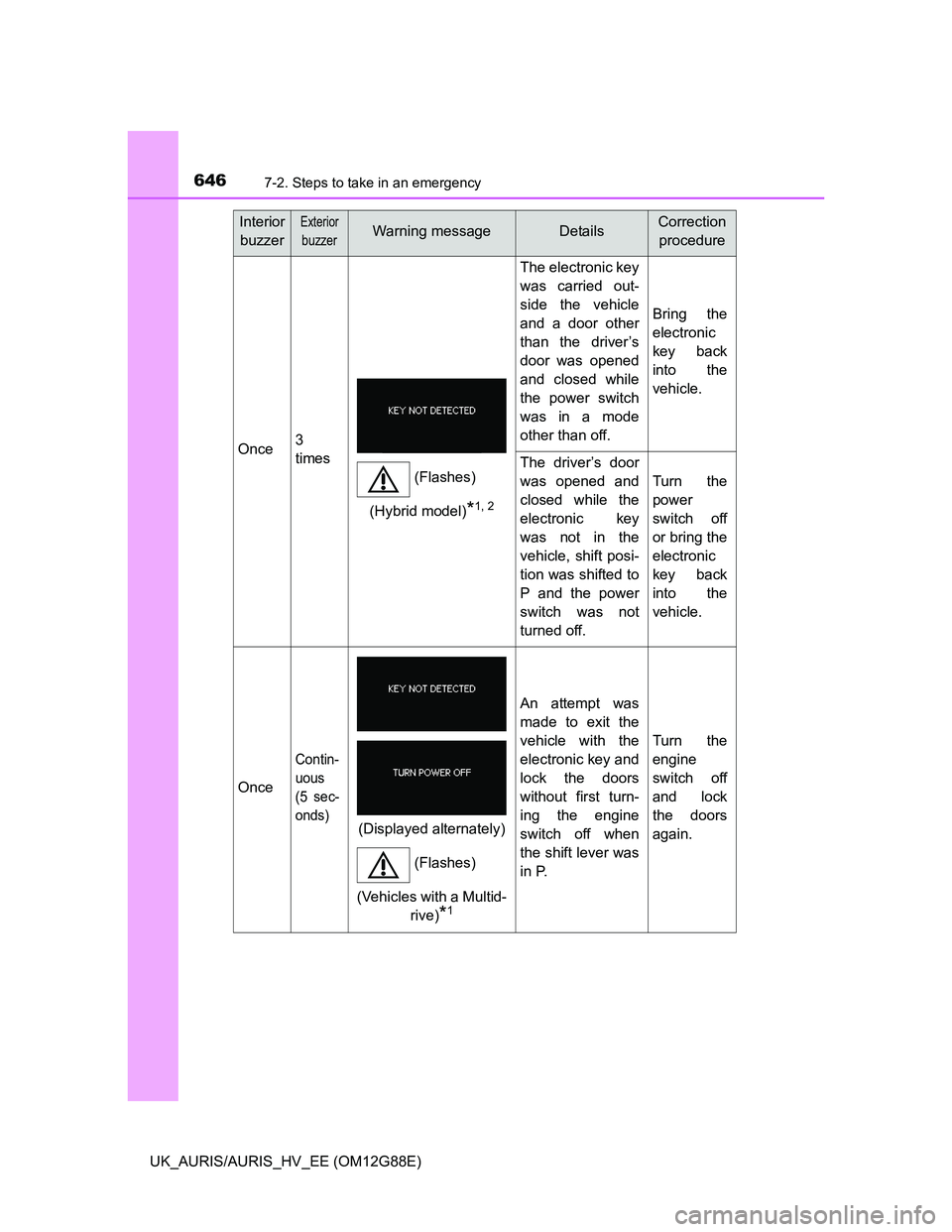

6467-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Once3
times
The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the power switch
was in a mode
other than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key
was not in the
vehicle, shift posi-
tion was shifted to
P and the power
switch was not
turned off.
Turn the
power
switch off
or bring the
electronic
key back
into the
vehicle.
Once
Contin-
uous
(5 sec-
onds)
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the engine
switch off when
the shift lever was
in P.
Turn the
engine
switch off
and lock
the doors
again.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Hybrid model)
*1, 2
(Displayed alternately)
(Flashes)
(Vehicles with a Multid-
rive)
*1

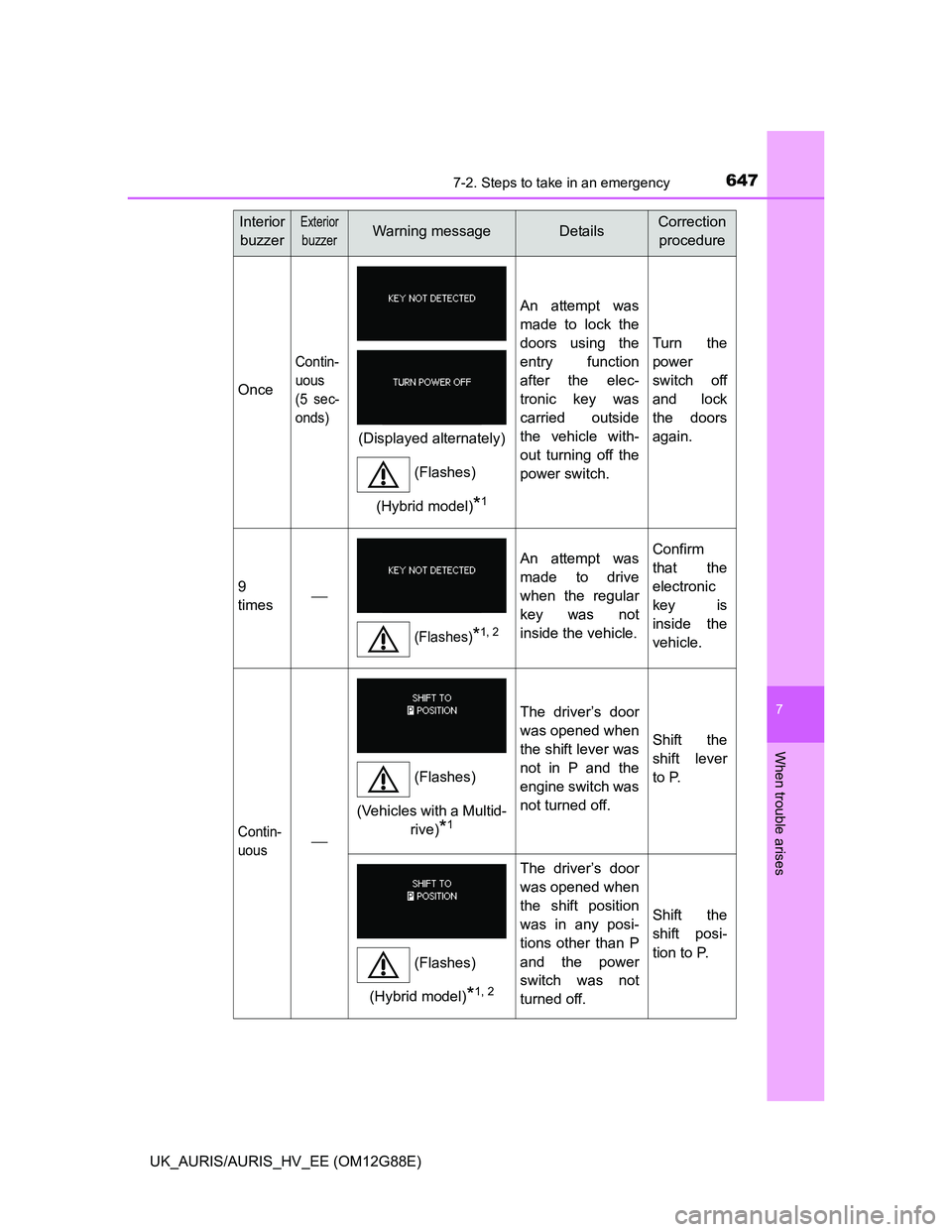

6477-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Once
Contin-
uous
(5 sec-
onds)
An attempt was
made to lock the
doors using the
entry function
after the elec-
tronic key was
carried outside
the vehicle with-
out turning off the
power switch.
Turn the
power
switch off
and lock
the doors
again.
9
times
An attempt was
made to drive
when the regular
key was not
inside the vehicle.Confirm
that the
electronic
key is
inside the
vehicle.
Contin-
uous
The driver’s door
was opened when
the shift lever was
not in P and the
engine switch was
not turned off.
Shift the
shift lever
to P.
The driver’s door
was opened when
the shift position
was in any posi-
tions other than P
and the power
switch was not
turned off.
Shift the
shift posi-
tion to P.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Displayed alternately)
(Flashes)
(Hybrid model)
*1
(Flashes)*1, 2
(Flashes)
(Vehicles with a Multid-
rive)
*1
(Flashes)
(Hybrid model)
*1, 2

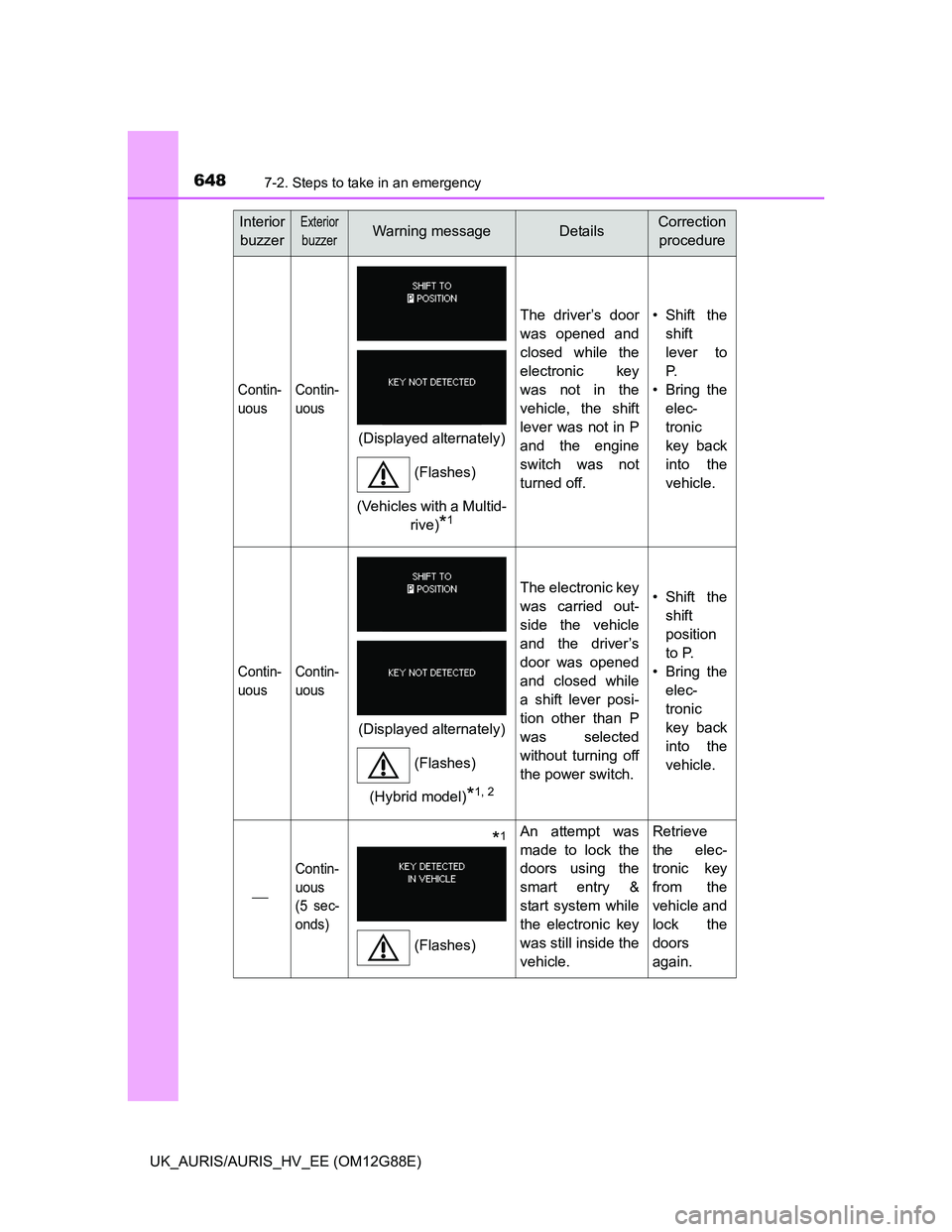

6487-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Contin-
uousContin-
uous
The driver’s door
was opened and
closed while the
electronic key
was not in the
vehicle, the shift
lever was not in P
and the engine
switch was not
turned off.•Shift the
shift
lever to
P.
• Bring the
elec-
tronic
key back
into the
vehicle.
Contin-
uousContin-
uous
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed while
a shift lever posi-
tion other than P
was selected
without turning off
the power switch.•Shift the
shift
position
to P.
• Bring the
elec-
tronic
key back
into the
vehicle.

Contin-
uous
(5 sec-
onds)
An attempt was
made to lock the
doors using the
smart entry &
start system while
the electronic key
was still inside the
vehicle.Retrieve
the elec-
tronic key
from the
vehicle and
lock the
doors
again.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Displayed alternately)
(Flashes)
(Vehicles with a Multid-
rive)
*1
(Displayed alternately)
(Flashes)
(Hybrid model)
*1, 2
(Flashes)
*1

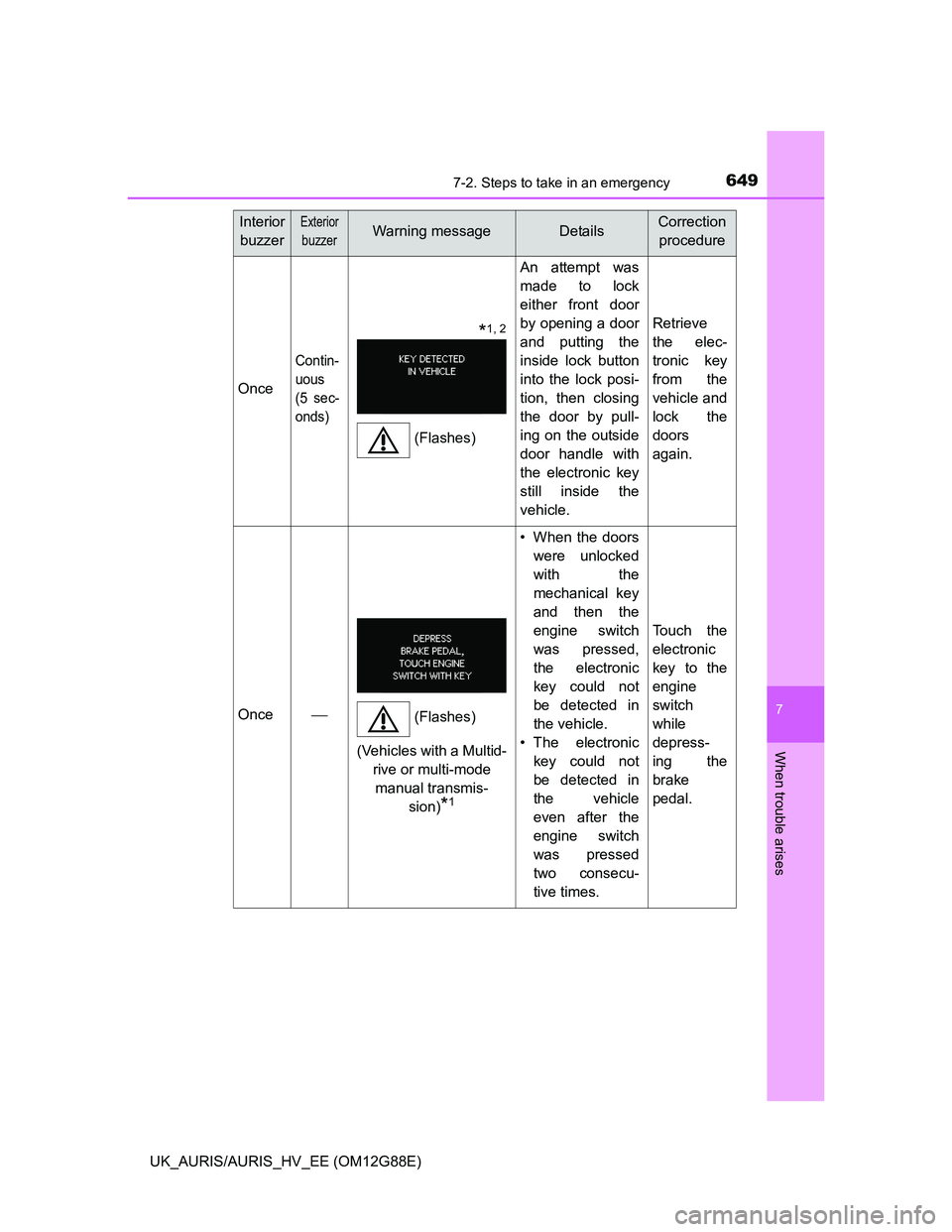

6497-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Once
Contin-
uous
(5 sec-
onds)
An attempt was
made to lock
either front door
by opening a door
and putting the
inside lock button
into the lock posi-
tion, then closing
the door by pull-
ing on the outside
door handle with
the electronic key
still inside the
vehicle.
Retrieve
the elec-
tronic key
from the
vehicle and
lock the
doors
again.
Once
• When the doors
were unlocked
with the
mechanical key
and then the
engine switch
was pressed,
the electronic
key could not
be detected in
the vehicle.
• The electronic
key could not
be detected in
the vehicle
even after the
engine switch
was pressed
two consecu-
tive times.
Touch the
electronic
key to the
engine
switch
while
depress-
ing the
brake
pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
*1, 2
(Flashes)
(Vehicles with a Multid-
rive or multi-mode
manual transmis-
sion)
*1

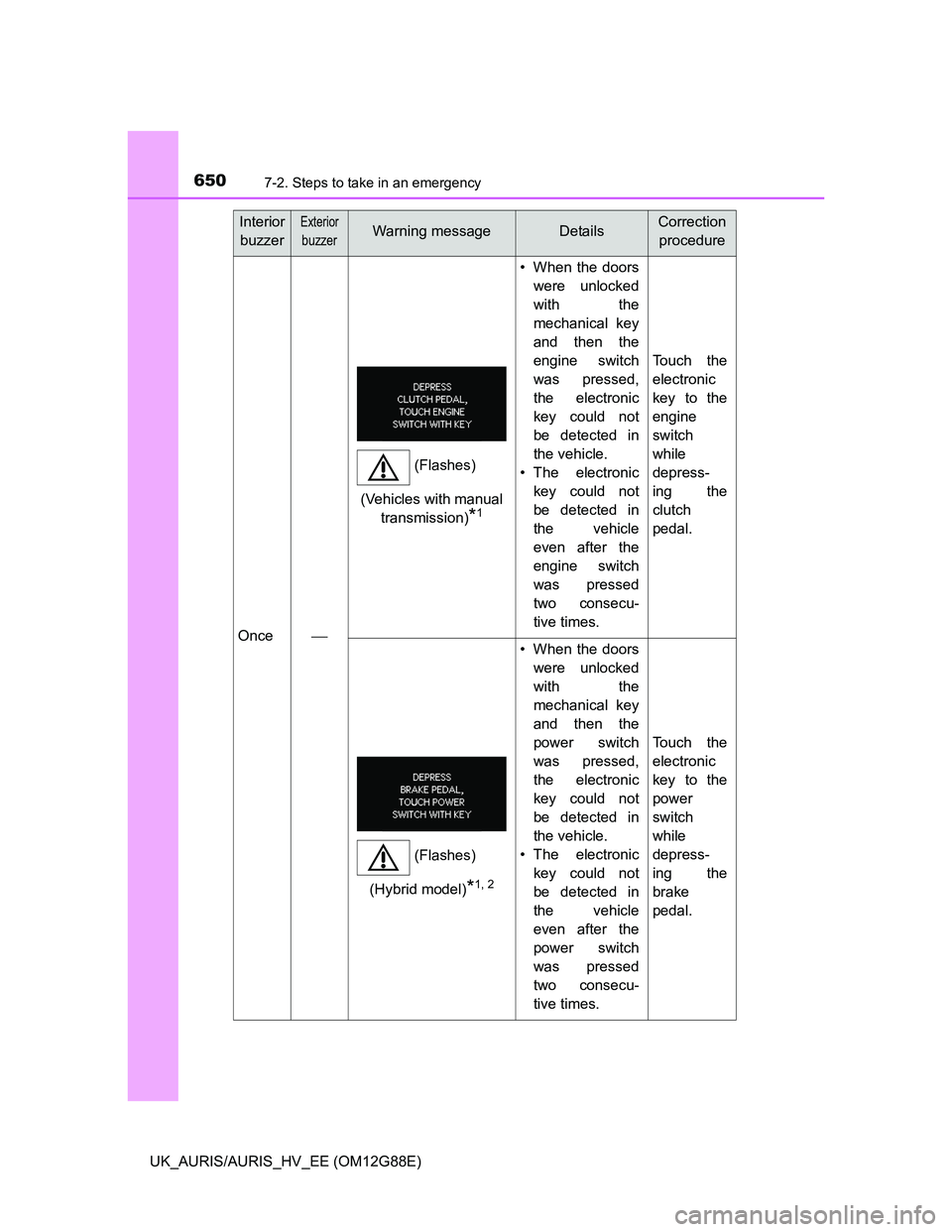

6507-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Once
• When the doors
were unlocked
with the
mechanical key
and then the
engine switch
was pressed,
the electronic
key could not
be detected in
the vehicle.
• The electronic
key could not
be detected in
the vehicle
even after the
engine switch
was pressed
two consecu-
tive times.
Touch the
electronic
key to the
engine
switch
while
depress-
ing the
clutch
pedal.
• When the doors
were unlocked
with the
mechanical key
and then the
power switch
was pressed,
the electronic
key could not
be detected in
the vehicle.
• The electronic
key could not
be detected in
the vehicle
even after the
power switch
was pressed
two consecu-
tive times.
Touch the
electronic
key to the
power
switch
while
depress-
ing the
brake
pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with manual
transmission)
*1
(Flashes)
(Hybrid model)
*1, 2
