TOYOTA AURIS HYBRID 2014 Owners Manual

7618-2. Customization
UK_AURIS/AURIS_HV_EE (OM12G88E)
8
Vehicle specifications

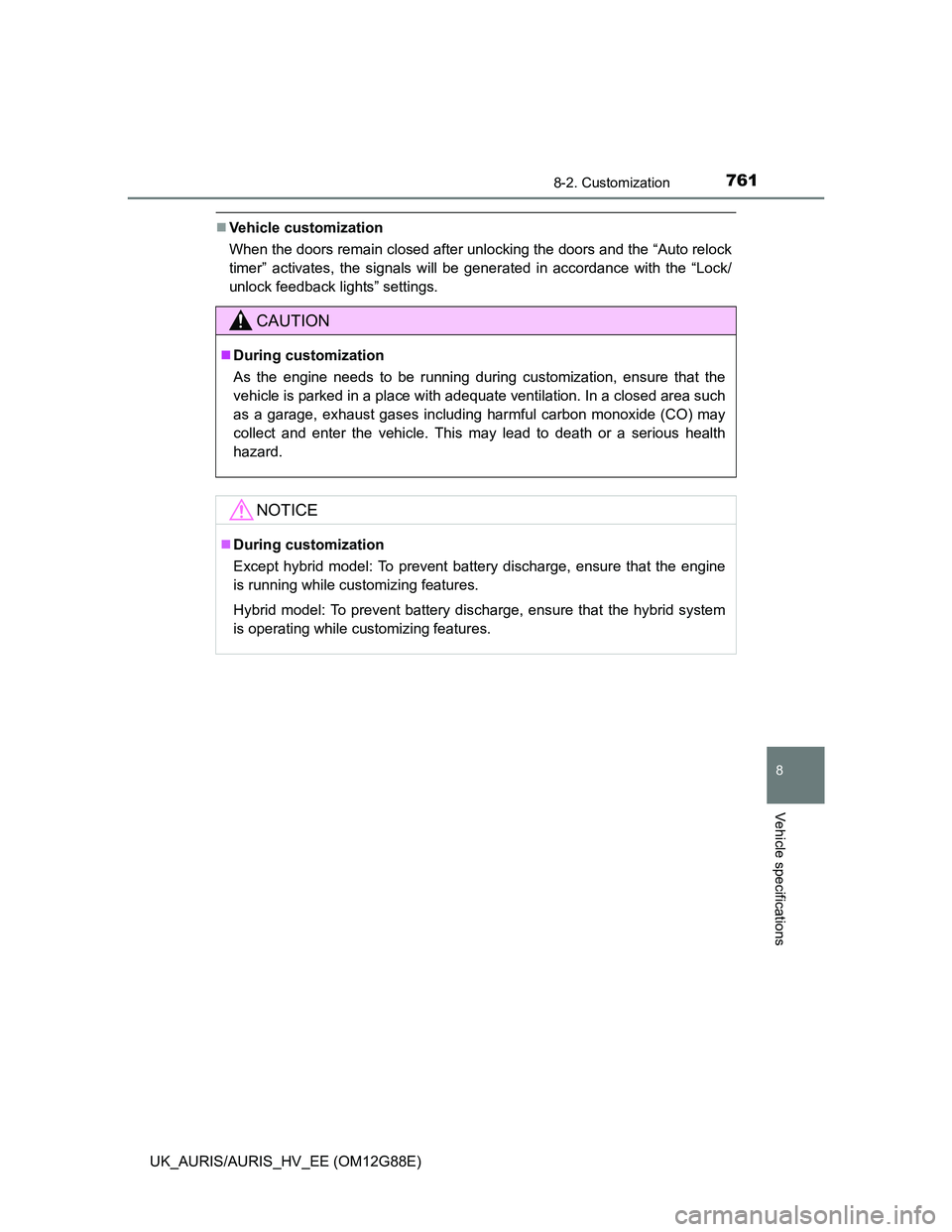

Vehicle customization
When the doors remain closed after unlocking the doors and the “Auto relock
timer” activates, the signals will be generated in accordance with the “Lock/
unlock feedback lights” settings.
CAUTION
During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
During customization
Except hybrid model: To prevent battery discharge, ensure that the engine
is running while customizing features.
Hybrid model: To prevent battery discharge, ensure that the hybrid system
is operating while customizing features.

762
UK_AURIS/AURIS_HV_EE (OM12G88E)

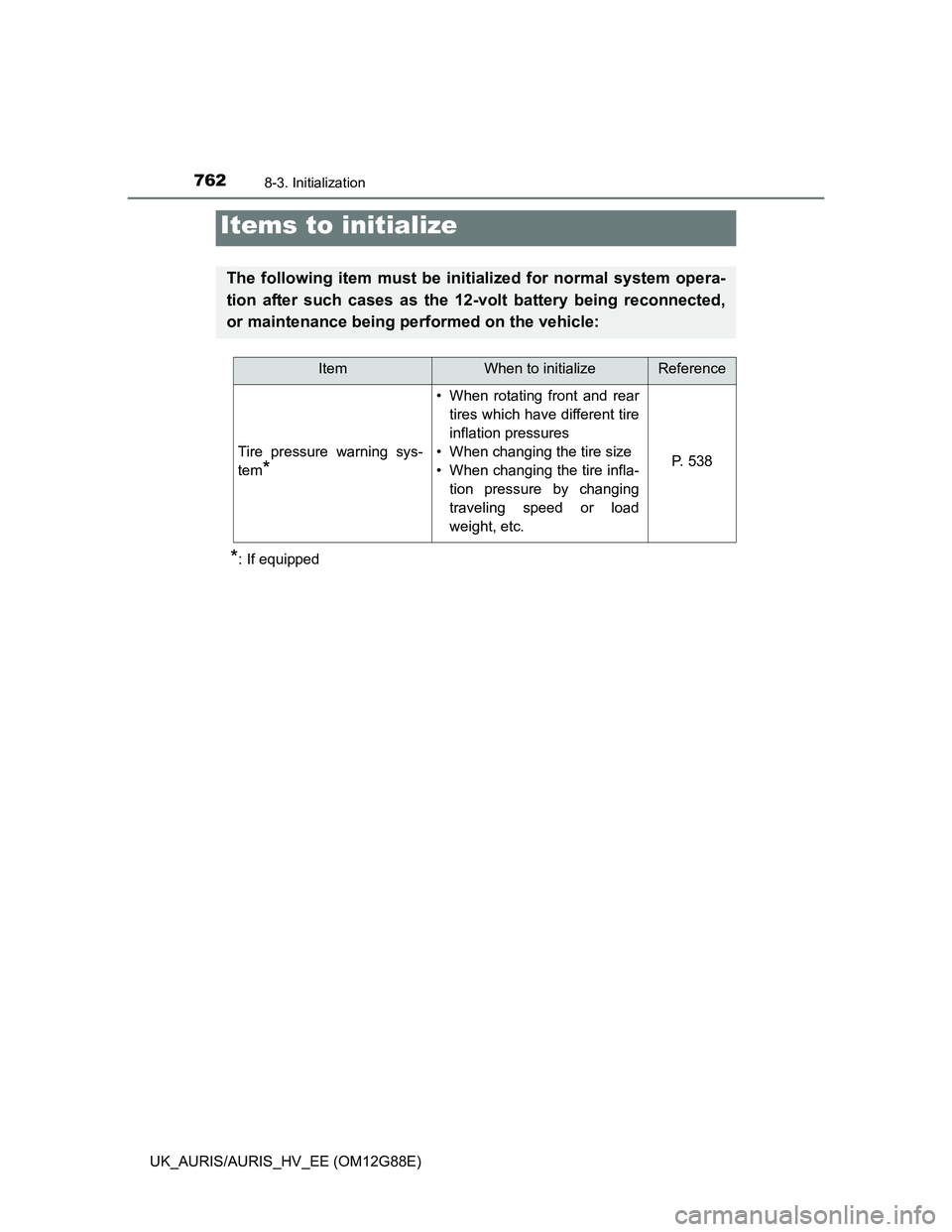

8-3. Initialization
*: If equipped
Items to initialize
The following item must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning sys-
tem
*
• When rotating front and rear
tires which have different tire
inflation pressures
• When changing the tire size
• When changing the tire infla-
tion pressure by changing
traveling speed or load
weight, etc.
P. 538

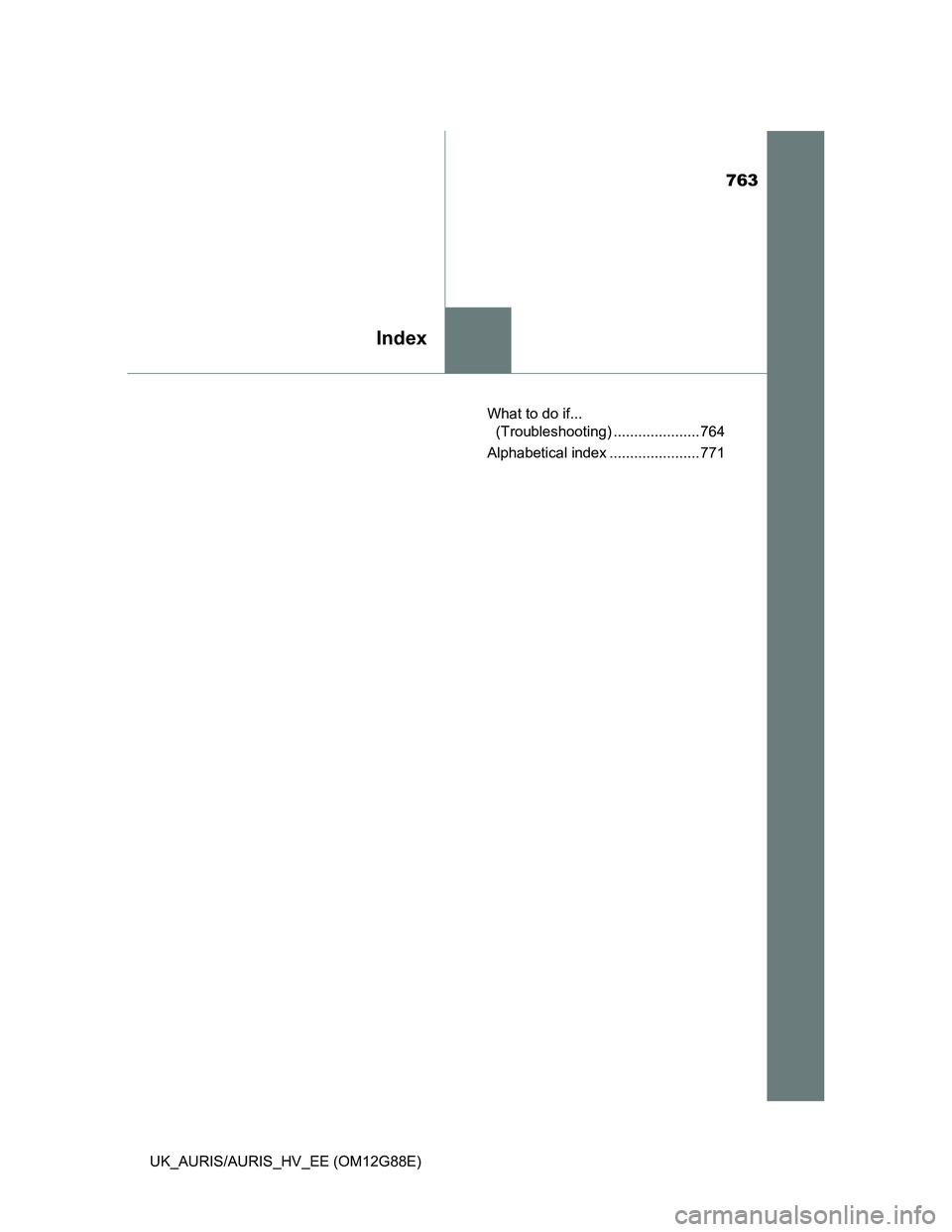

763
Index
UK_AURIS/AURIS_HV_EE (OM12G88E)What to do if...
(Troubleshooting) ..................... 764
Alphabetical index ...................... 771

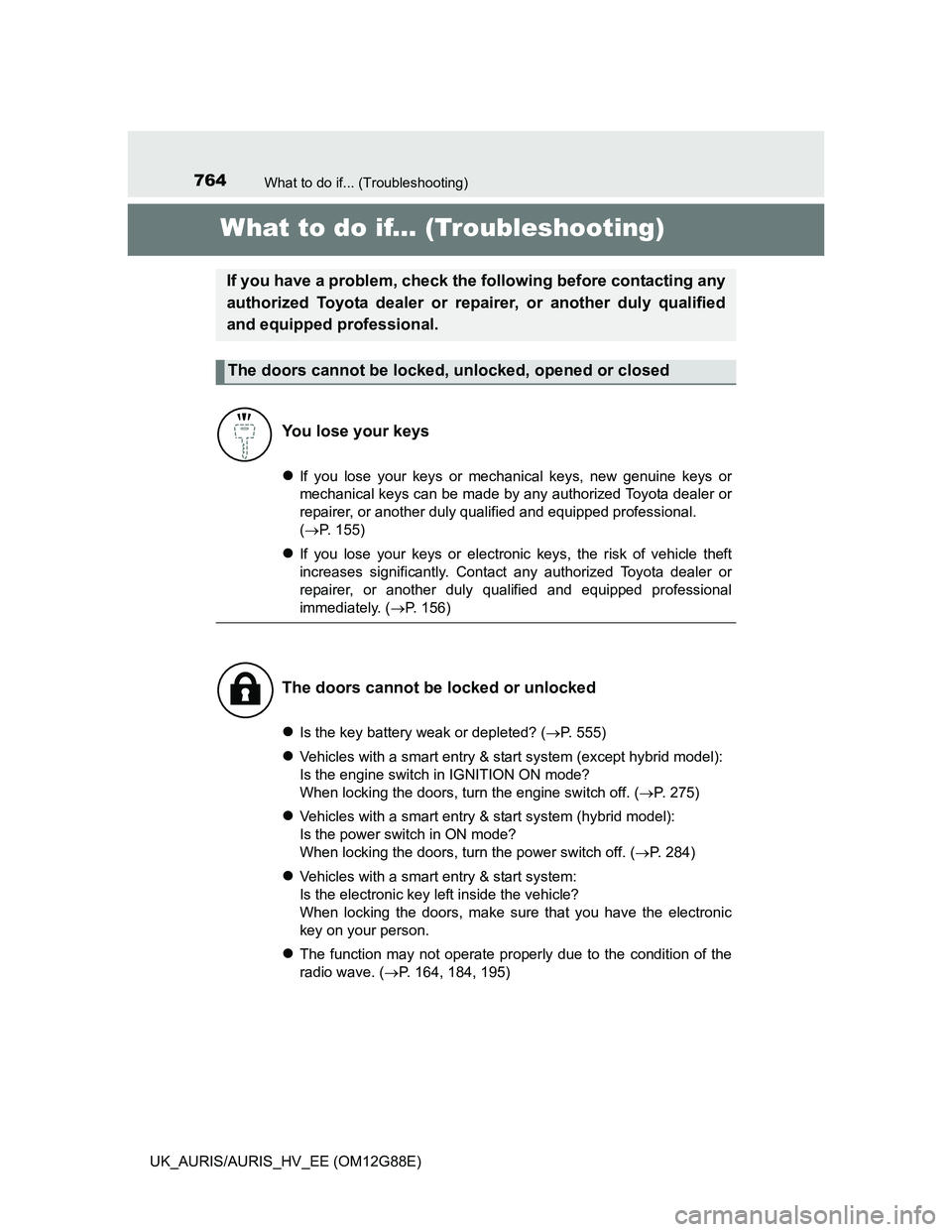

764
UK_AURIS/AURIS_HV_EE (OM12G88E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
If you lose your keys or mechanical keys, new genuine keys or
mechanical keys can be made by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
(P. 155)
If you lose your keys or electronic keys, the risk of vehicle theft
increases significantly. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately. (P. 156)
Is the key battery weak or depleted? (P. 555)
Vehicles with a smart entry & start system (except hybrid model):
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 275)
Vehicles with a smart entry & start system (hybrid model):
Is the power switch in ON mode?
When locking the doors, turn the power switch off. (P. 284)
Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic
key on your person.
The function may not operate properly due to the condition of the
radio wave. (P. 164, 184, 195)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

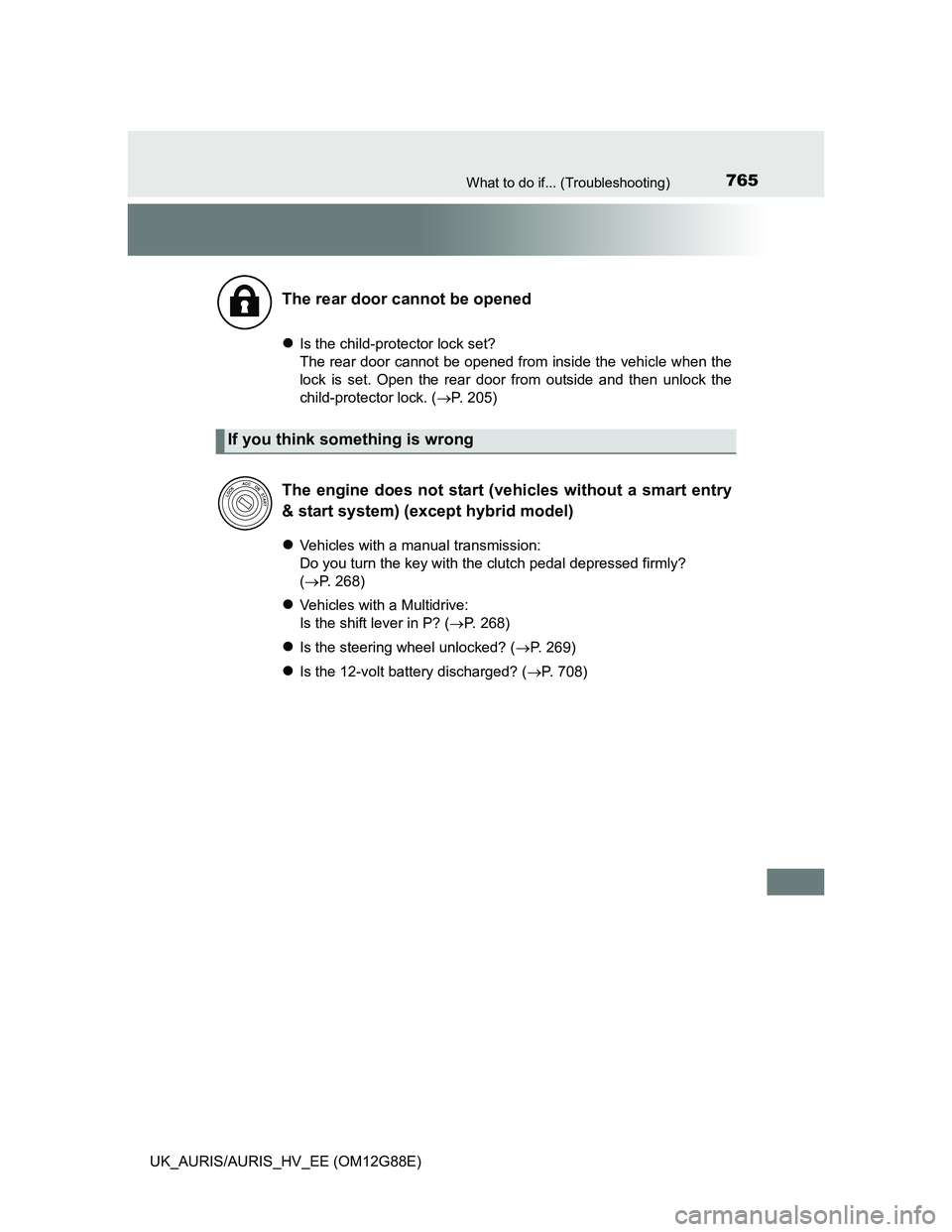

765What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12G88E)
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the
lock is set. Open the rear door from outside and then unlock the
child-protector lock. (P. 205)
Vehicles with a manual transmission:
Do you turn the key with the clutch pedal depressed firmly?
(P. 268)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 268)
Is the steering wheel unlocked? (P. 269)
Is the 12-volt battery discharged? (P. 708)
The rear door cannot be opened
If you think something is wrong
The engine does not start (vehicles without a smart entry
& start system) (except hybrid model)

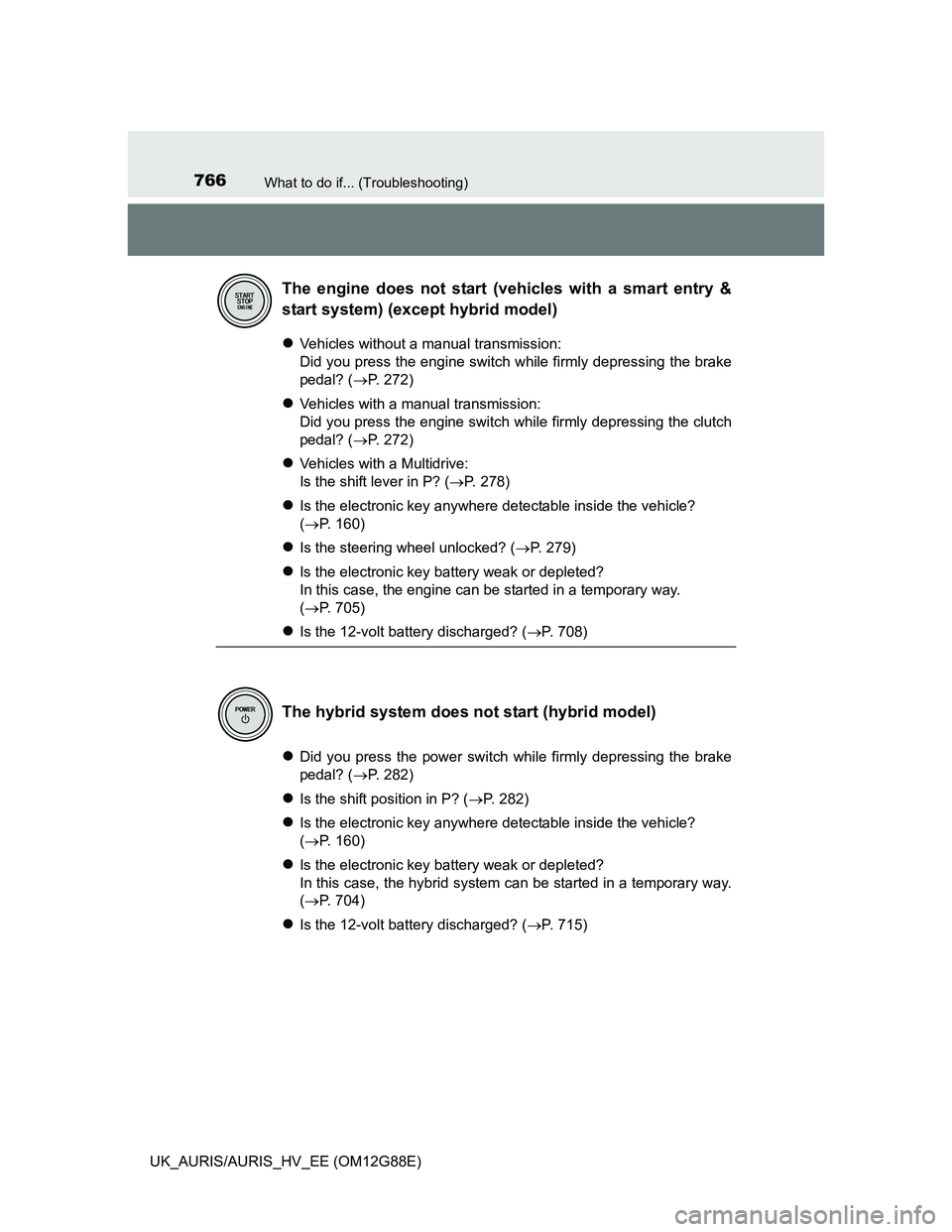

766What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12G88E)
Vehicles without a manual transmission:
Did you press the engine switch while firmly depressing the brake
pedal? (P. 272)
Vehicles with a manual transmission:
Did you press the engine switch while firmly depressing the clutch
pedal? (P. 272)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 278)
Is the electronic key anywhere detectable inside the vehicle?
(P. 160)
Is the steering wheel unlocked? (P. 279)
Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way.
(P. 705)
Is the 12-volt battery discharged? (P. 708)
Did you press the power switch while firmly depressing the brake
pedal? (P. 282)
Is the shift position in P? (P. 282)
Is the electronic key anywhere detectable inside the vehicle?
(P. 160)
Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
(P. 704)
Is the 12-volt battery discharged? (P. 715)
The engine does not start (vehicles with a smart entry &
start system) (except hybrid model)
The hybrid system does not start (hybrid model)

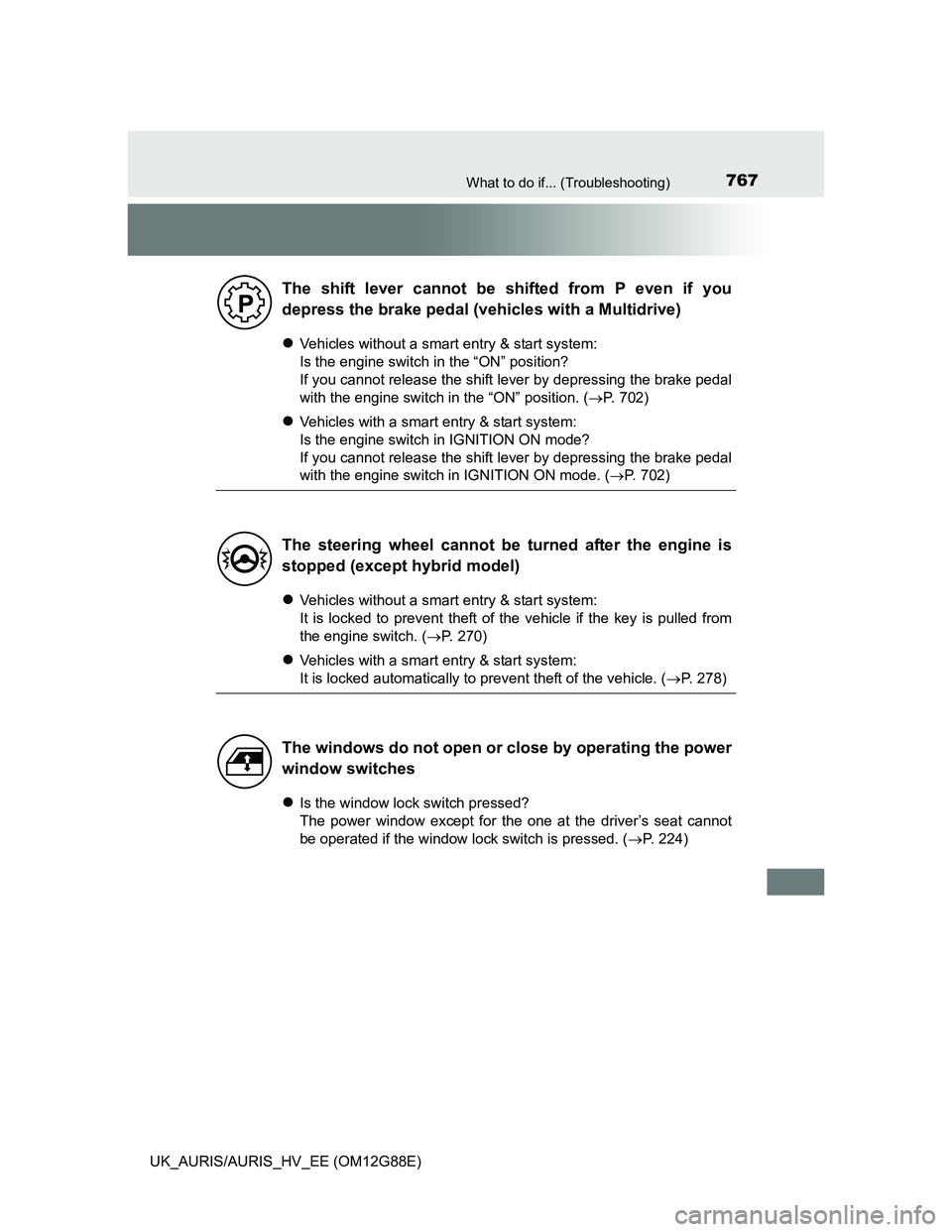

767What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12G88E)
Vehicles without a smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in the “ON” position. (P. 702)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in IGNITION ON mode. (P. 702)
Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from
the engine switch. (P. 270)
Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. (P. 278)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot
be operated if the window lock switch is pressed. (P. 224)
The shift lever cannot be shifted from P even if you
depress the brake pedal (vehicles with a Multidrive)
The steering wheel cannot be turned after the engine is
stopped (except hybrid model)
The windows do not open or close by operating the power
window switches

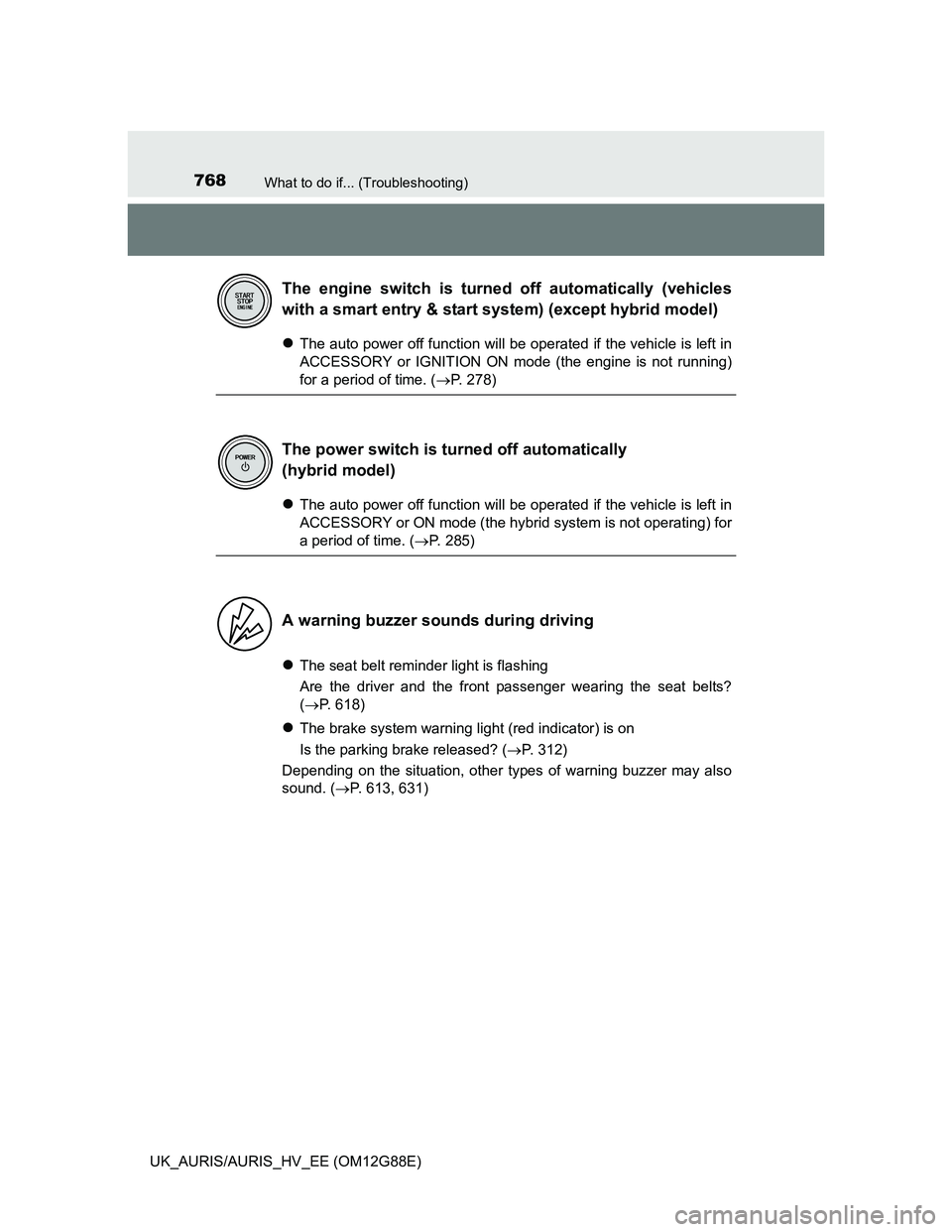

768What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12G88E)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or IGNITION ON mode (the engine is not running)
for a period of time. (P. 278)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or ON mode (the hybrid system is not operating) for
a period of time. (P. 285)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 618)
The brake system warning light (red indicator) is on
Is the parking brake released? (P. 312)
Depending on the situation, other types of warning buzzer may also
sound. (P. 613, 631)
The engine switch is turned off automatically (vehicles
with a smart entry & start system) (except hybrid model)
The power switch is turned off automatically
(hybrid model)
A warning buzzer sounds during driving

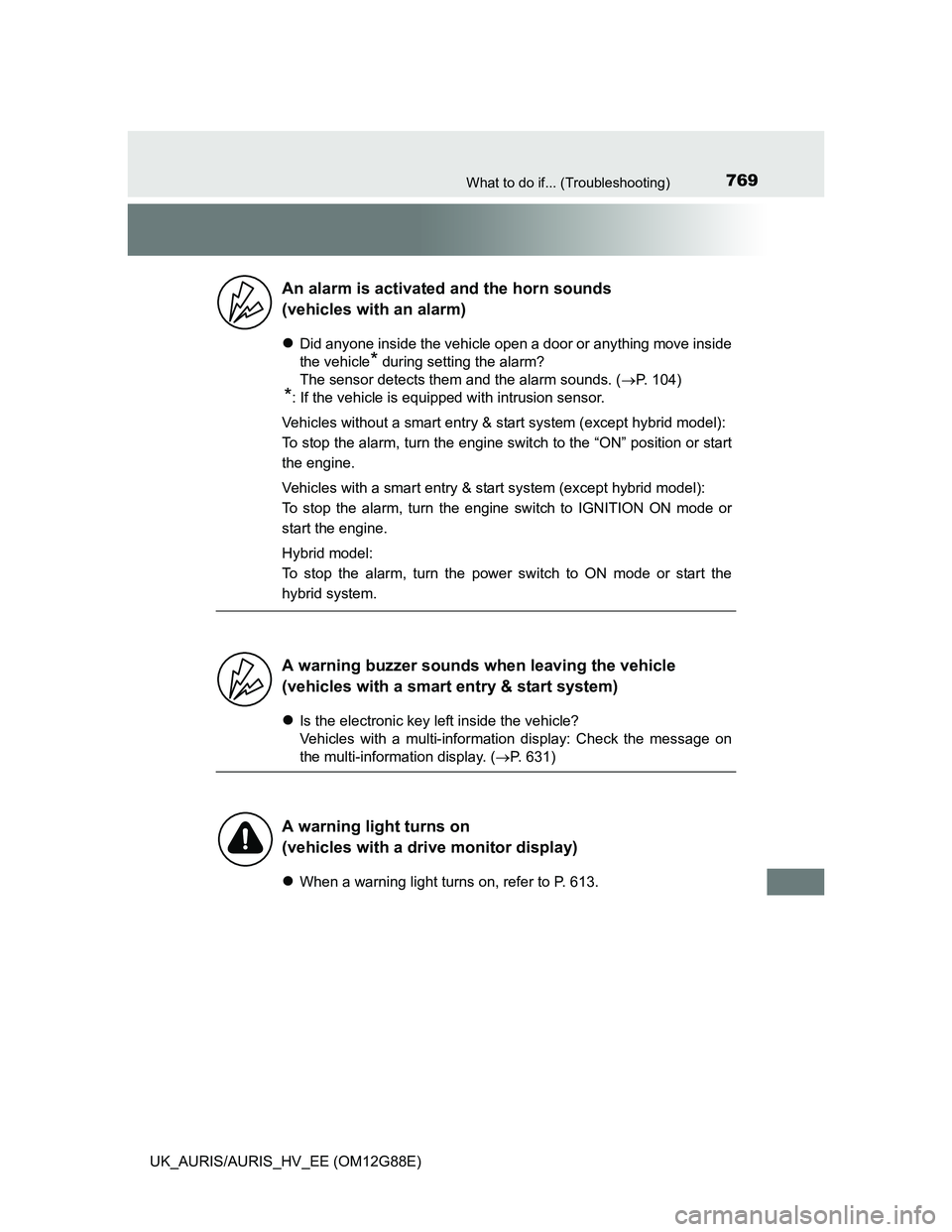

769What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12G88E)

Did anyone inside the vehicle open a door or anything move inside
the vehicle
* during setting the alarm?
The sensor detects them and the alarm sounds. (P. 104)
*: If the vehicle is equipped with intrusion sensor.
Vehicles without a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to IGNITION ON mode or
start the engine.
Hybrid model:
To stop the alarm, turn the power switch to ON mode or start the
hybrid system.
Is the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on
the multi-information display. (P. 631)
When a warning light turns on, refer to P. 613.
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a drive monitor display)

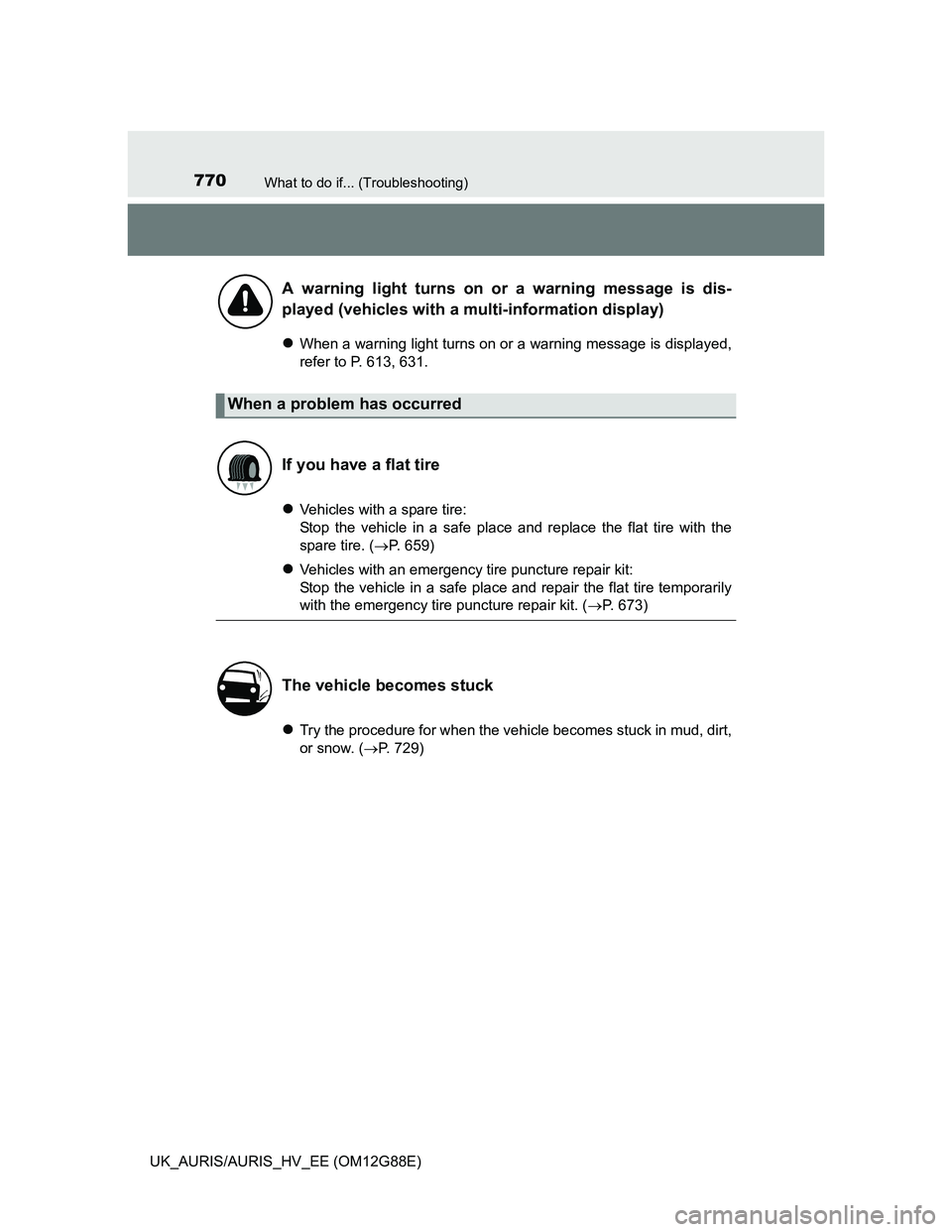

770What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12G88E)
When a warning light turns on or a warning message is displayed,
refer to P. 613, 631.
Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the
spare tire. (P. 659)
Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily
with the emergency tire puncture repair kit. (P. 673)
Try the procedure for when the vehicle becomes stuck in mud, dirt,
or snow. (P. 729)
A warning light turns on or a warning message is dis-
played (vehicles with a multi-information display)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
