steering wheel adjustment TOYOTA AURIS HYBRID 2014 Owners Manual

218
UK_AURIS/AURIS_HV_EE (OM12G88E)

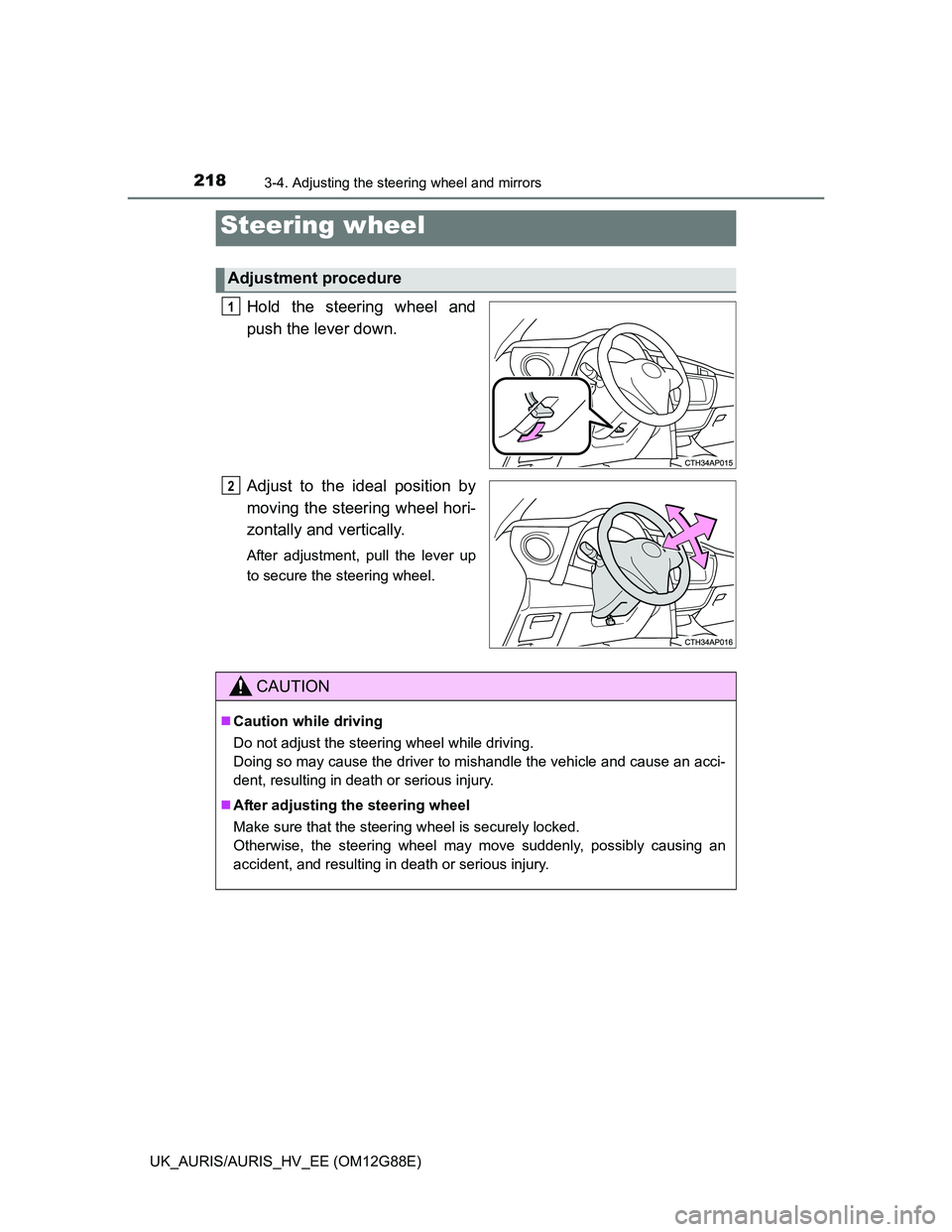

3-4. Adjusting the steering wheel and mirrors
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
Steering wheel
Adjustment procedure
1
2
CAUTION
Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.

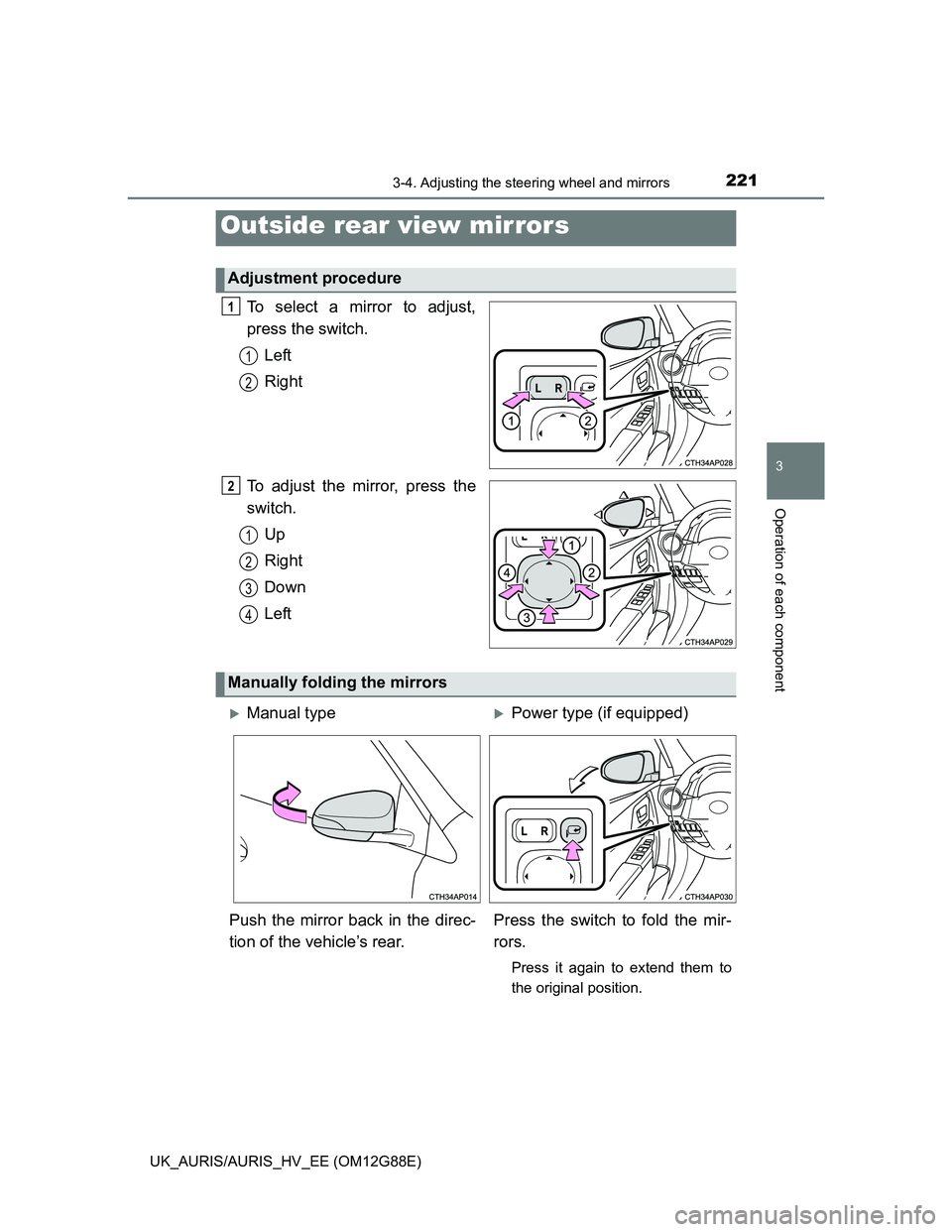

2213-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12G88E)
3
Operation of each component
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4
Manually folding the mirrors
Manual typePower type (if equipped)
Push the mirror back in the direc-
tion of the vehicle’s rear. Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.

2223-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12G88E)

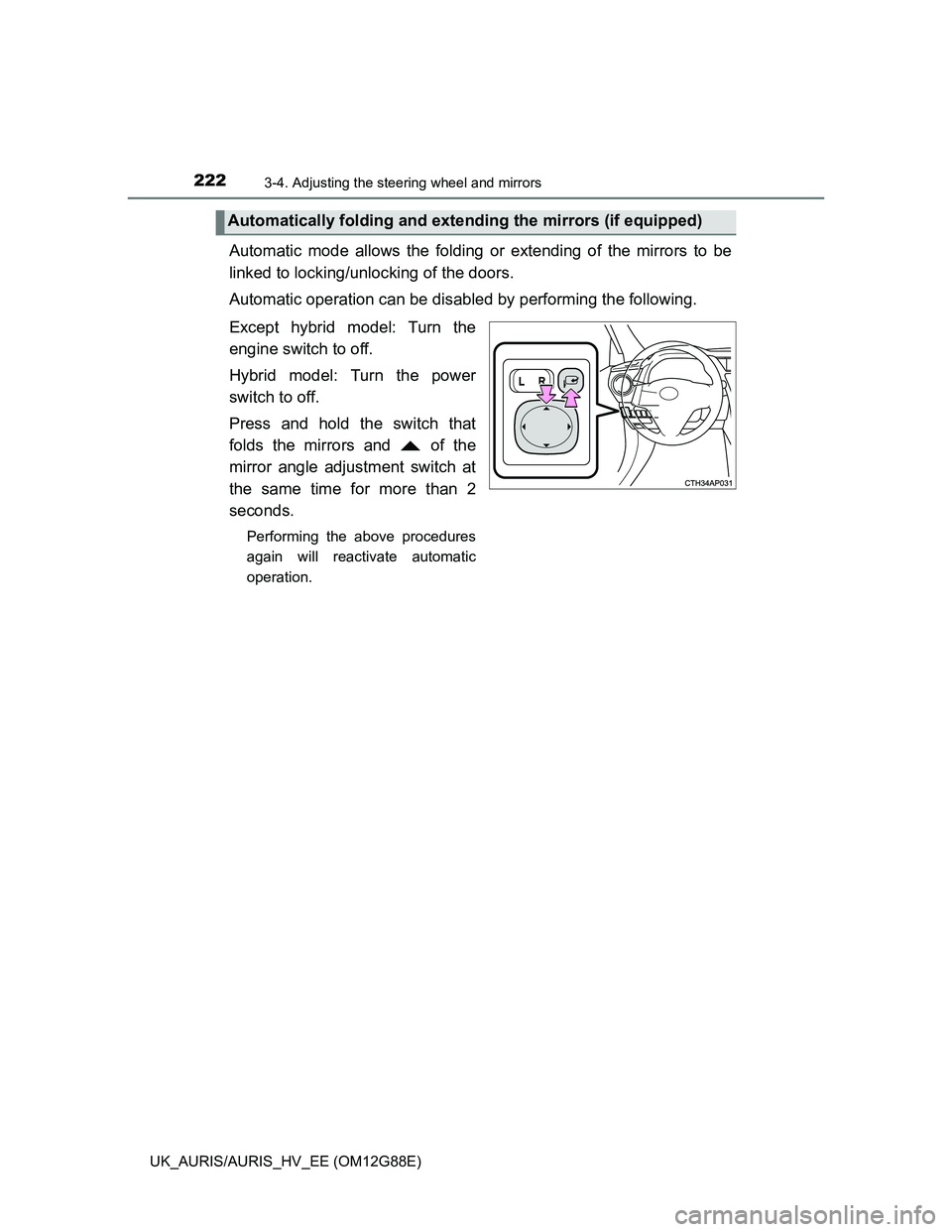

Automatic mode allows the folding or extending of the mirrors to be
linked to locking/unlocking of the doors.
Automatic operation can be disabled by performing the following.
Except hybrid model: Turn the
engine switch to off.
Hybrid model: Turn the power
switch to off.
Press and hold the switch that
folds the mirrors and of the
mirror angle adjustment switch at
the same time for more than 2
seconds.
Performing the above procedures
again will reactivate automatic
operation.
Automatically folding and extending the mirrors (if equipped)

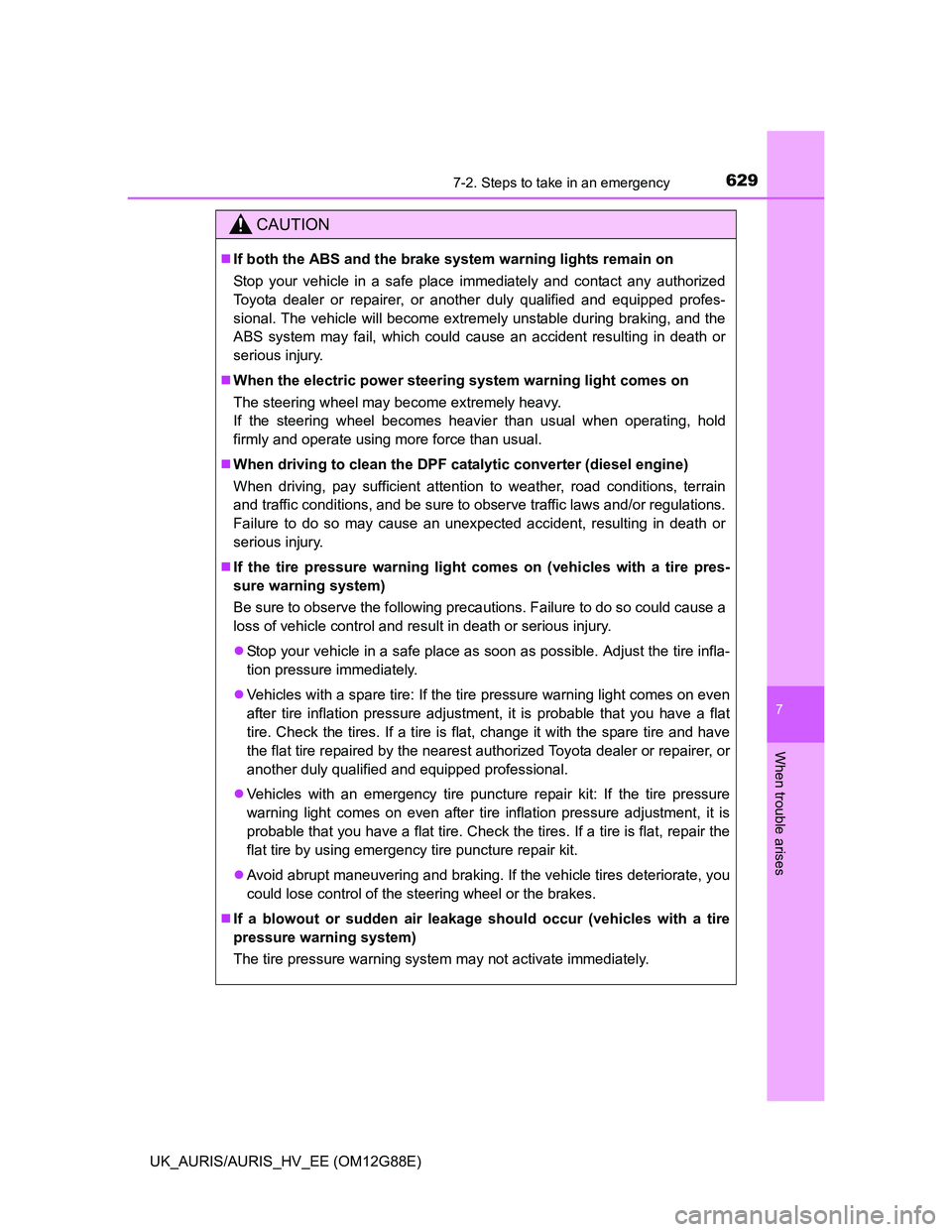

6297-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
CAUTION
If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
Vehicles with a spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat
tire. Check the tires. If a tire is flat, change it with the spare tire and have
the flat tire repaired by the nearest authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.

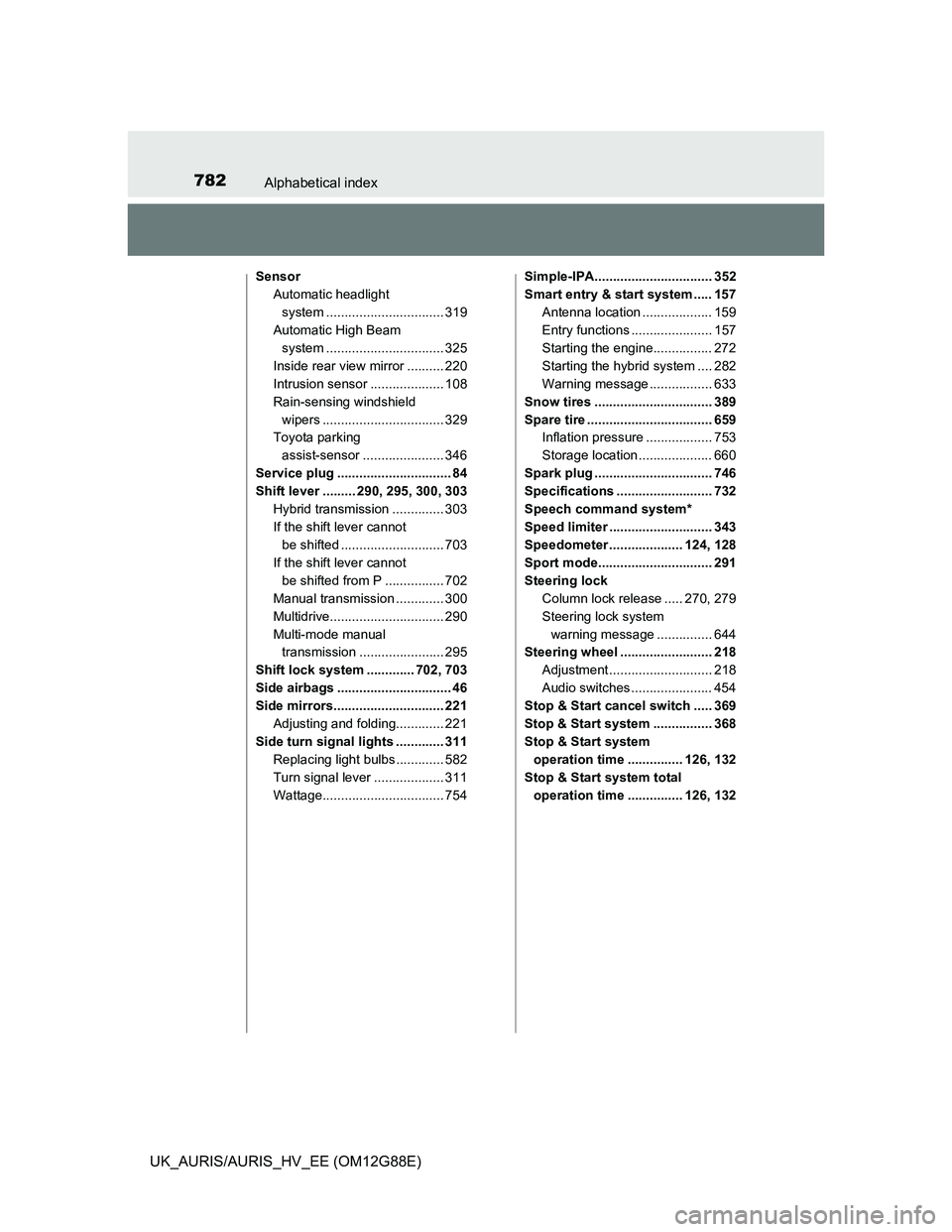

782Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12G88E)
Sensor
Automatic headlight
system ................................ 319
Automatic High Beam
system ................................ 325
Inside rear view mirror .......... 220
Intrusion sensor .................... 108
Rain-sensing windshield
wipers ................................. 329
Toyota parking
assist-sensor ...................... 346
Service plug ............................... 84
Shift lever ......... 290, 295, 300, 303
Hybrid transmission .............. 303
If the shift lever cannot
be shifted ............................ 703
If the shift lever cannot
be shifted from P ................ 702
Manual transmission ............. 300
Multidrive............................... 290
Multi-mode manual
transmission ....................... 295
Shift lock system ............. 702, 703
Side airbags ............................... 46
Side mirrors.............................. 221
Adjusting and folding............. 221
Side turn signal lights ............. 311
Replacing light bulbs ............. 582
Turn signal lever ................... 311
Wattage................................. 754Simple-IPA................................ 352
Smart entry & start system ..... 157
Antenna location ................... 159
Entry functions ...................... 157
Starting the engine................ 272
Starting the hybrid system .... 282
Warning message ................. 633
Snow tires ................................ 389
Spare tire .................................. 659
Inflation pressure .................. 753
Storage location .................... 660
Spark plug ................................ 746
Specifications .......................... 732
Speech command system*
Speed limiter ............................ 343
Speedometer .................... 124, 128
Sport mode............................... 291
Steering lock
Column lock release ..... 270, 279
Steering lock system
warning message ............... 644
Steering wheel ......................... 218
Adjustment ............................ 218
Audio switches ...................... 454
Stop & Start cancel switch ..... 369
Stop & Start system ................ 368
Stop & Start system
operation time ............... 126, 132
Stop & Start system total
operation time ............... 126, 132
