TOYOTA AURIS HYBRID 2016 Owners Manual

911-3. Theft deterrent system
1
For safety and security
UK AURIS_HV_HB_EE (OM12K47E)■

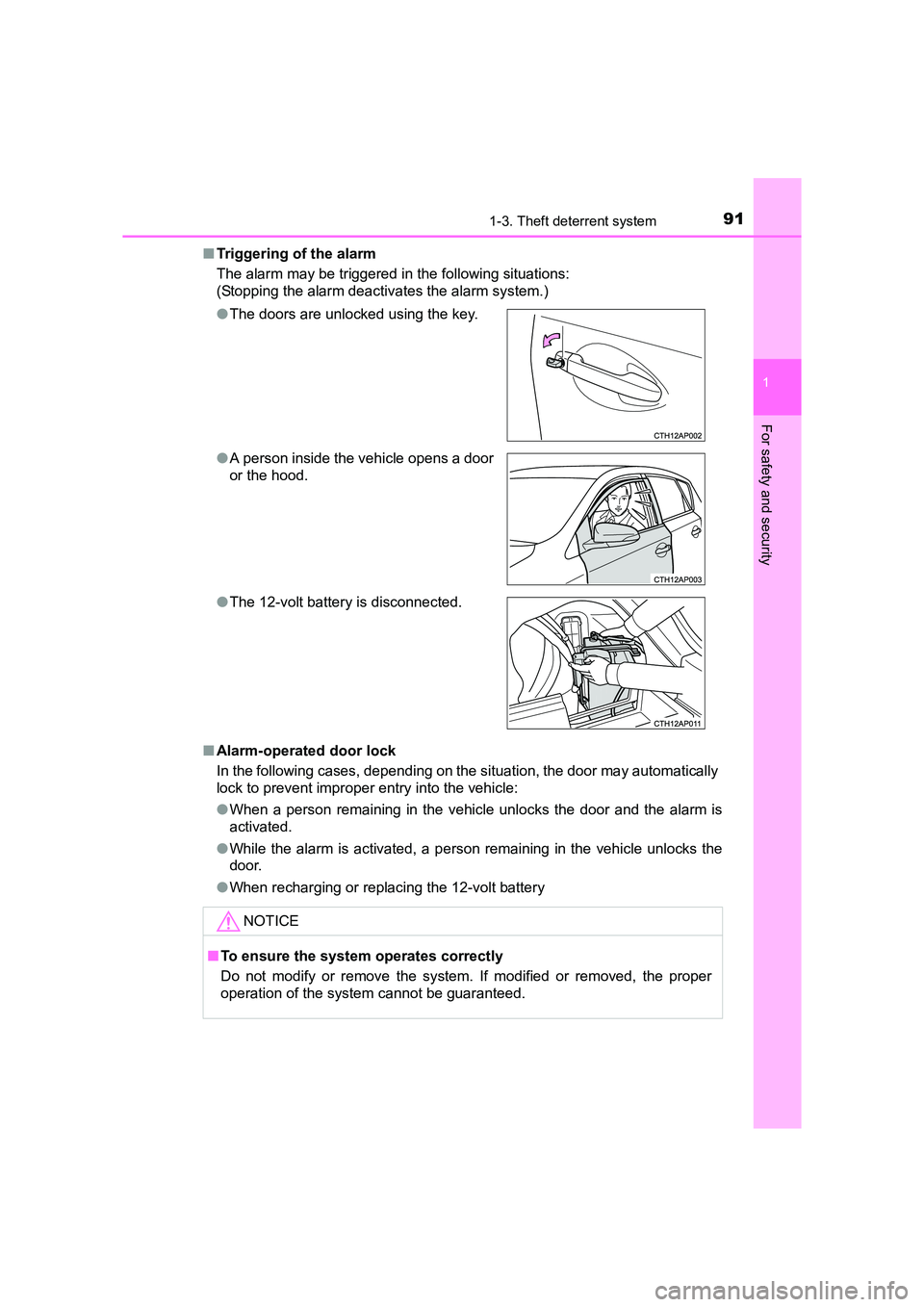

Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:
●When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the 12-volt battery
●
The doors are unlocked using the key.
● A person inside the vehicle opens a door
or the hood.
● The 12-volt battery is disconnected.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

921-3. Theft deterrent system
UK AURIS_HV_HB_EE (OM12K47E)
The intrusion sensor detects intruders or movement in the vehicle.
When an intruder or movement is detected, the alarm will be trig-
gered.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
(→ P. 8 9 )
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to stop the intrusion sensor before setting the alarm, as
they will respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor
cancel switch.
To set the alarm with the intru-
sion sensor disabled, the alarm
must be set within 5 minutes
after canceling the sensor.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
Intrusion sensor
1
2

931-3. Theft deterrent system
1
For safety and security
UK AURIS_HV_HB_EE (OM12K47E)
■Canceling and automatic re-enabling of the intrusion sensor
●The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function or wireless remote control will re-
enable the intrusion sensor.
● The intrusion sensor will automatic ally be re-enabled when the alarm sys-
tem is deactivated.
● The intrusion sensor will automatically be re-enabled if the alarm system is
not set within 5 minutes after the intrusion sensor is canceled.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
● Persons or pets are in the vehicle.
● A window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
• The movement of people outside the
vehicle
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

941-3. Theft deterrent system
UK AURIS_HV_HB_EE (OM12K47E)●
The vehicle is inside an automatic or high-pressure car wash.
● The vehicle experiences impacts, such as hail, lightning strikes, and other
kinds of repeated impacts or vibrations.
●
The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
● Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.
NOTICE
■To ensure the intrusion sensor function correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
●To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.

951-3. Theft deterrent system
1
For safety and security
UK AURIS_HV_HB_EE (OM12K47E)
Vehicles employing this system
have labels on the window glass
of both front doors.Turn the power switch off, have all the passengers exit the vehicle
and ensure that all the doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
Double locking system (right-hand drive
vehicles only)
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.
1
2

961-3. Theft deterrent system
UK AURIS_HV_HB_EE (OM12K47E)

97
2Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)2. Instrument cluster
Warning lights and indicators ........................... 98
Gauges and meters ........... 103
Multi-information display ............................. 106
Energy monitor/ consumption screen ........115

98
UK AURIS_HV_HB_EE (OM12K47E)
2. Instrument cluster
The units used on the speedometer and some indicators may differ
depending on the target region.
War ning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

992. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(Red)
Brake system warning
light (→P. 491)*1
Slip indicator ( →P. 492)
*1
(Yellow)
Brake system warning
light ( →P. 491)*1, 2
(if equipped)
PCS warning light
(→ P. 493)
High engine coolant
temperature warning
light ( →P. 491)
Low fuel level warning
light ( →P. 493)
*1Malfunction indicator
lamp ( →P. 492)Driver’s and front pas-
senger’s seat belt
reminder light ( →P. 493)
*1SRS warning light
(→ P. 492)*3Rear passengers’ seat
belt reminder lights
(→ P. 494)
*1
ABS warning light
(→ P. 492)*1
(if equipped)
Tire pressure warning
light ( →P. 494)
*1Electric power steering
system warning light
(→ P. 492)*1Master warning light
(→ P. 494)

1002. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)

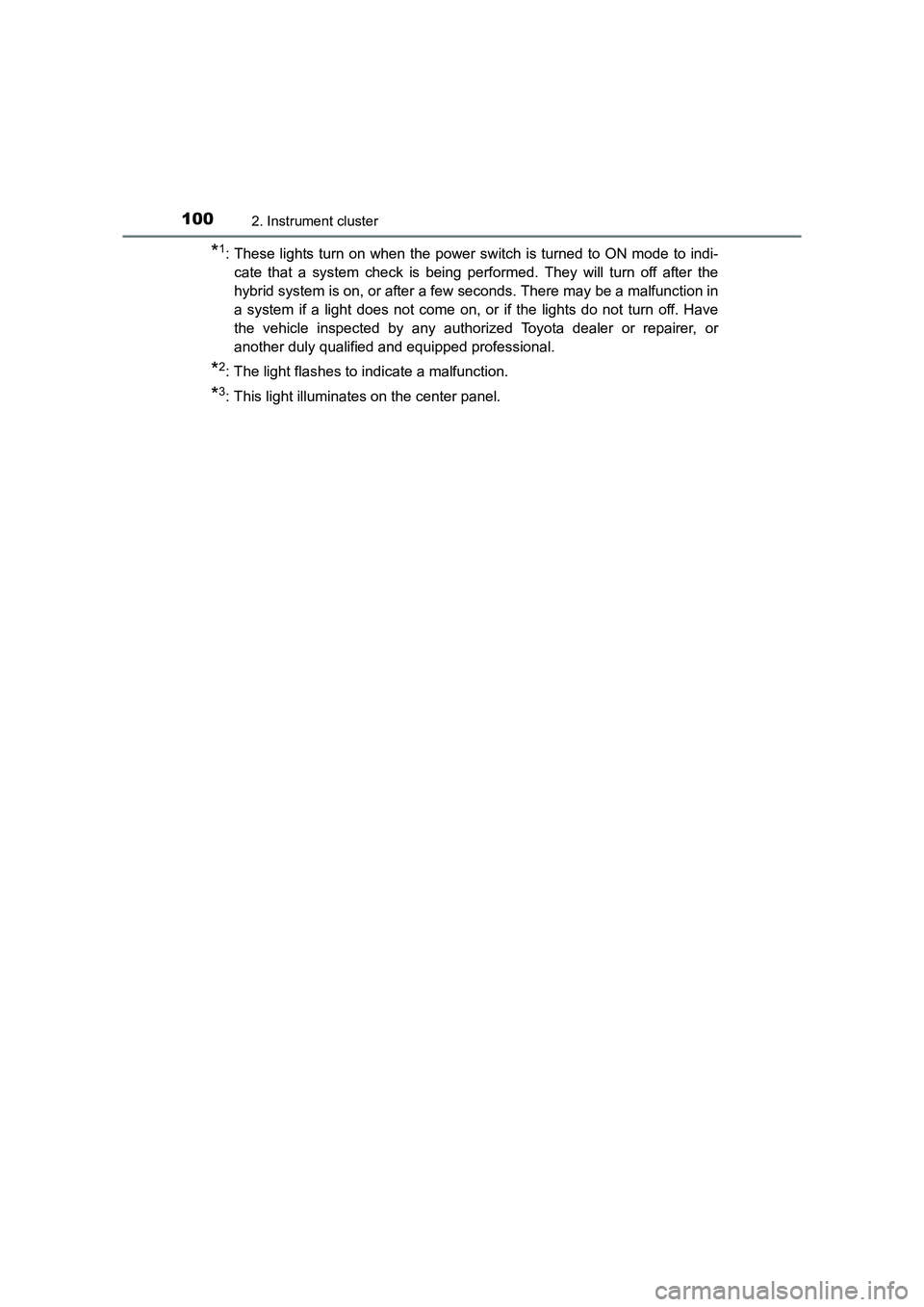

*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.
