TOYOTA AURIS HYBRID 2016 Owners Manual

1213-1. Key information
UK AURIS_HV_HB_EE (OM12K47E)
3
Operation of each component

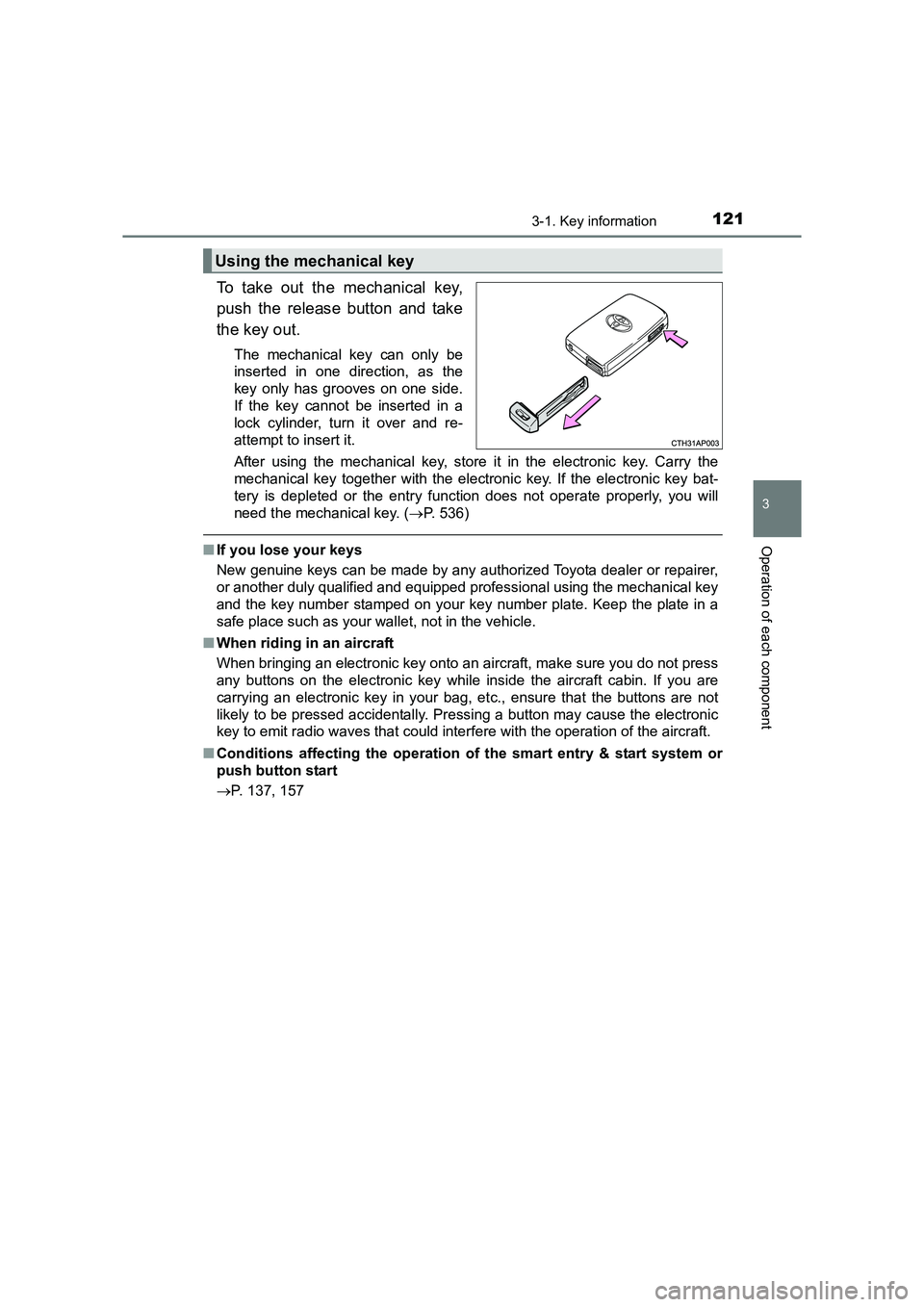

To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. ( →P. 536)
■If you lose your keys
New genuine keys can be made by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional using the mechanical key
and the key number stamped on your key number plate. Keep the plate in a
safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying an electronic key in your bag, etc., ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting the operation of the smart entry & start system or
push button start
→ P. 137, 157
Using the mechanical key

1223-1. Key information
UK AURIS_HV_HB_EE (OM12K47E)■

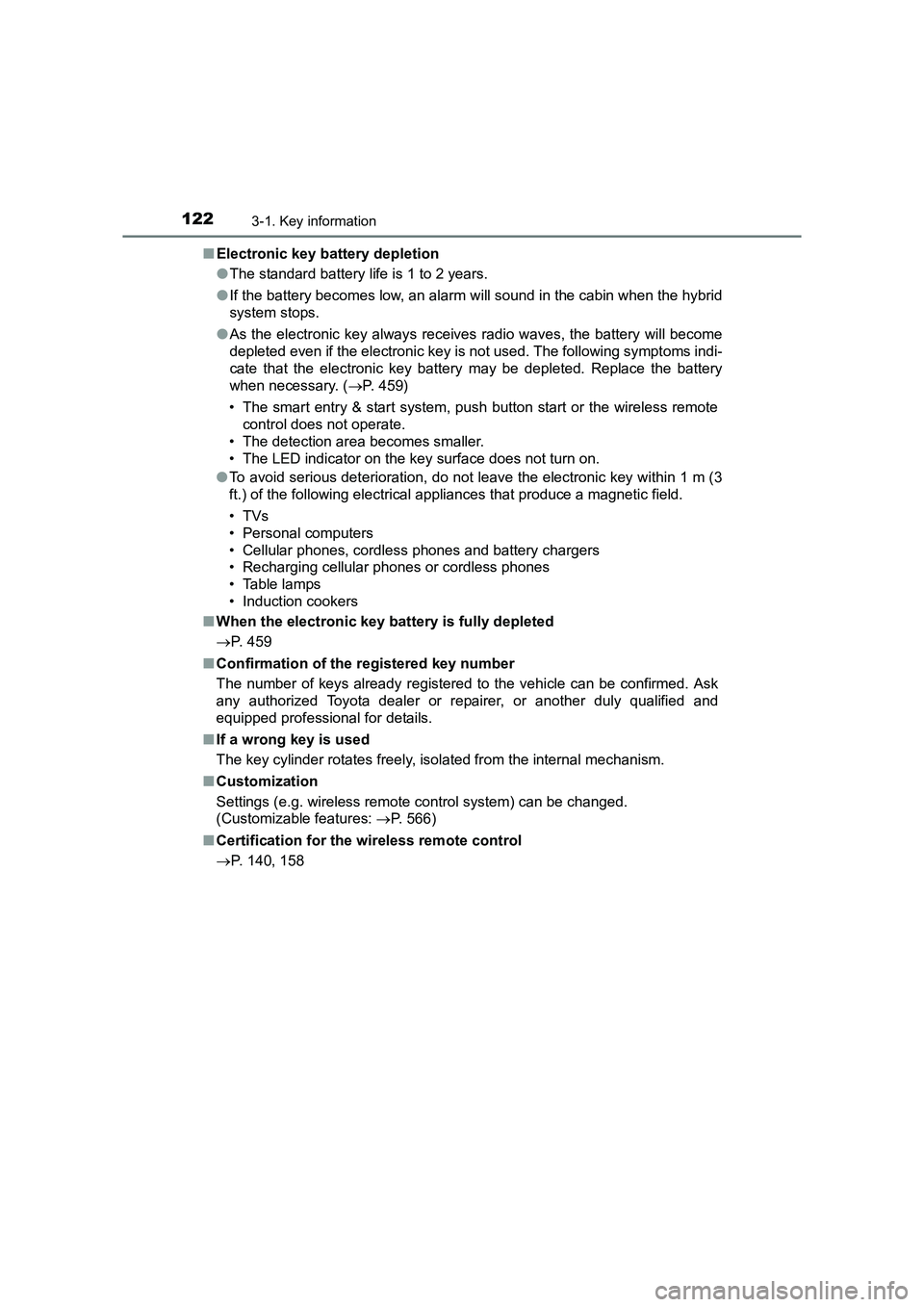

Electronic key battery depletion
●The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the hybrid
system stops.
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( →P. 459)
• The smart entry & start system, push button start or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ When the electronic key battery is fully depleted
→ P. 459
■ Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional for details.
■ If a wrong key is used
The key cylinder rotates freely, isolated from the internal mechanism.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: →P. 566)
■ Certification for the wireless remote control
→ P. 140, 158

1233-1. Key information
UK AURIS_HV_HB_EE (OM12K47E)
3
Operation of each component

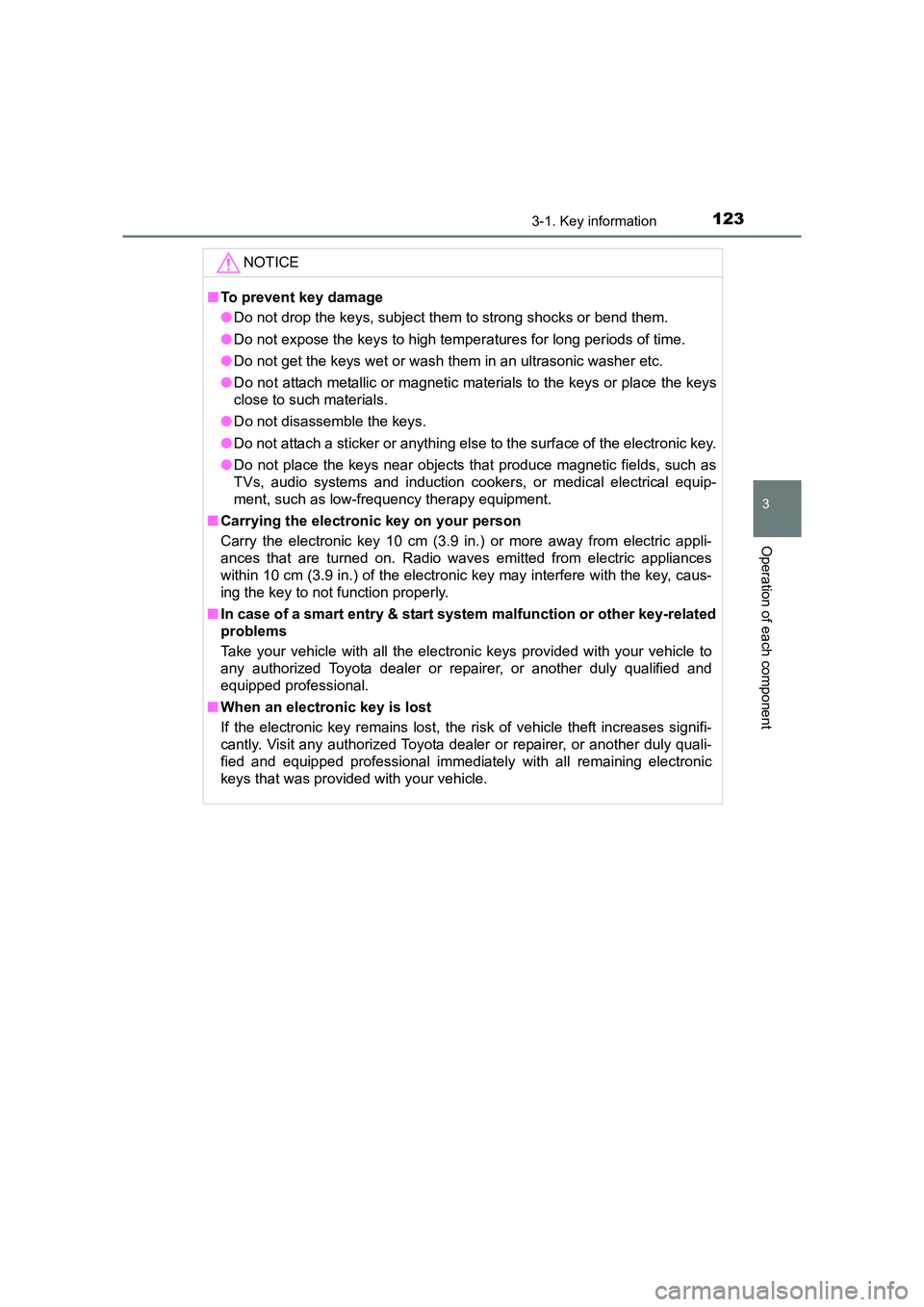

NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start syst em malfunction or other key-related
problems
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately with all remaining electronic
keys that was provided with your vehicle.

124
UK AURIS_HV_HB_EE (OM12K47E)
3-2. Opening, closing and locking the doors
◆Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.Grip the front door handle to
unlock all the doors.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the side of the
door handle) to lock all the
doors.
Check that the door is securely locked.
◆Wireless remote control
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
■Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, vehicle may be unlocked.)
Side doors
Unlocking and locking the doors from the outside
1
2
1
2

1253-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12K47E)
3
Operation of each component
■When the door cannot be locked by th e lock sensor on the surface of the
front door handle
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer will sound continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the doors again.
■ Alarm (if equipped)
Using the entry function or wireless remote control to lock the doors will set
the alarm system. ( →P. 89)
■ If the smart entry & start system or the wireless remote control does not
operate properly
Use the mechanical key to lock and unlock the doors. ( →P. 536)
Replace the key battery with a new one if it is depleted. ( →P. 459)
Use your palm to touch the lock sensor.

1263-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12K47E)

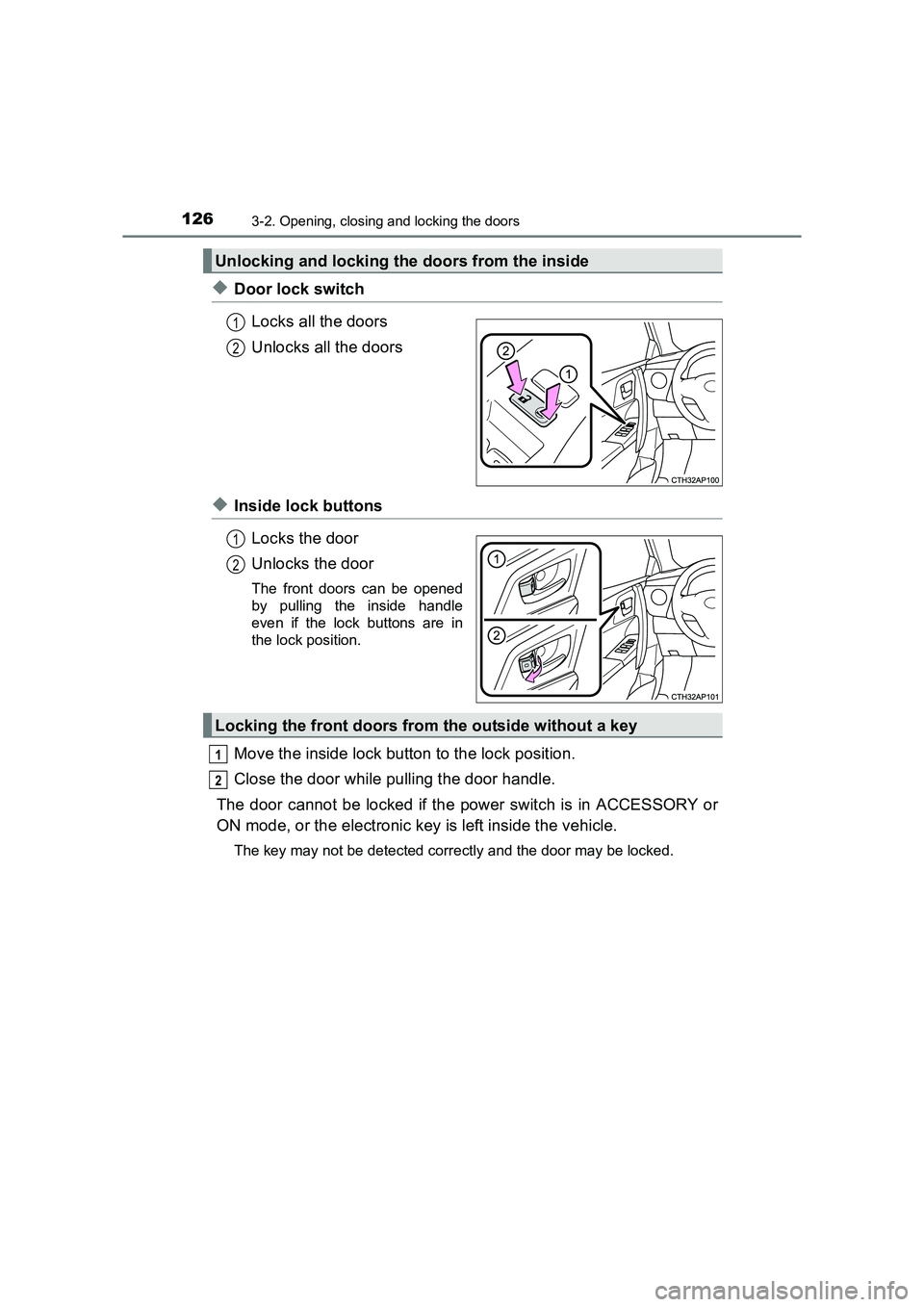

◆Door lock switchLocks all the doors
Unlocks all the doors
◆Inside lock buttonsLocks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the power switch is in ACCESSORY or
ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

1273-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12K47E)
3
Operation of each component

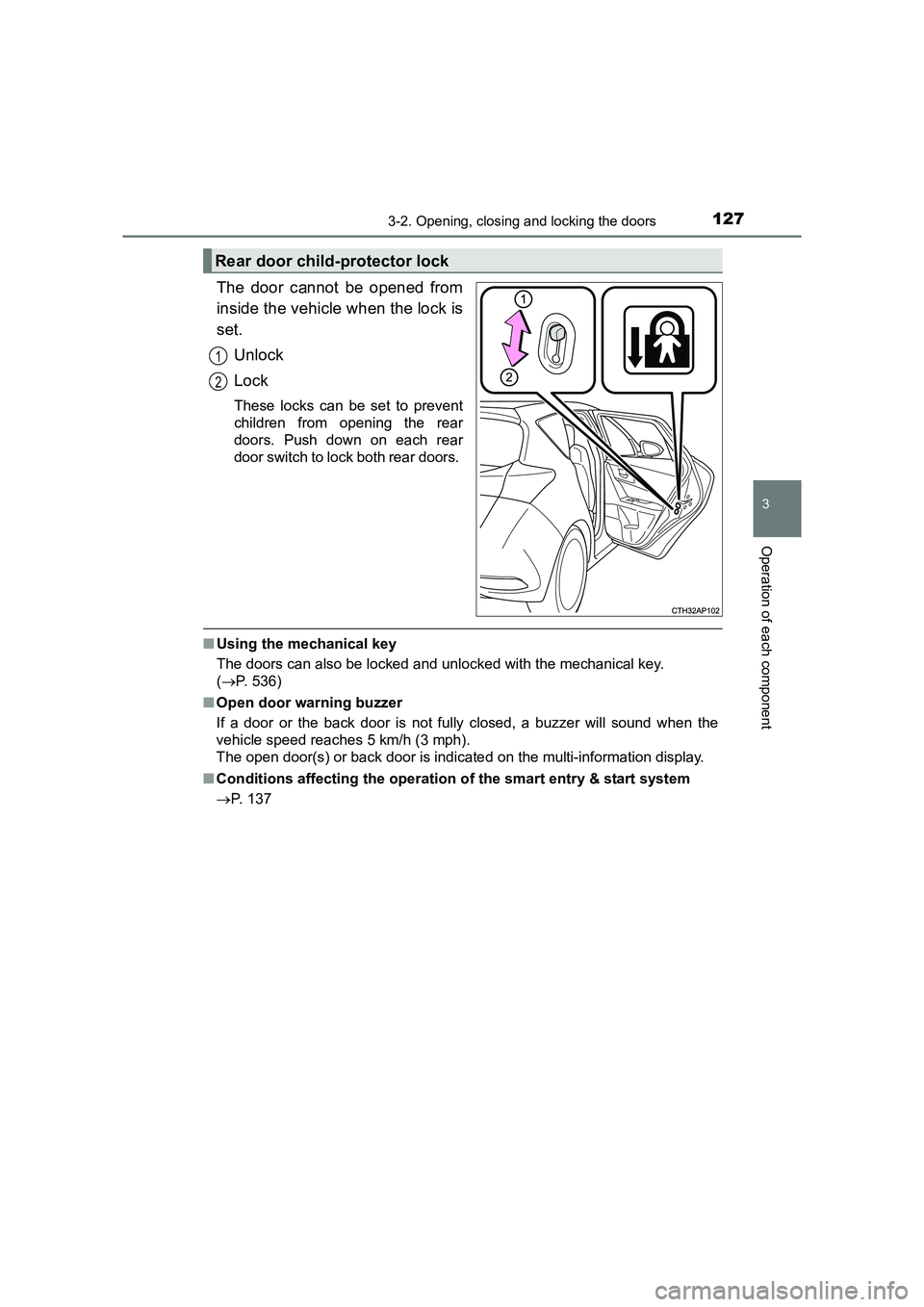

The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key.
(→ P. 536)
■ Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 5 km/h (3 mph).
The open door(s) or back door is indicat ed on the multi-information display.
■ Conditions affecting th e operation of the smart entry & start system
→ P. 137
Rear door child-protector lock
1
2

1283-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12K47E)
WARNING
■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the driver’s door and passenger’s door, as the
door may be opened even if the inside lock button is in the locked position.
● Set the rear door child-protector loc ks when children are seated in the rear
seats.

1293-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12K47E)
3
Operation of each component

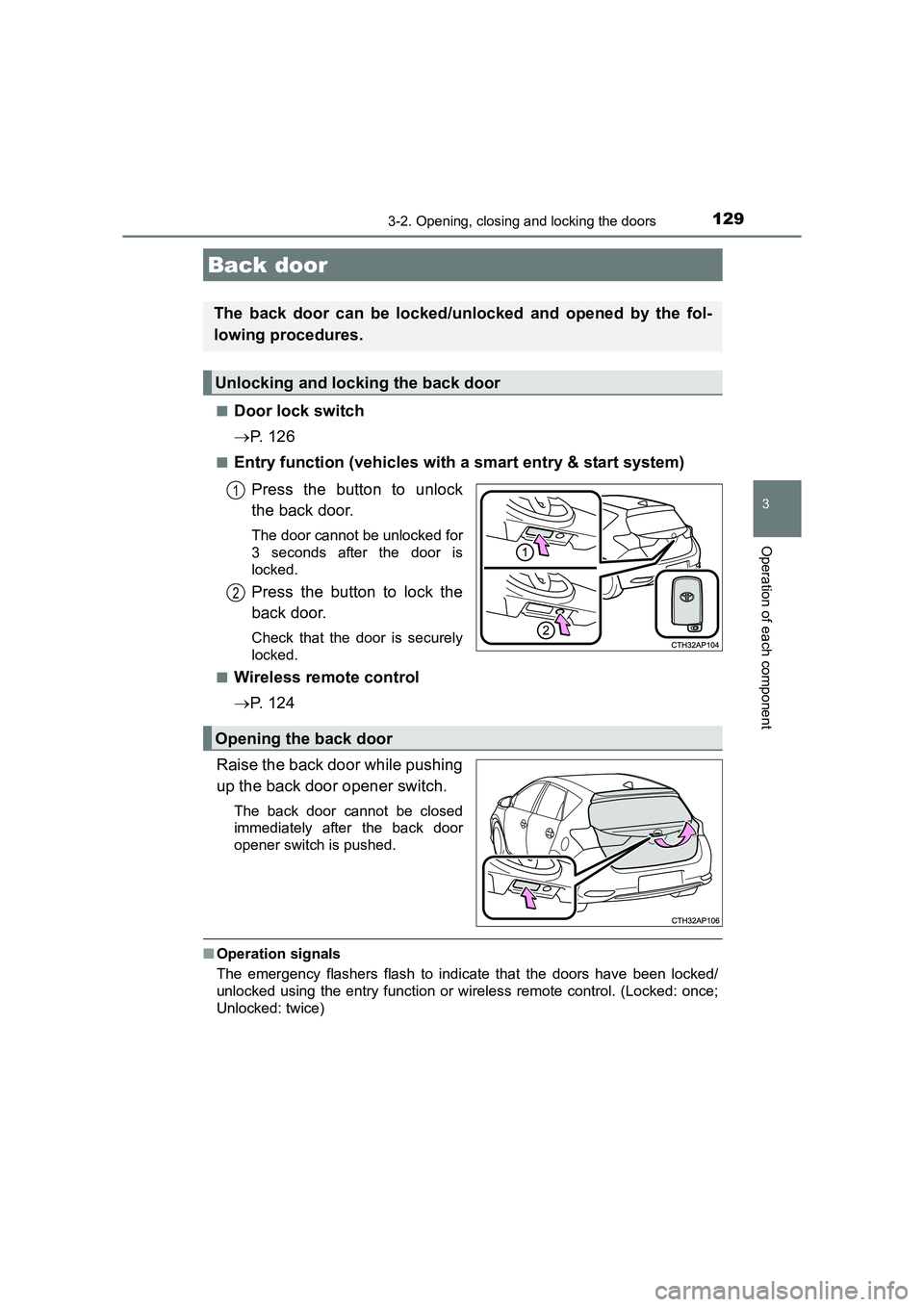

■Door lock switch
→P. 1 2 6
■Entry function (vehicles with a smart entry & start system)
Press the button to unlock
the back door.
The door cannot be unlocked for
3 seconds after the door is
locked.
Press the button to lock the
back door.
Check that the door is securely
locked.
■
Wireless remote control
→ P. 1 2 4
Raise the back door while pushing
up the back door opener switch.
The back door cannot be closed
immediately after the back door
opener switch is pushed.
■ Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked using the entry function or wireless remote control. (Locked: once;
Unlocked: twice)
Back door
The back door can be locked/unlocked and opened by the fol-
lowing procedures.
Unlocking and locking the back door
1
2
Opening the back door

1303-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12K47E)■
Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 5 km/h (3 mph).
The open door(s) or back door is indicat ed on the multi-information display.
■ When closing the back door
■ Luggage compartment light
The luggage compartment light turns on when the back door is opened.
■ If the back door opener is inoperative
The back door can be operated from the inside. Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
Be careful not to pull the back door
sideways when closing the back door
with the handle.
Using a screwdriver, remove the cover.
To protect the cover, place a rag
between the flathead screwdriver and
the cover as shown in the illustration.
Move the lever.
1
2
